LIVE ALONG THE RIVER

LIVE ALONG THE RIVER

—A

riparian

resilience design at Turrella Station North

LAND7313 Masters Landscape Capstone Studio 2

ASSESSMENT 3 : Final Design Presentation

Student name: Yudi Li

ID: z5236326

Course Convenor: Lee Roberts

Time:08.2021

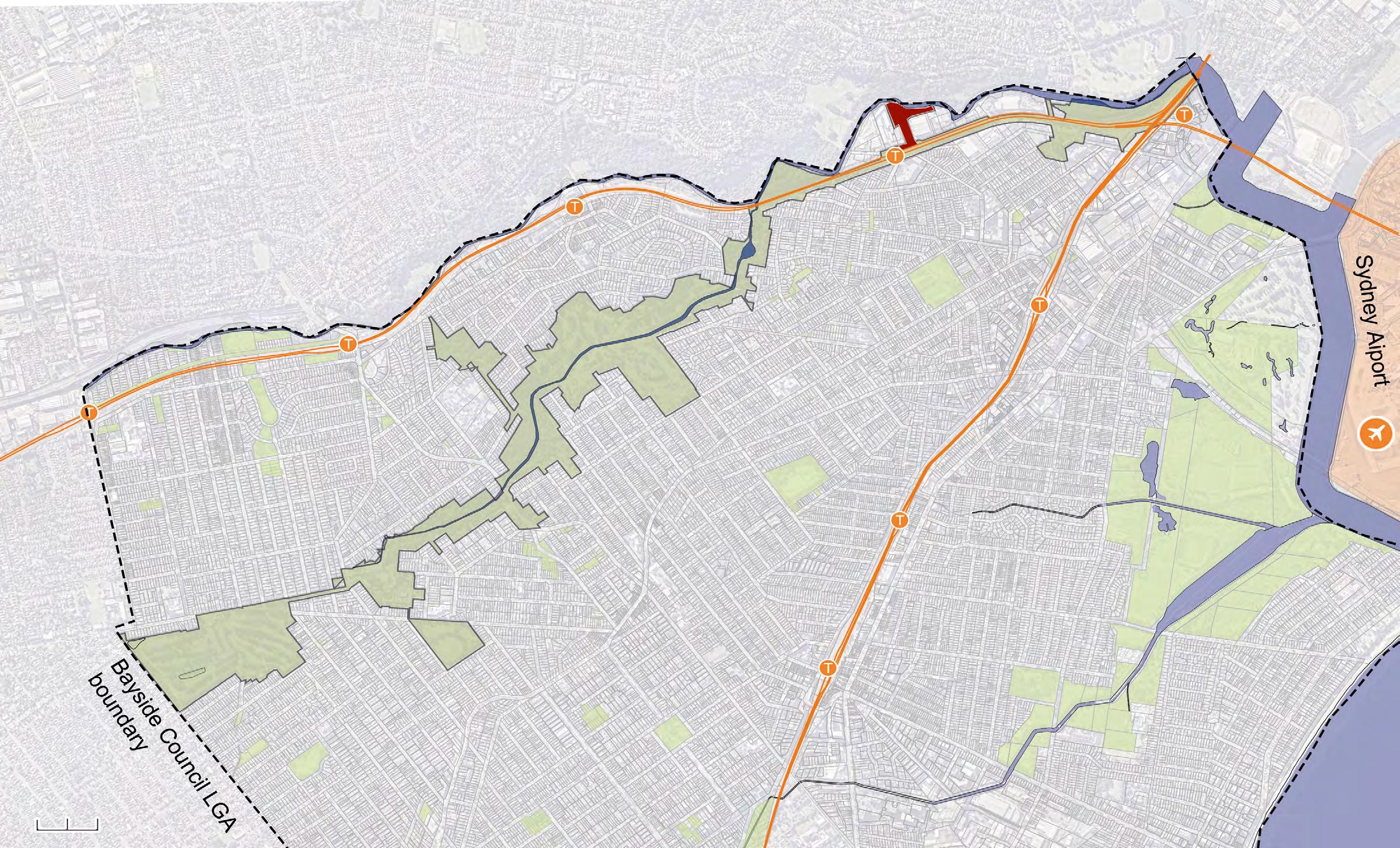

Bardwell Valley Parkland & Woli Creek Green Corridor

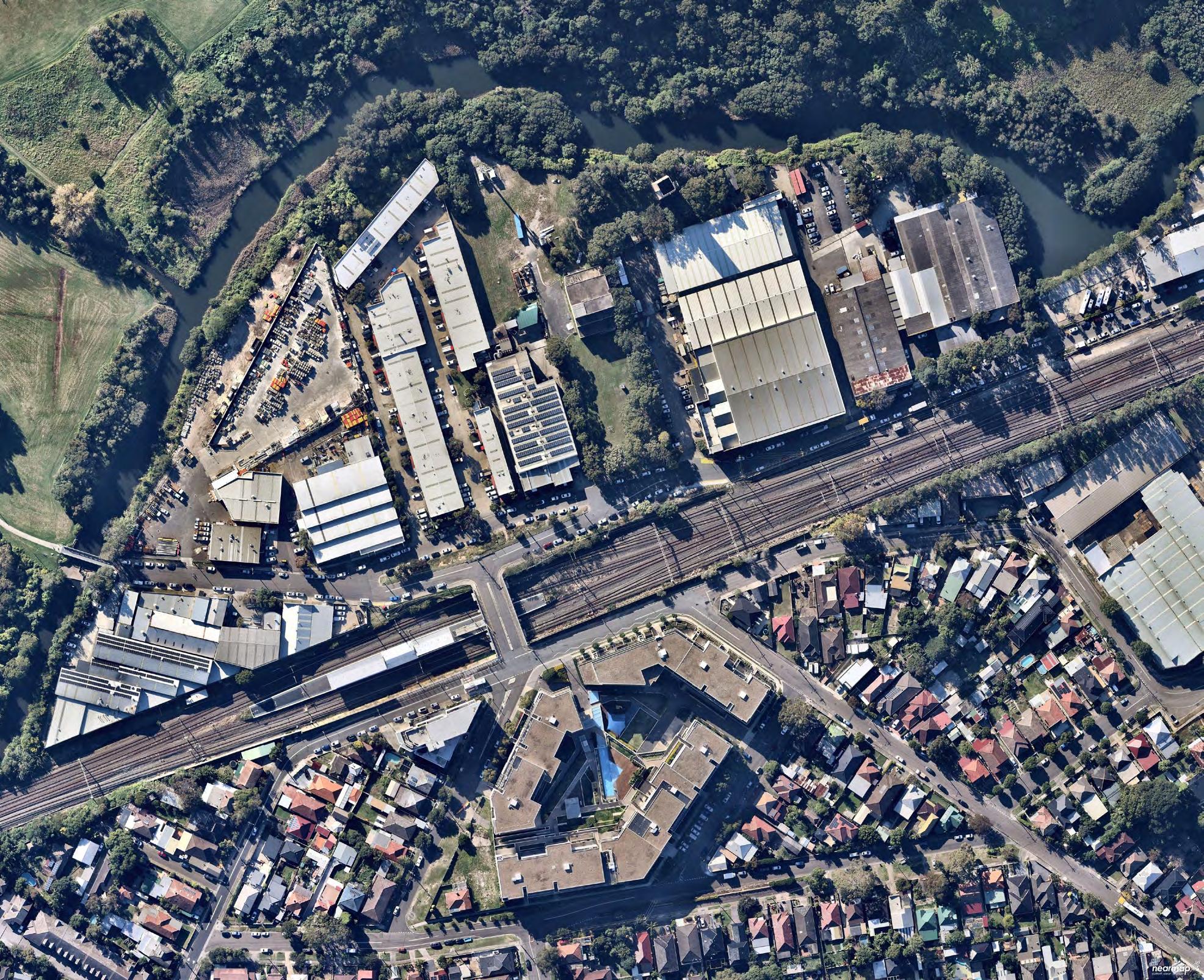

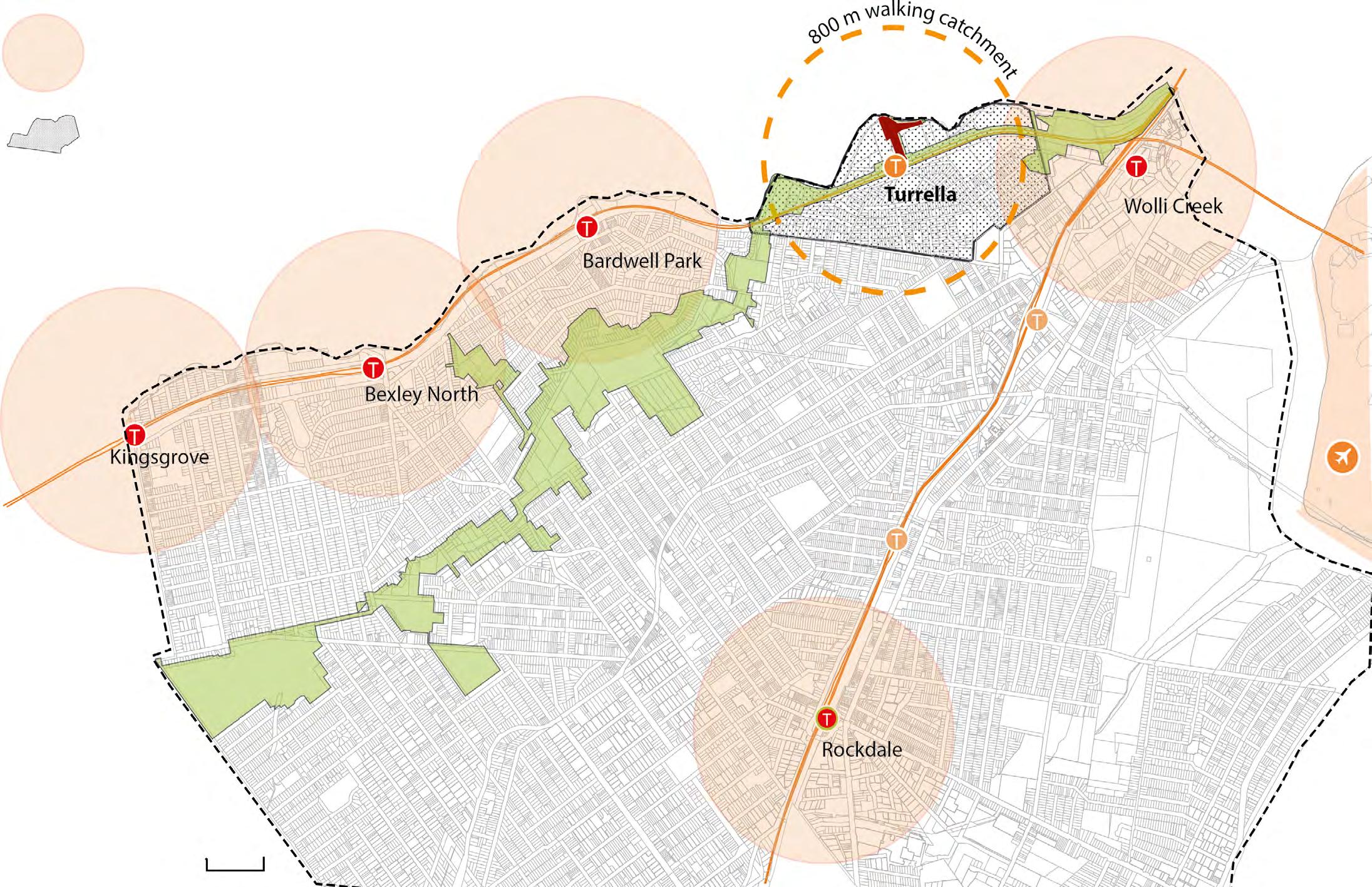

800m walking catchment

Turrella Precincts(Urban Renewal area )

SOCIO-ECONOMIC

PROFILE : HISTORY-NOW-FUTURE

Source:

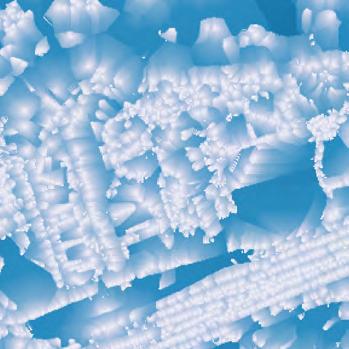

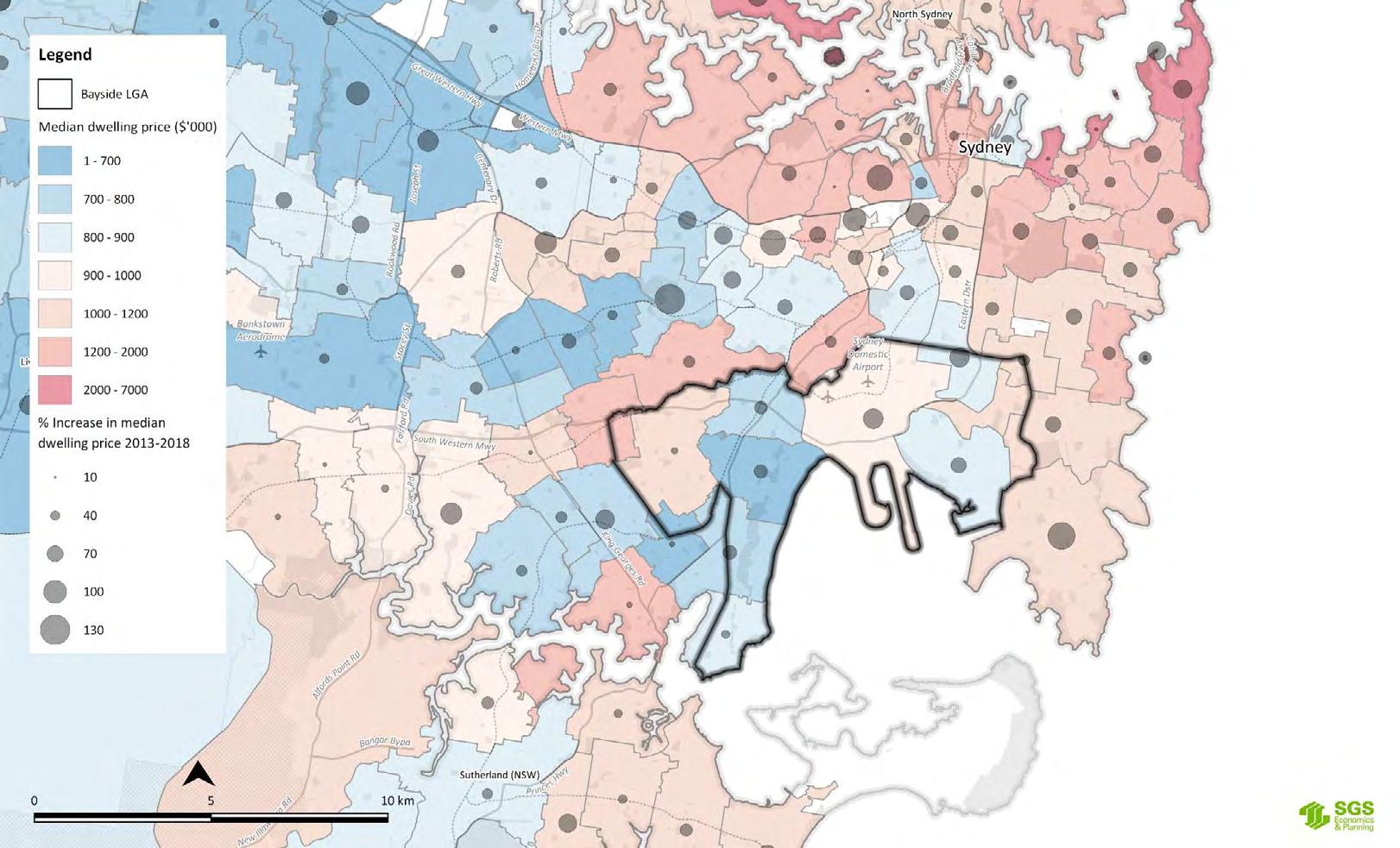

This diagram shows the increasing trend of dwelling price during 2013-2018. Meanwhile, Since the dwellings have more good view near the Woli Creek and Bardwell Valley Corridor, the price of the dwellings is higher than other Bayside LGA areas. It shows that the green Corridor areas has potential positive economic influence for surrounding dwelling.

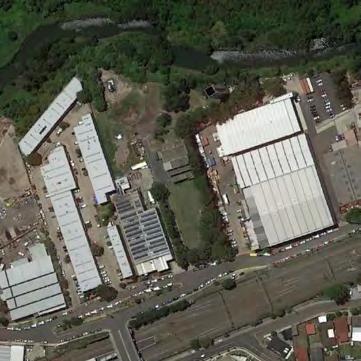

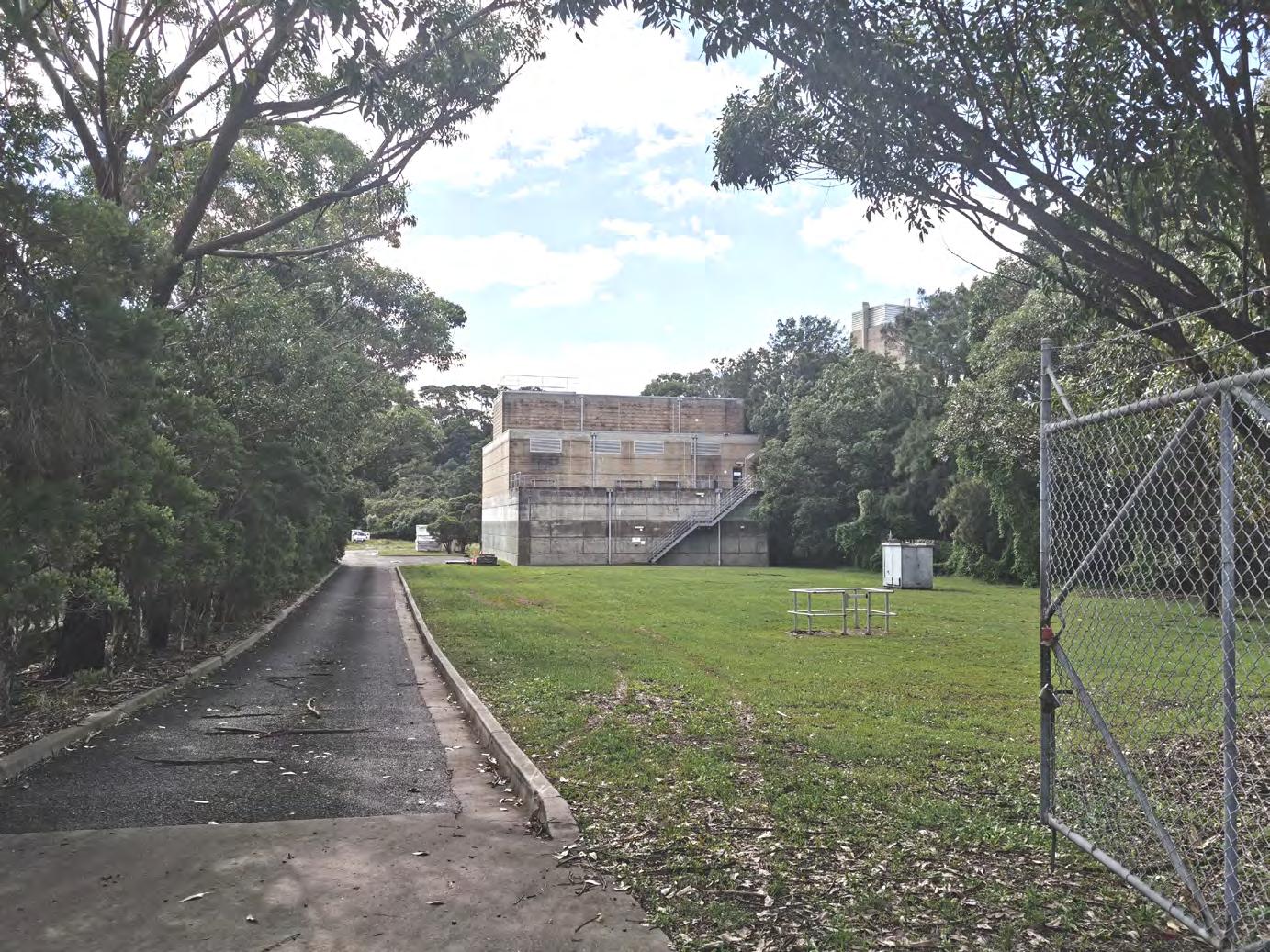

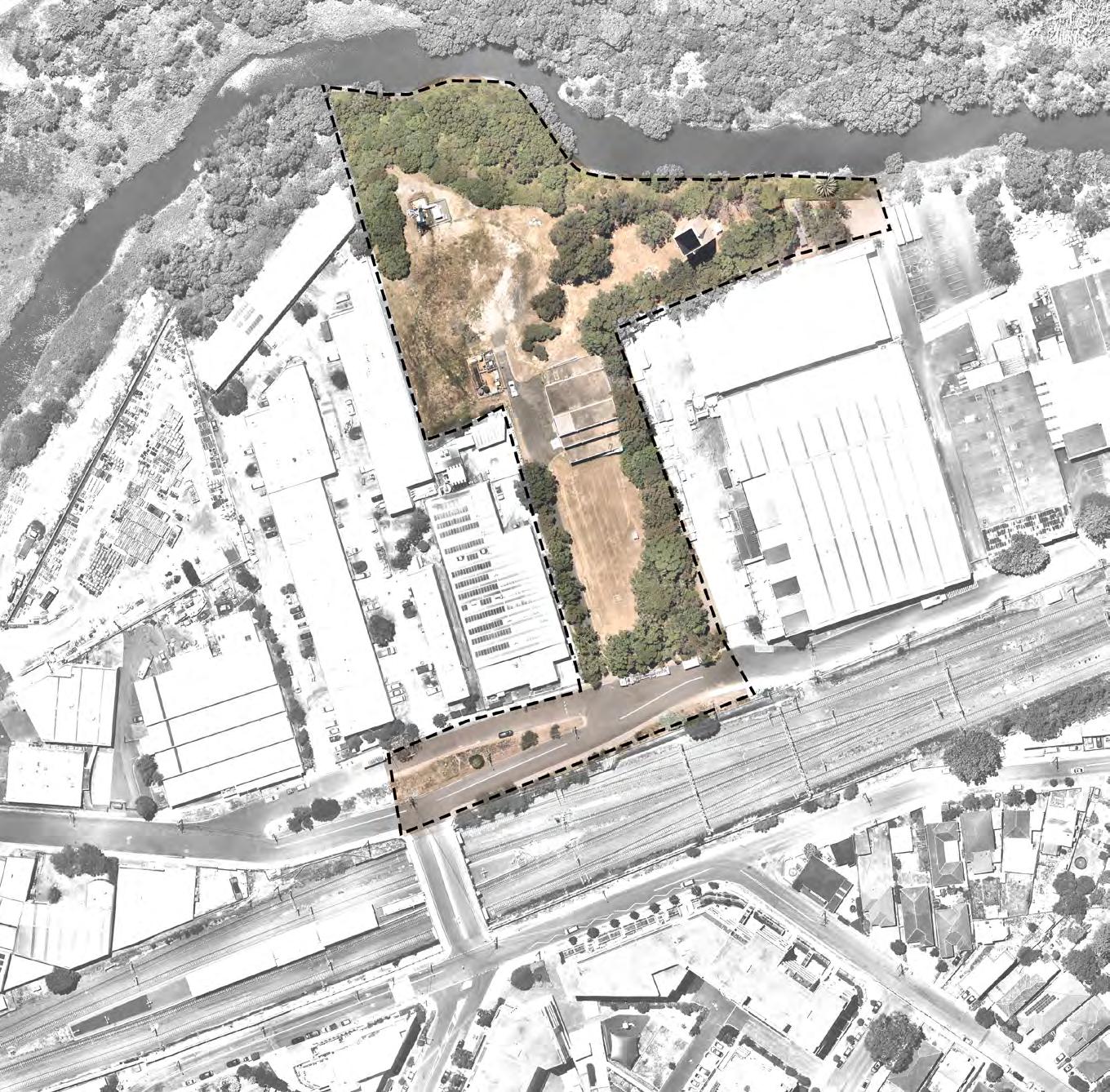

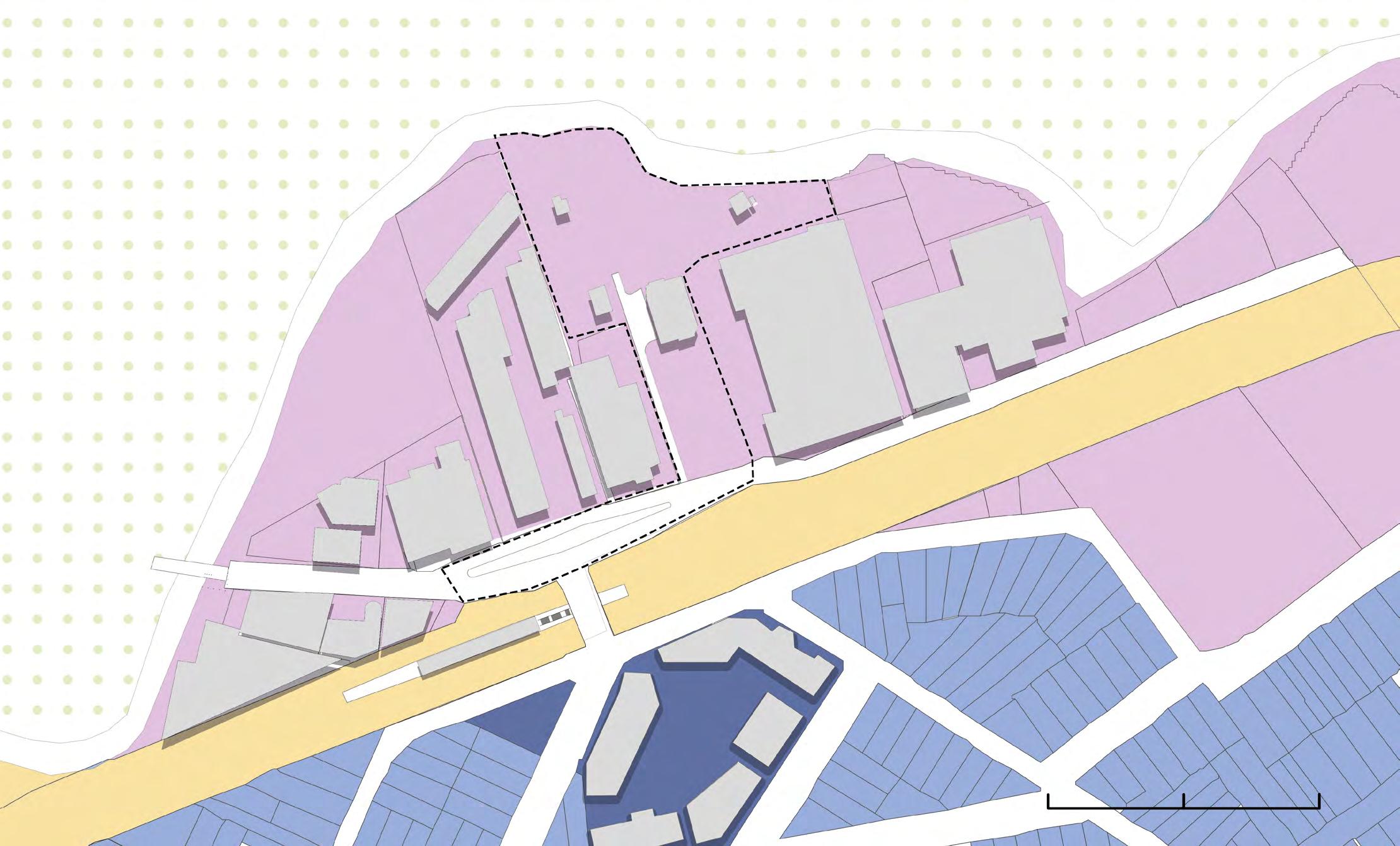

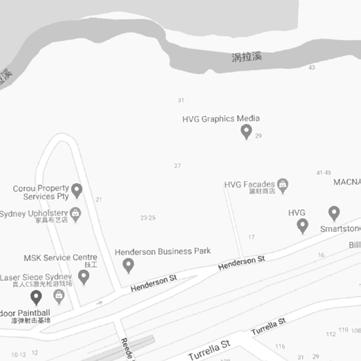

Turrella Station North Overall Condition

SIZE:1.9 Ha

1.Surrounding by Light industrial buildings

Normal water level= 0m

1 in20 years event=0.9m

1 in 100 years event=1.6m

1 in 100 40 cm SLR=2m

1 in100 90cm SLR =2.5m

1.Site North riparian area; 2 East light industrial area to the site

Entrance and Barriers

Fauna & Flora distribution

Flora list

Sydney blue gum

•Eucalyptus saligna

•Type: Tree

Sydney red gum

•Angophora costata

•Type: Tree

Australian cheesewood

•Pittosporum undulatum

•Type: Tree or shrub.

Fast-growing species and has become invasive in Australia.

Sydney peppermint

•Eucalyptus poperita

•Type: Tree

Olive

•Olea europaea

•Type: Tree or shrub.

Beach sheoak

•Casuarina equisetifolia

•Type: Tree

Common lantana

•Lantana camara

•Type: shrub.

Hairy Beggarticks

•Bidens pilosa

•Type: herb. an invasive species in many countreis.

Common Dandelion

•Taraxacum

•Type: herb.

Fauna list

•Acacia

•Type: Tree

Silverleaf Cotoneaster

•Cotoneaster pannosus

•Type: shrub.

Balloon vine

•Ardiospermum grandiflorum

•Type: herb.

It include in Biosecurity duty in NSW

History Evolution

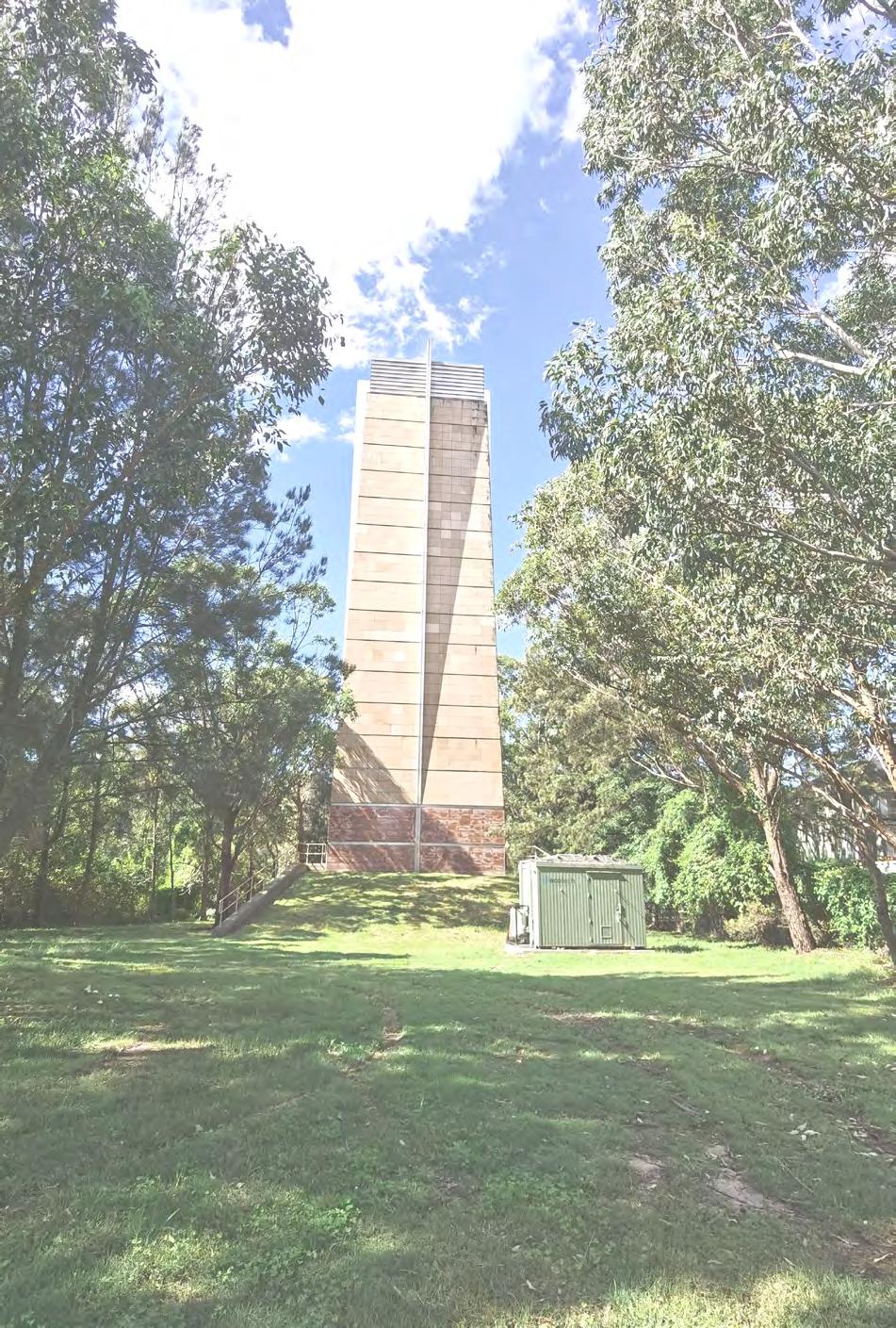

2004: Industry area redevelopment. New brick Chimney established for M5 East Tunnel ventilation stack. Substation occurred. (Source from:Open map)

from: https://portal.spatial.nsw.gov.au/portal/apps/webappviewer/index.html?id=f7c215b873864d44bccddda8075238cb

There is no facilities and functions for public activity, only the workers use this place.

Put more functions and facilities for public and wild life.

A city in its landscape A city for people A city of great places

Livability

Planning Priority S1

Providing services and social infrastructure to meet people’s changing needs

Planning Priority S2

Fostering healthy, creative, culturally rich and socially connected communities

Planning Priority S4

Creating and renewing great places and local centres, and respecting the District’s heritage

resilient city

Sustainability

Planning Priority S13

Protecting and improving the health and enjoyment of the District’s waterways

Planning Priority S14

Protecting and enhancing bushland, biodiversity and scenic and cultural landscapes and better managing rural areas.(Priority corridors)

Planning Priority S15

Increasing urban tree canopy cover and delivering Green Grid connections

Planning Priority S18

Adapting to the impacts of urban and natural hazards and climate change

Increasing urban tree canopy cover and delivering Green Grid connections

5. Foster healthy, creative, culturally rich and socially connected communities.

10. Value, protect and conserve Aboriginal heritage.

11. Develop clear and appropriate controls for development of heritage items, adjoining sites and within conservation areas.

9. Manage and enhance the distinctive character of the LGA through good quality urban design, respect for existing character and enhancement of the public realm.

19. Protect and improve the health of Bayside’s waterways and biodiversity.

20. Increase urban tree canopy cover and enhance green grid connections.

21. Deliver high quality open space.

22. Protect and enhance scenic and cultural landscapes.

23. Reduce carbon emissions through improved management of energy, water and waste.

24. Reduce community risk to urban and natural hazards and improve the community’s resilience to social, environmental and economic shocks and stressors.

KEY DESIGN PRINCIPLES

Principle one: Reduce the impact of flood

Principle two: Create the local community hub

Principle three: Improve the local biodiversity

KEY DESIGN STRATEGIES

Principle one: Reduce the impact of flood

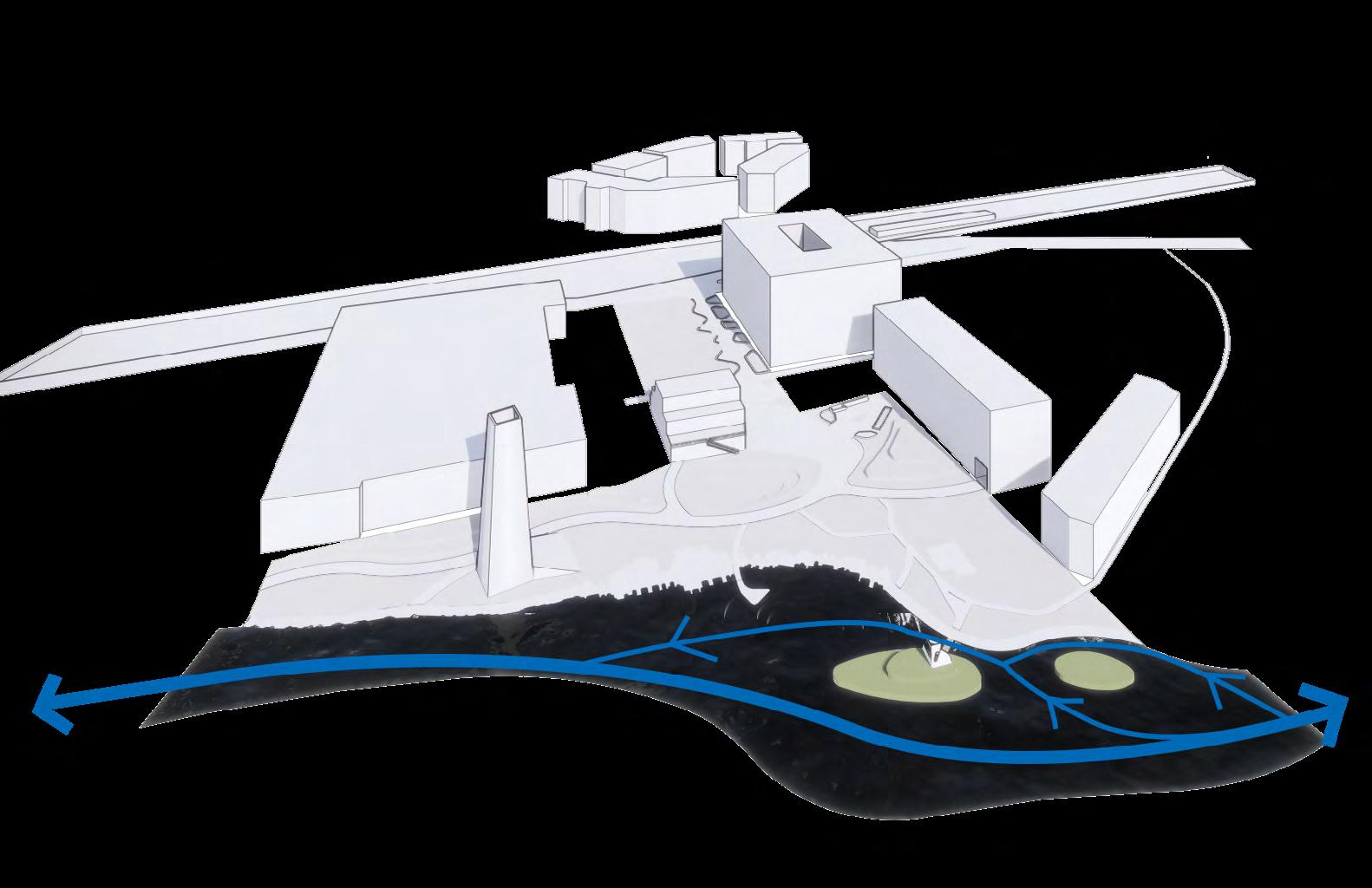

1.1Create appropriate landforms to accept and defend flood water.

Principle one: Reduce the impact of flood

1.1Create appropriate landforms to accept and defend flood water.

KEY DESIGN STRATEGIES

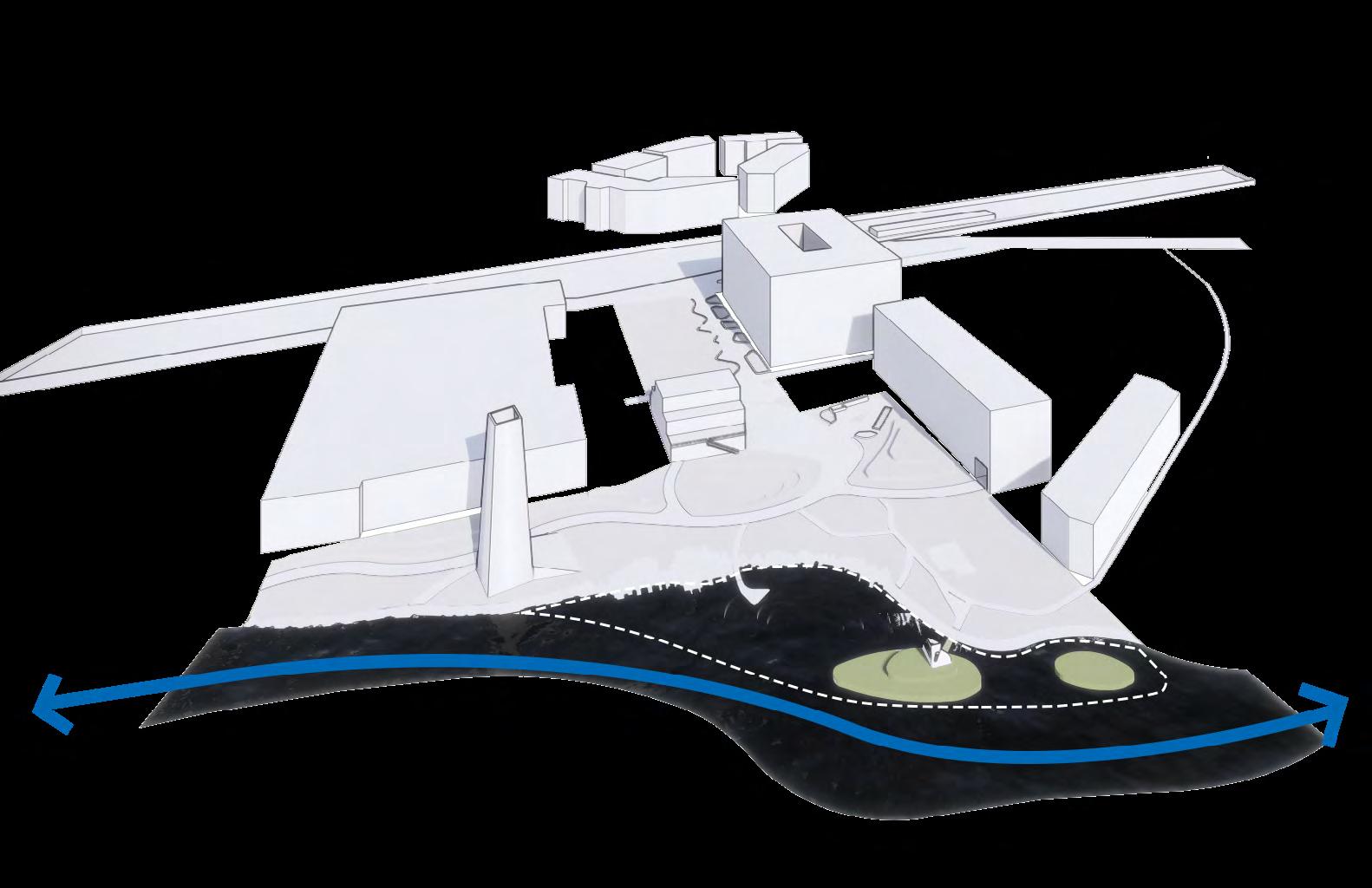

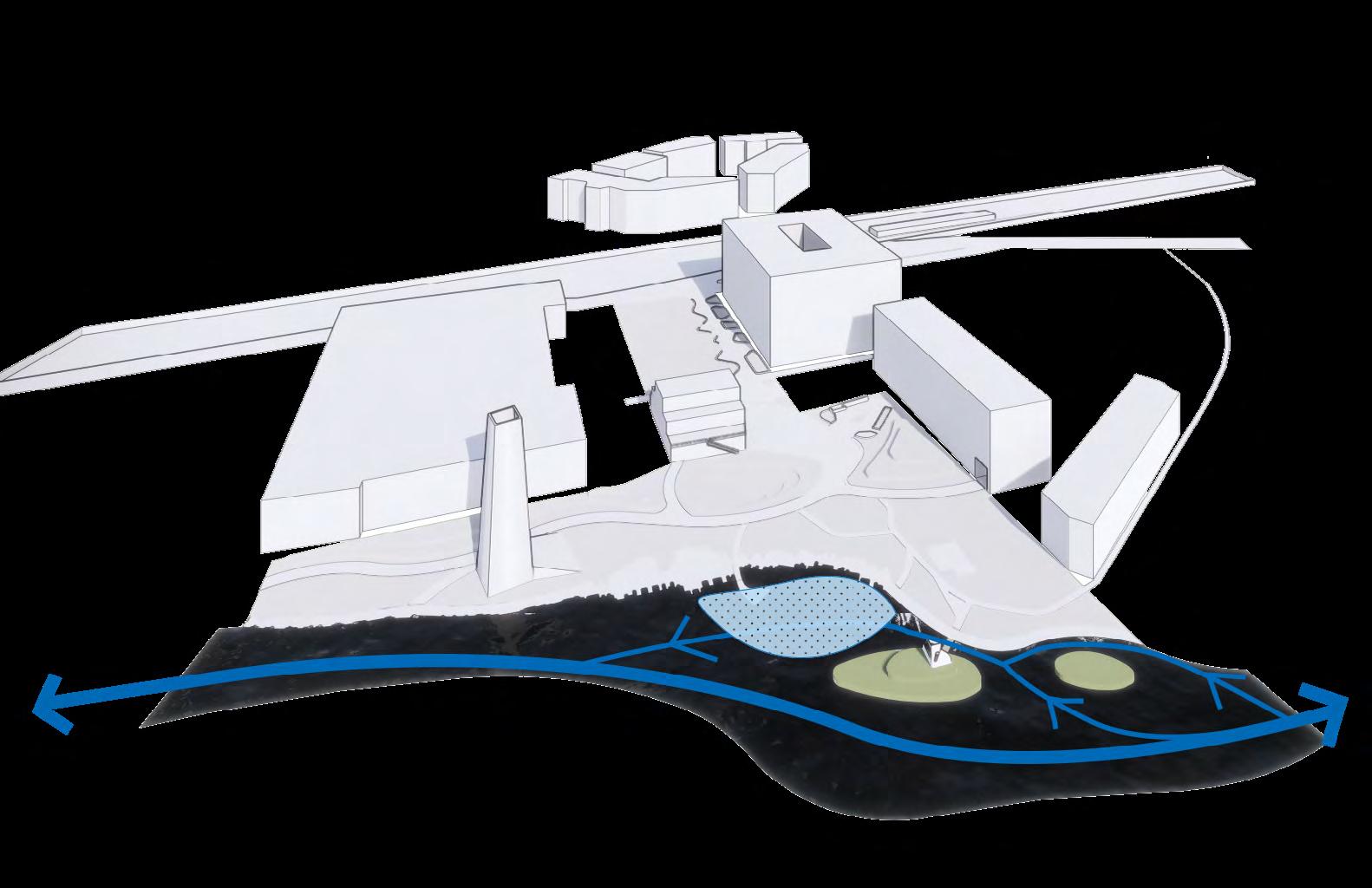

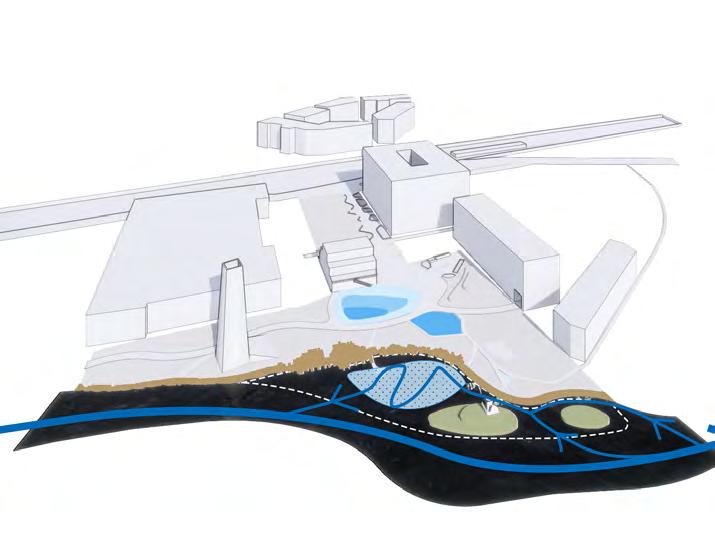

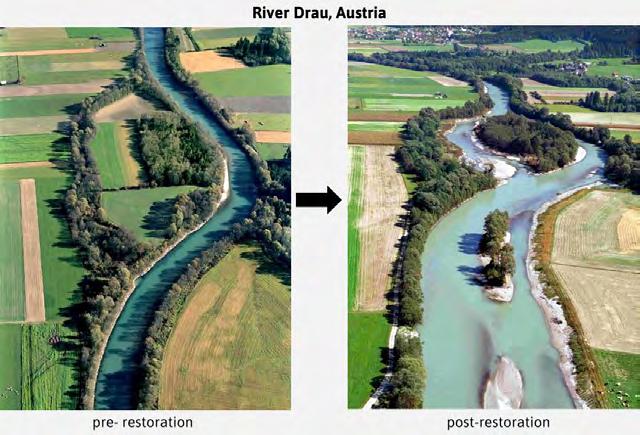

Islands For flow diversion

Principle one: Reduce the impact of flood

1.1Create appropriate landforms to accept and defend flood water.

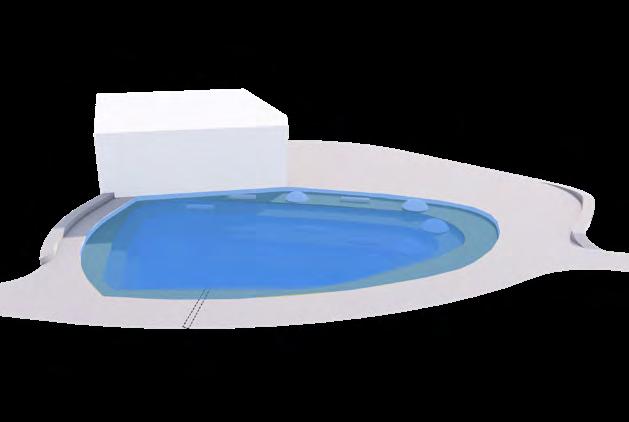

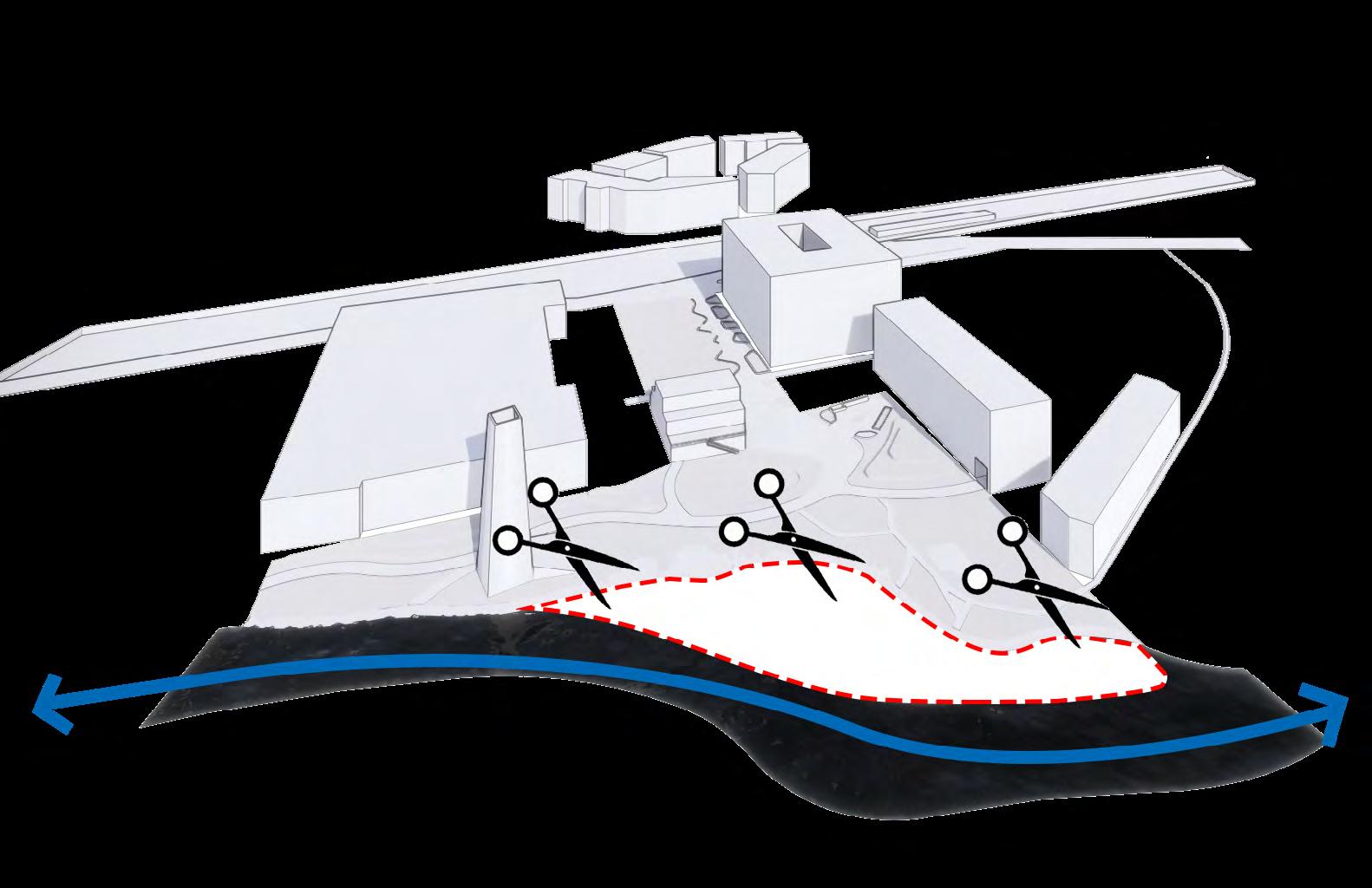

Cut to create a pond

Principle one: Reduce the impact of flood

1.1Create appropriate landforms to accept and defend flood water.

KEY DESIGN STRATEGIES

Principle one: Reduce the impact of flood

1.1Create appropriate landforms to accept and defend flood water.

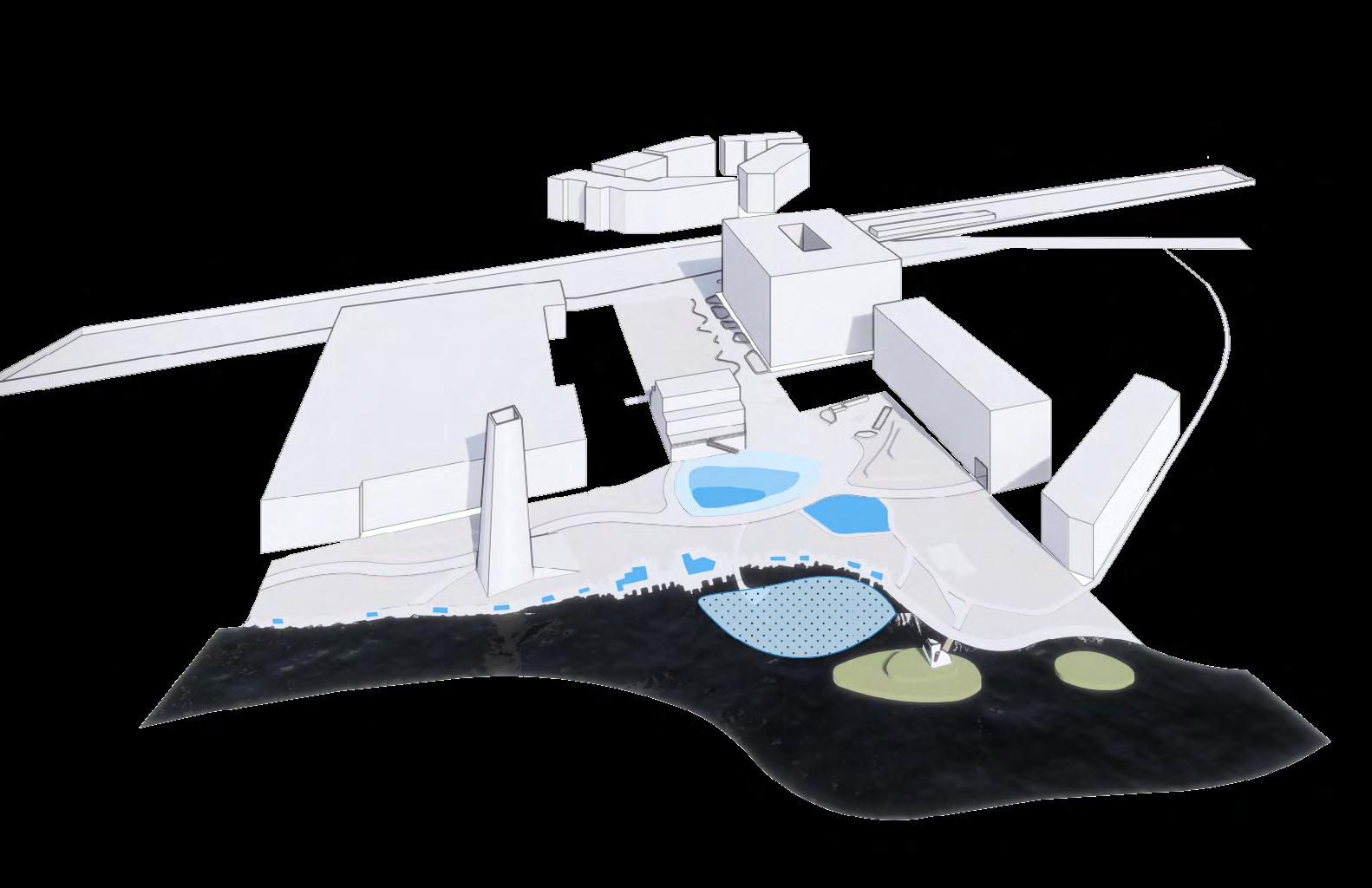

Pond & Bioretention areas

Principle one: Reduce the impact of flood

1.1Create appropriate landforms to accept and defend flood water.

Increases flood storage capacity by 1,900 litres by 2,100 square meters of bioswales.

KEY DESIGN STRATEGIES

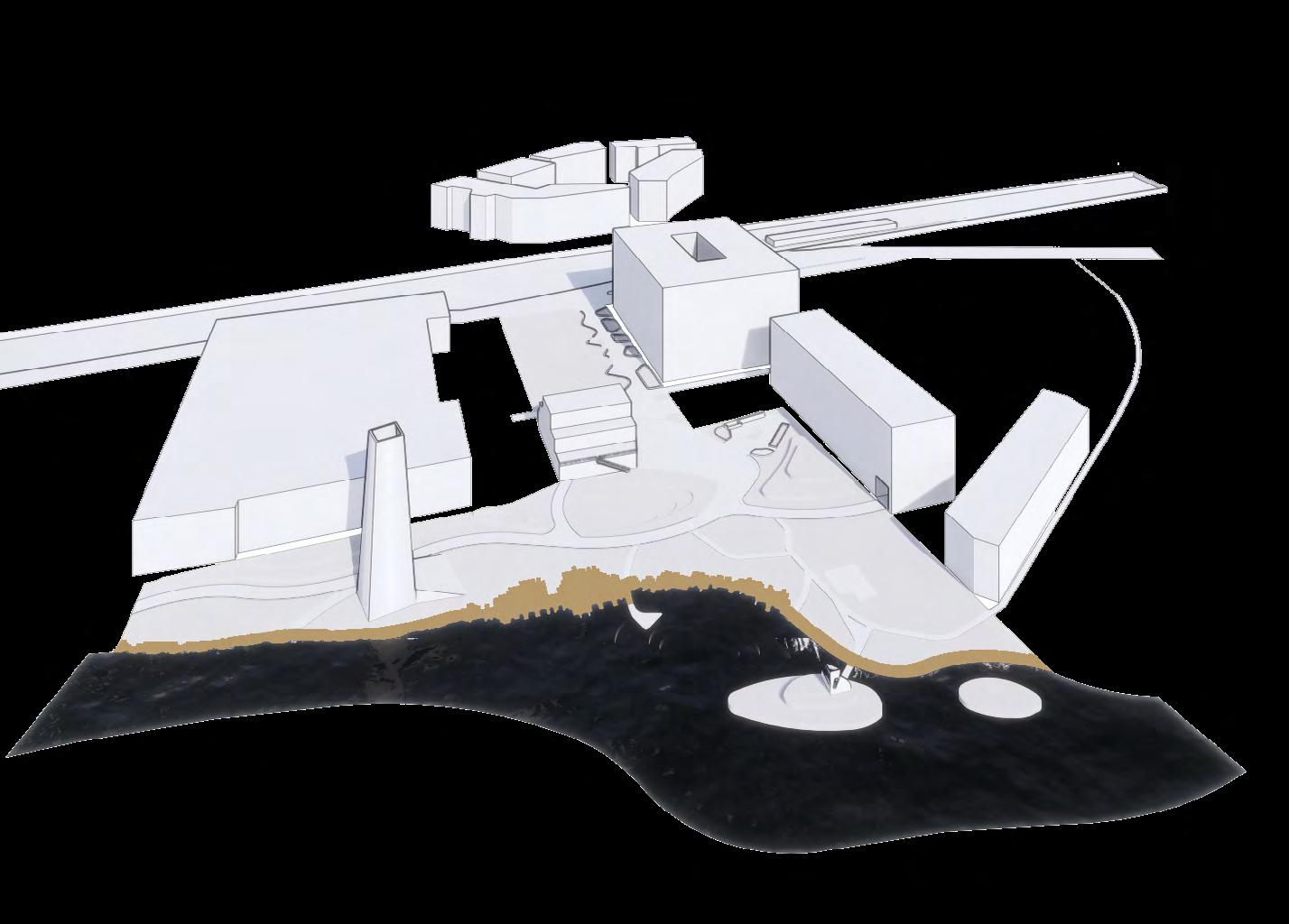

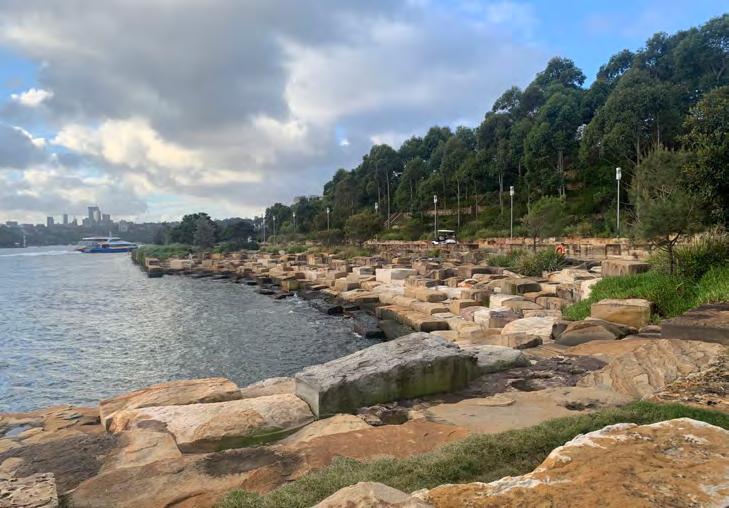

by the sandstone terraced foreshore

Principle one: Reduce the impact of flood

1.1Create appropriate landforms to accept and defend flood water.

1.2 Protect the riverbank against erosion caused by wave action, storm surge and currents.

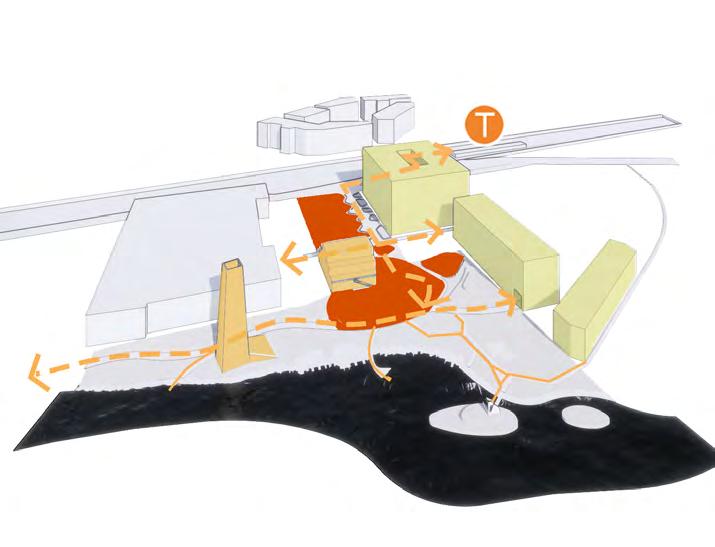

Train Station & Site

Principle two: Create the local community hub

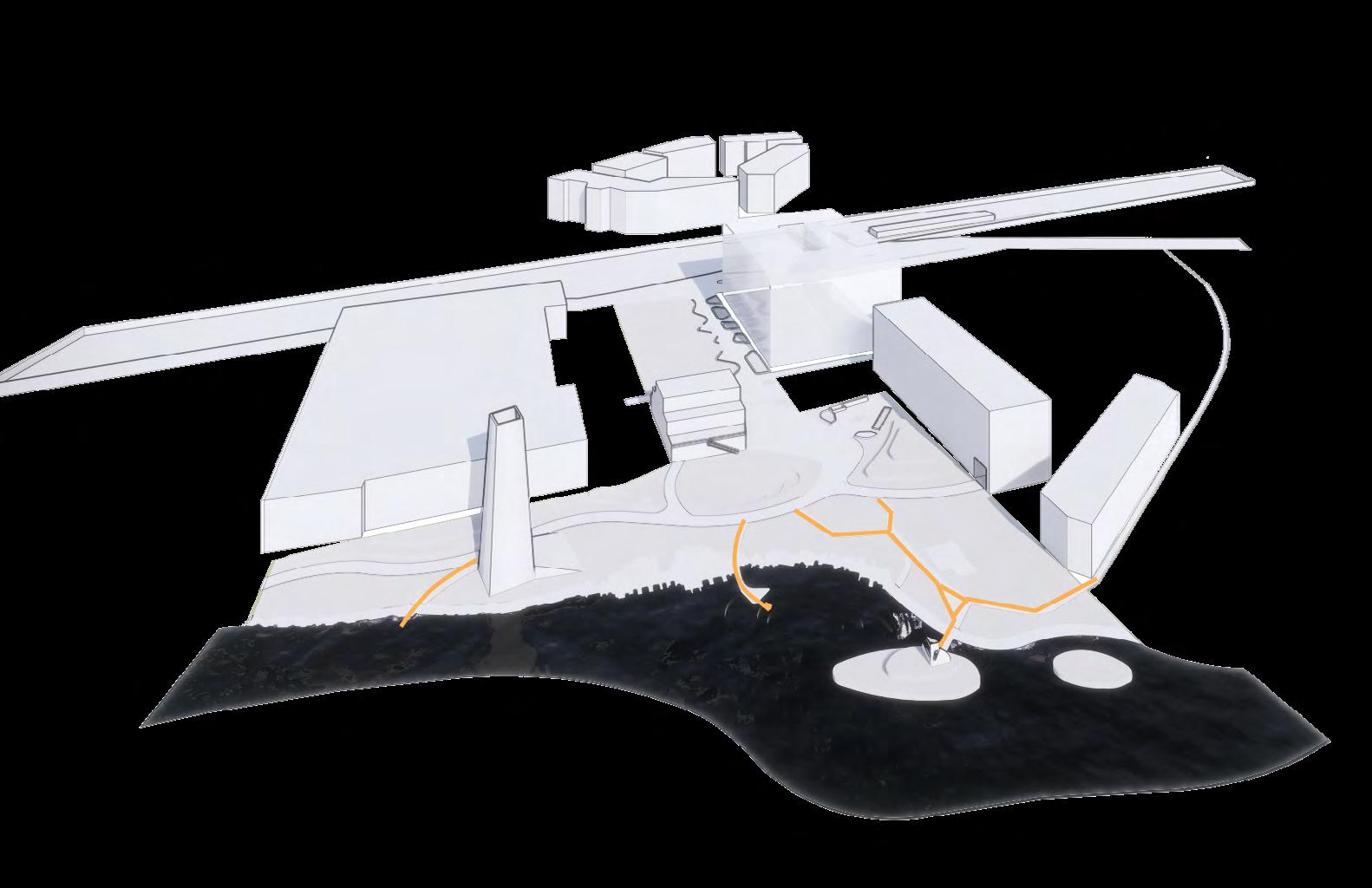

2.1 Connect people to the waterfront.

Principle two: Create the local community hub

2.1 Connect people to the waterfront.

Principle two: Create the local community hub

2.1 Connect people to the waterfront.

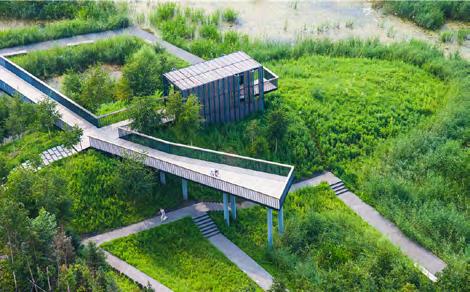

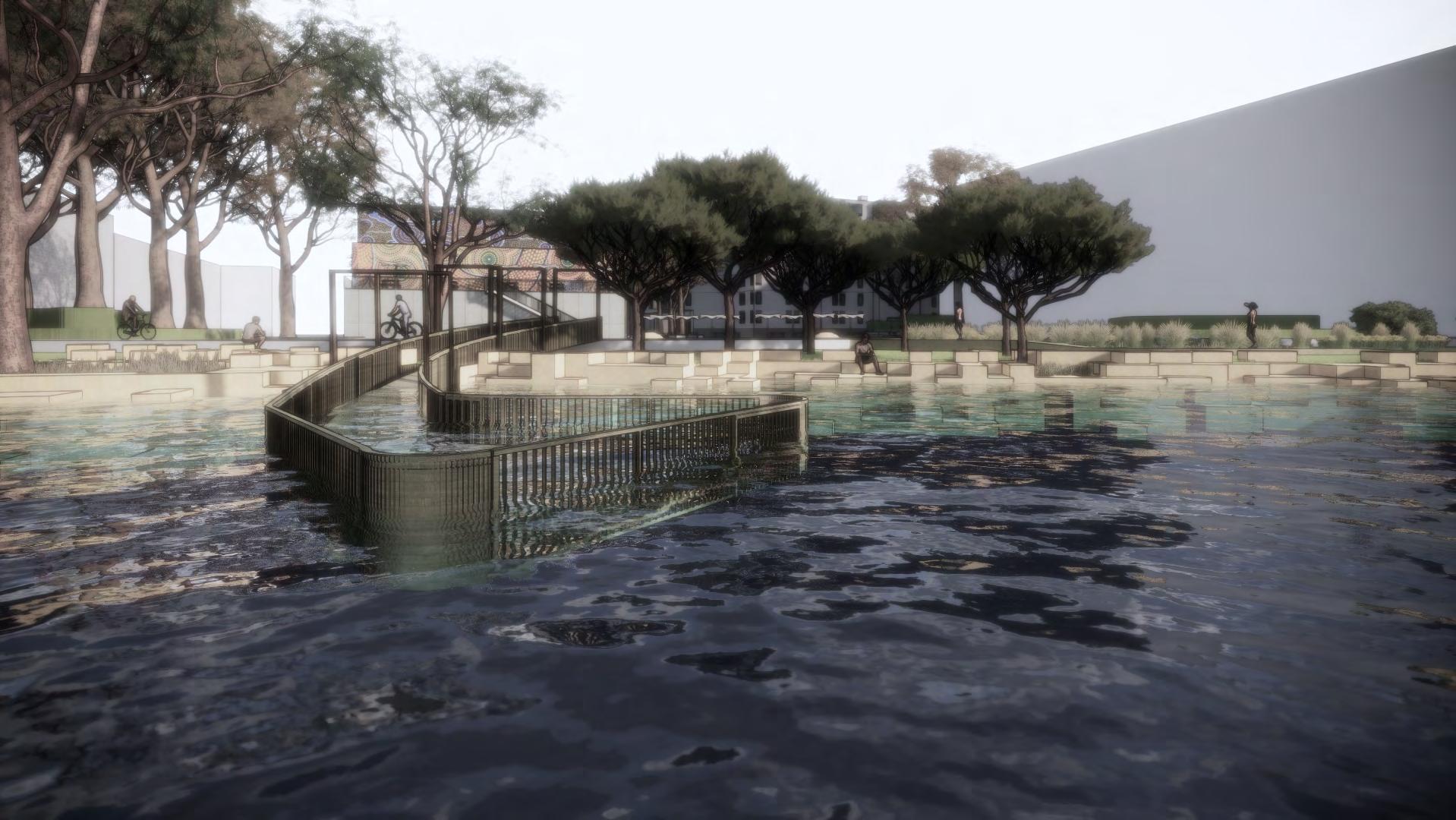

2.2 Ensure people can have intimate experience with the Wolli Creek. Board Walk

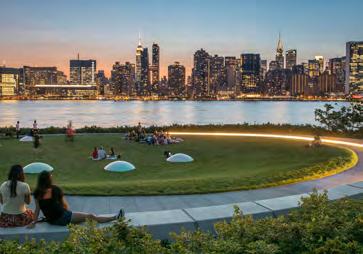

Gathering & Recreation

Principle two: Create the local community hub

2.1 Connect people to the waterfront.

2.2 Ensure people can have intimate experience with the Wolli Creek.

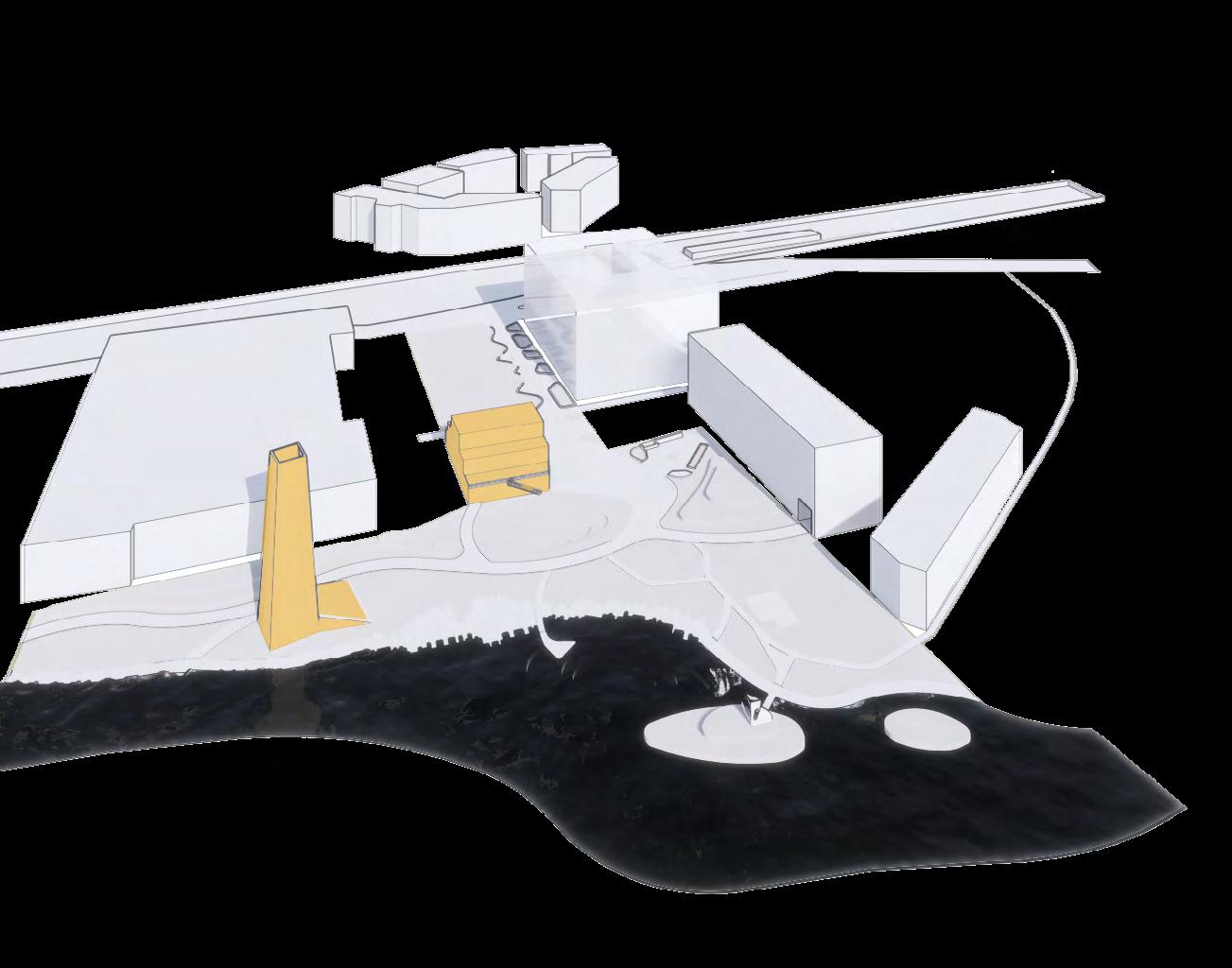

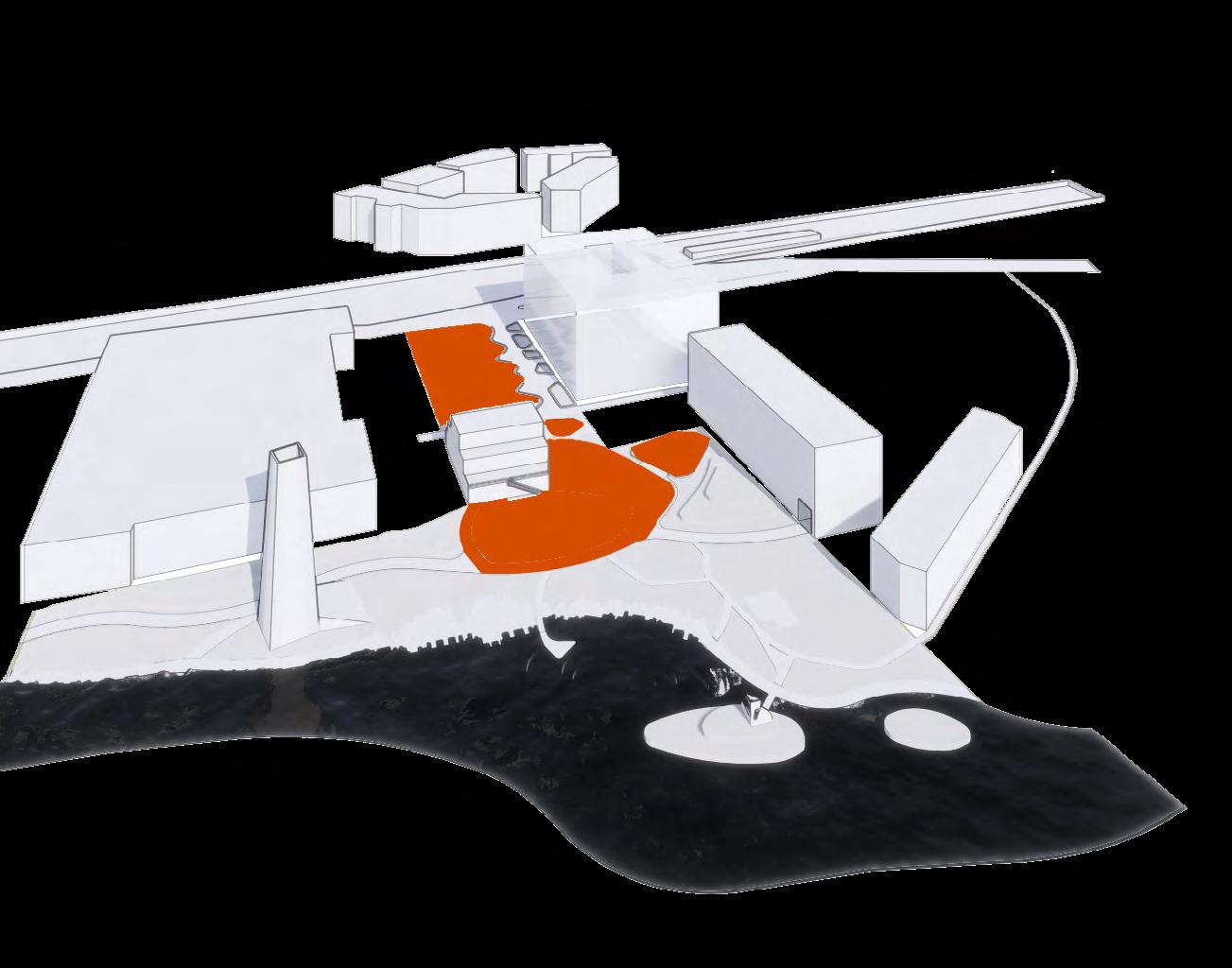

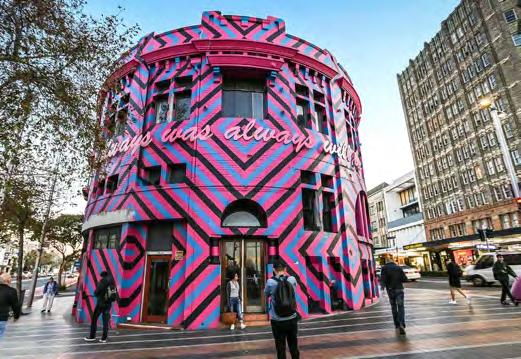

Redevelop the infrastructure buildings

Principle two: Create the local community hub

2.3 Redevelop infrastructure buildings to create the community and culture hub.

Principle two:

Create the local community hub

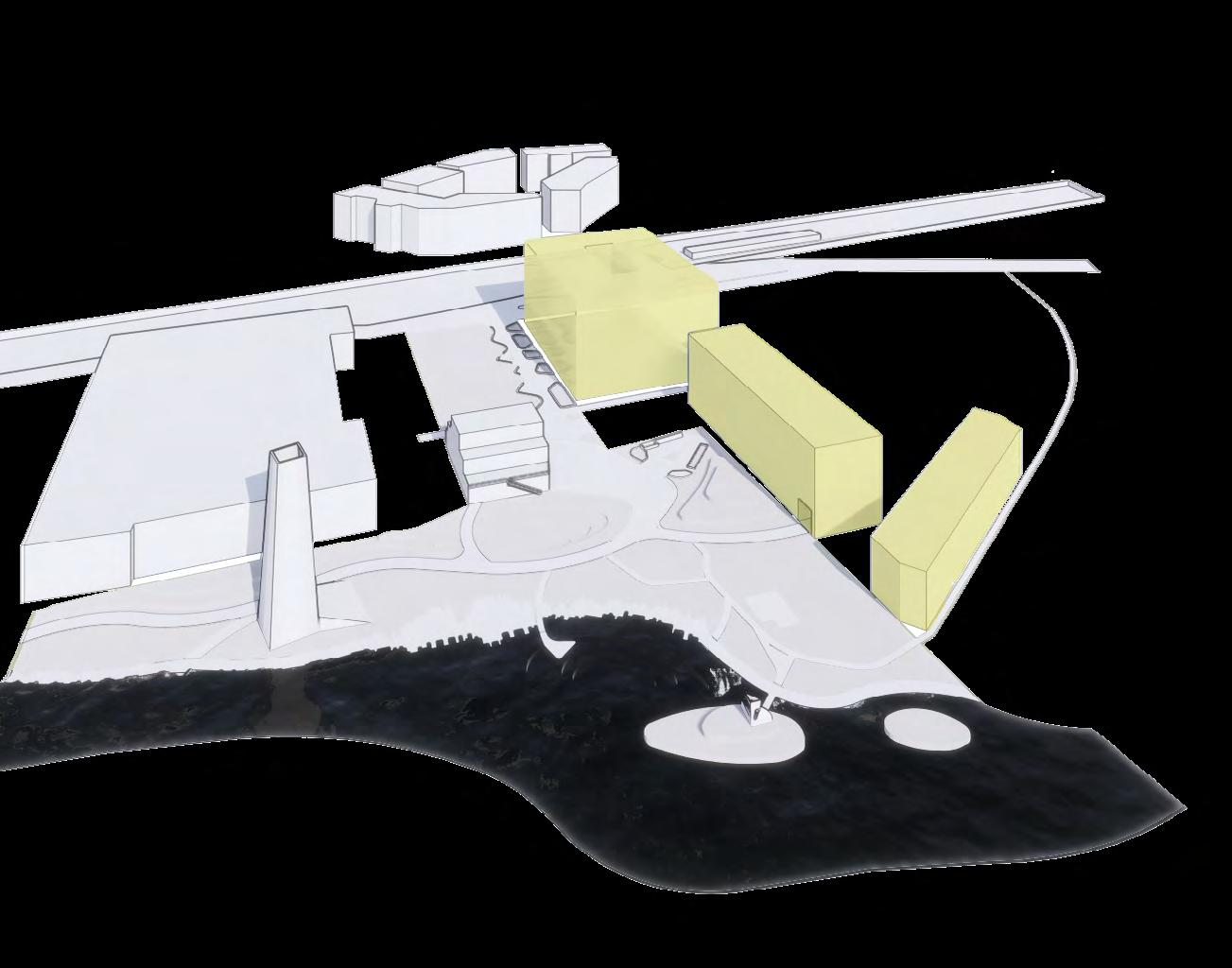

2.3 Remove and convert the commercial industrial buildings into mixed use.

Social Benefits:

• Create 25 new residential units through the development of 20000 square meters of floorspace

Economic Benefits:

• Providing the area for three new food and beverage business in the site.

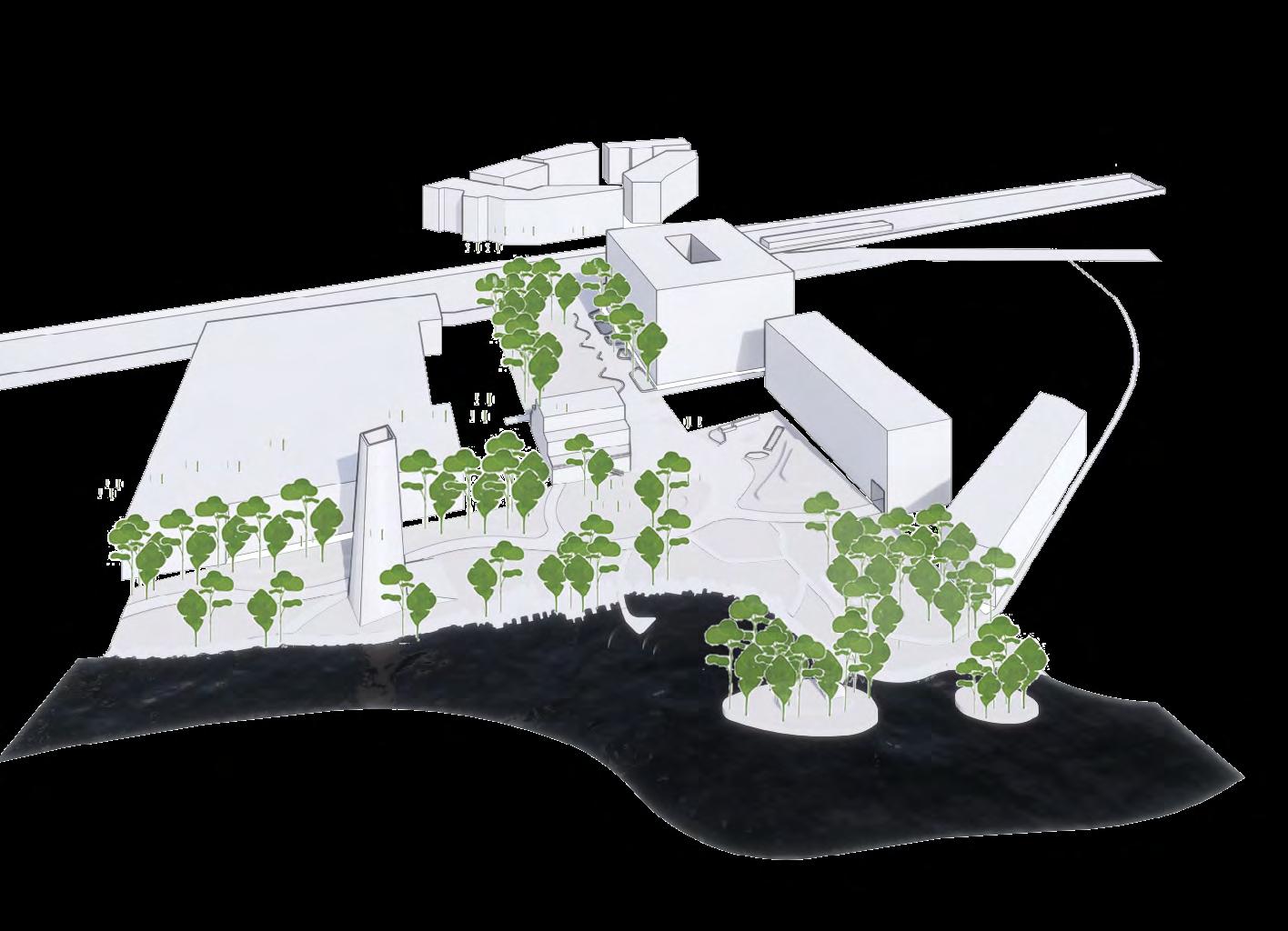

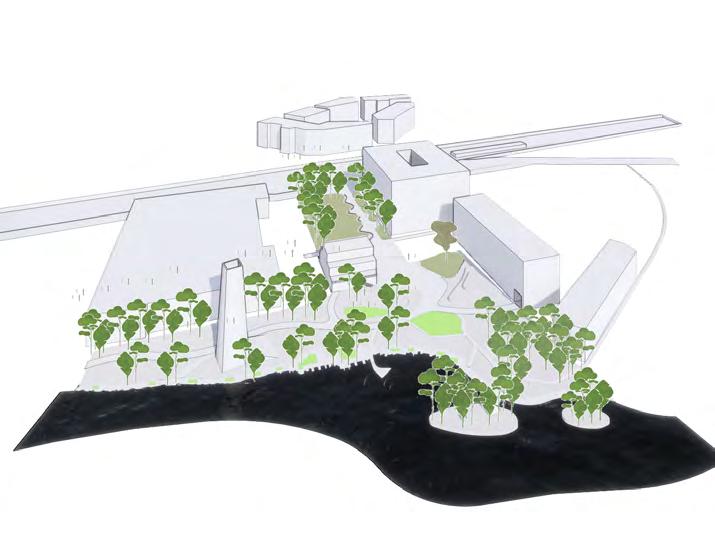

Existing Tree Canopy

Principle three: Improve the local biodiversity

3.2 Maintain and enhance the existing tree canopy.

Economic Benefits:

• Reduces maintenance costs by approximately 50%,with the use of native grass, ground cover and trees as compared to traditional landscaping.

Native & Existing Plants

Principle three: Improve the local biodiversity

3.3 Enhance bioretention plants and native vegetation.

Social Benefits:

• Increases outdoor activity for local community, by providing 5500 square meters green space for picnic, off leash and other activities.

Economic Benefits:

• Reduces maintenance costs by approximately 50%,with the use of native grass, ground cover and trees as compared to traditional landscaping.

Bioretention Plants

Principle three: Improve the local biodiversity

3.3 Enhance bioretention plants and native vegetation.

Economic Benefits:

• Reduces maintenance costs by approximately 50%,with the use of native grass, ground cover and trees as compared to traditional landscaping.

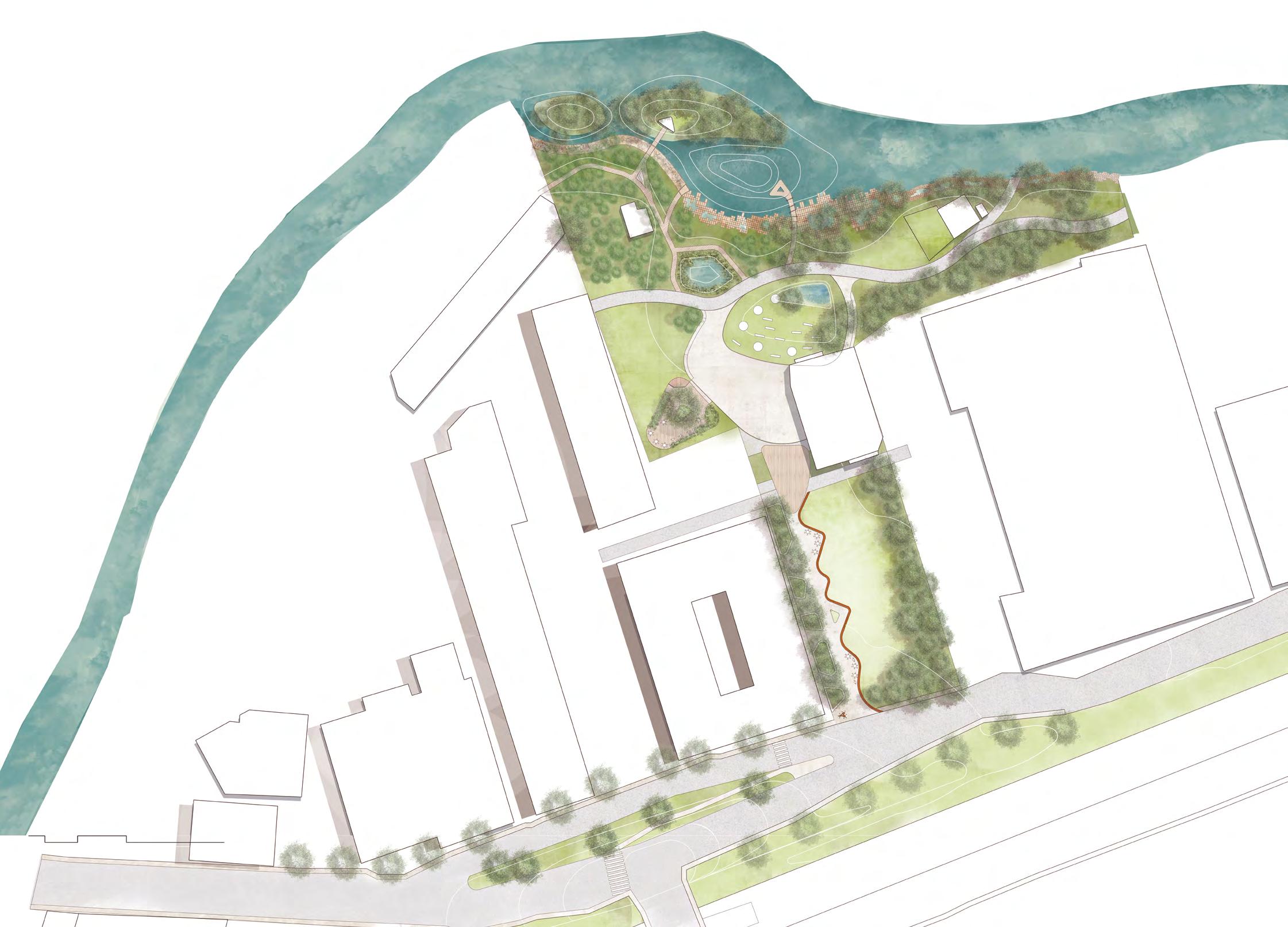

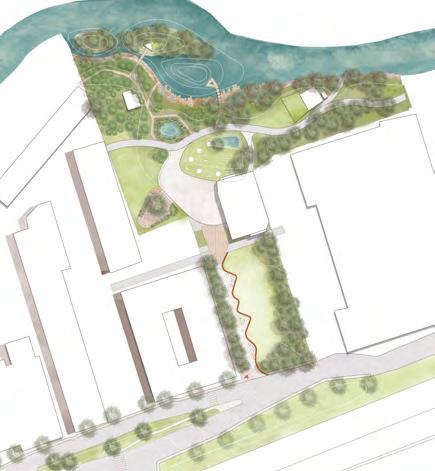

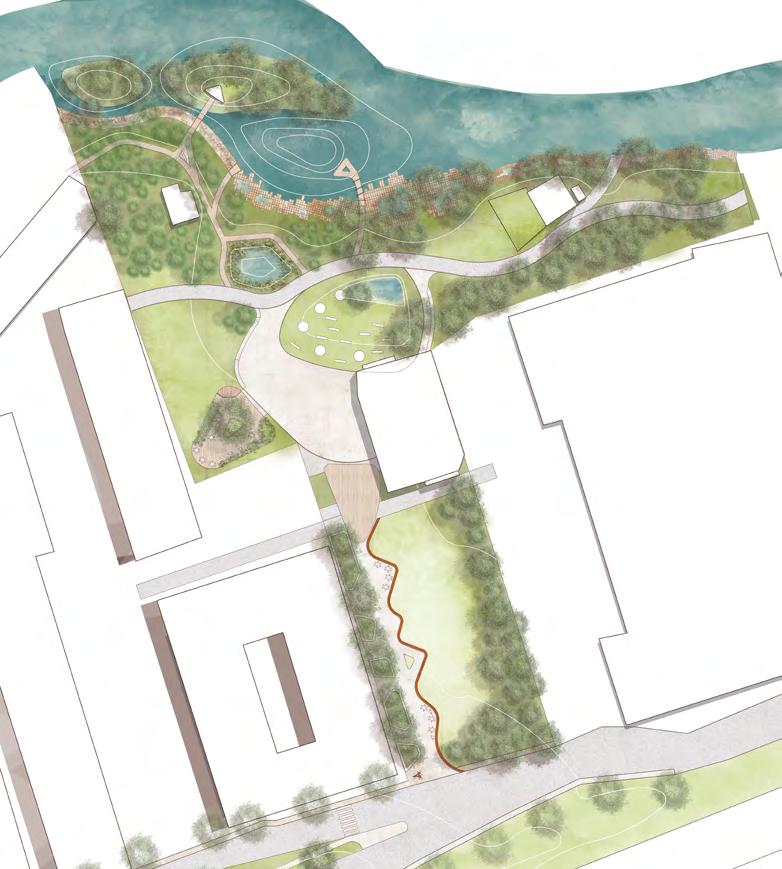

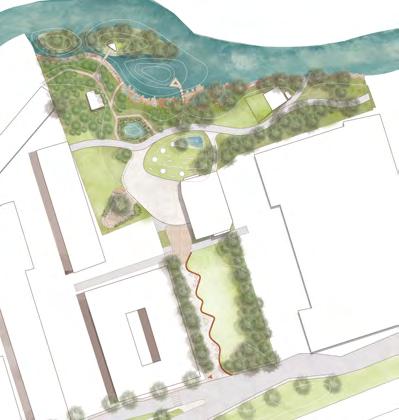

1.Pedestrian Lane

2. Park Entrance

3. Sunshine Lawn

4. Heart Plaza

5. Community Centre

6. Pods Garden

7. Lawn Bowl

8. Bioretention Ponds

9. Hidden Electrical Tower

10. Terraced Sandstone Foreshore

11. Triangle Platform

12. Viewing Pavilion

13. Celebrate Chimney

14. Mix-used Buildings (Phase II)

15. Green Way

LEGEND

1.Bioretention Area

2. Stone Bench

3. Lying Ball

4. Green Way(Pedestrian & Cycling)

5. Heart Plaza

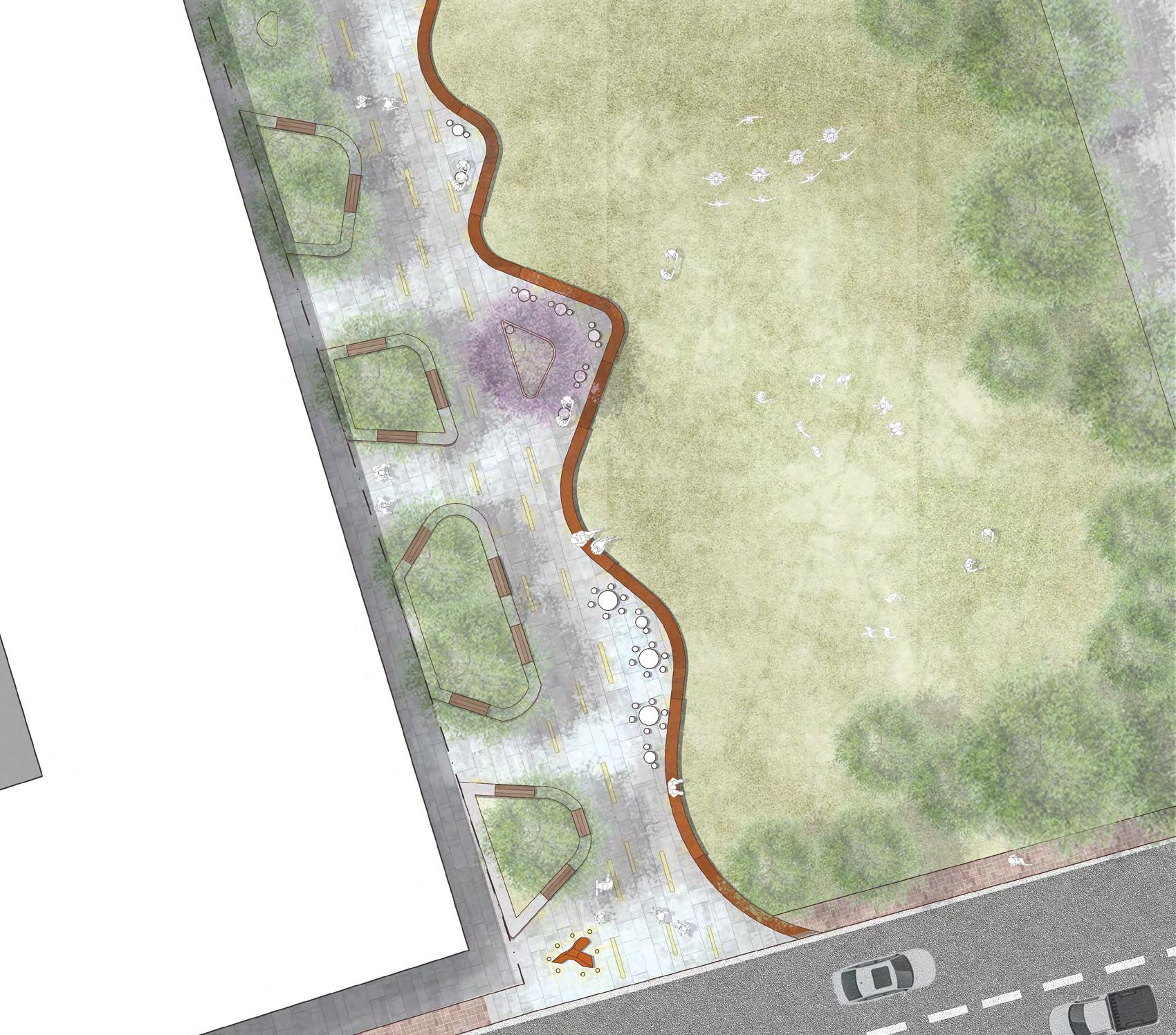

6. Seating Wall

7. Community Centre

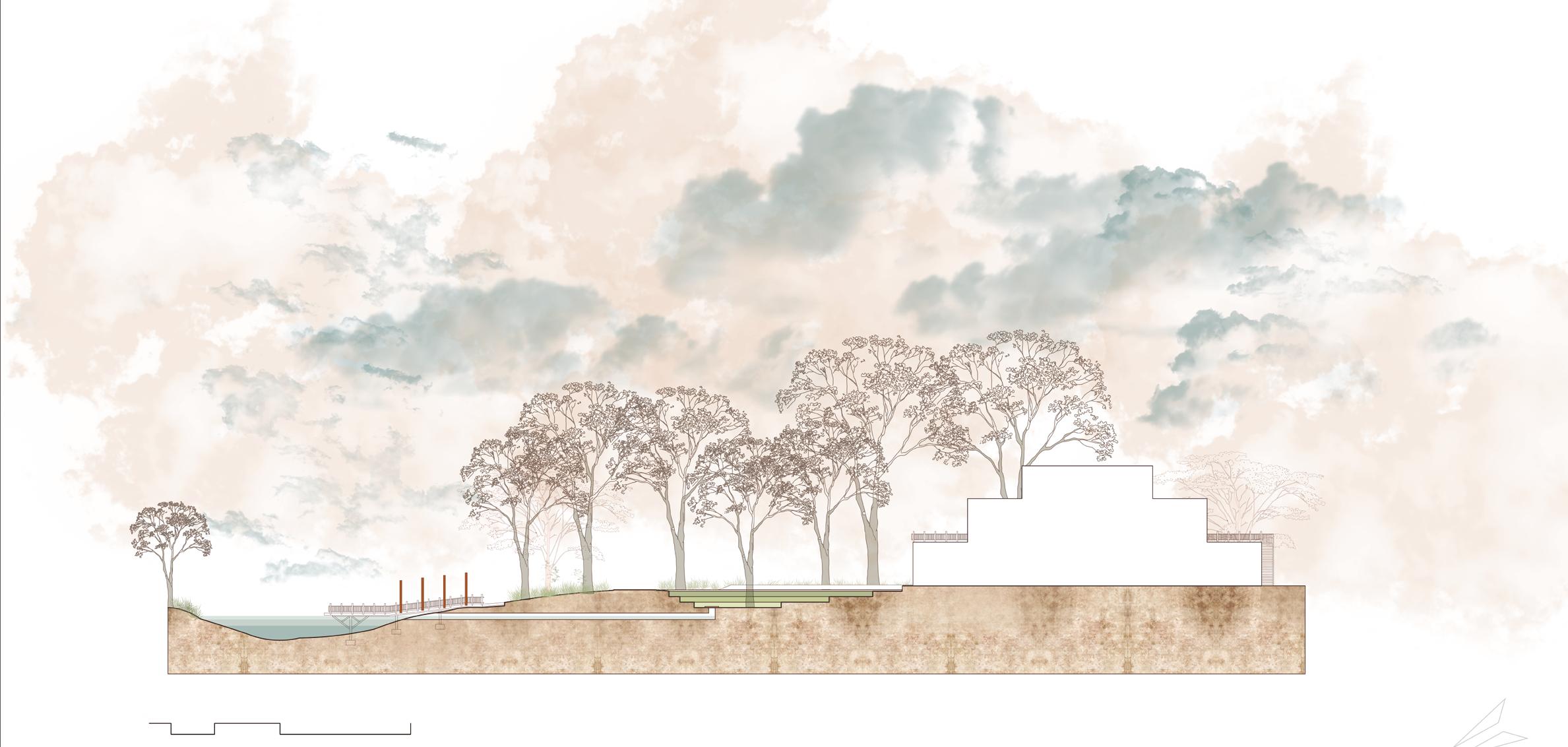

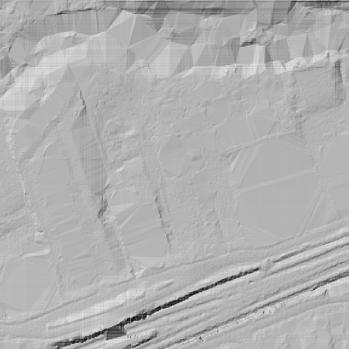

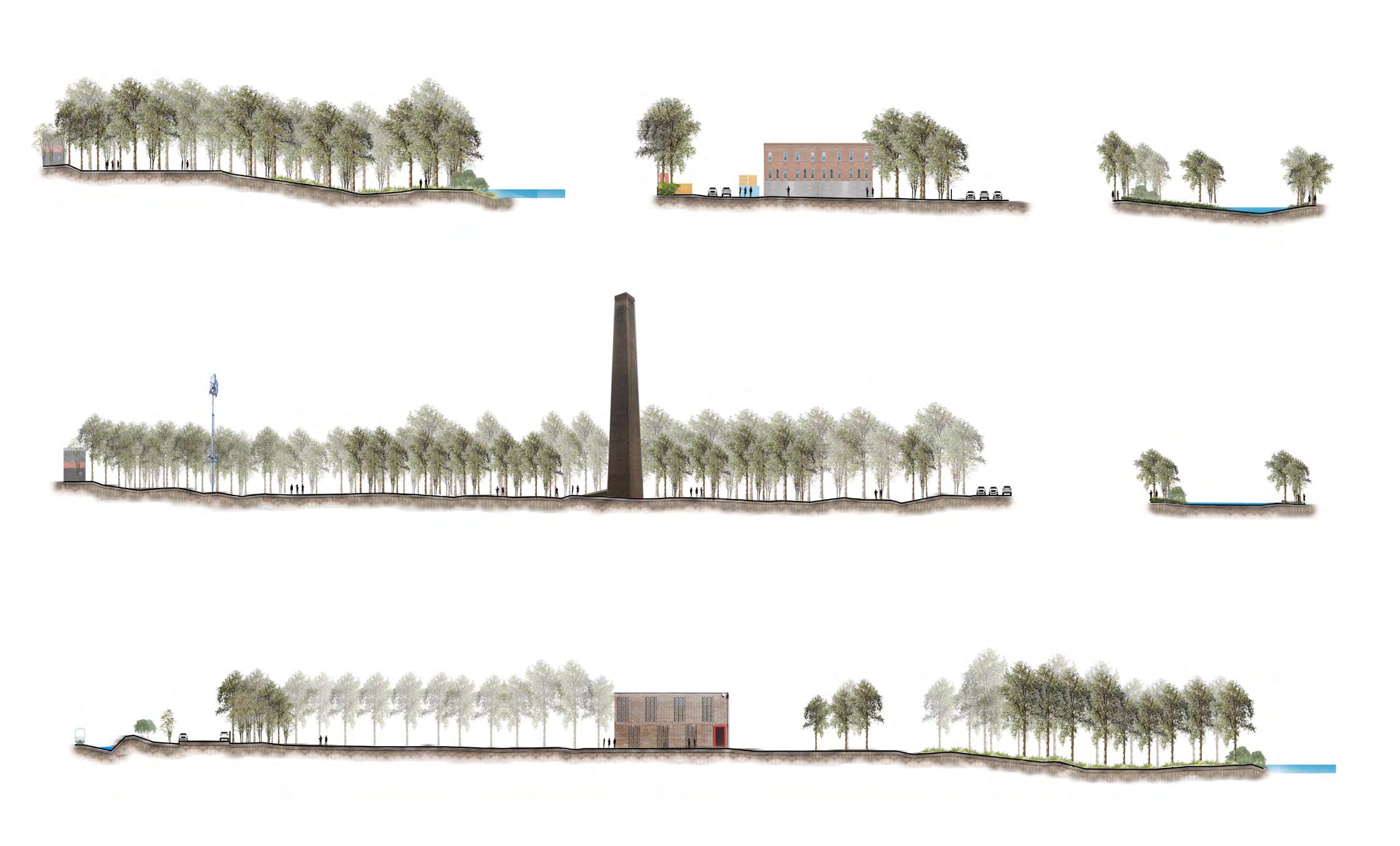

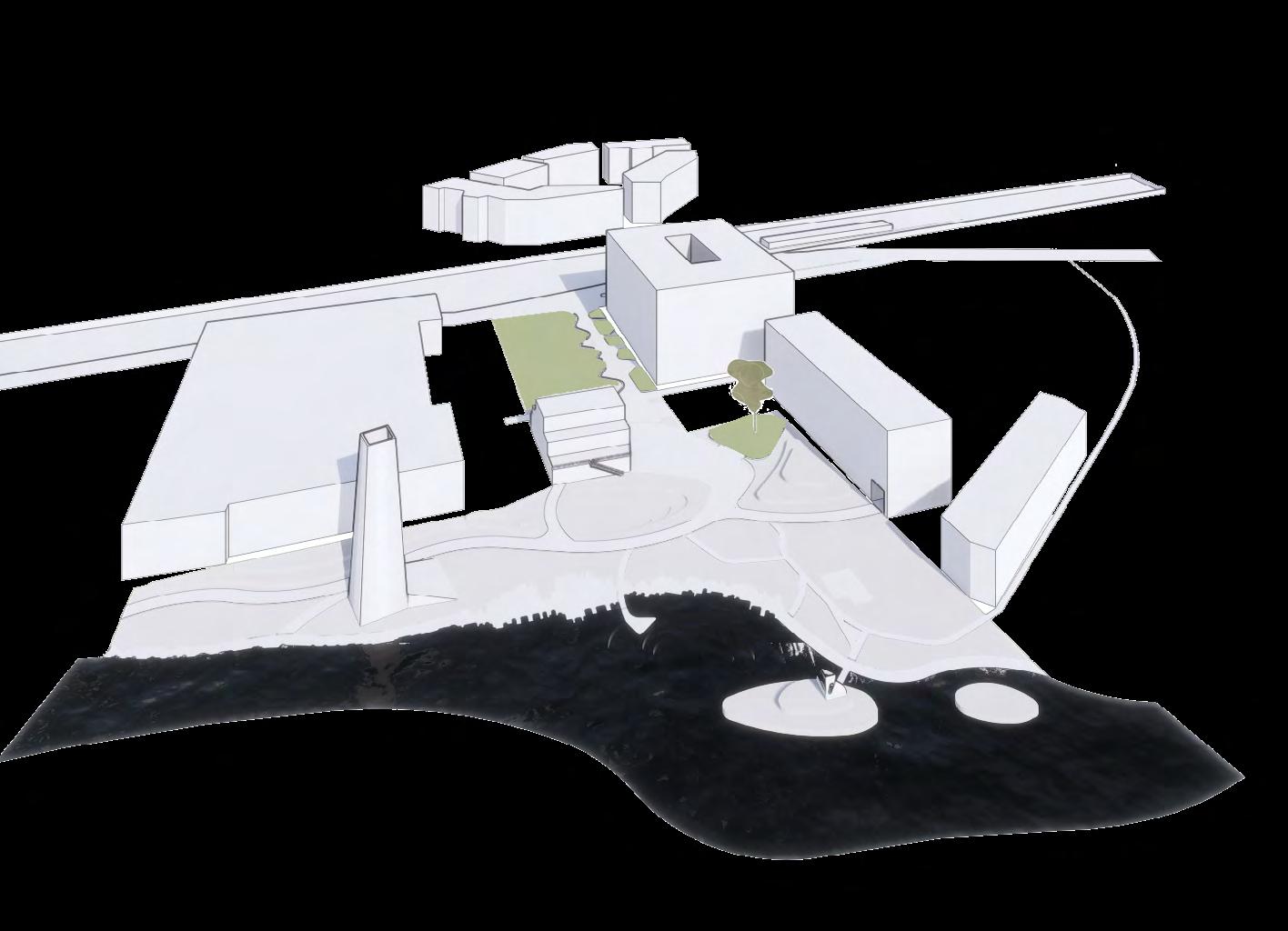

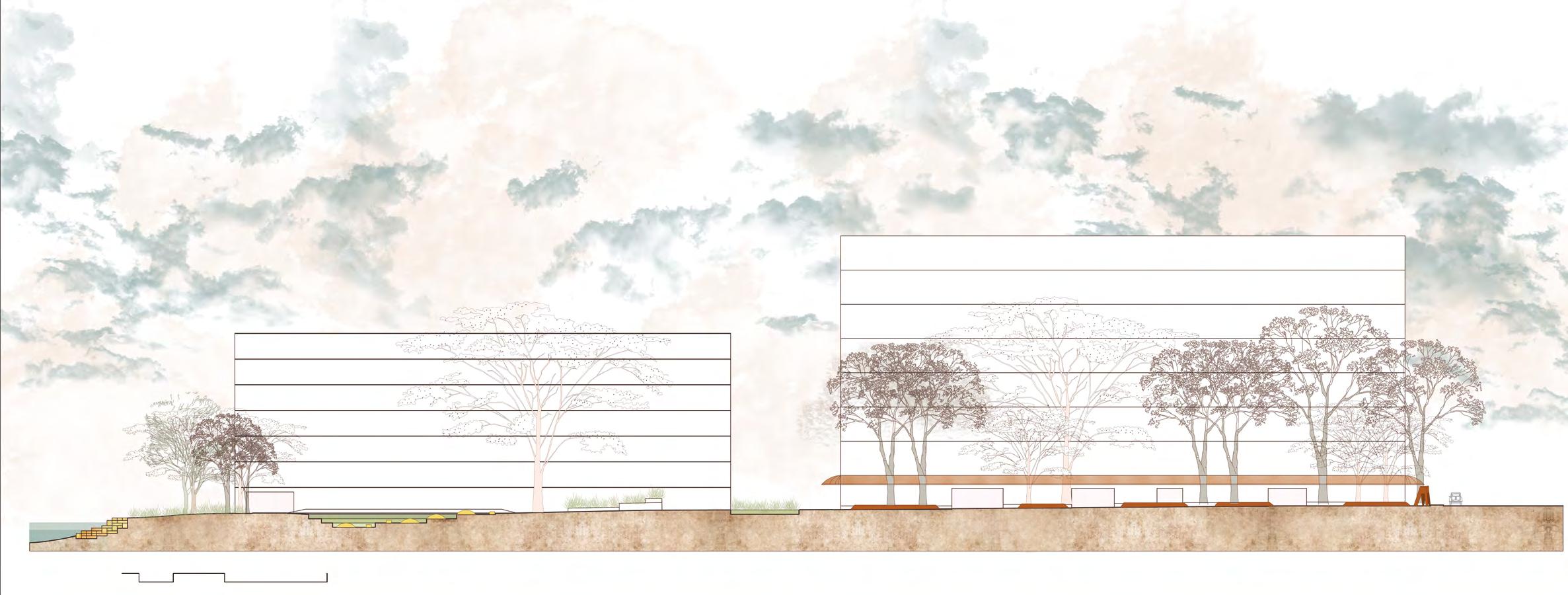

Topography and Form

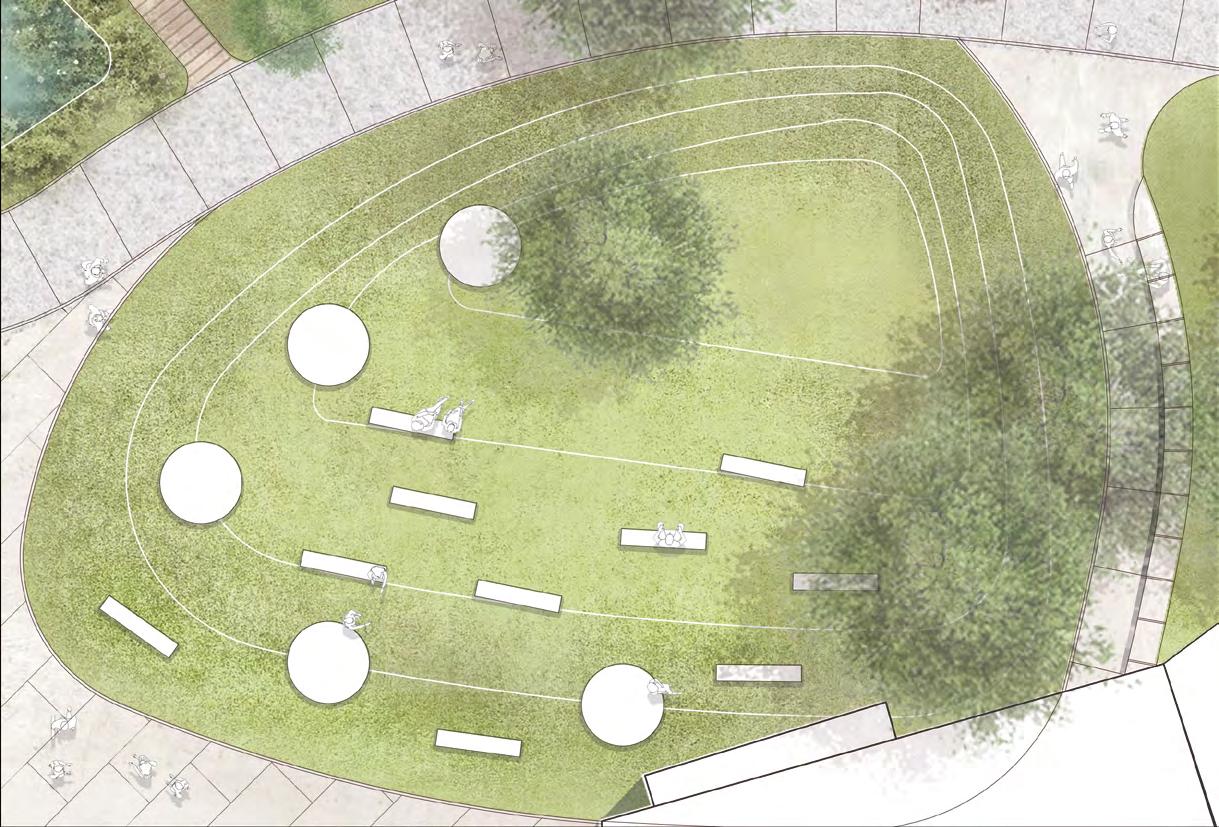

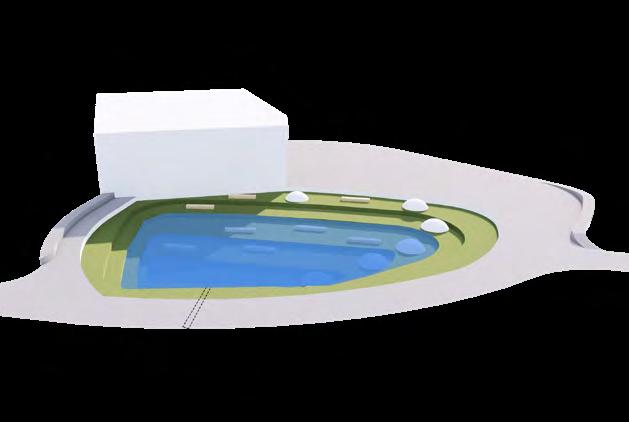

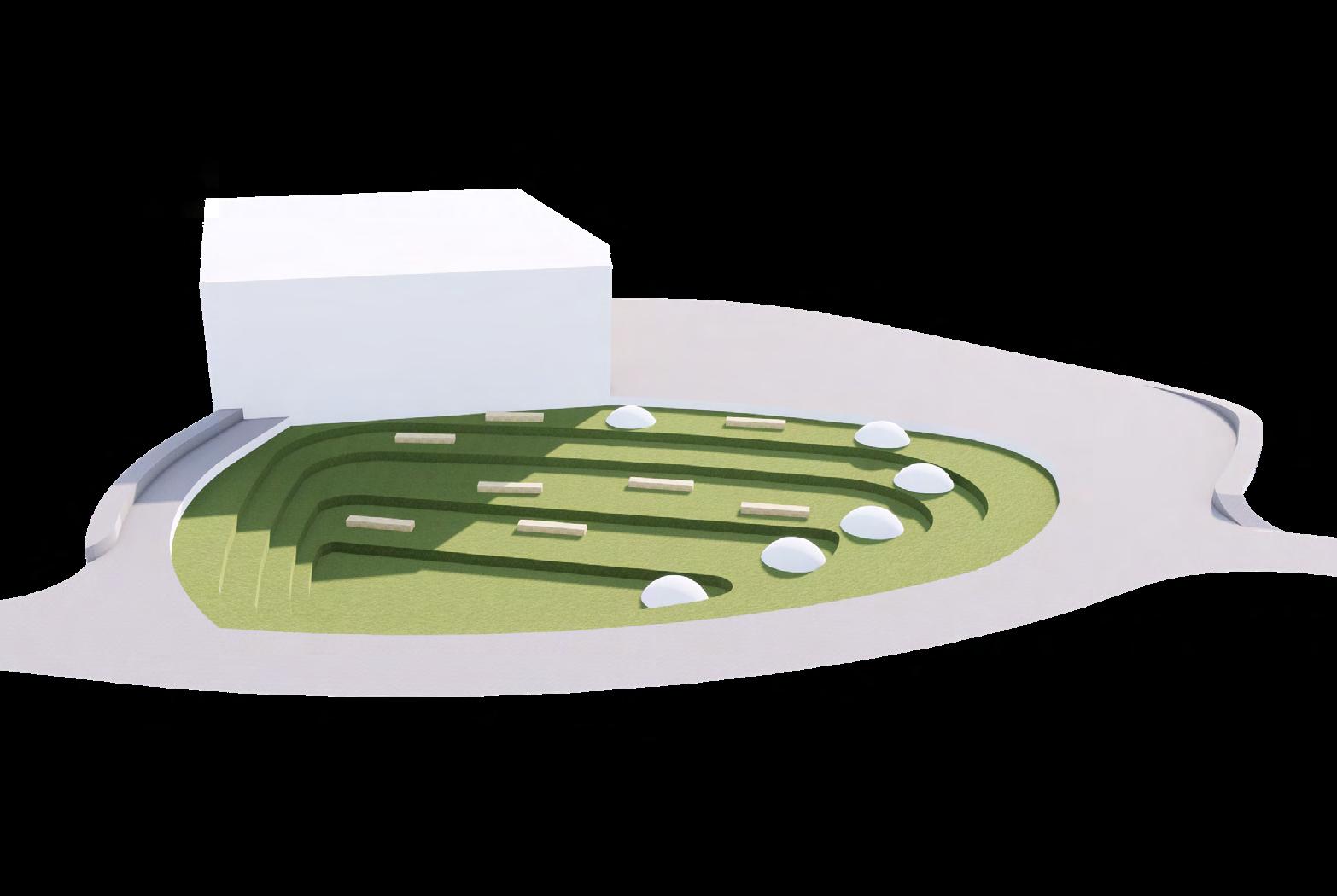

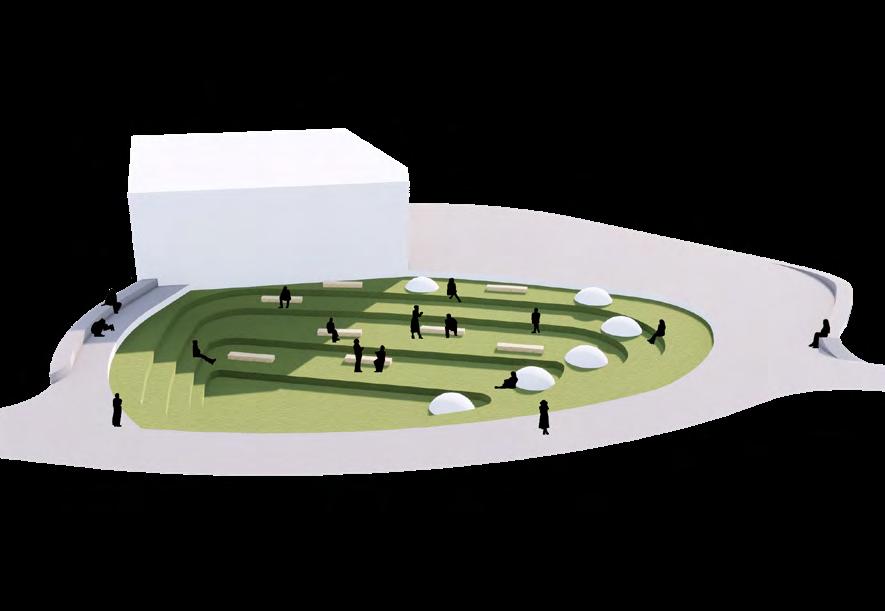

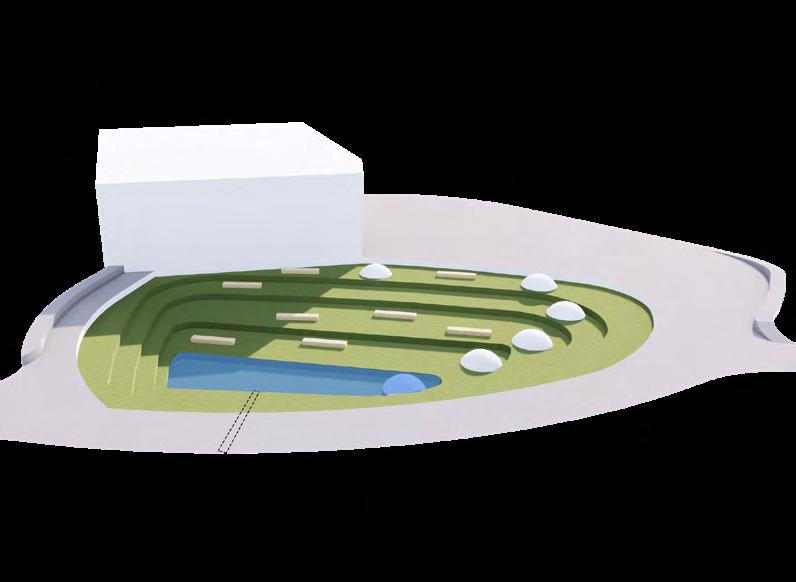

The Lawn Bowl

The idea of the Lawn Bowl is to create a gathering area for social and community activities.

At the same time, the sinking bowl has capacity to adopt and store flooding water.

1 in 20 years flood events

WFL: +0.9M

1 in 100 years flood events

WFL: +1.6M

1 in 100 years flood events

+ 40cm Sea Level Rise

WFL: +1.6M

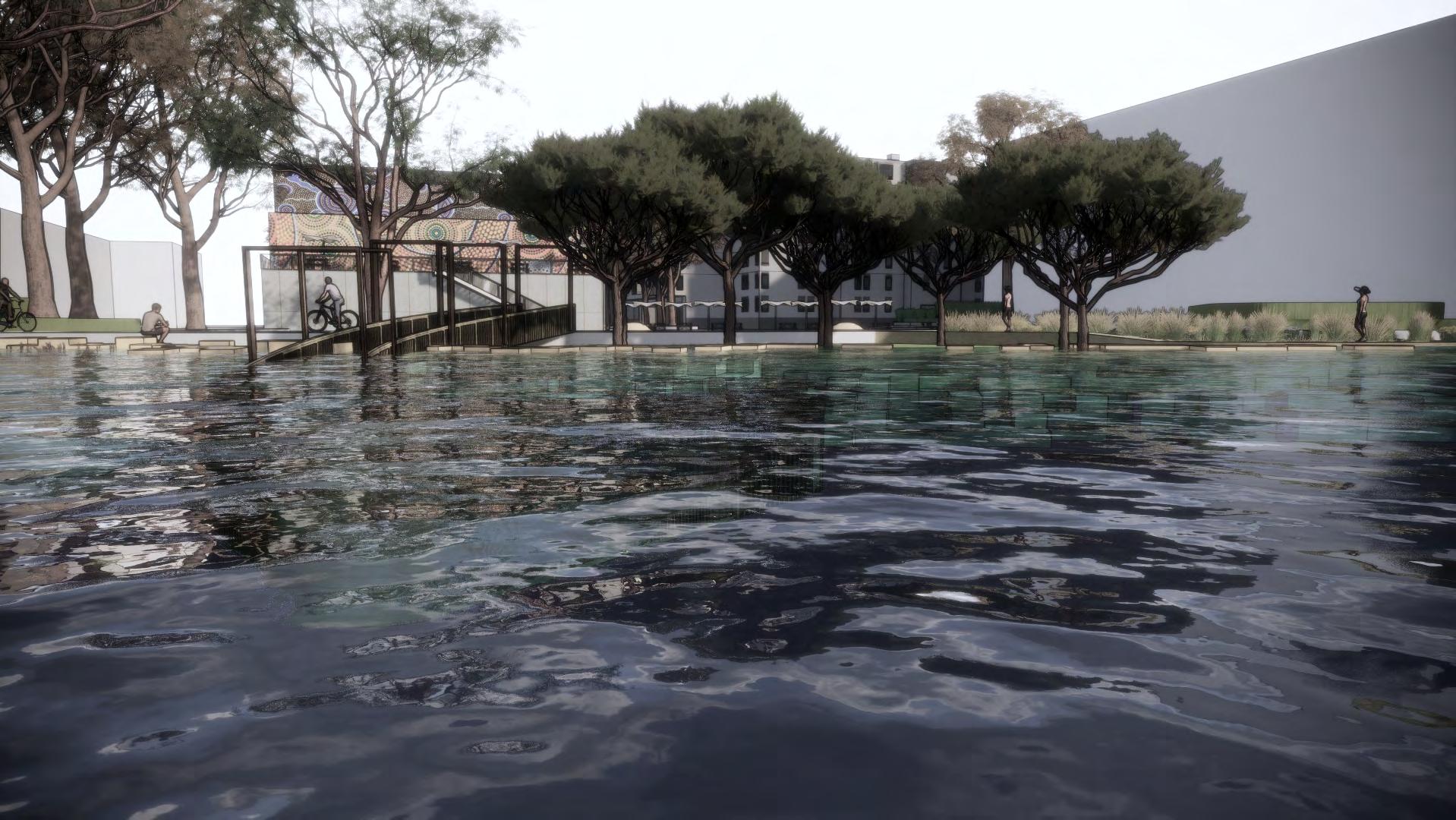

Flooding Simulation Model

1 in 100 years flood events

+ 90cm Sea Level Rise

WFL: +2.5M

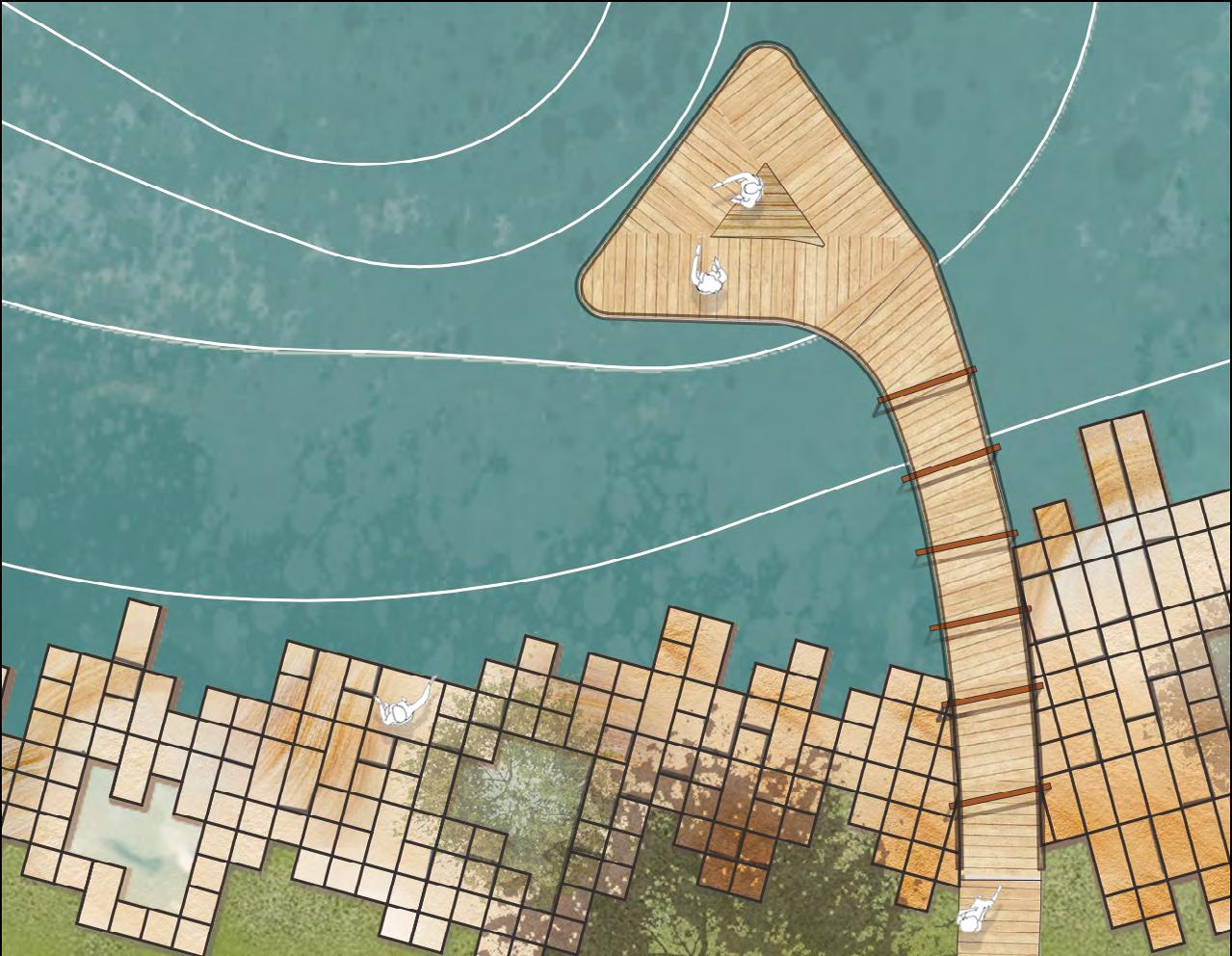

& Terraced Sandstone Foreshore Detail

LEGEND

1.Bioswale

2. Sandstone Block (0.60*0.60*0.30 m or 1.20*0.60*0.60)

3. Board walk

4.Railing

5. Sculpture walk way

6. Seating triangle

0m < Water Level(0.3 m) < + 0.9 m (1 in 20 years flood events)

0m < Water Level(0.6 m) < + 0.9 m (1 in 20 years flood events)

1 in 20 years flood events = + 0.9 m

1 in 100 years flood events = + 1.6m

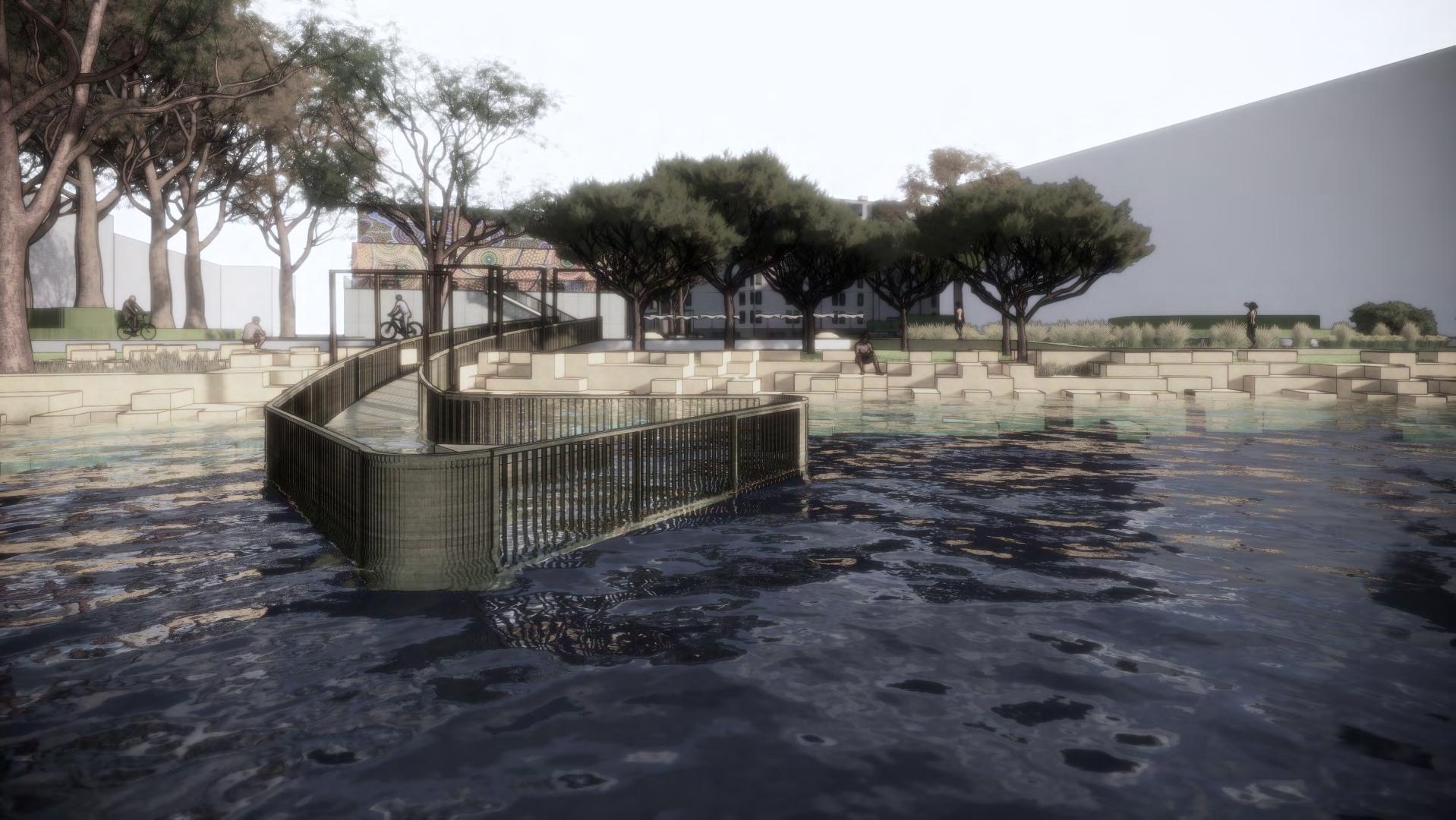

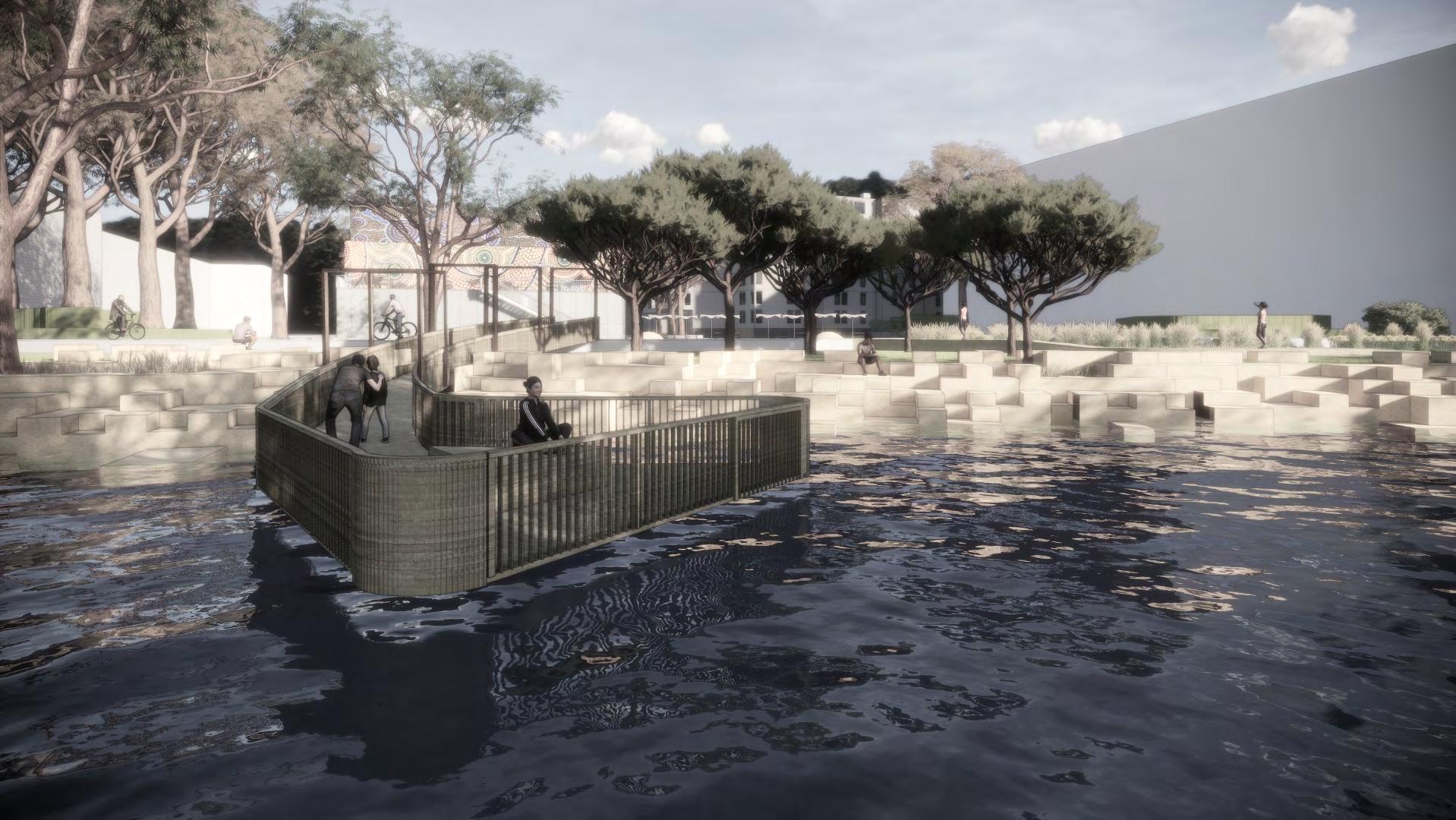

Perspective of Terraced Sandstone Foreshore

Detail Design

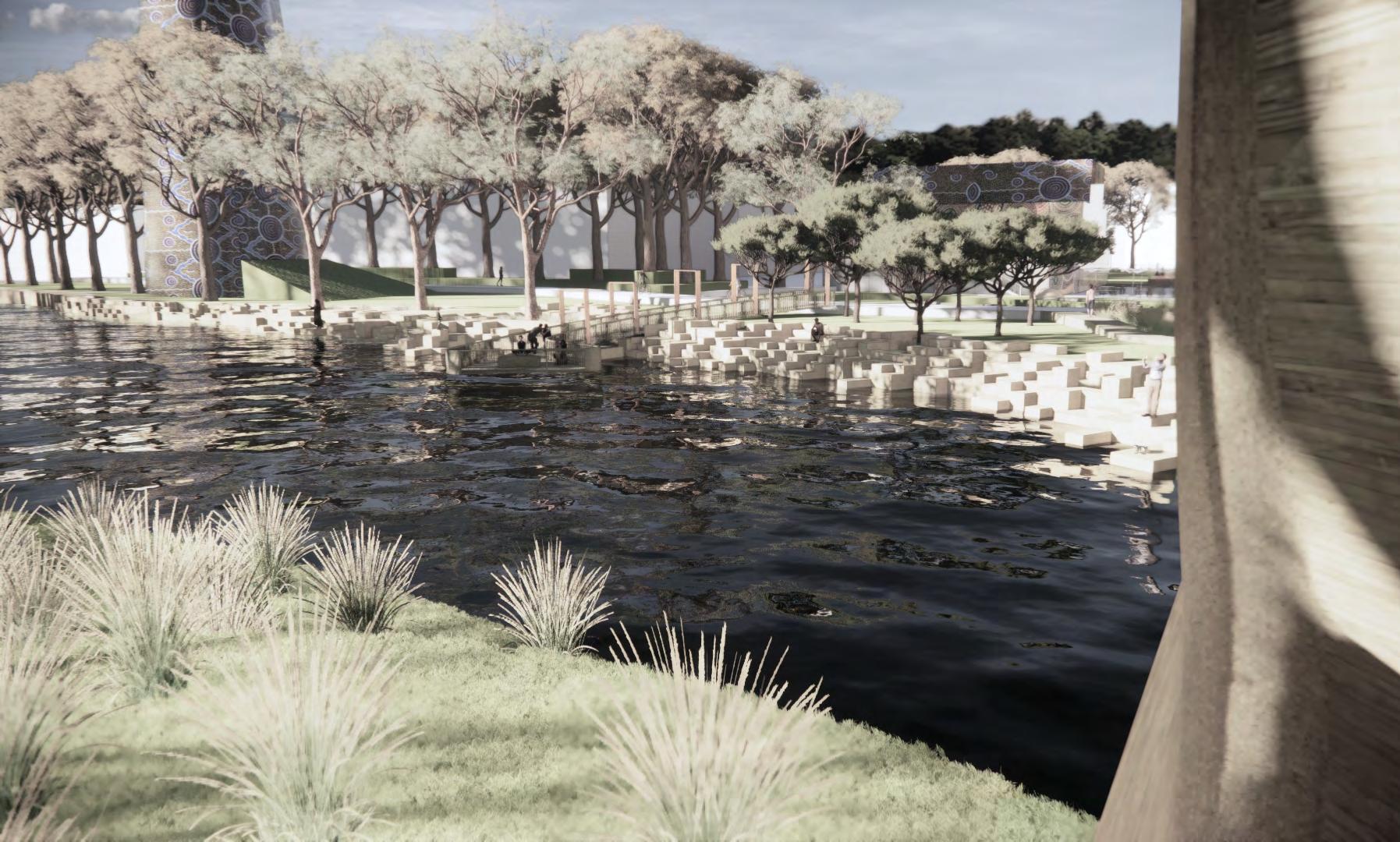

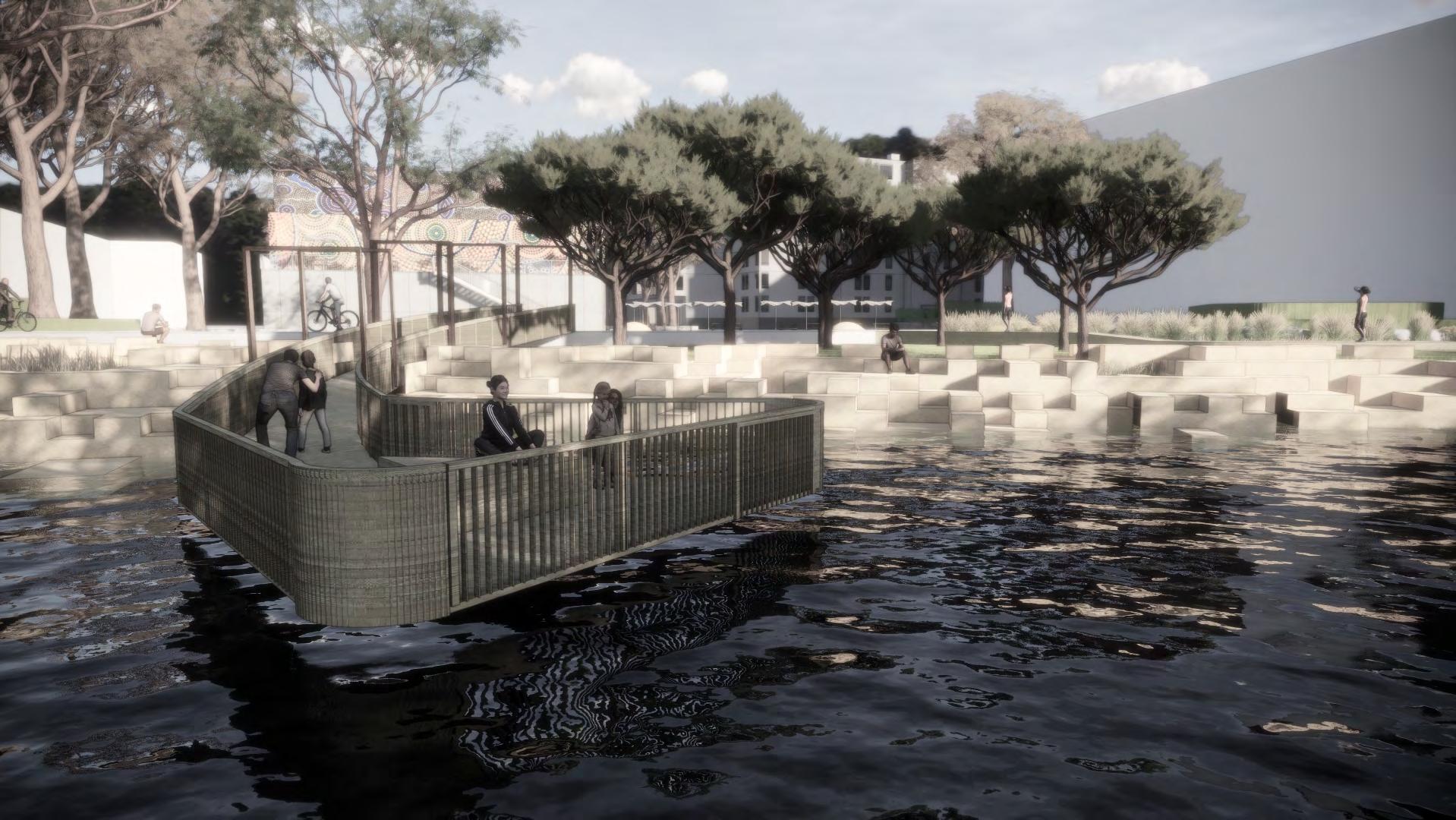

Perspective of Terraced Sandstone Foreshore

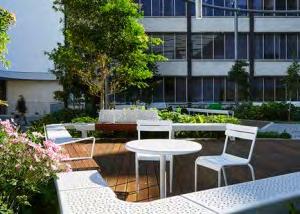

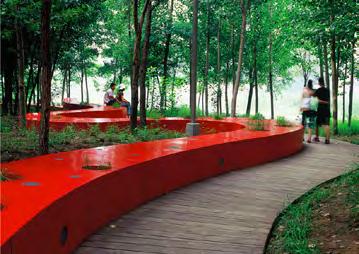

Seating Ribbon

Table and Chair

Park entrance Before

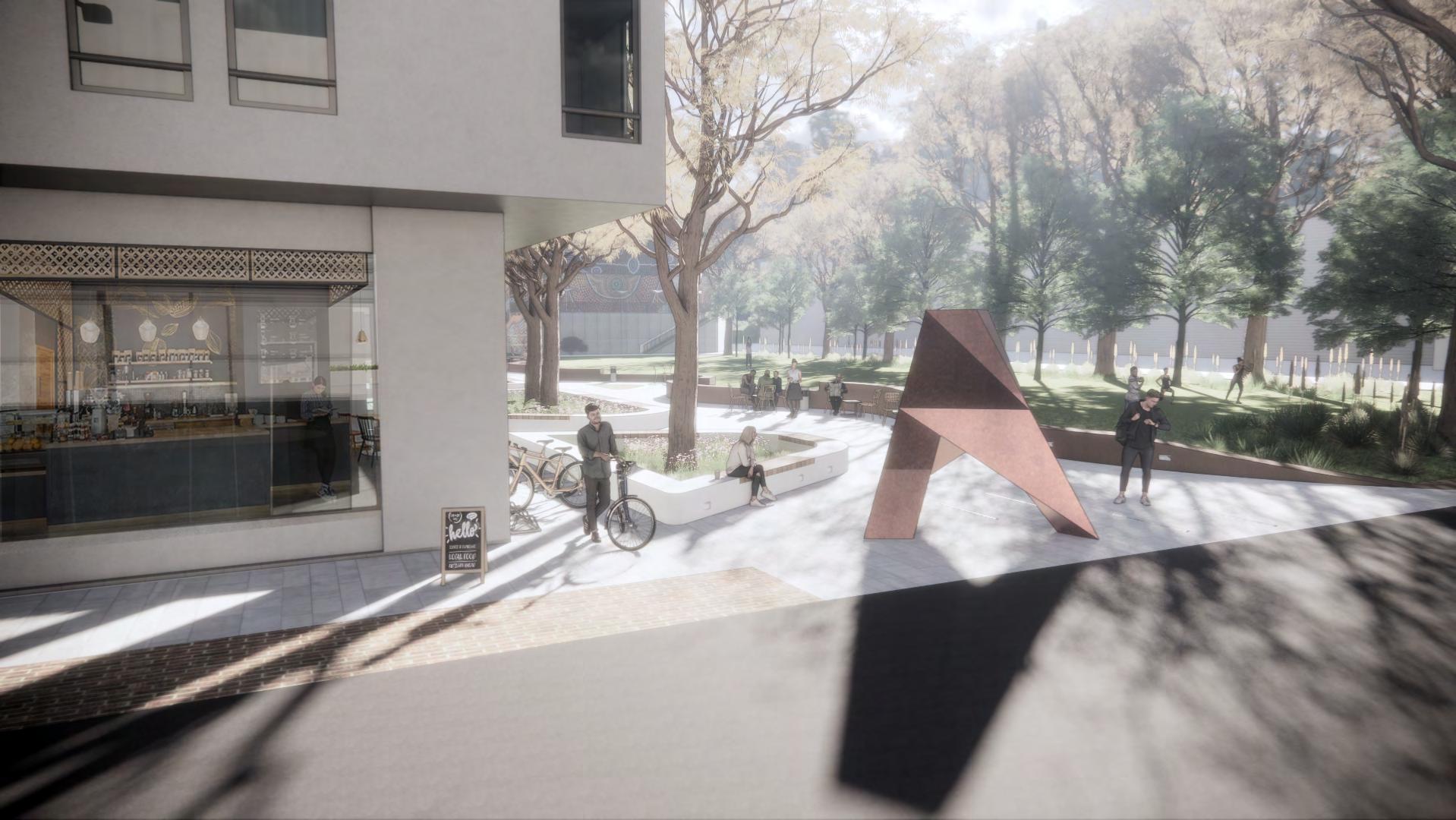

Perspective of park entrance at morning

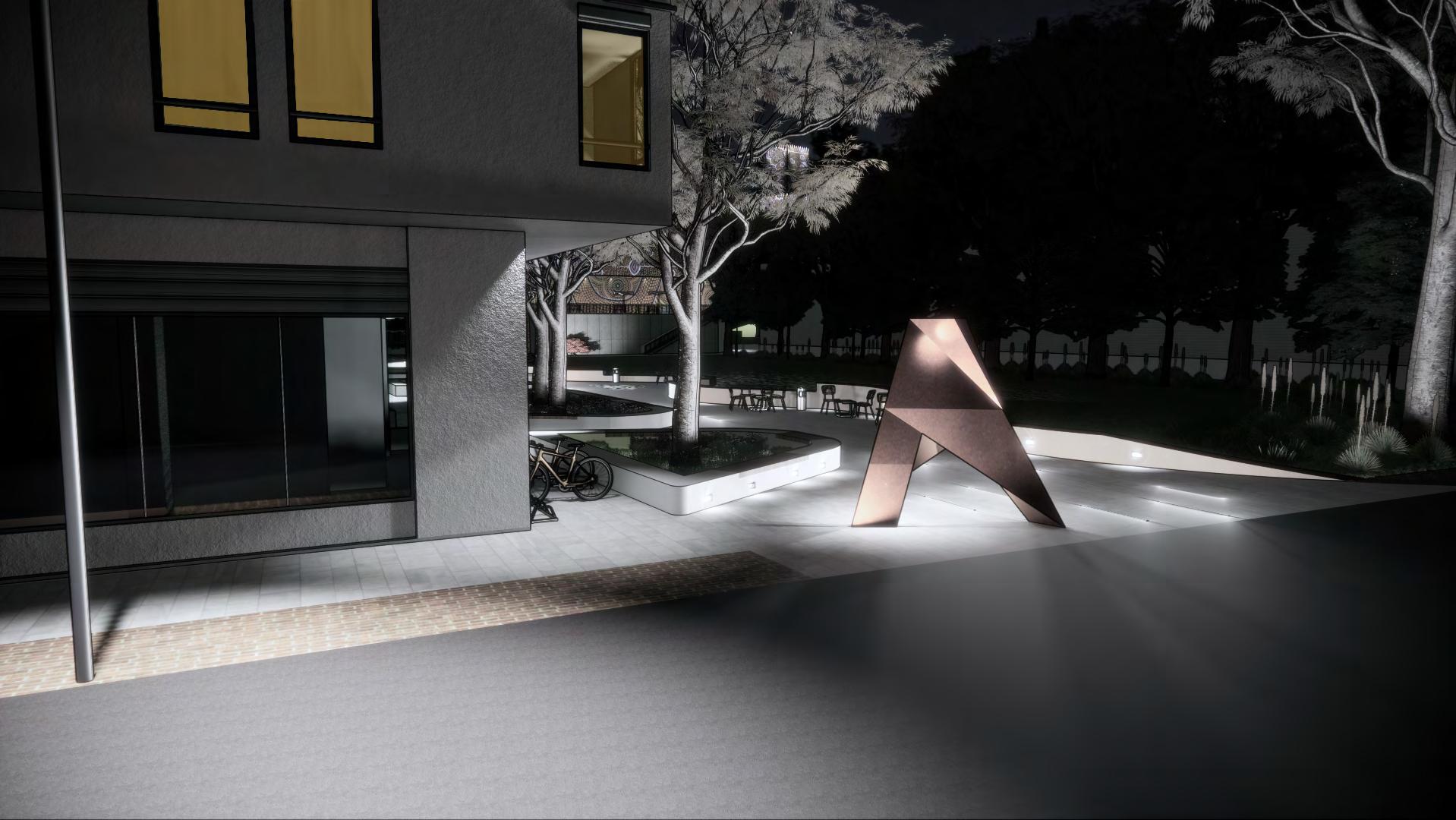

Perspective of park entrance at night

before of Green way & Chimney at morning

Design

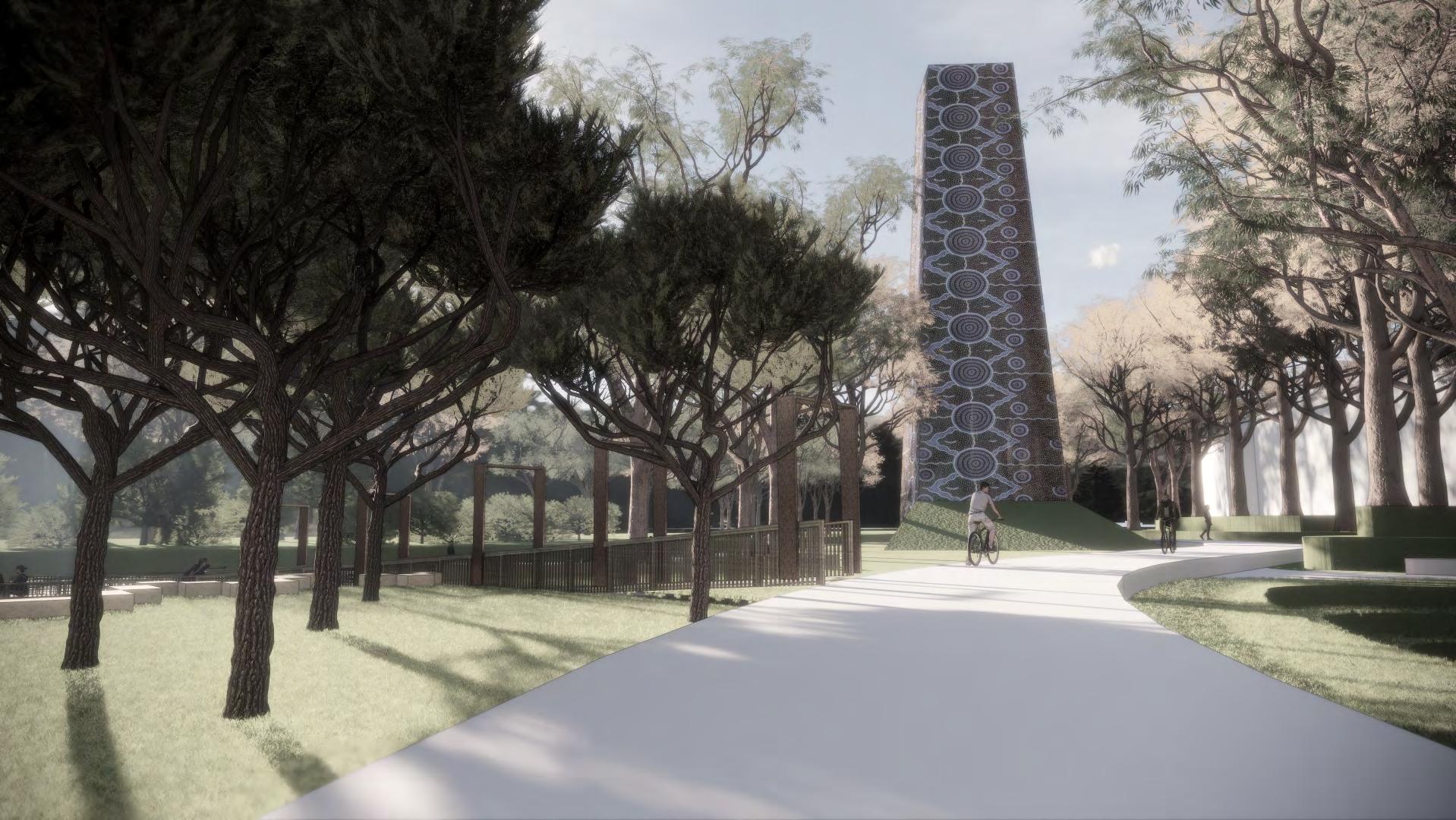

Perspective of Green way & Chimney at morning

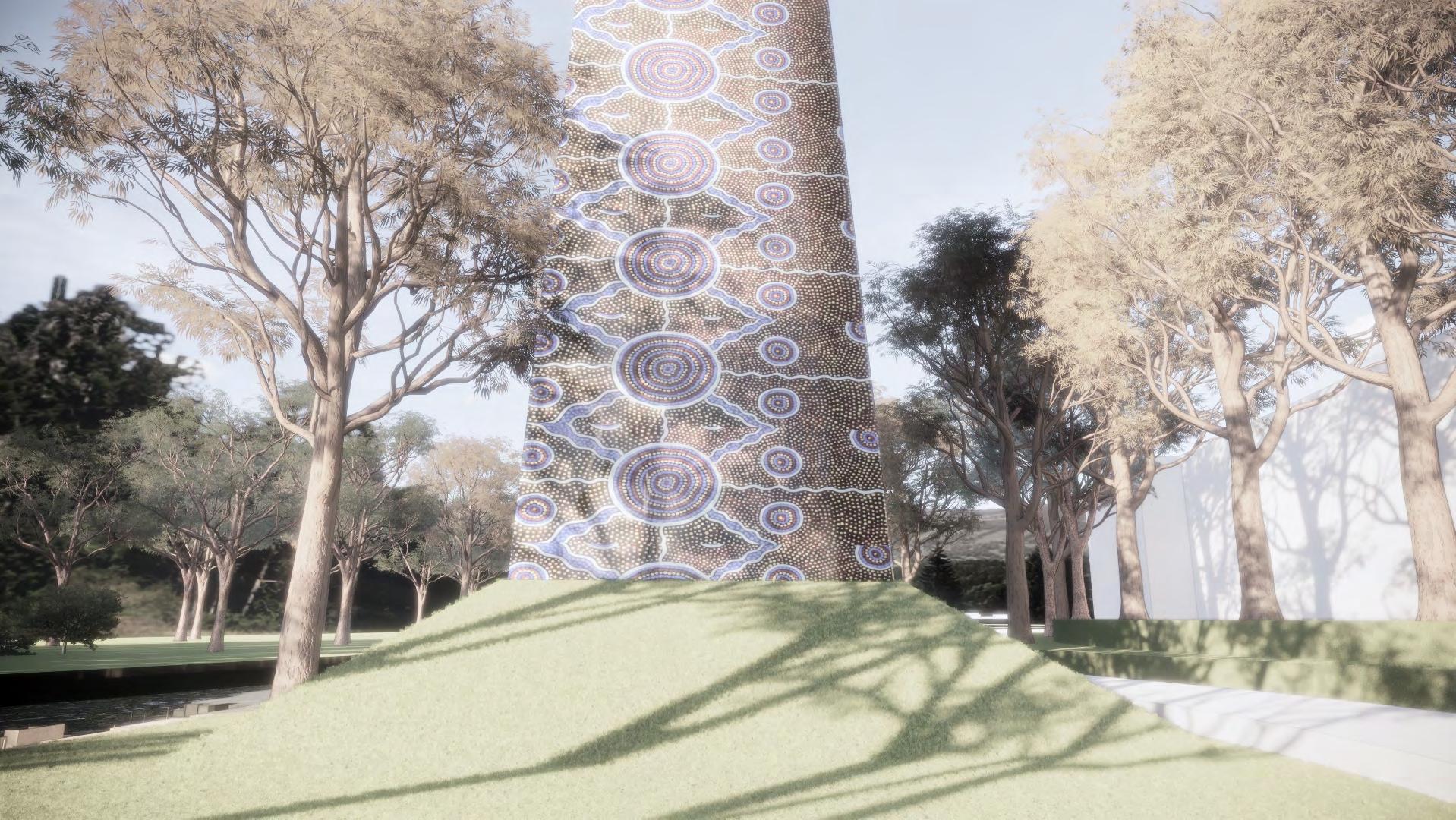

Perspective of Celebrate Chimney at Afternoon

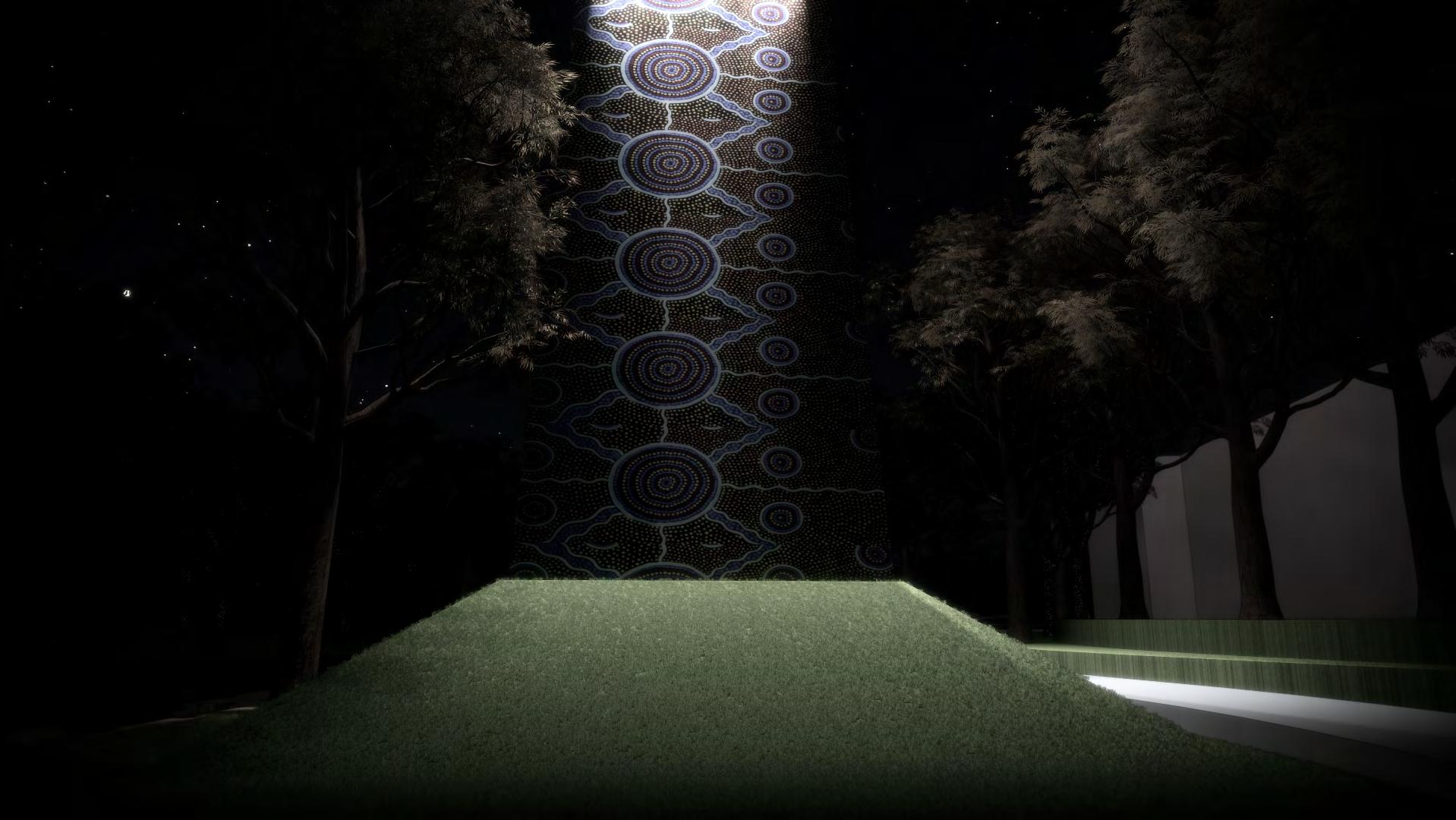

Perspective of Celebrate Chimney at night

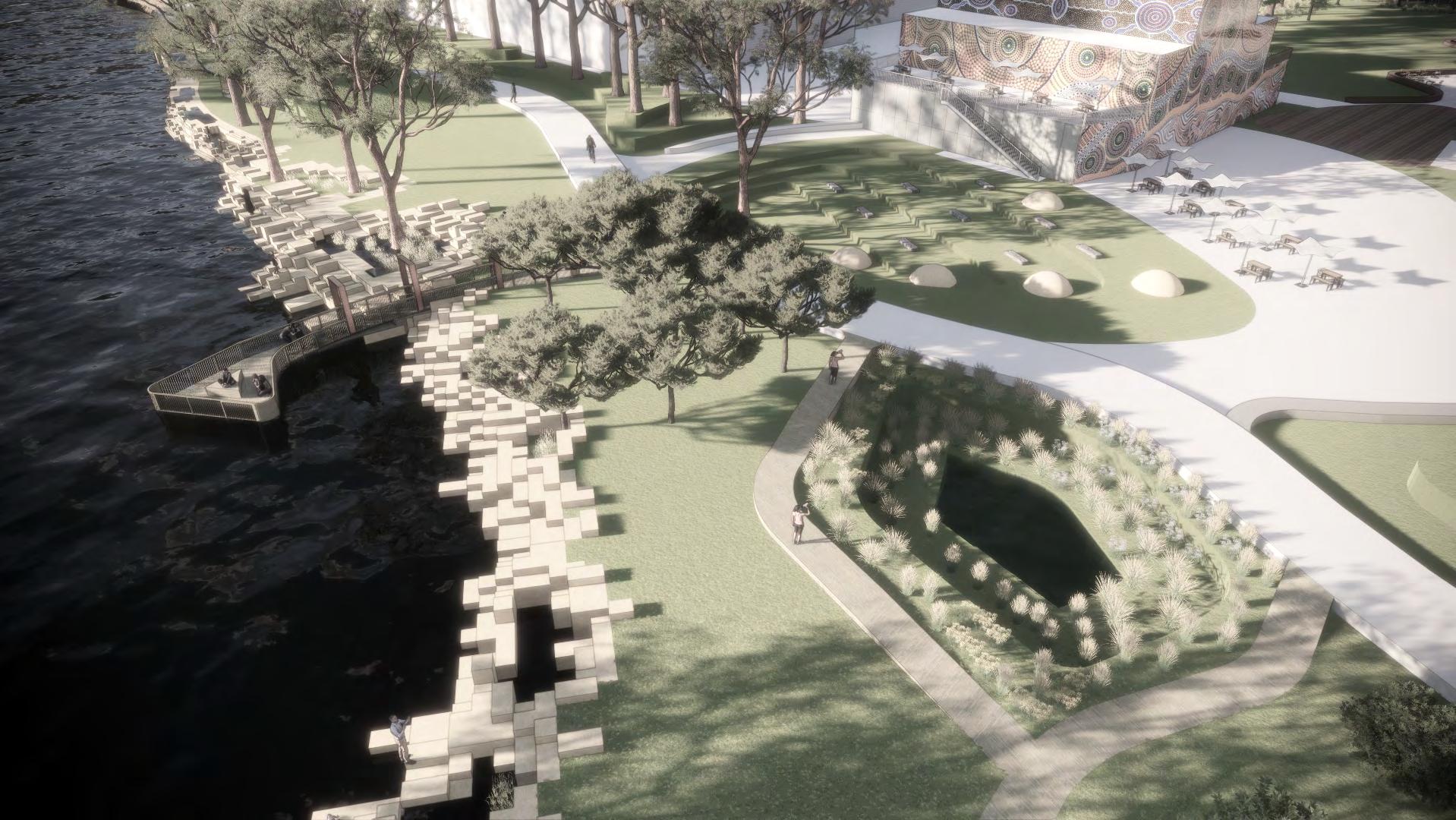

Birdview of riparian area

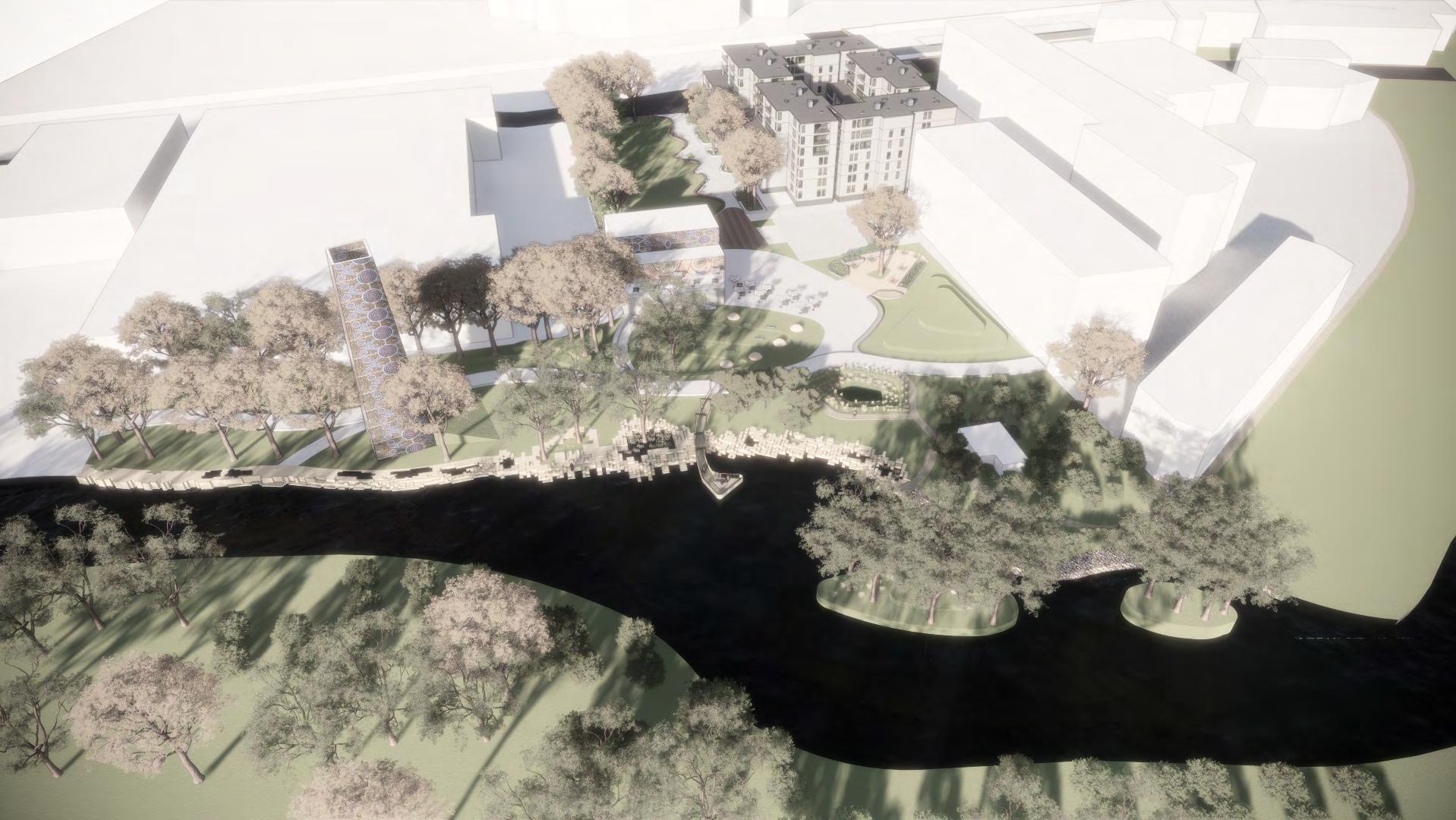

Birdview of the whole site
