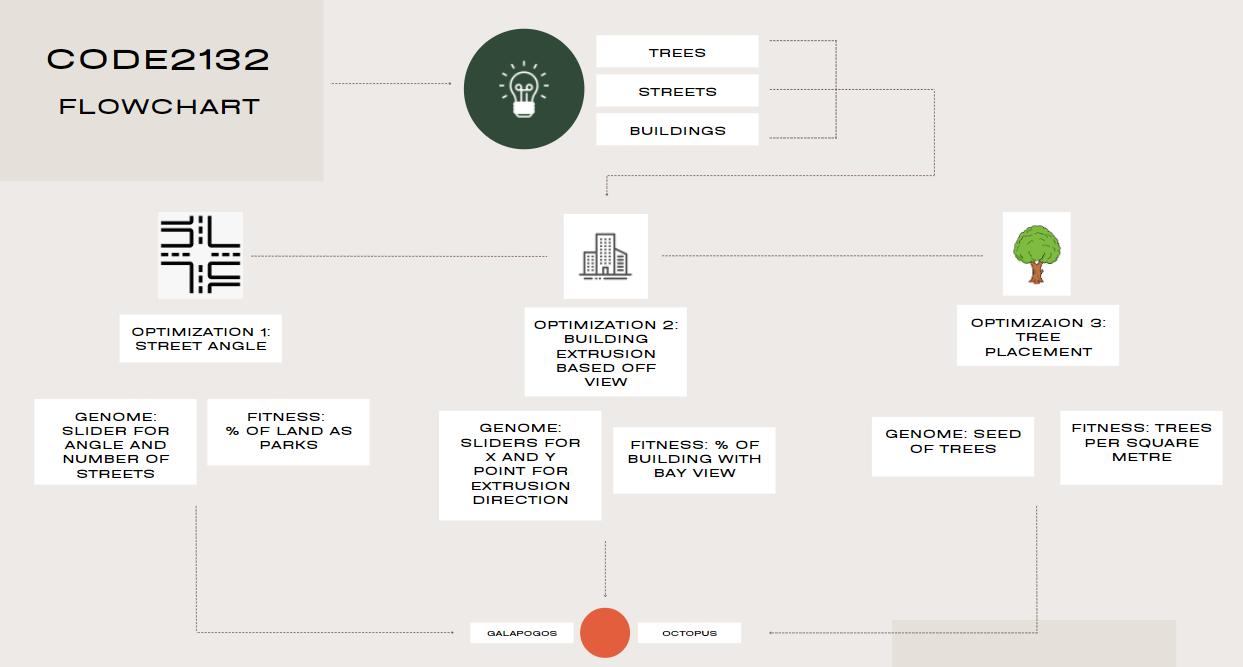

Data driven urban design tool Inputs

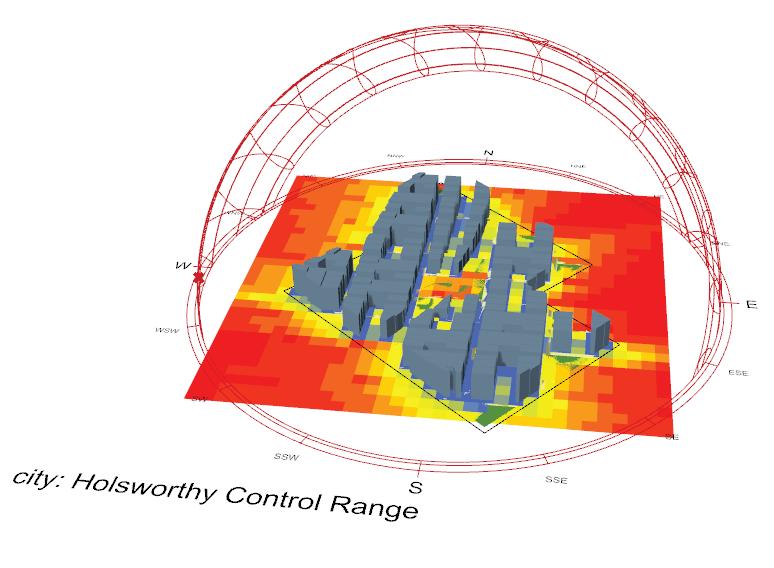

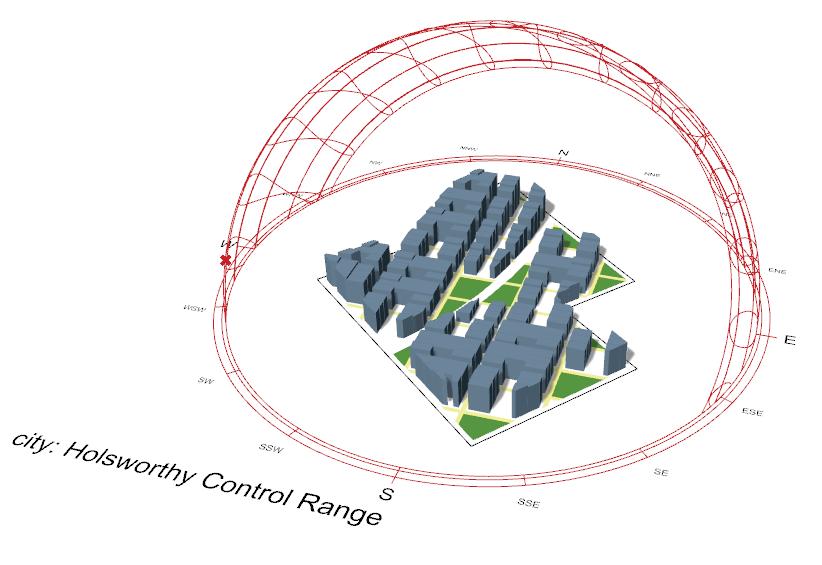

Sunlight Data from Ladybug
Assessment 3: Urban scale building envelope modelling
UNSW | CODE2132 | 2022 Term 1 | Group 1 | Karson Chow z5293384 | Kerry Qian z5316544 | Max Melamed z5251550
Tree generation process

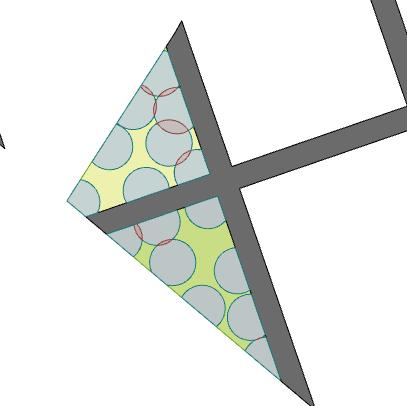

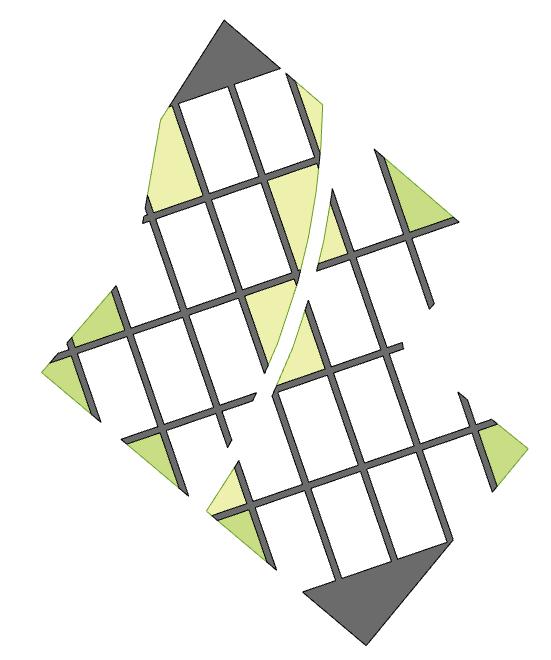

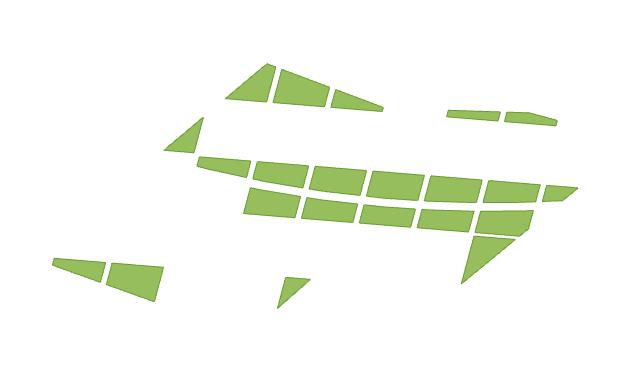

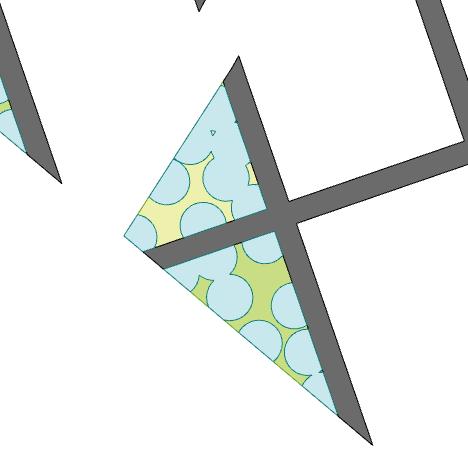

Identify spaces that are too small to contain buildings. Make these spaces into green spaces
Tree shade calculation process

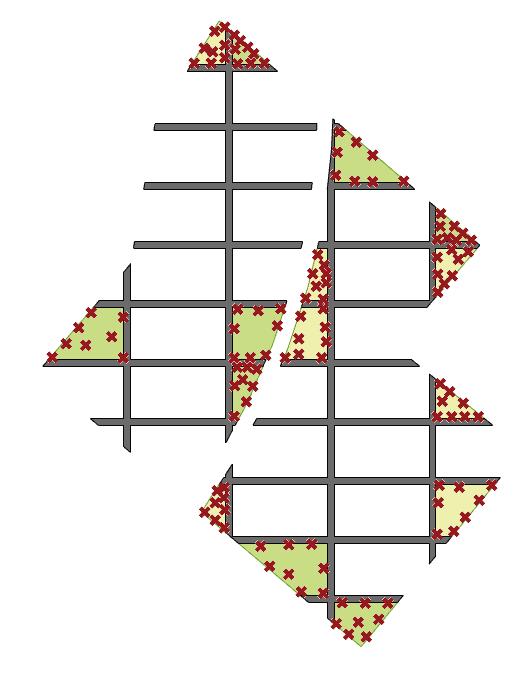

Generate random points on these spaces as the points to place trees
| CODE2132 | 2022 Term 1 | Group 1 | Karson Chow z5293384 | Kerry Qian z5316544 | Max Melamed z5251550
Calculating thermal score

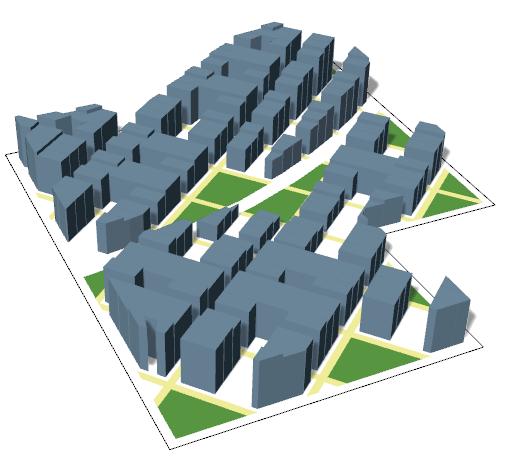

Existing precinct geometry (assignment 1)

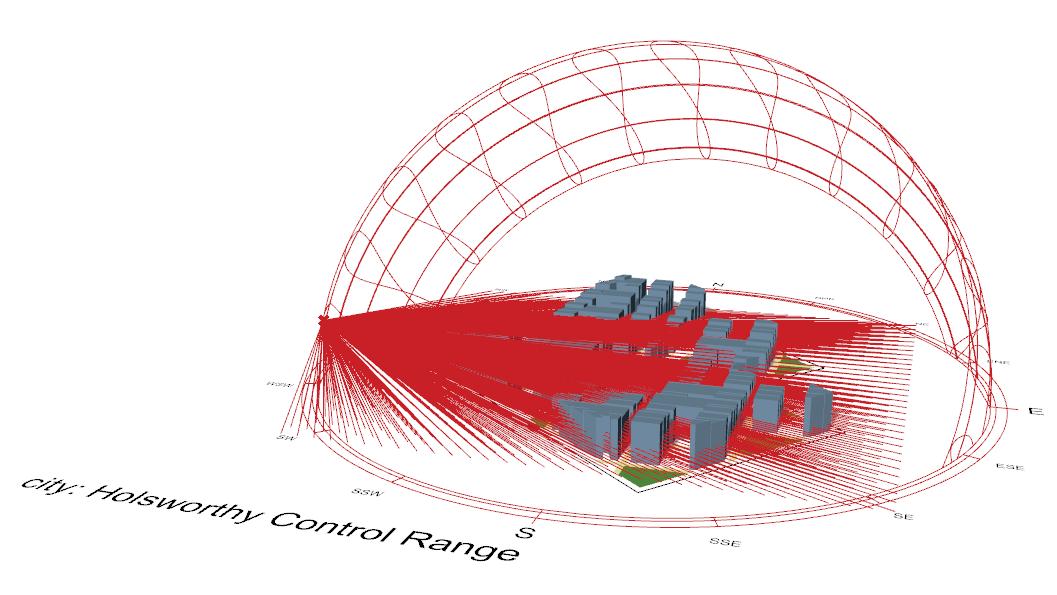

Use sunpath to create ray tracing
Create surface thermal capture analysis, based on time of day Assessment 3: Urban scale building envelope modelling
Gather sunpath data using ladybug
3: Urban scale building
modelling
Octopus evolutionary solver
Pg. 4

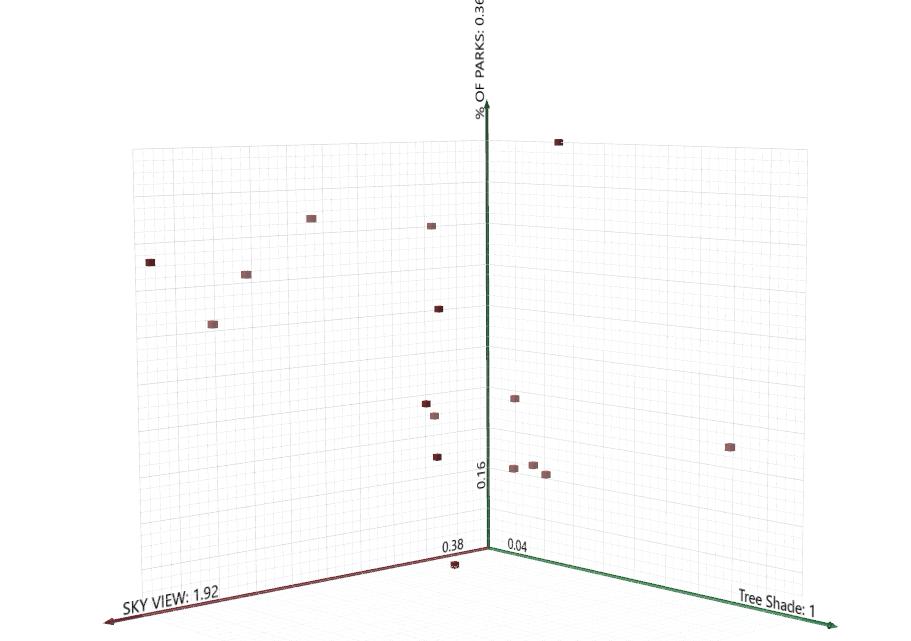

Graph output
Assessment
3: Urban scale building
envelope
modelling
UNSW | CODE2132 | 2022 Term 1 | Group 1 | Karson Chow z5293384 | Kerry Qian z5316544 | Max Melamed z5251550 Pg. 4

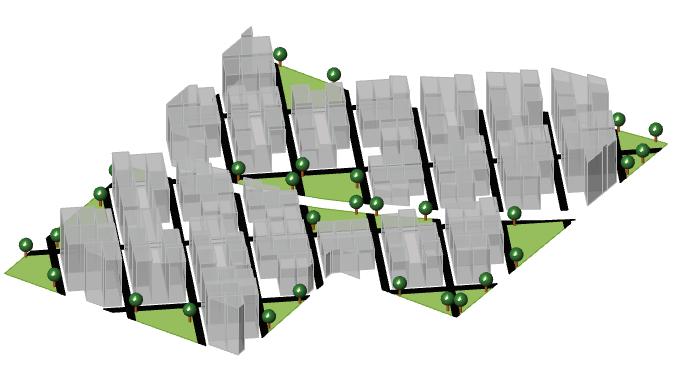

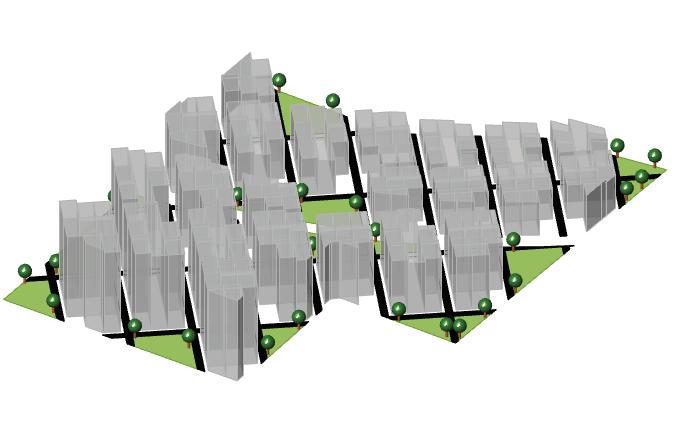

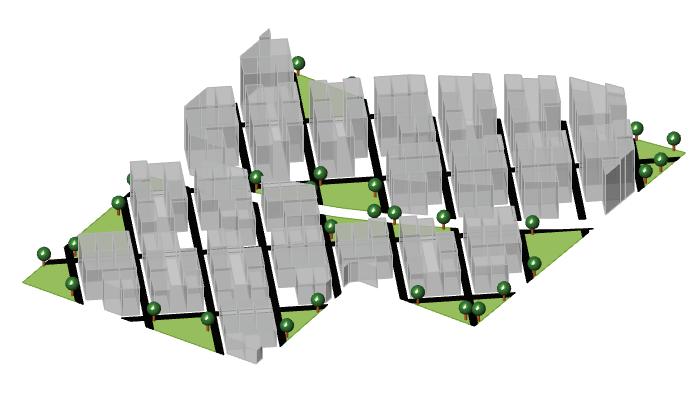

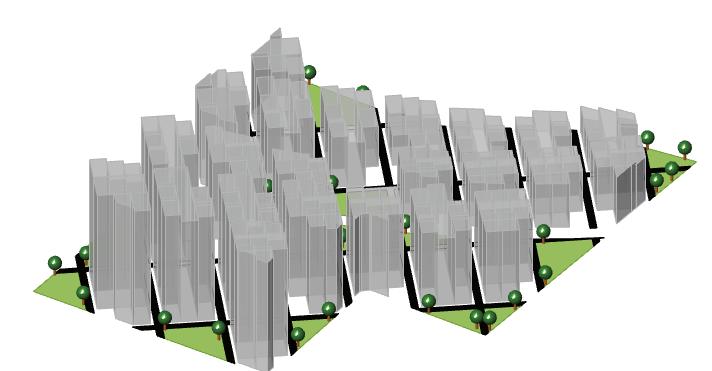

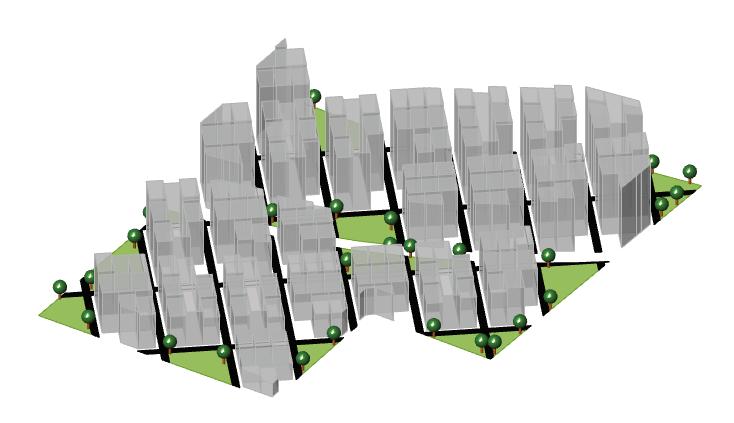

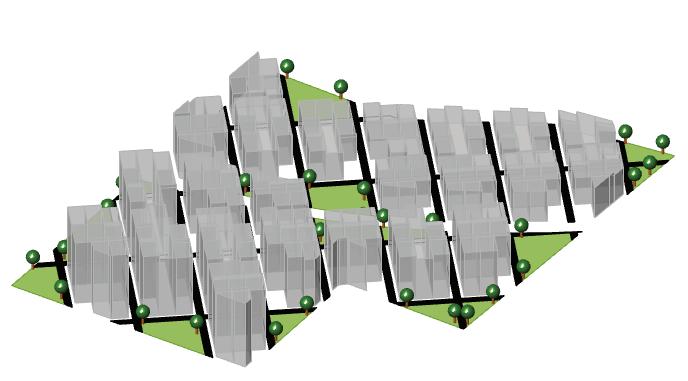

Design Variations
Populatiton: 10000
Populatiton: 20000
Populatiton: 30000
Population: 15000
Populatiton: 25000
Populatiton: 35000
