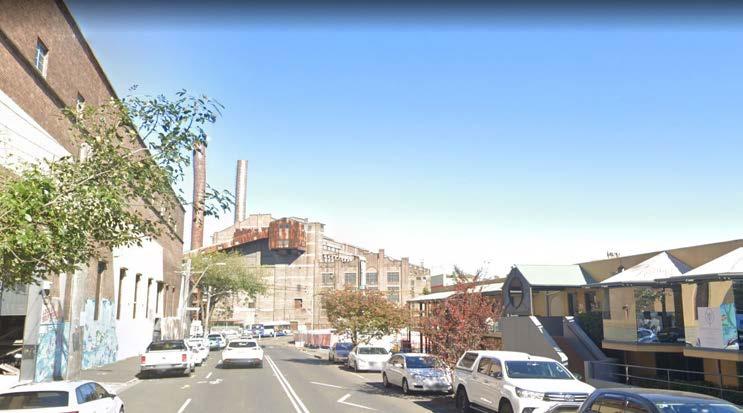

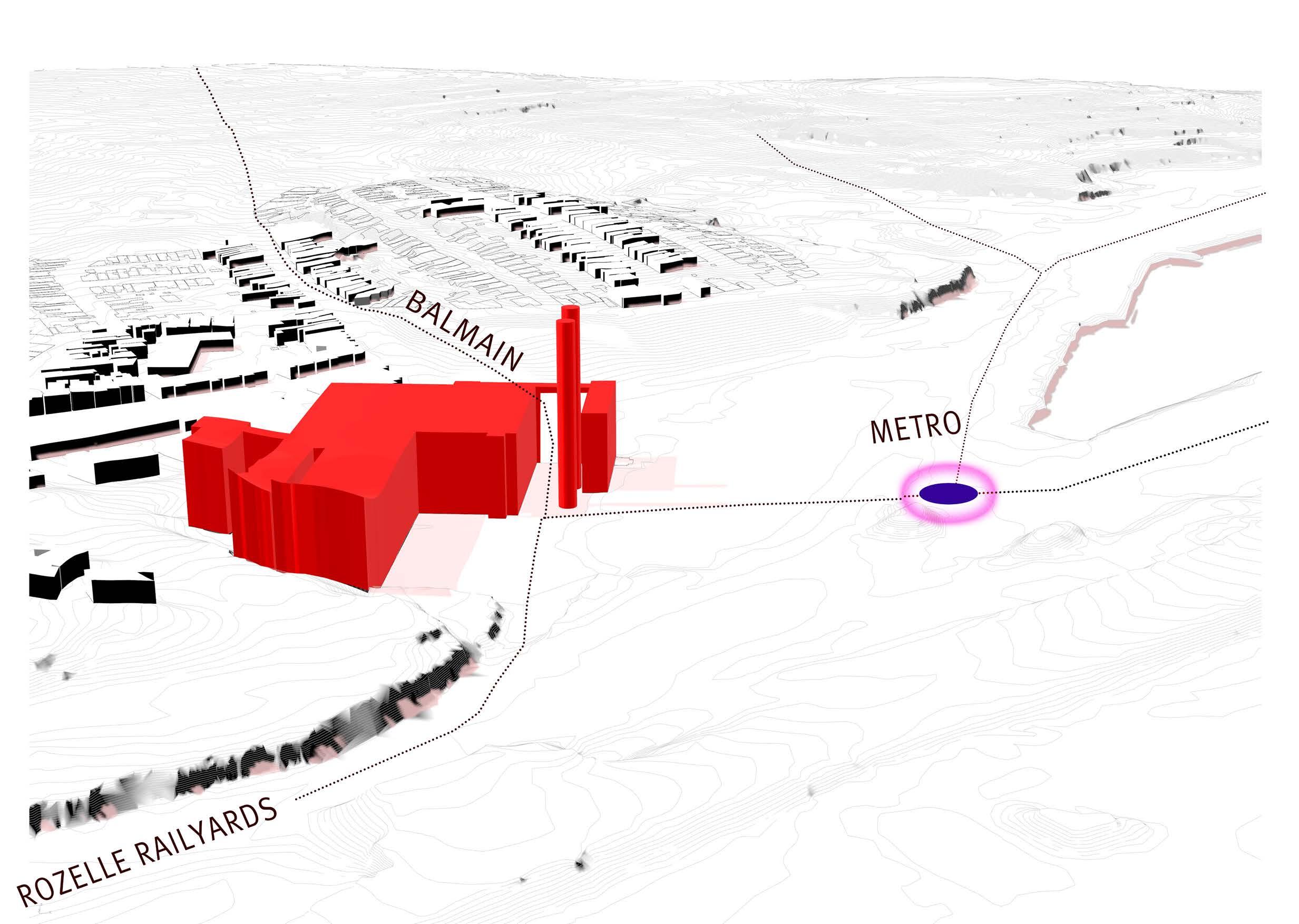

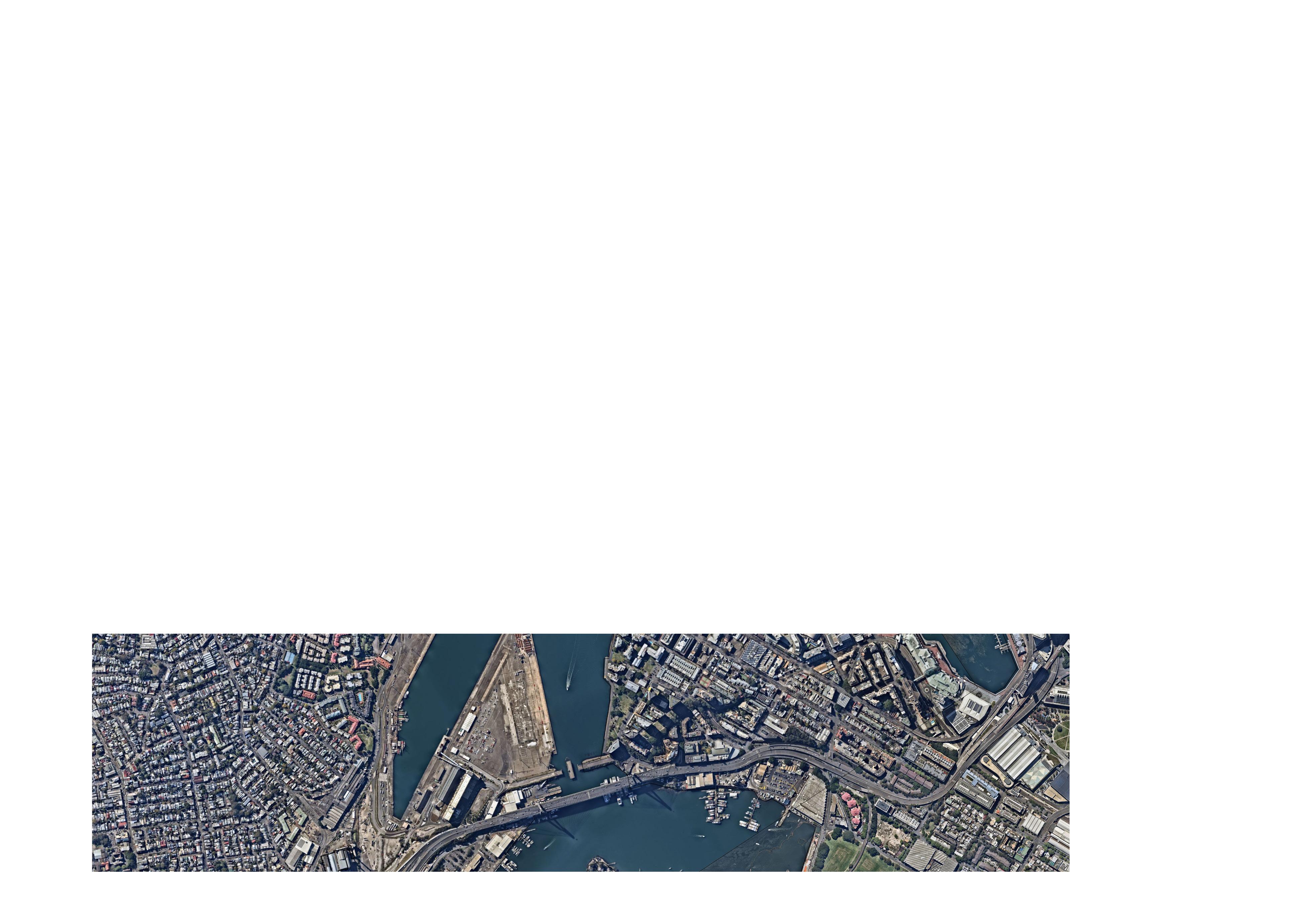

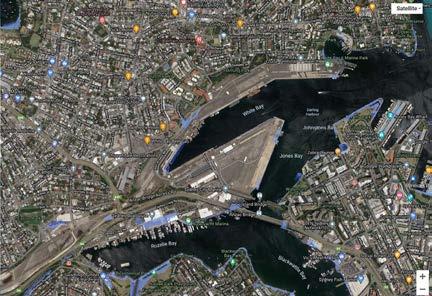

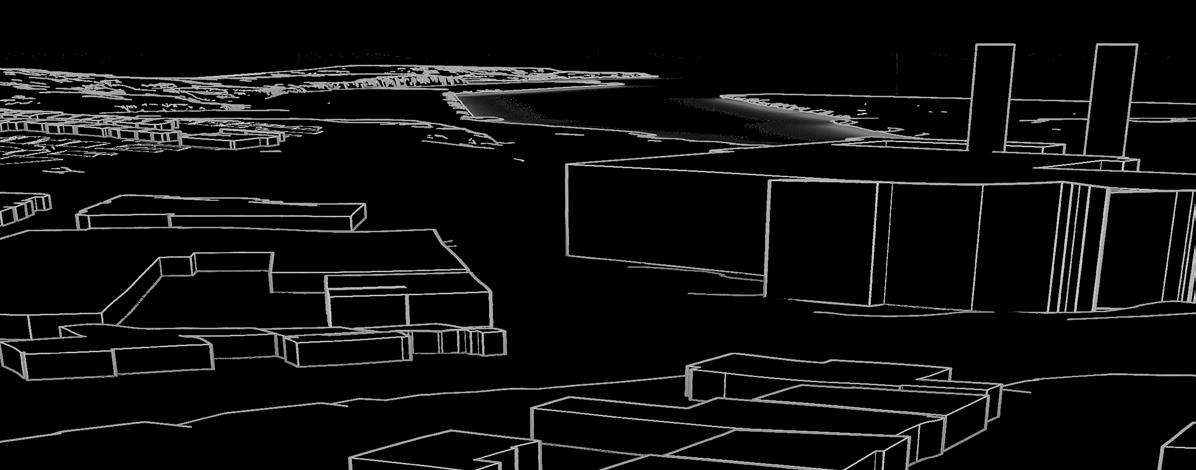

November 2020, When describing the power station as NSW treasurer...

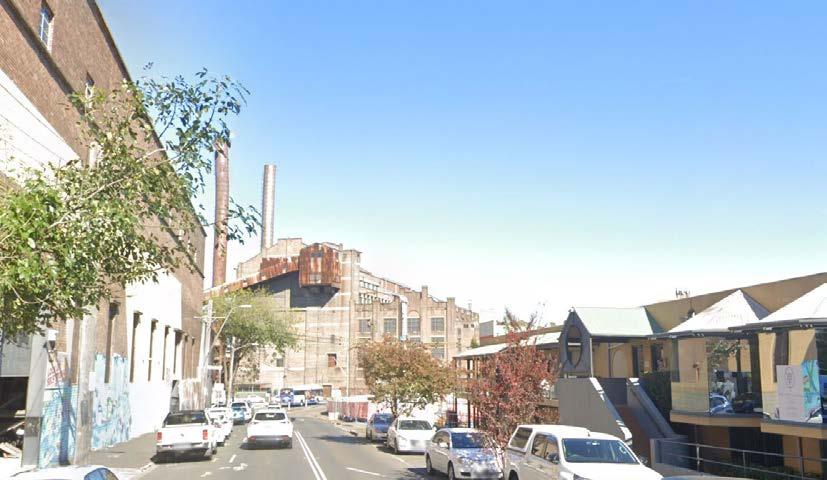

“ shocking building that should be knocked down”
How can a long term phytoremediation project be realised despite changing future political interests at White Bay?
...more than an ecological solution to realise a long-term phytoremediation project?
How can a long term phytoremediation project be realised despite changing future political interests at White Bay?
Social Shifting
Political Dynamic
Socially Interactive
Territorial Community
Ecological
Processes

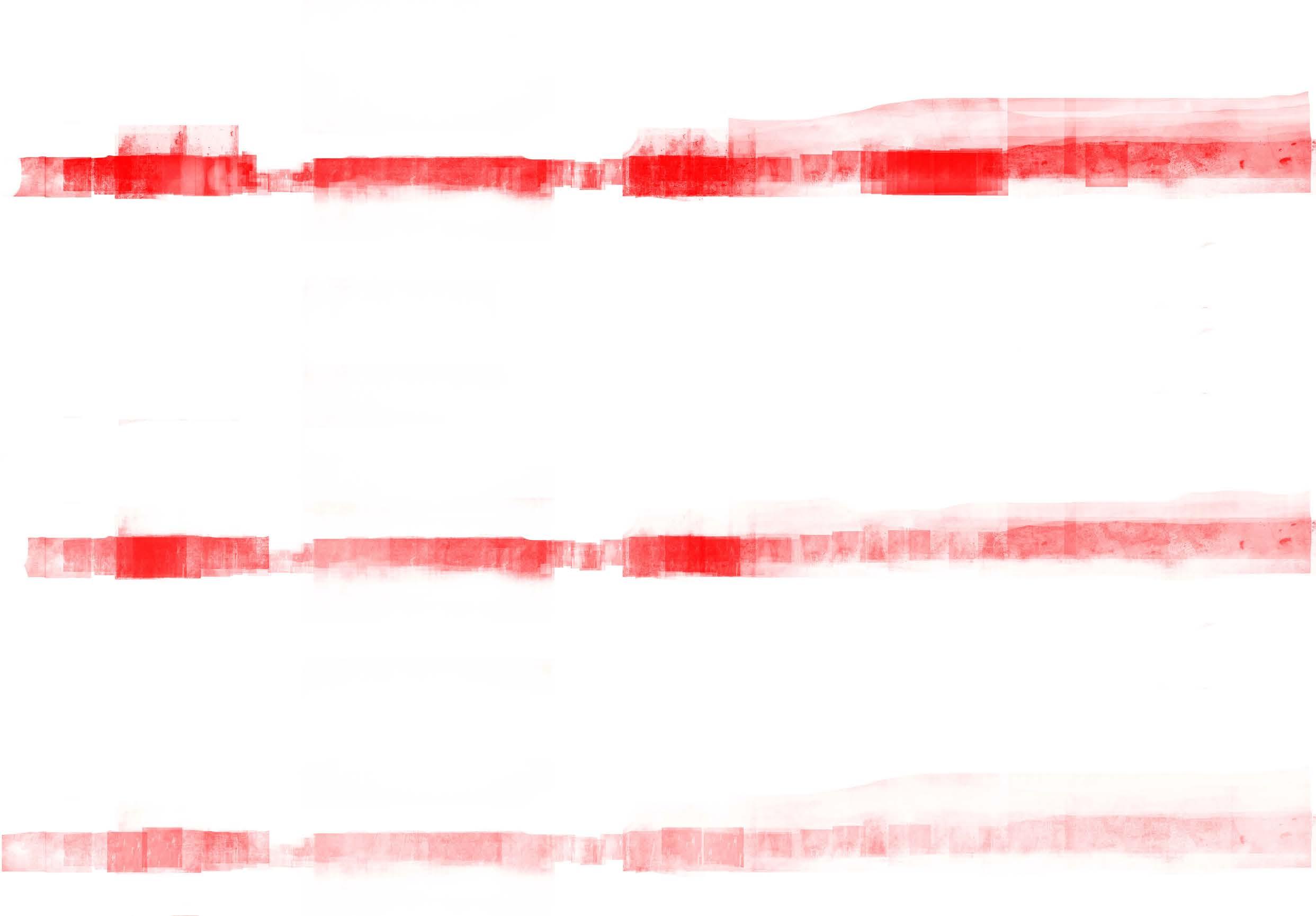

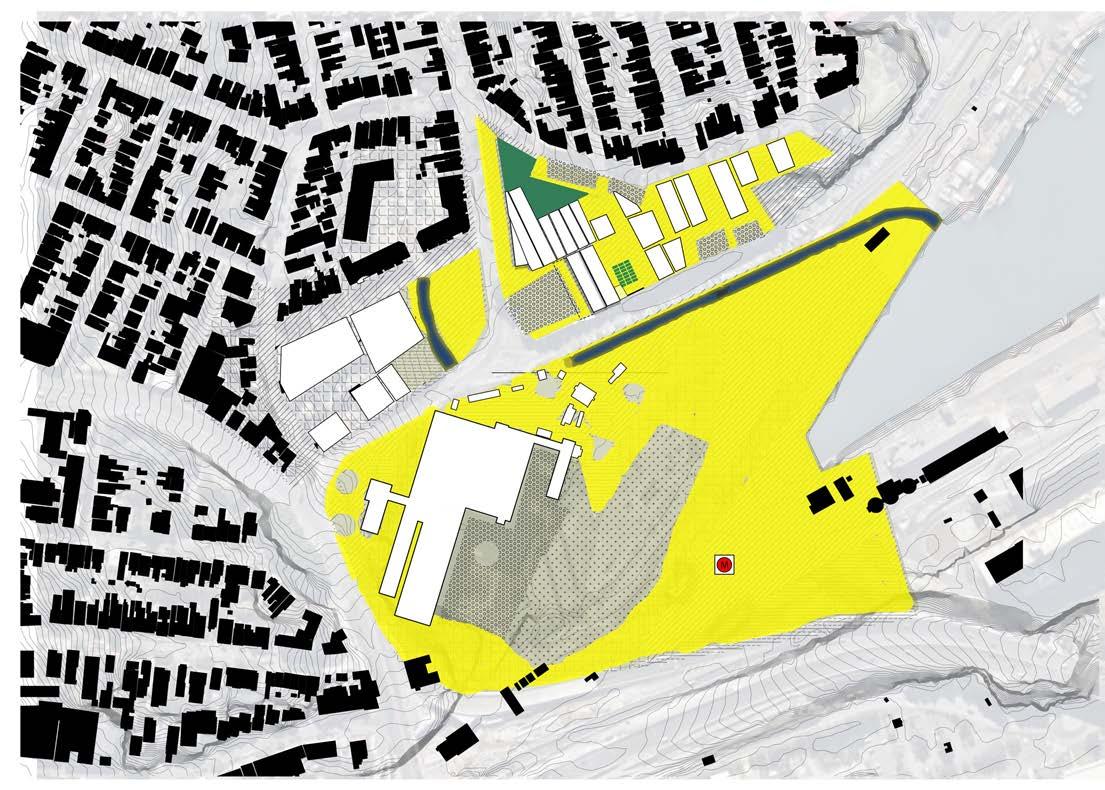

Base contaminant mix (BCM)
Heavy Metals, TPH, PAHs, PCBs

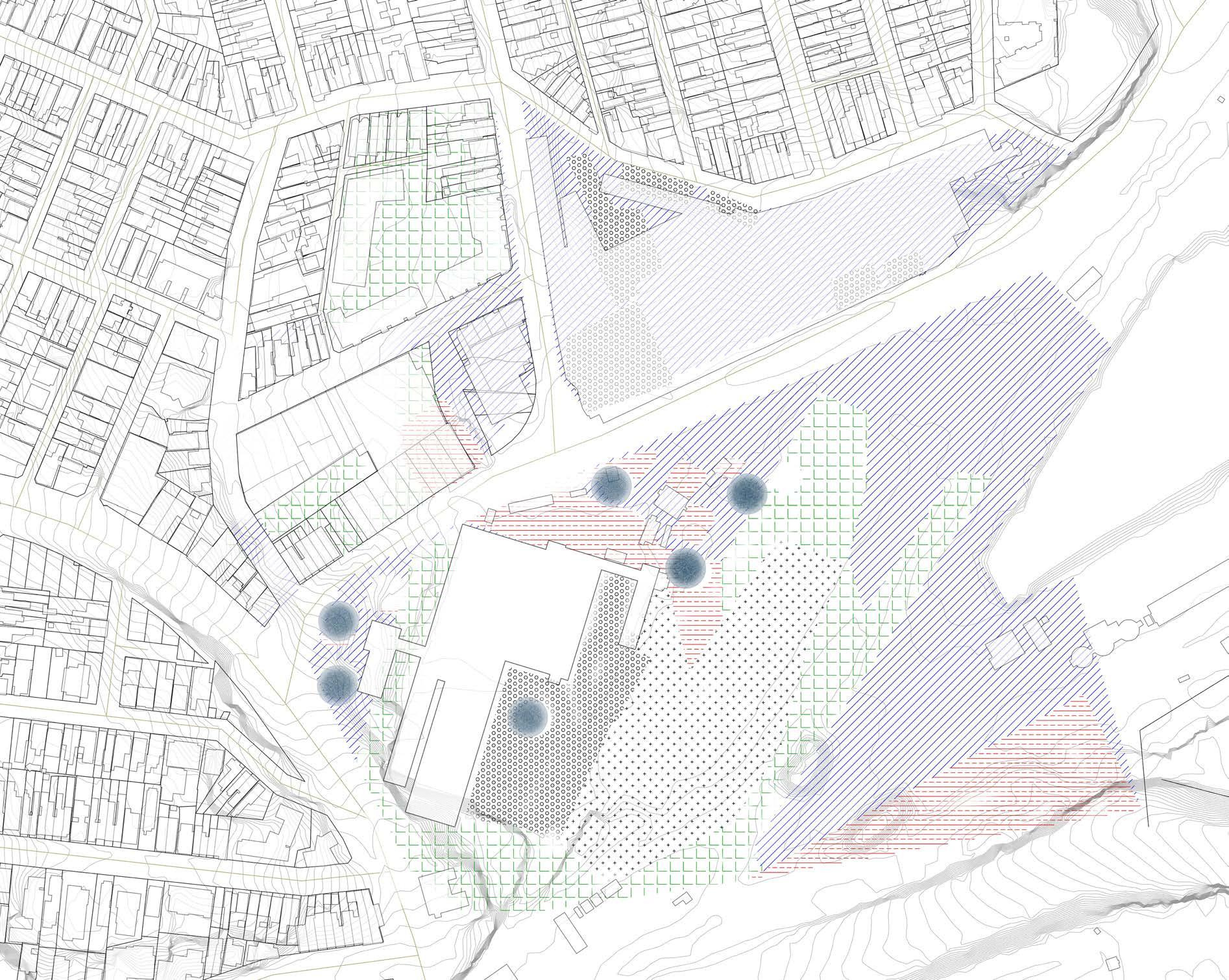

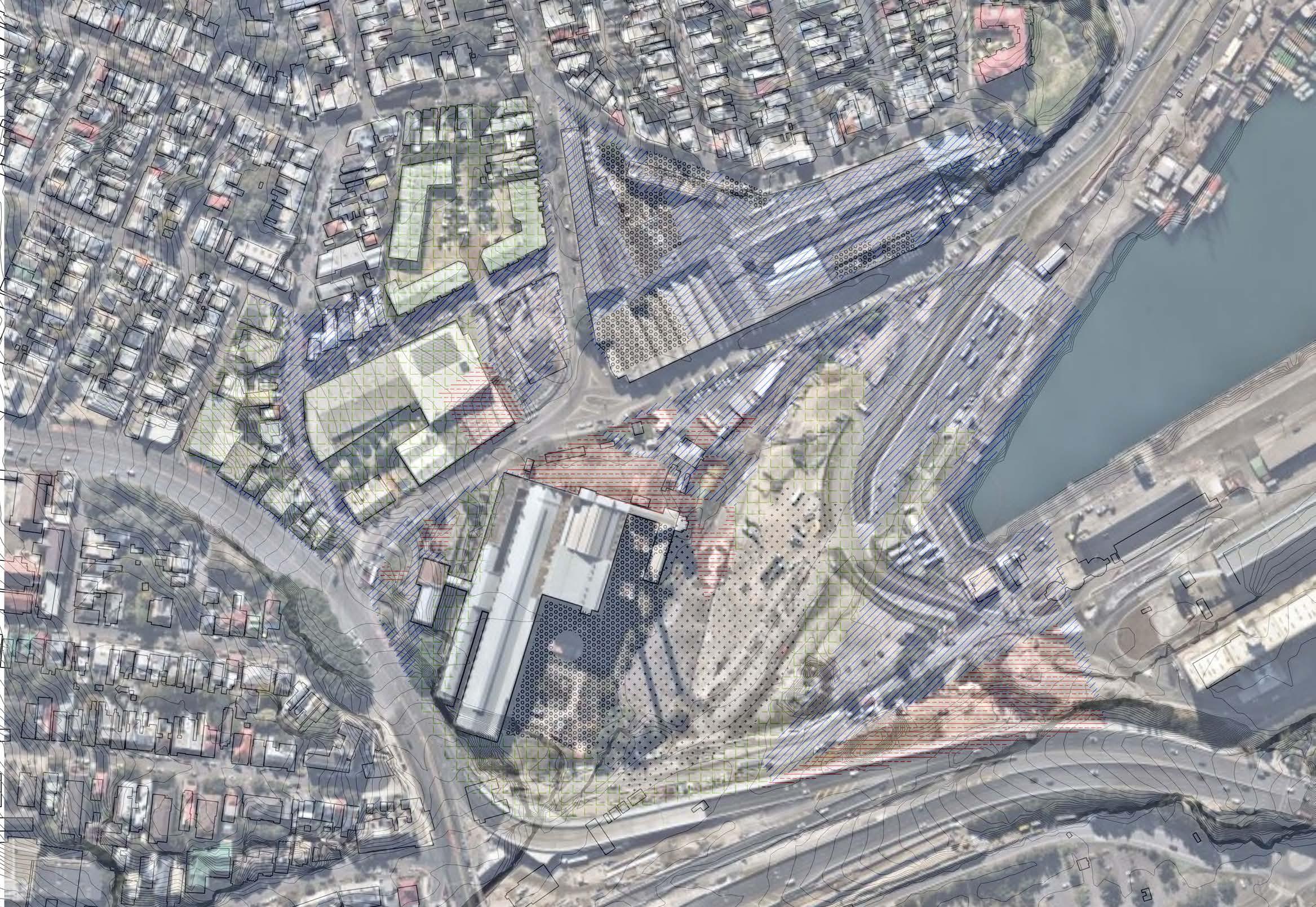

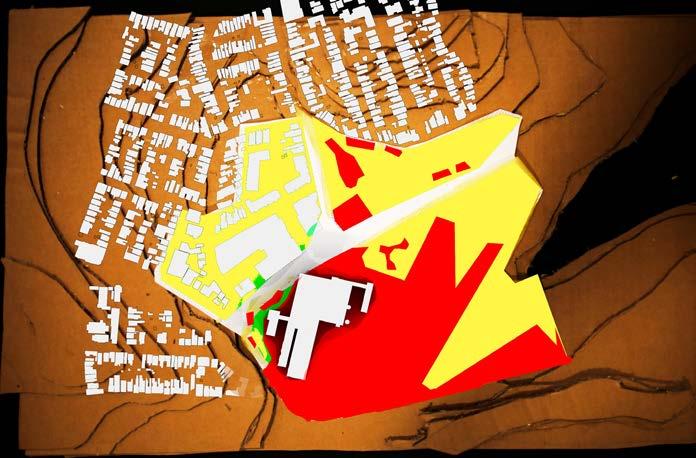

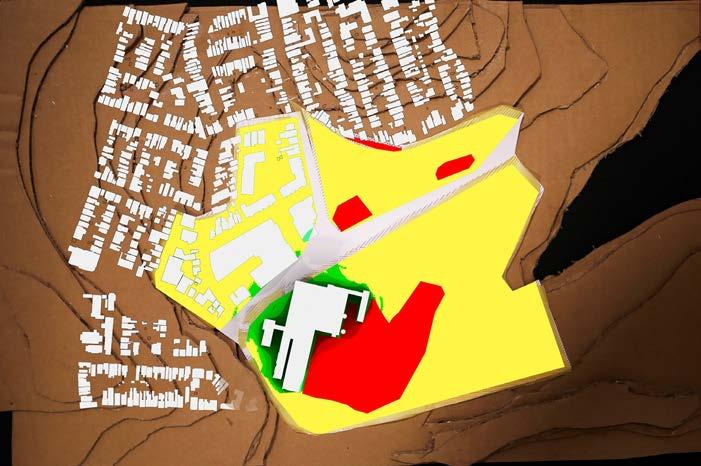

Contamination Patch Types
BCM + herbicides, absestos,
BCM + Diotoxide
BCM+ VOCS
BCM + phenolics, nitrates, absestos
BCM +absestos
BCM + specifically lead, MAHs, absestos
Heavy Metal, sulfuric acid, ammonia, sulfide nitrogen, selenium
Heavy Metals, sulfuric acid, ammonia, sulfide nitrogen, selenium ,MAHs
Heavy metals, TPH, solvents, chlorinated benzemes, phenals, potassium hydroxide

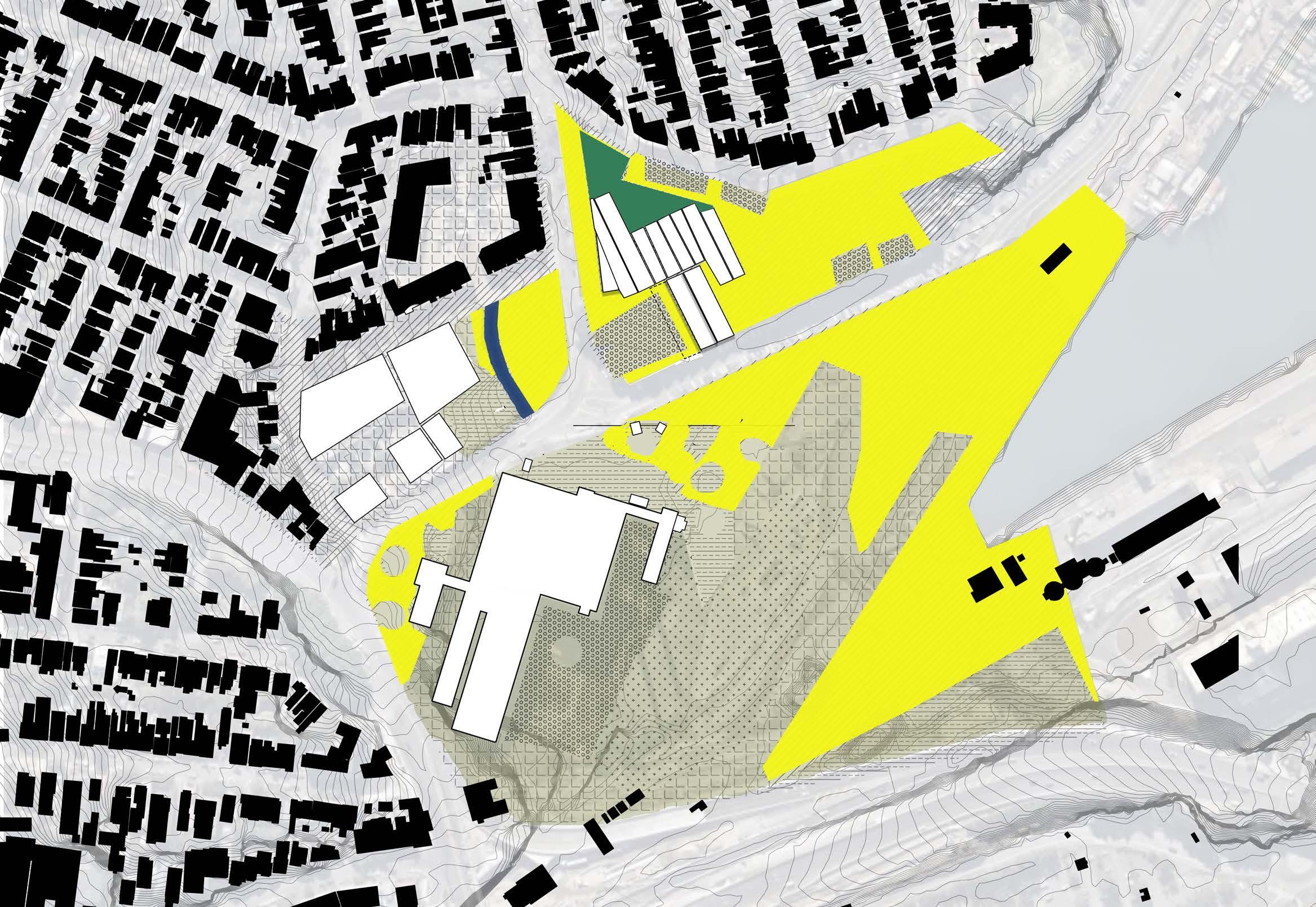

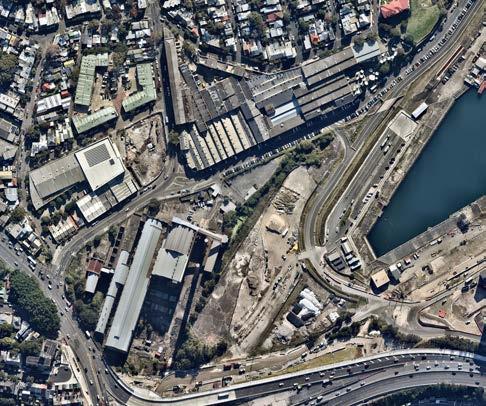

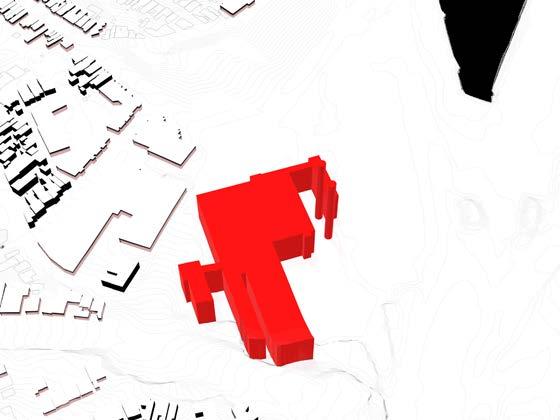

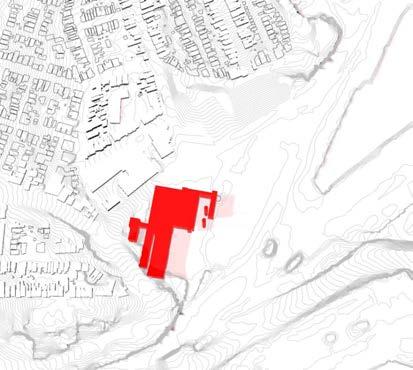

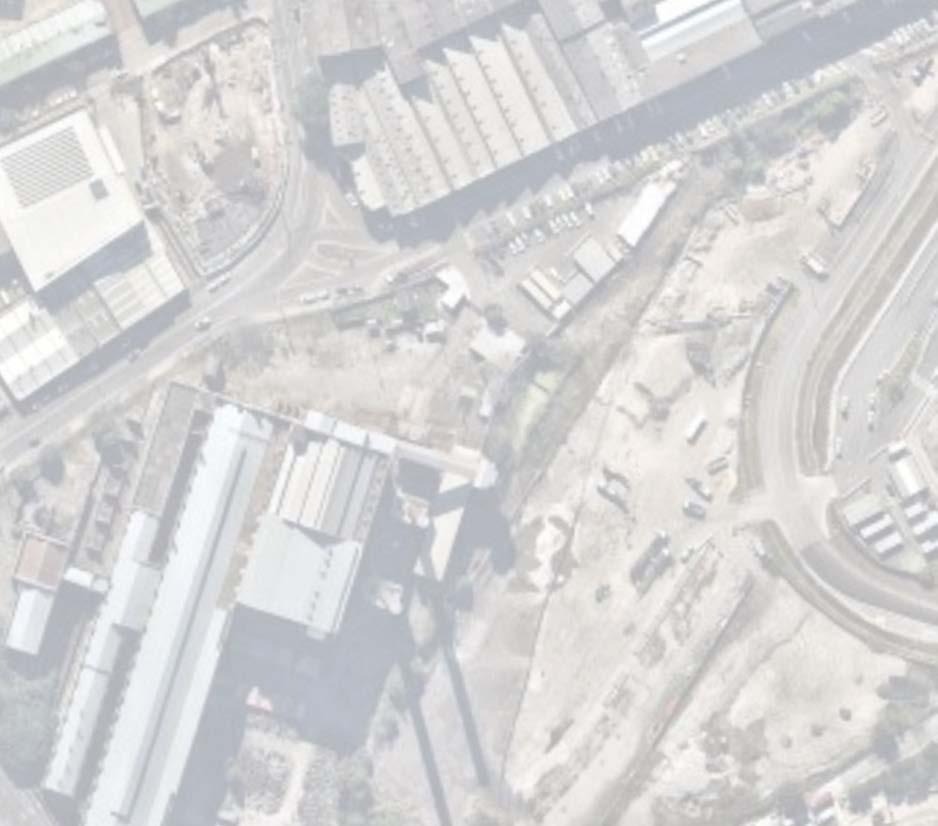

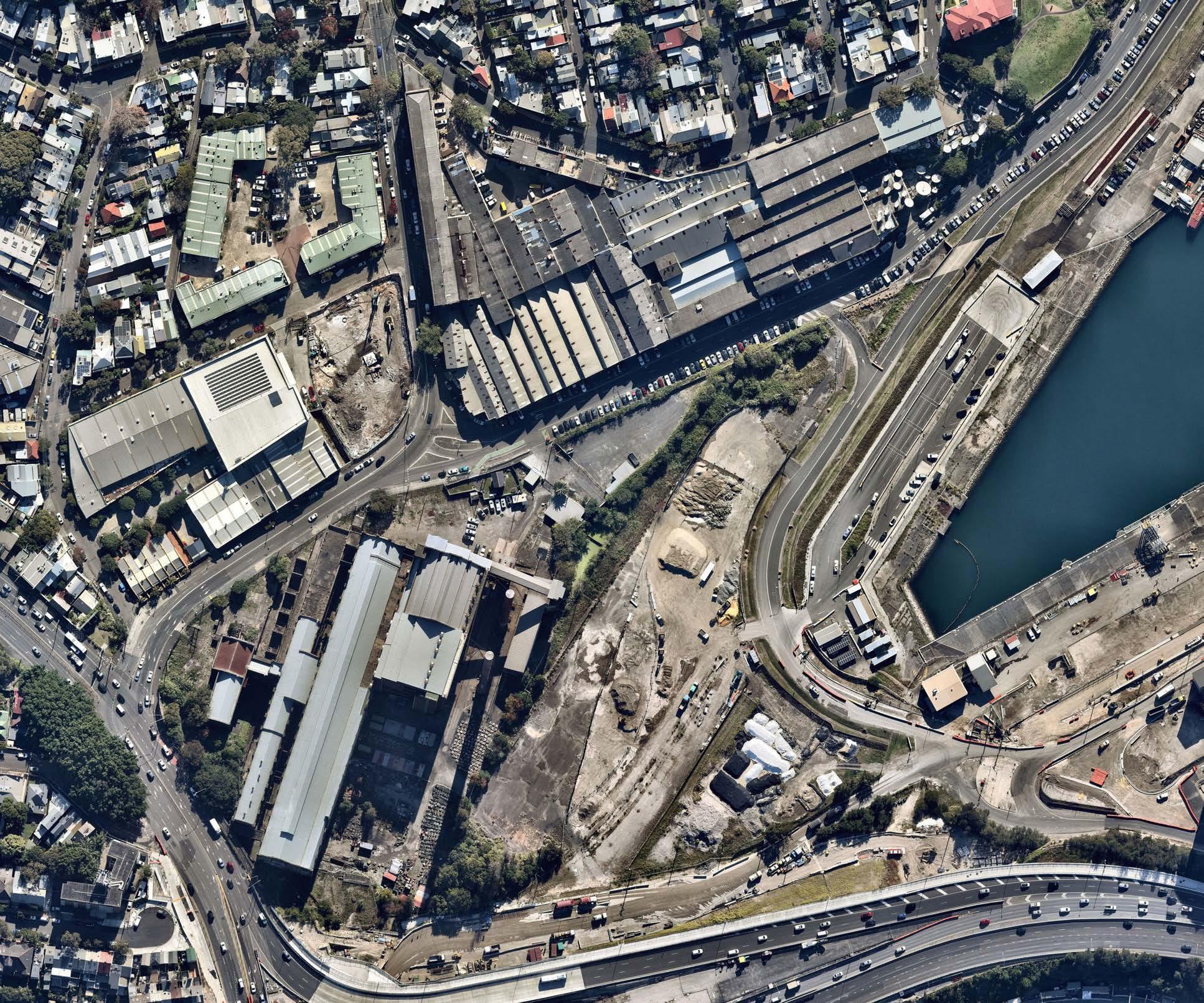

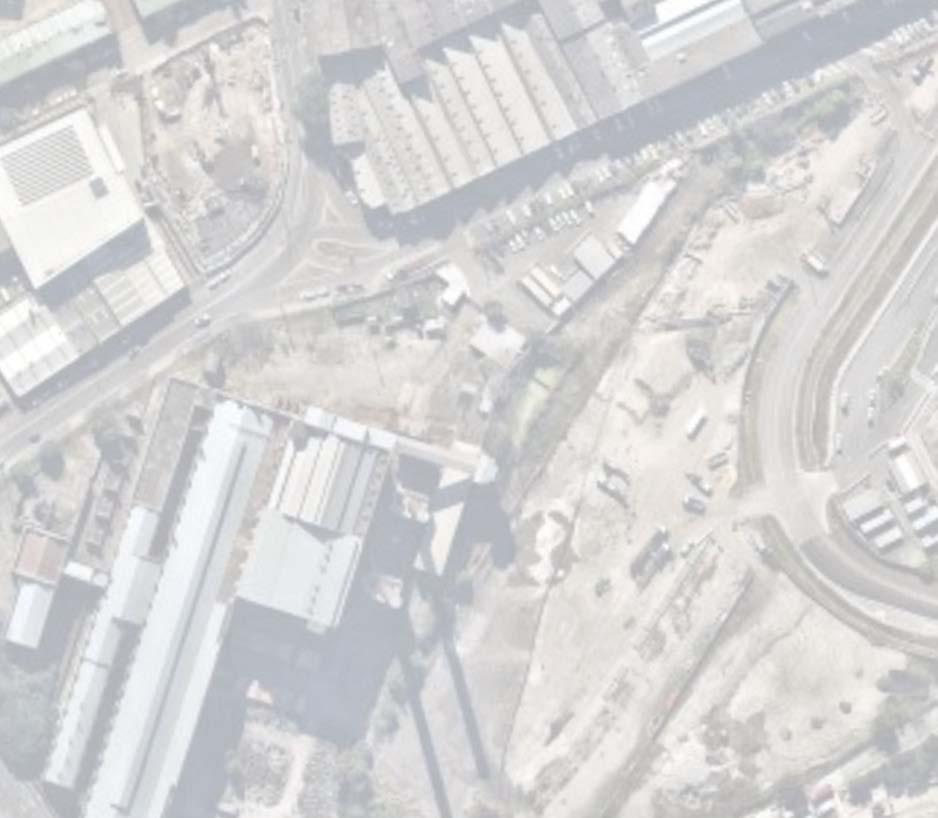

Lot 210/203 ( APEC Reference) General Contaminated Fill Sites

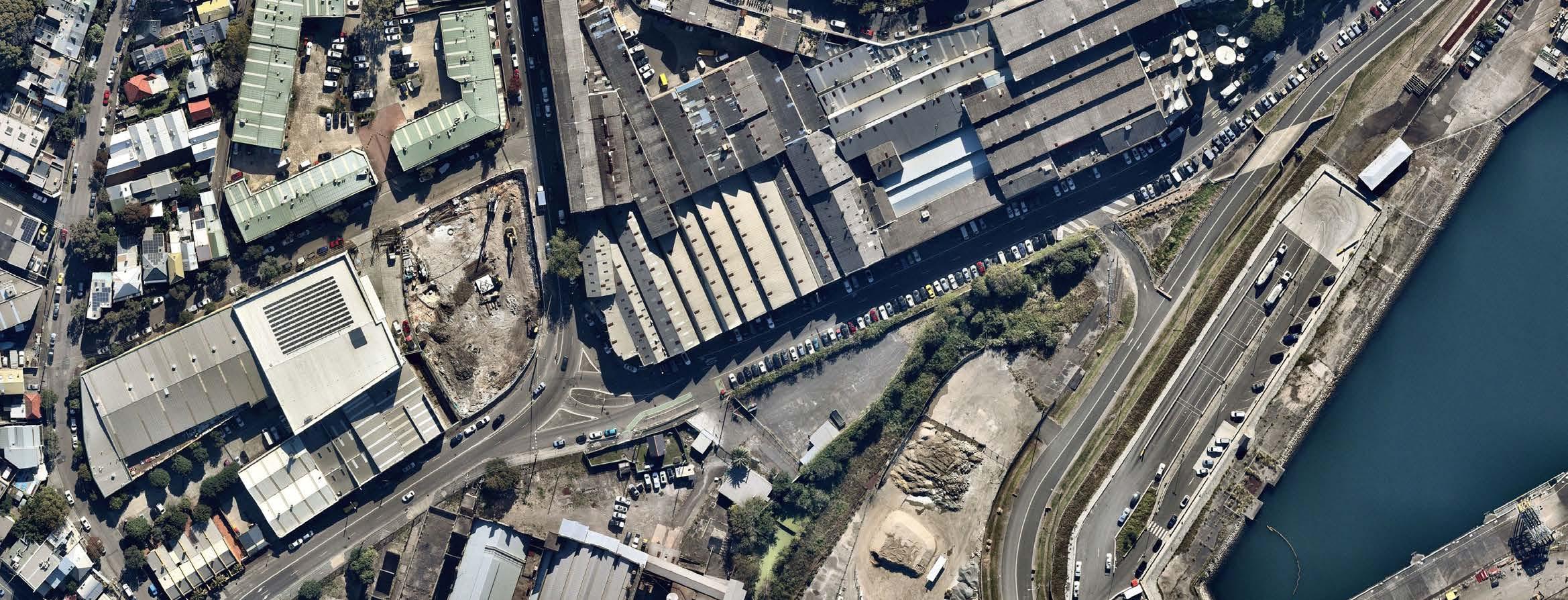

Lot 203 Transformer and Switchyard Area
Lot 201/204/205 Coal Storage and Processing
Lot 206 Railway Sidings
Lot 218 Paint Storage and Paint Booth Areas
Storage
Lot 208 General Inventory and Warehouse Building Footprints
Lot 219/213/217/209 Oil Storage Tanks and Industrial History Sites
Lot 211 Acid Baths and Scaling Works

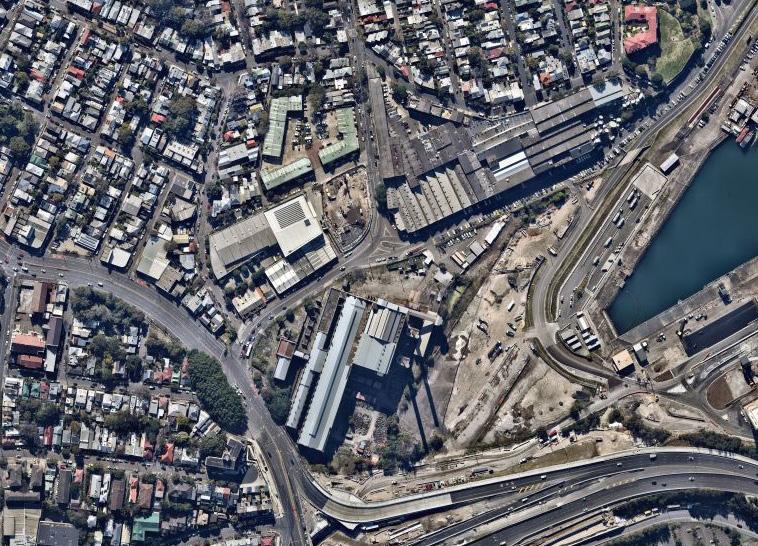

Urban Form
Concrete Apron

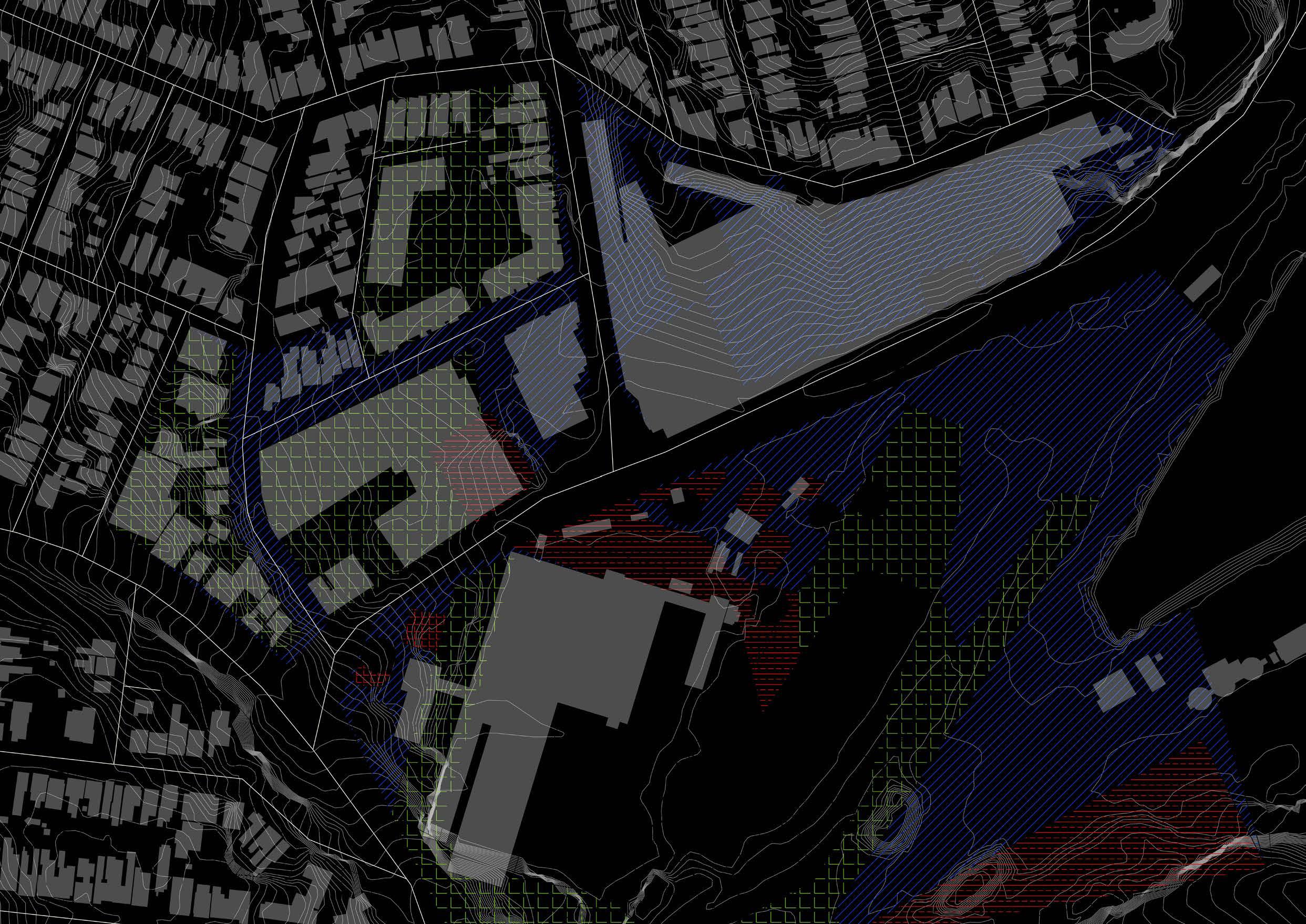

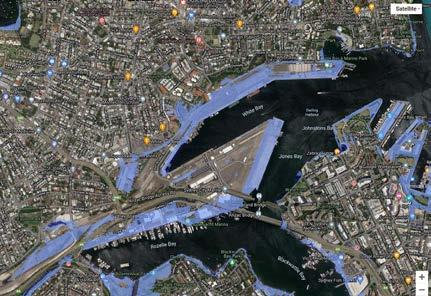

runoff, flooding, tidal, sea-level rise

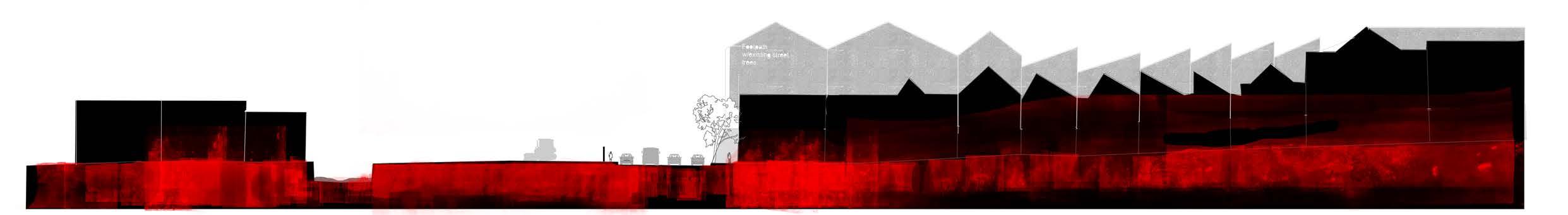

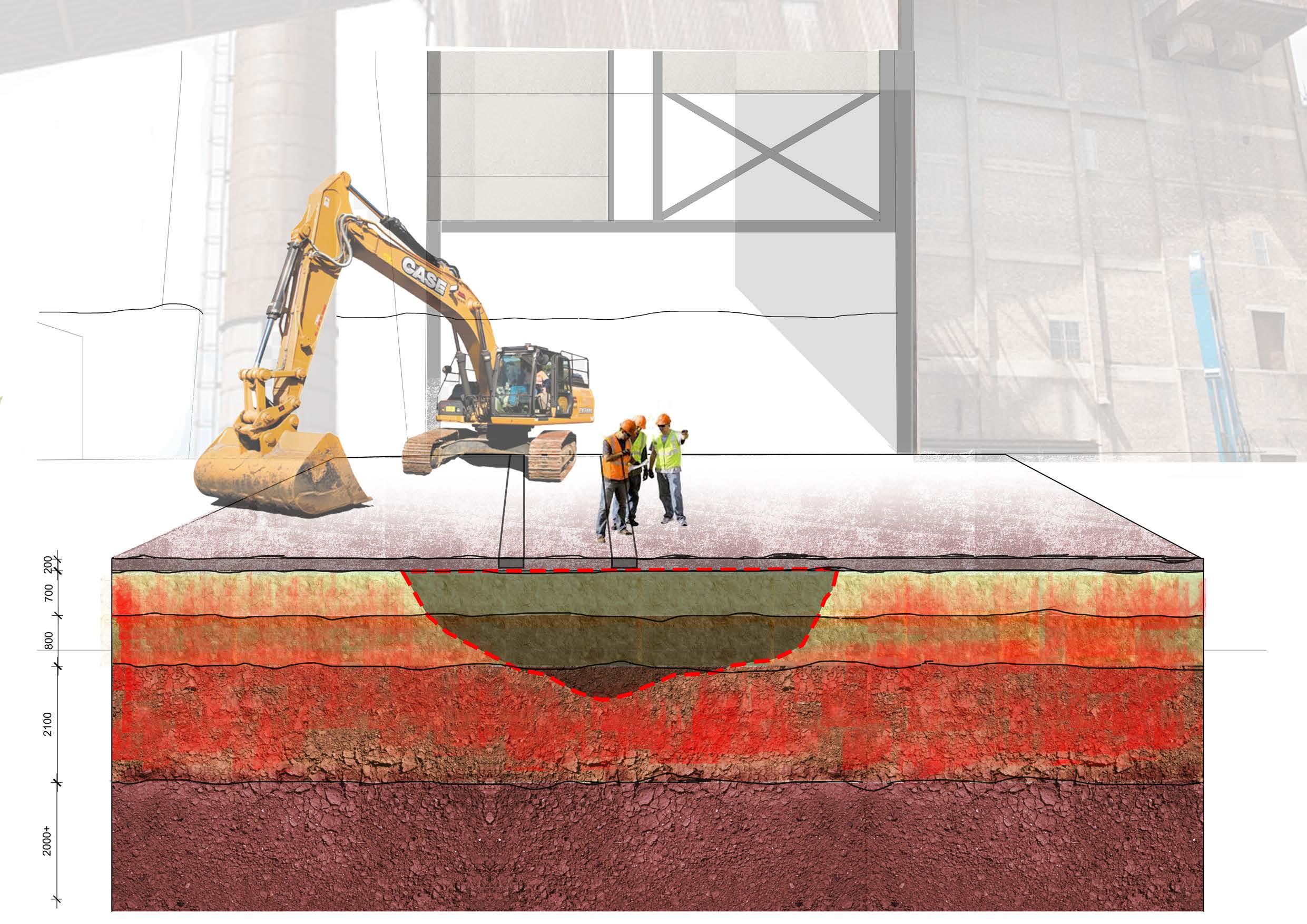

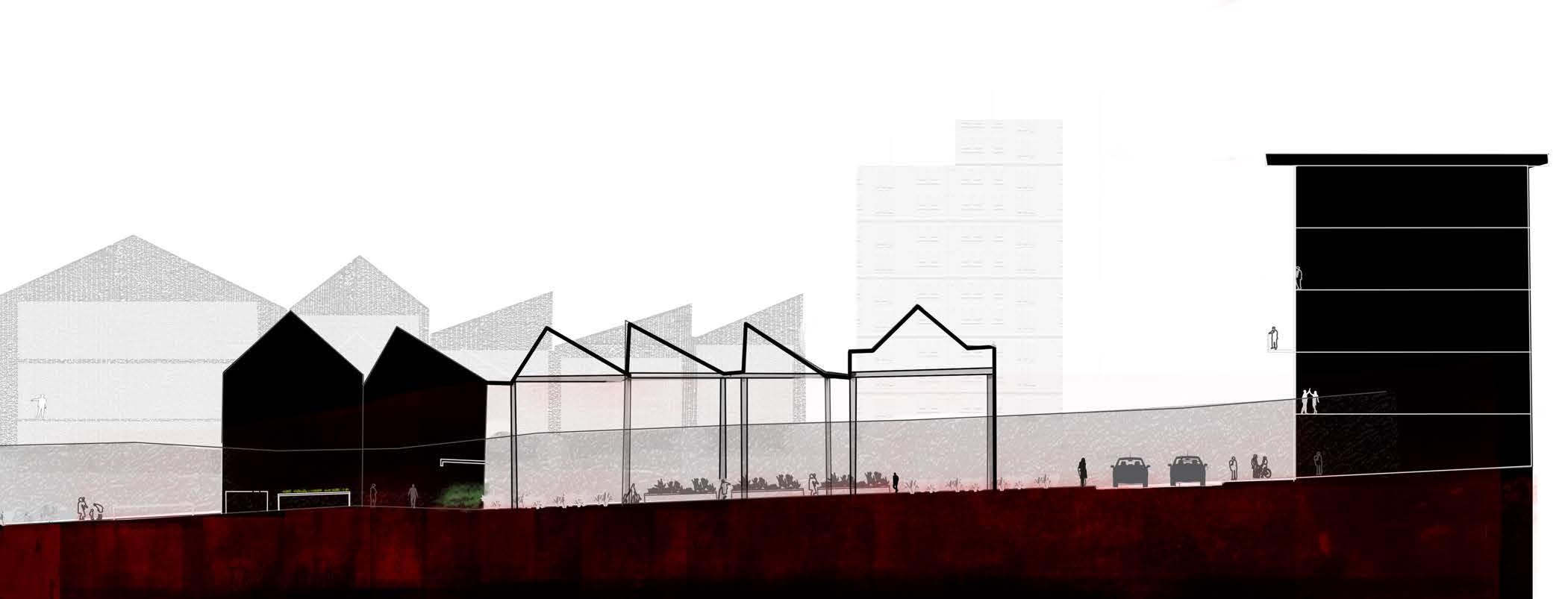

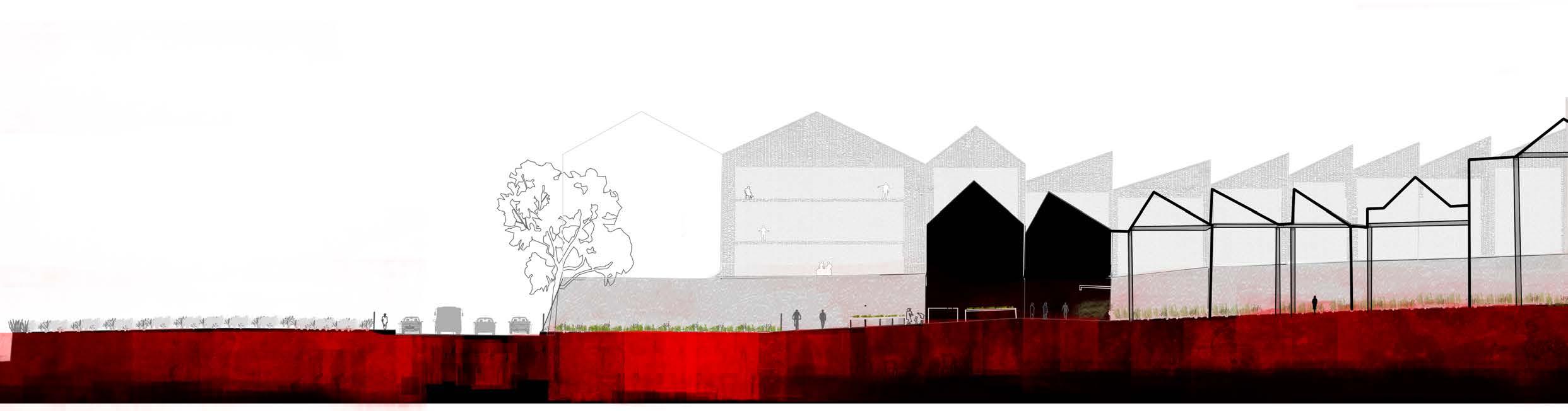

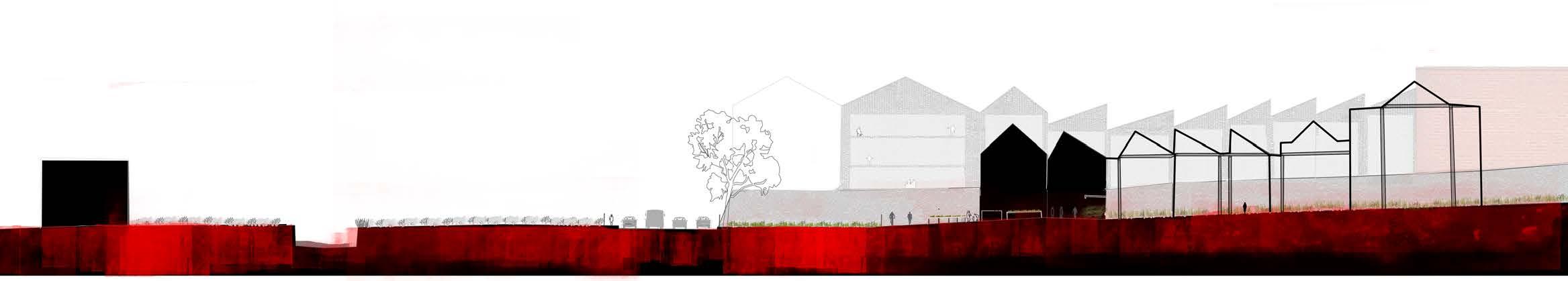

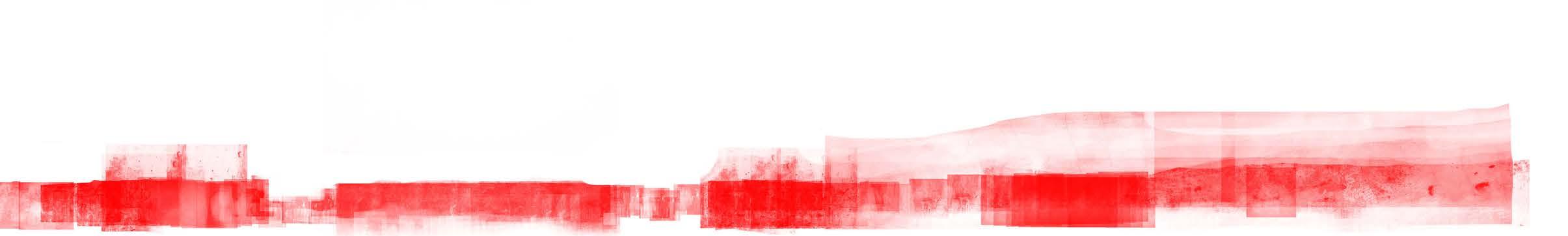

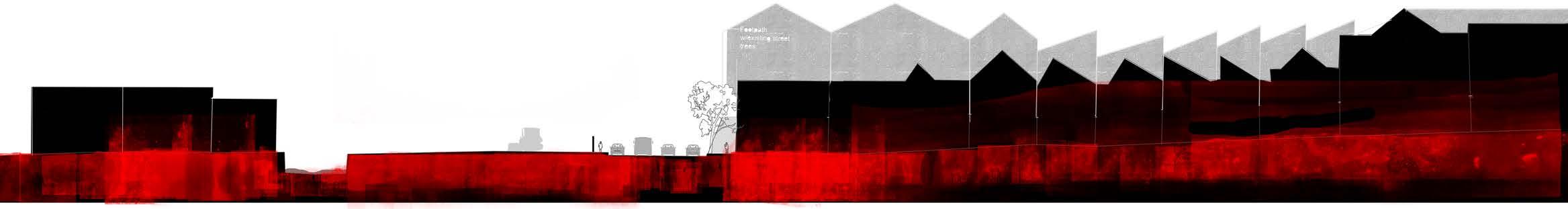

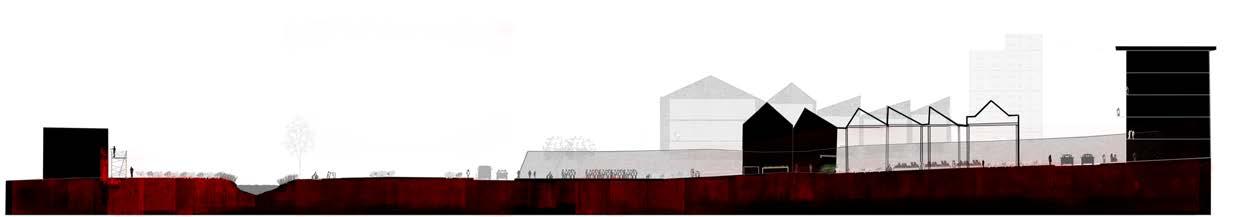

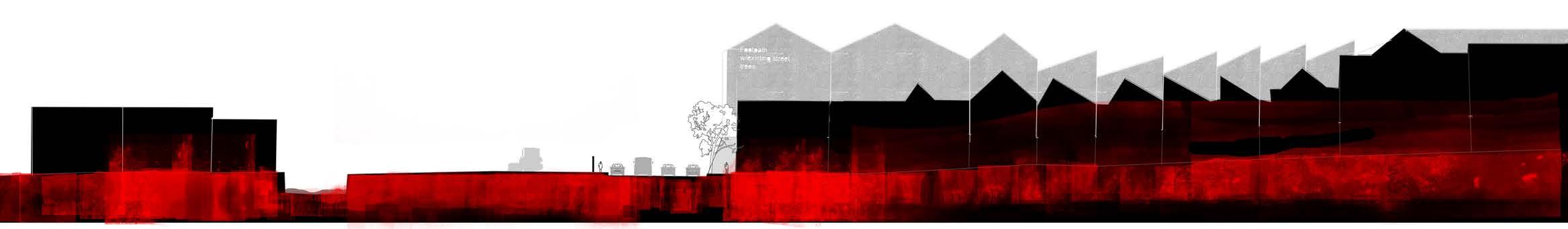

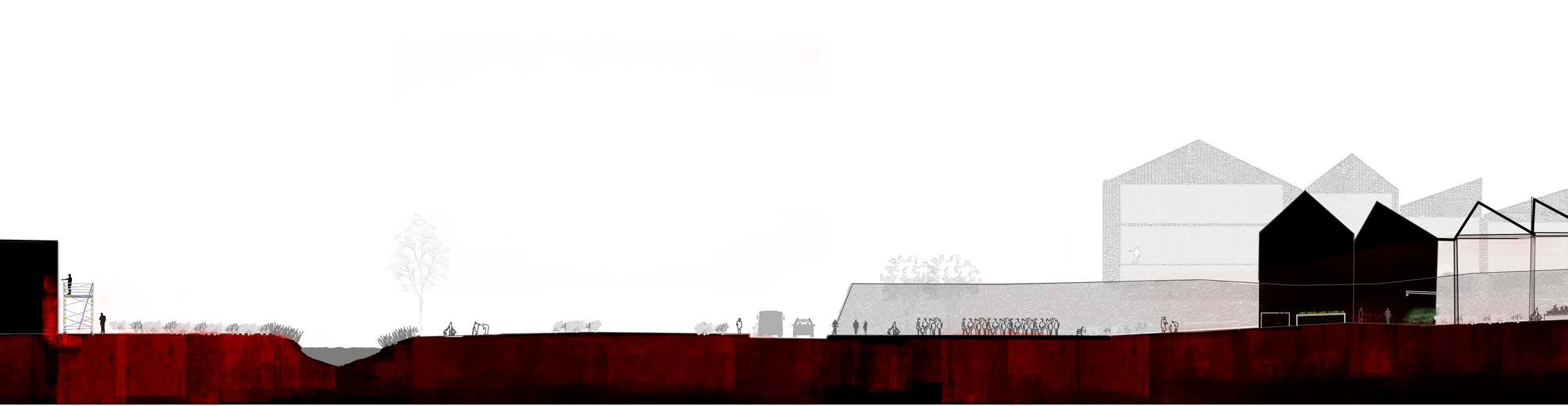

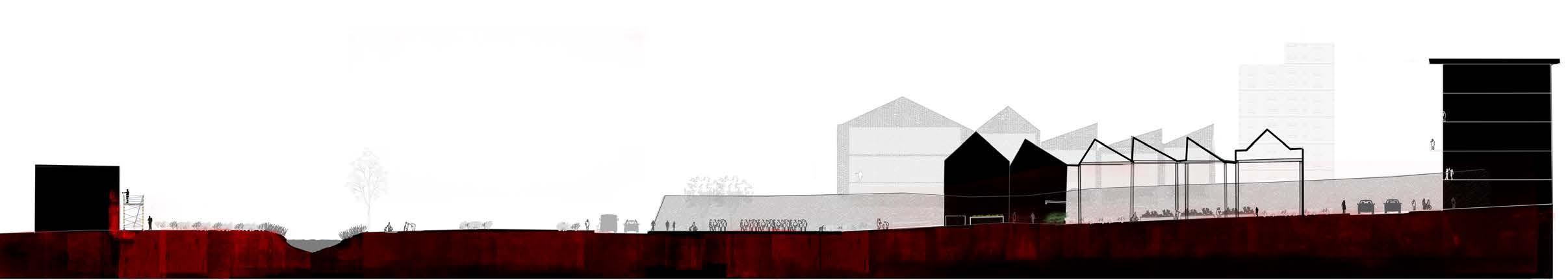

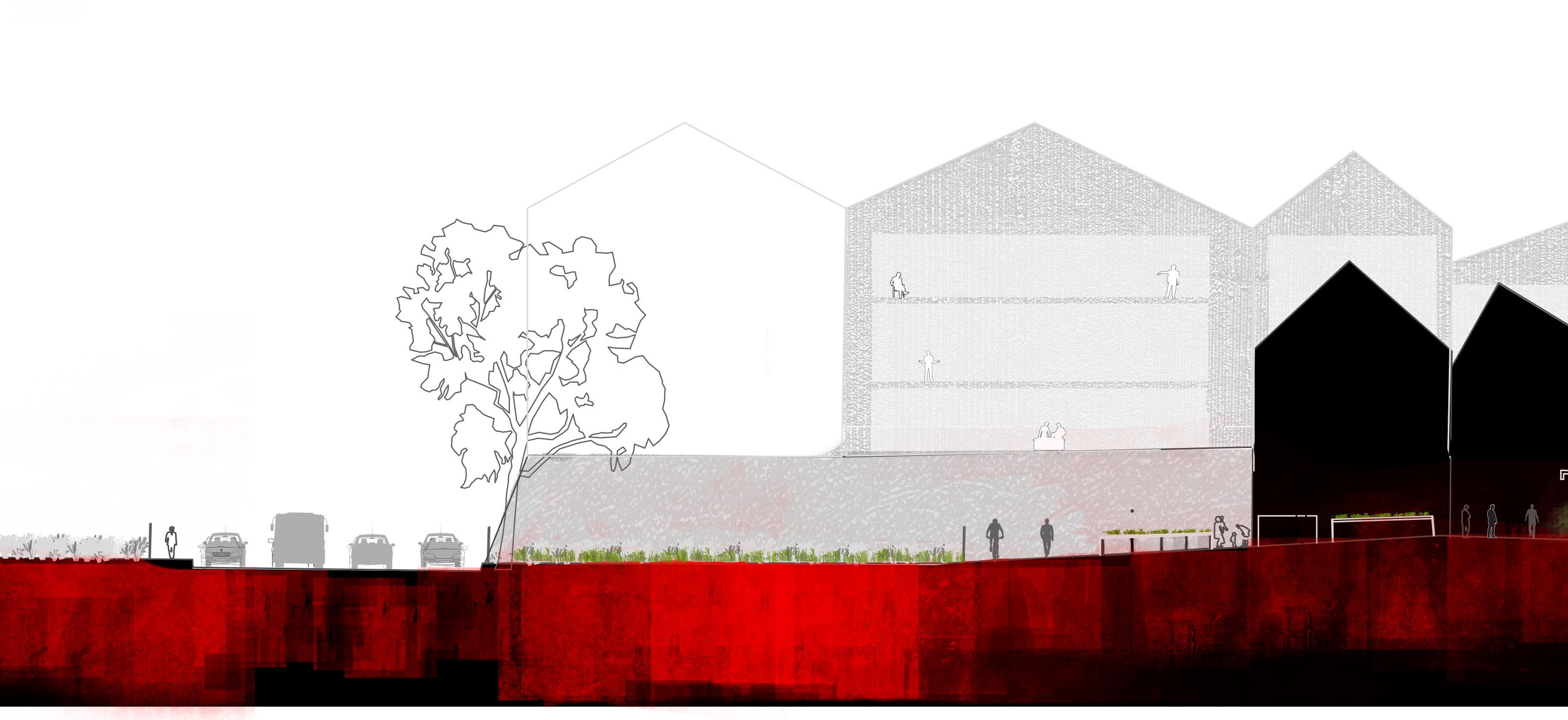

Contamination Layers (Leachable vs non-leachable)

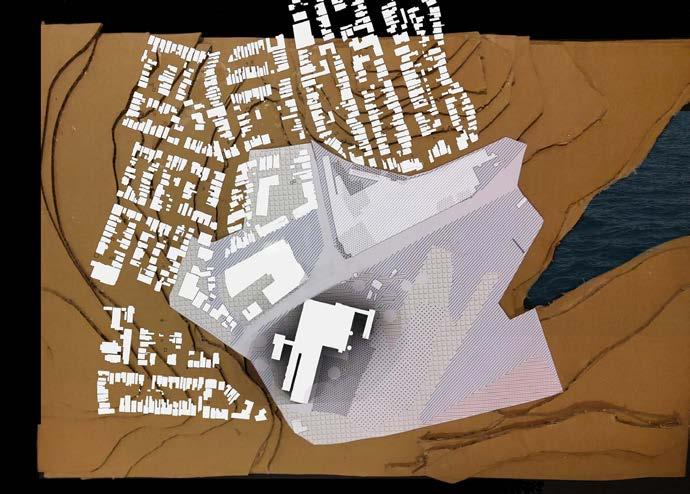

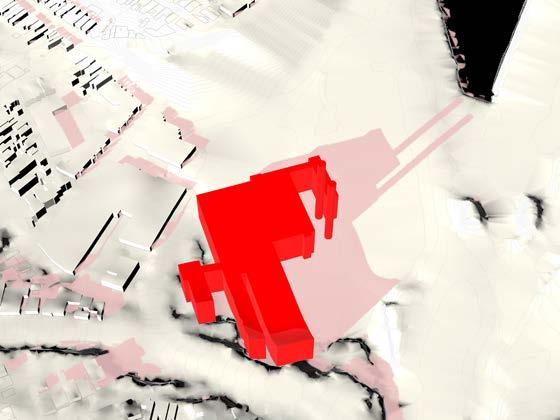

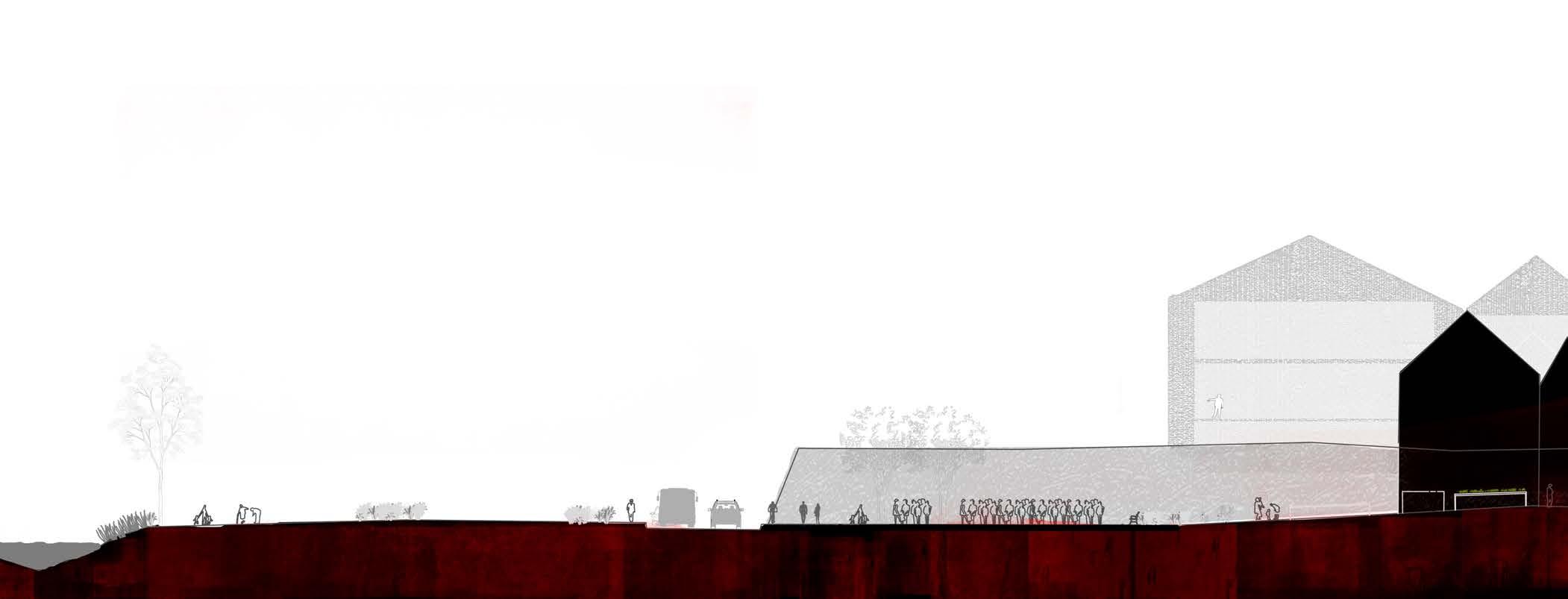

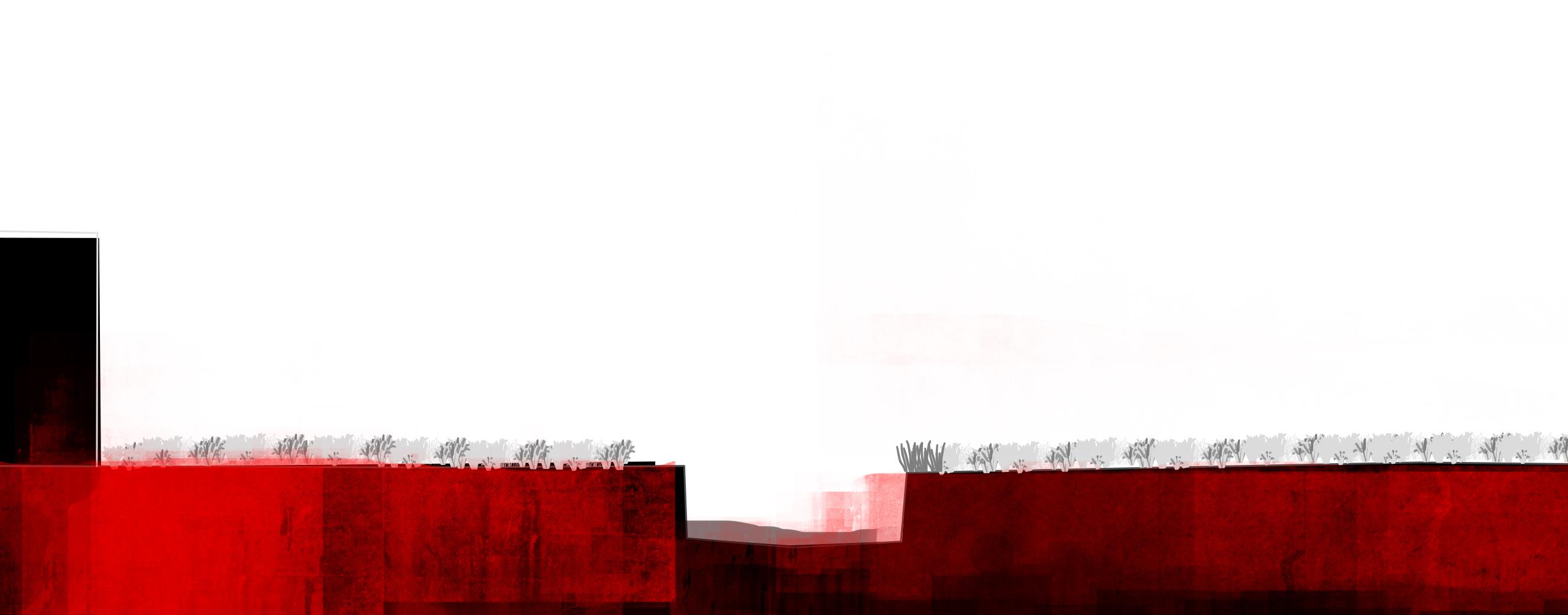

Land Form

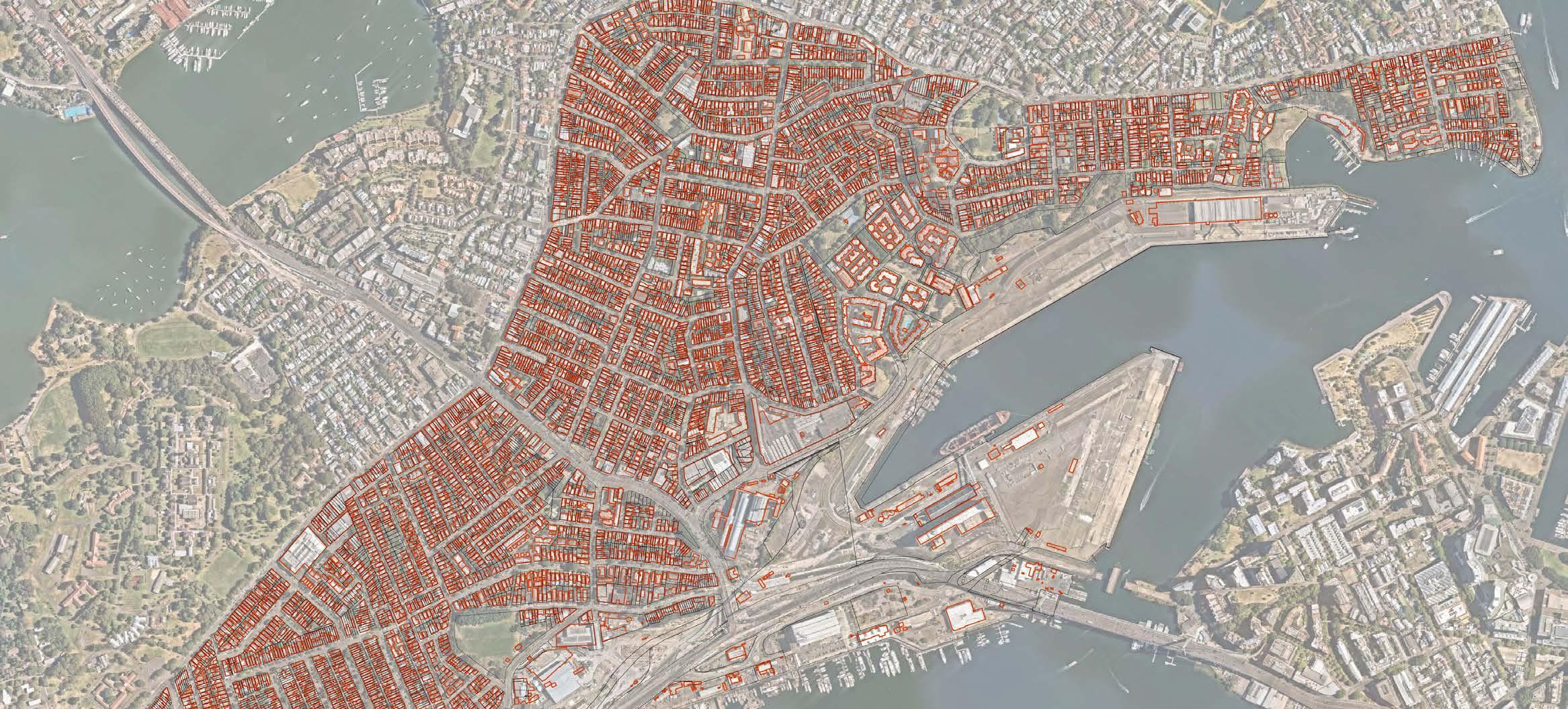

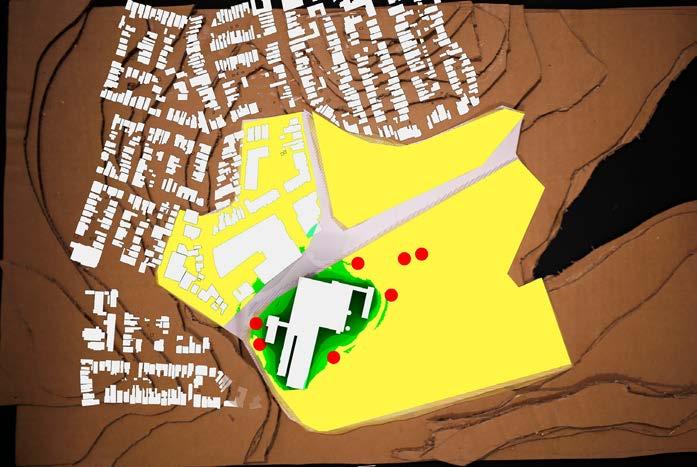

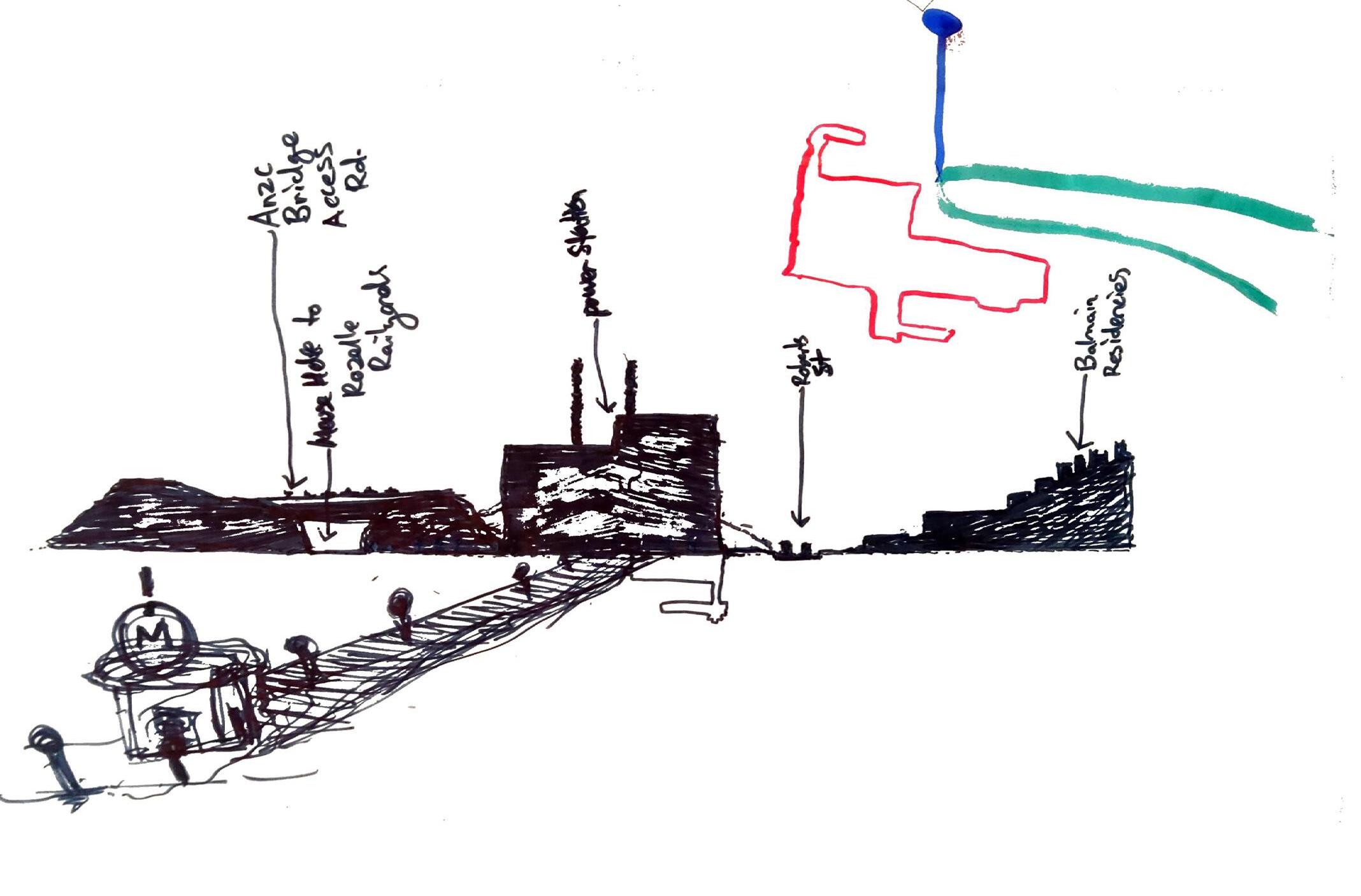

How can the present day Balmain community reconnect with the site and its rich history?

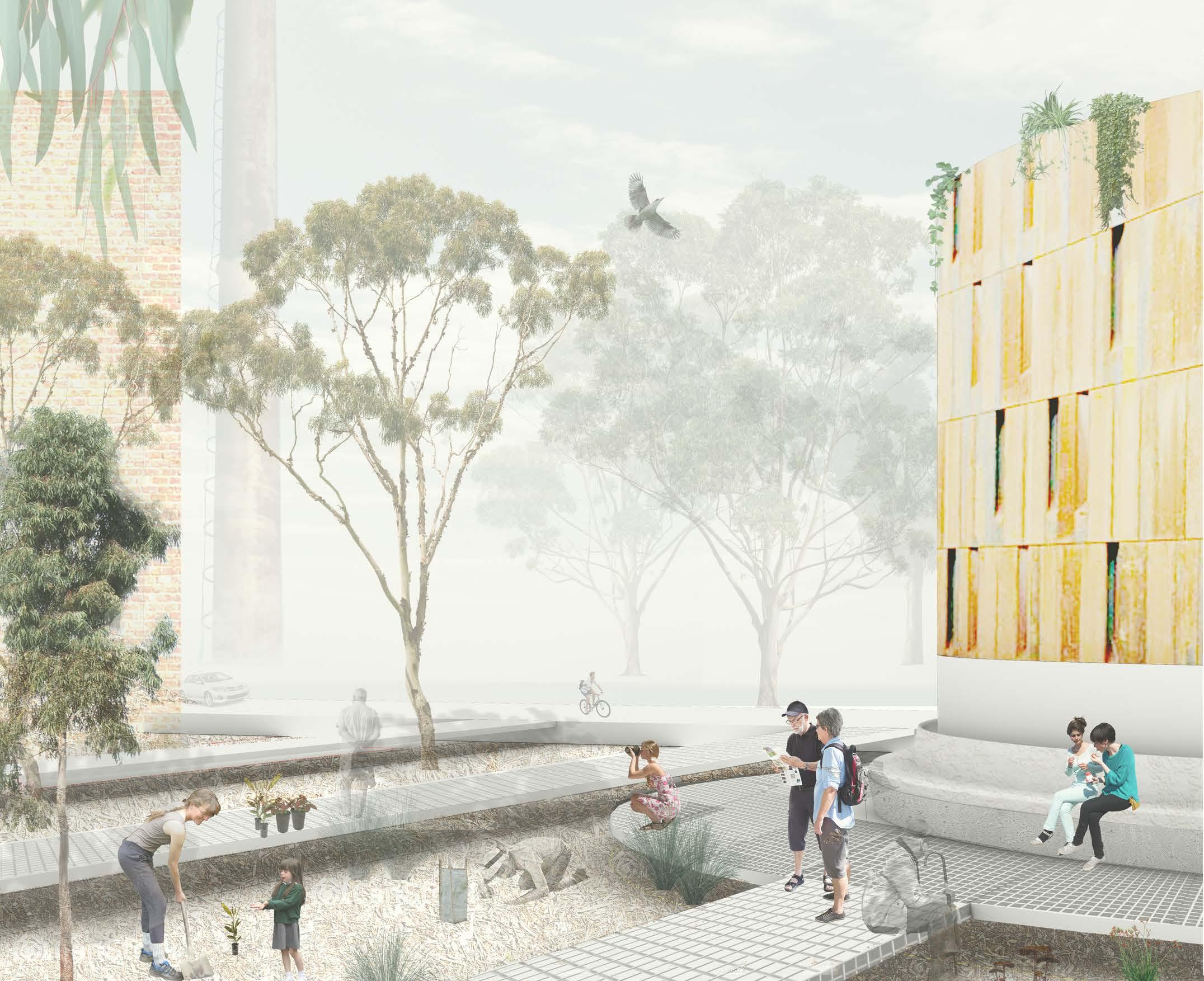

With their hands! Through many hands.
Social Shifting
Political Dynamic
Socially Interactive
Territorial Community
Ecological
Site Toxicity
Phytoremediation Processes
0.1 Lifespans* (8.2 years) Surface level 500mm phytoremediation timeframe
0.5 Lifespans (41 years)
1.0 Lifespans (82 years)
2.0 Lifespans (164 years)
3.0 Lifespans (246 years)
4+ LifespansExceed Australian Safety Standards (328 years)

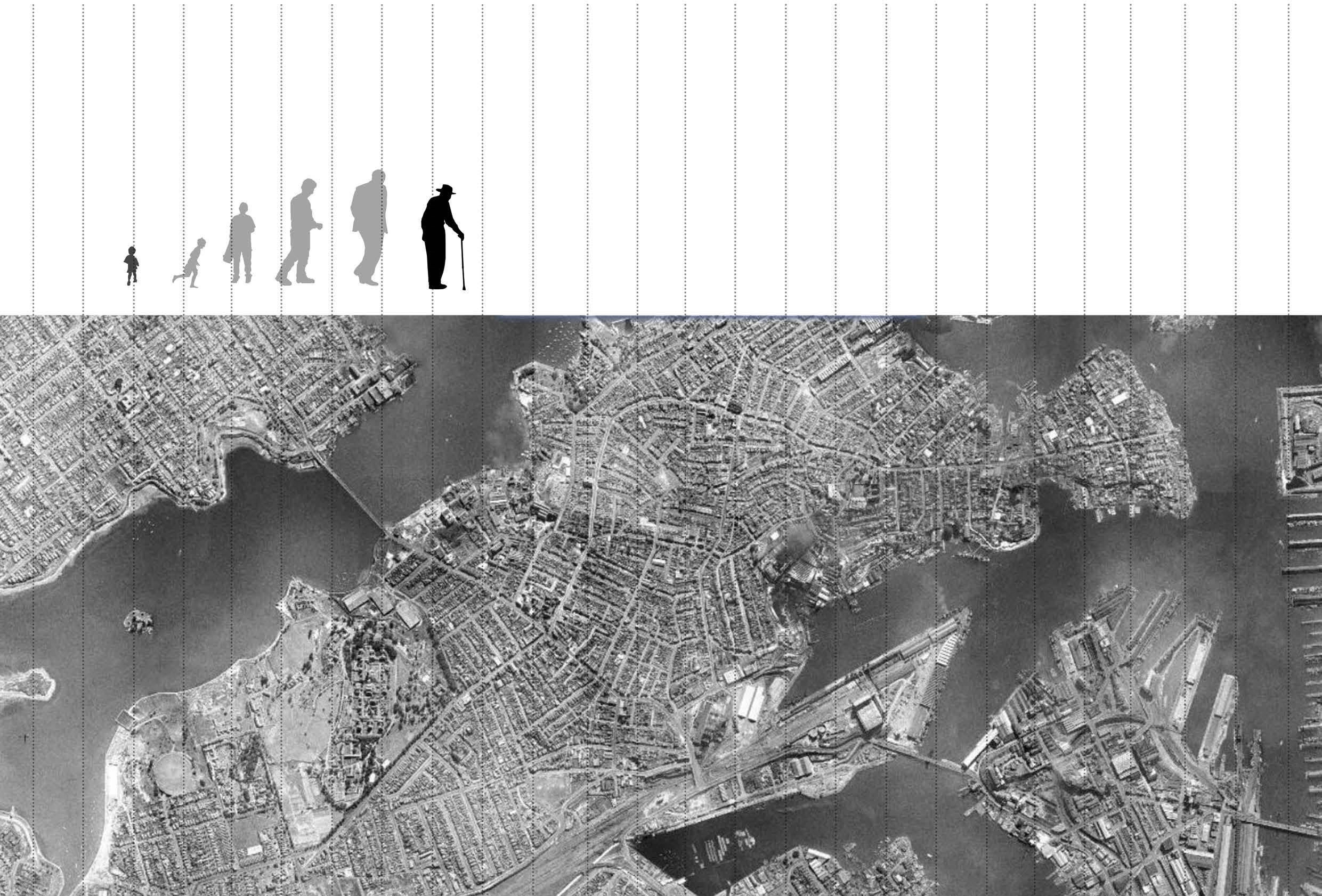

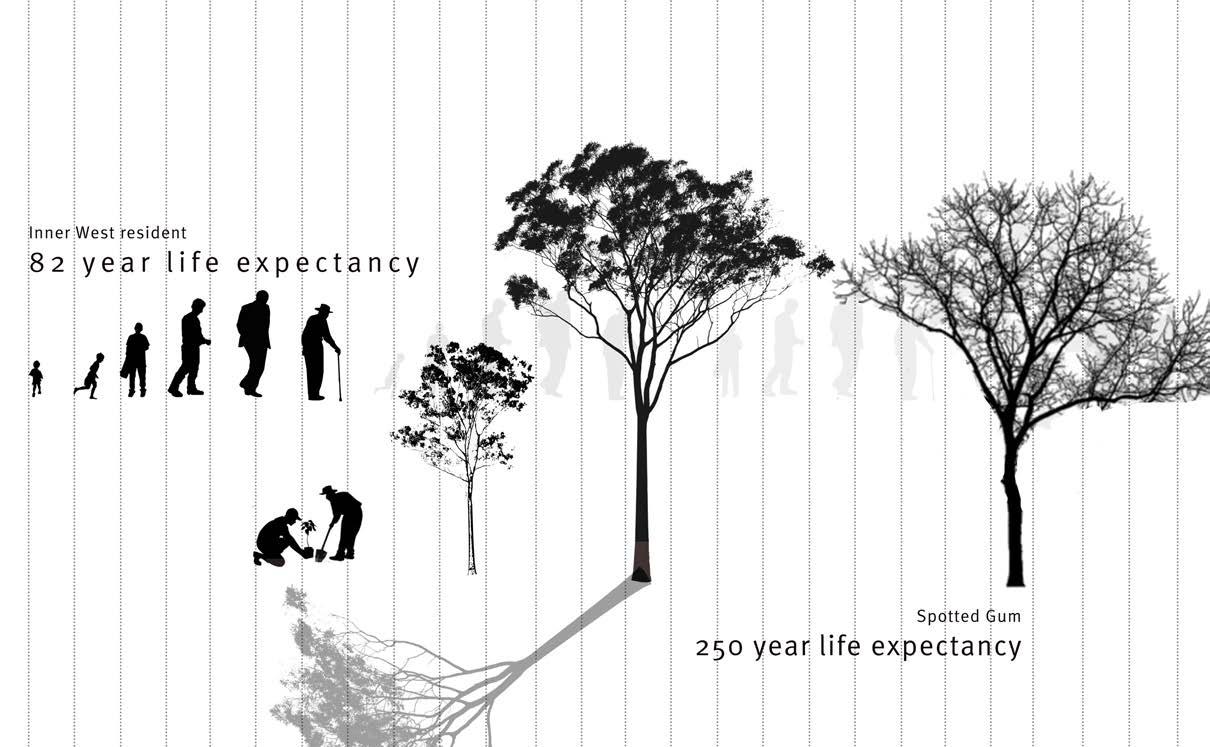

*Average lifespan of an Inner West resident 82 Years
0.1 Lifespans* (8.2 years) Surface level 500mm phytoremediation timeframe
0.5 Lifespans (41 years)
1.0 Lifespans (82 years)
2.0 Lifespans (164 years)
3.0 Lifespans (246 years)
4+ LifespansExceed Australian Safety Standards ((328 years)
*Average lifespan of an Inner West resident 82 Years
0.0 lifespans (8.2 years) (0 years) (41 years)
(82 years) (246 years) (164 years) 0.1 lifespans
lifespans
Lifespans (82 years)
Lifespans (164 years) 3.0 Lifespans (252 years)
Heavy metals, TPH, solvents, chlorinated benzemes, phenals, potassium hydroxide
Heavy metals, sulfuric acid, ammonia, sulfide nitrogen, selenium, sulfur dioxide
When old men plant trees...
2100 +0.89 m (1 lifespan)
+1.25 m (1.5 lifespans)
+2.00 m ( 2 lifespans)

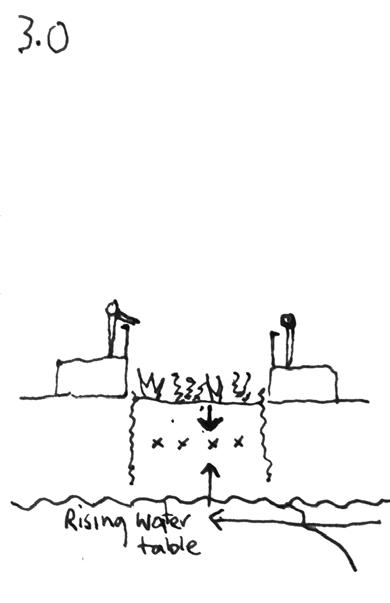

+3.00 m (3-4 lifespans)

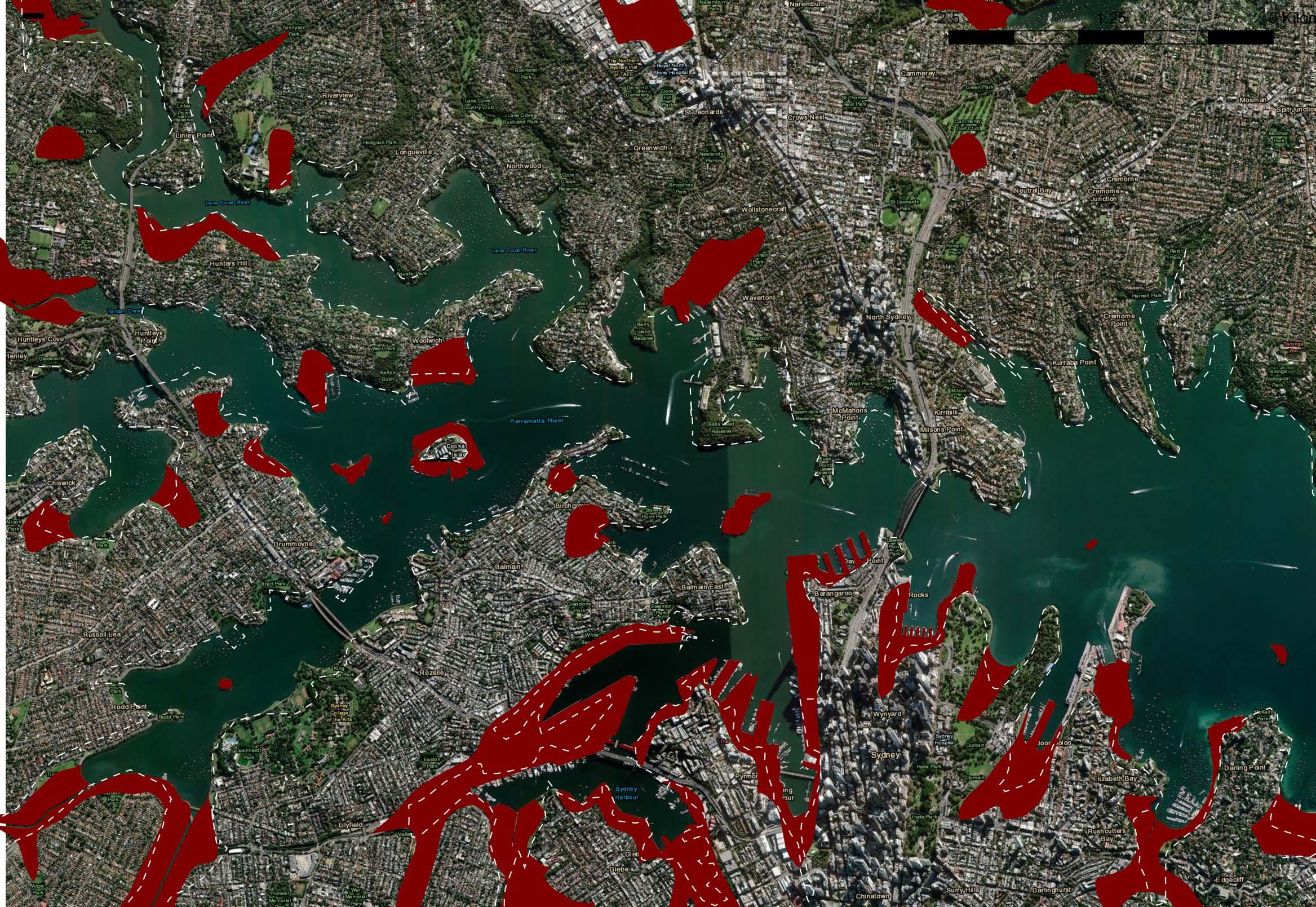

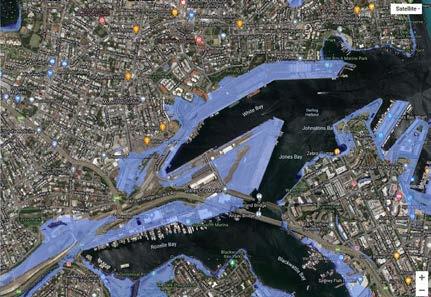

Sea Level Rise - high tide level
2.0 Lifespans (164 years)
In Australia, “There are somewhere between 40,000 and 80,000 contaminated sites. We spend about $300-million a year managing and remediating them. The overwhelming majority of that goes on the managing, using dig and dump to take the pollutants
In Australia, “There are somewhere between 40,000 and 80,000 contaminated sites. We spend about $300-million a year managing and remediating them. The overwhelming majority of that goes on the managing, using dig and dump to take the pollutants

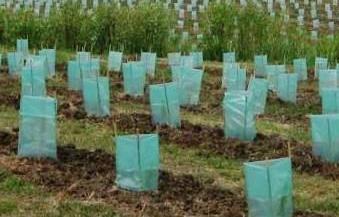

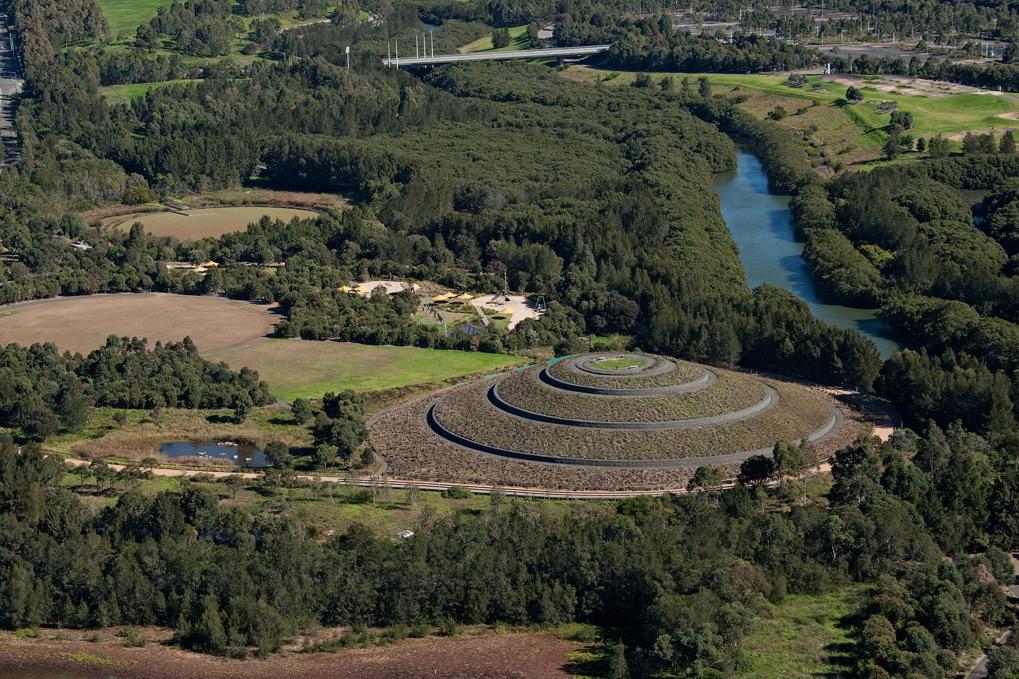

Different phytoremediation and bioremediation techniques have been applied to the polluted plots where crops are grown for material and energy production whilst also cleaning the soil. In some cases, the level and type of pollution has permitted temporary activities to take place on the plots while bioremediation continued, opening up flexible development options
Social Shifting Political Dynamic
Socially Interactive
Territorial Community
Ecological
Phytoremediation Processes

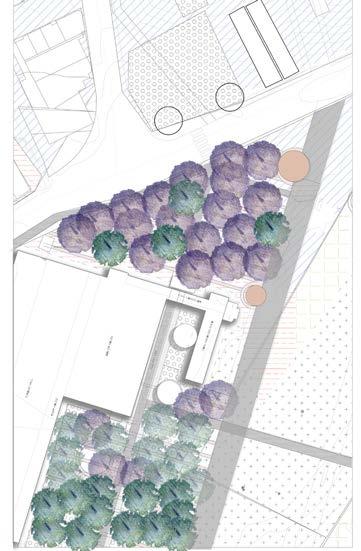

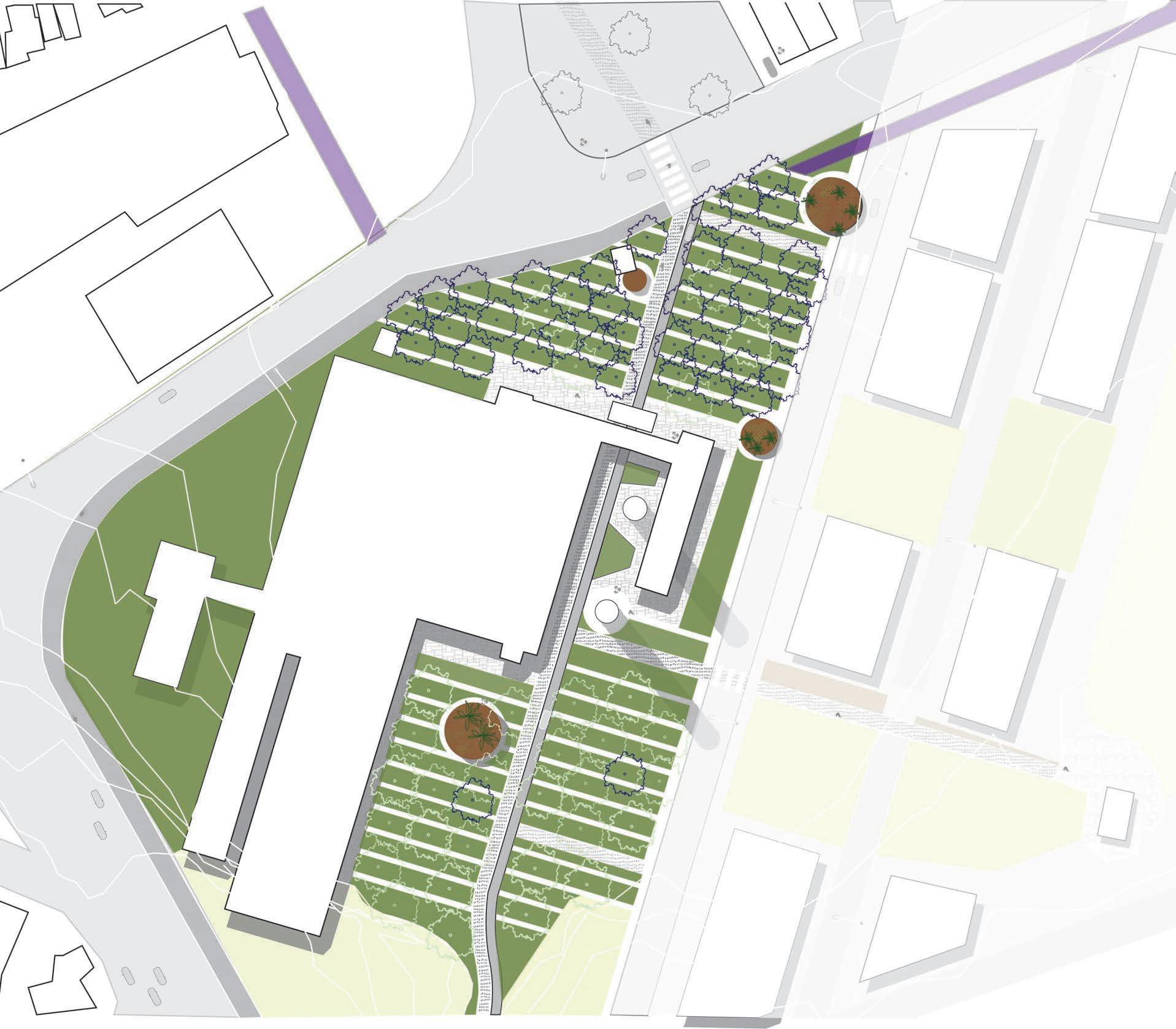

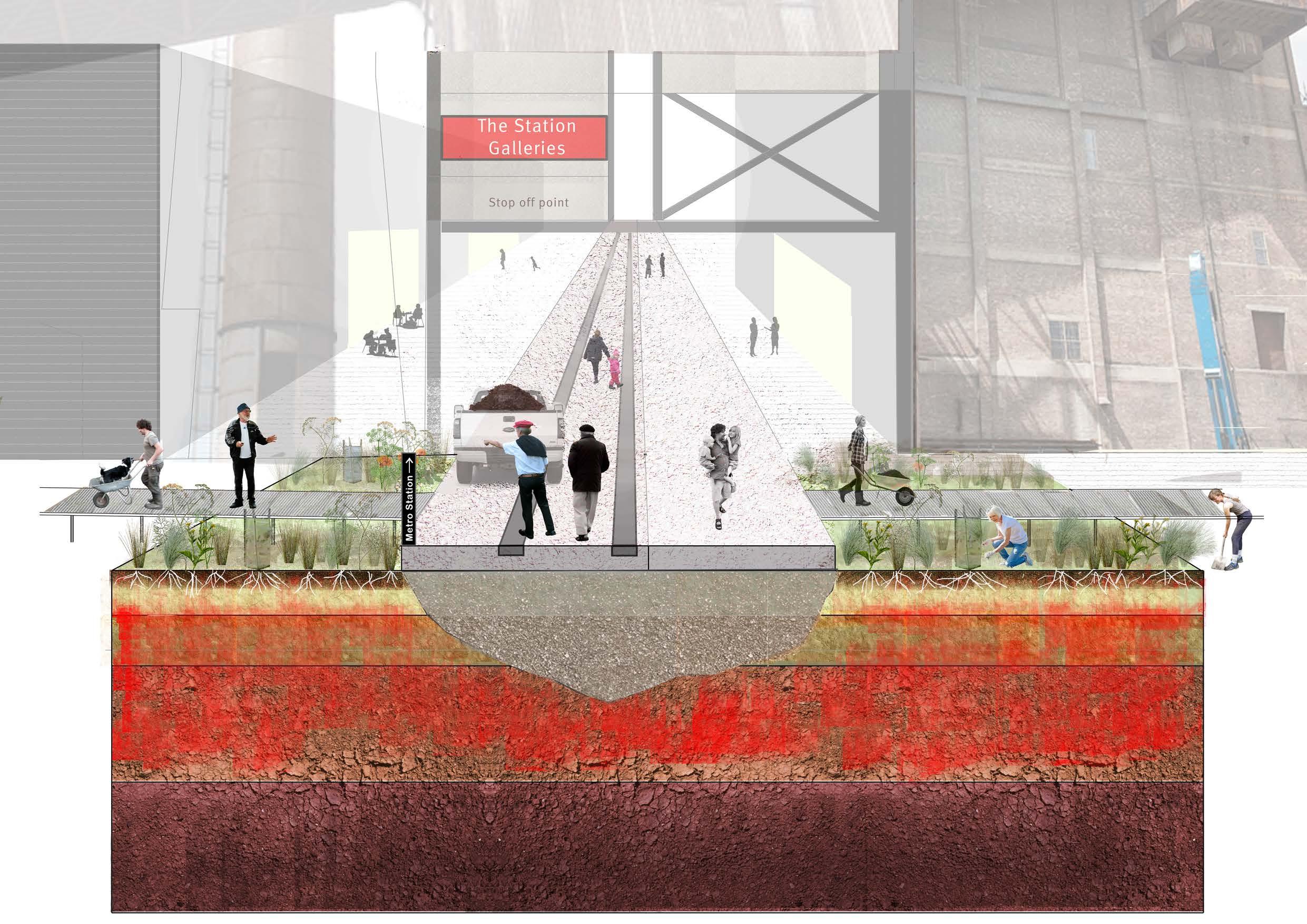

Vehicular grade service path
Spillout paving areas

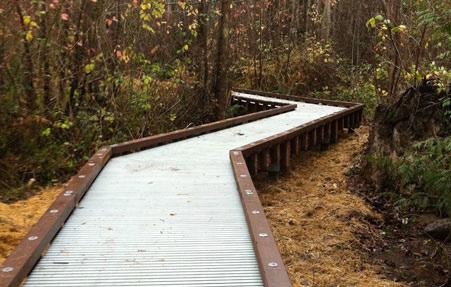

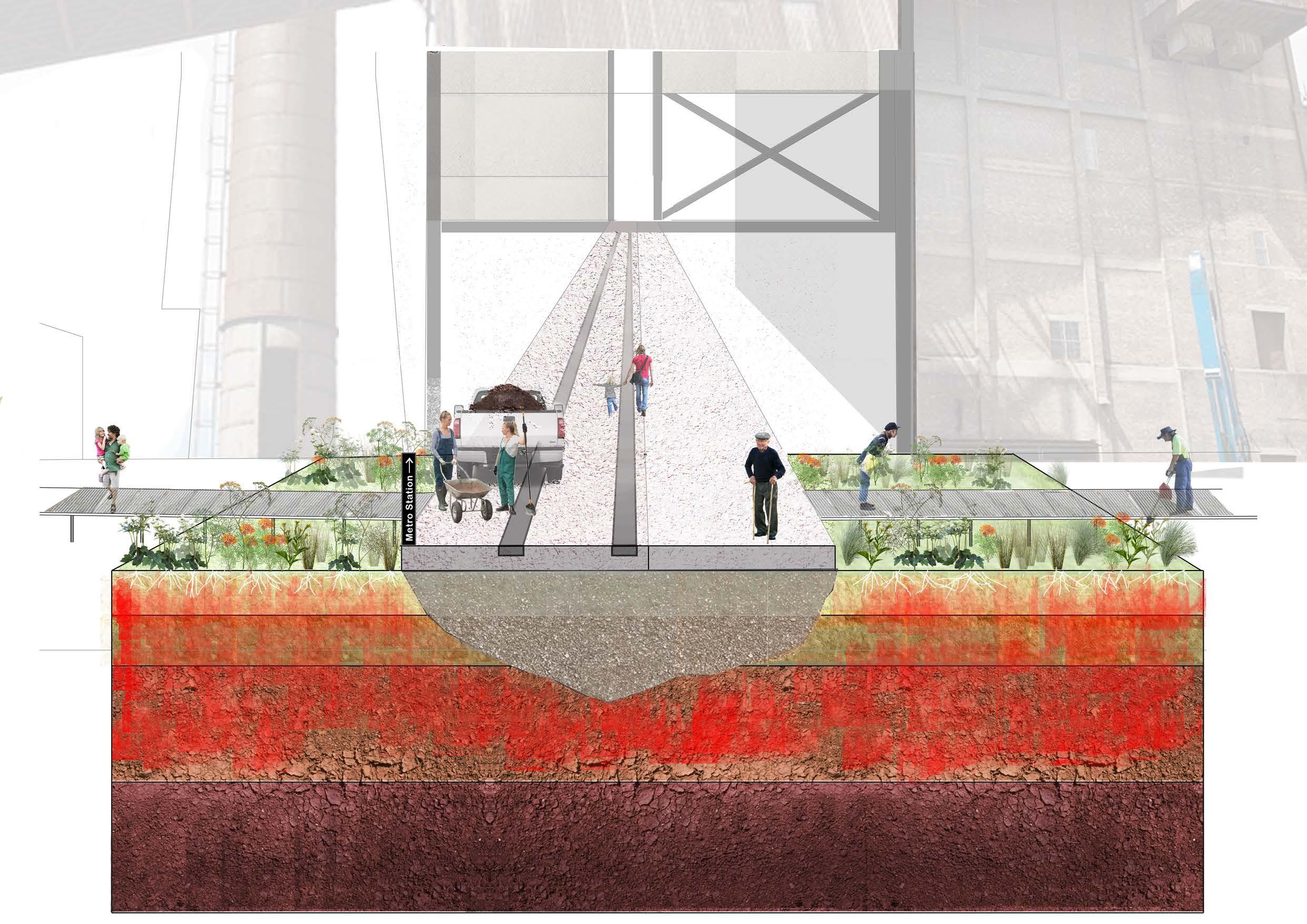

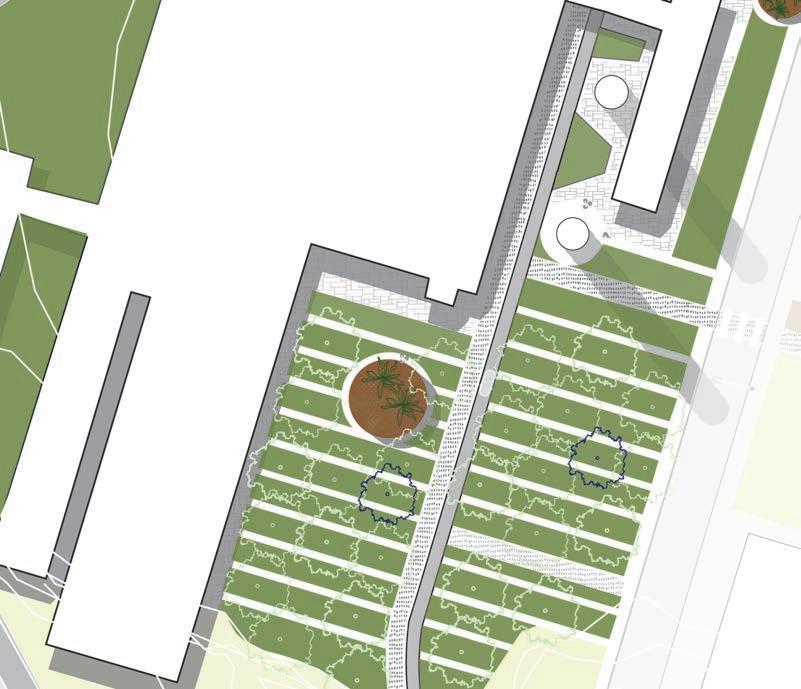

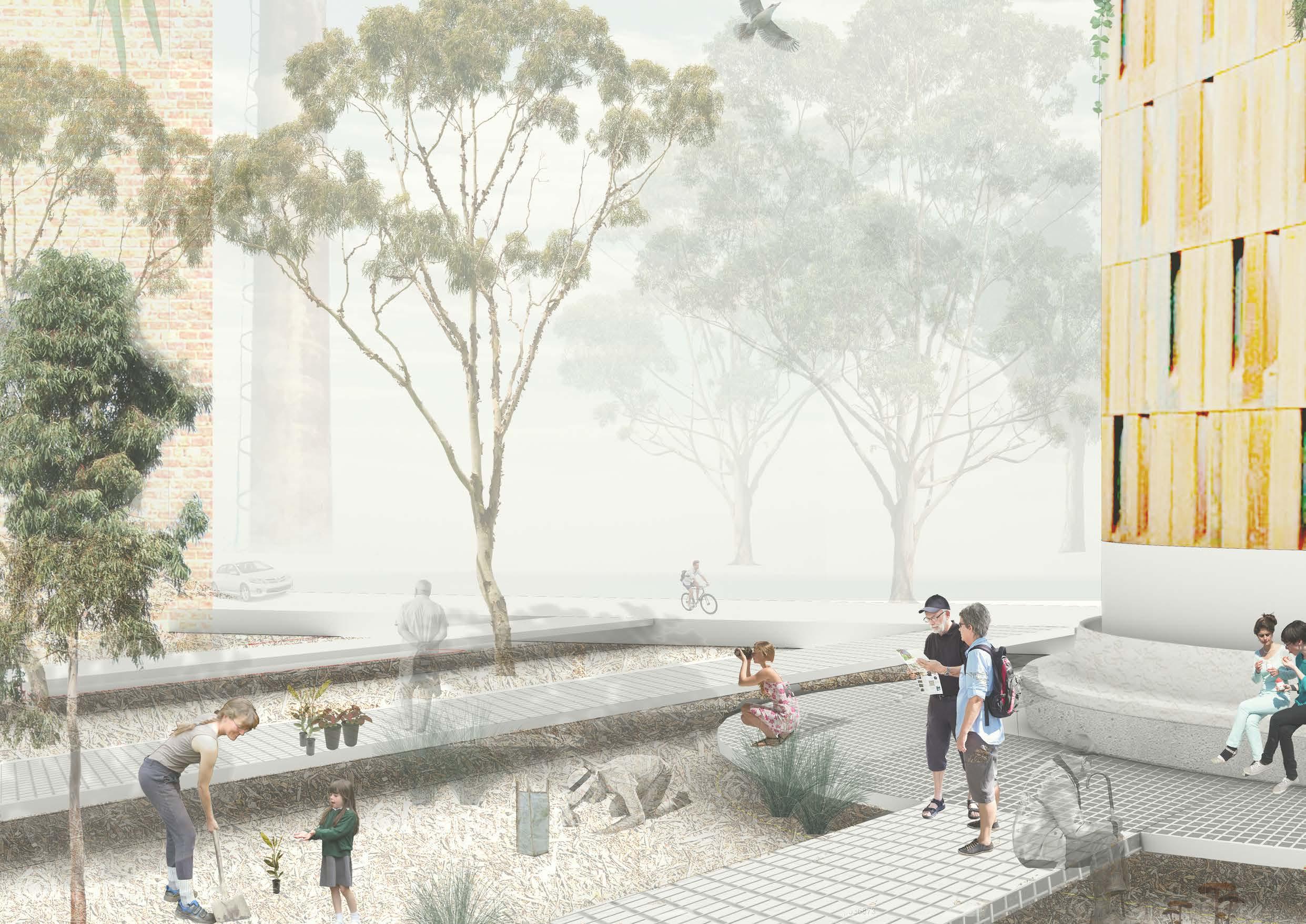

Boardwalk paths and phytoremedial mass planting

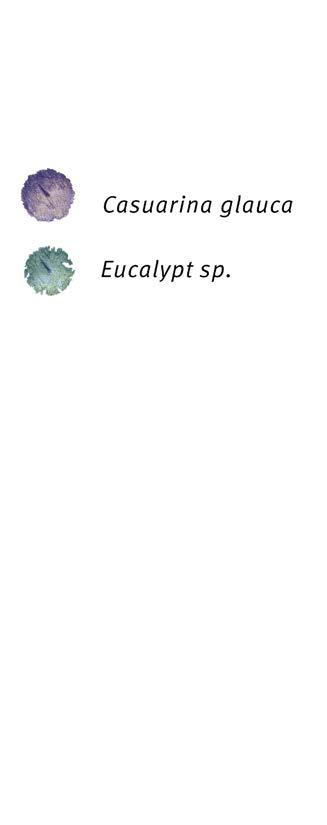

sp. - E. polybractea - E. cladocalyx
Vehicular grade service path
Spillout paving areas
Boardwalk paths and phytoremedial mass planting
sp. - E. polybractea - E. cladocalyx
High rotation phytomediation mass planting
- E. polybractea - E. cladocalyx

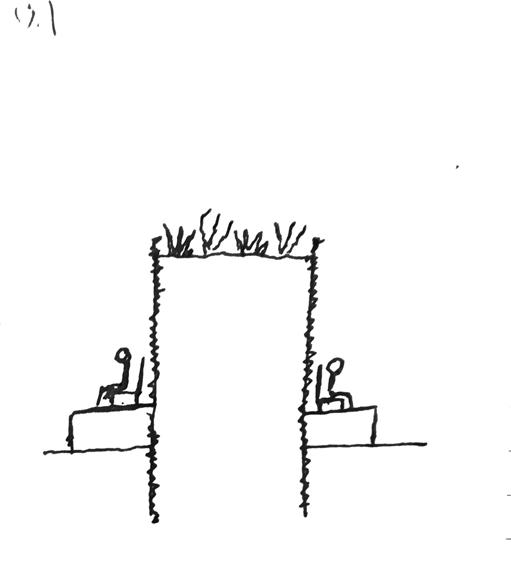

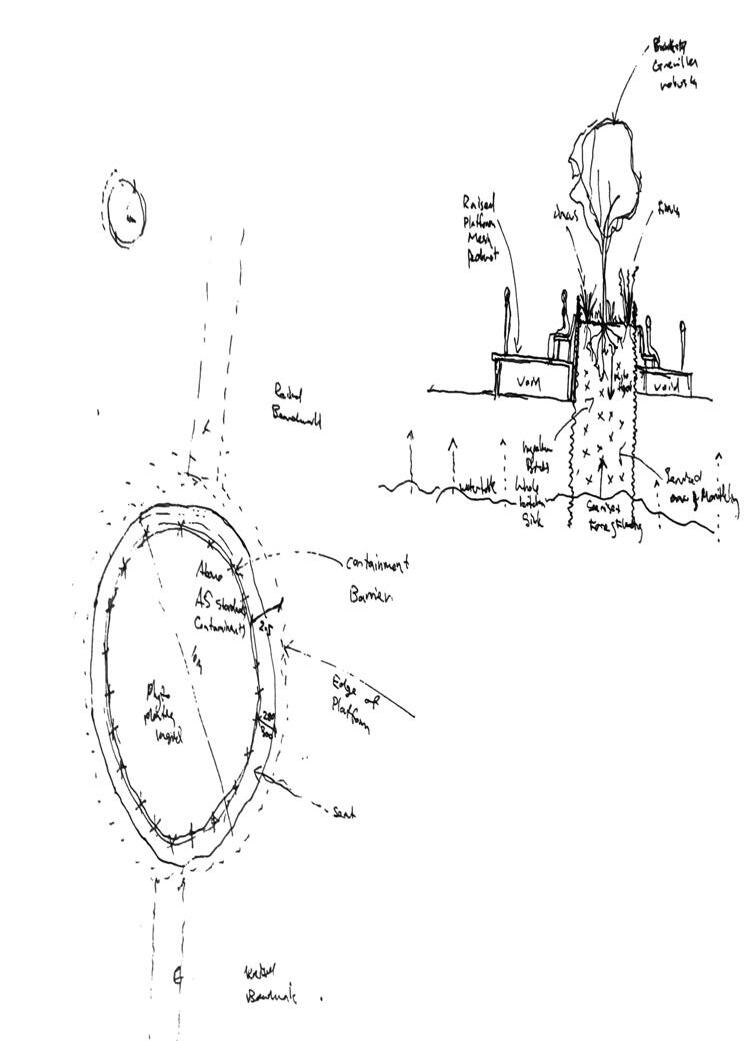

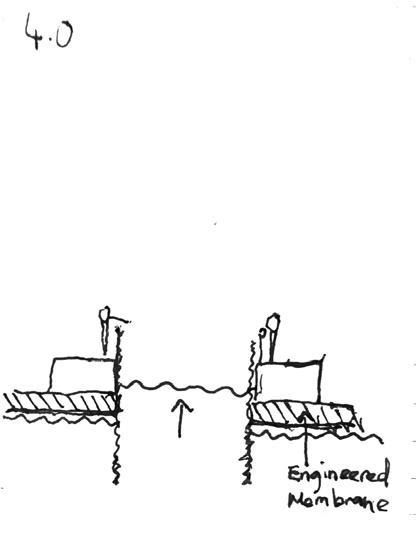

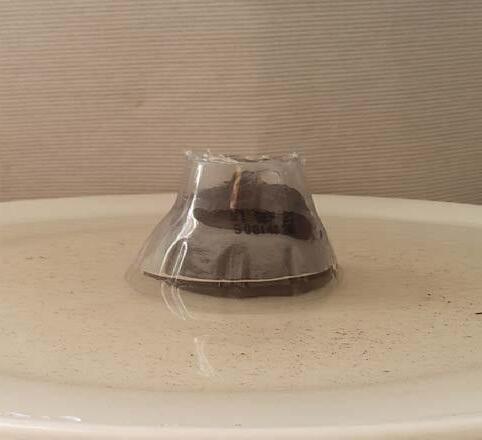

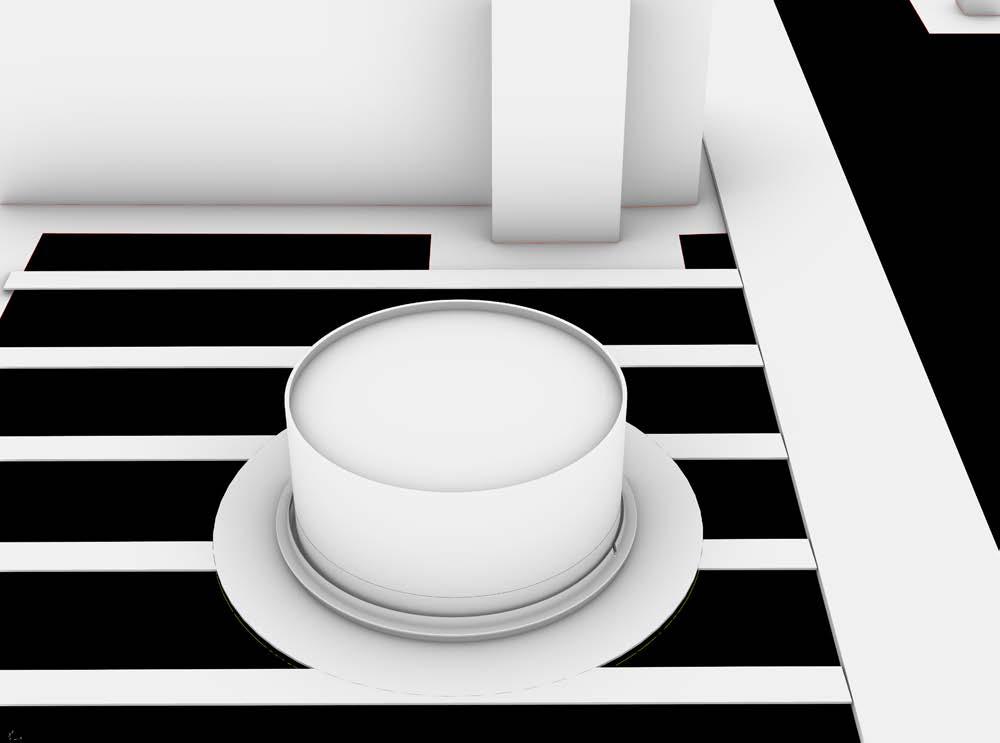

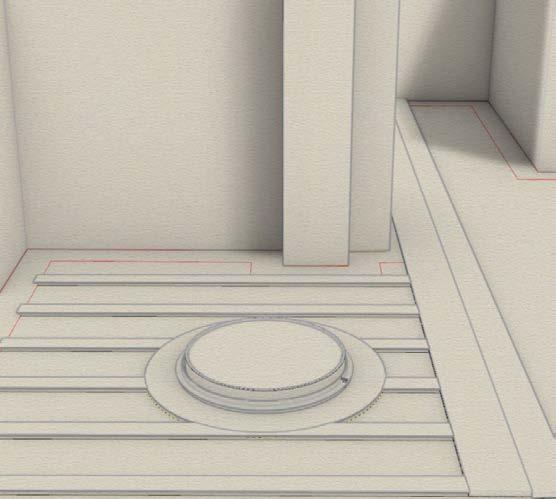

> AS standard contaminant soil-building chimneys

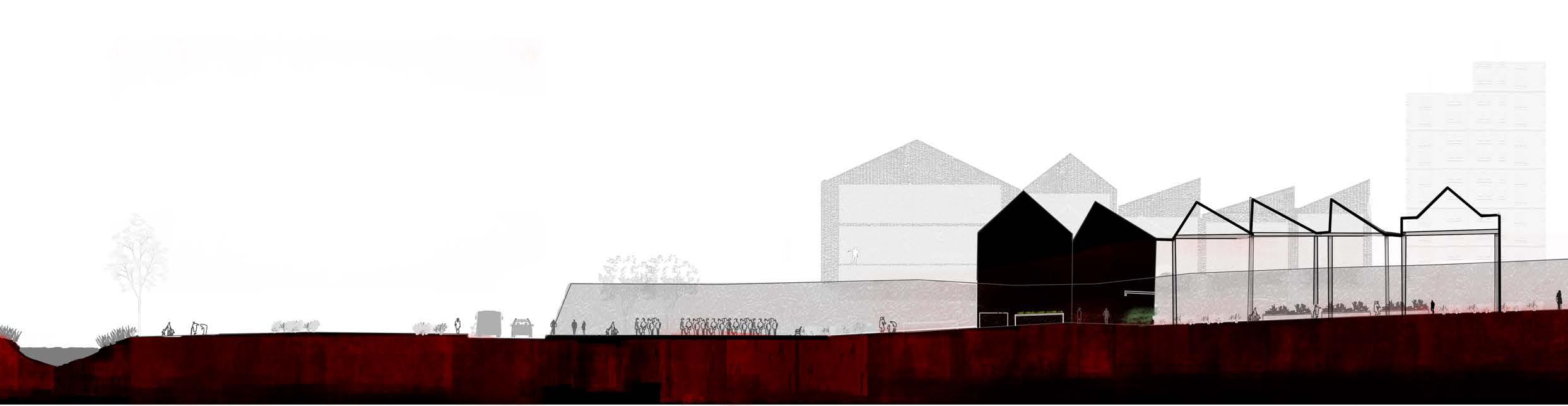

500mm depth phytoremediation timeframe
0.1 Lifespans (8.4 years)
0.5 Lifespans (42 years)
1.0 Lifespans (84 years)
2.0 Lifespans (168 years)
3.0 Lifespans (252 years)
Refer to staging mapping for details

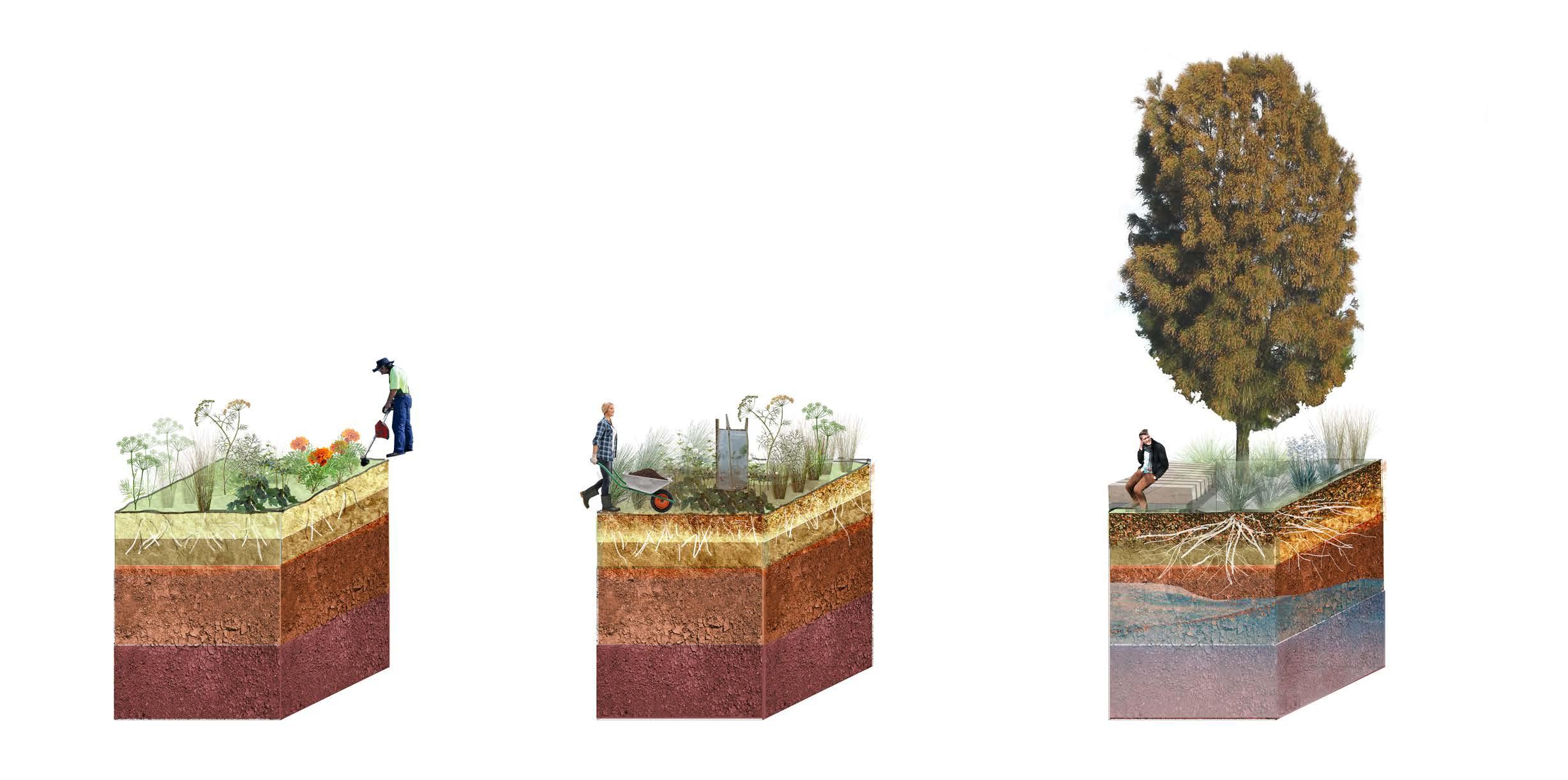

Nursery + Soil-Building facility
0.1 lifespans
High Rotation
Phytoremedial Block
20 Sq m
0.5 lifespans Hybrid Transition Block
20 Sq m
1.0 lifespans
20 Sq m

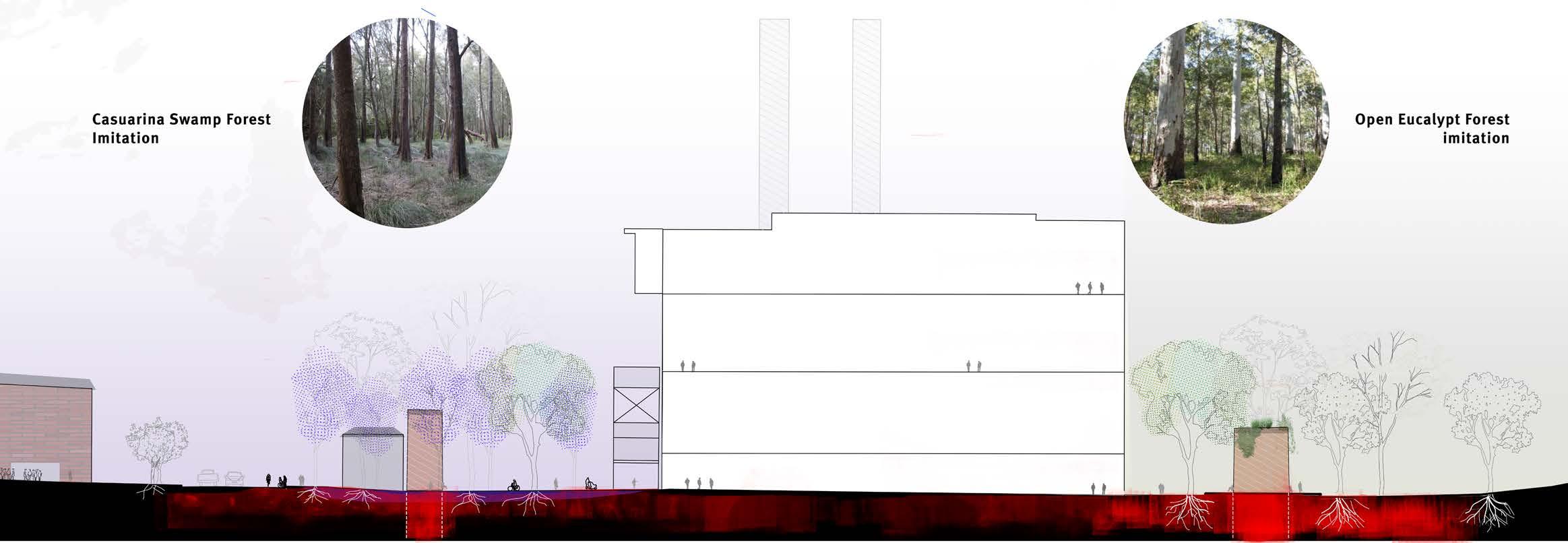

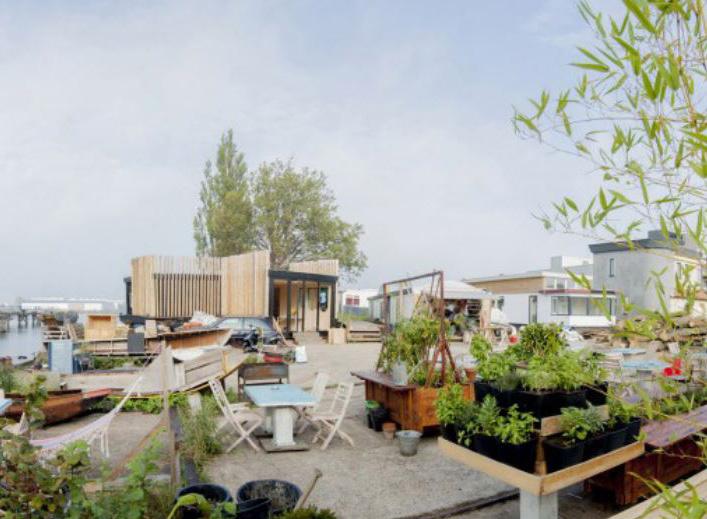

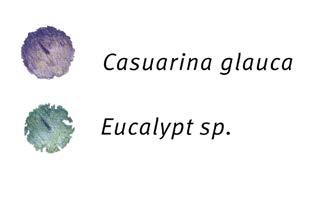

Casuarina Swamp Forest Imitation Block Meadow aesthetic
Bush-school aesthetic
Soil-building from composted material
0.0 lifespans

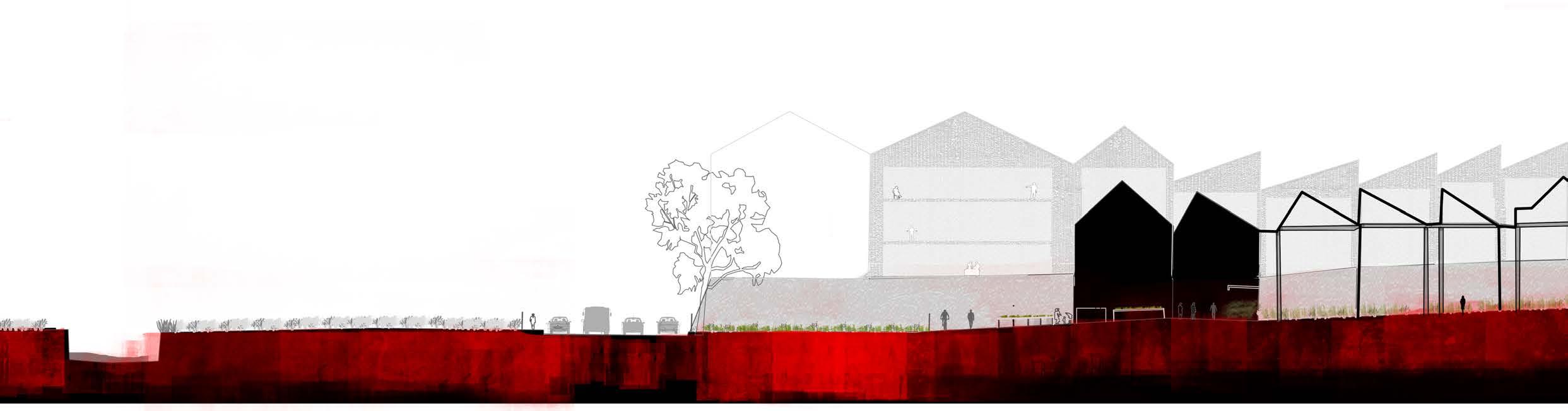

Existing - Construction
Railway rails to be retained
Contaminated Fill to be moved to Soil Chimneys
Give priority to phytoremediation processes
Concrete Slab to be crushed and used for fill/sub-base

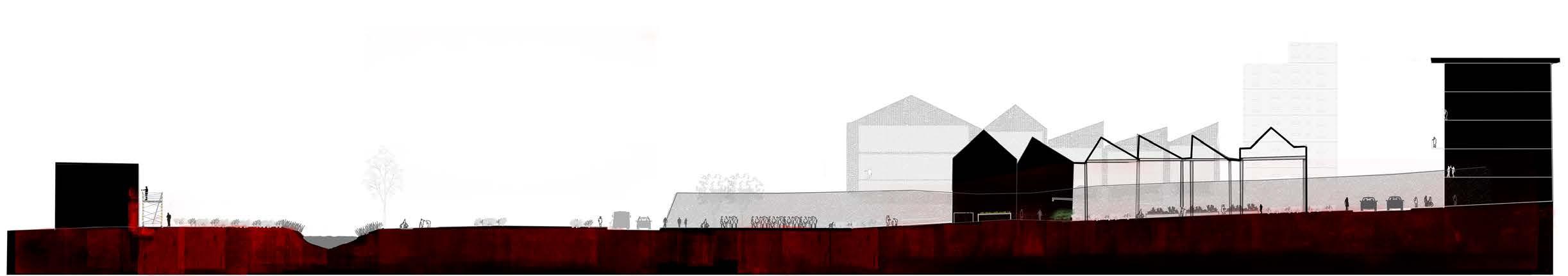

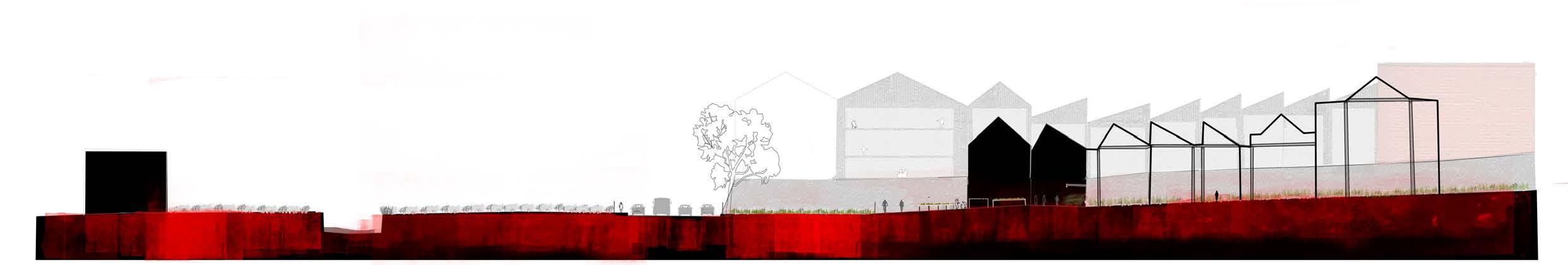

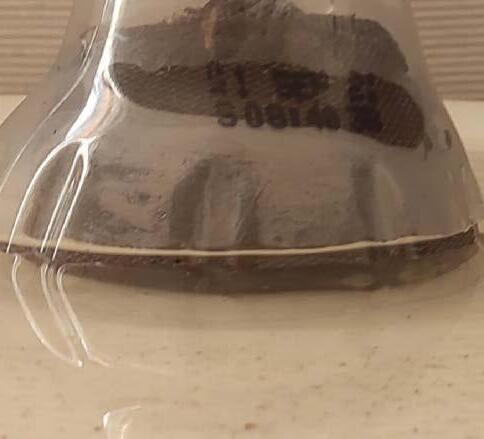

Fill: Clayey Sand with Sandstone Chunks
Clayey Sand Medium grained well sorted As above, slightly finer, saturated
As above, light grey lense, moist

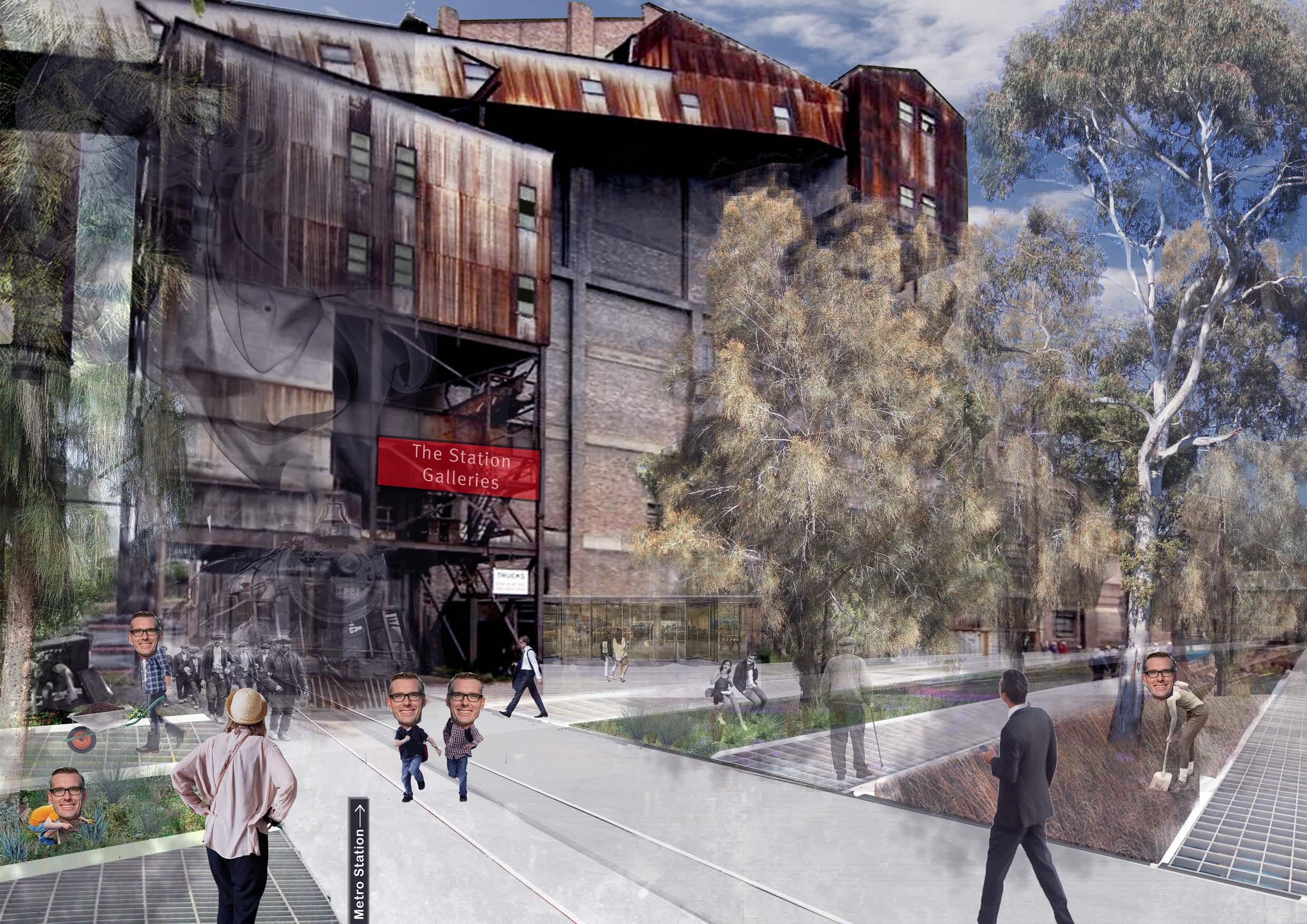

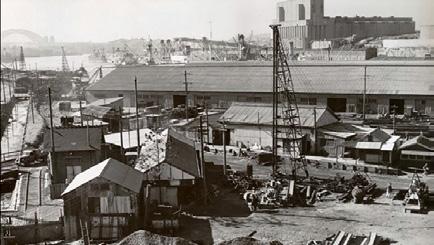

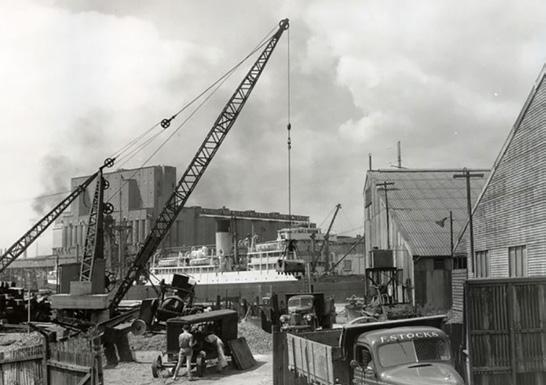

Aspire to uncover and retain historical memories of site for future generations

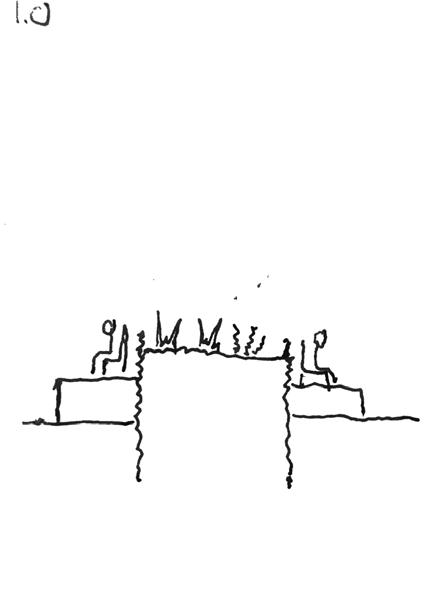

1.0 lifespans
Casuarina Swamp Forest Imitation Blocks Lot 201/204/205 Coal Storage and Processing
“ ...shocking building that should be knocked down”
thanks
Shade we shall never sit in
“Landscape Architecture should no longer be about the Landscape architect as a master architect, where we do funky design and we say this is how it should be...
it should be more of a gardening approach; intervening, letting things take their time, stepping back, testing, failure and error, working with the land...”
Darius Reznek
Surface level 500mm phytoremediation timeframe
0.1 Lifespans (8.4 years)
0.5 Lifespans (42 years)
1.0 Lifespans (84 years)
2.0 Lifespans (168 years)
3.0 Lifespans (252 years)
4+ Generations lifespansExceed Australian Safety Standards
0.1 lifespans 8.2 Years
0.5 lifespans 41 years
1.0 lifespans 82 years 2 lifespans 160+ years

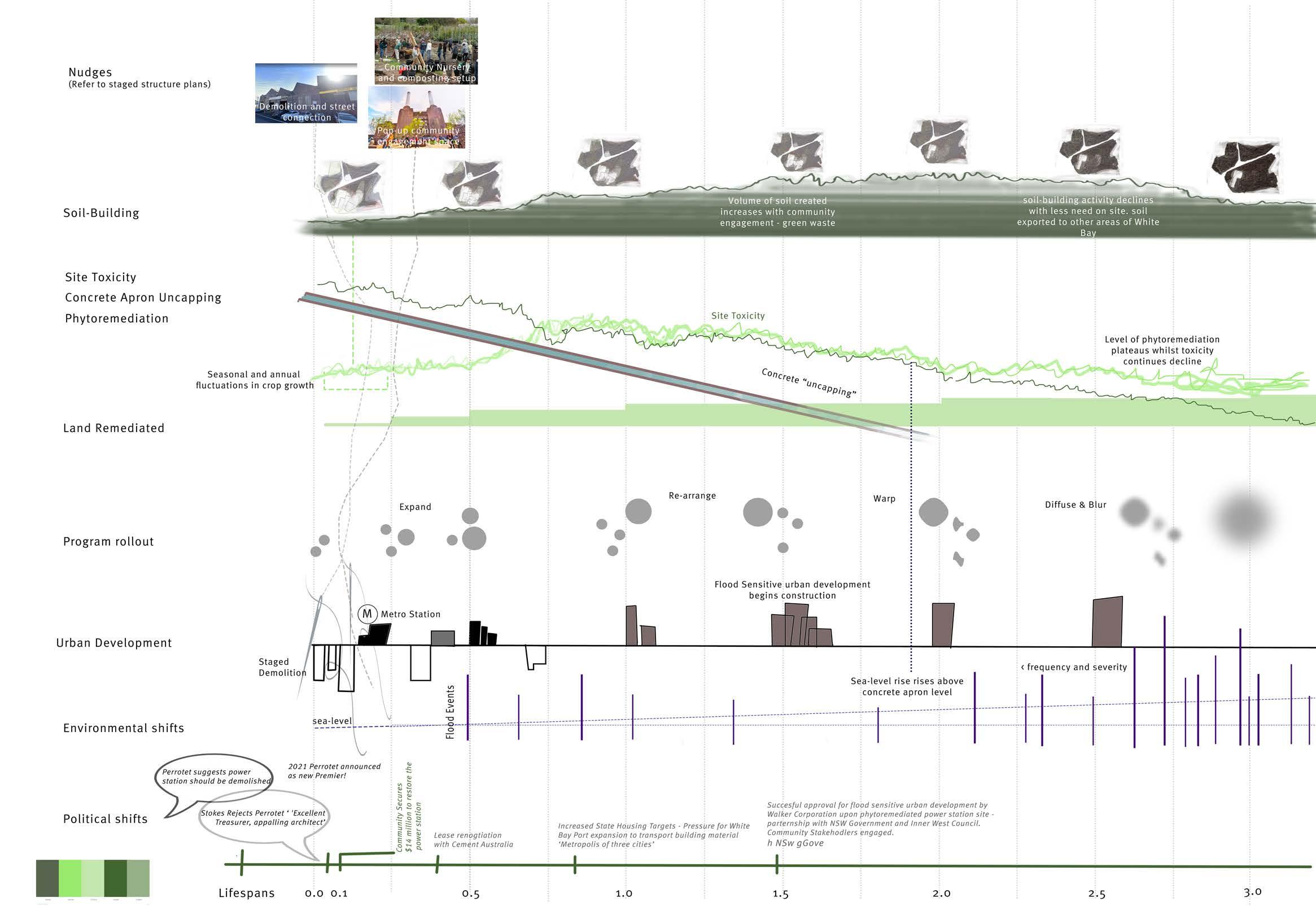

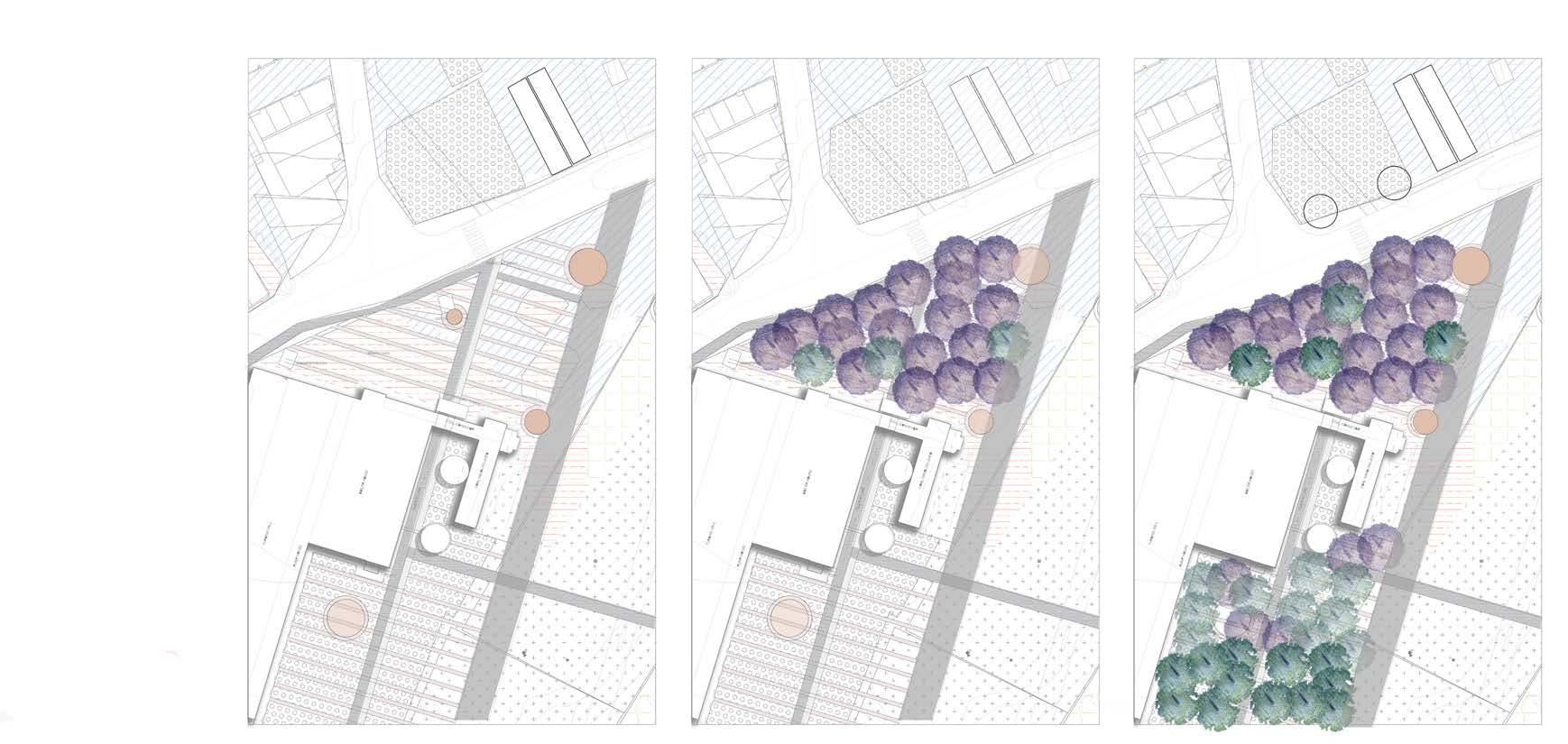

Shifting Path Cycles
Phytoremediation Cycle 1
Phytoremediation cycle 2
Phytoremediation cycle 3
Maintenance phasing varies on plant species groups and growth cycles
1.5m 5m

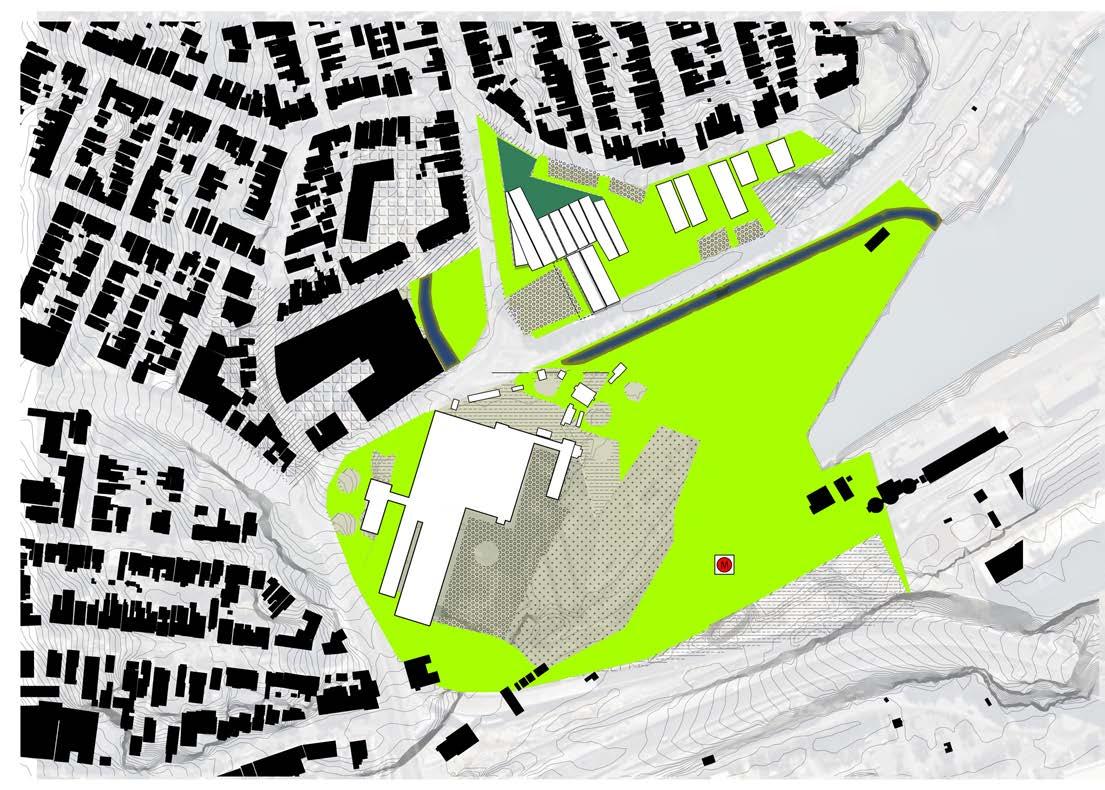

Rule #1 Give priority to phytoremediation ecology mosaic
Phytoremediation program before initial human program is introduced:
0.1 Generation lifespans
0.5 Generation lifespans
1.0 Generation lifespans
2.0 Generation lifespans
3.0 Generation lifespans
4+ Generations lifespansExceed Australian Safety Standards

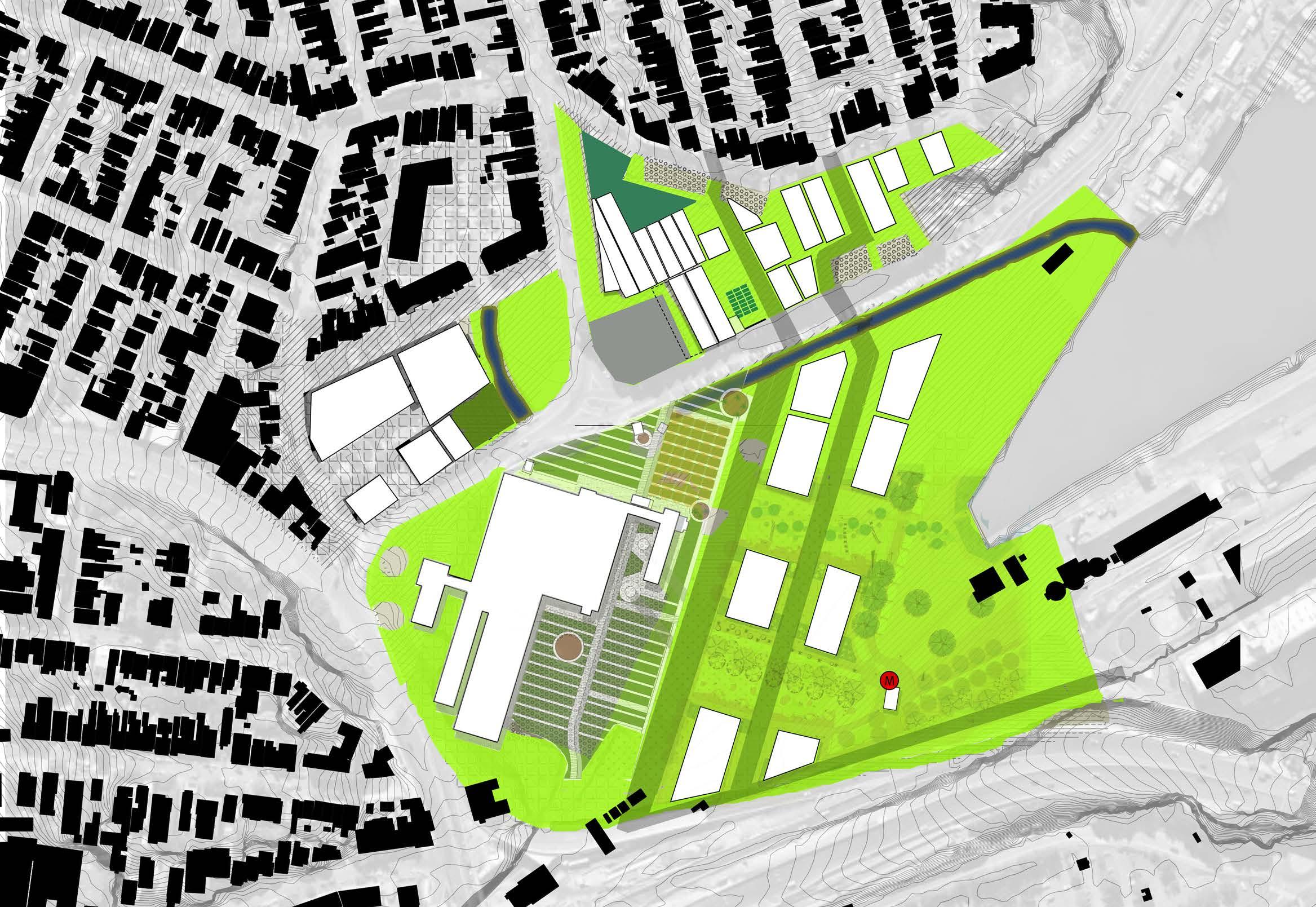

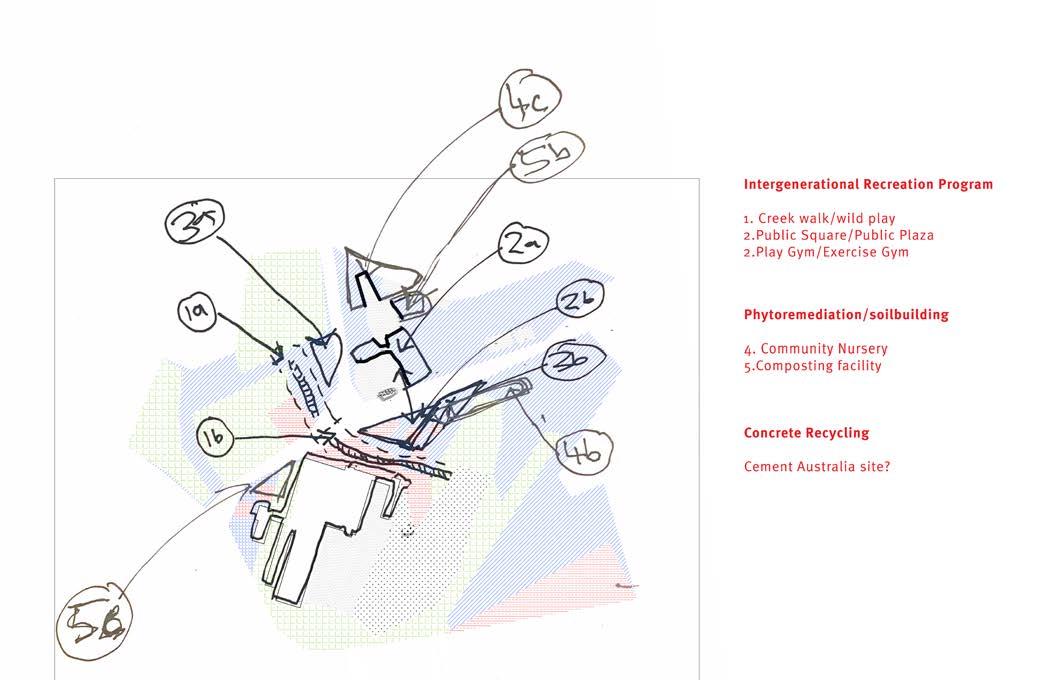

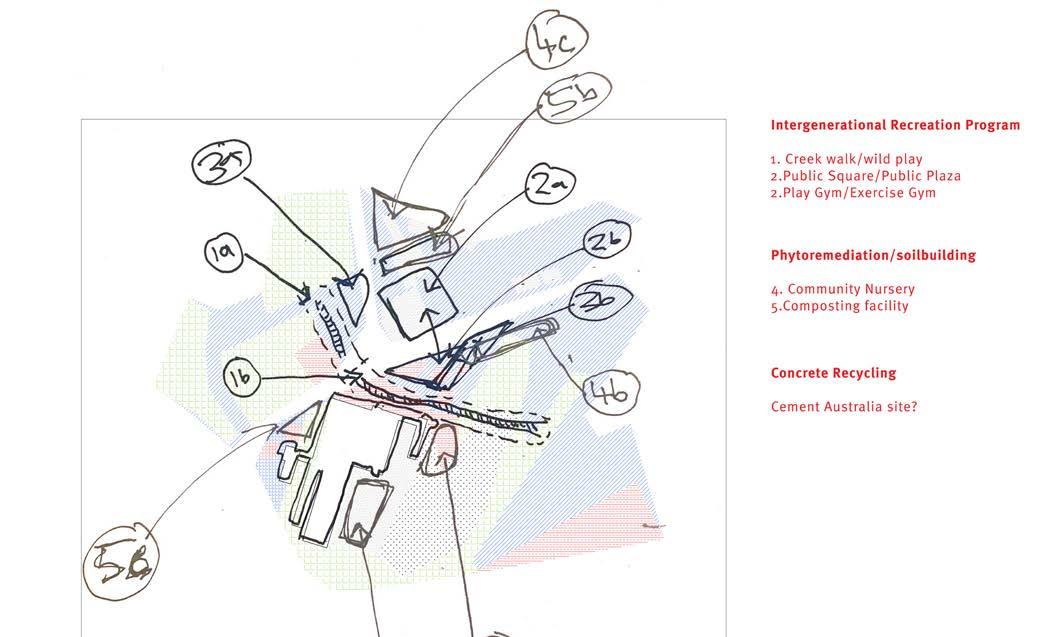

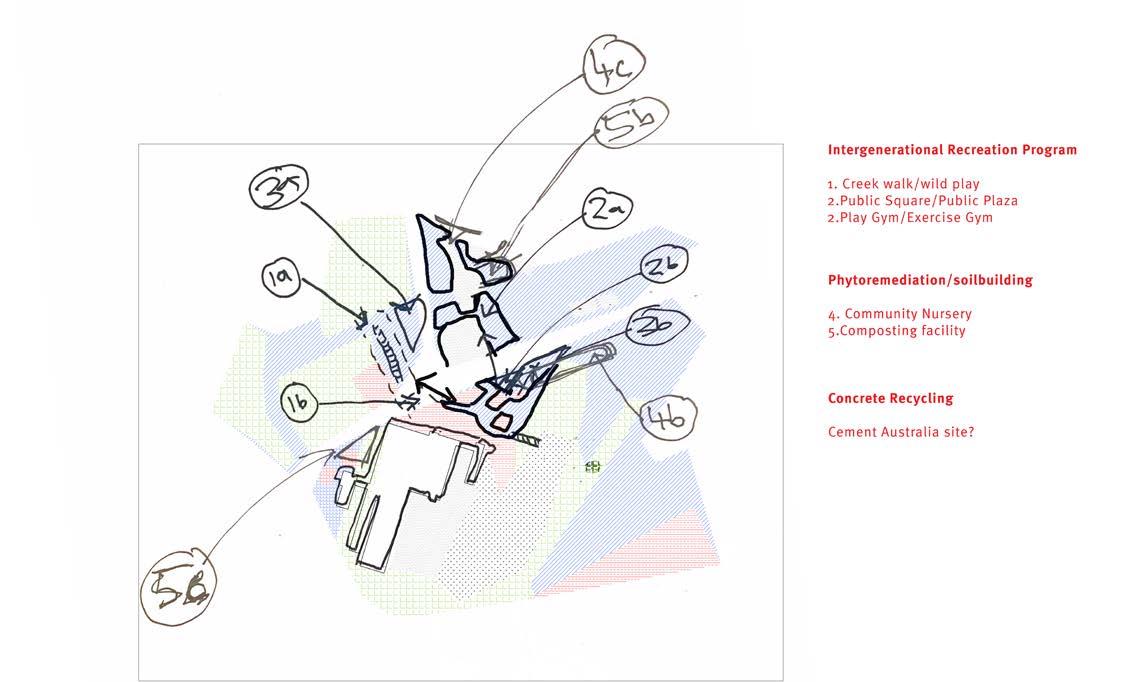

Rule #2 As land becomes remediated introduce community program amongst phytoremedial processes
Legend Metro Station
Seating Node and programmed area
Soil-Building and Nursery Vehicular Grade Path
Share Path Connection

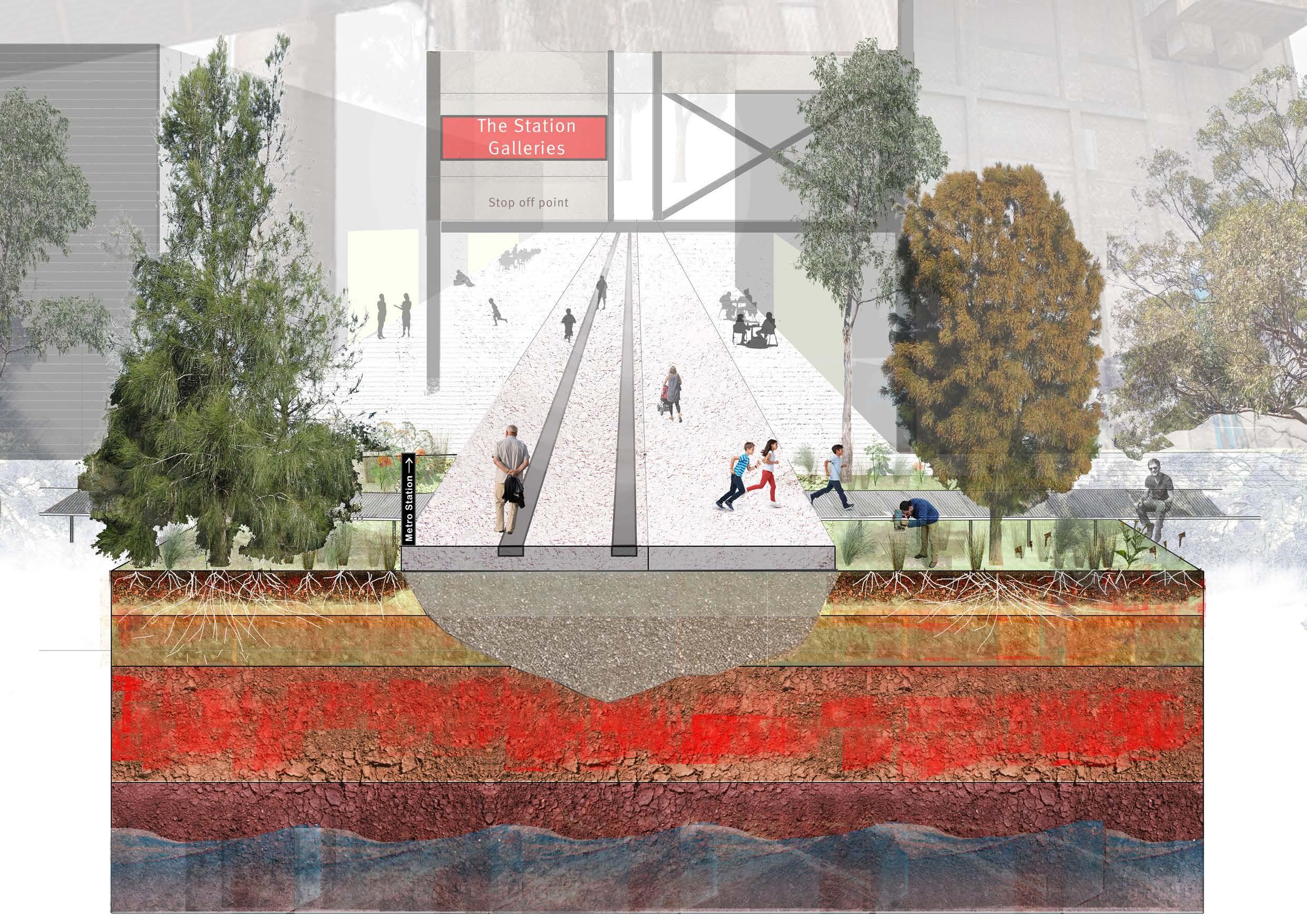

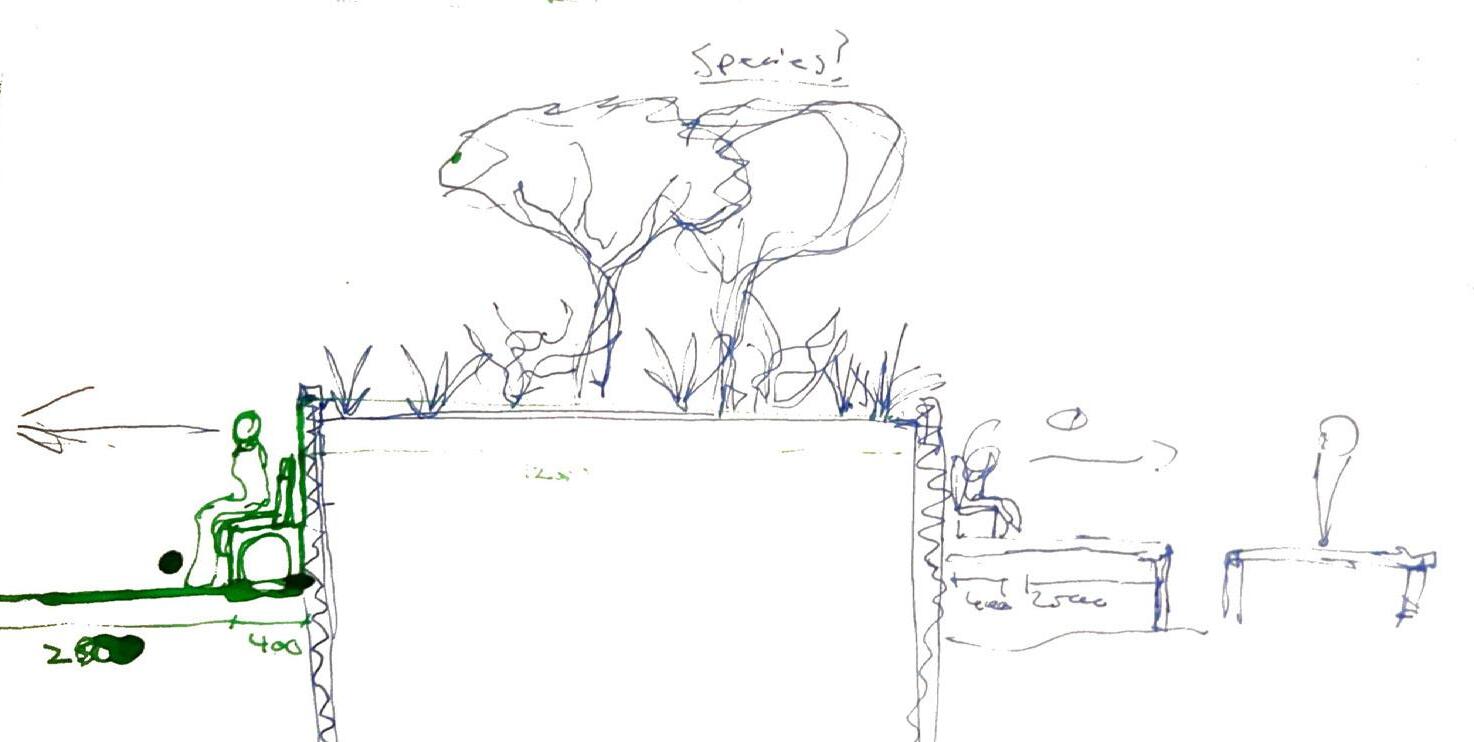

Garden Maintenace paths - raised boardwalk 300mm
Rule #3 Strategically located development to enhance natural surveillance of programmed areas
Rule #4 Aspire to uncover and retain historical memories of site

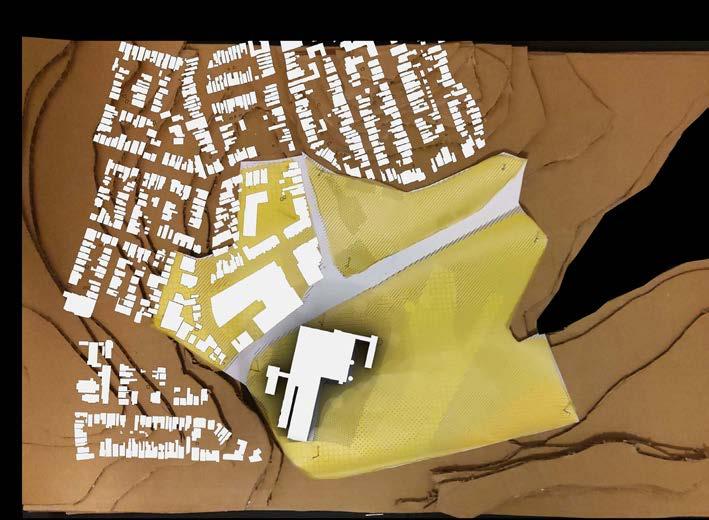

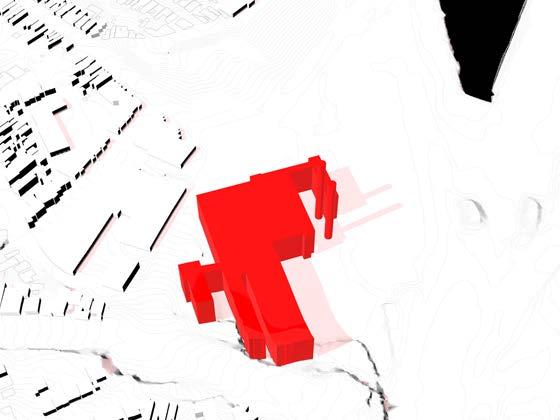

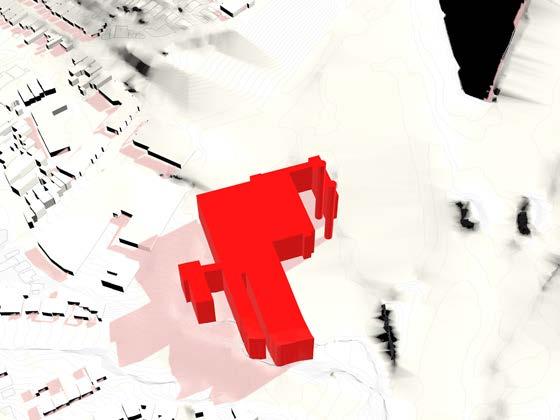

Sun Path 13th November 2021
Lot 211 Acid baths and scaling works Heavy Metal sulfuric acid, ammonia, sulfide nitrogen, selenium and sulfur dixide
Heavy metals, TPH, solvents, chlorinated benzemes, phenols, potassium hydroxide
Glauca (gen Heavy Metals, management of saline vnrionmenents
Eucalyptus camaldulensis (Heavy metal potential in roots) Eucalyptus lesouifii (Heavy metal potential in roots)

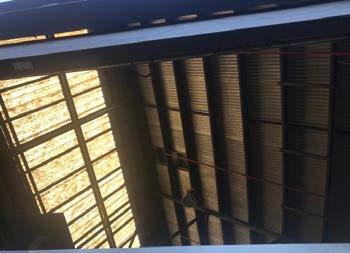

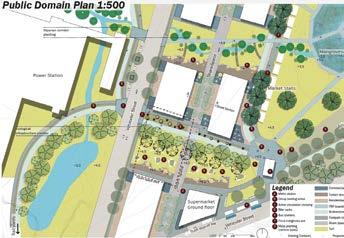

Existing warehousing sits on top of lot currently, sits at the junction of Roberts St and Mullens St, ear-marked for a square/plaza area in structure plan, once warehousing demolished will receive good full sunlight throughout day unknown underground condition will require extensive soil-building and ameliroatioun for tree growth Grevillea robusta
Eucalyptus polybractea
Eucalyptus cladocalyx
Betula spp. (Birch) (Zn, Cr, Pb)
Quercus spp. (Oak) (Zn, Cr, Pb) Casuraina Glauca (gen Heavy Metals, management of saline vnrionmenents
Casuarina obesa (Heavy Metals GENERAL) Allocasuarina verticilatta(Heavy Metals GENERAL)
Grevillea robusta

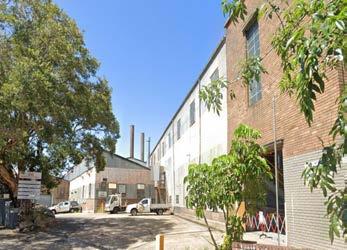

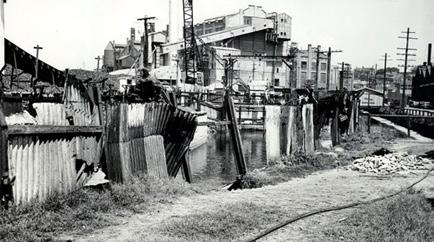

Currently industrial building sits on this lot to be demolished for remediation in structure plan. - sits alongside open section of beattie st canal runoff from this lot into the canal must be considered in planting design to reduce contaminant runoff- exposed to north, recieves good sunlight, soil=depth unknown, wiol require extensive soil-building for tree growth
Eucalyptus polybractea (Zn, Cu, Ni) Eucalyptus cladocalyx (Zn, Cu, Ni) Betula spp. (Birch) (Zn, Cr, Pb) Quercus spp. (Oak) (Zn, Cr, Pb) Casuraina Glauca (gen Heavy Metals, management of saline vnrionmenents
Eucalyptus camaldulensis (Heavy metal potential in roots) Eucalyptus
mearnsii (Zn, Cu,
(Heavy
Indian Mustard (Lead, Aluminium) Sunflower (Aluminium, Pah,Cadnium, Zinc, Nickel) Viola (Lead,Cadnium,Zinc) Poaceae group with A. gerardii, S. nutans, L. perenne and P. virgatum (Asbestos tolerant)
ACID SULFATE SOILS (ASS)
Agricultural lime (powdered calcium carbonate—CaCO3) is the most common neutralising material in use.
Removal of asbestos ridden areaspotential capping opportunity within feature seat areas or under Roberts Rd - may need to be removed from site
labillardieri
usitatus common rush -(Arsenic,lead,manganese) Indian Mustard (Lead, Aluminium) Sunflower (Aluminium, Pah,Cadnium, Zinc, Nickel) Viola (Lead,Cadnium,Zinc)
Acacia mearnsii (Zn, Cu, Ni) Wild Fennel (Alumnium, Lead, Cadnium, Zinc,Copper) Alyssum tenium (Heavy Metals) Acacia quadramarginea (Heavy Metals)
Aluminium) Sunflower (Aluminium, Pah,Cadnium, Zinc, Nickel) Viola (Lead,Cadnium,Zinc) Poaceae group with A. gerardii, S. nutans, L. perenne and P. virgatum (Asbestos tolerant) Removal of
Poa labillardieri Juncus usitatus common rush -(Arsenic,lead,manganese) Viola (Lead,Cadnium,Zinc)
- Bacillus cereus and Aeromonas encheleia earthworm Eisenia fetida
(Zn, Cu, Ni) Wild Fennel (Alumnium, Lead, Cadnium, Zinc,Copper) Vicia sativa L.(Cmmon vetch) (PHENOLS) Alyssum tenium (Heavy Metals) Acacia quadramarginea (Heavy Metals)
