THE EDGE

A RESILIENT STRATEGY

THE EDGE

How can we engage both human and non-human communities along The Bay’s water edge to create a resilient urban water management strategy?

THEORY

URBAN WATER MANAGEMENT

URBAN WATER MANAGEMENT

water security through industry function lacks community engagement

efficiency of function

vulnerable to climatic changes and pollution

protection of assets against flooding neglects ecological communities

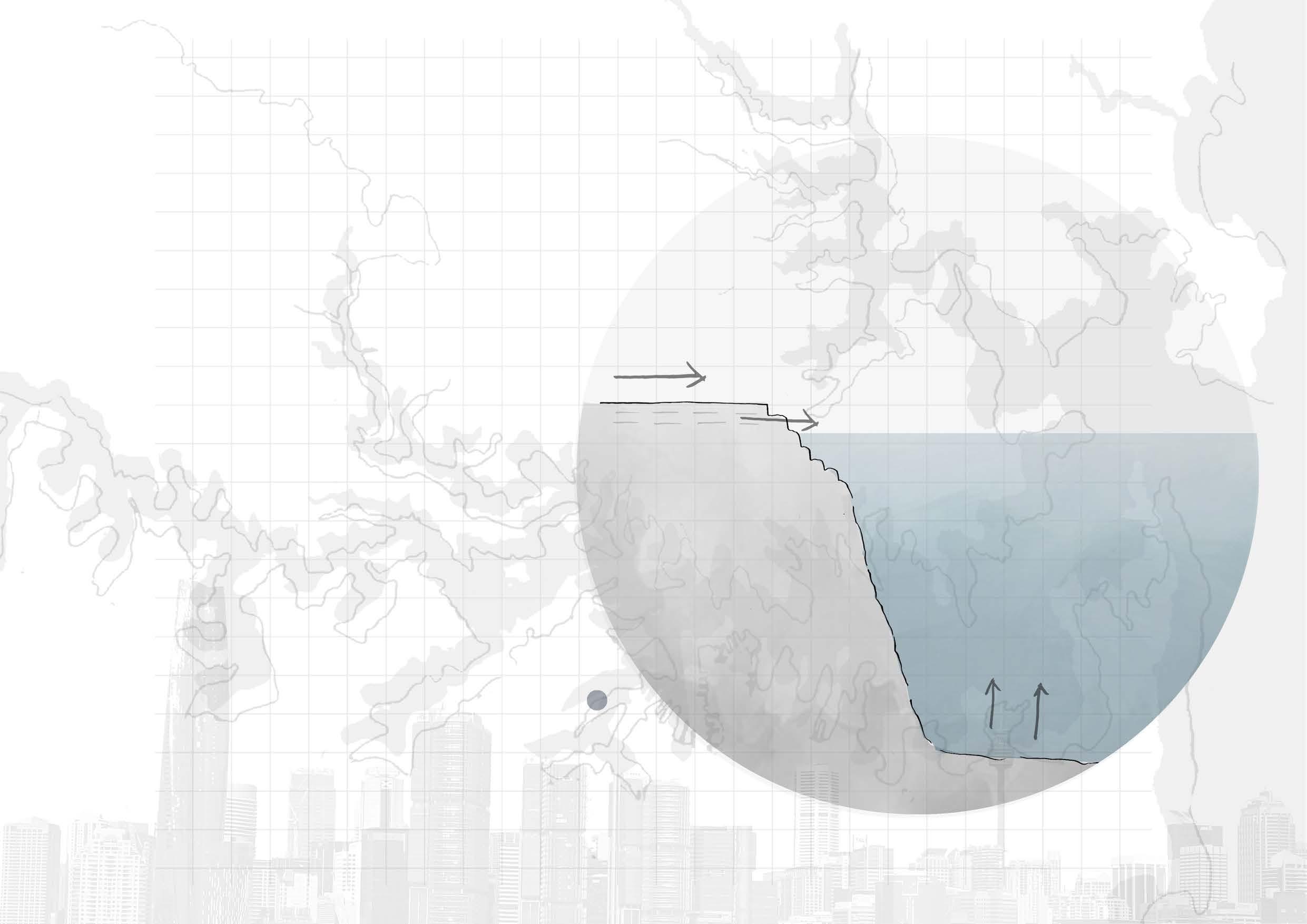

HAWKESBURY SANDSTONE

DISTURBED SOIL

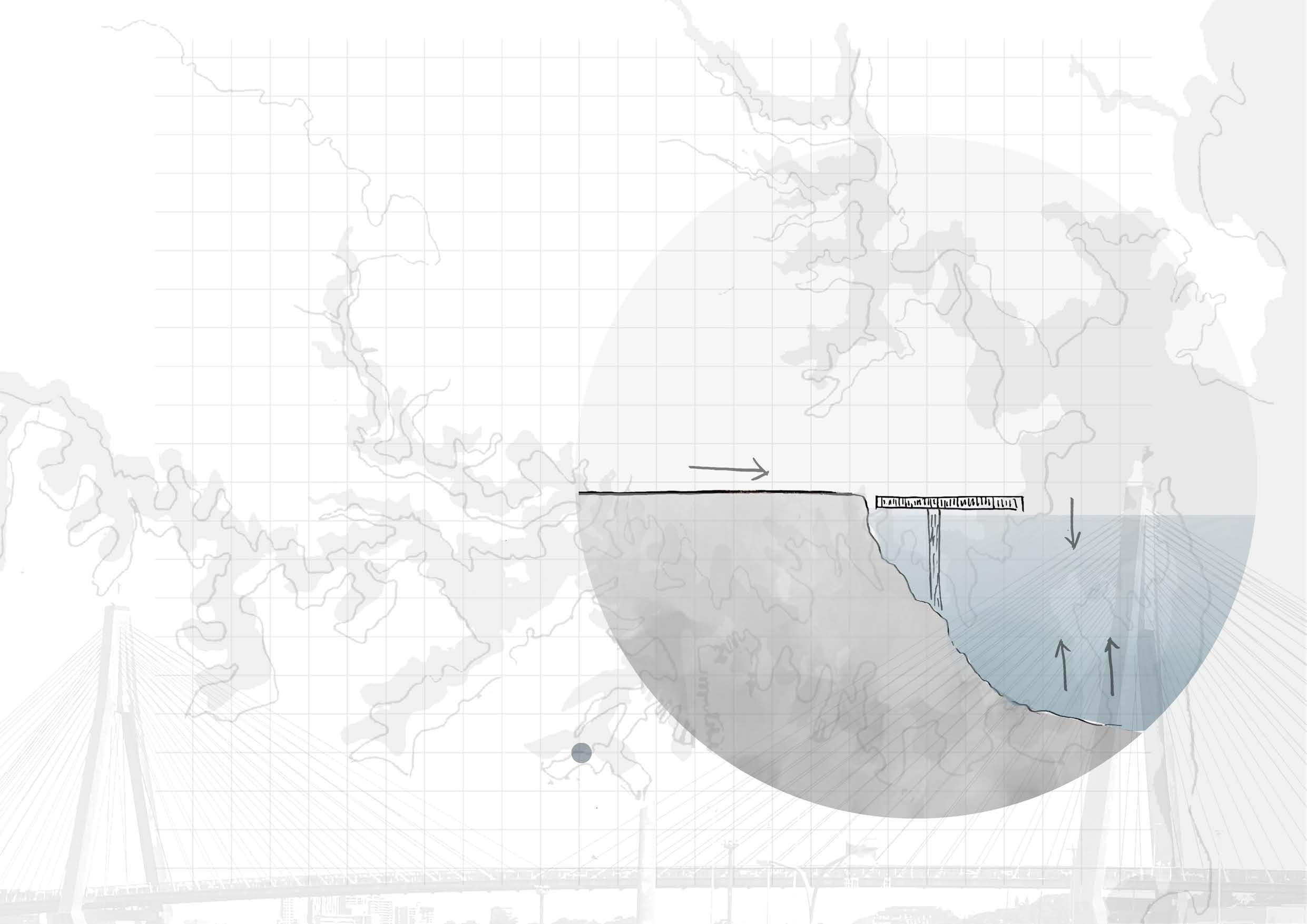

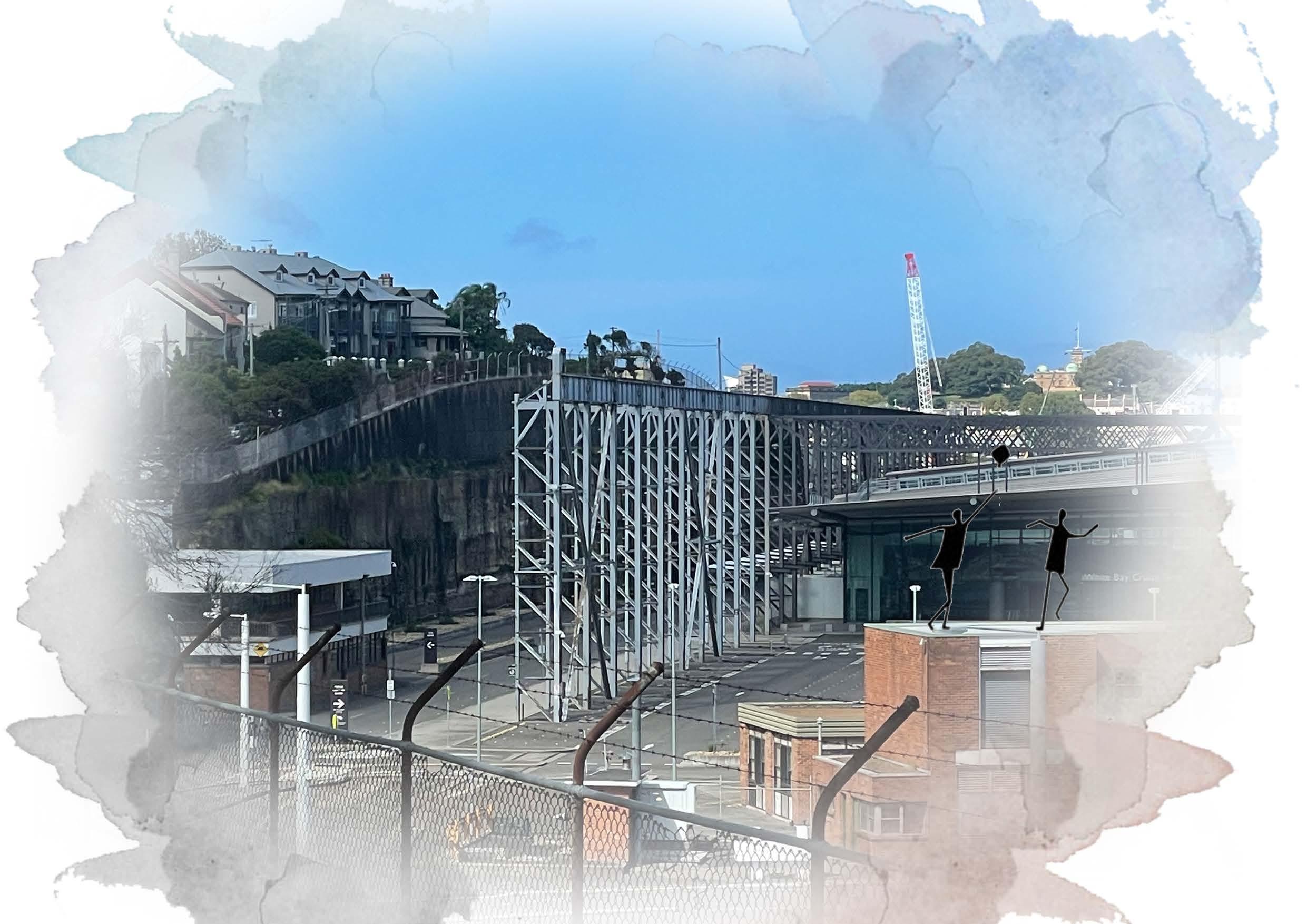

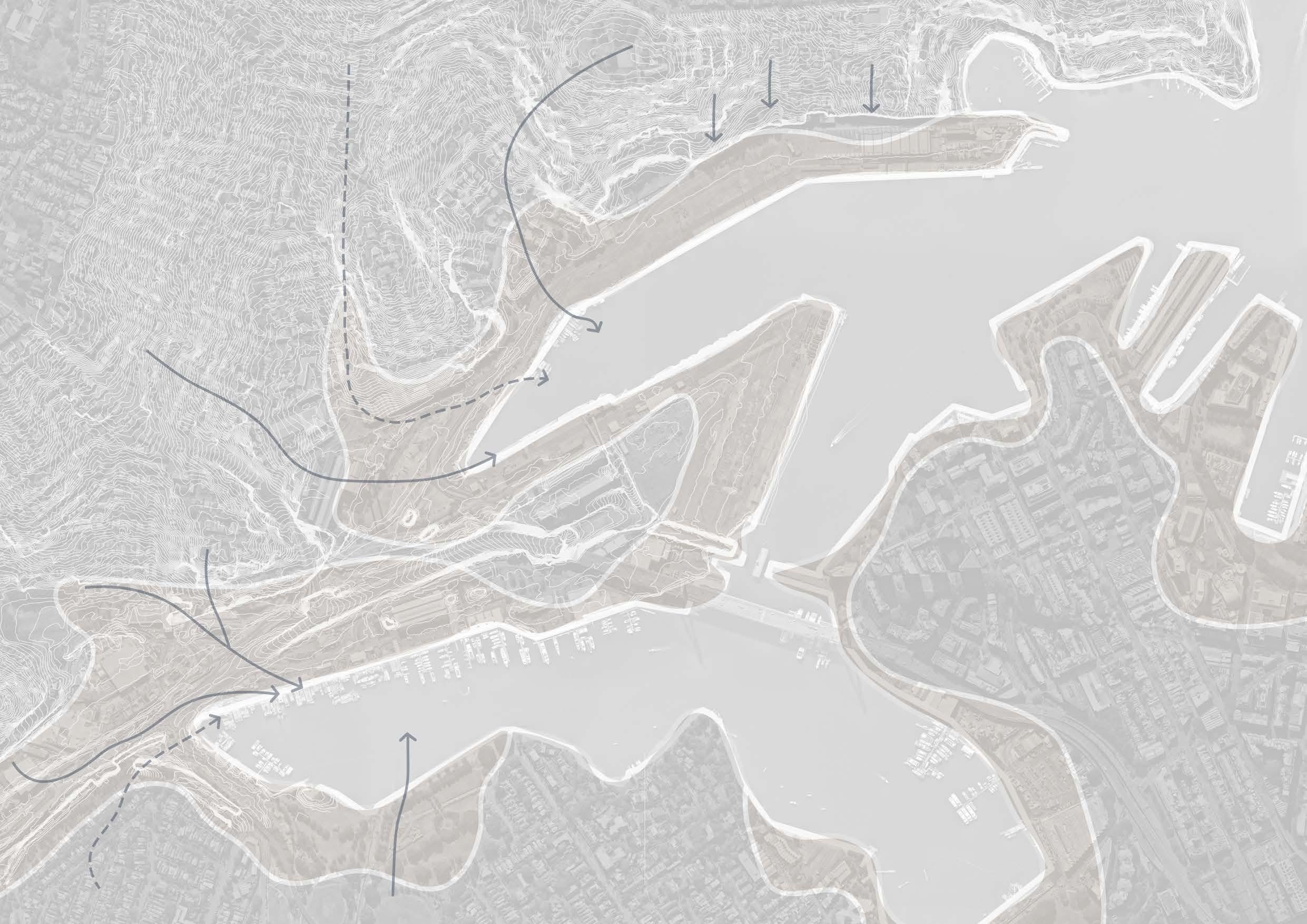

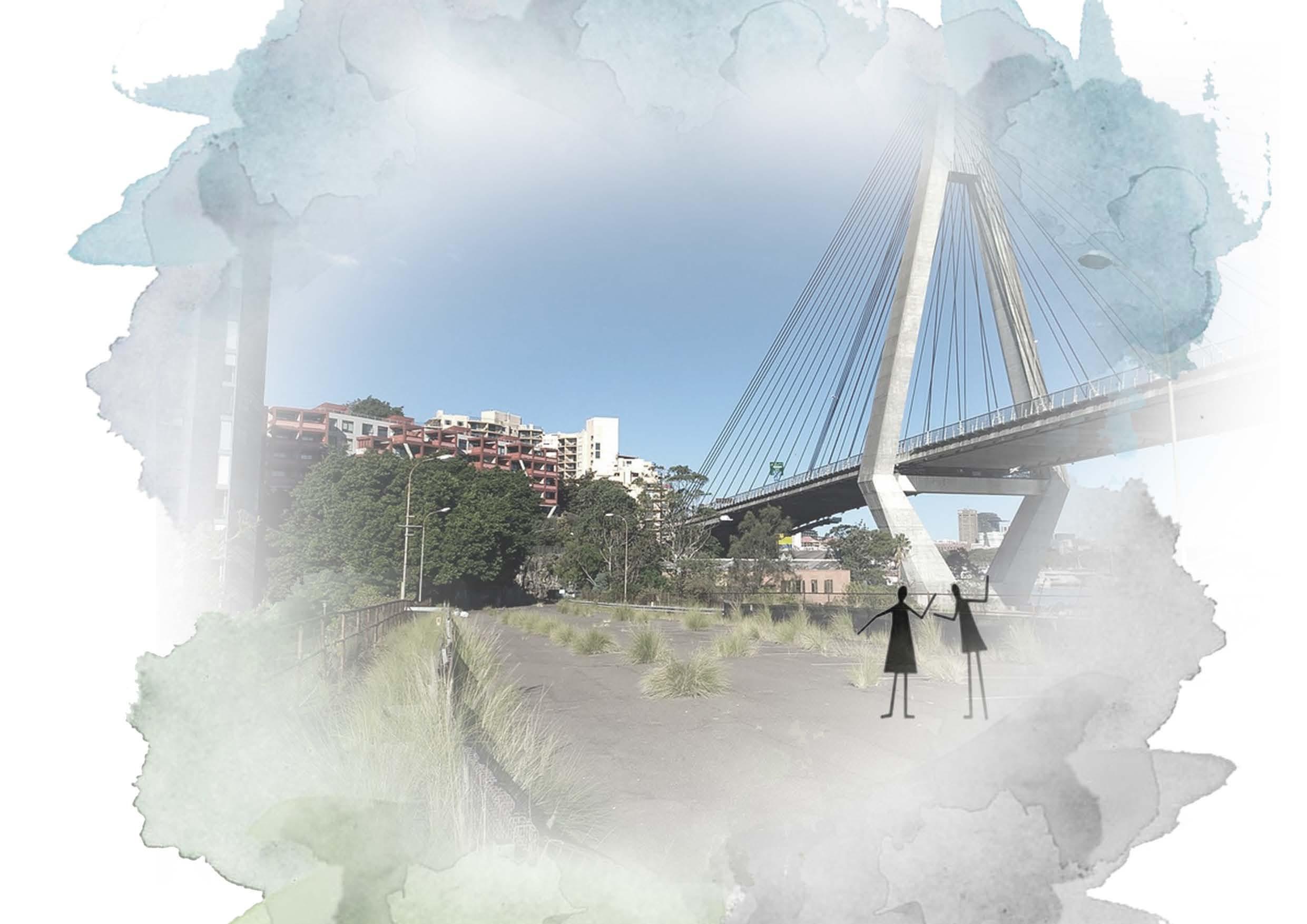

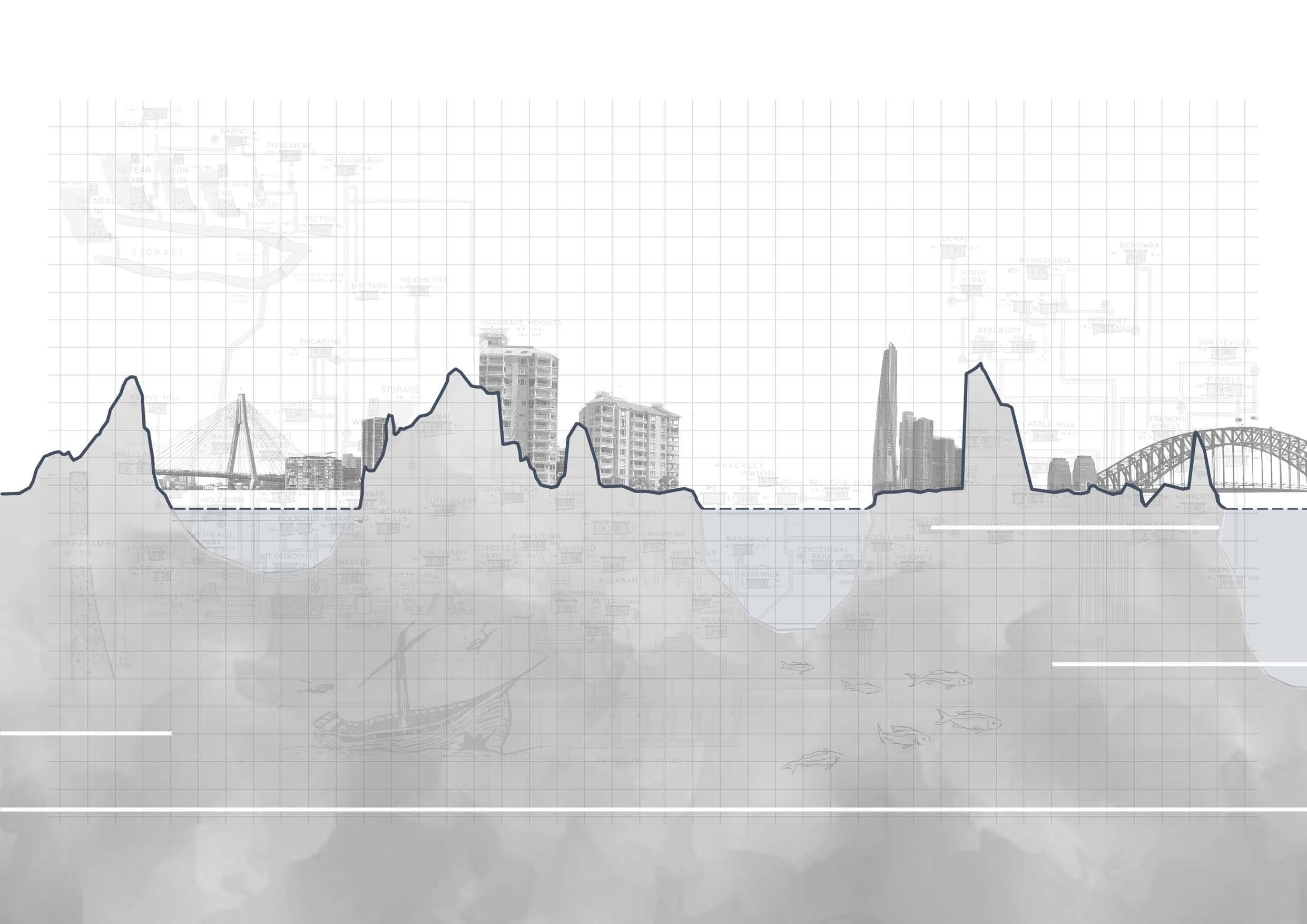

EXISTING SITE CONDITIONS

HAWKESBURY SANDSTONE

HAWKESBURY SANDSTONE

DISTURBED SOIL

HAWKESBURY SANDSTONE

DISTURBED SOIL

OVERLAND FLOW PATH

UNDERGROUND

STORMWATER CHANNEL

community with socioeconomic fabric of existing industries along the shoreline

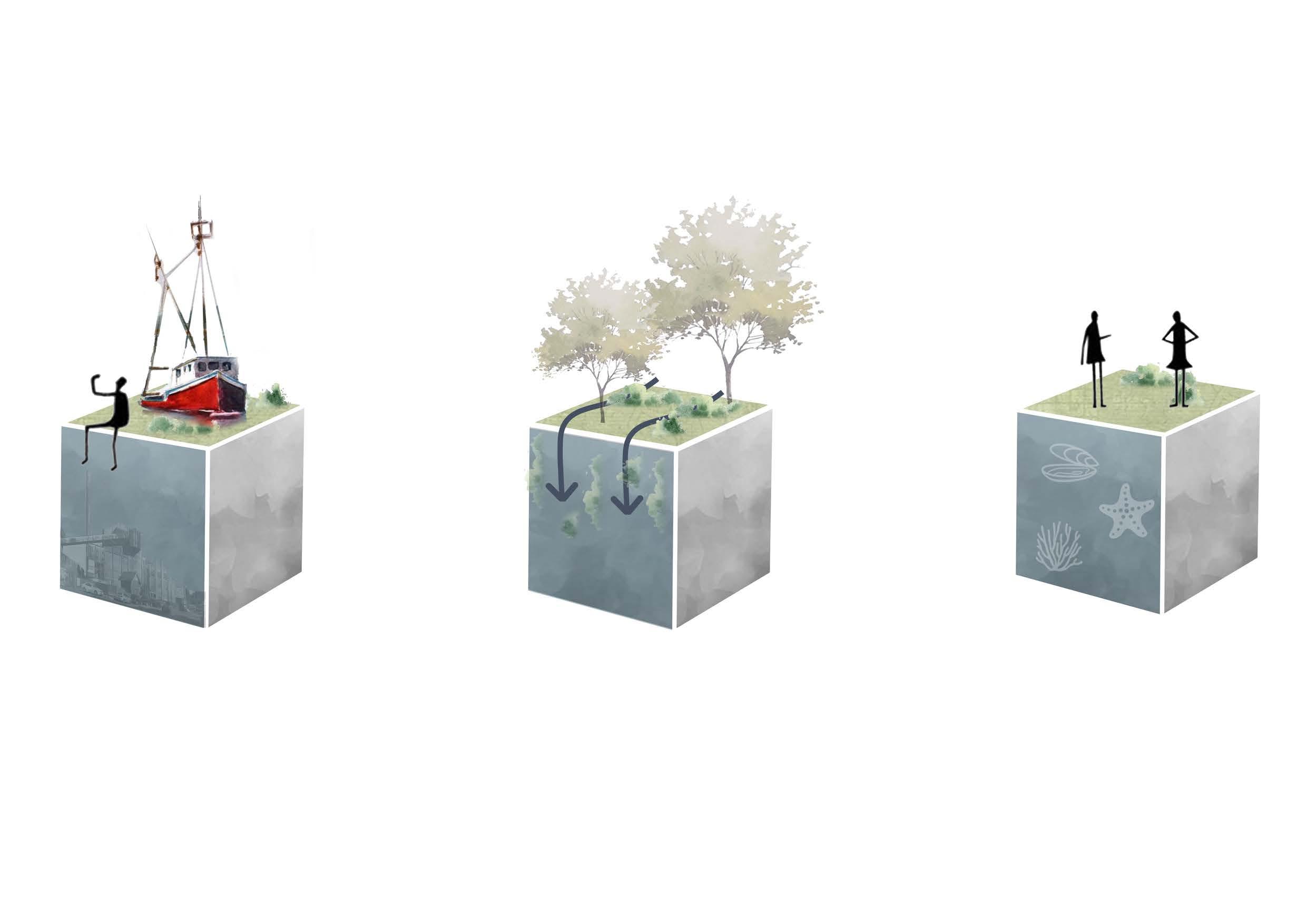

DESIGN PRINCIPLES

polluted runoff through implementing terrestrial and aquatic planting typologies that capture and filter

and educate about aquatic fauna communities as indicators of water health

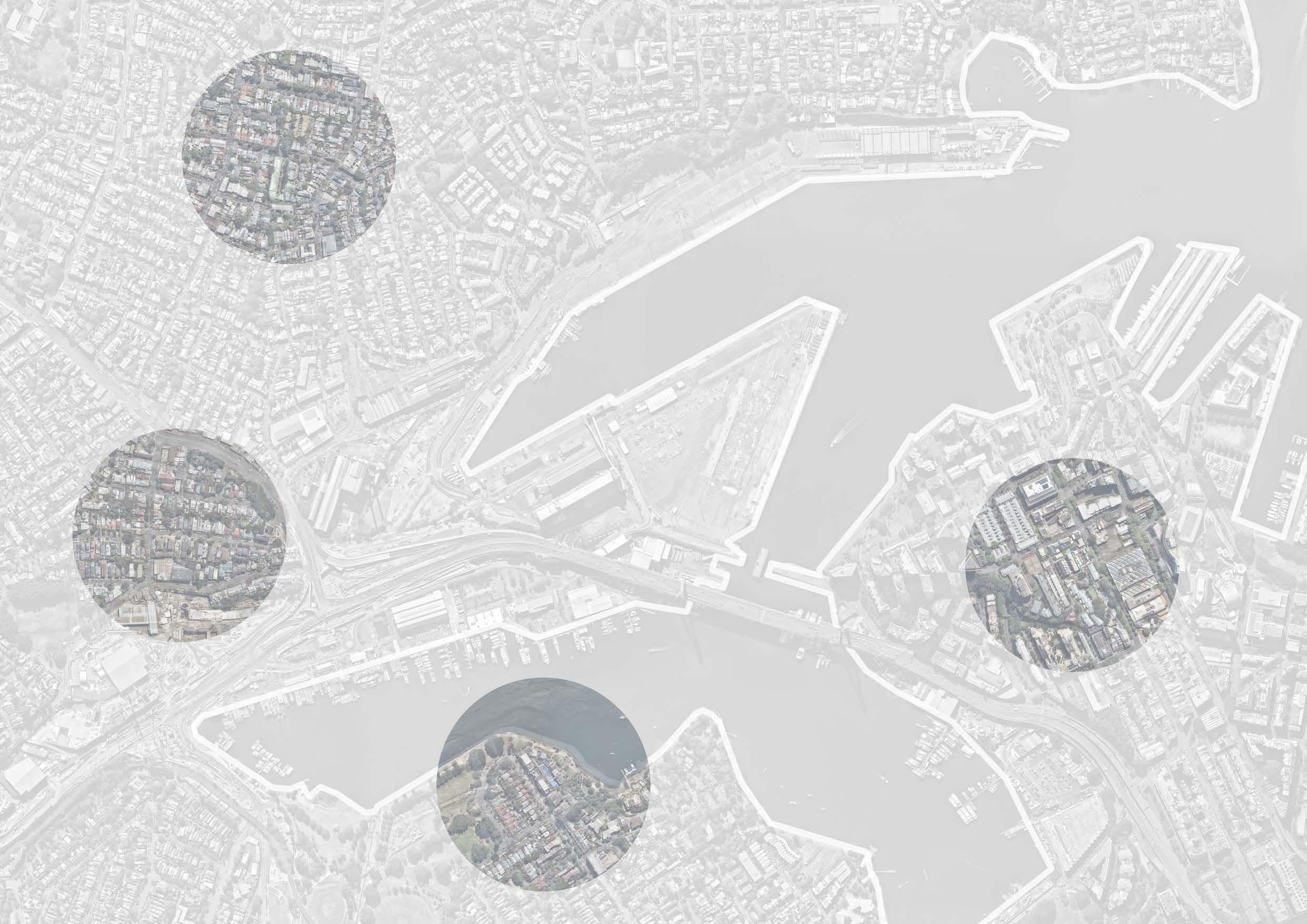

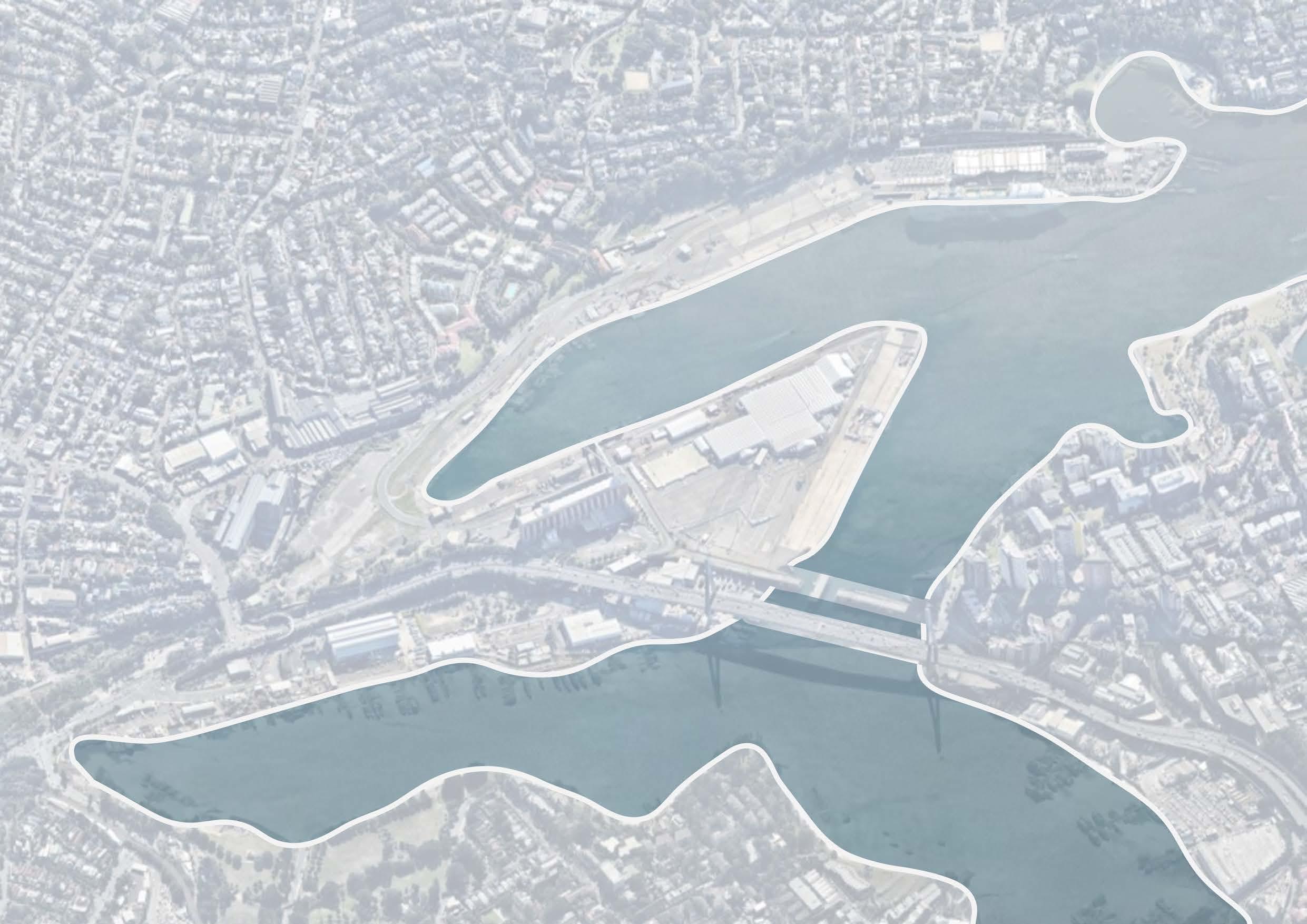

THE BAYS ANALYSIS

Population: 10,453

Couple w/o children: 42.8% (avg. 36.6%)

Couple w/ children: 43.5% (avg. 45.7%)

1 bdrm: 14.2% (av.g 6%)

2 bdrm: 36.4% (avg. 22.2%)

HUMAN COMMUNITY

BALMAIN

Stormwater runoff and channel commanding 72 hectares of primarily residential areas

GLEBE ISLAND

Anthropogenic deposits and fill (clay, silt, sand, gravel) with elevated concentrations of metals

ROZELLE

Population: 8725

Couple w/o children: 47% (avg. 36.6%)

Couple w/ children: 41% (avg. 45.7%)

1 bdrm: 15.5% (av.g 6%)

2 bdrm: 36.8% (avg. 22.2%)

METRO TO BE COMPLETED 2028

WEST CONNEX TO BE COMPLETED 2023

GLEBE

Population: 11, 532

Couple w/o children: 51.3% (avg. 36.6%)

Couple w/ children: 28% (avg. 45.7%)

1 bdrm: 22.8% (av.g 6%)

2 bdrm: 32.5% (avg. 22.2%)

ROZELLE BAY contaminated with stormwater pollution, sewage overflow and heavy metals

PYRMONT

Population: 21656

Couple w/o children: 59.3% (avg. 36.6%)

Couple w/ children: 25.3% (avg. 45.7%)

1 bdrm: 28.3% (av.g 6%)

2 bdrm: 46.2% (avg. 22.2%)

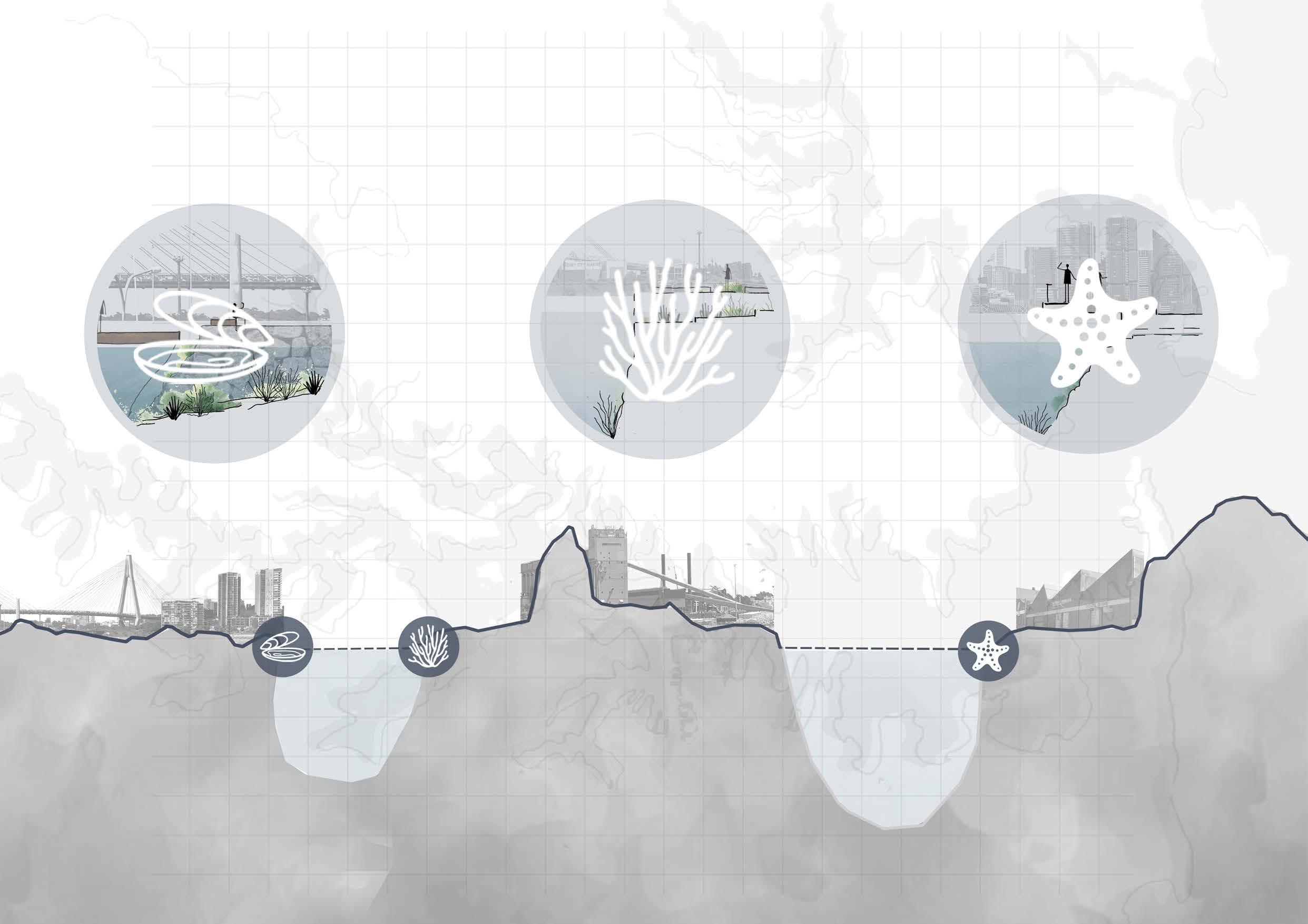

NON-HUMAN COMMUNITY

Indicators: Clean water environment as they are filter feeders

Habitat: Salty/brackish waters

Diet: Phytoplankton or small bits of algae

Reproduction: Annually spawn from the end of June - mid-August

Indicators: Clean water environment as they are particularly sensitive to pollutants

Habitat: Reefs/Sea Grass

Diet: Algae, diatoms and small detritus particles

Reproduction: Annually spawn in Mid January

Indicators: Clean water environment as they are filter feeders (in higher population numbers because of industrial polluants)

Habitat: Reefs, piling and hard surfaces

Diet: Plankton and detritis

Reproduction: Annually

OYSTERS

BALMAIN

BALMAIN

Stormwater runoff and channel commanding 72 hectares of primarily residential areas

CUSHION STARS

GLEBE ISLAND

Anthropogenic deposits and fill (clay, silt, sand, gravel) with elevated concentrations of metals

GLEBE ISLAND

TUNICATES

ROZELLE BAY

contaminated with stormwater pollution, sewage overflow and heavy metals

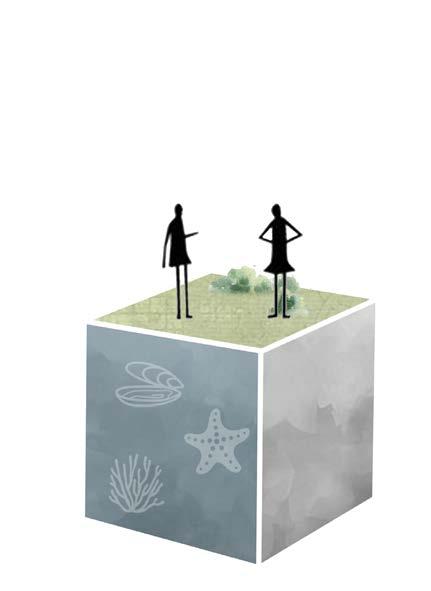

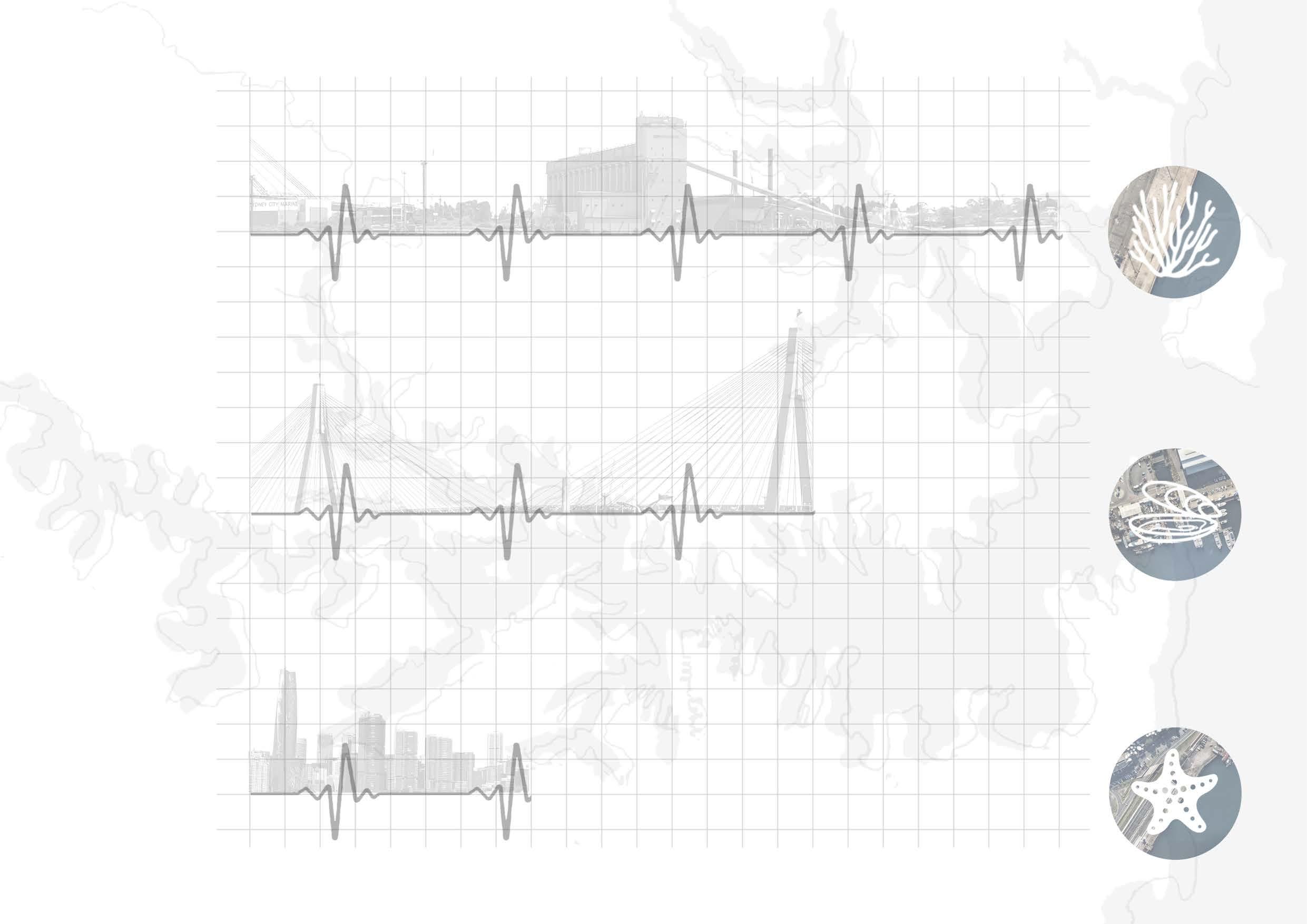

HUMAN COMMUNITY

NON-HUMAN COMMUNITY

GLEBE ISLAND

ROZELLE

BALMAIN

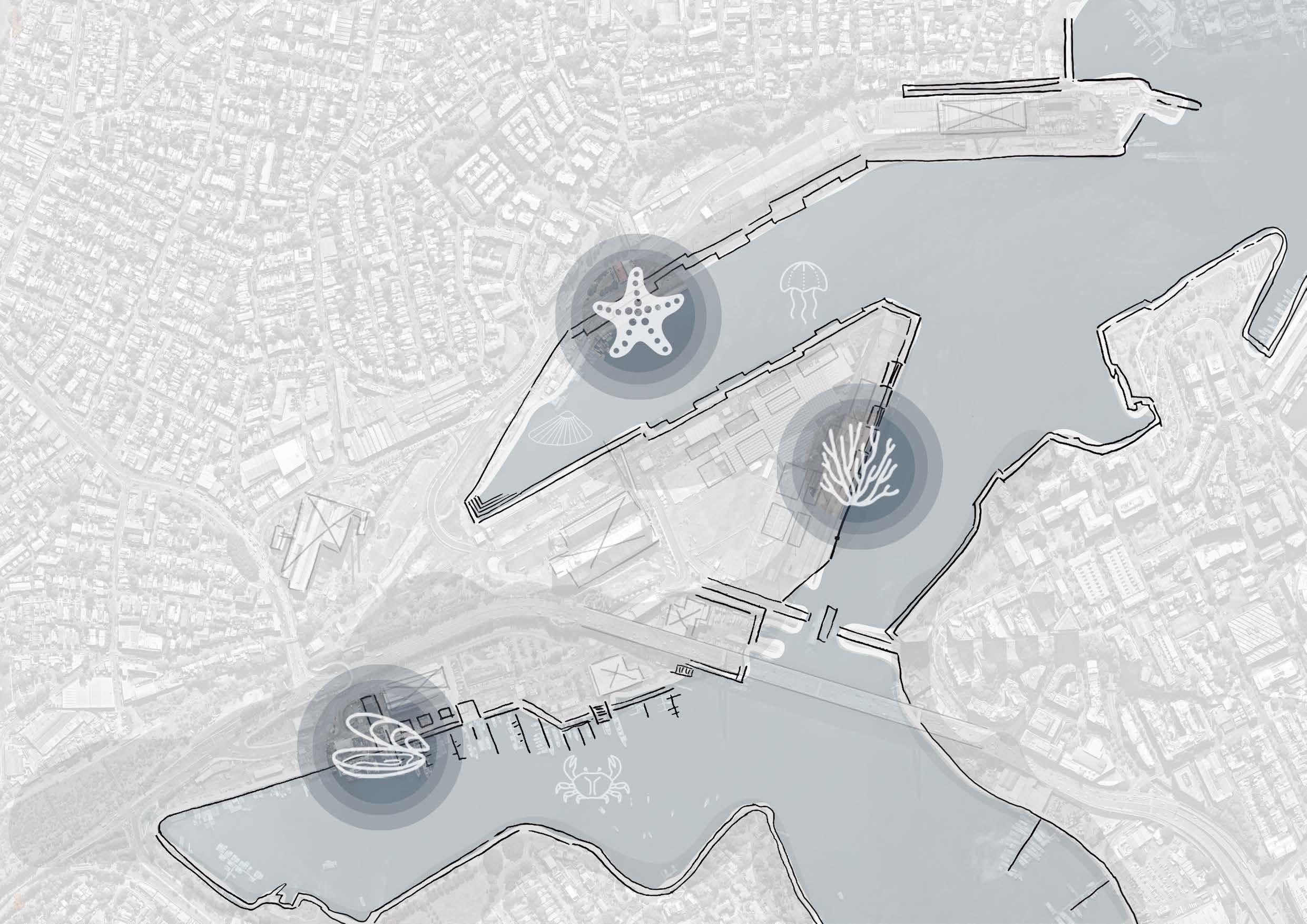

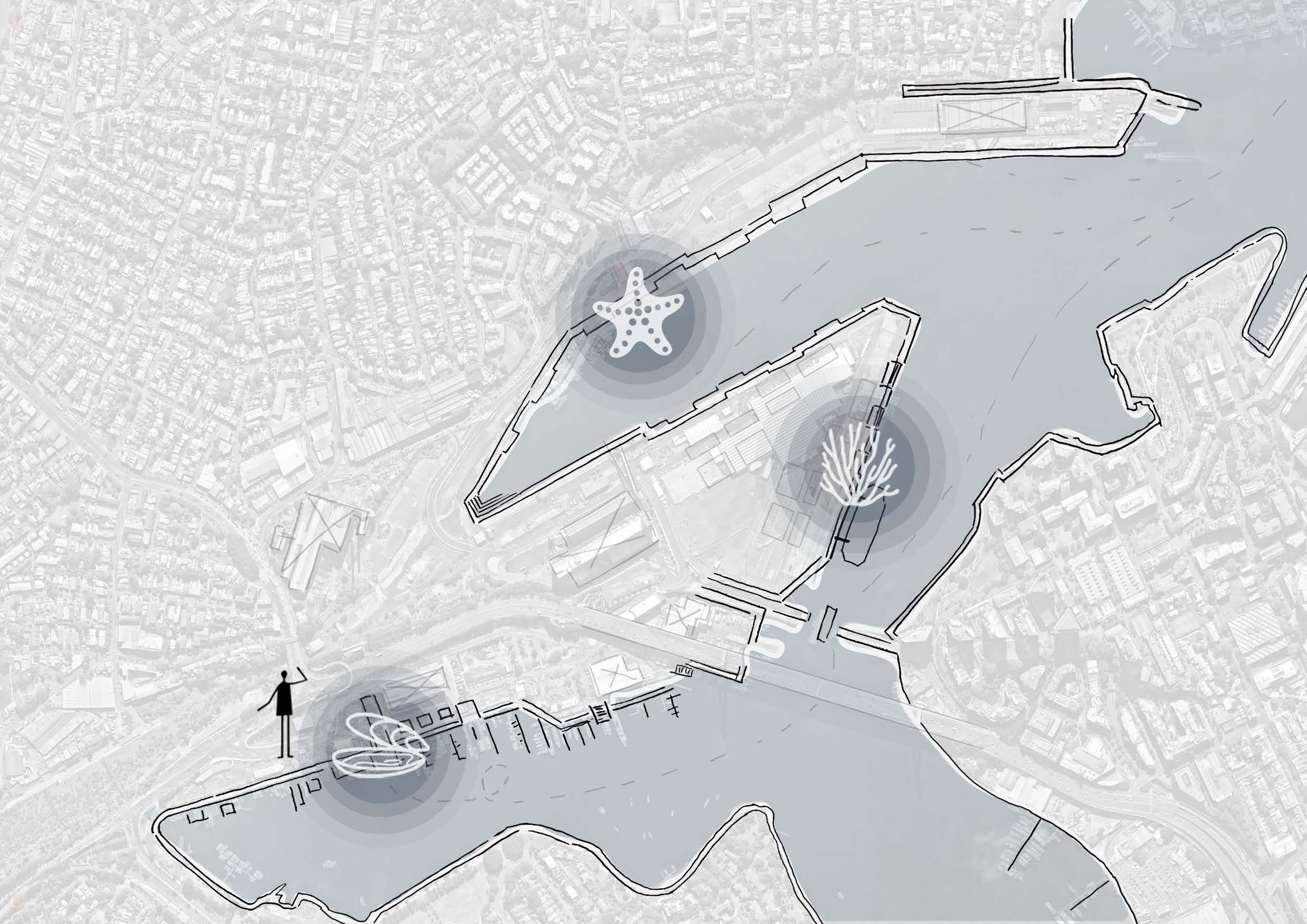

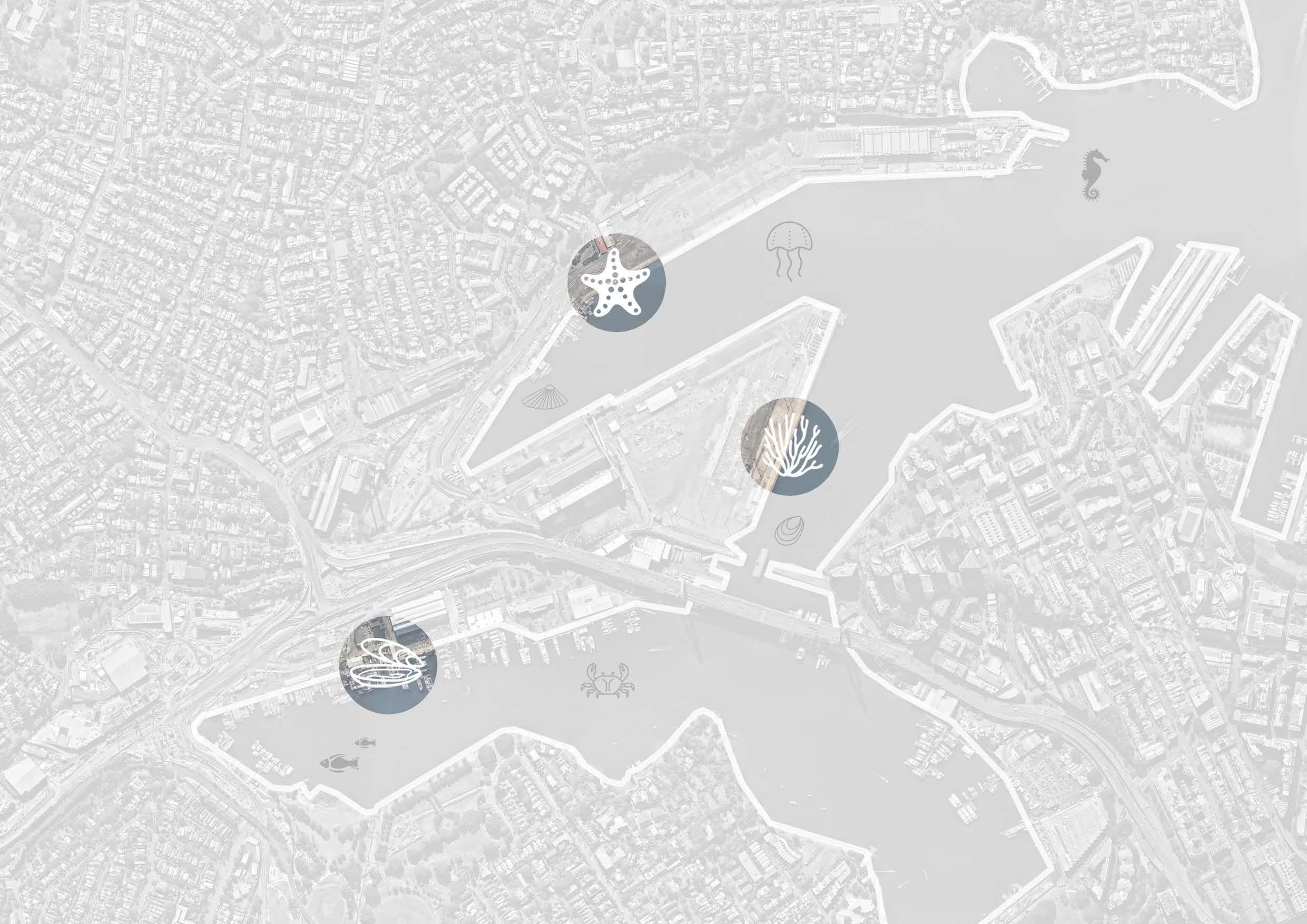

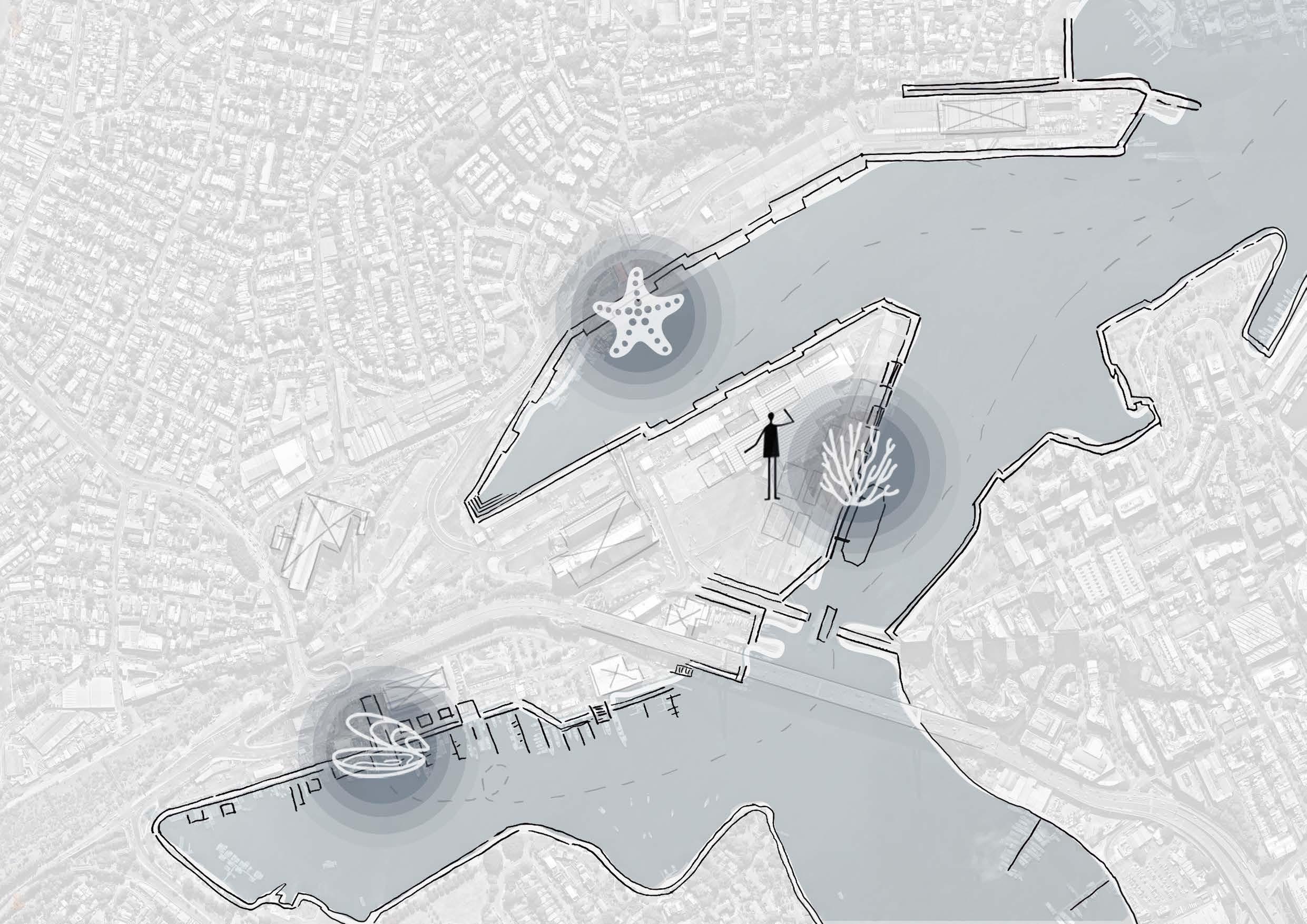

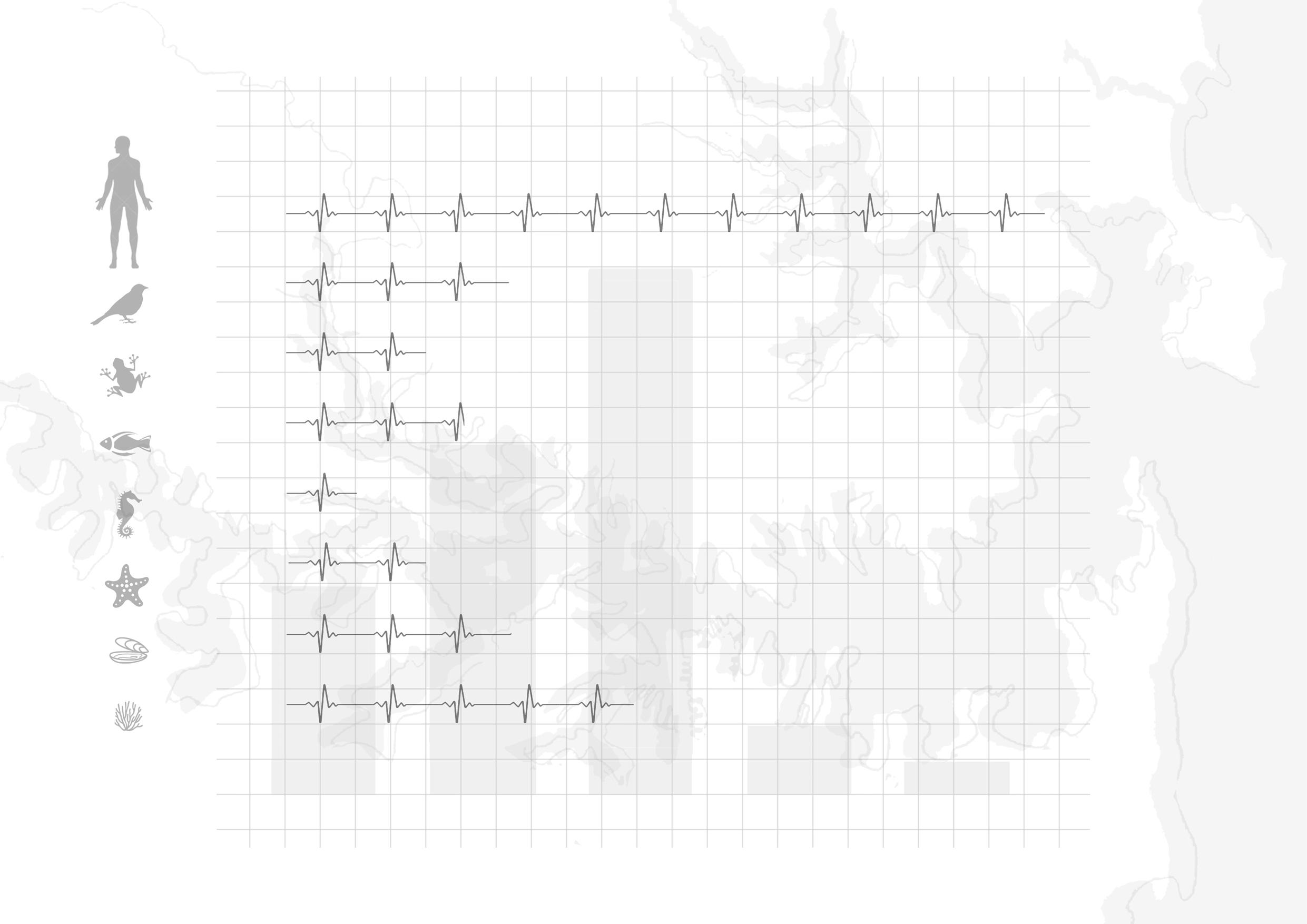

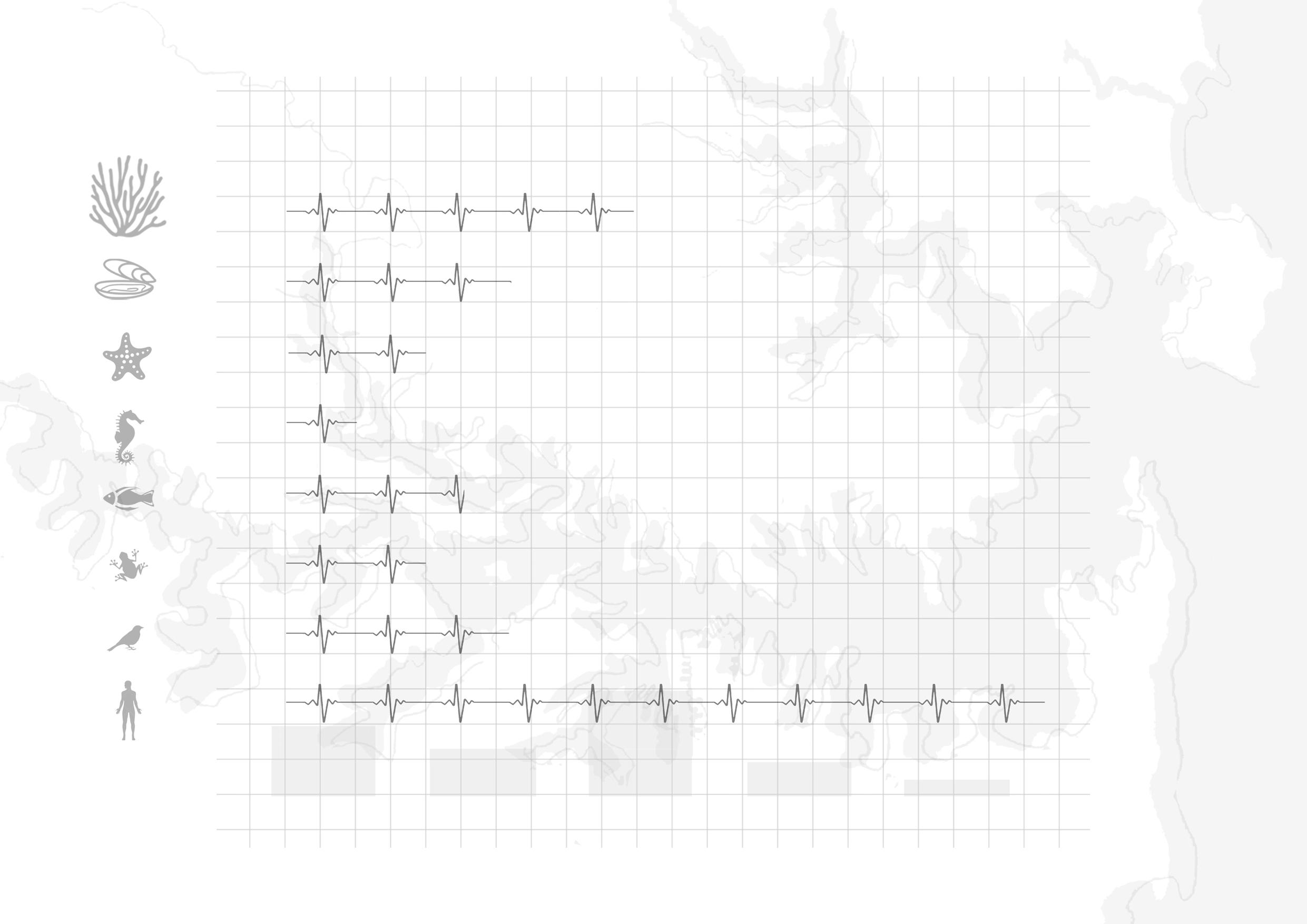

PILOT COMMUNITIES

TUNICATES

CLIMATIC EVENTS

METRO/WEST CONNEX BUILT

TUNICATES

CUSHION STARS OYSTERS

POPULATION GROWTH

HUMAN

DEVELOPMENT

INDUSTRIAL ACTIVITY

CEASED SEA LEVEL RISE

NON-HUMAN

PHASE 1

PHASE 3

OYSTERS

PHASE 1

30 YEARS

PHASE 2

YEARS

PHASE 3

90 YEARS

ROZELLE

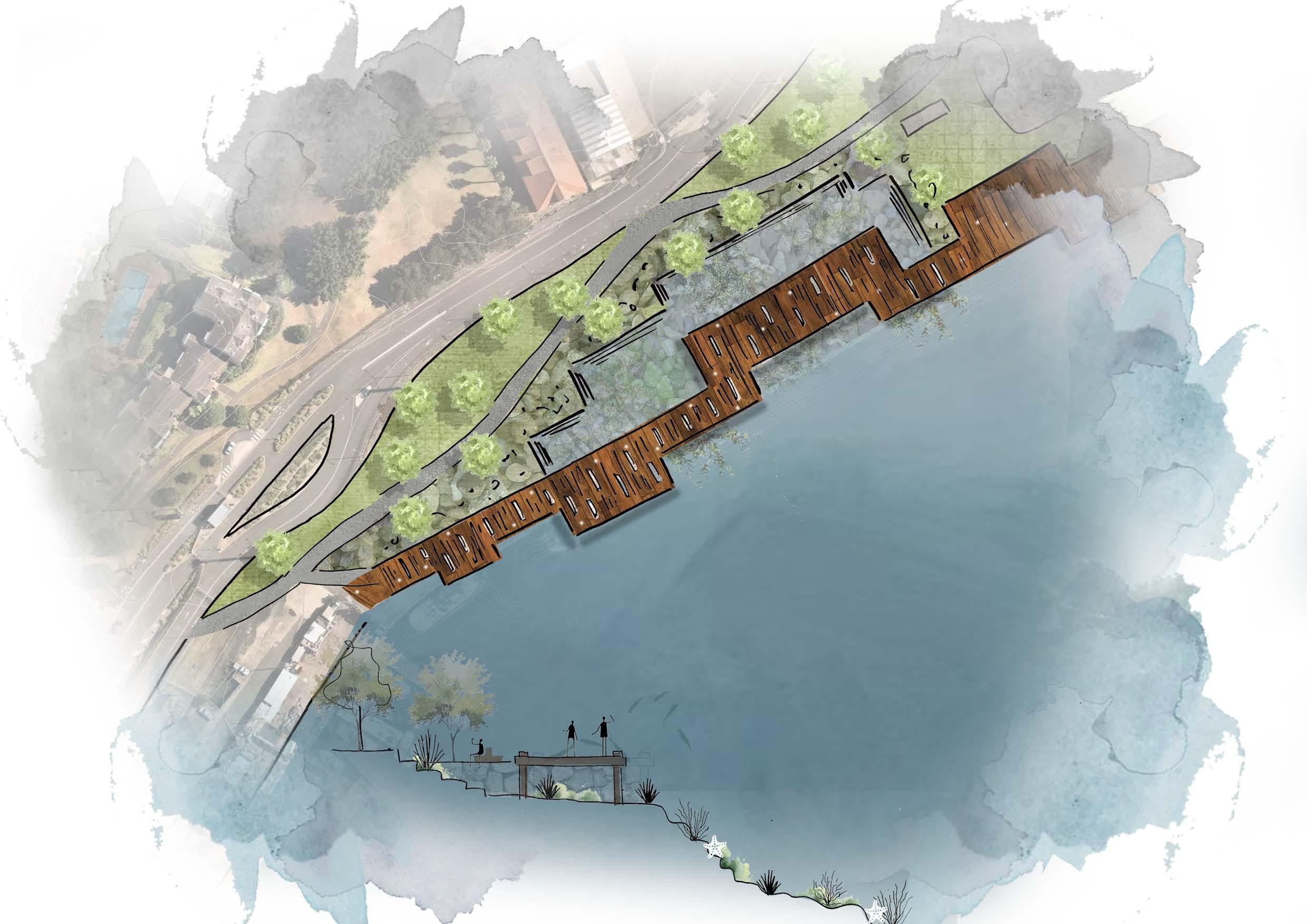

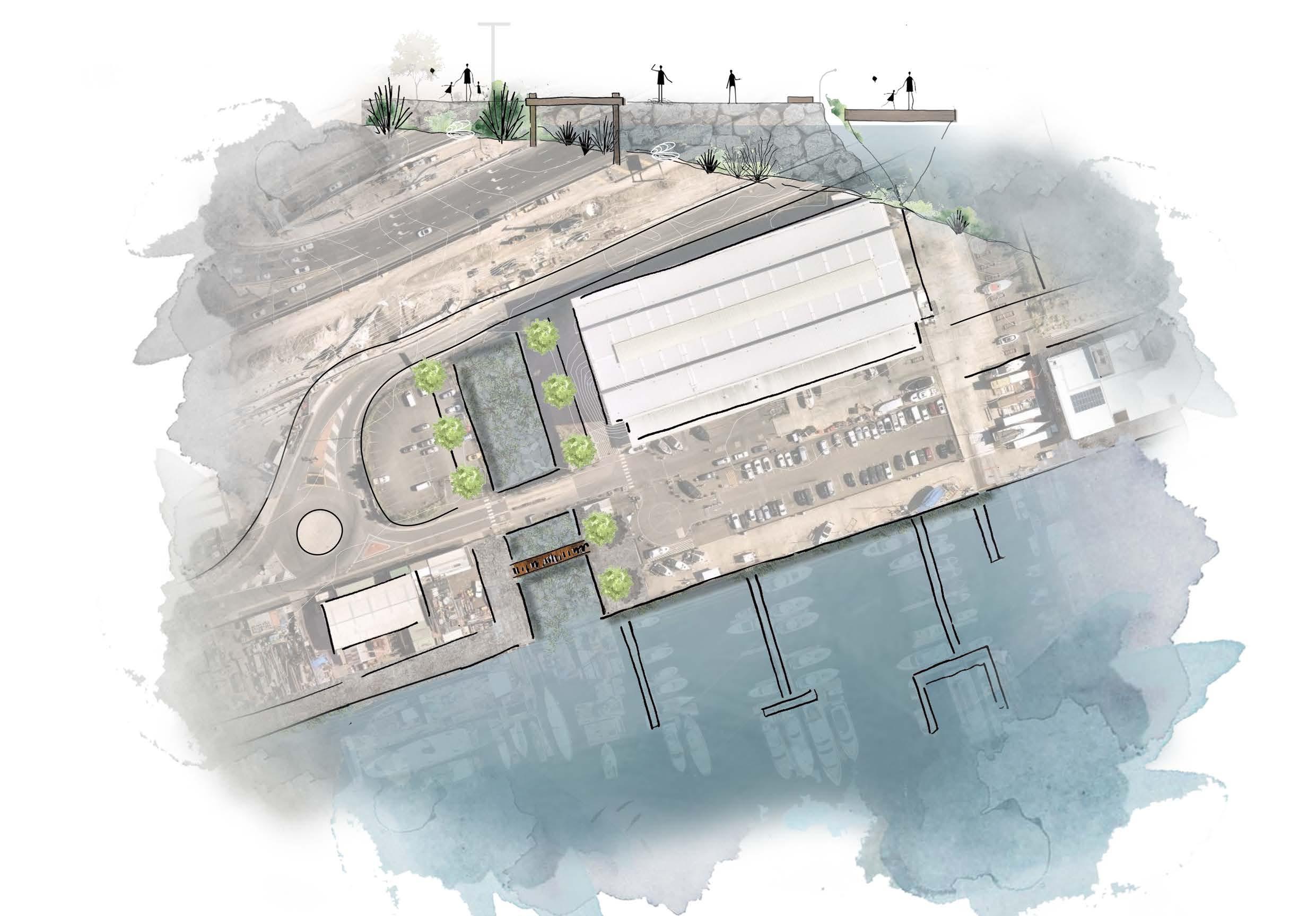

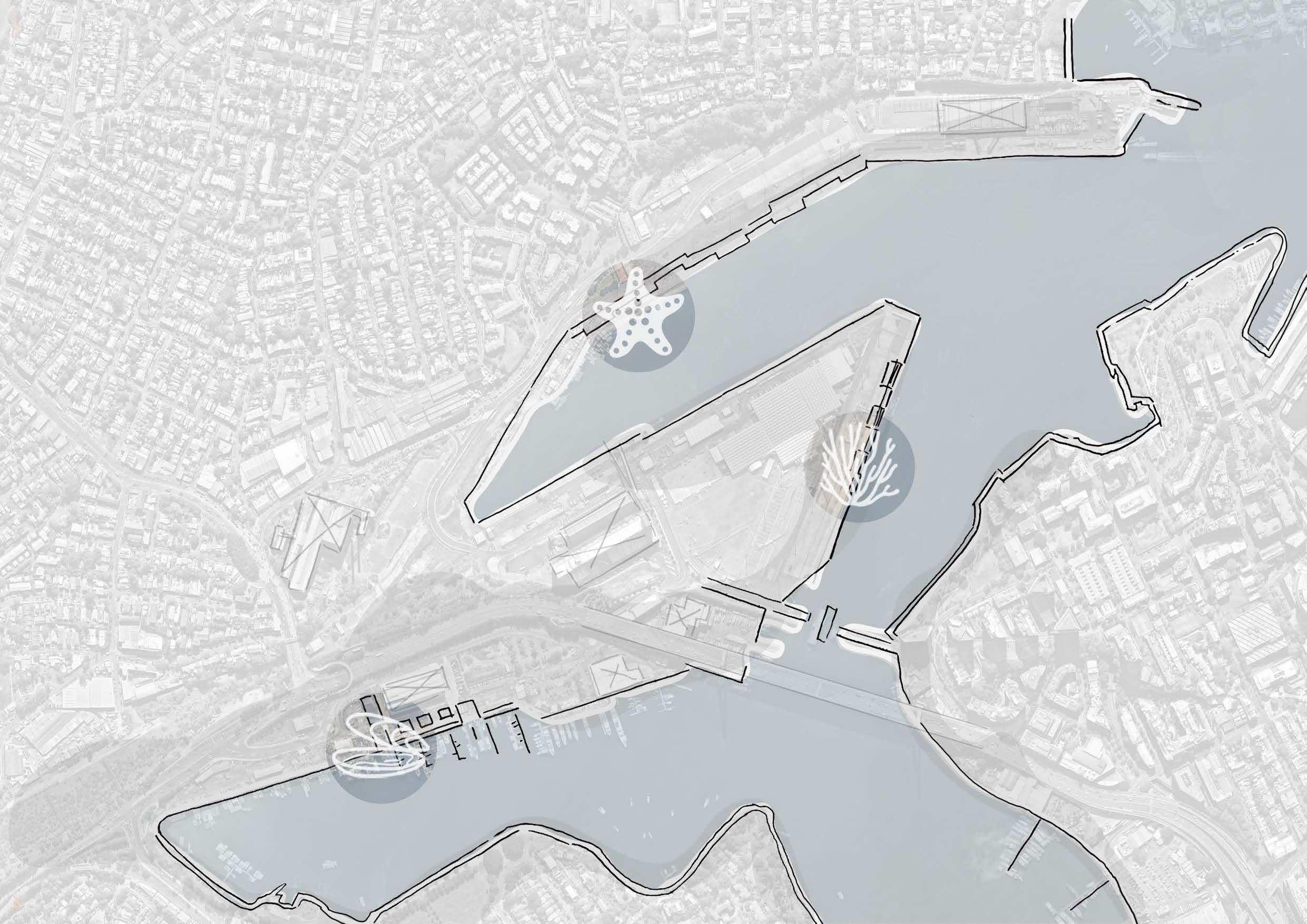

DESIGN PROPOSAL

GLEBE ISLAND

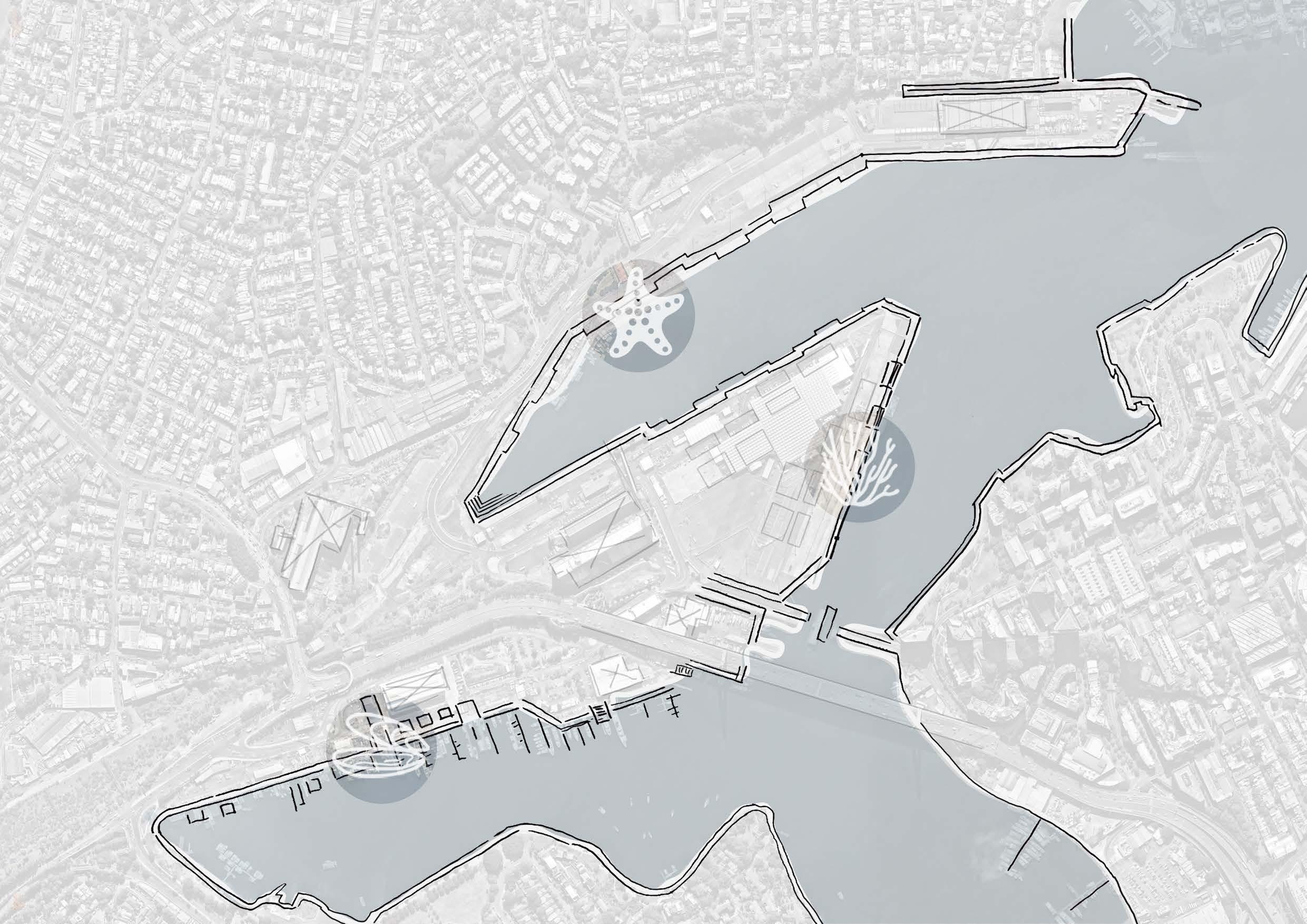

THE EDGE DESIGN

WHITE BAY POWER STATION

GLEBE FORESHORE WALK

GLEBE FORESHORE WALK

WHITE BAY CRUISE TERMINAL

SCALE 1:5000

GLEBE FORESHORE WALK

“EXTENDING FORESHORE PROMENADE AROUND SYDNEY HARBOUR” - THE BAYS WEST

STRATEGY

WHITE BAY POWER STATION

GLEBE FORESHORE WALK

ROZELLE BAY

WHITE BAY CRUISE TERMINAL

ROZELLE BAY

ROZELLE BAY WATER

Elevated concentrations of heavy metals (copper, chromium, lead and zinc), nitrogen and phosphorus

COMMERCIAL RUNOFF

-waste generated by establishments that partake in manufacturing and/or construction

BOAT HANDLING

-biological waste

-chemical waste

HARBOUR SEDIMENT

-sewage, metal contamination, stormwater, leachate

SITE SPECIFICITY

COMMERICAL RUNOFF

BOAT HANDLING

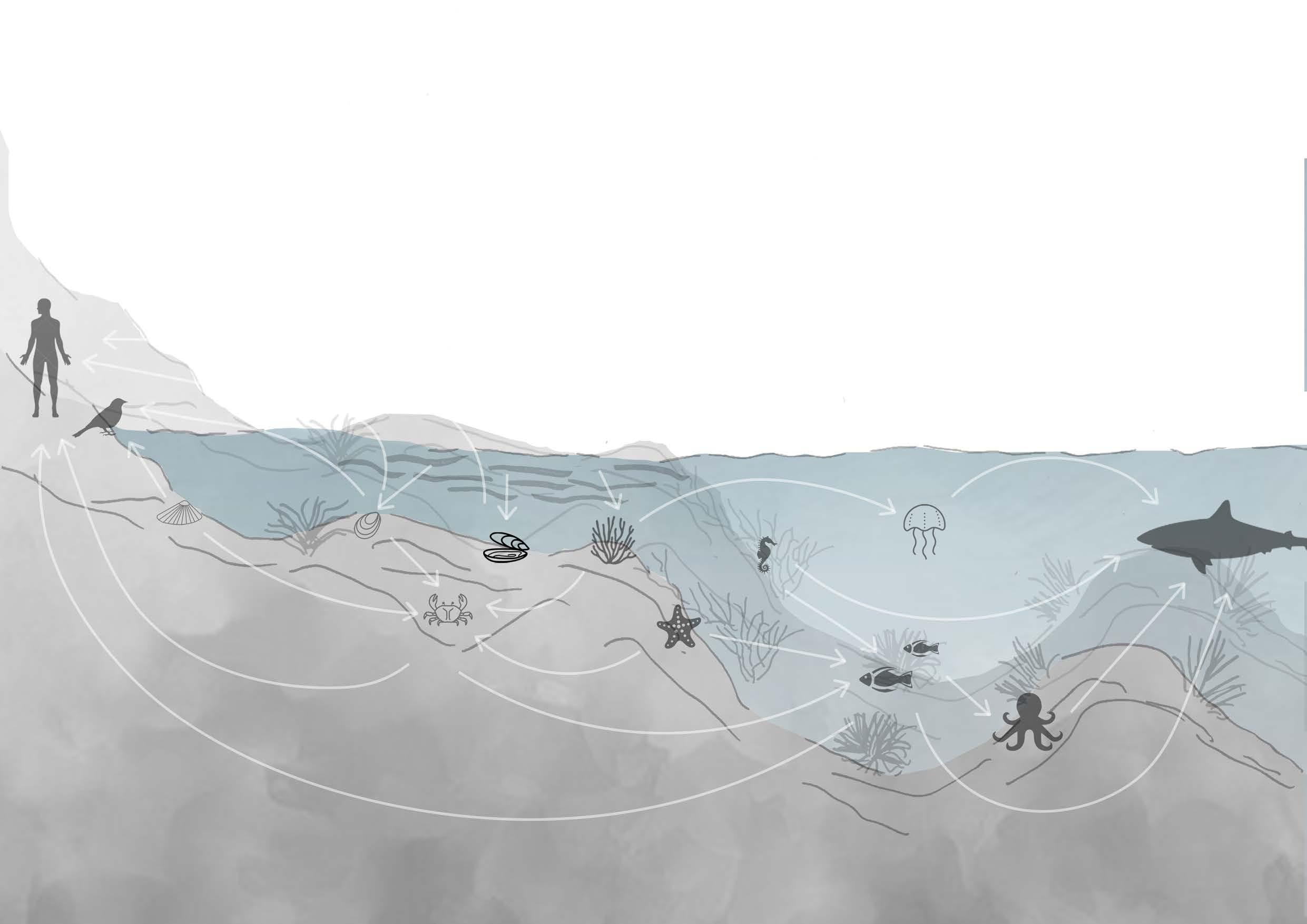

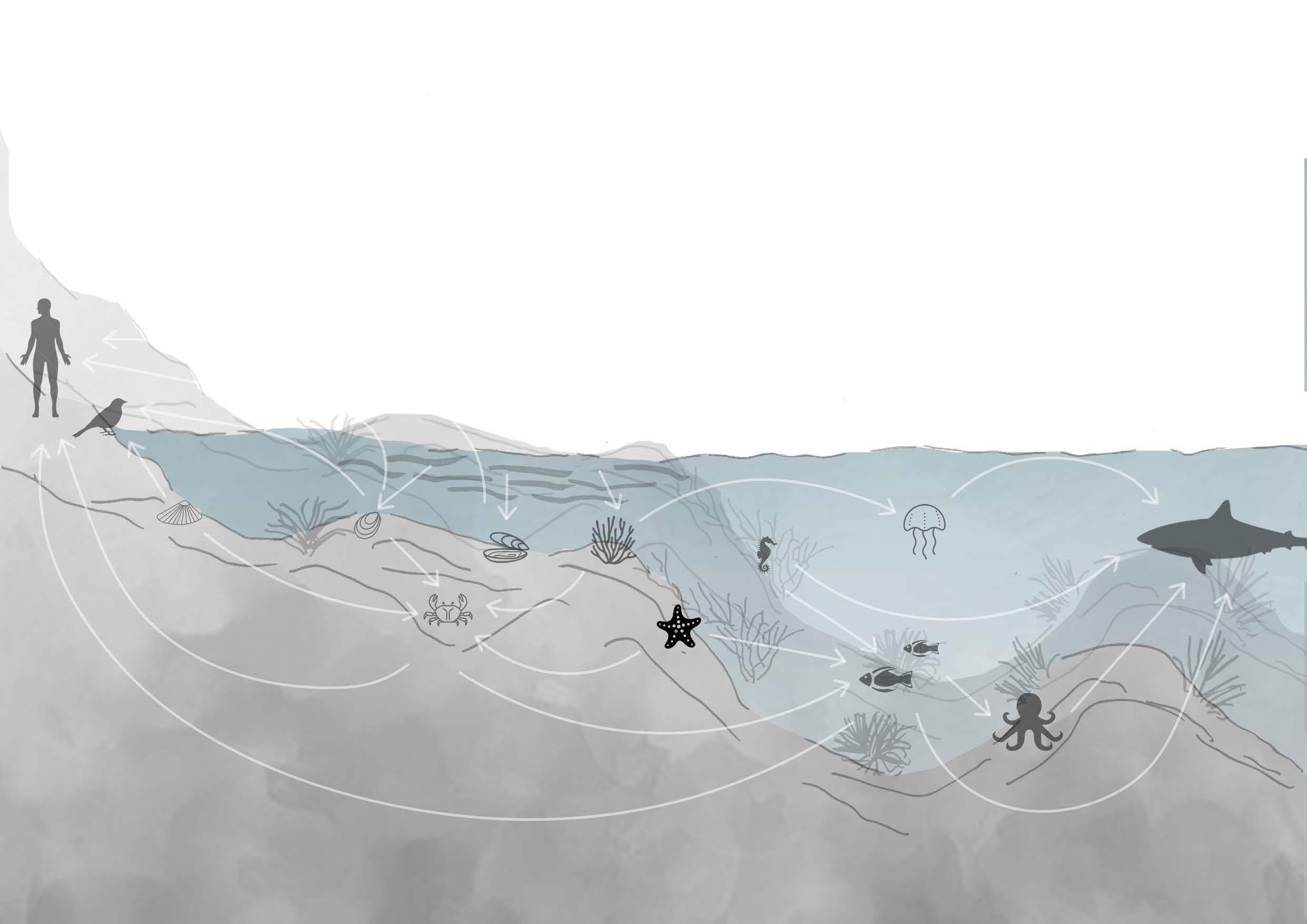

SYDNEY AQUATIC FOOD WEB

OYSTERS

Habitat: Salty/brackish waters

Diet: Phytoplankton or small bits of algae

Reproduction: Annually spawn from the end of June - mid-August

Indicators: Clean water environment as they are filter feeders

BIRDS

LIMPETS MUSSELS

ROZELLE BAY EDGE

COMMERCIAL PRINCIPLES OYSTERS

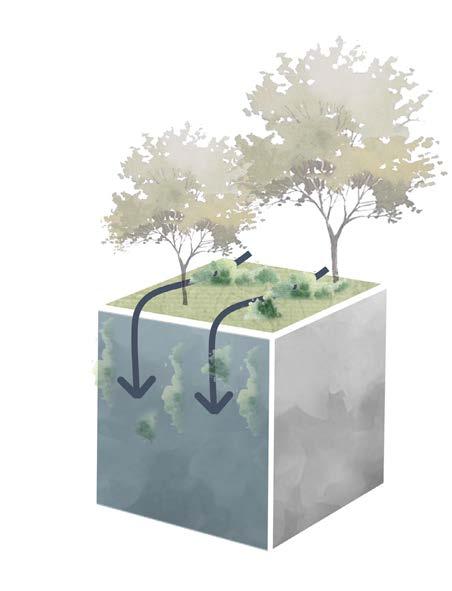

WSUD STRATEGIES

STORMWATER TREE PIT

Captures and filters stormwater runoff, extends detention and some biological intake of nutrients

WSUD STRATEGIES

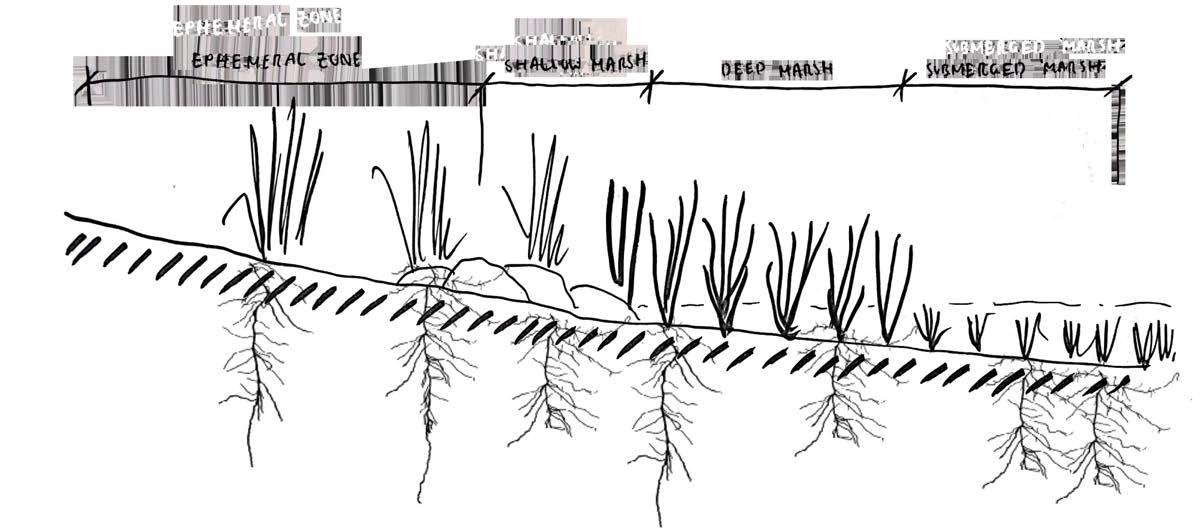

SEDIMENT BASIN INTERTIDAL ZONE

Primary and secondary treatment stormwater; captures and filter pollutants

Creates spaces for habitat development, slows overland water runoff and allows for perception of depth of water

Stormwater Tree Pit Species

Callistemon viminalis

underplanted with Calocephaluscitreus

CyperusGymnocaulos

Lomandralongifolia

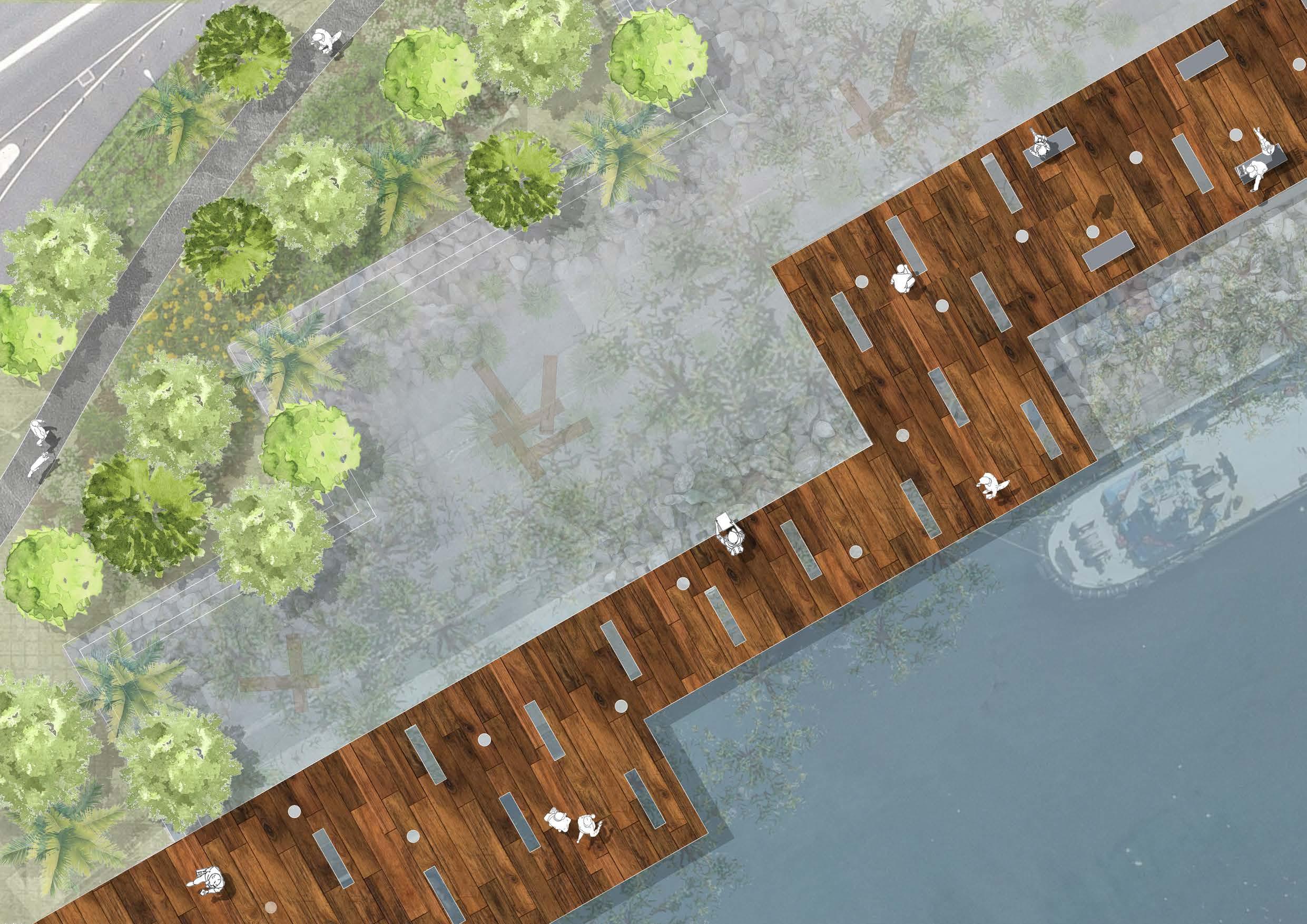

BOARDWALK

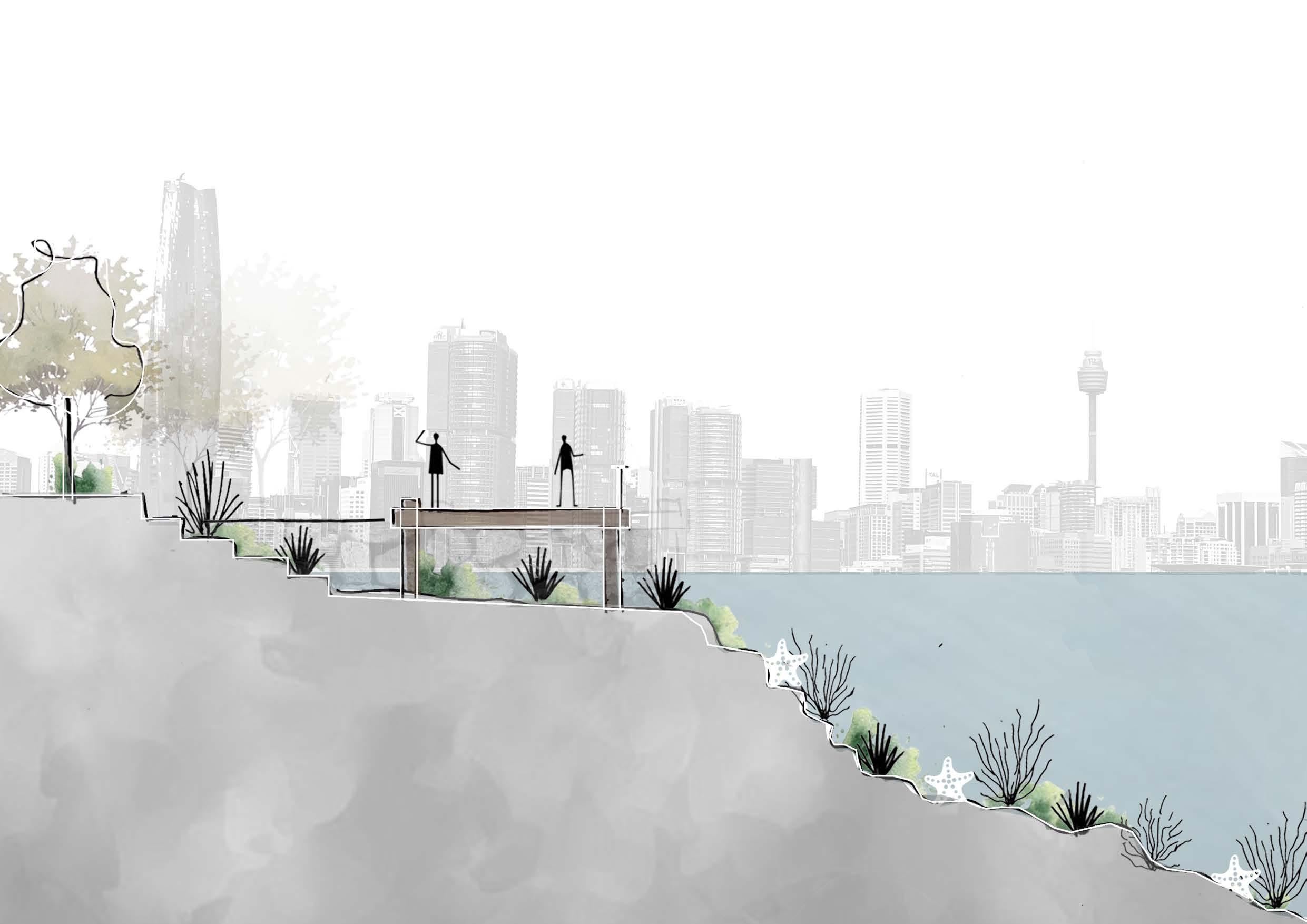

DESIGN SECTION

BOLLARD BENCH LIGHT POLES

TEXTURED CONCRETE

Sediment Basin Species

Kunzeaambigua

Marsilea Drummondii

Dianella brevicaulis

STORMWATER TREE PITS

SEDIMENT BASIN

Intertidal Zone Species

Poapoiformis

Juncuskraussii

Triglochinstriata

ESCARPMENT RAILING

ZONE

Aquatic Species

Enhalus acoroides

Cymodocearotundata

Syringodiumisotifolium

FLOATING DOCK

2 WAY STREET

SYDNEY

HERITAGE FLEET

STORMWATER TREE PITS

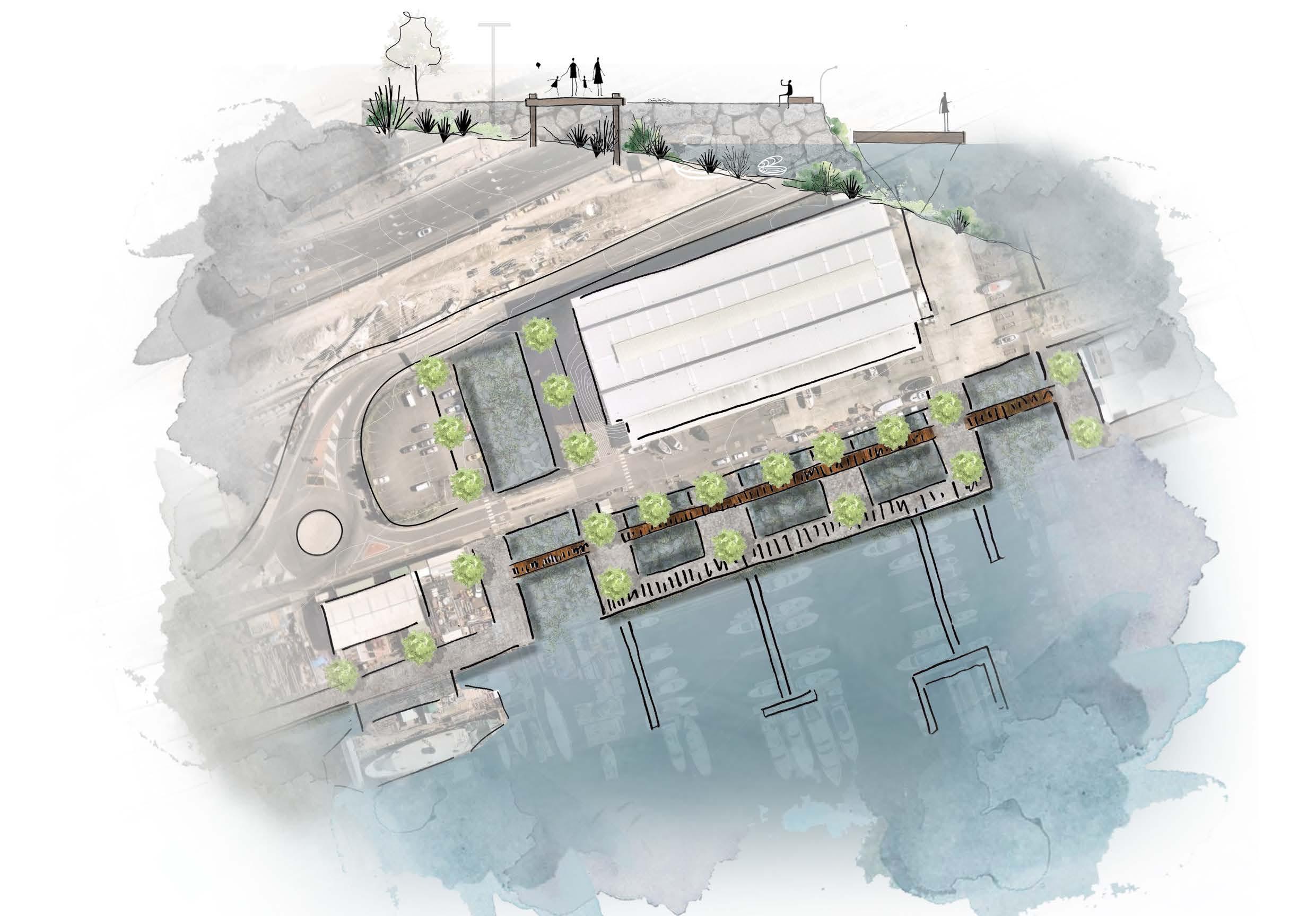

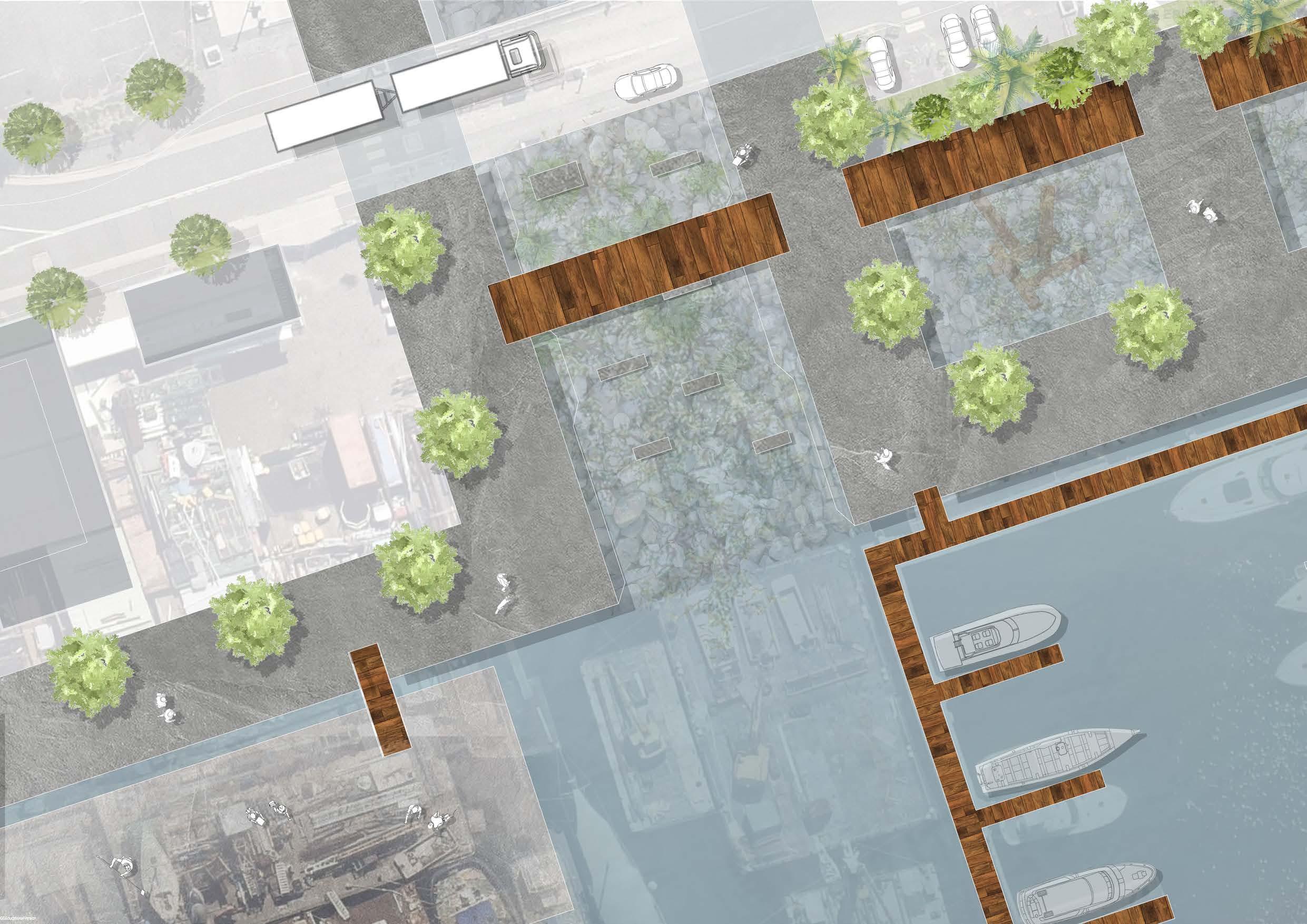

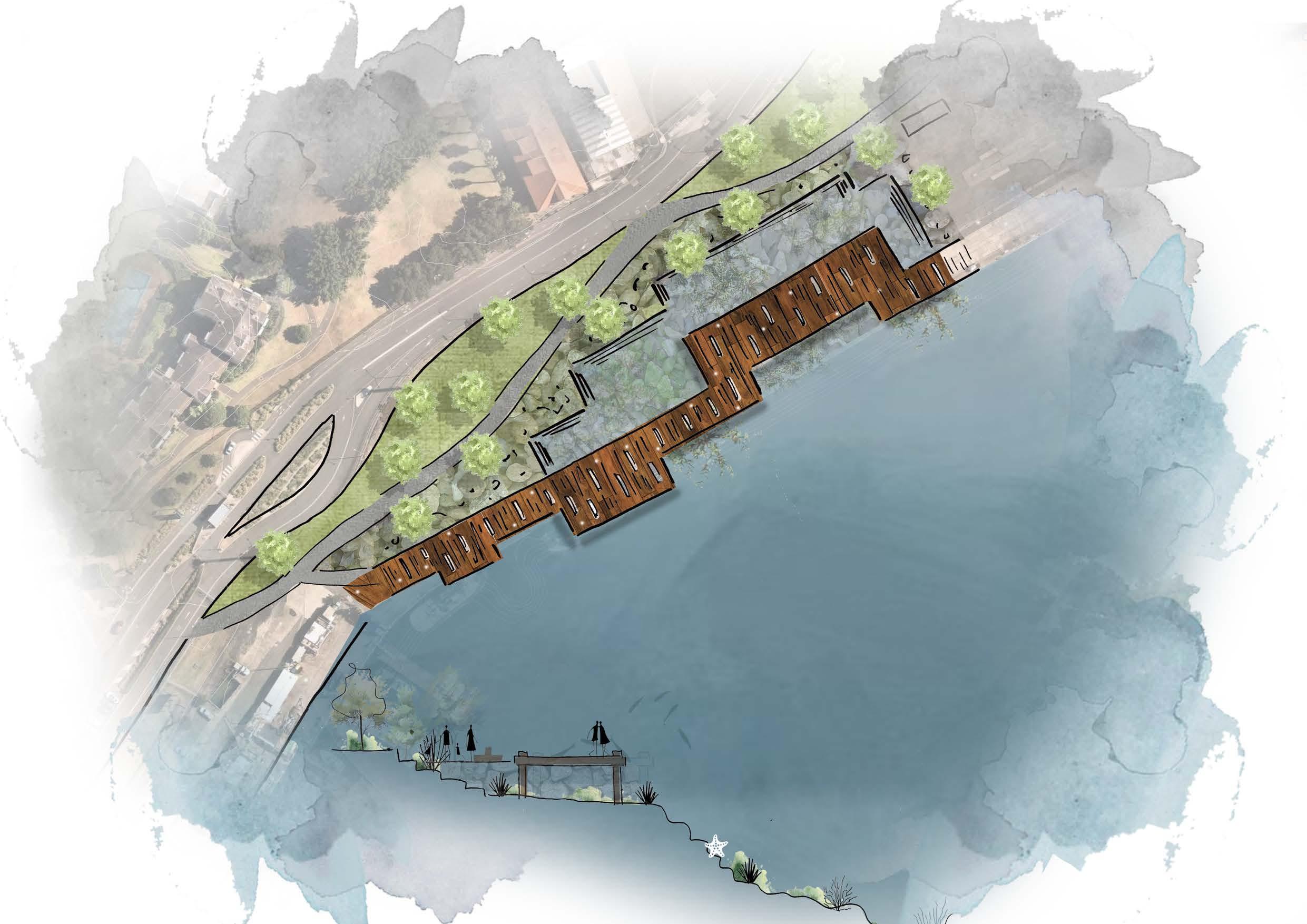

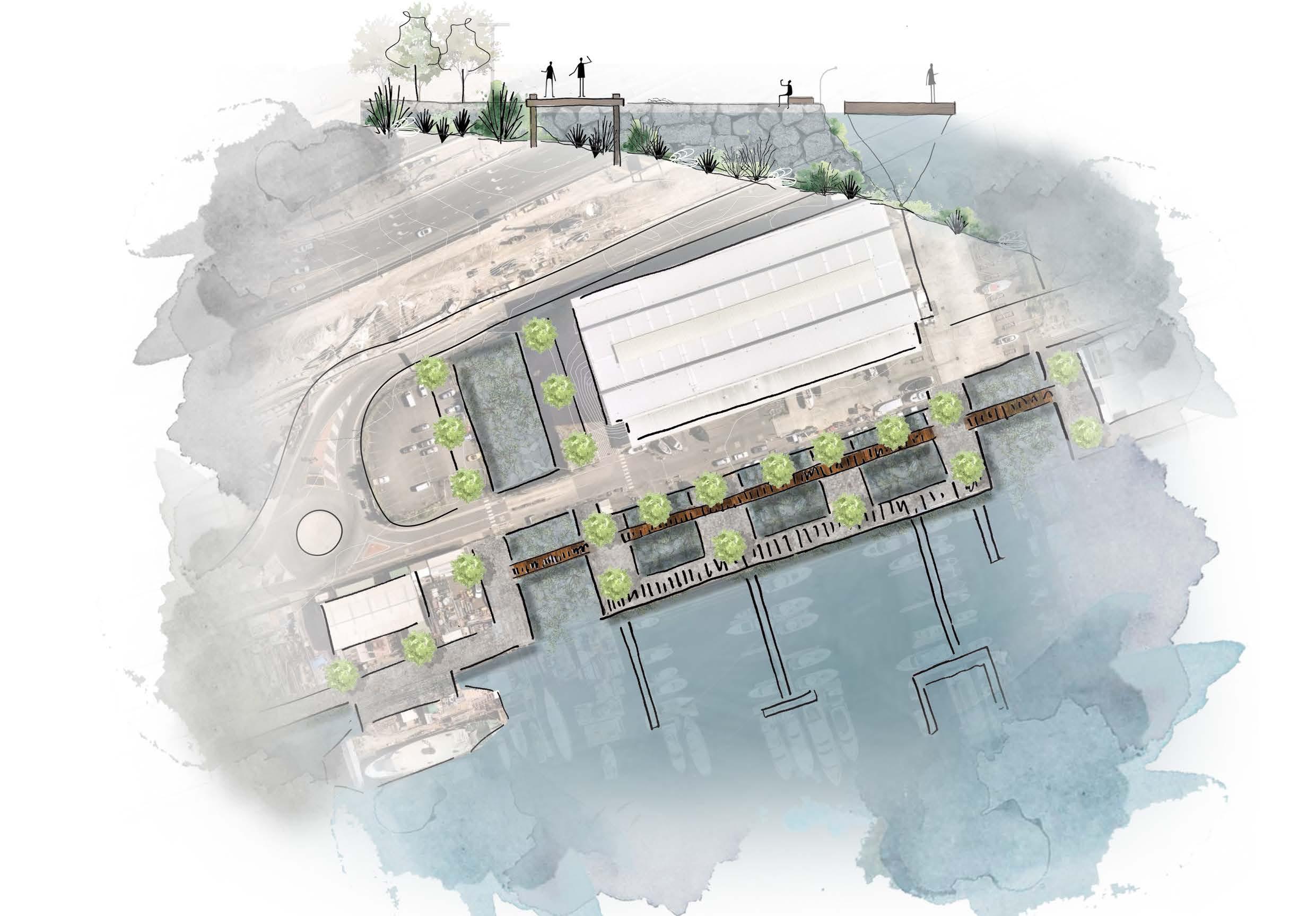

DESIGN PROPOSAL

BOATHOUSE PARKING

RAINGARDEN

BOARDWALK

OSD BASIN/ RAINGARDEN

INTERTIDAL ZONE

BOARDWALK

ESCARPMENT RAILING

INTERTIDAL ZONE

WATERFRONT PROMENADE

ESCARPMENT RAILING

FLEET DISPLAY

FLOATING DOCK

OSD BASIN/ RAINGARDEN

PHASE 1

INTERTIDAL ZONE

SCALE 1:100 @A3

SCALE 1:1000 @A3

SEA LEVEL RISE

OSD BASIN/ RAINGARDEN

PHASE 2

INTERTIDAL ZONE

SYDNEY HERITAGE FLEET

SCALE 1:100 @A3

INTERTIDAL ZONE

SEA LEVEL RISE

SCALE 1:1000 @A3

WATERFRONT PROMENADE

OSD BASIN/ RAINGARDEN

PHASE 3

SEA LEVEL RISE

SCALE 1:100 @A3

INTERTIDAL ZONE

SYDNEY BOATHOUSE

WATERFRONT PROMENADE

SYDNEY HERITAGE FLEET

INTERTIDAL ZONE FLEET DISPLAY

SCALE 1:1000 @A3

WATERFRONT PROMENADE

EDUCATIONAL CENTRE

PHASE 1

CLIMATIC EVENTS

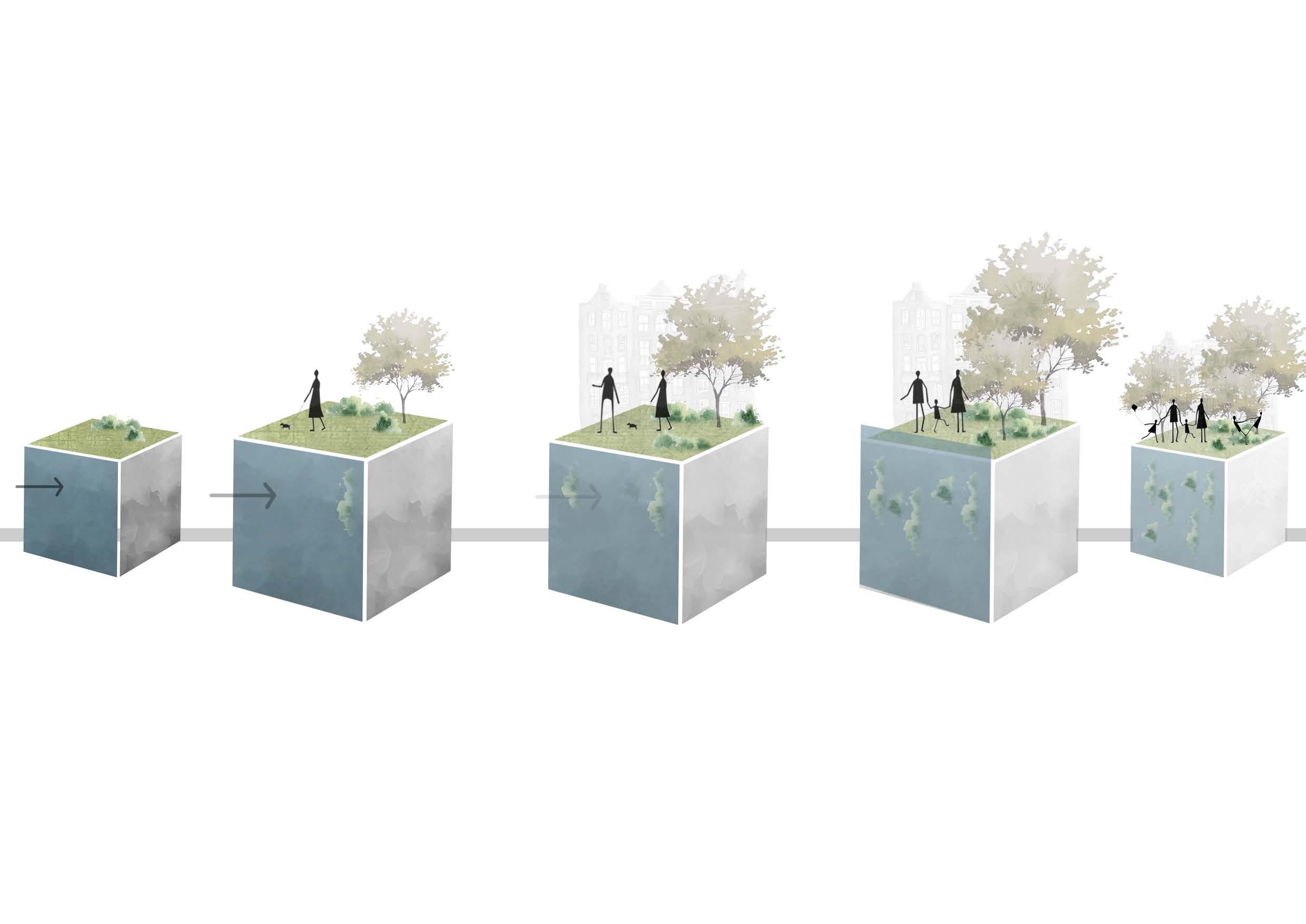

PHASING

PHASE 2 PHASE 3

POPULATION GROWTH

DEVELOPMENT

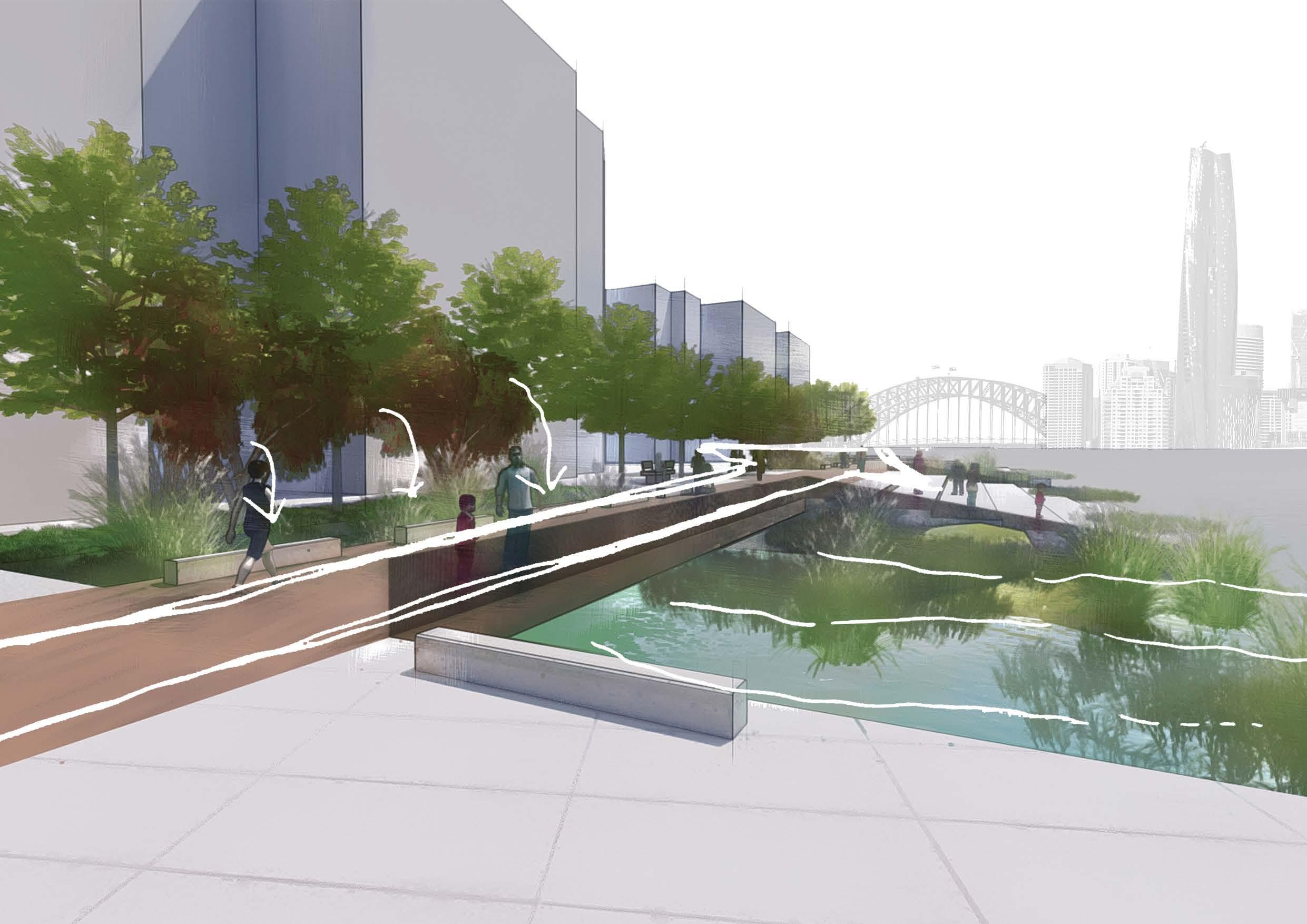

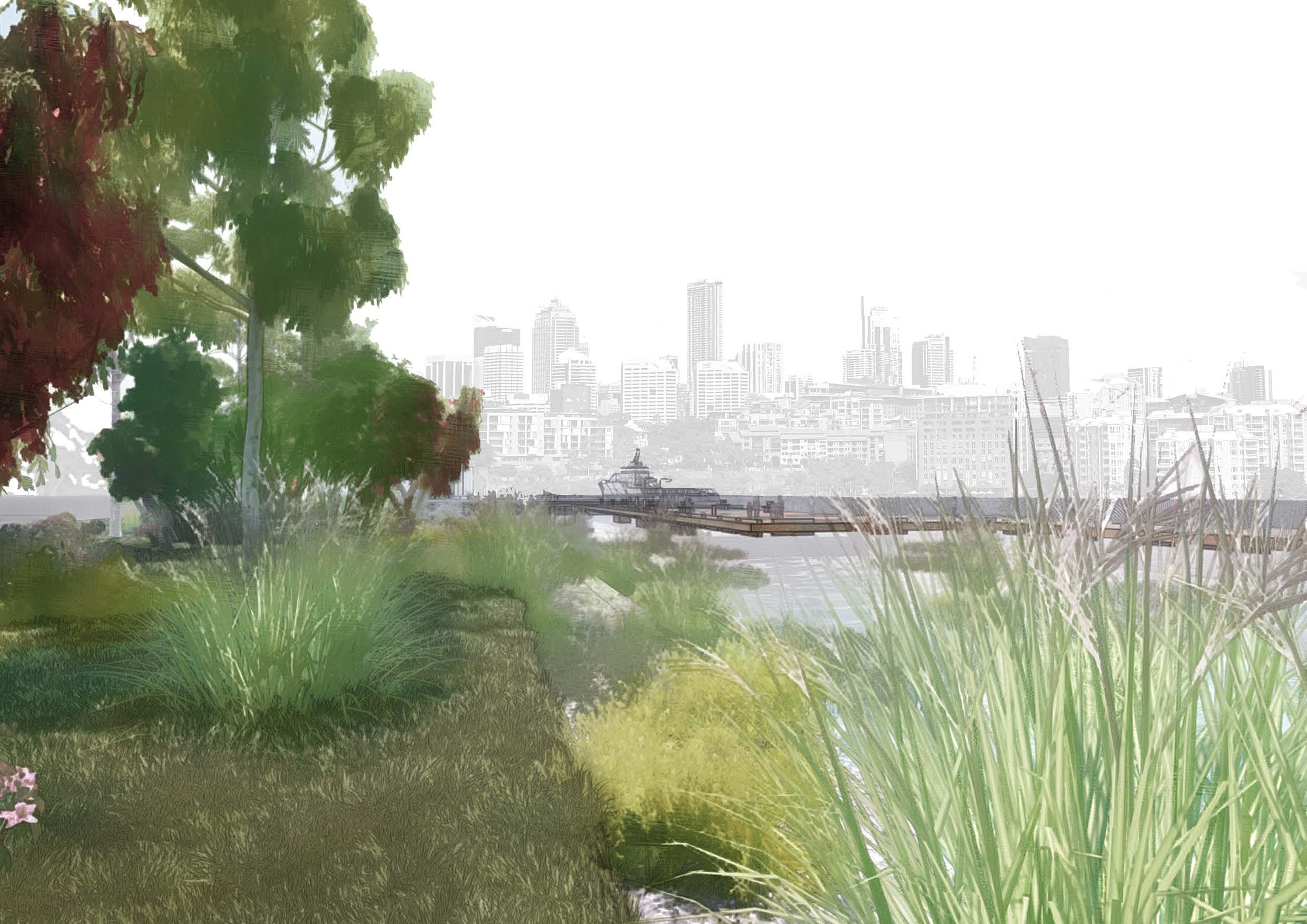

PERSPECTIVE

BOARDWALK

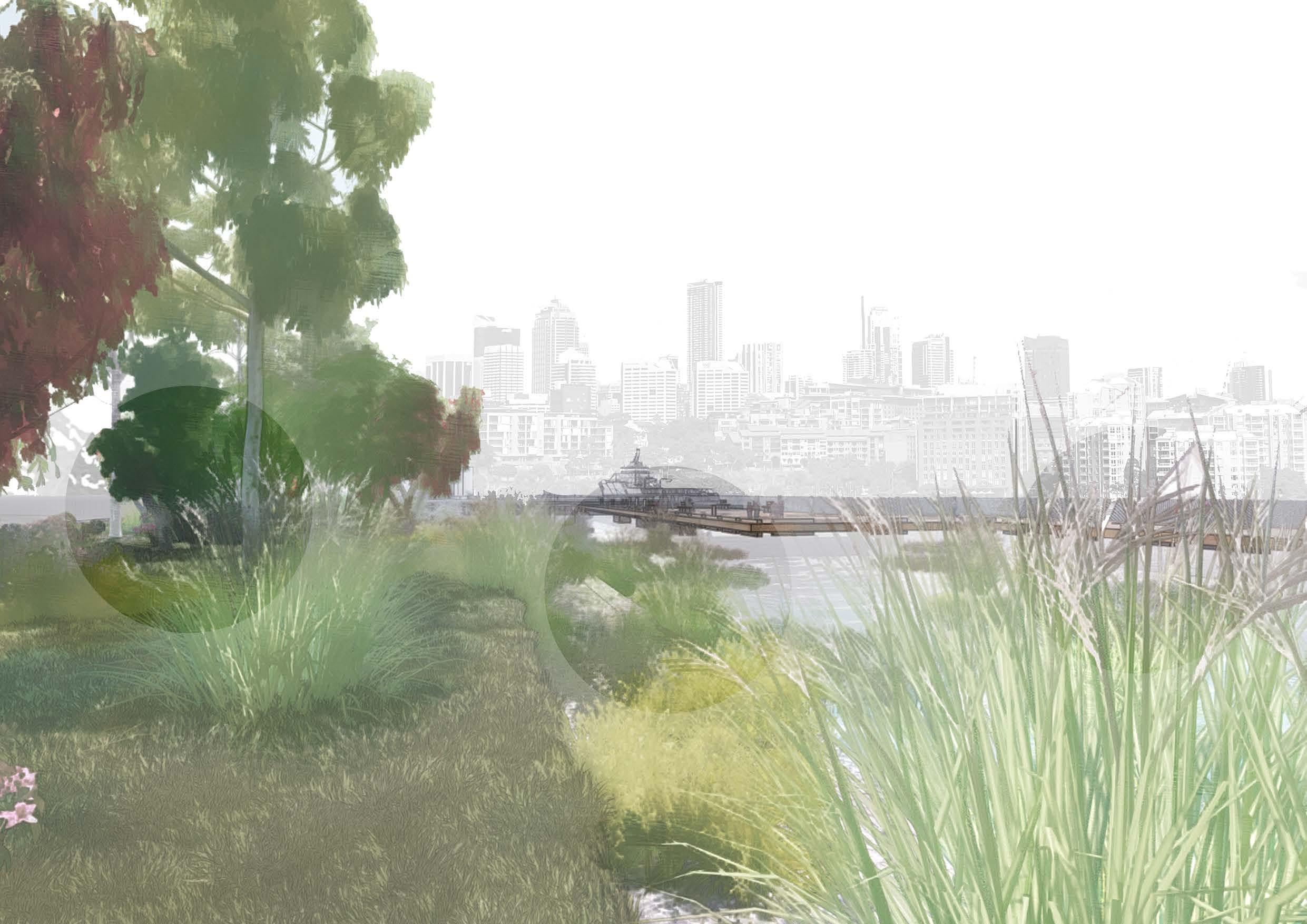

PERSPECTIVE

STORMWATER TREE PITS

SEDIMENT BASIN

FEATURE SPECIES

Botanic Name: CalocephalusCitreus

Common Name: Lemon Beauty Heads

Flowering Time: Winter

SPECIES

INTERTIDAL ZONE

SEA FLOOR

FLORAL FOAM

PROPOSED VEGETATION

ETCHED

1

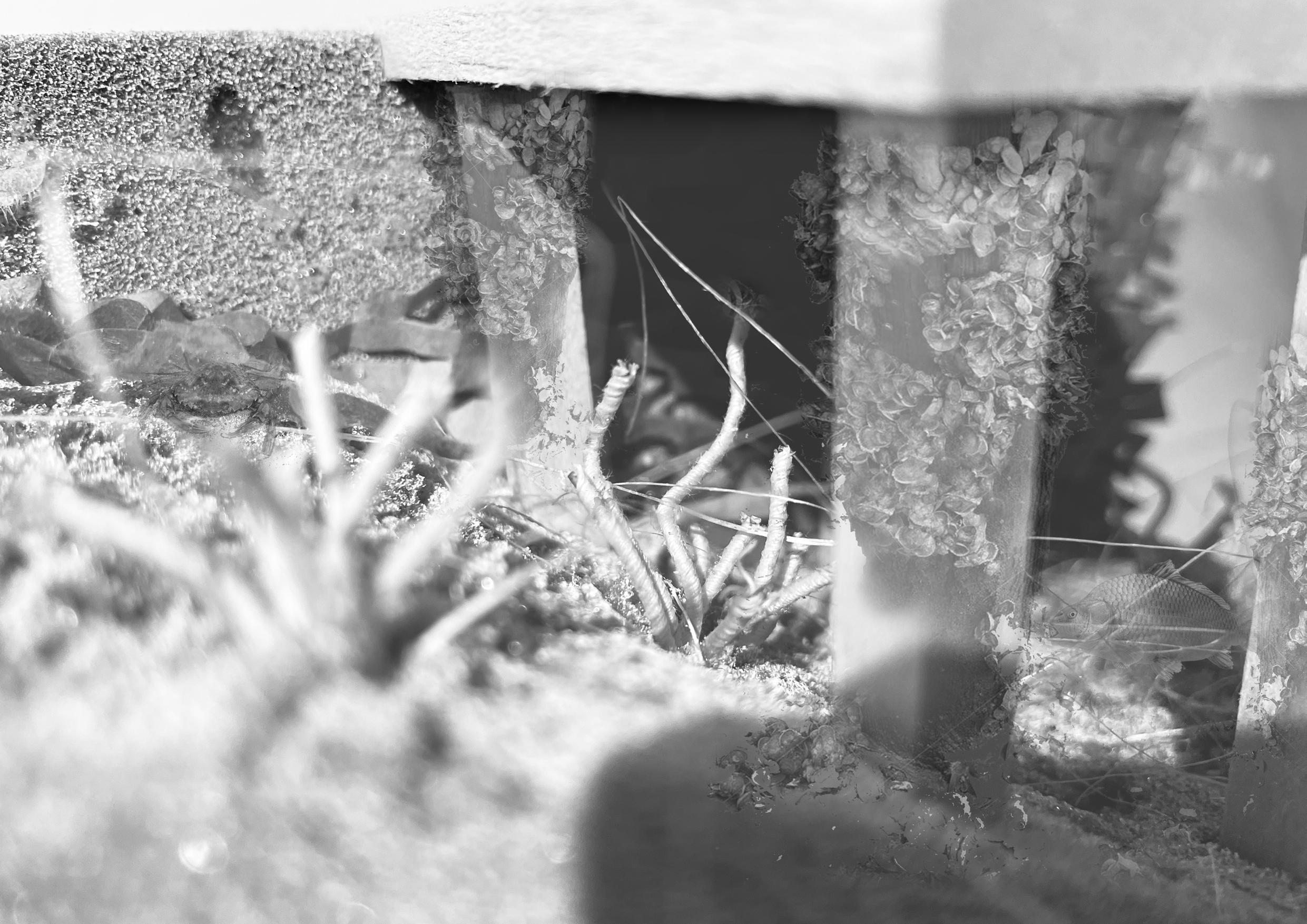

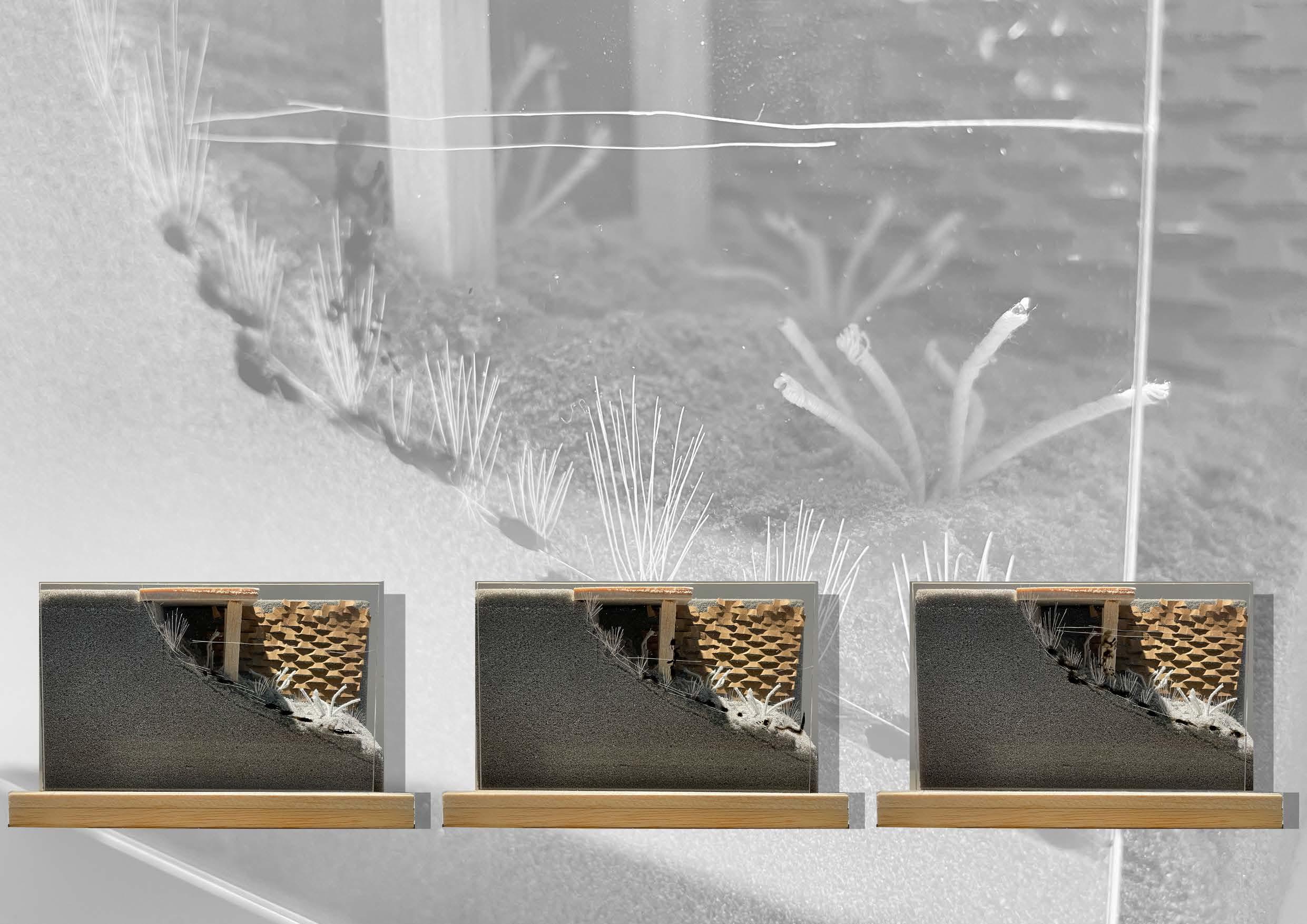

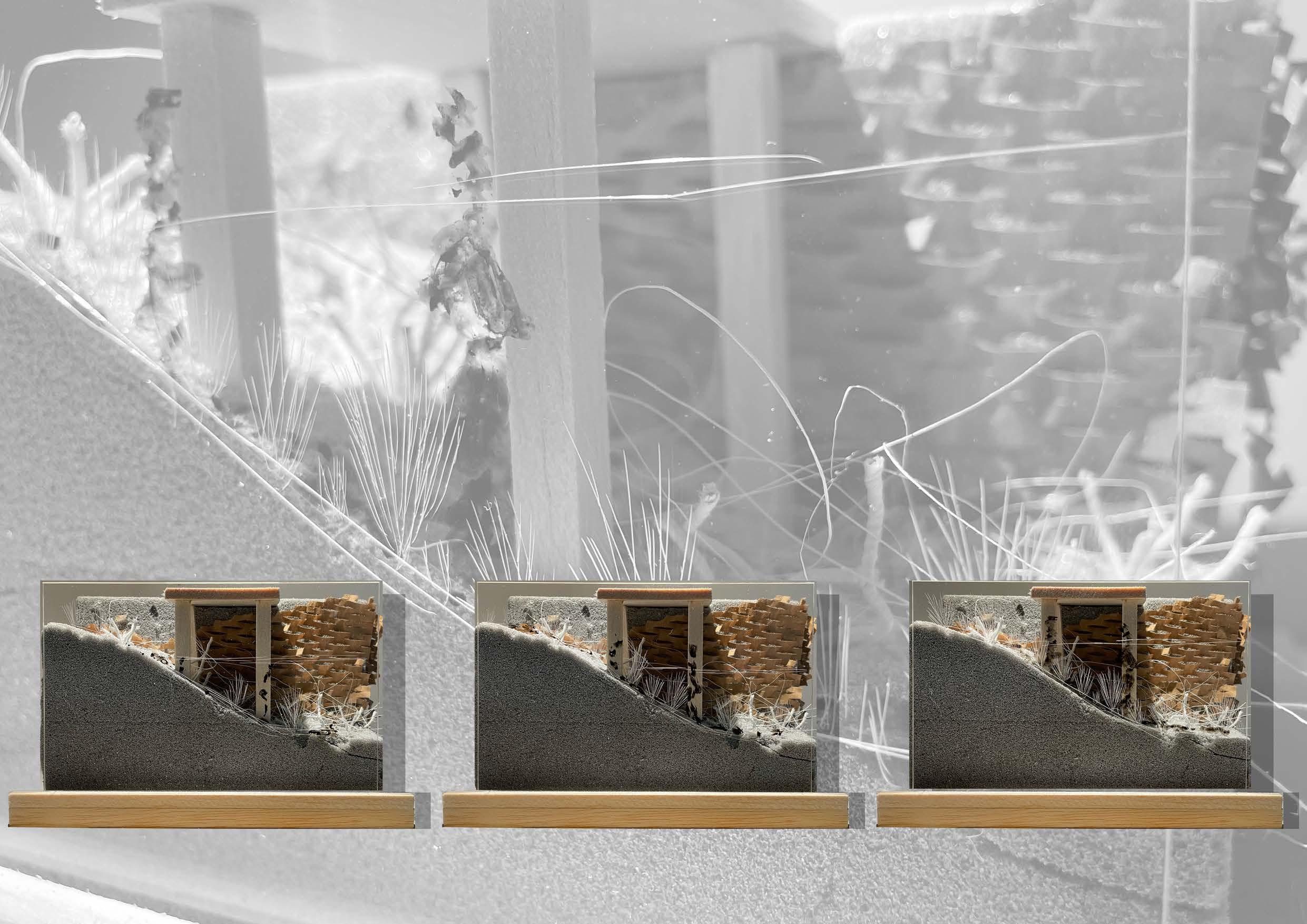

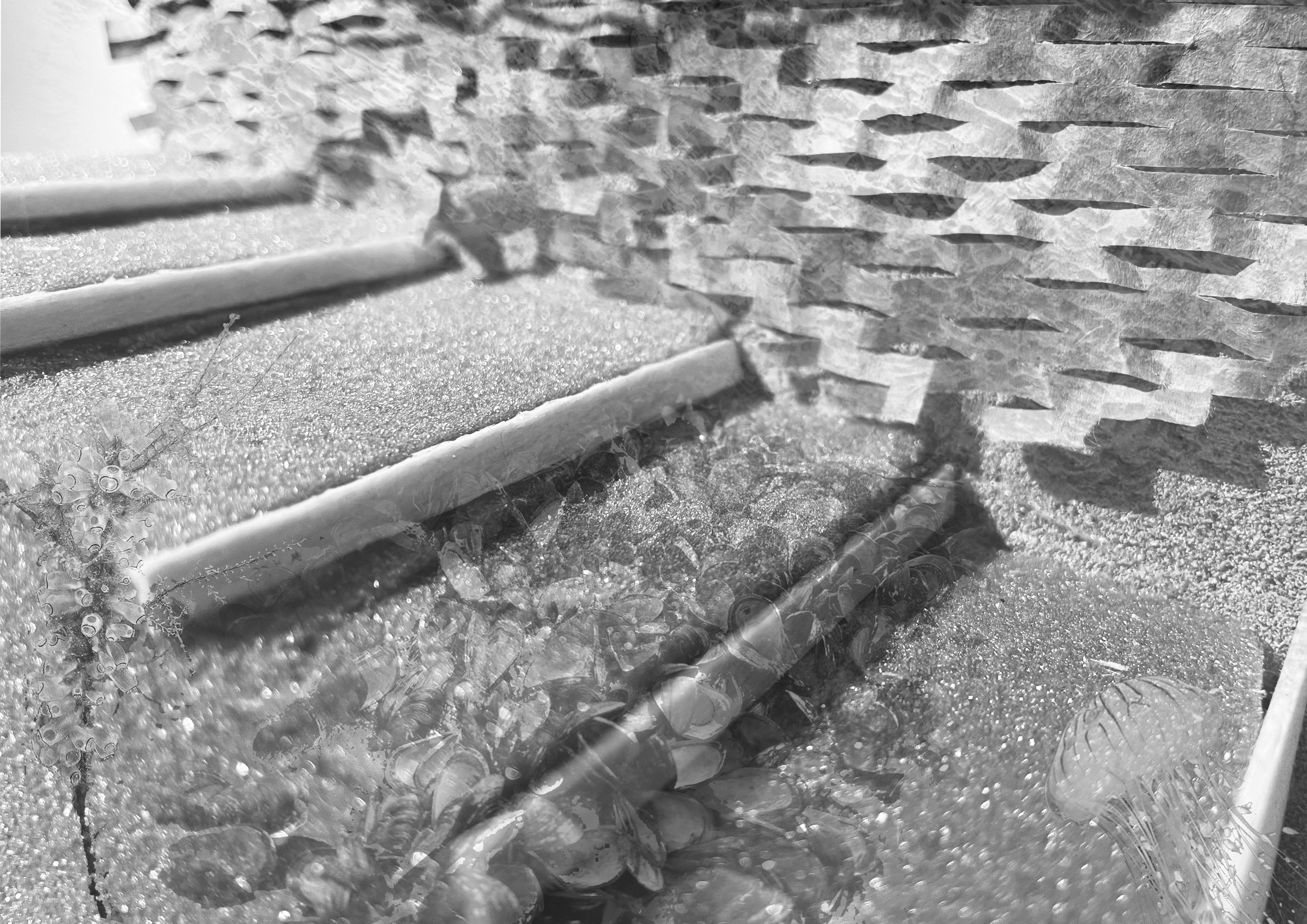

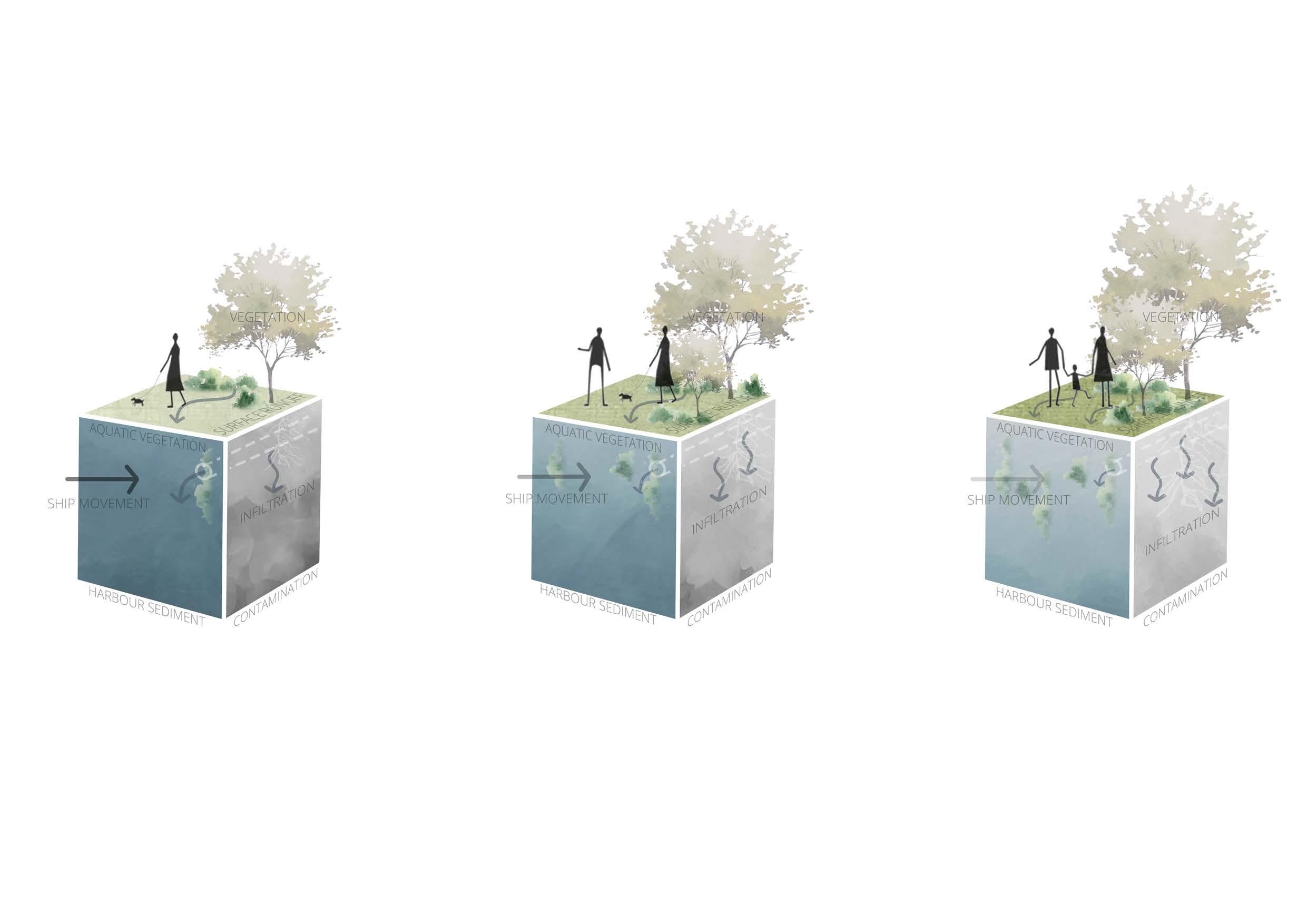

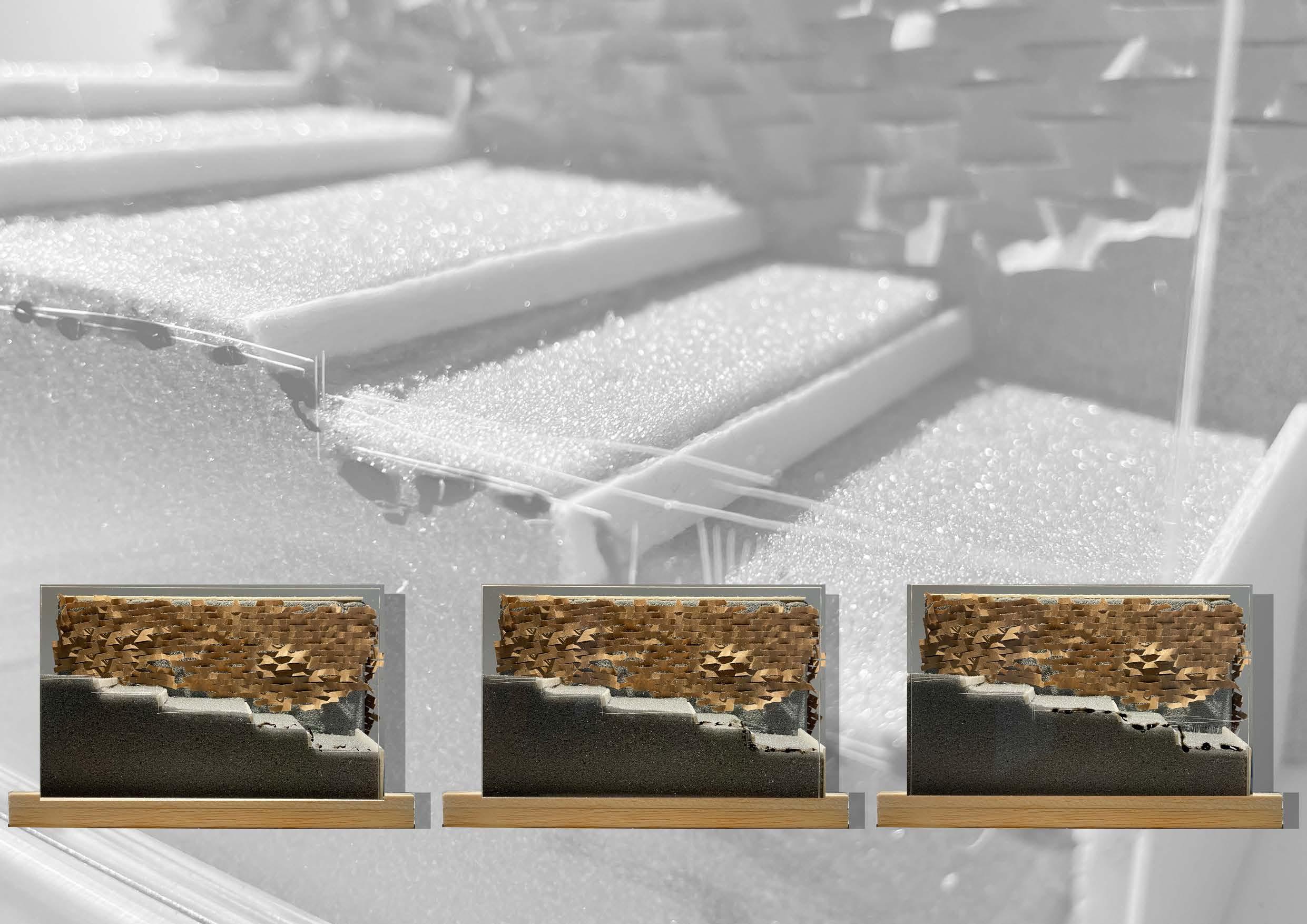

SECTIONAL MODEL

GROOVED CONCRETE PAPER

AQUATIC FAUNA COMMUNITIES INK

PHASE 2

EXISTING VEGETATION PHASING FLORAL WIRE

PERSPEX

3

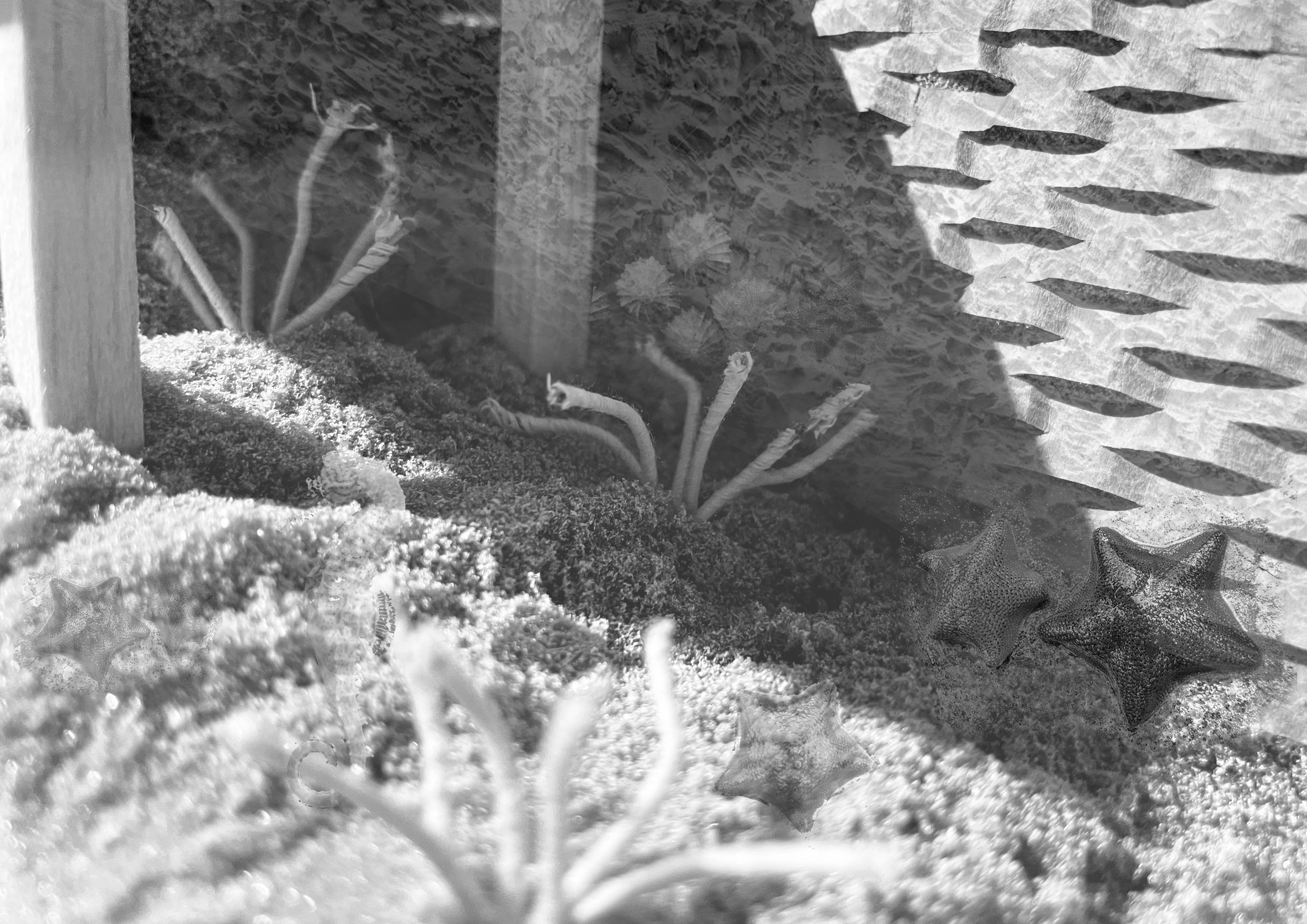

DETAILED MODEL

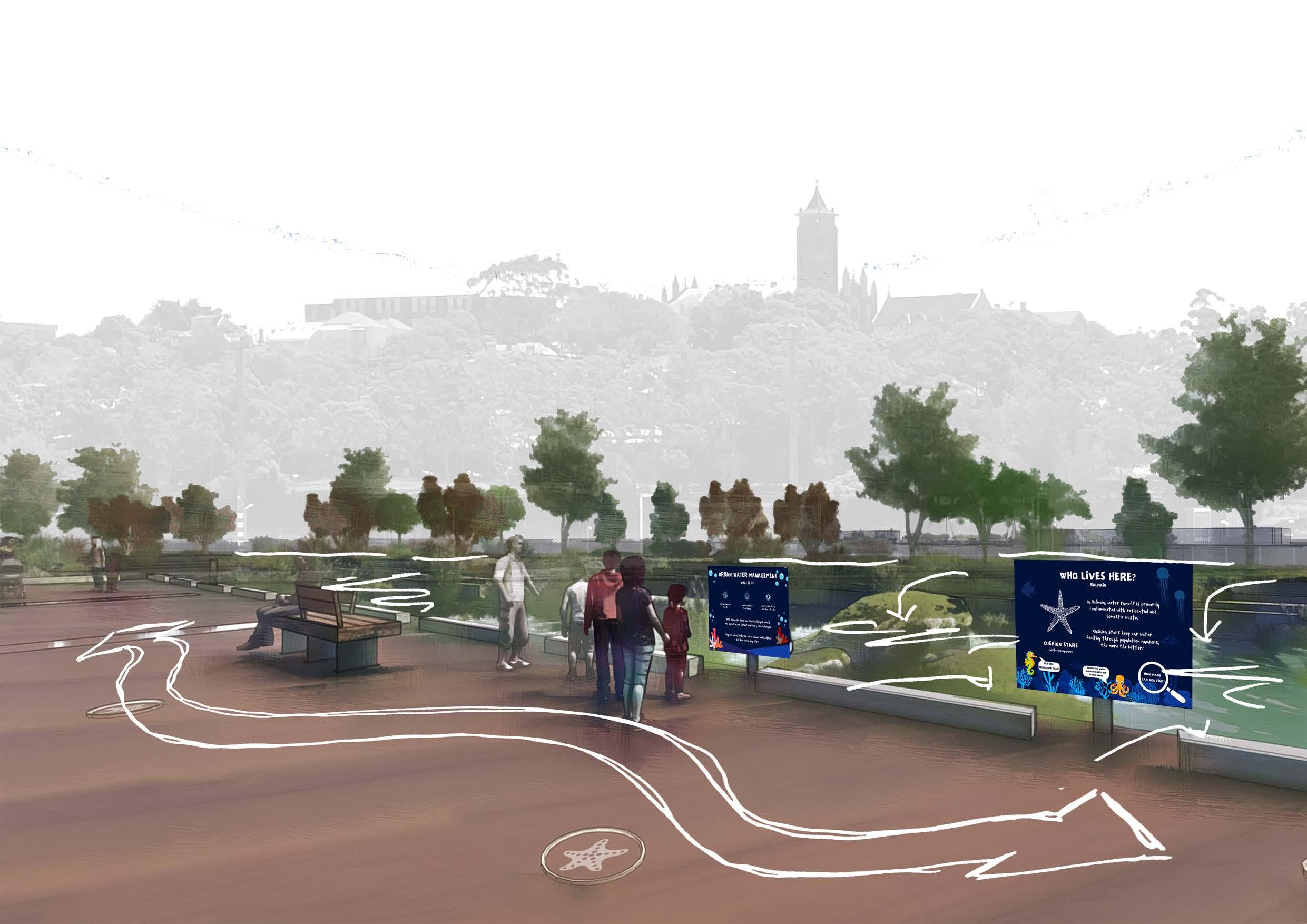

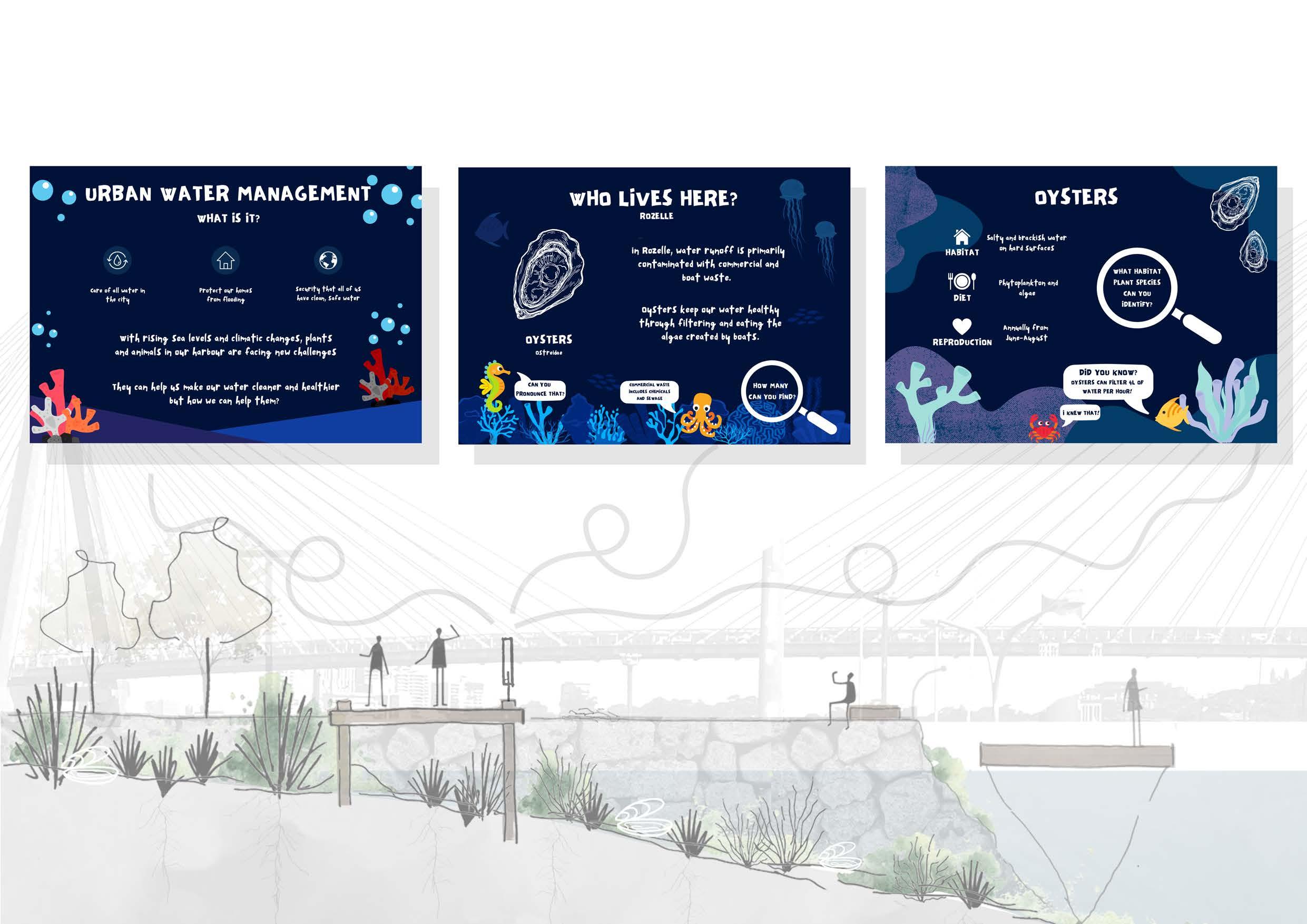

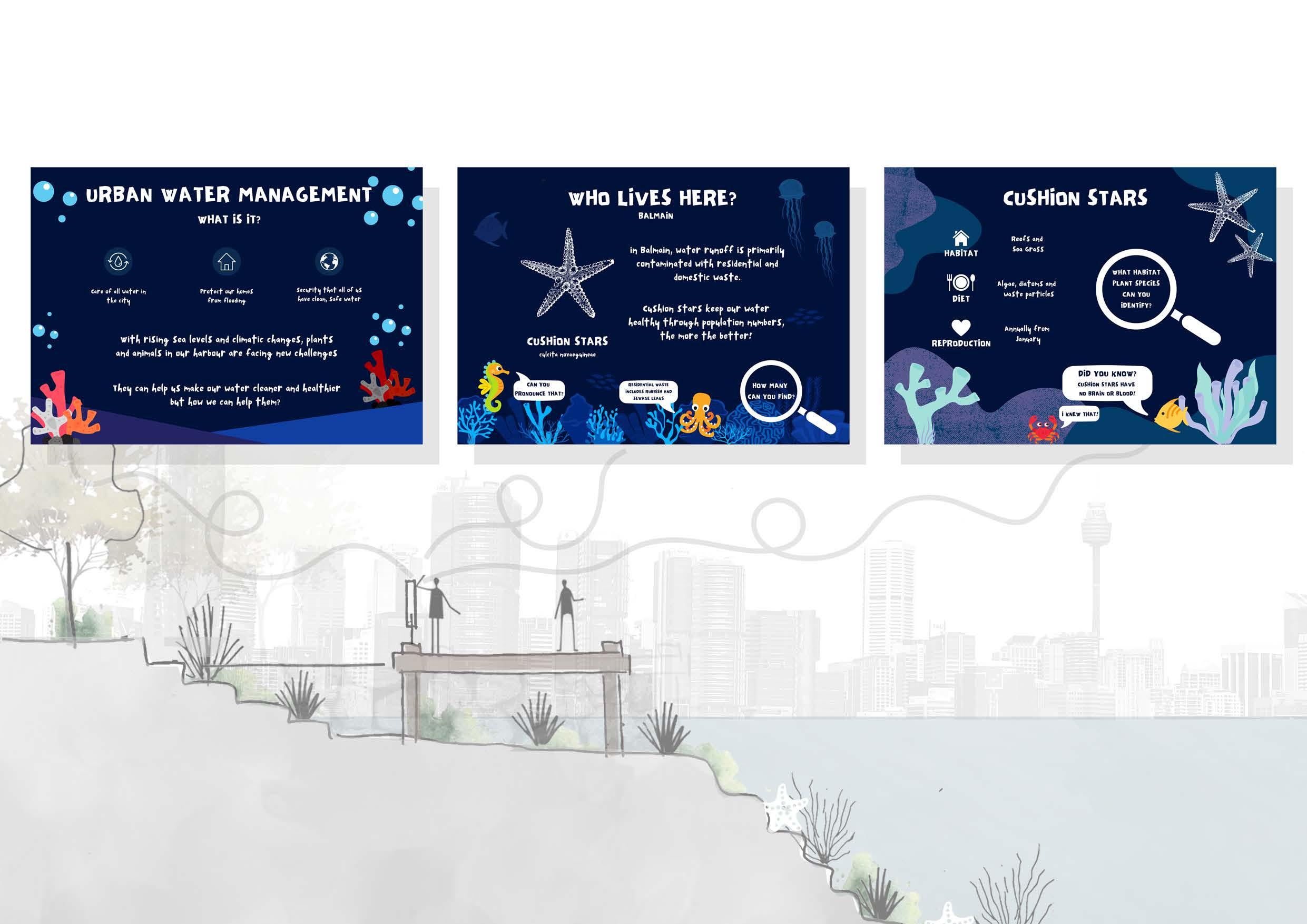

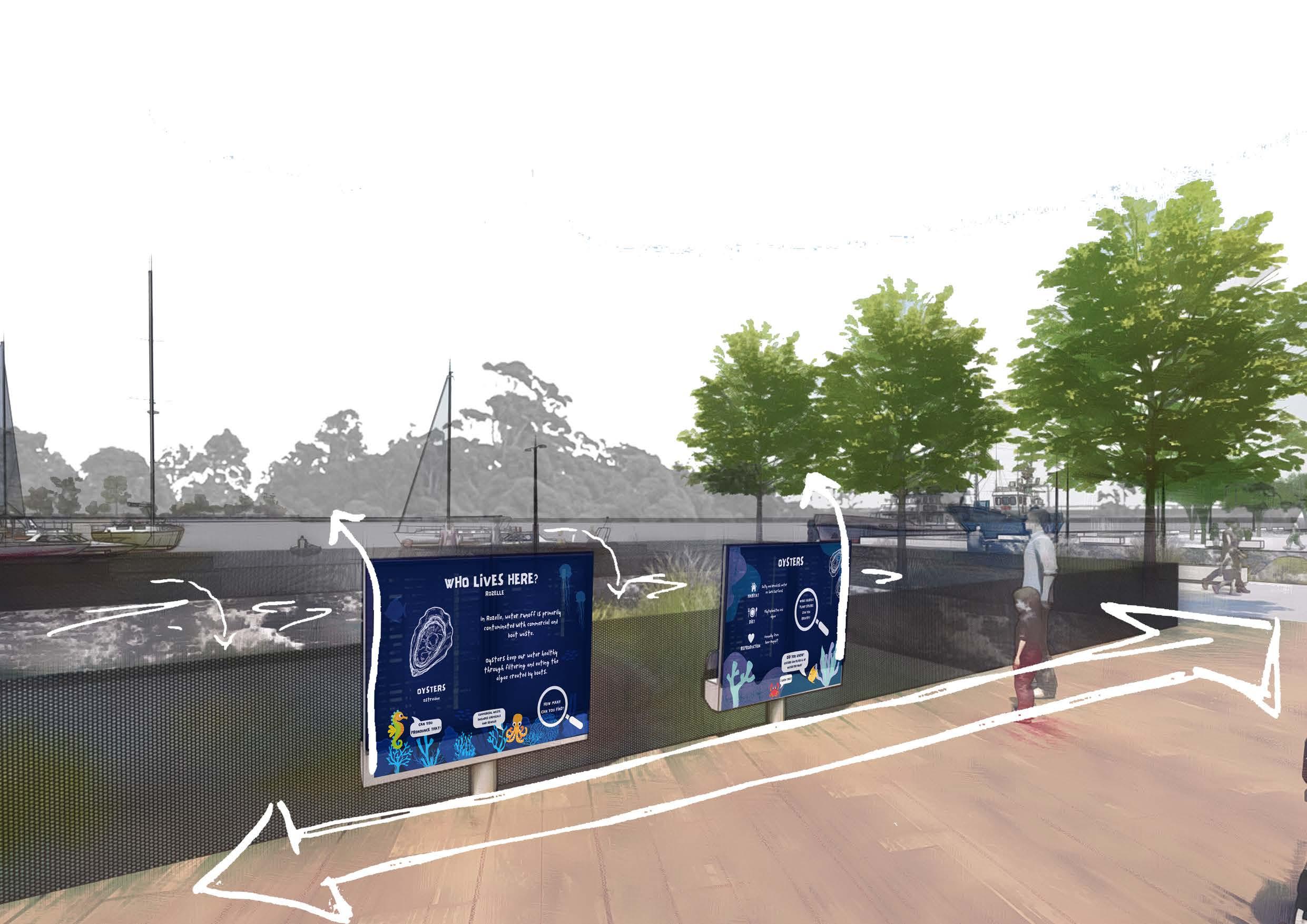

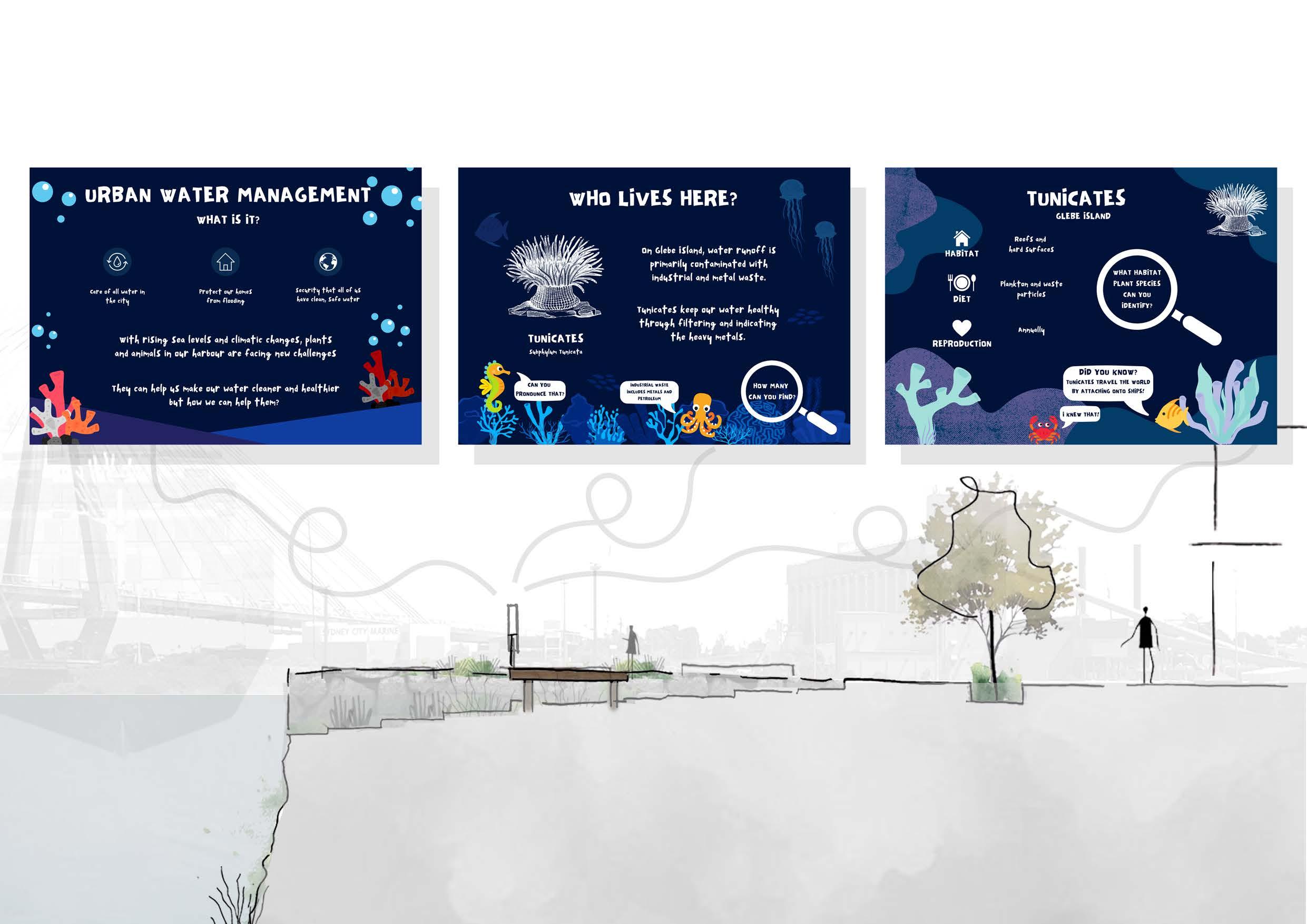

COMMUNITY EDUCATION

GLEBE FORESHORE WALK

GLEBE ISLAND BRIDGE

WHITE BAY CRUISE TERMINAL

GLEBE ISLAND BRIDGE

299 CYCLISTS

“ACTIVE TRANSPORT OPPORTUNITY” - THE BAYS WEST STRATEGY

200-300 BOATS EVERYDAY1

PROPOSED SCHEDULE

WEEKDAYS 6:15AM 10:15AM 11:15AM 12:15AM 1:15PM 2:15PM 8:15PM 9:15PM WEEKENDS 7:30AM 8:30AM 11:30AM 2:30PM 4:30PM 8:30PM 9:30PM

GLEBE FORESHORE WALK

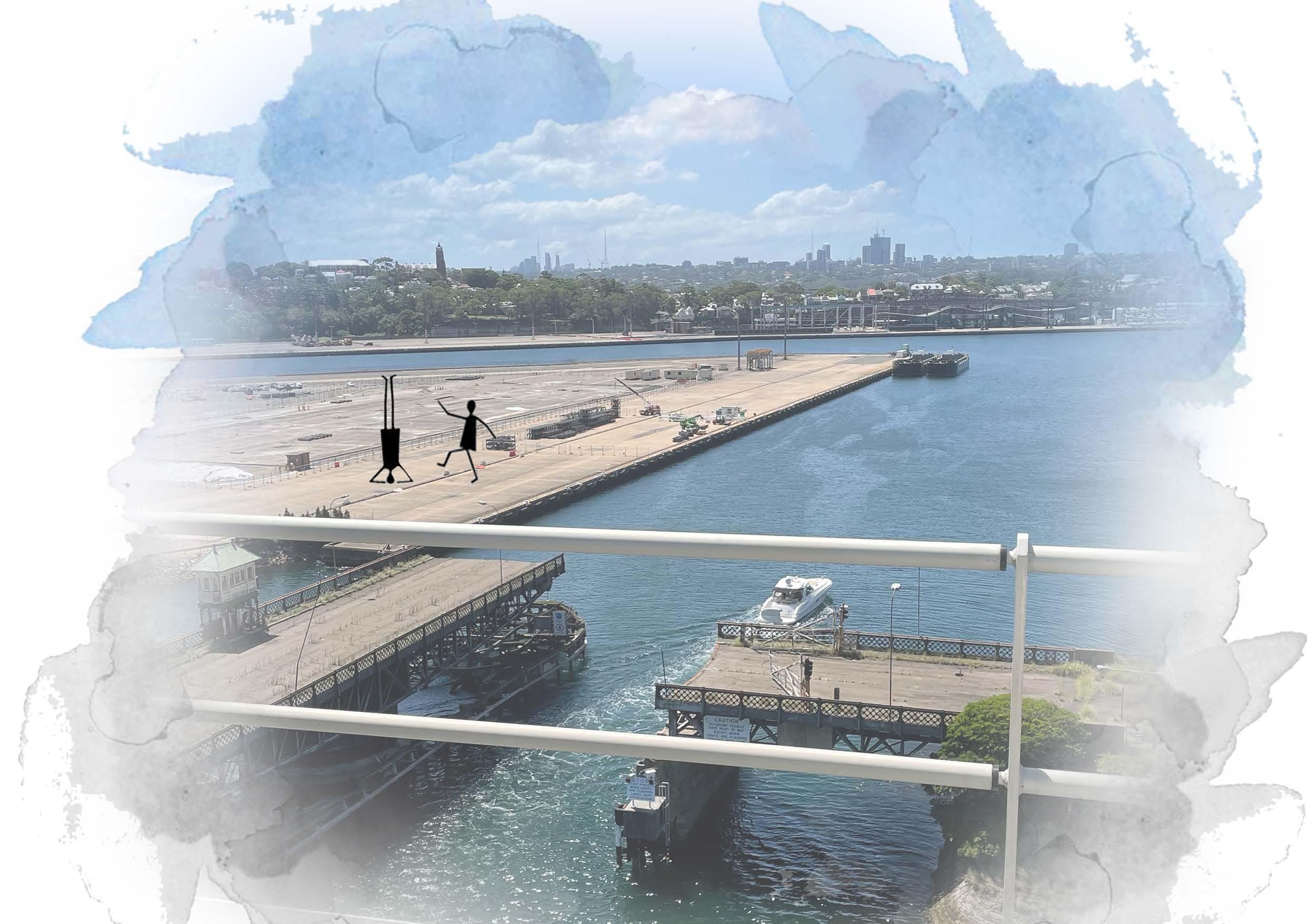

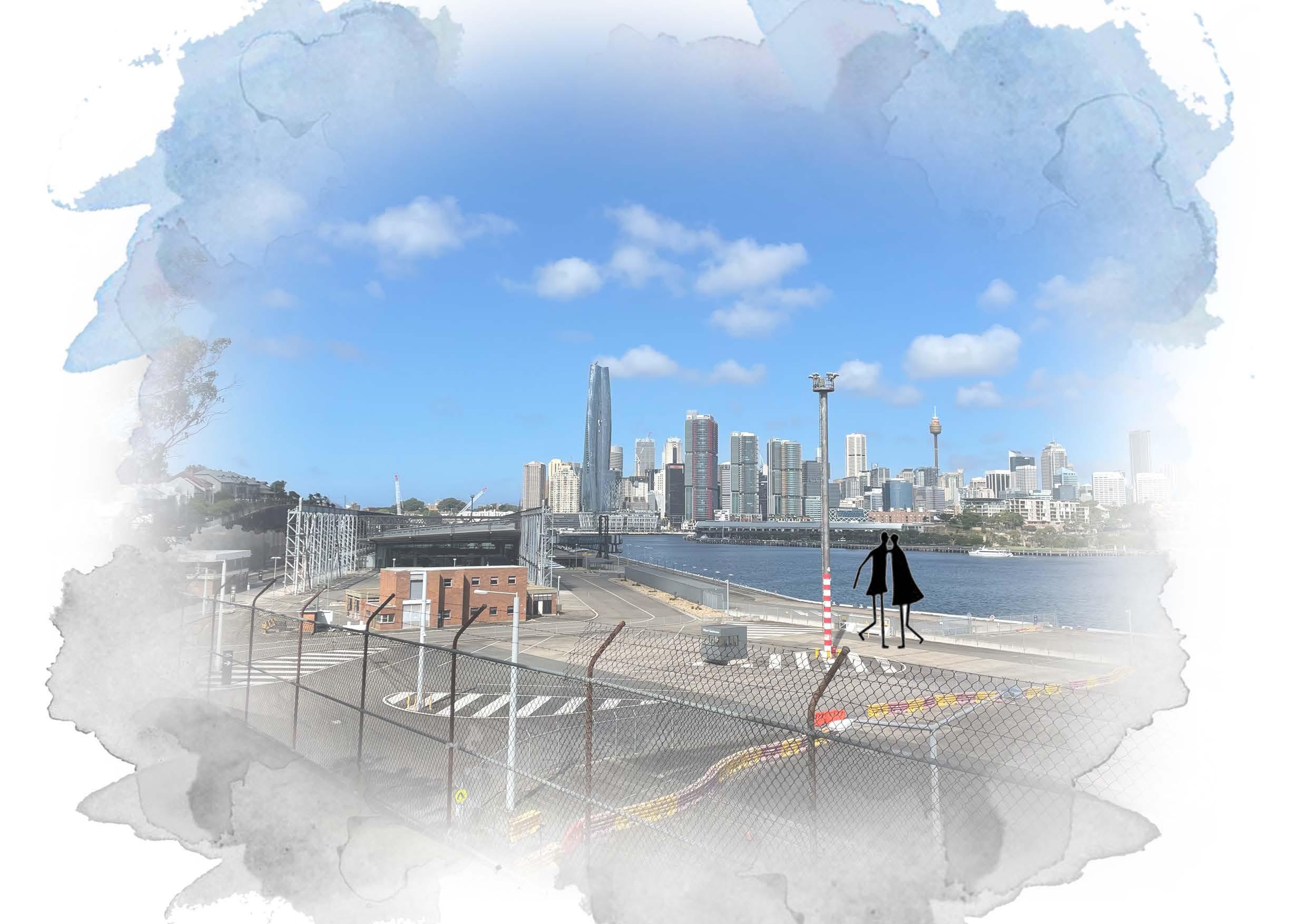

GLEBE ISLAND

GLEBE ISLAND

GLEBE ISLAND WATER

Elevated concentrations of metals (copper and zinc), nitrogen, nitrate and phosphorous. Turbidity exceeds guideline levels

INDUSTRIAL RUNOFF

-high concentrations of heavy metals and petroleum hydrocarbons

SHIP MOVEMENT

-water pollution

HARBOUR SEDIMENT

-sewage, metal contamination, stormwater, leachate

CONTAMINATED FILL

-anthropogenic deposits and fill of silt, clay, gravel

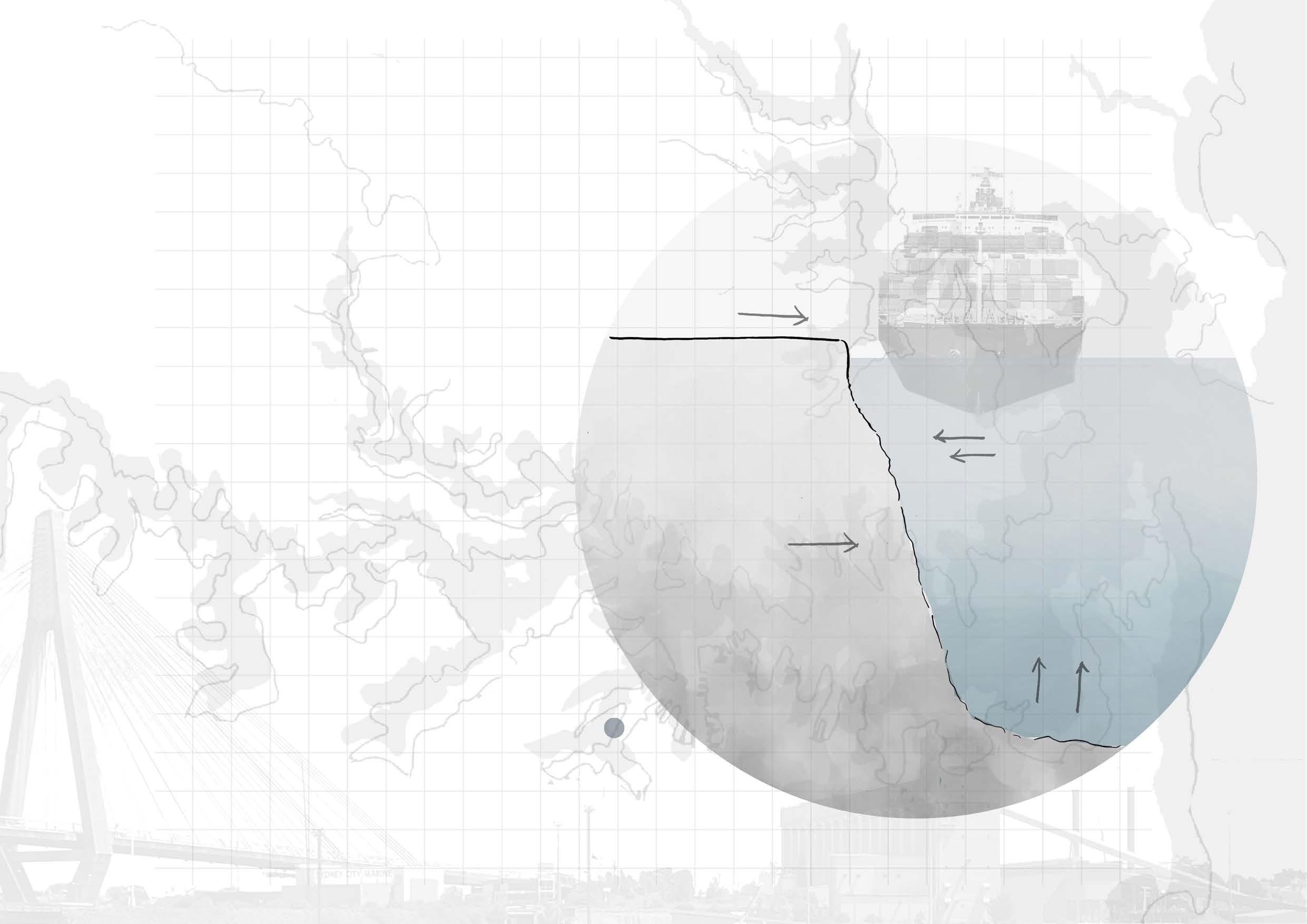

SITE SPECIFICITY

INDUSTRIAL RUNOFF

CONTAMINATED FILL

SHIP MOVEMENT

HARBOUR SEDIMENT

BIRDS

LIMPETS MUSSELS

SYDNEY AQUATIC FOOD WEB

TUNICATES

Habitat: Reefs, piling and hard surfaces

Diet: Plankton and detritis

Reproduction: Annually

Indicators: Clean water environment as they are filter feeders (in higher population numbers because of industrial pollutants)

INDUSTRIAL

GLEBE ISLAND EDGE

PRINCIPLES

WSUD STRATEGIES

TUNICATES

POROUS PAVEMENT

Captures surface runoff and precipitation, retaining it in the reservoir while slowly allowing it to infiltrate into the soil below

WSUD STRATEGIES

STORMWATER TREE PIT ROCK EDGE

Captures and filters stormwater runoff, extends detention and some biological intake of nutrients

Creates spaces for habitat development, slows overland water runoff and allows for perception of depth of water

Aquatic Species

Enhalus acoroides

Cymodocearotundata

Syringodiumisotifolium

Halophilaovalis

STEPS/SEATING WITH UV LIGHTING BERTH 1

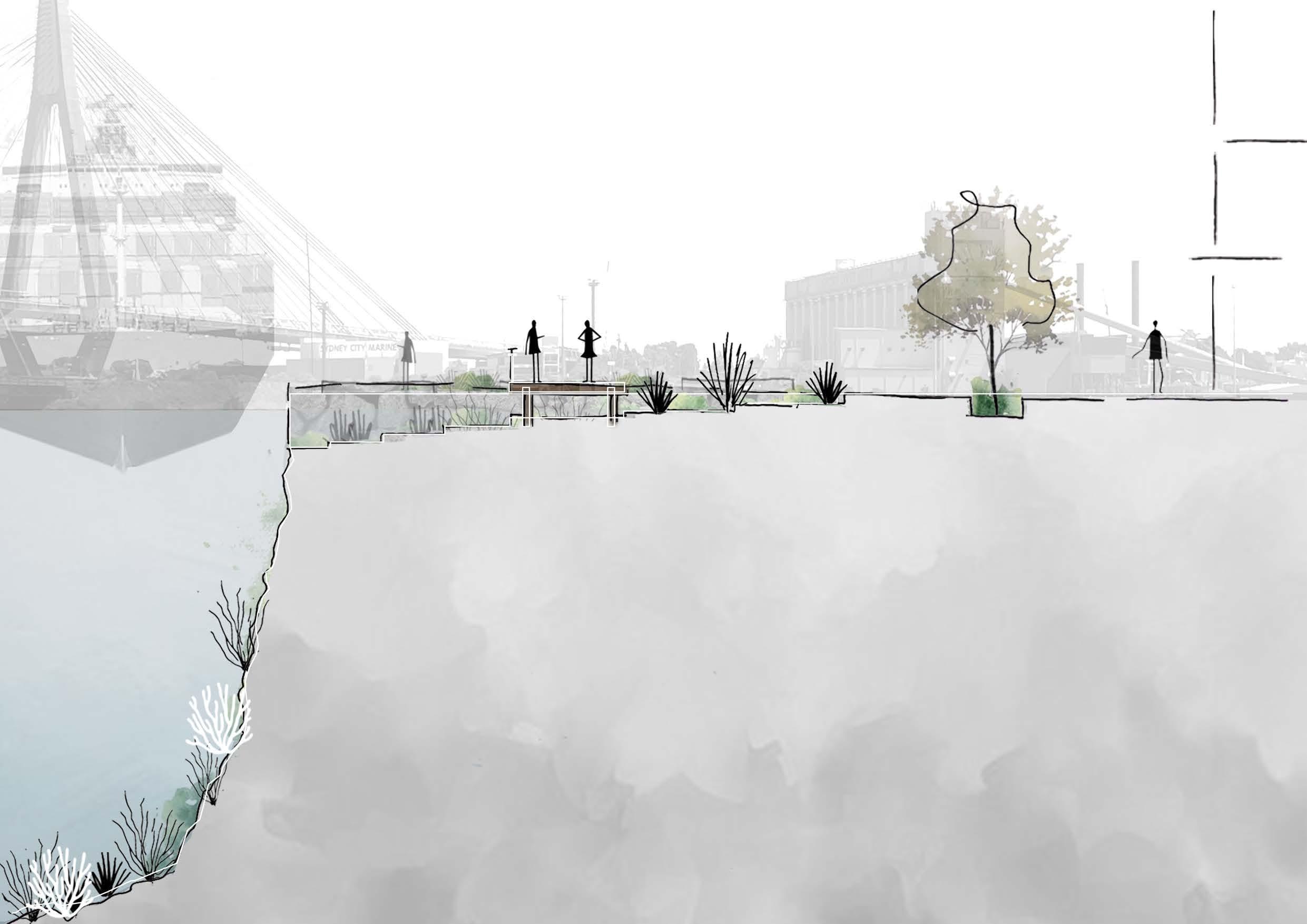

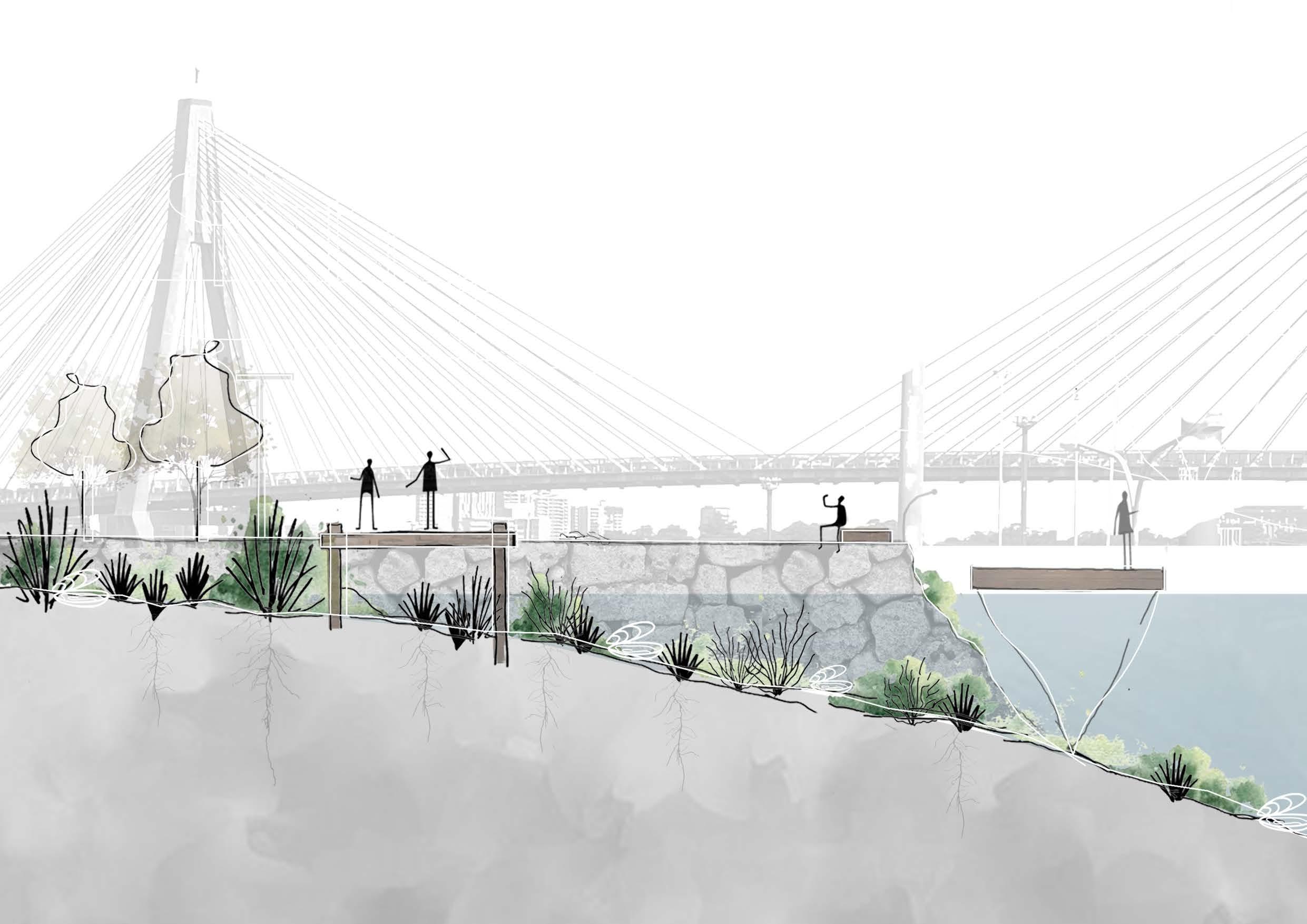

DESIGN SECTION

AQUATIC ZONE

Rock Edge Species

Poapoiformis

Juncuskraussii

Triglochinstriata

TEXTURED CONCRETE

RESIDENTIAL DEVELOPMENT

Stormwater Tree Pit Species

Callistemon viminalis underplanted with Calocephaluscitreus

CyperusGymnocaulos

Lomandralongifolia

COMMERCIAL/ RESIDENTIAL DEVELOPMENT

RAINGARDEN

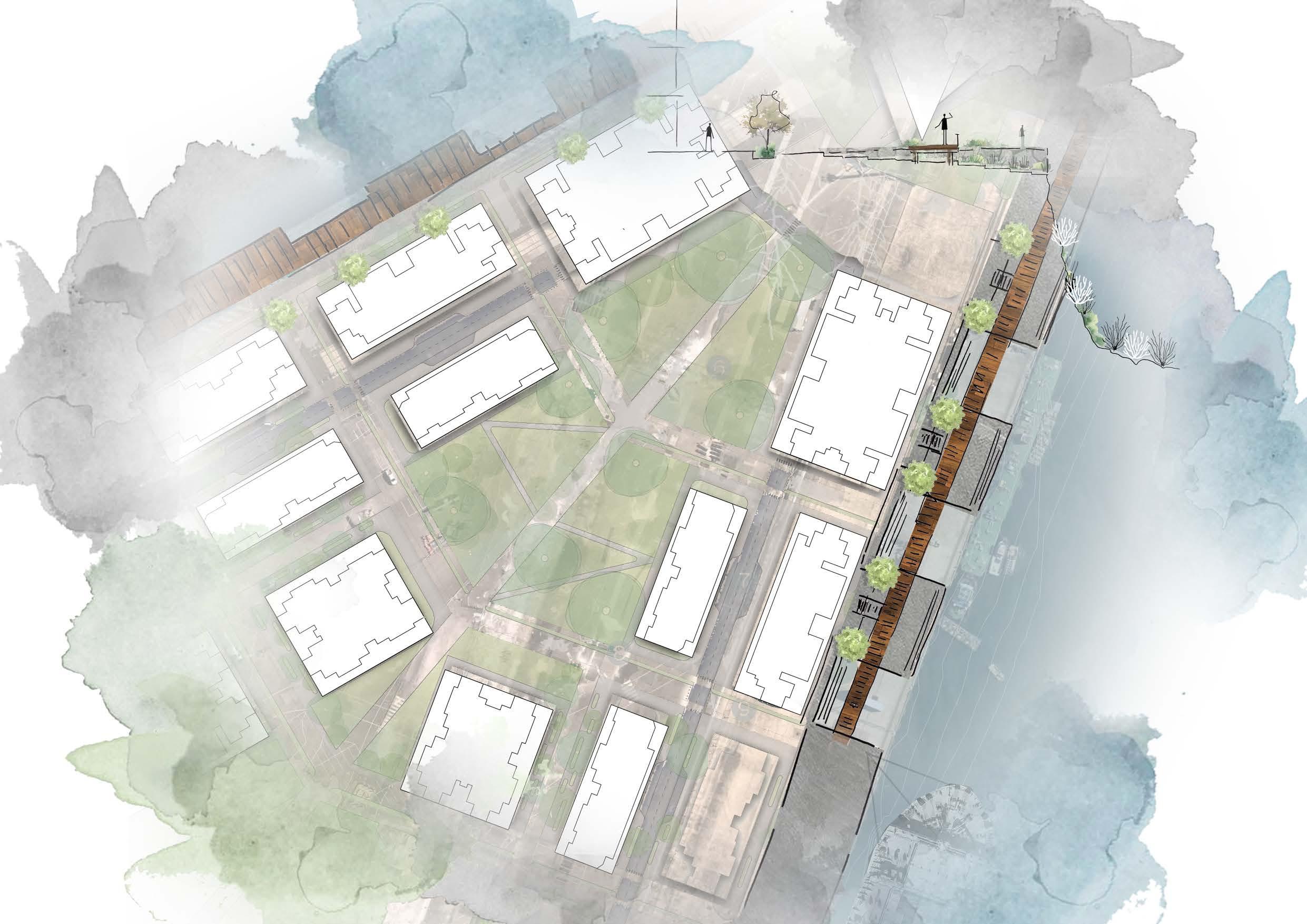

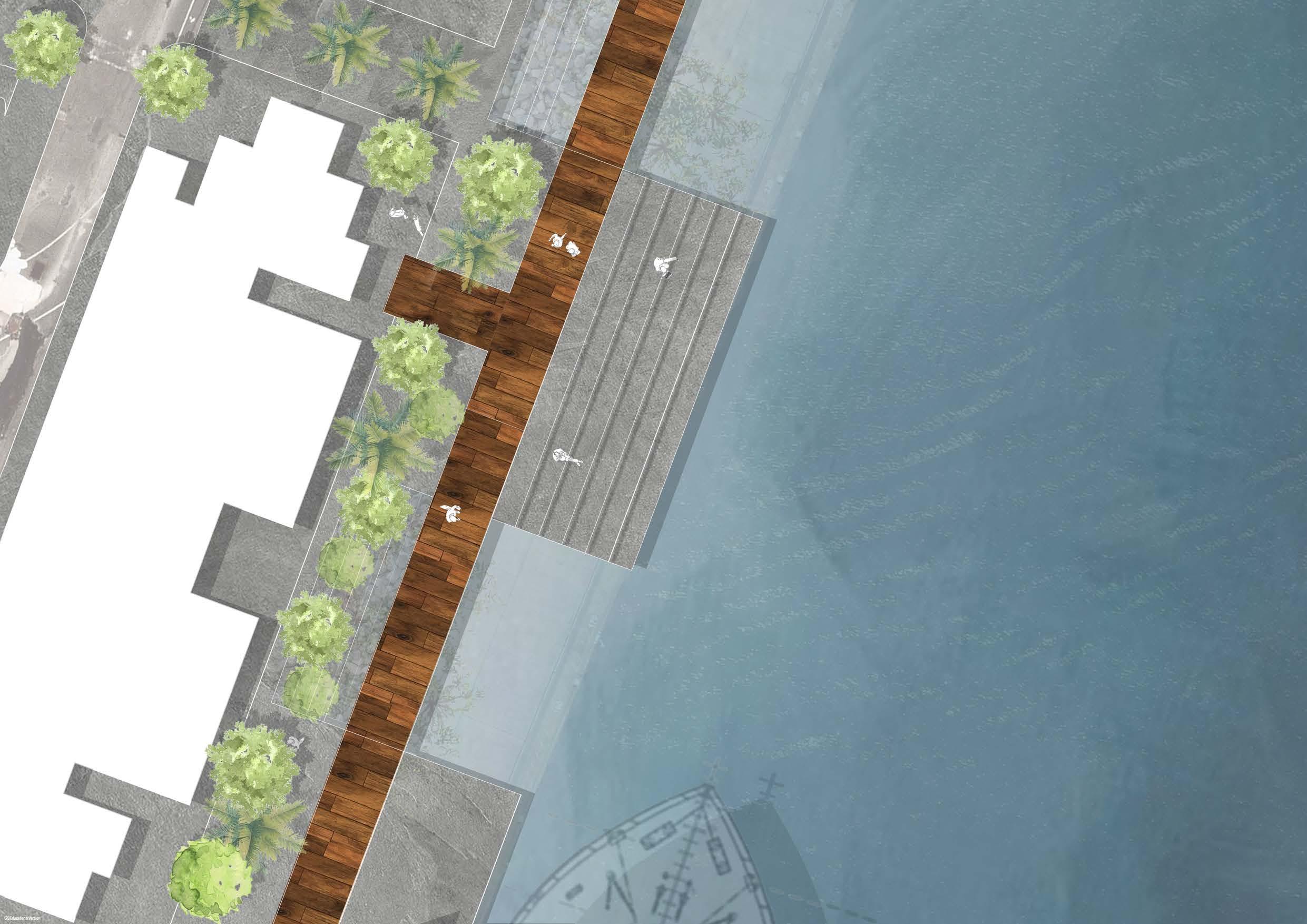

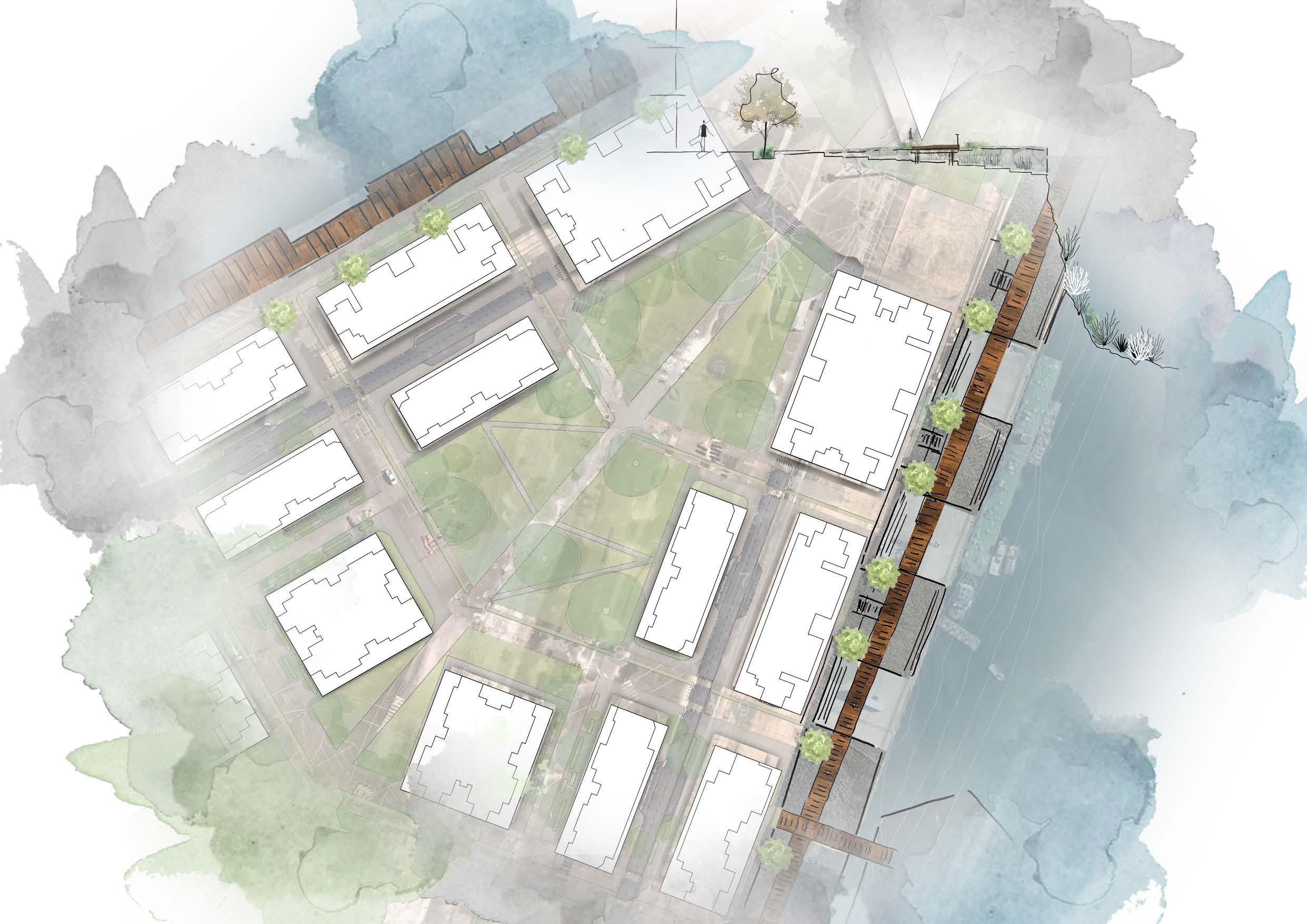

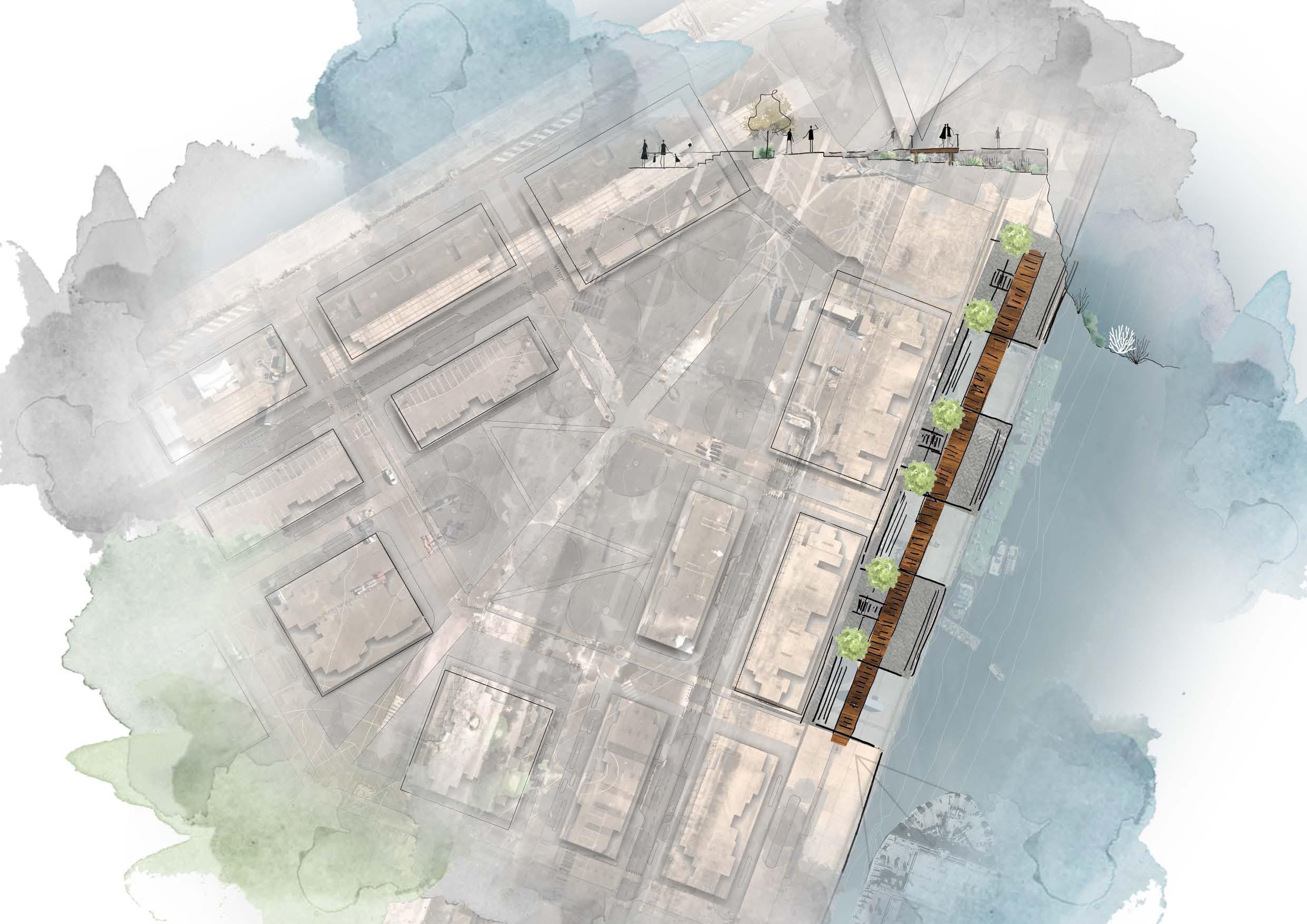

DESIGN PROPOSAL

WATERFRONT PROMENADE

STORMWATER TREE PITS

BERTH 1

INTERTIDAL ZONE

STEPS/SEATING WITH UV LIGHTING

PHASE 1

SCALE 1:100 @A3

OUTDOOR EVENT SPACES SEA

INTERTIDAL ZONE

SCALE 1:1000 @A3

WATERFRONT PROMENADE

BERTH 1

STEPS/SEATING WITH UV LIGHTING

INDUSTRIAL CARGO SHIP

EXTENSION WATERFRONT PROMENADE

SCALE 1:1000 @A3

PHASE 2

COMMERCIAL/ RESIDENTIAL DEVELOPMENT

SCALE 1:100 @A3

STEPS/SEATING WITH UV LIGHTING SEA

INTERTIDAL ZONE

WATERFRONT PROMENADE

BERTH 1

EXTENSION WATERFRONT PROMENADE

SCALE 1:1000 @A3

PHASE 3

COMMERCIAL/ RESIDENTIAL DEVELOPMENT

SCALE 1:100 @A3

WATERFRONT PROMENADE

INTERTIDAL ZONE

BERTH 1

STEPS/SEATING WITH UV LIGHTING

HABITAT SHIP

PHASING

PHASE 2 PHASE 3 PHASE 1

CLIMATIC EVENTS

POPULATION GROWTH

DEVELOPMENT

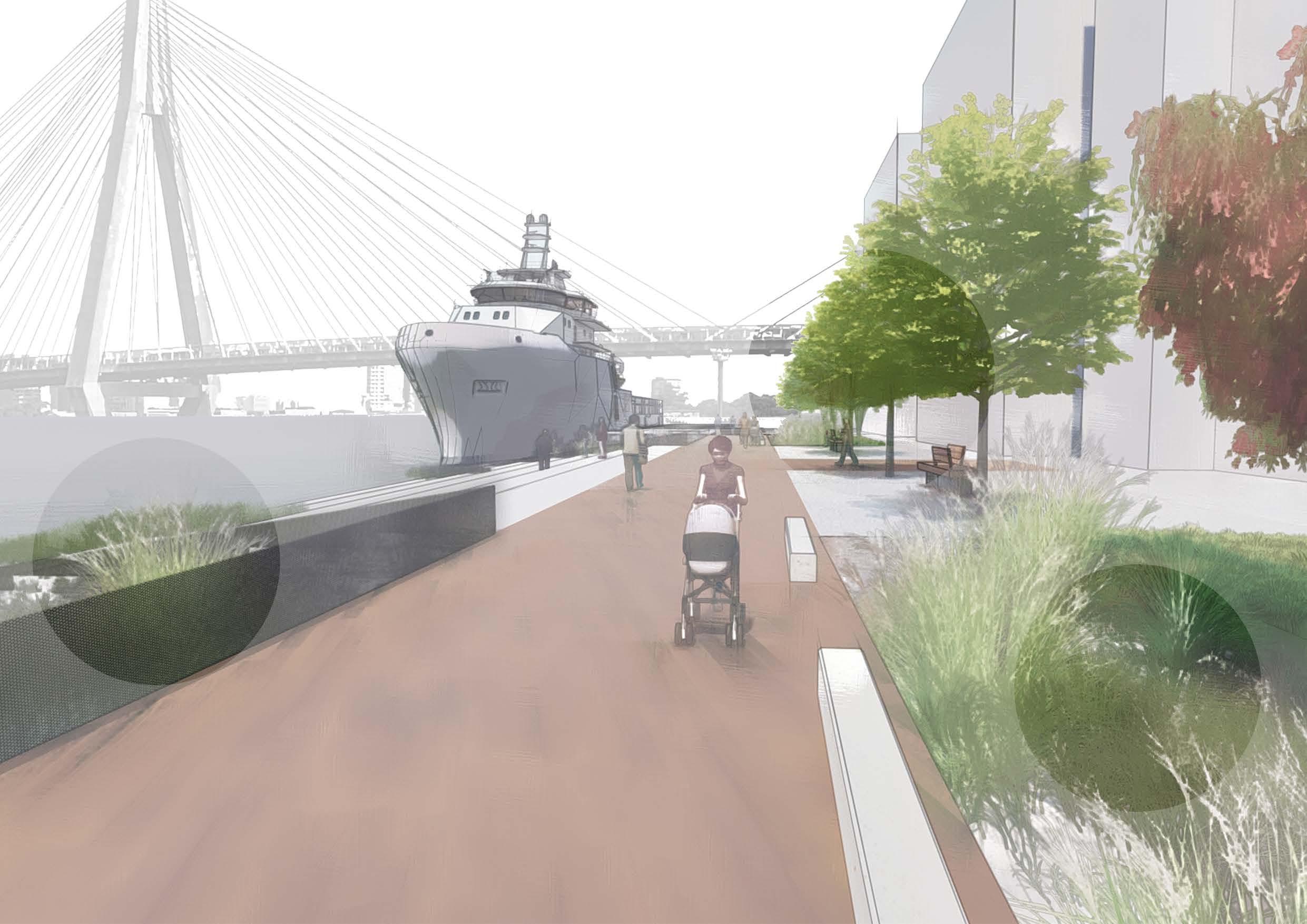

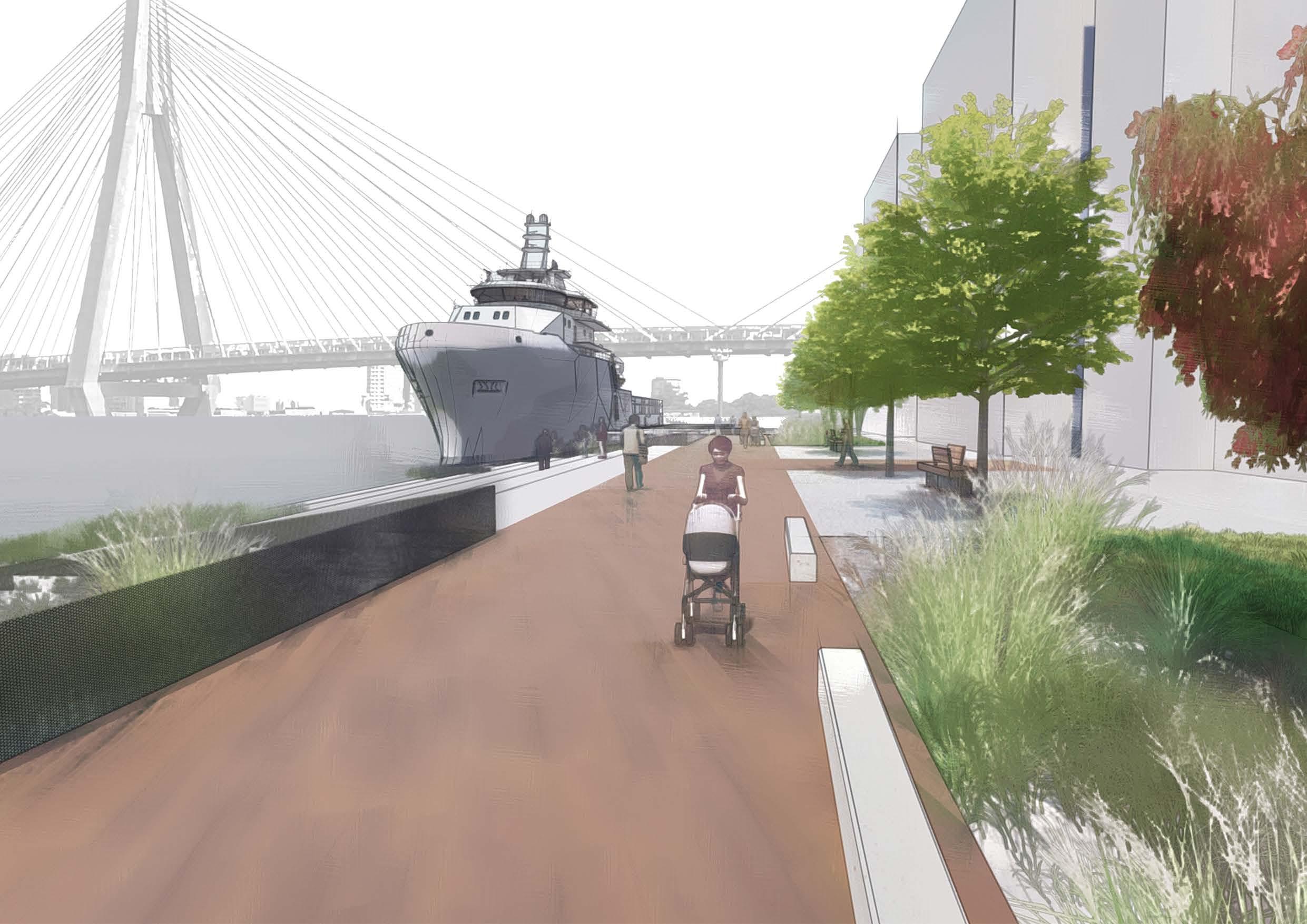

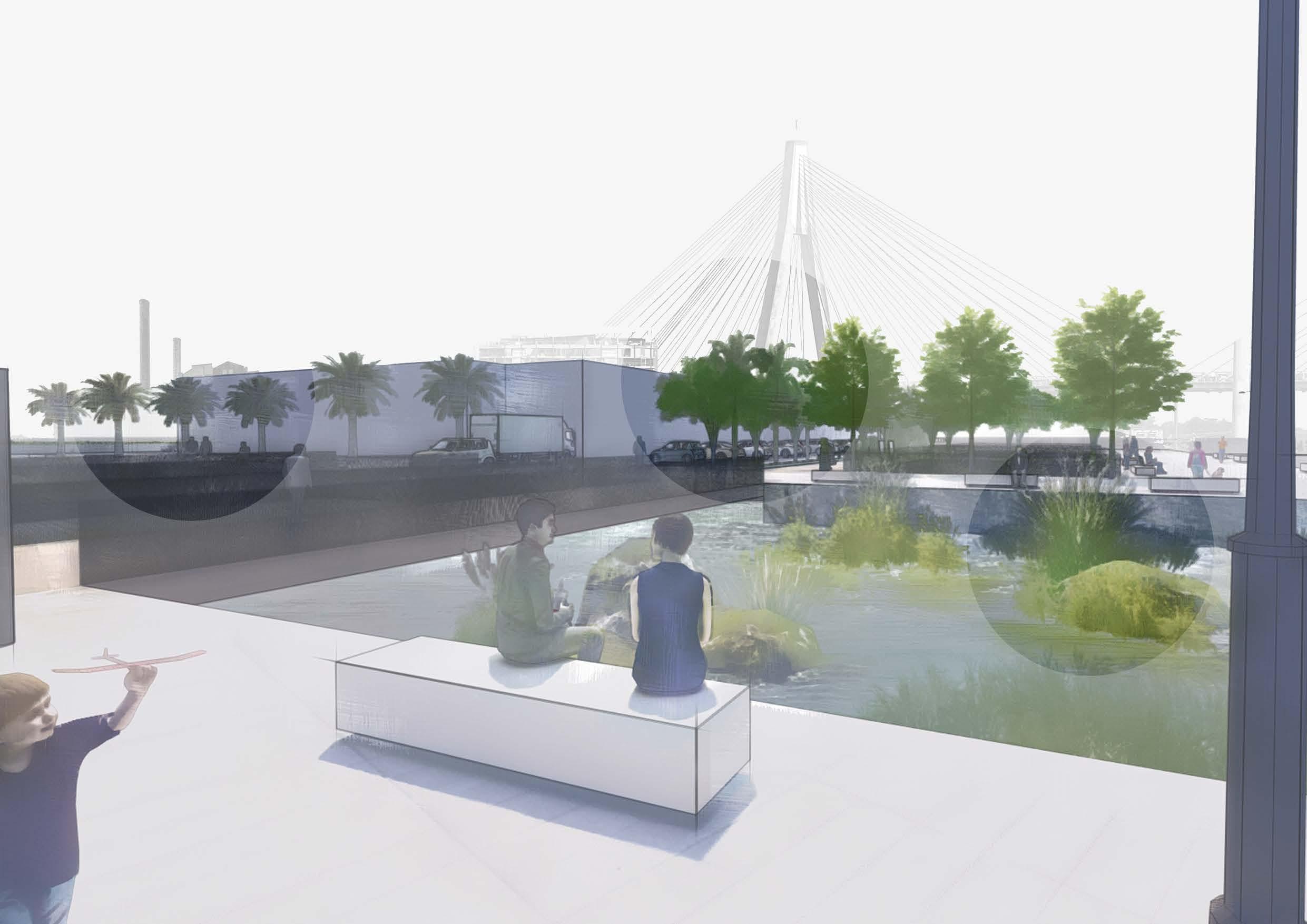

PERSPECTIVE

STEPS/SEATING W/ UV LIGHTING

HABITAT SHIP

BOARDWALK

WATERFRONT PROMENADE

FEATURE SPECIES

Botanic Name: Fraxinus excelsior

Common Name: European Ash

Flowering Time: Summer/Autumn

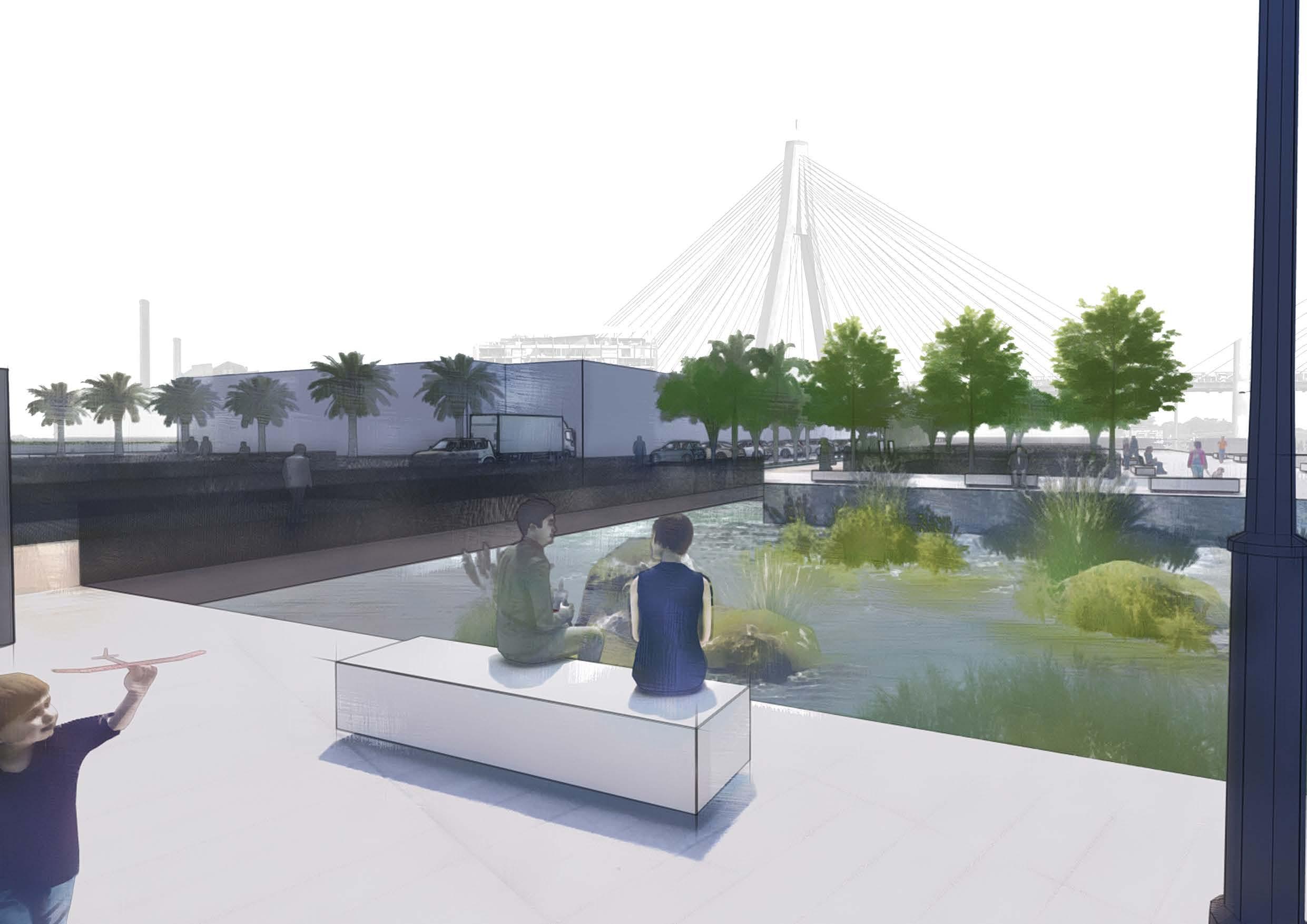

PERSPECTIVE

FEATURE SPECIES

Botanic Name: AcaciaPycnantha

Common Name: Wattle

Flowering Time: Winter

Flowering Time: Spring/Summer STORMWATER TREE PITS

FEATURE SPECIES

Botanic Name: Brachychitonacerifolius

Common Name: Illawarra Flame Tree

1

SECTIONAL MODEL

STEPS W/ UV LIGHTING

AQUATIC FAUNA COMMUNITIES INK

PROPOSED VEGETATION

GROOVED CONCRETE PAPER

SEA FLOOR FLORAL FOAM

PHASE 2

ETCHED PHASING

3

PERSPEX

DETAILED MODEL

TUNICATES

MUSSELS

JELLYFISH

COMMUNITY EDUCATION

PERSPECTIVE

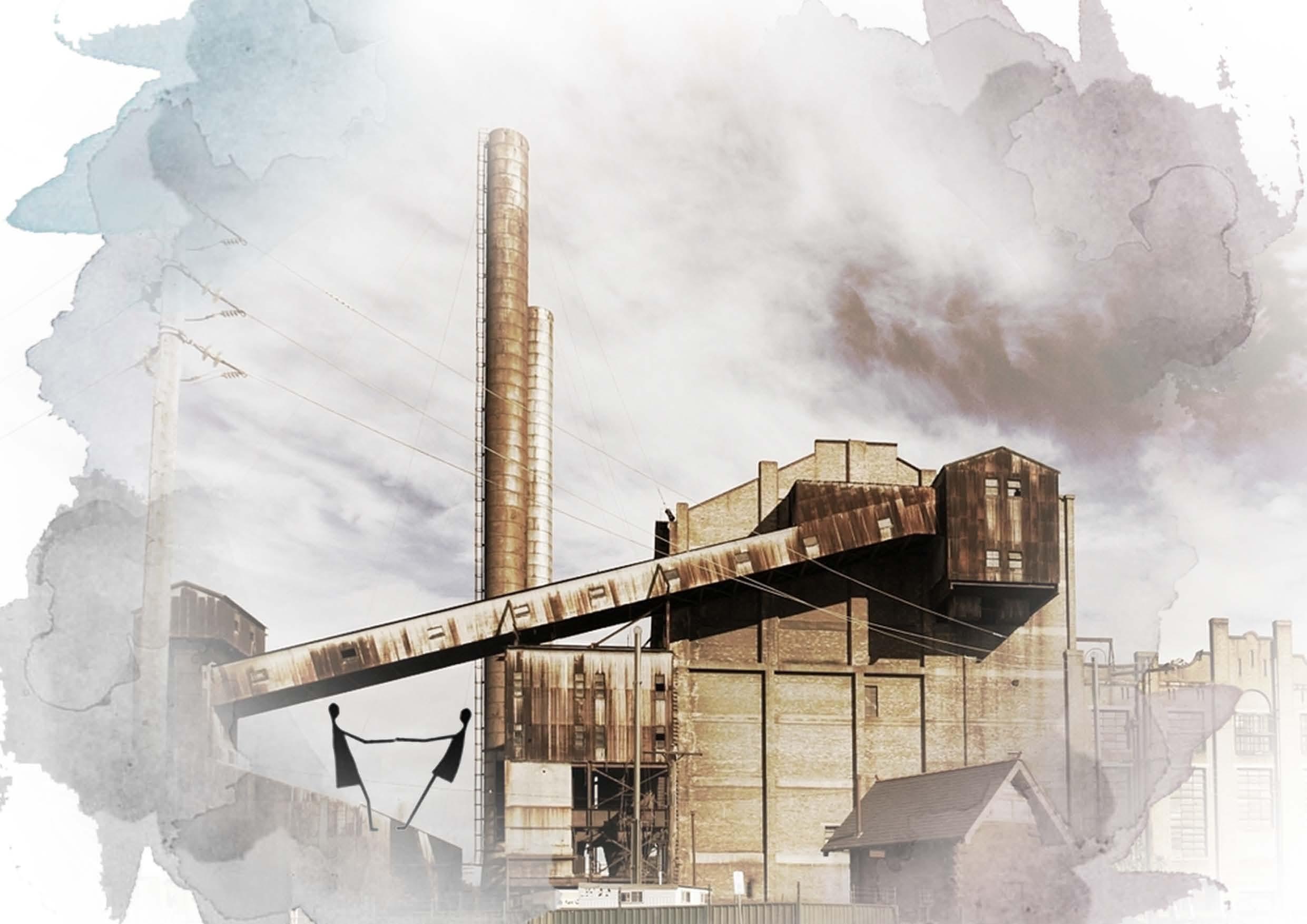

WHITE BAY POWER STATION

GLEBE FORESHORE WALK

WHITE BAY POWER STATION

WHITE BAY CRUISE TERMINAL

WHITE BAY POWER STATION

“ADAPTIVE REUSE AND ACCESS TO HERITAGE FEATURES” - THE BAYS WEST STRATEGY

WHITE BAY POWER STATION

GLEBE FORESHORE WALK

BALMAIN

WHITE BAY CRUISE TERMINAL

BALMAIN

BALMAIN WATER

Elevated concentrations of nitrogen and suspended solids

RESIDENTIAL RUNOFF

-yard waste (leaves, grass clippings)

-solid and liquid waste water carried -wastewater discharged from plumbing fixtures

BEATTIE ST. CHANNEL

-Commands 72 hectares within the municipality of Leichhardt and drains an area predominantly on the western side of White Bay.

HARBOUR SEDIMENT

-sewage, metal contamination, stormwater, leachate

SITE SPECIFICITY

RESIDENTIAL RUN-OFF

BEATTIE ST. CHANNEL

HARBOUR SEDIMENT

BIRDS

LIMPETS MUSSELS

SYDNEY AQUATIC FOOD WEB

CUSHION STARS

Habitat: Reefs/Sea Grass

Diet: Algae, diatoms and small detritus particles

Reproduction: Annually spawn in Mid January

Indicators: Clean water environment as they are particularly sensitive to pollutants

RESIDENTIAL

BALMAIN EDGE

PRINCIPLES

WSUD STRATEGIES

CUSHION STARS

WSUD STRATEGIES

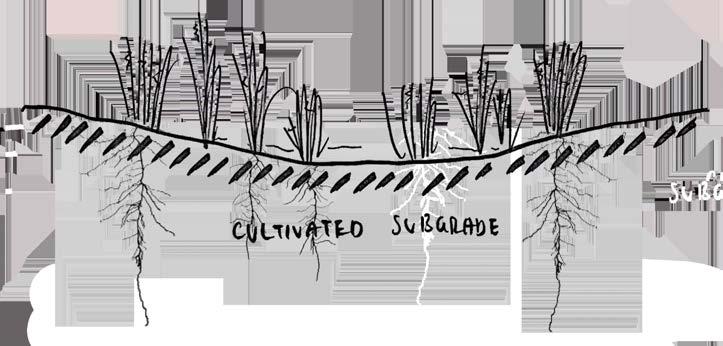

VEGETATED SWALE INTERTIDAL ZONE

Linear features that convey uniform flow of overland flow or stormwater to encourage sedimentation.

SEDIMENT BASIN

Primary and secondary treatment stormwater; captures and filter pollutants

Creates spaces for habitat development, slows overland water runoff and allows for perception of depth of water

DESIGN SECTION

BOARDWALK GRIDDED WITH GLASS

GROUND LIGHTING RAIL W/ LIGHTING

Vegetated Swale Species

Callistemon viminalis

underplanted with Calocephaluscitreus

CyperusGymnocaulos

Lomandralongifolia

Sediment Basin Species

Kunzeaambigua

Marsilea Drummondii

Dianella brevicaulis

SEDIMENT BASIN

Intertidal Zone Species

Poapoiformis

Juncuskraussii

Triglochinstriata

Aquatic Species

Enhalus acoroides

Cymodocearotundata

Syringodiumisotifolium

Halophilaovalis

SECONDARY PATHWAY

RAINGARDEN

RAINGARDEN

DESIGN PROPOSAL

SEATING

SEDIMENT BASIN

TURPENTINE AS HABITAT ZONES

INTERTIDAL ZONE

BOARDWALK

GRIDDED WITH GLASS

GROUND LIGHTING

RAIL W/ LIGHTING

PHASE 1

SCALE 1:1000 @A3

SECONDARY PATHWAY

INTERTIDAL ZONE

SCALE 1:100 @A3

PHASE 2

SCALE 1:1000 @A3 RAINGARDEN

SECONDARY PATHWAY

SCALE 1:100 @A3

CANTILEVERED BOARDWALK

CANTILEVERED BOARDWALK GROOVED CONCRETE

PHASE 3

SCALE 1:1000 @A3

CANTILEVERED BOARDWALK

SECONDARY PATHWAY

BOARDWALK GRIDDED WITH GLASS

INTERTIDAL ZONE

SCALE 1:100 @A3

PHASING

PHASE 2 PHASE 3 PHASE 1

CLIMATIC EVENTS

POPULATION GROWTH

DEVELOPMENT

PERSPECTIVE

RAINGARDEN

FEATURE SPECIES

Botanic Name:

Common

Flowering Time: Spring/Summer

PERSPECTIVE

SEDIMENT BASIN

FEATURE SPECIES

Common

Flowering Time: Spring/Summer

FEATURE SPECIES

Flowering Time: Spring/Summer

PROPOSED VEGETATION

ETCHED

SECTIONAL MODEL

AQUATIC FAUNA COMMUNITIES INK

SEA FLOOR

FLORAL FOAM

EXISTING VEGETATION

FLORAL WIRE

PHASING

PERSPEX

SEAHORSE

DETAILED MODEL

LIMPETS

CUSHION STARS

COMMUNITY EDUCATION

PERSPECTIVE

WHITE BAY POWER STATION

GLEBE FORESHORE WALK

WHITE BAY CRUISE TERMINAL

WHITE BAY CRUISE TERMINAL

BALMAIN

WHITE BAY CRUISE TERMINAL

“NEW AND ENHANCED PUBLIC ACCESS AND AMENITY” - THE BAYS WEST STRATEGY

GLEBE

DESIGN PROPOSAL

WHITE BAY CRUISE TERMINAL

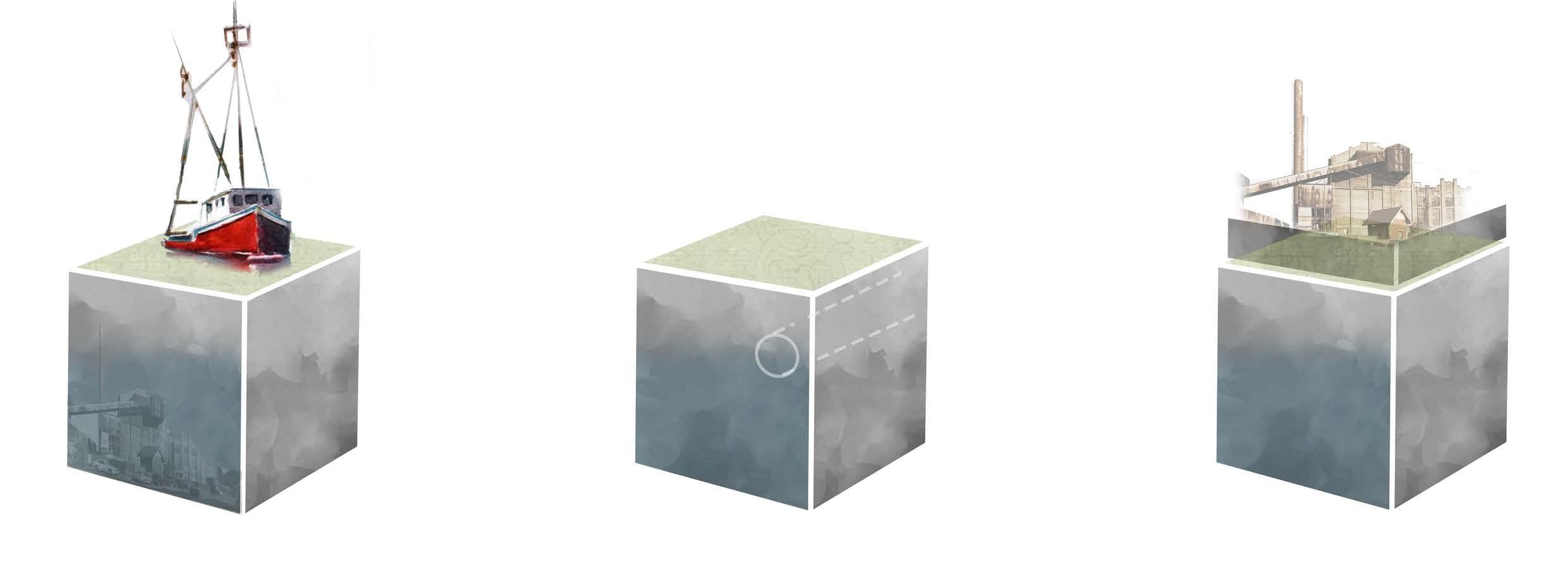

THE EDGES

PRINCIPLES

BALMAIN RESIDENTIAL CUSHION STARS

WSUD STRATEGIES

LIMPETS & SEAHORSE

ROZELLE COMMERCIAL

PRINCIPLES

WSUD STRATEGIES

OYSTERS

CRABS & FISH

PRINCIPLES

GLEBE ISLAND INDUSTRIAL TUNICATES

WSUD STRATEGIES

JELLYFISH & MUSSELS

community with socioeconomic fabric of existing industries along the shoreline

RESILIENT UWM STRATEGY

polluted runoff through implementing terrestrial and aquatic planting typologies that capture and filter

and educate about aquatic fauna communities as indicators of water health

THE EDGE

A RESILIENT URBAN WATER MANAGEMENT STRATEGY
