URBAN ARCHIPELAGO

HOTTER SUMMERS, INCREASED FLOODING, SCORCHED WILDLIFE, DRY PADDOCKS TOO LITTLE, TOO LATE?

URBAN ARCHIPELAGO

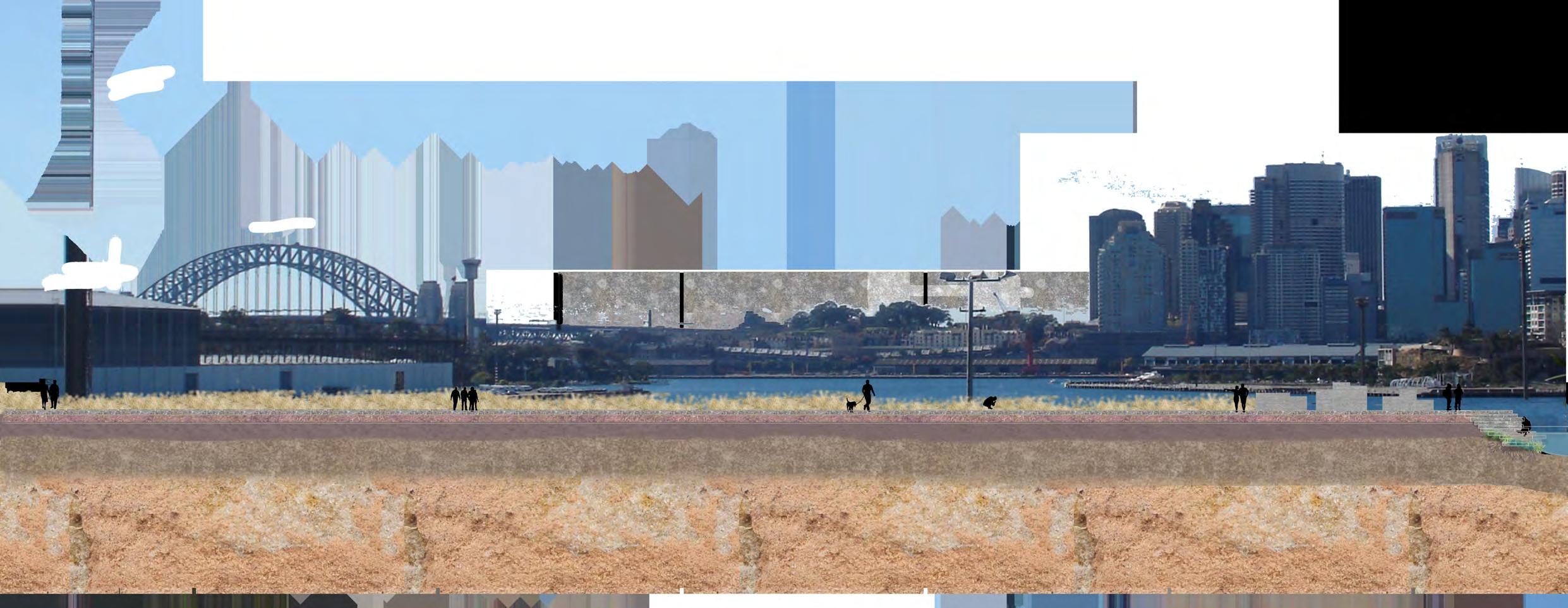

Cyborg Teal infrastructure + Community = Reaching Phase IV

How can integrating a cyborg blue-green infrastructure edge into a new urban public domain, increase stakeholder understanding of resilience in the bays?

“COP26

MUST BE A TURNING POINT. WE MUST ACT NOW WITH AMBITION AND SOLIDARITY TO SAFEGUARD OUR FUTURE AND SAVE HUMANITY.”

CURRENT PROJECTIONS WILL SEE TEMPERATURE INCREASE “IN EXCESS” OF 1.5C TO 2C ABOVE PRE-INDUSTRIAL LEVELS.

BETWEEN 2013 AND 2021 SEA LEVELS HAVE DOUBLED COMPARED WITH THE RISE FROM 1993 TO 2002

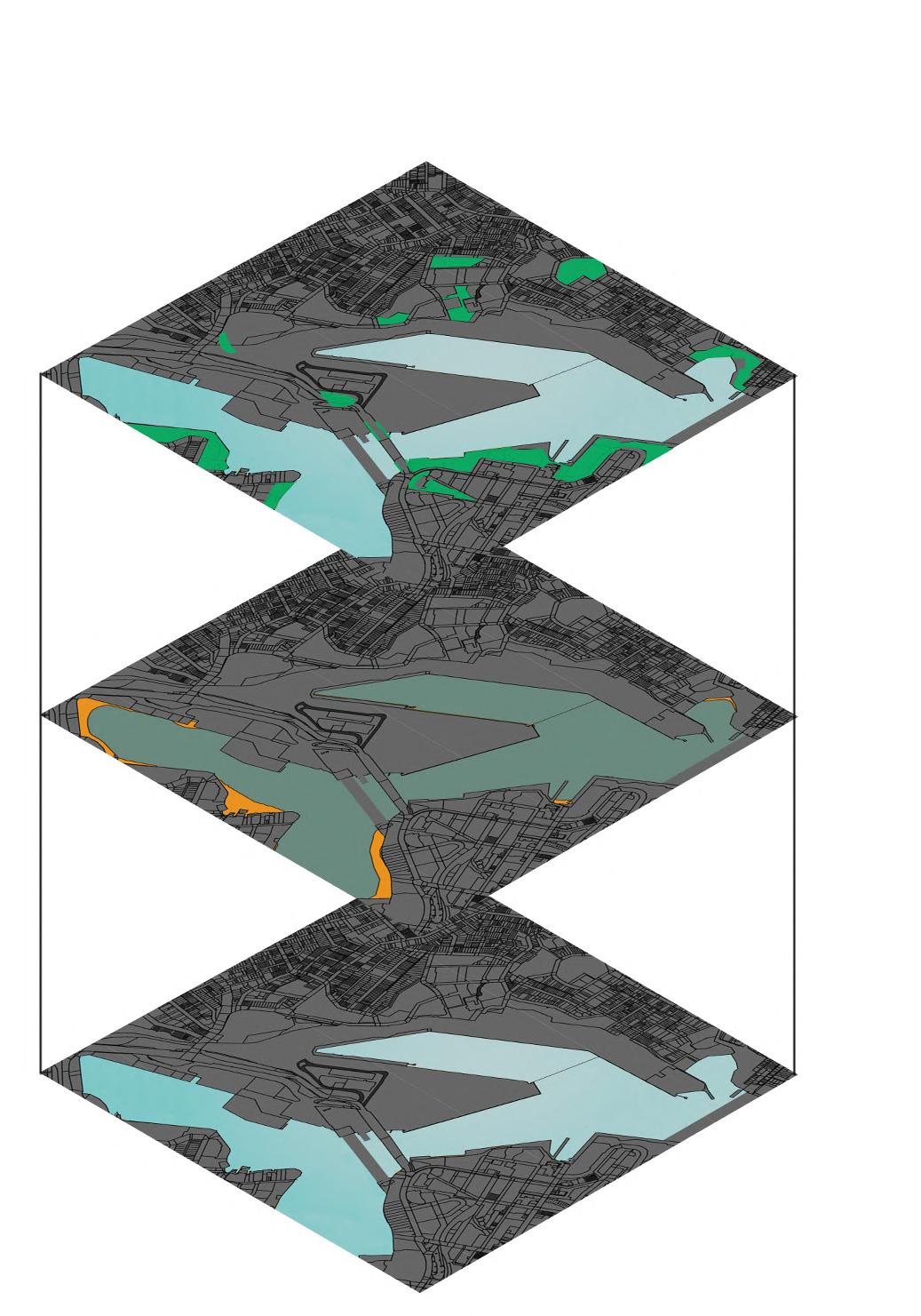

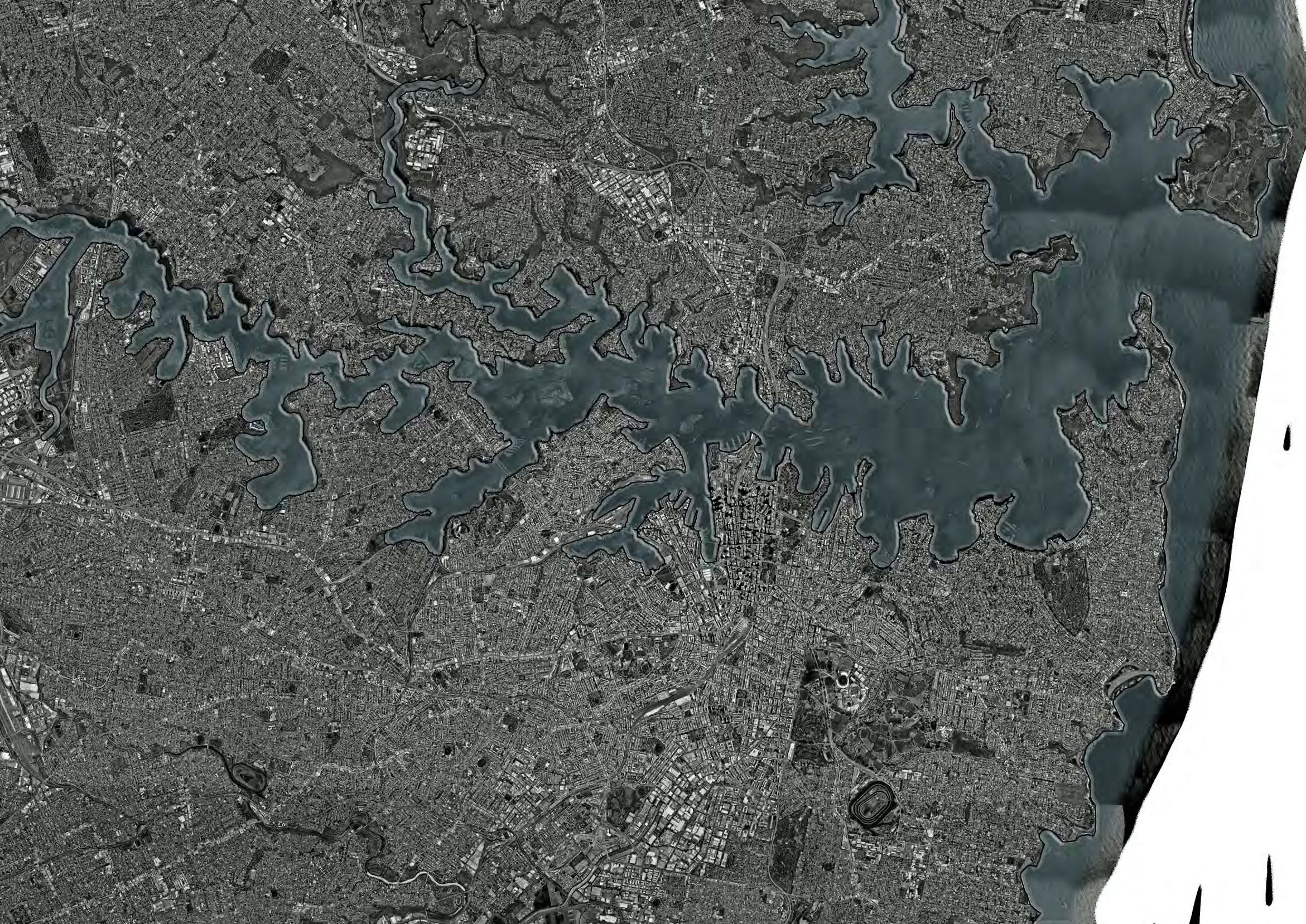

CURRENT SEA LEVEL RISE PROJECTIONS

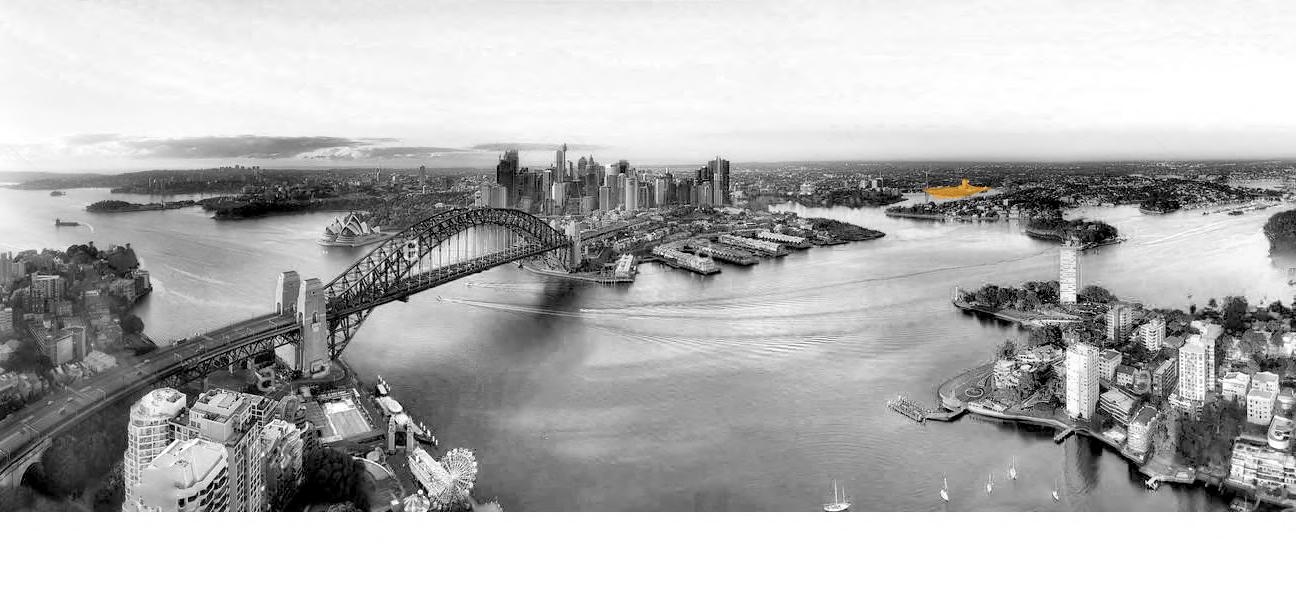

as humans we have re-etched and botched this landscape

despite this, there is still hope we can achieve this through edge a BGI hybrid edge...

we need to educate people whilst creating climate resilient landscapes to help heal mother nature and the toxic sludge of industry

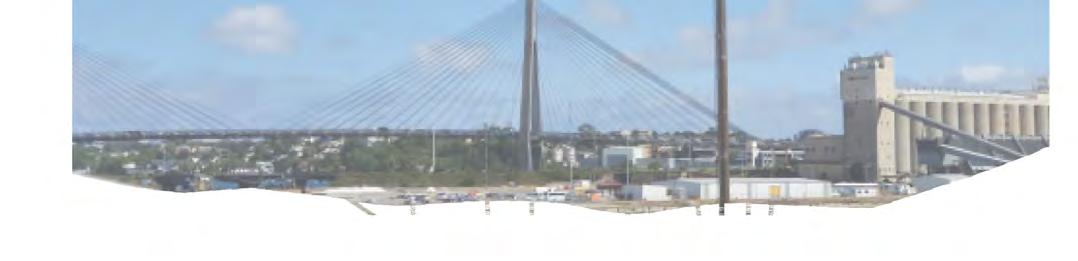

FINDINGS

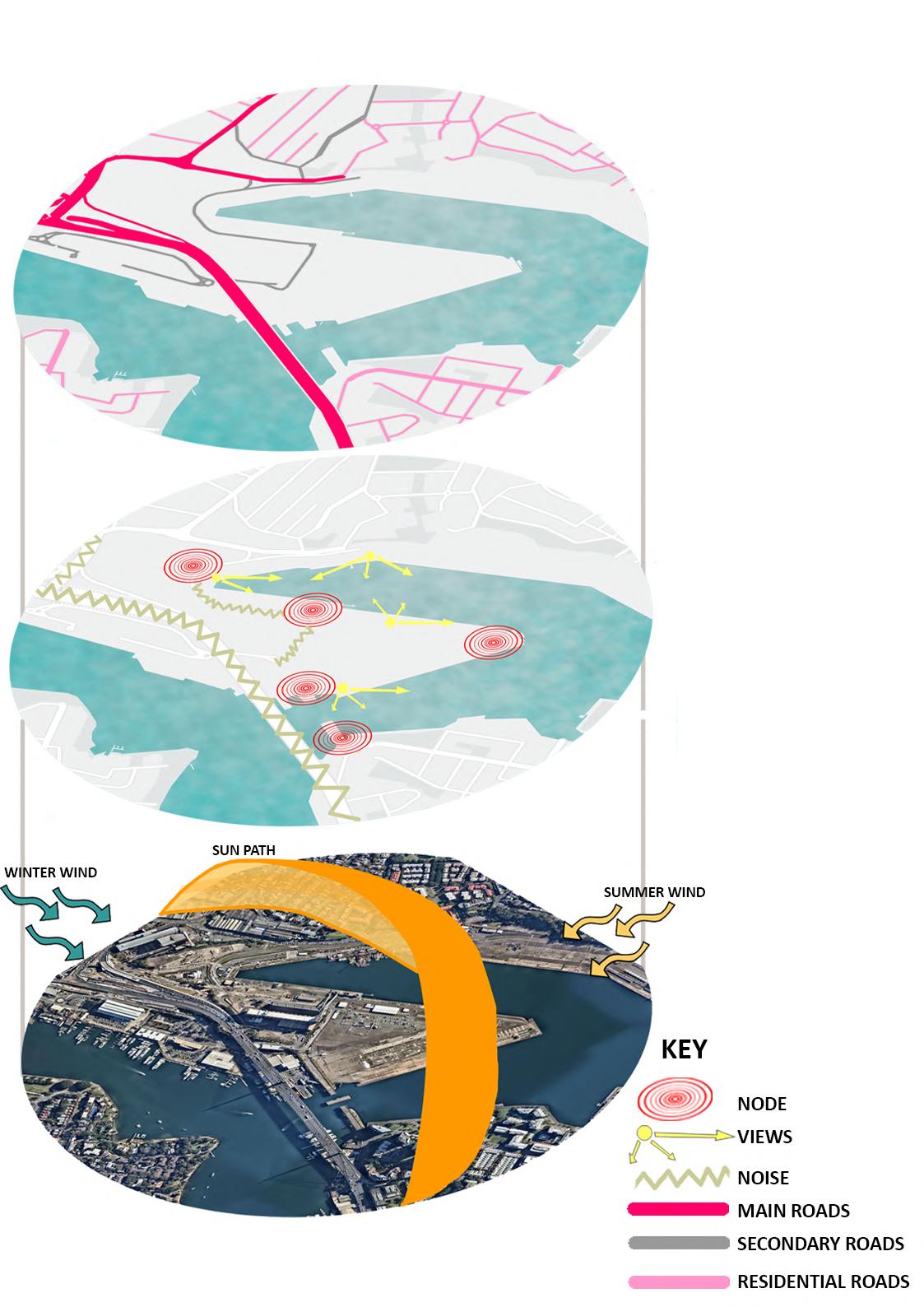

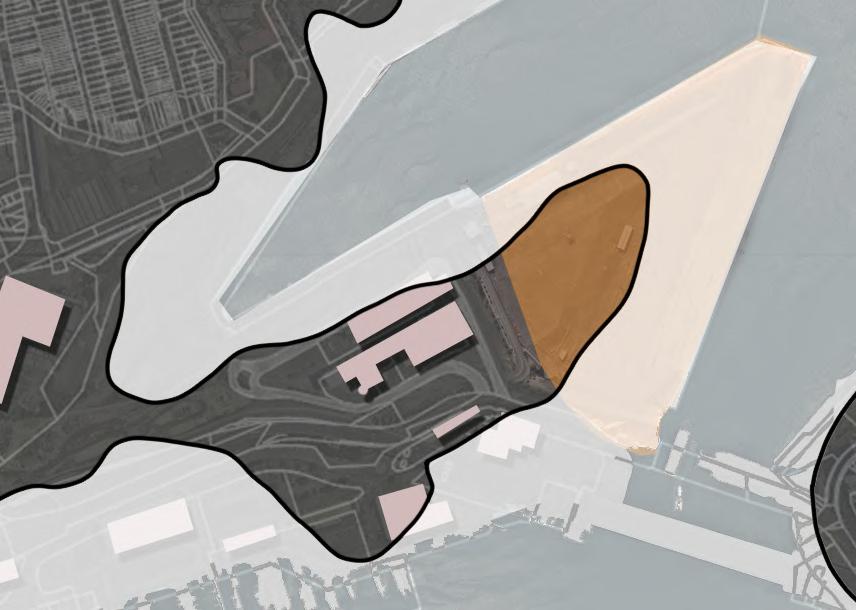

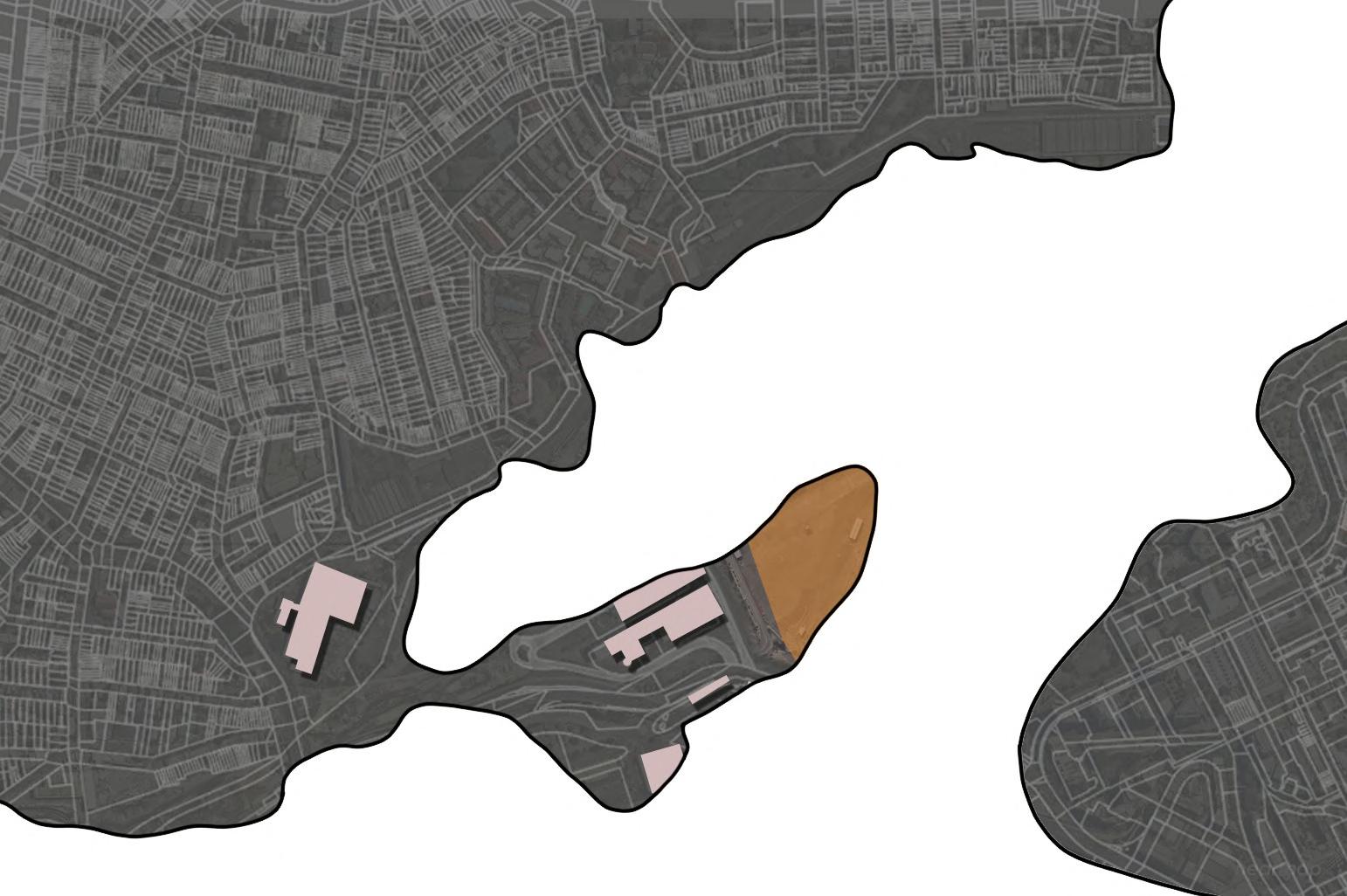

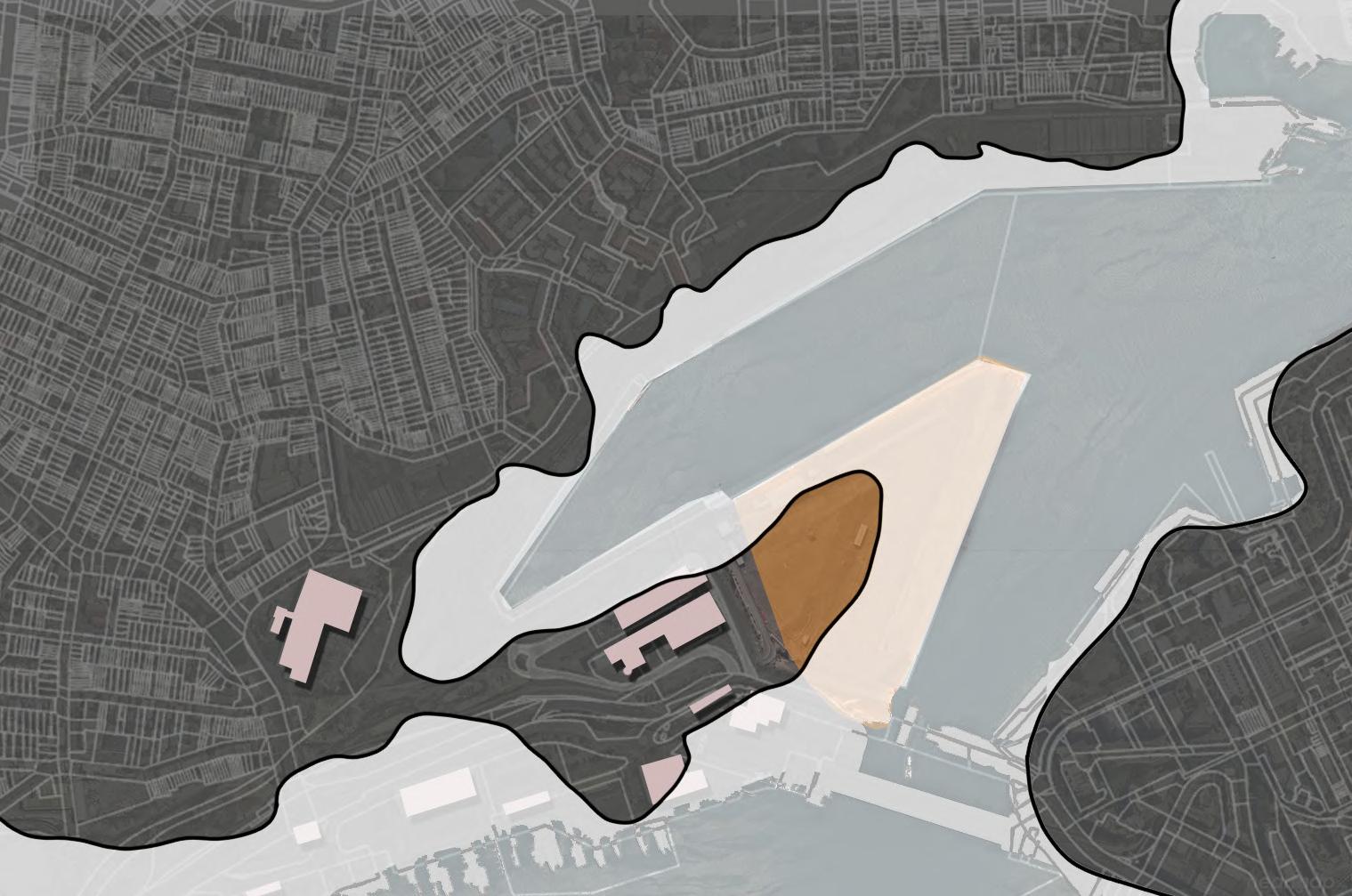

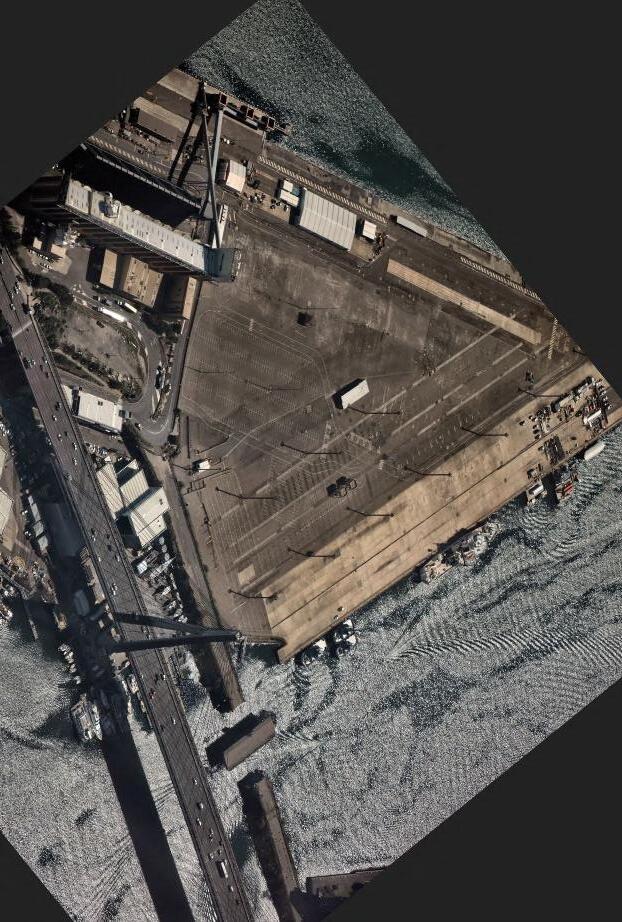

Potential site opportunities for the sites unique condition, orientation and natural processes of the area are outlined below:

RECONNECT OPEN GREENSPACE UNLOCK FORESHORE INTERACTION

• Re-establish ecological connections

• Hybrid blue-green infrastructure elements BGI

• Reconnect community to the waterfront

• Frame the historical site views to emphasize site peninsula

ACCESSIBILITY

SENSORY

CREATE A SENSORY LANDSCAPE

• Create refuge from ultra-urban landscapes

• Habitat hybrid elements weaved into wetland corridors

IMPROVE CLIMATE RESILIENCE

• Foster an educational landscape on climate change and sea level rise

• Improve stakeholder understanding of BGI

GREEN SPACES

WHARF INTERFACE

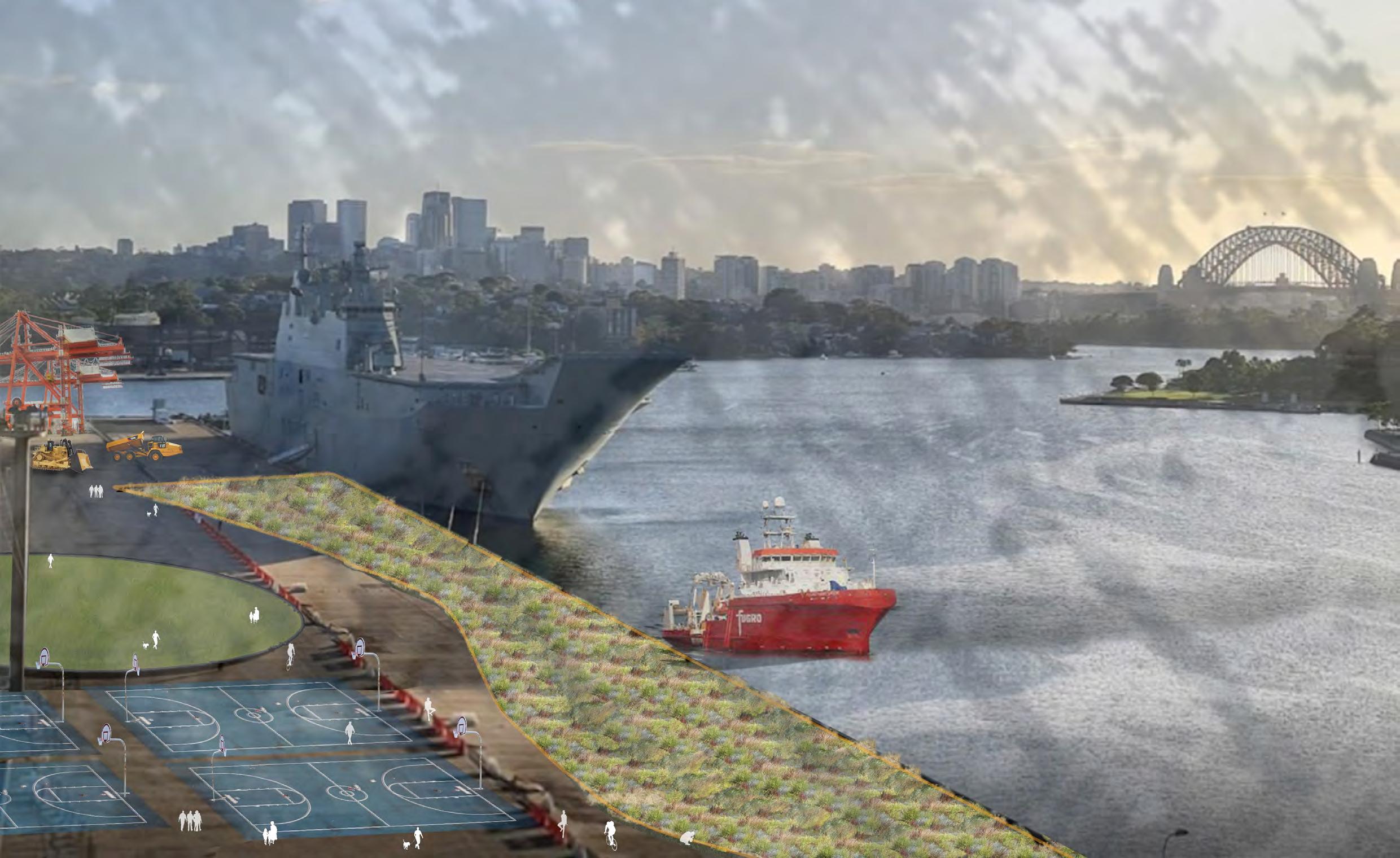

EMBRACE EDGE CONNECTIONS

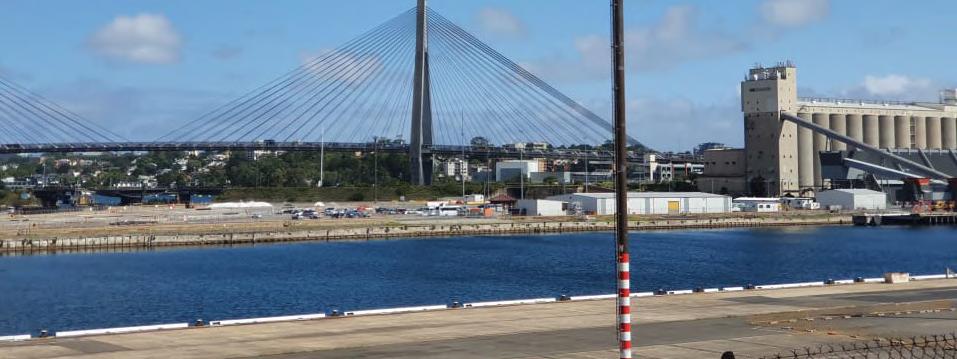

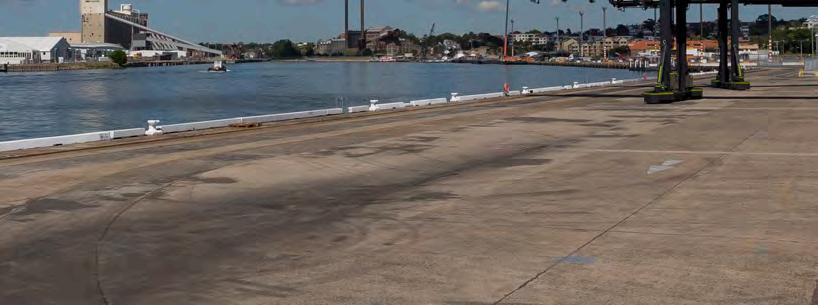

• Retain deep water docking

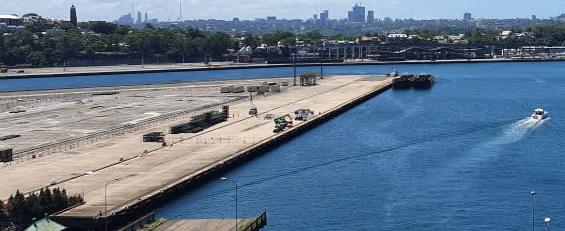

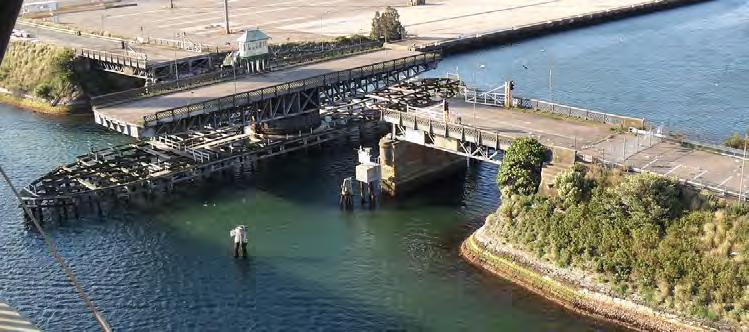

• Some of the last wharfage in Sydney Harbour

• Improves hybrid wetland processes

HERITAGE EDGE FLATNESS OF SITE

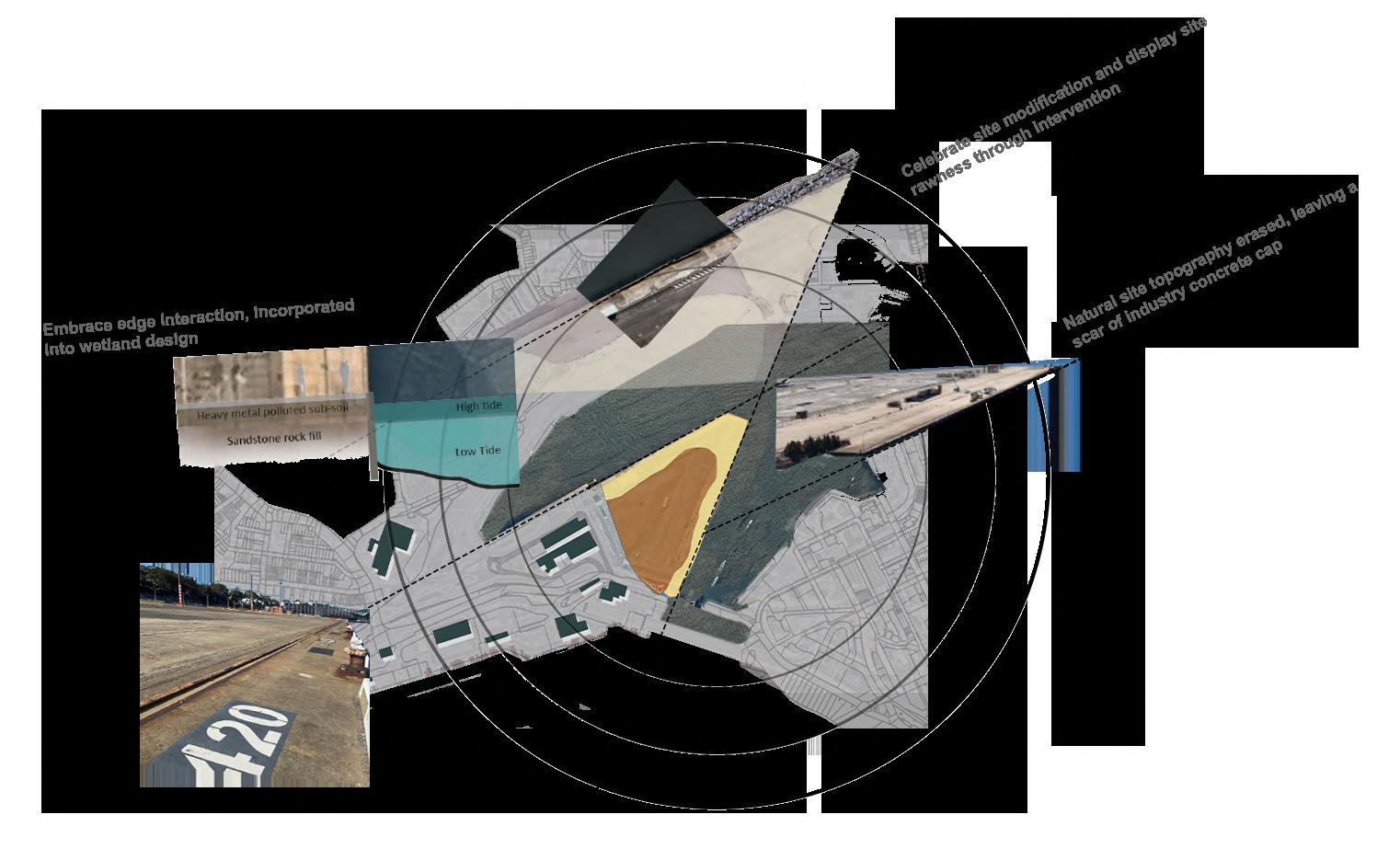

CELEBRATE SITE MODIFICATION

• Maintain marine architecture

• Educational opportunities

• Original headland to support urban precinct

JUXTAPOSITION OF PRE + POST INDUSTRY

• Restore site outlook, follow CPTED for eyes on the street

• Opportunity for cyborg headland park to contrast flatness

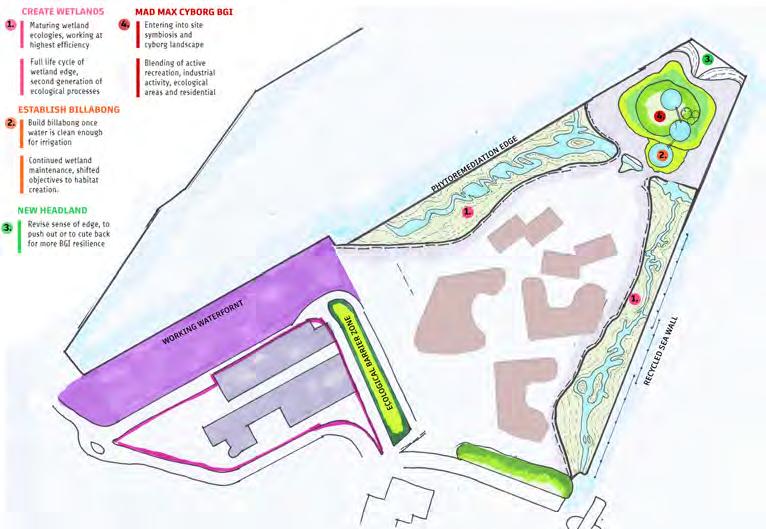

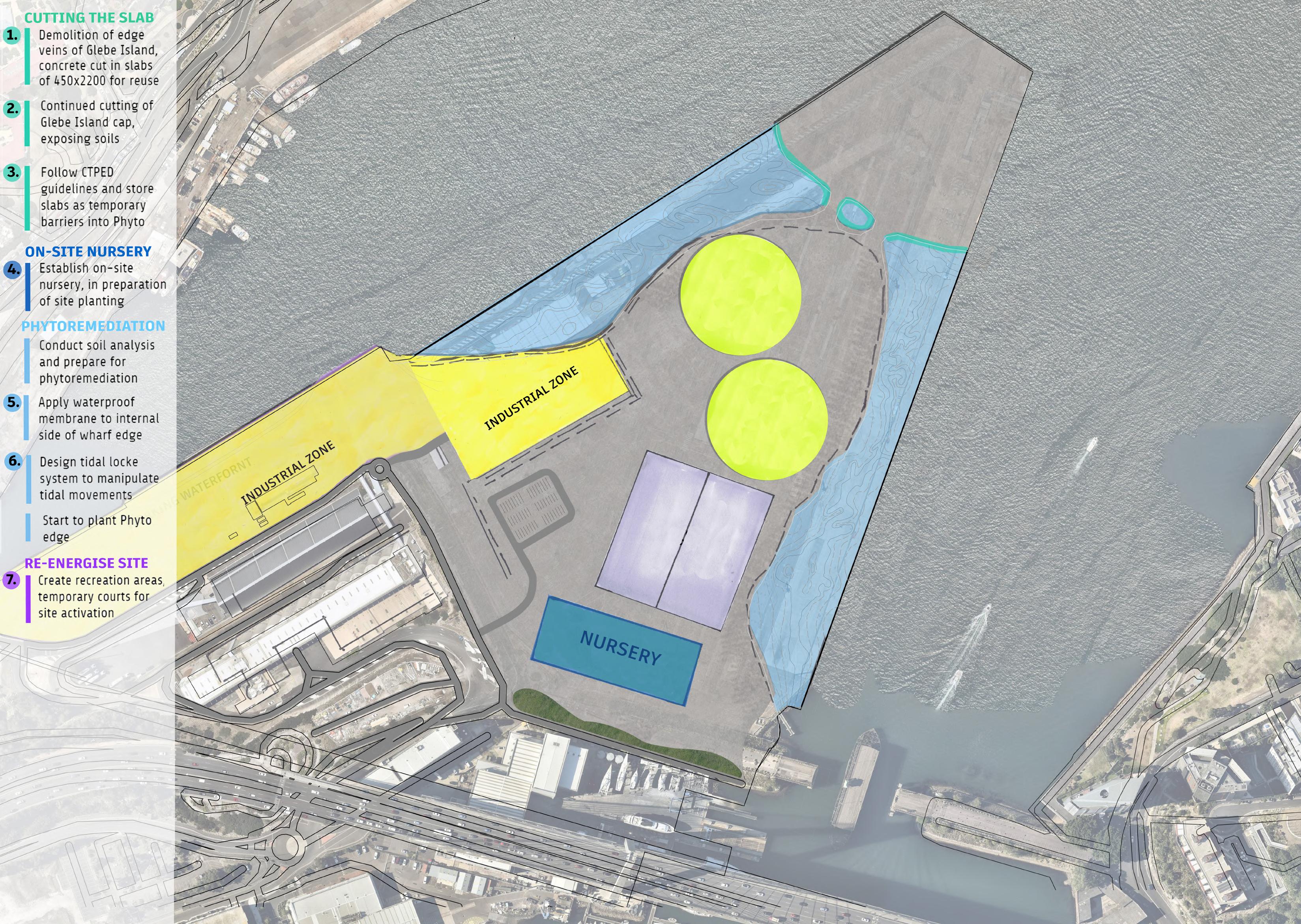

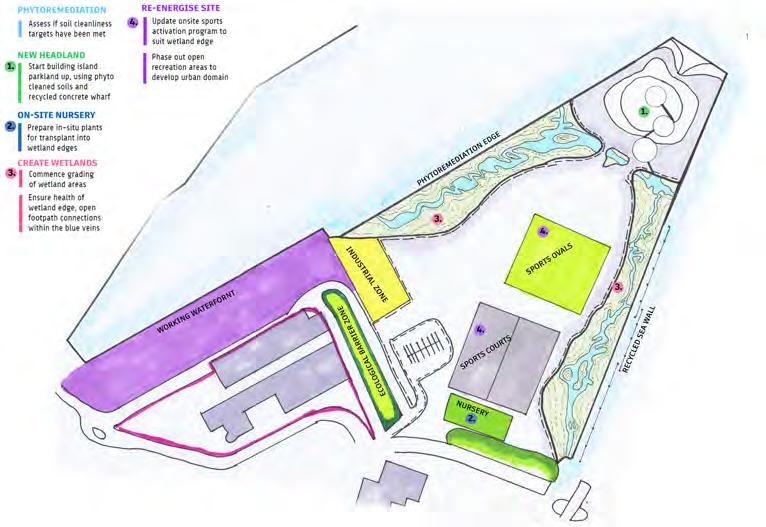

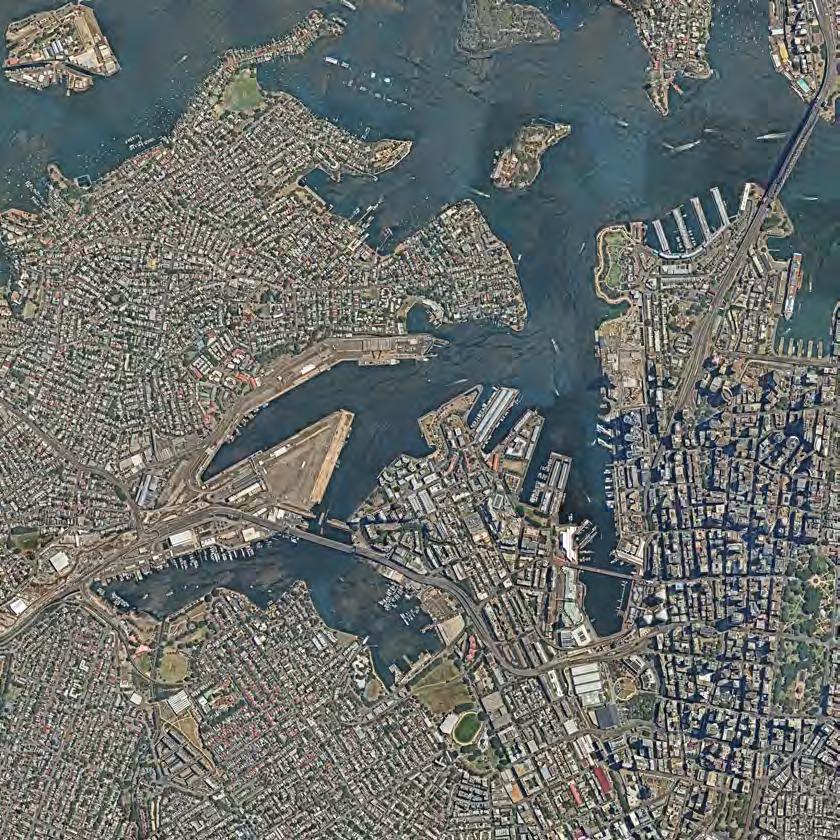

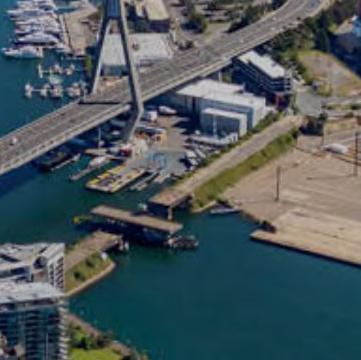

Modify Glebe Island to incorporate resilient blue-green infrastructure corridors on-site

Reconnect and establish habitat areas to disassociate from the ultra-modified industrial landscape

Follow circular design principles + provide educational opportunities for stakeholders to celebrate site elements

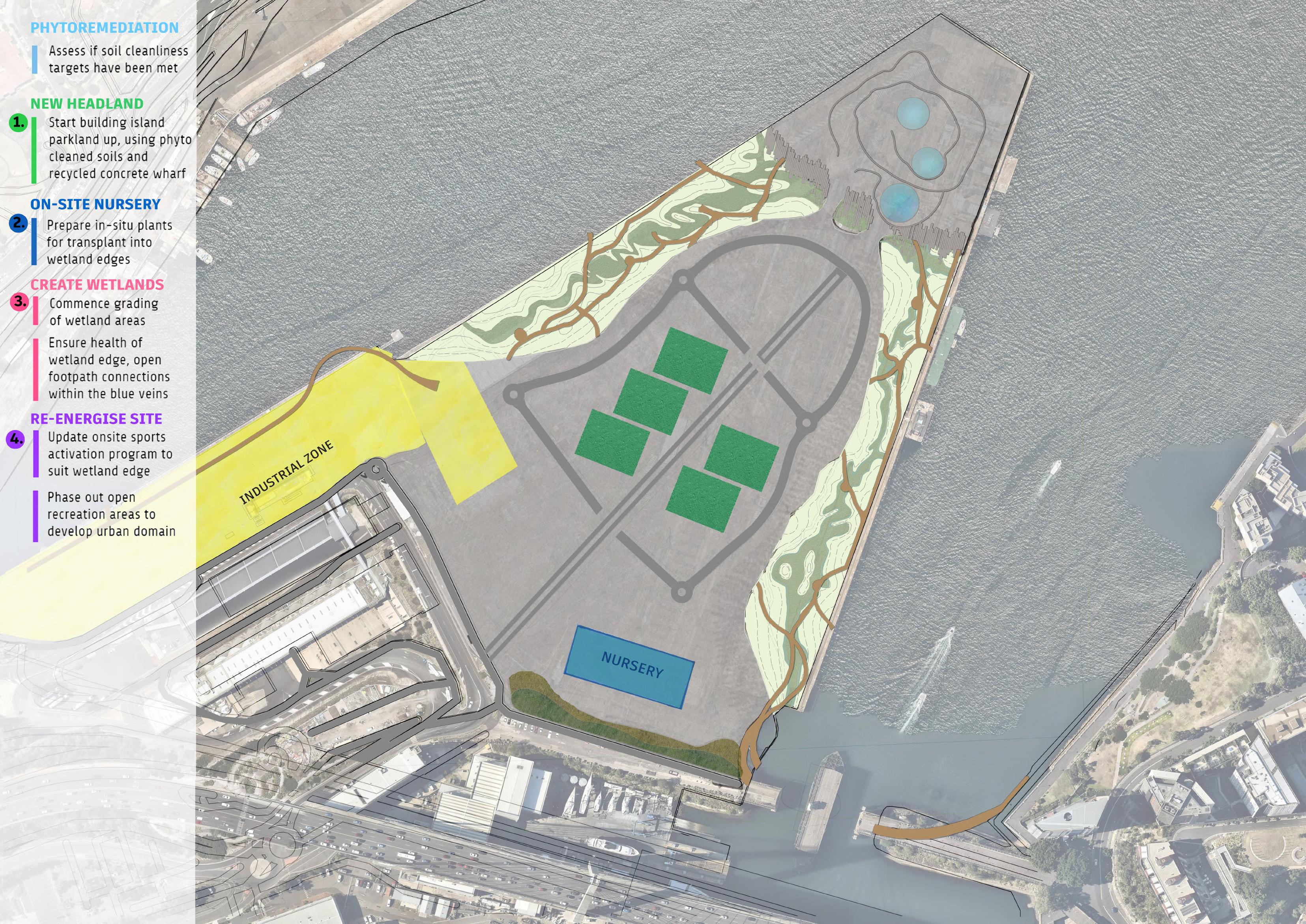

TO RENEW

KEY PHASE OBJECTIVES

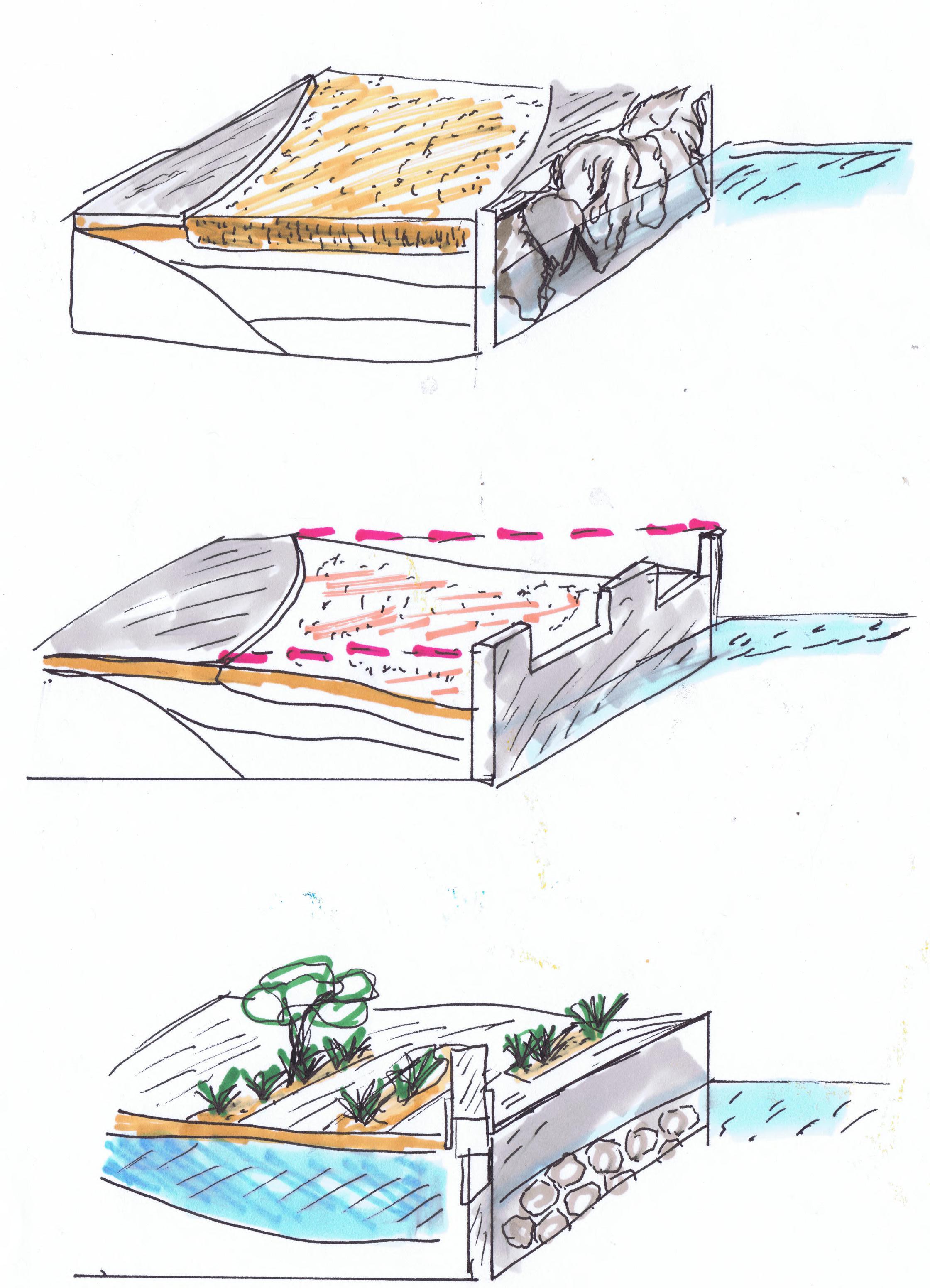

FAILURE

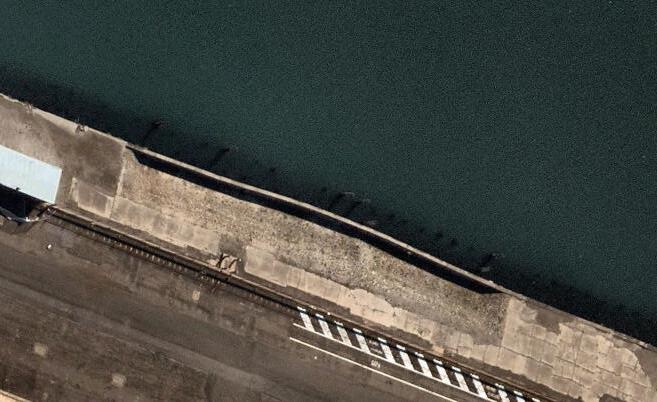

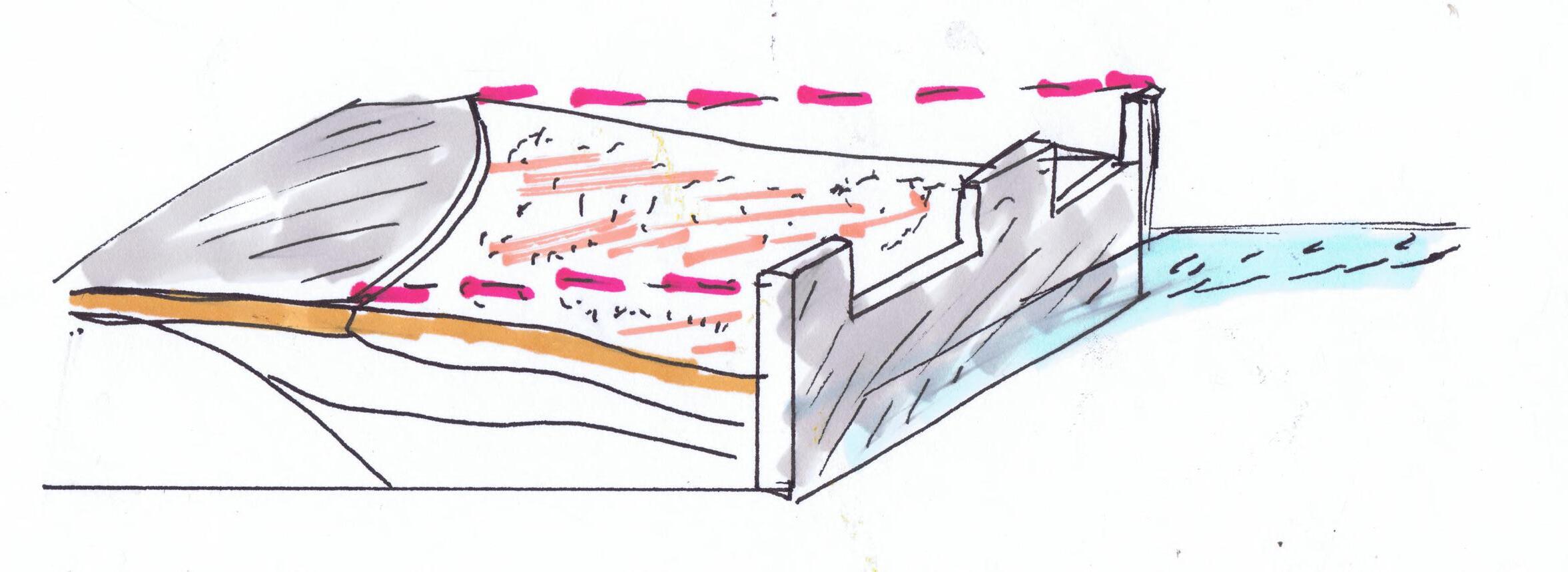

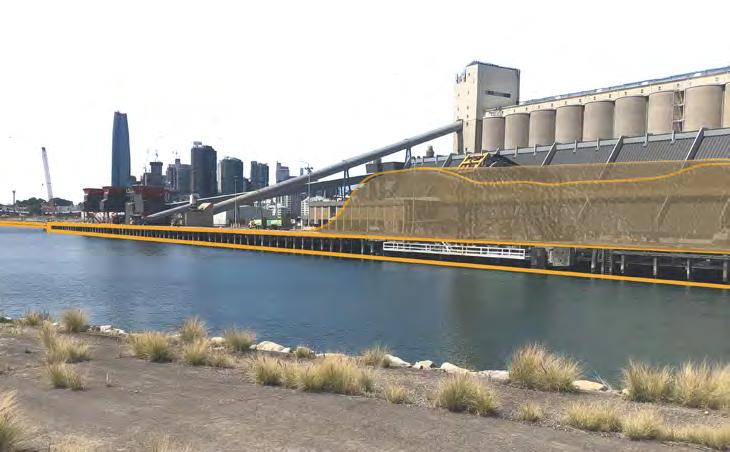

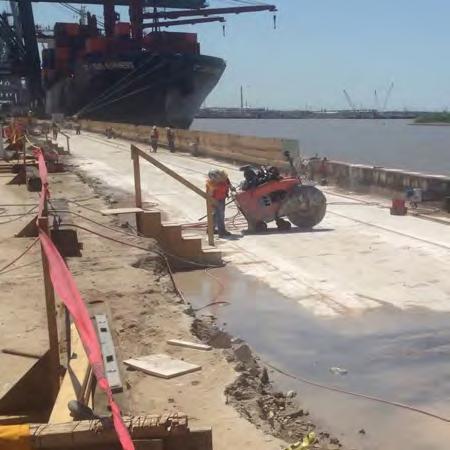

TO CUT DOWN WHARF EDGE

ROADBLOCK: DEEP WHARF EDGE CONTAMINATED SOILS

SOLUTION

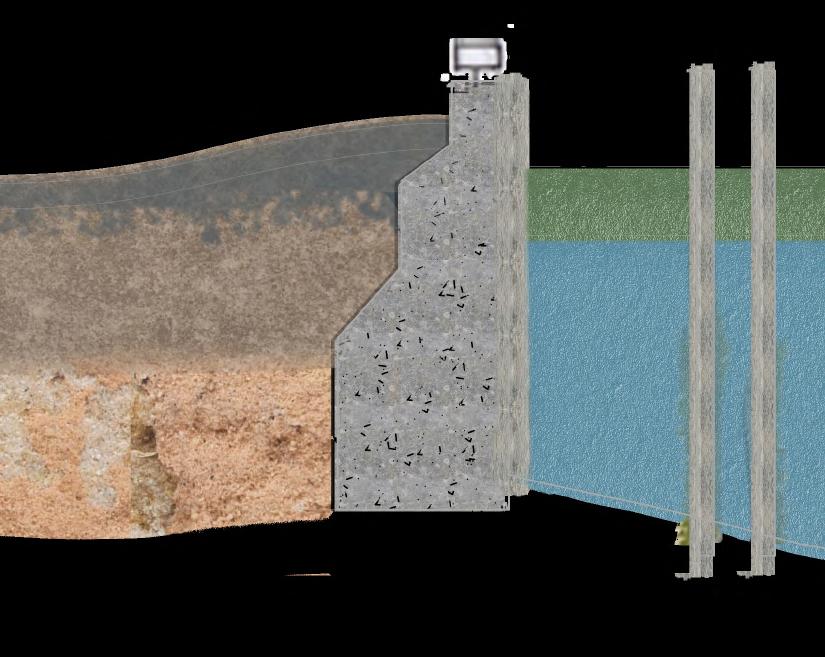

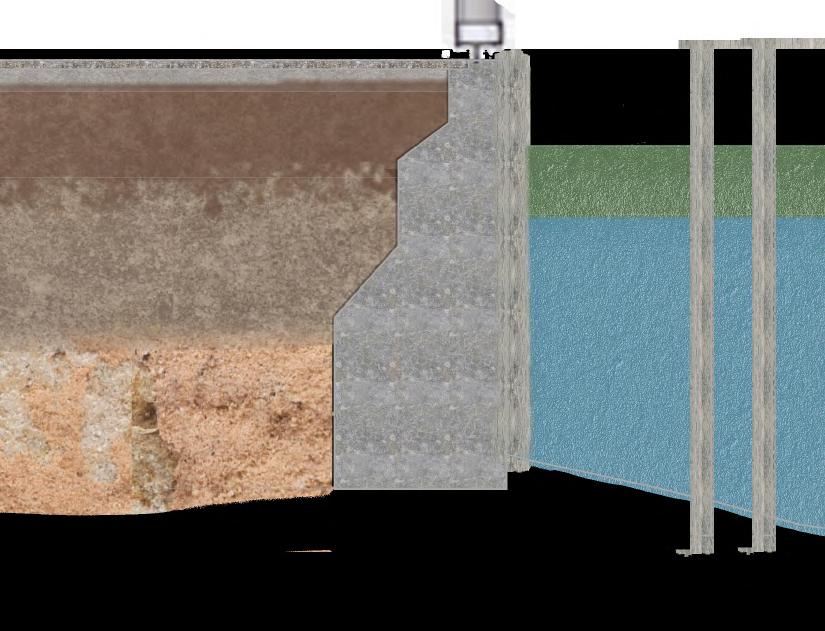

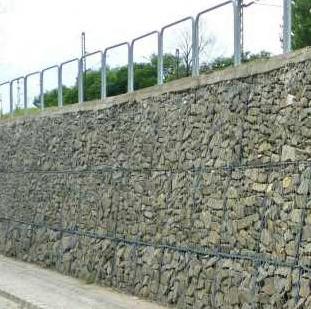

BEVEL INTO GLEBE ISLAND

ROADBLOCK: DEEP WHARF EDGE SOIL LEACHING

RESOLUTION

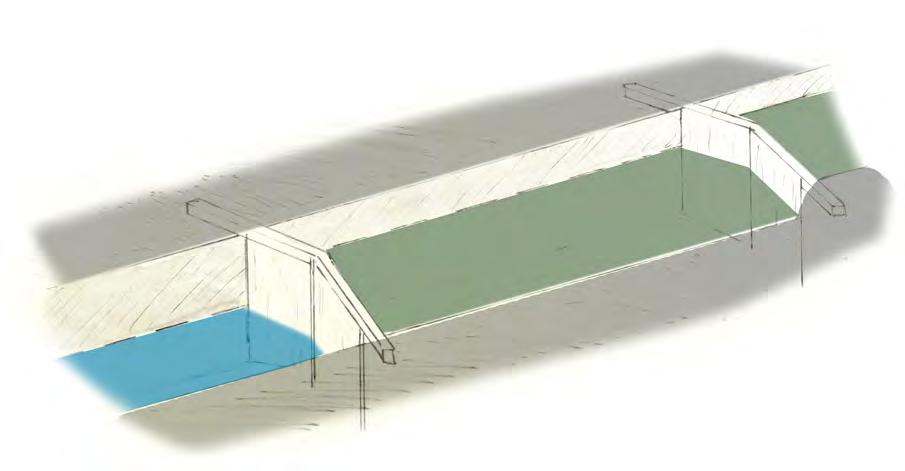

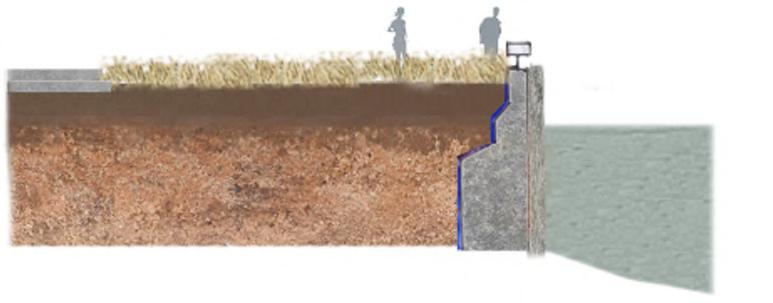

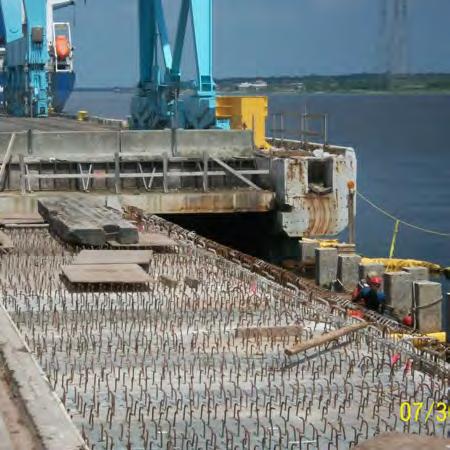

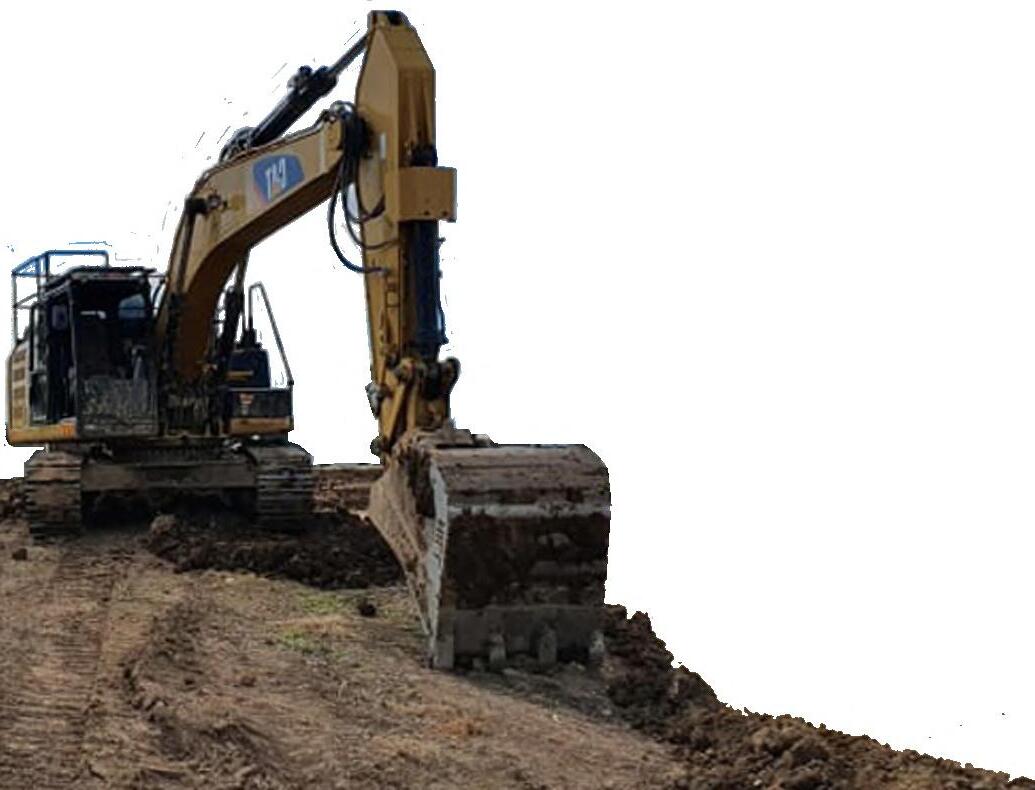

BUILD AGAINST WHARF EDGE

BENEFITS: RETAINED DEEP WHARF MOORINGS MAXIMISING GLEBE ISLAND FOOTPRINT

Imagery sourced from, "Glebe Island — Pyrmont History Group". Pyrmont History Group, 2021 https://aggregatetechnologies.com/concrete-wharf-demolition/ All Graphics sources from the Noun Project, https://thenounproject.com/ 13-10-2021

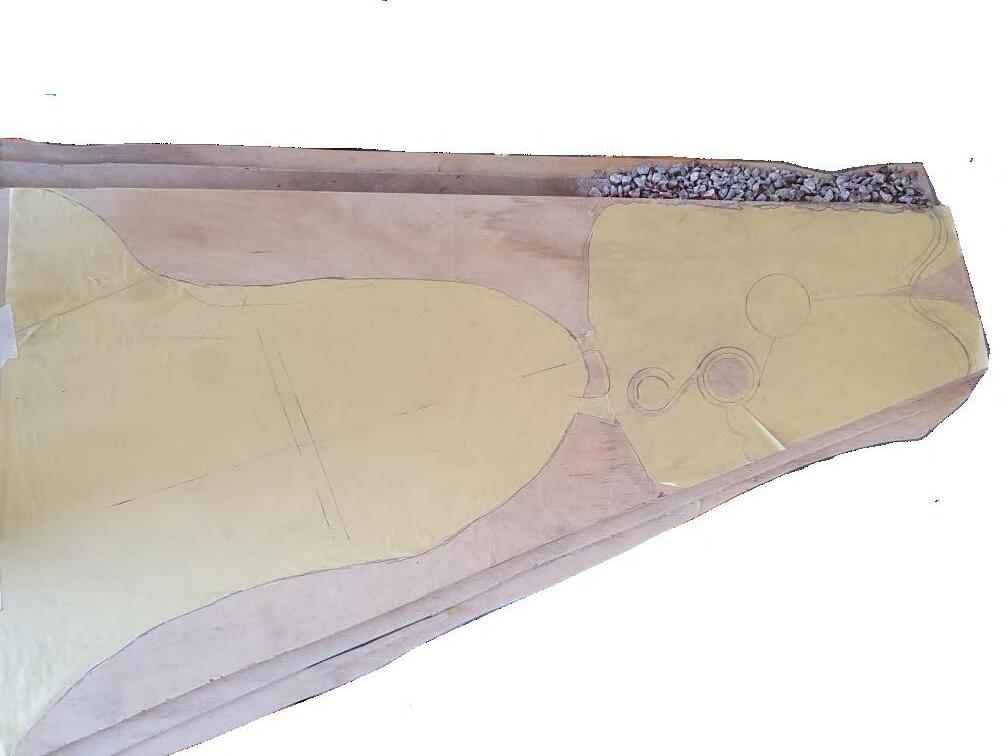

LETS PEEL BACK THE LID...

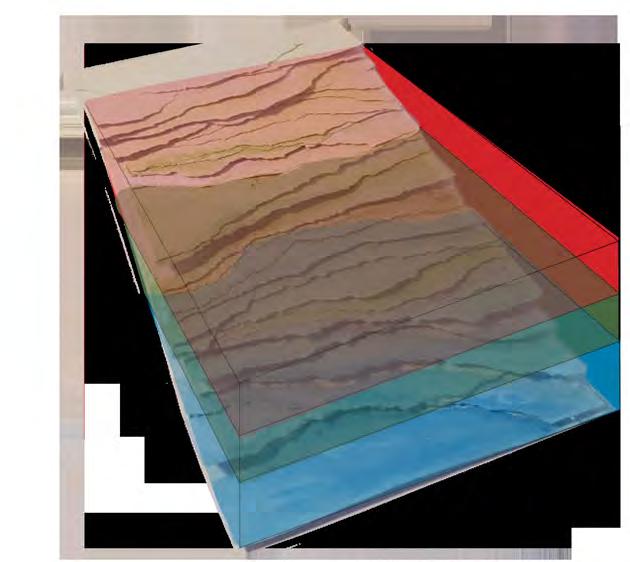

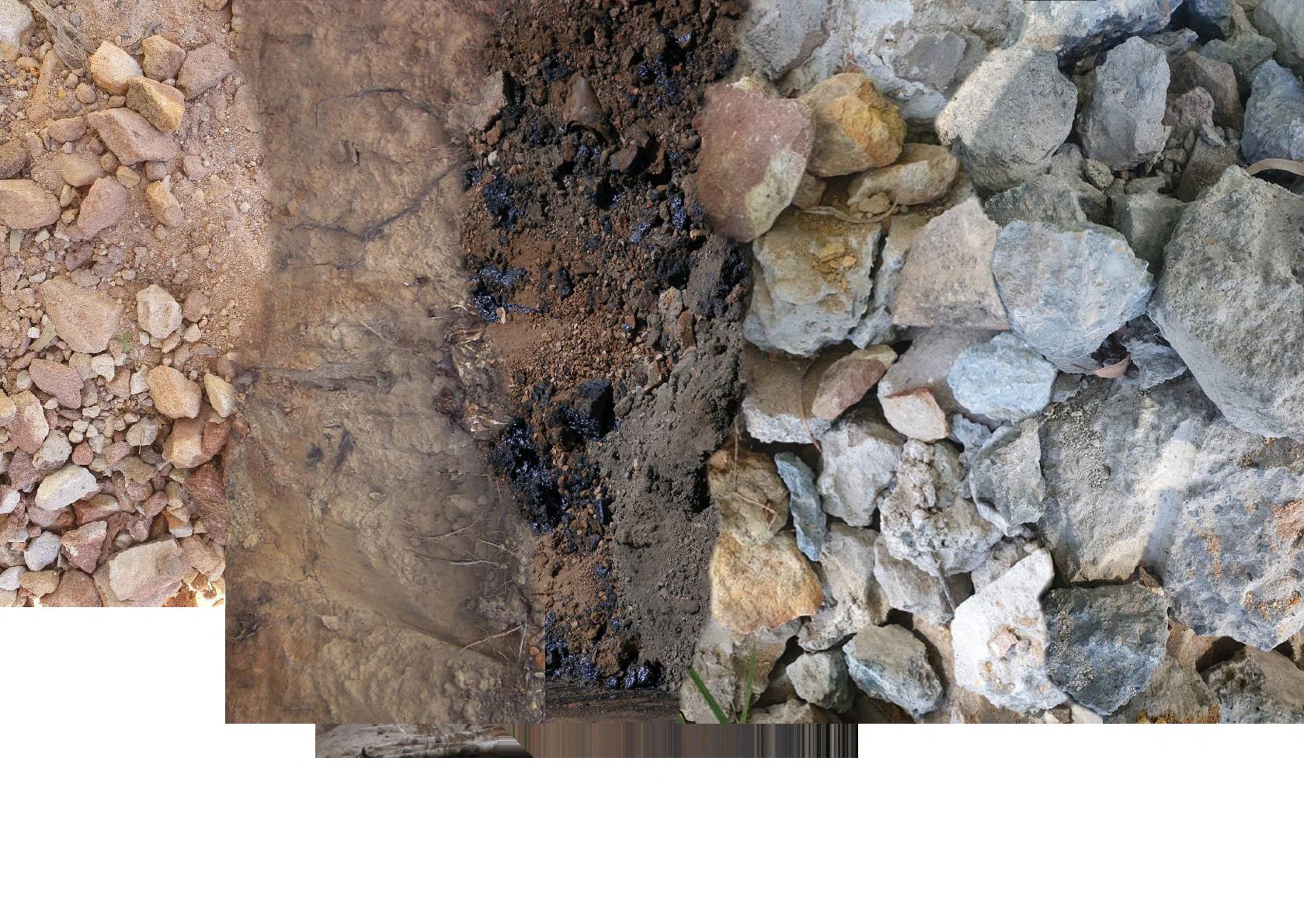

SOIL SAMPLE

SOIL SAMPLE

SOIL SAMPLE

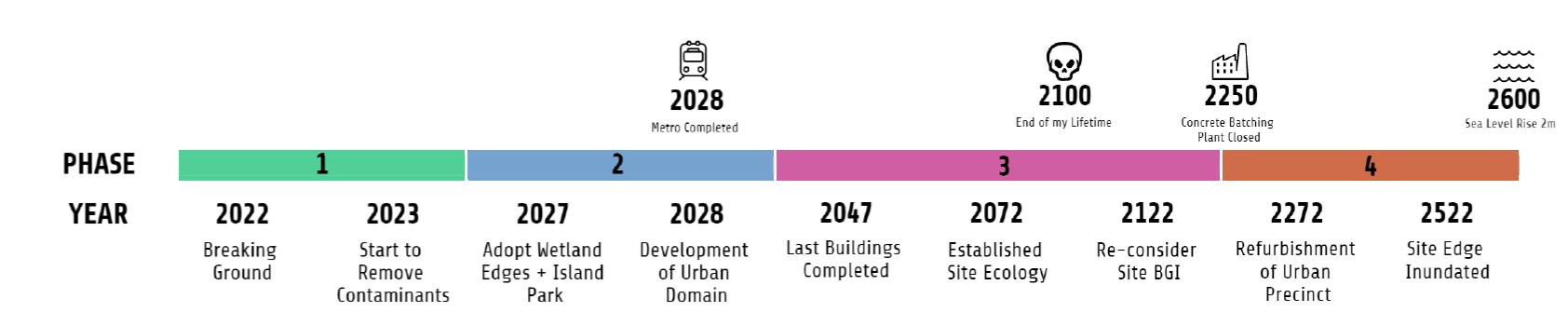

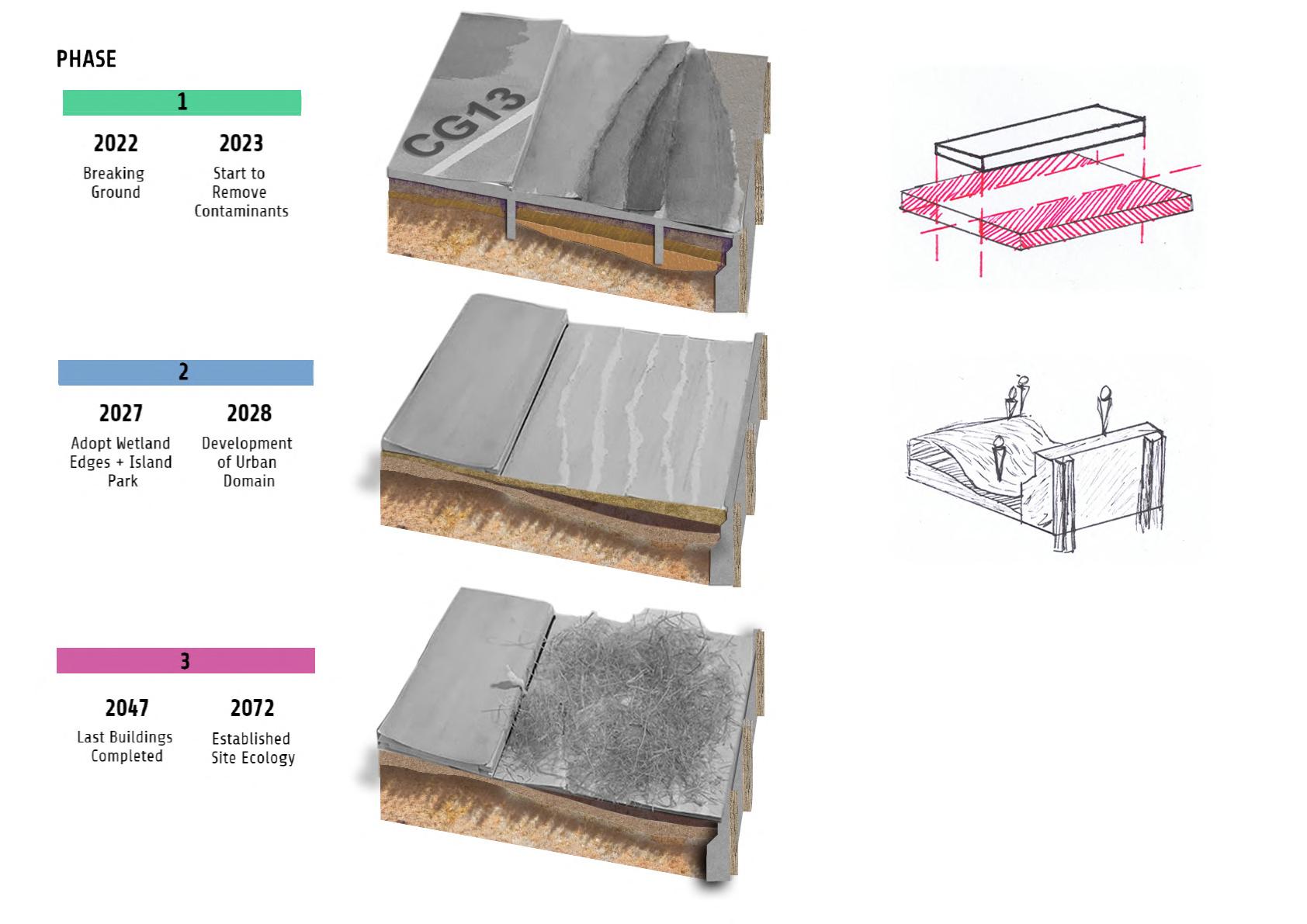

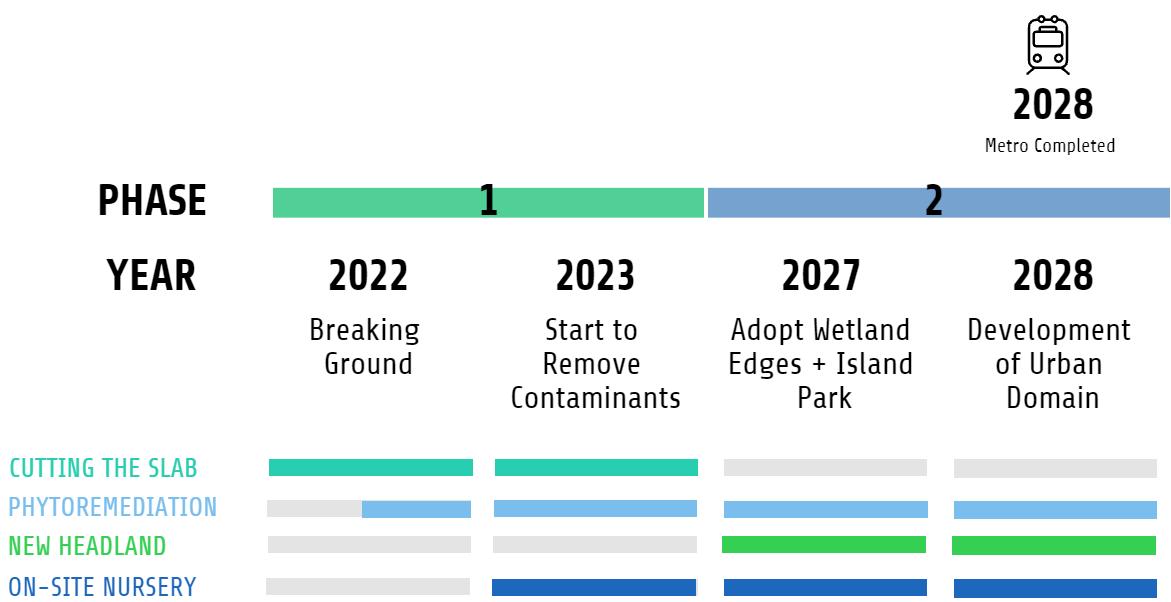

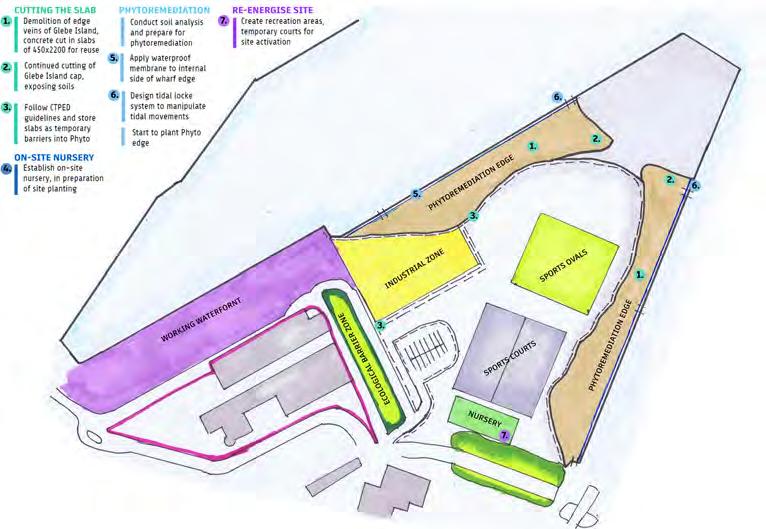

2022 befriend - Phase I

PHASE I

PHASE II

PHASE III

TO CUT TO CLEANSE TO REPAIR

BREAKING GROUND

COMMENCING PHYTOREMEDIATION

CREATE WETLANDS TO MITIGATE RUNOFF

TO CHIP AWAY...

TO CUT DOWN...

TO REMEDIATE...

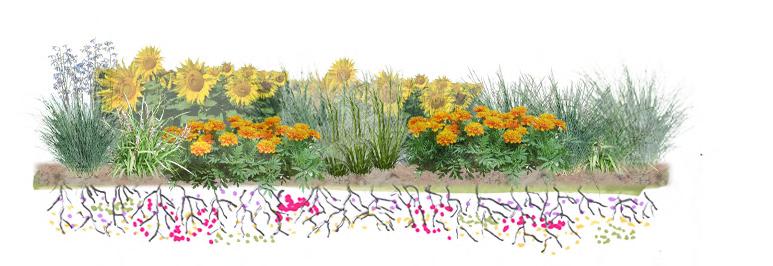

ACCUMULATION IN SHOOTS

SUNFLOWER

• Arsenic

• Cadnium

• Nickel

• PAH

• Zinc

ROOTS EXTRACT TO SHOOTS

HARVEST PLANTS

UPTAKE OF POLLUTANTS

MARIGOLDS PIGS FACE

• Arsenic

• Cadnium

• Nickel

• Copper

• Cadnium

• Zinc

• Copper

• Lead

• Zinc

• Alluminium

• Arsenic

• Lead

• Maganese

• Zinc

DESTROY PLANT BIOMASS

PHYTOREMEDIATION TO EXTRACT 85% OF HEAVY METAL CONTAMINANTS

PHYTOREMEDIATION PROCESS IN ACTION

DESIGN CIRCULARITY - CYBORG HEADLAND

STAKEHOLDER INTERACTION - CIRCULARITY

ARTIFICIAL TIDAL INUNDATION LEVELS - BGI HYBRID

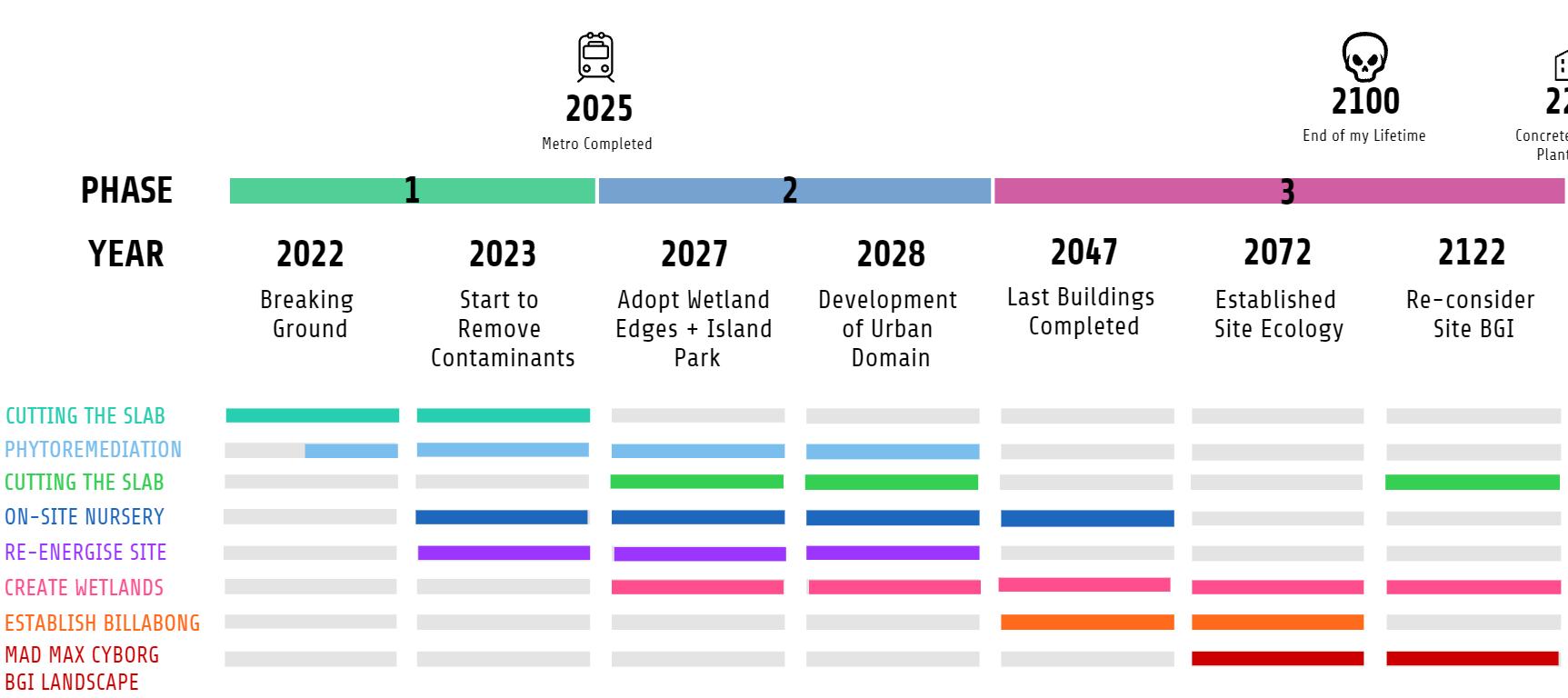

2026

END OF PHASE I WORKS

2027 mend - Phase II

PHASE

I PHASE III

TO MITIGATE TO CONNECT TO EDUCATE

IMPROVING CLIMATE RESILIENCE

BRING PEOPLE BACK TO THE EDGE

CREATE CYBORG BGI TO TEACH

TO MITIGATE

INCORPORATING BGI INTO PUBLIC DOMAIN

• Bringing BGI into the public domain follows COP26 goals

• Improves site resilience to climate change and sea level rise

• Creates opportunity for Glebe Island to set the precedence for brownfield renewal

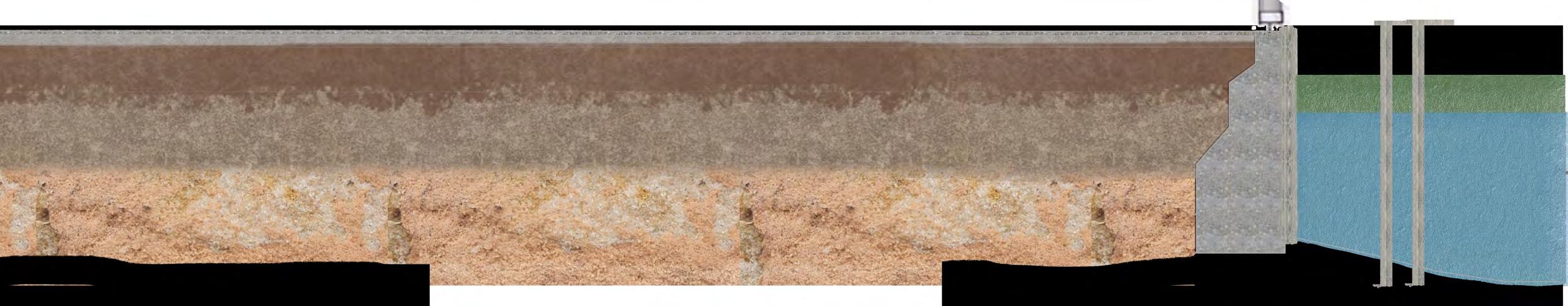

UNCUT EDGE

OPEN UP AND RECONNECTING SITE

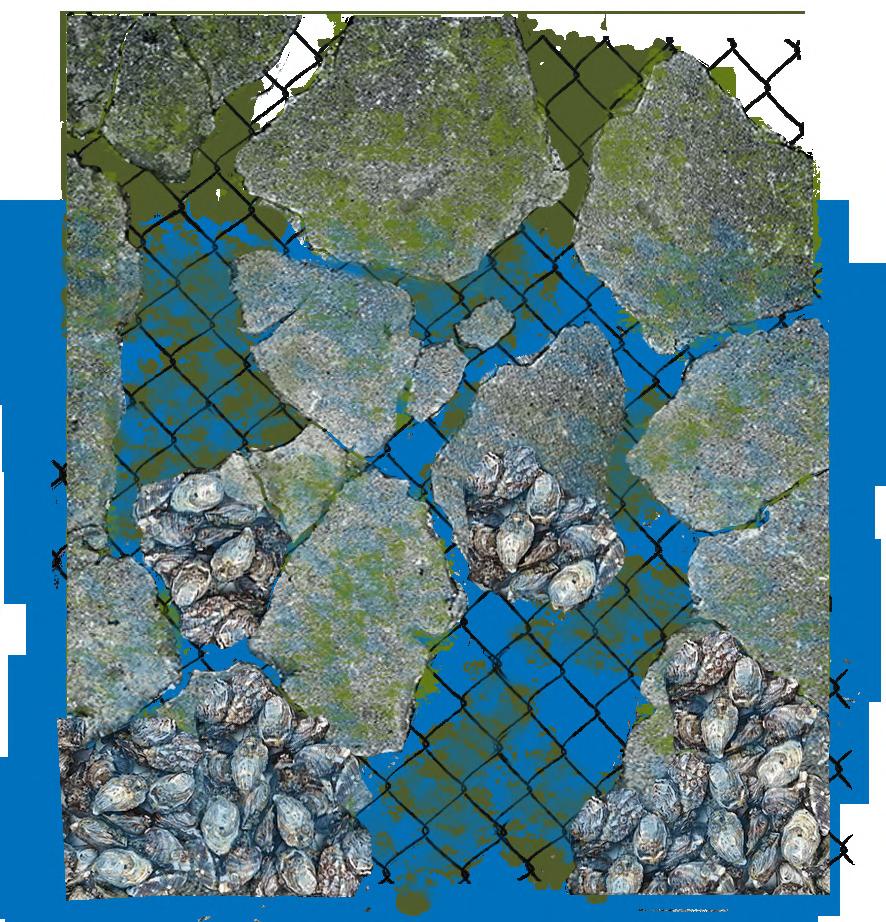

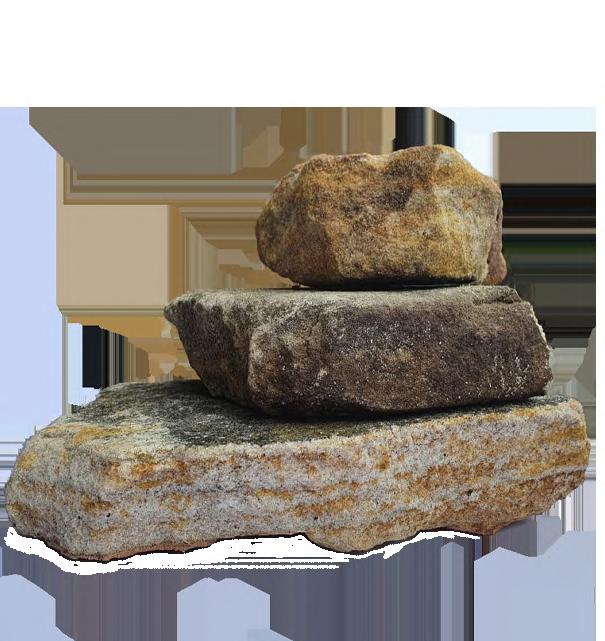

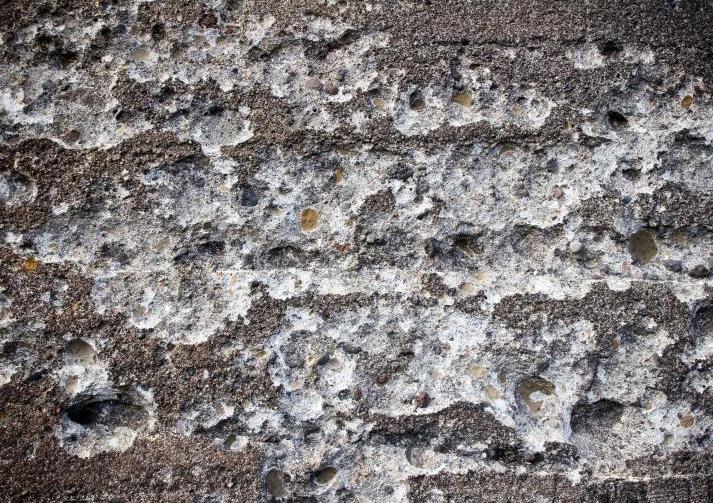

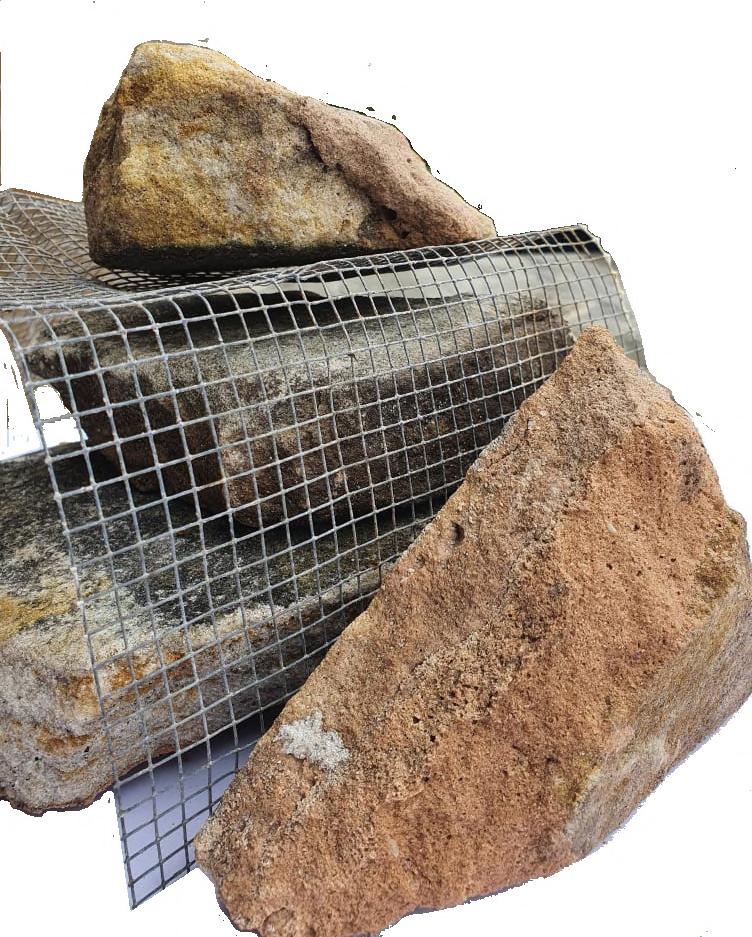

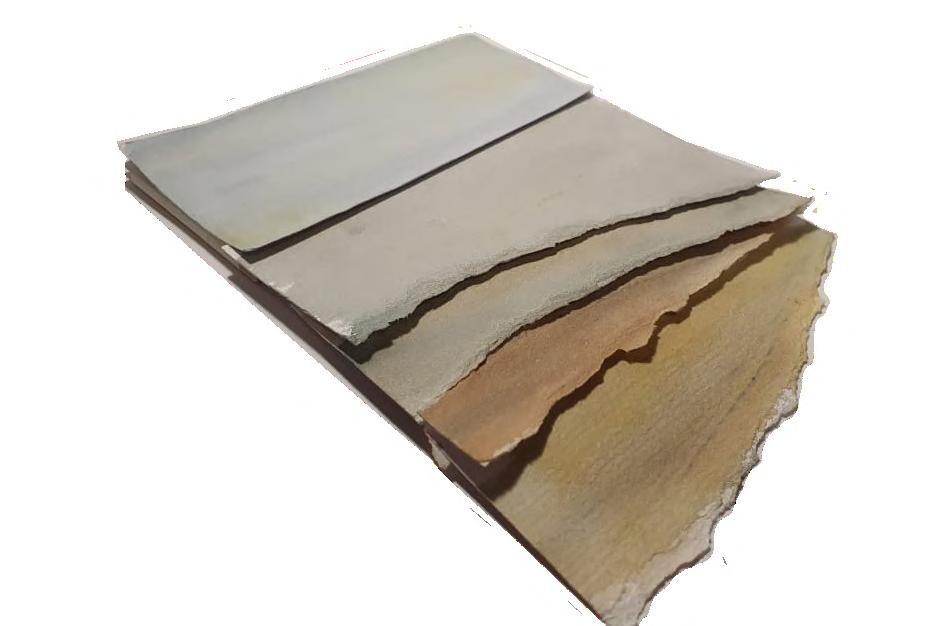

RECYCLED SLABS AS BARRIERS

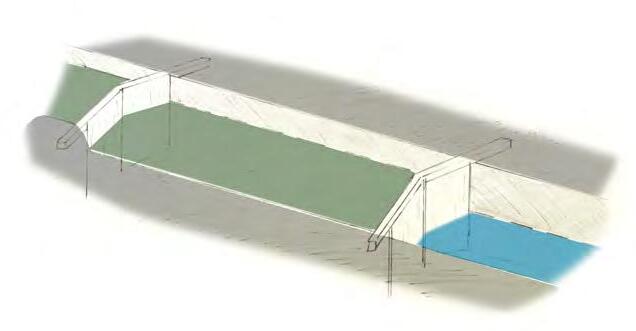

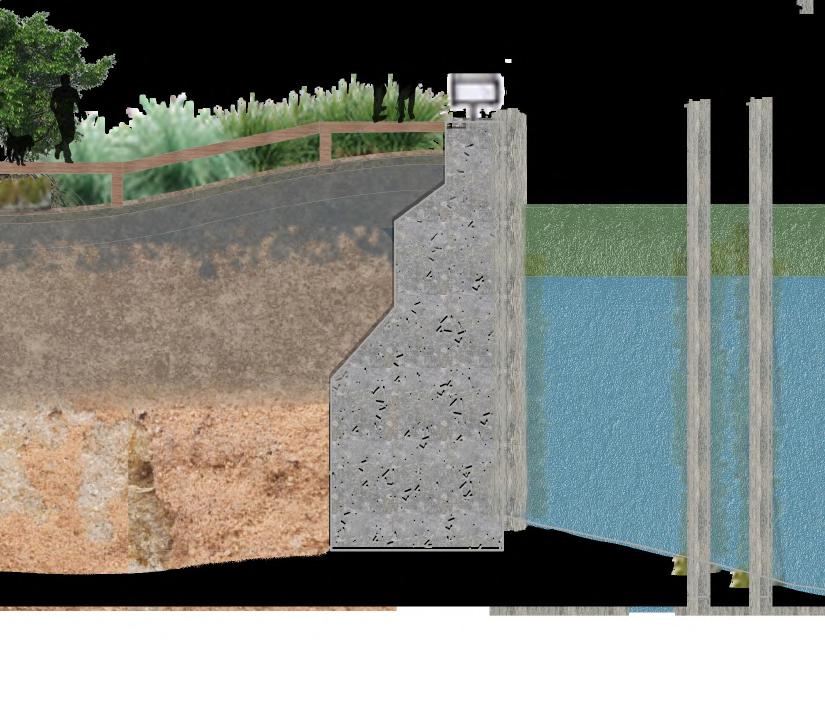

CONSTRUCT SEA WALL

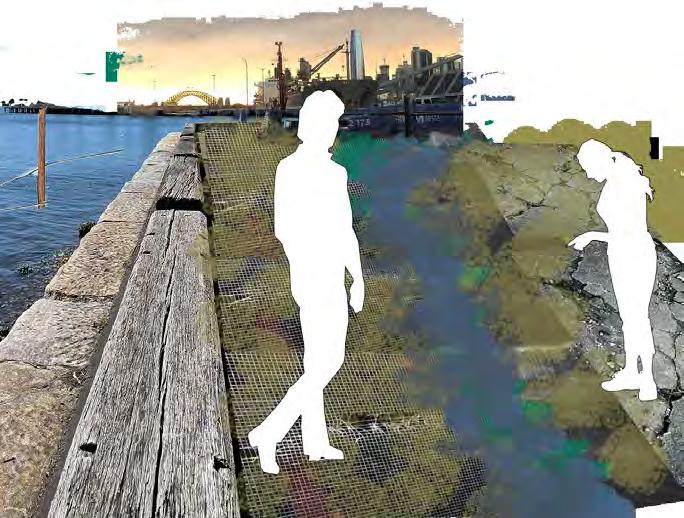

Sea Wall Erected Peel Back Wharf Concrete Cap - Phytoremediation Human Edge Interaction

ESTABLISH INTERTIDAL EDGE

WATERPROOF MEMBRANE ADDED TO MANAGE LEECHING

REUSING SITE MATERIALS IN CONSTRUCTION

WETLANDS OPENED TO PUBLIC

Regrading Post Phytoremediation - Initial Wetland Planting

MATURE GROWTH

WORLD CLASS FORESHORE WALKWAYS OPENED

MARITIME DESIGN CELEBRATED IN MATERIALITY

DESIGN FOR ALL - BILLABONG SWIMMING AREA

Edge of Urban Domain

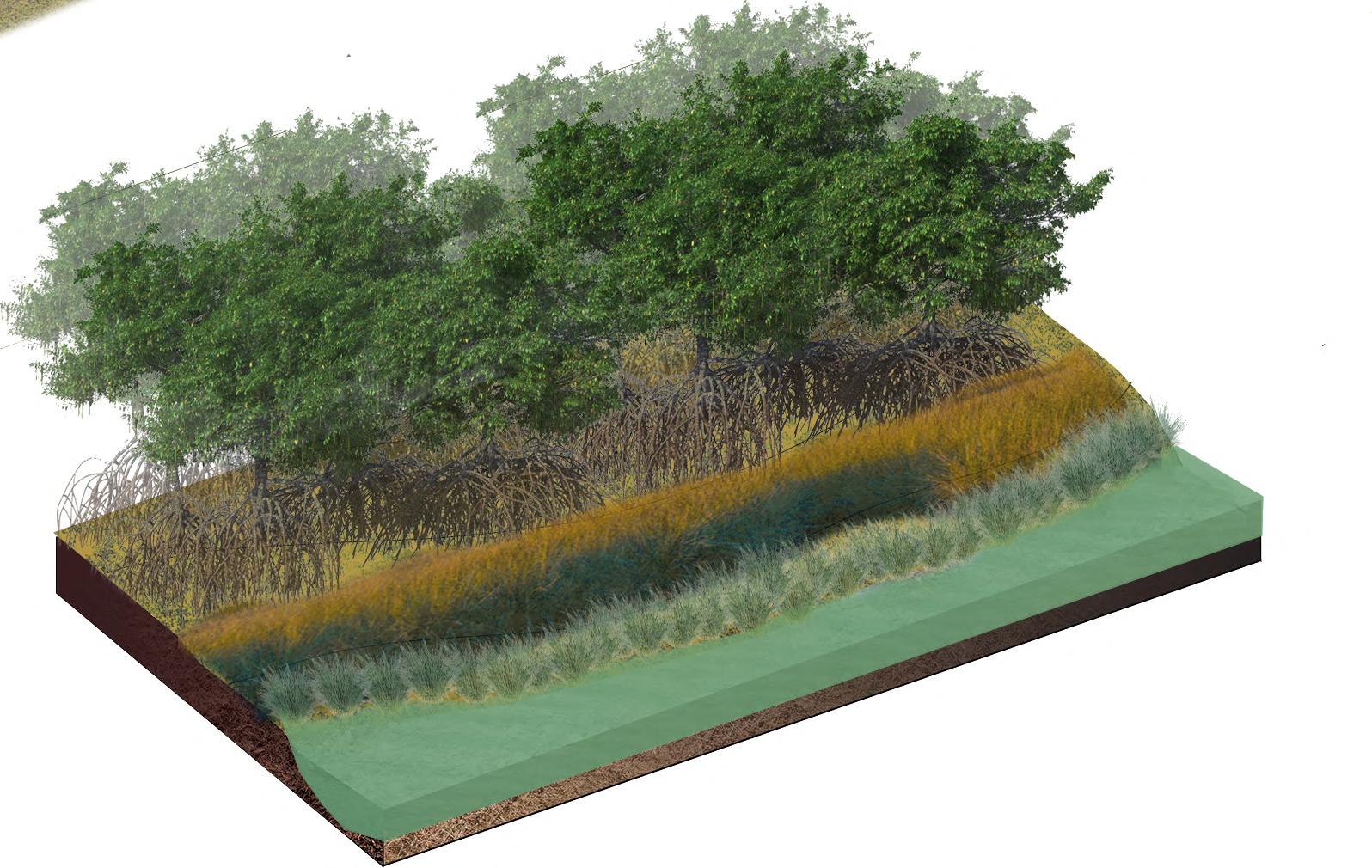

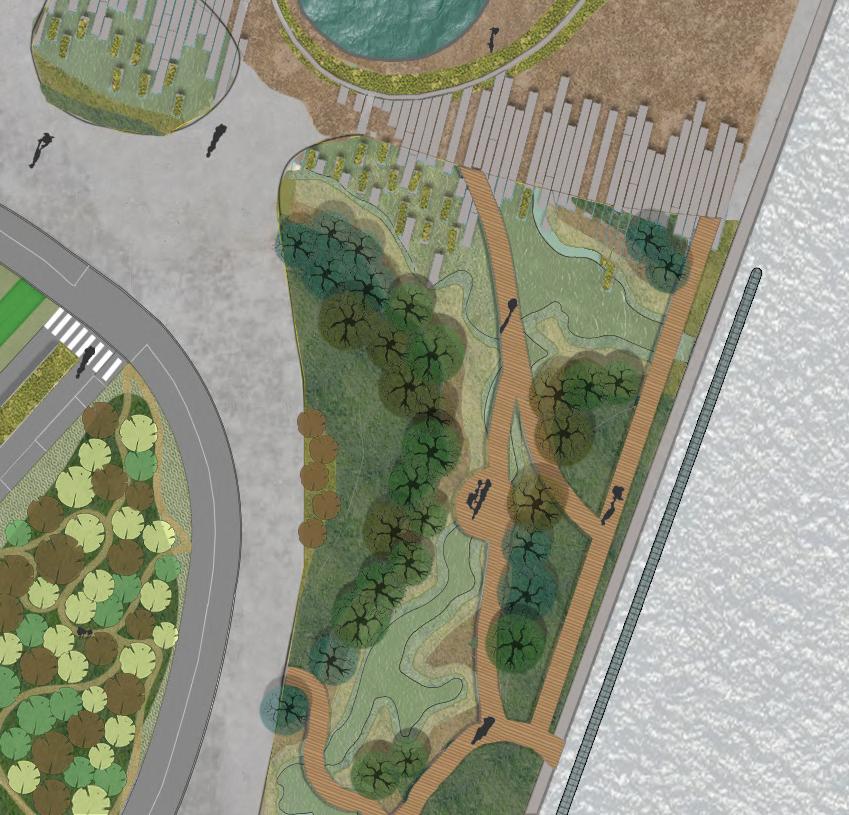

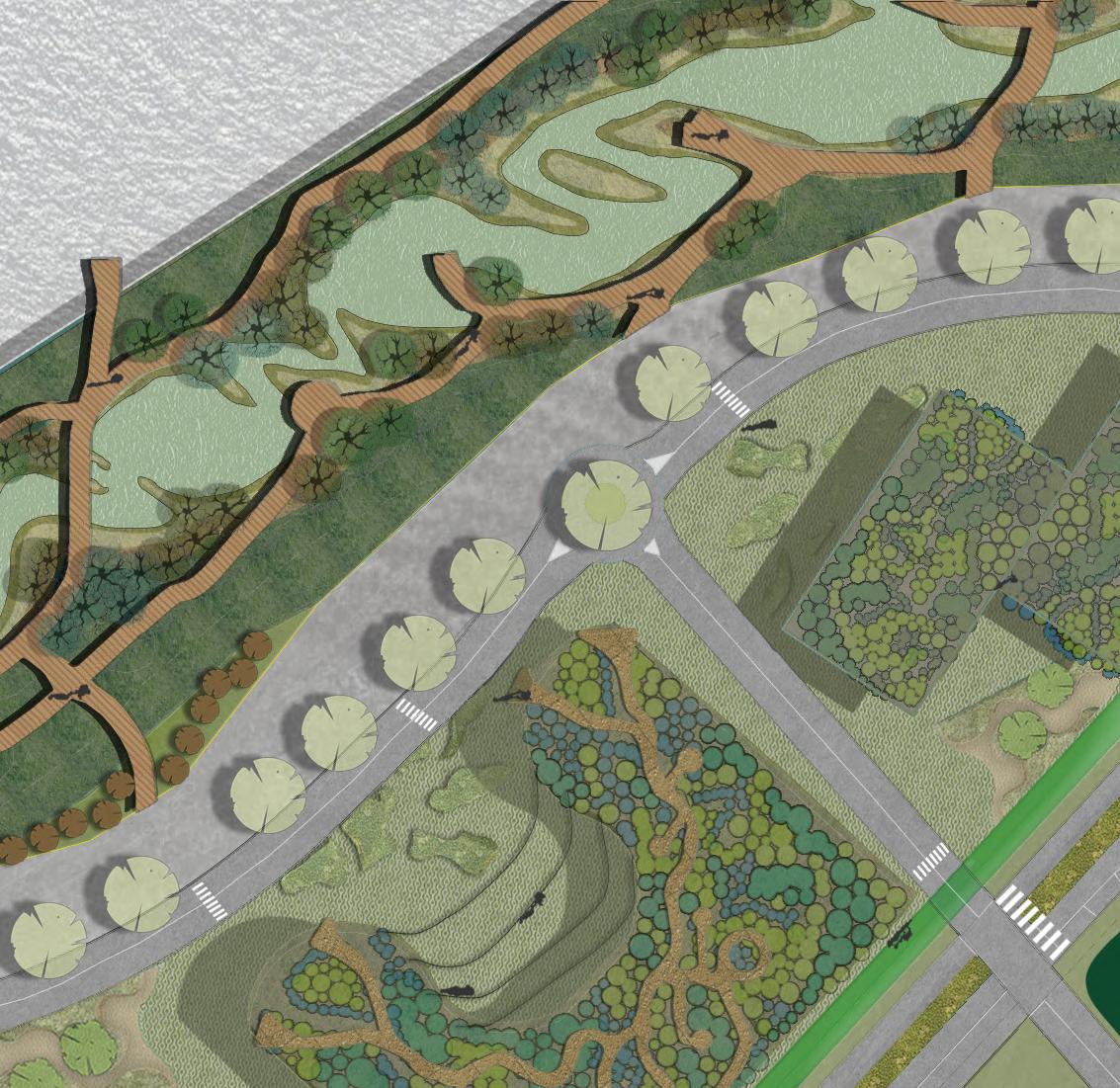

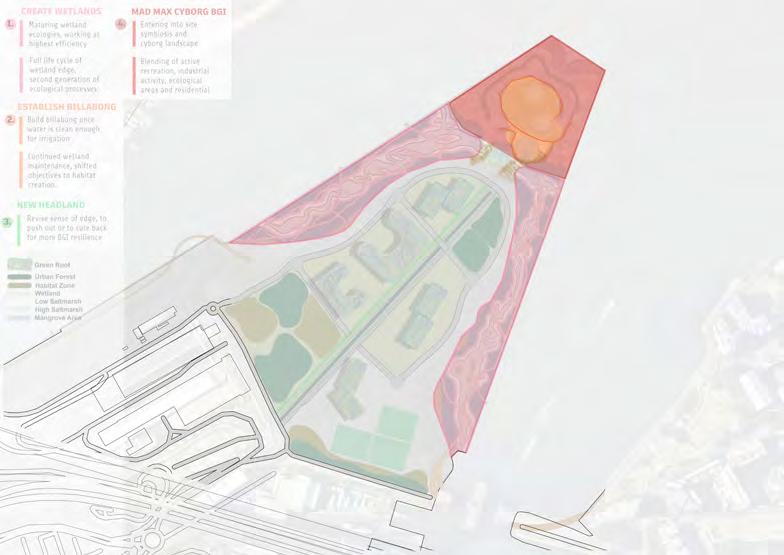

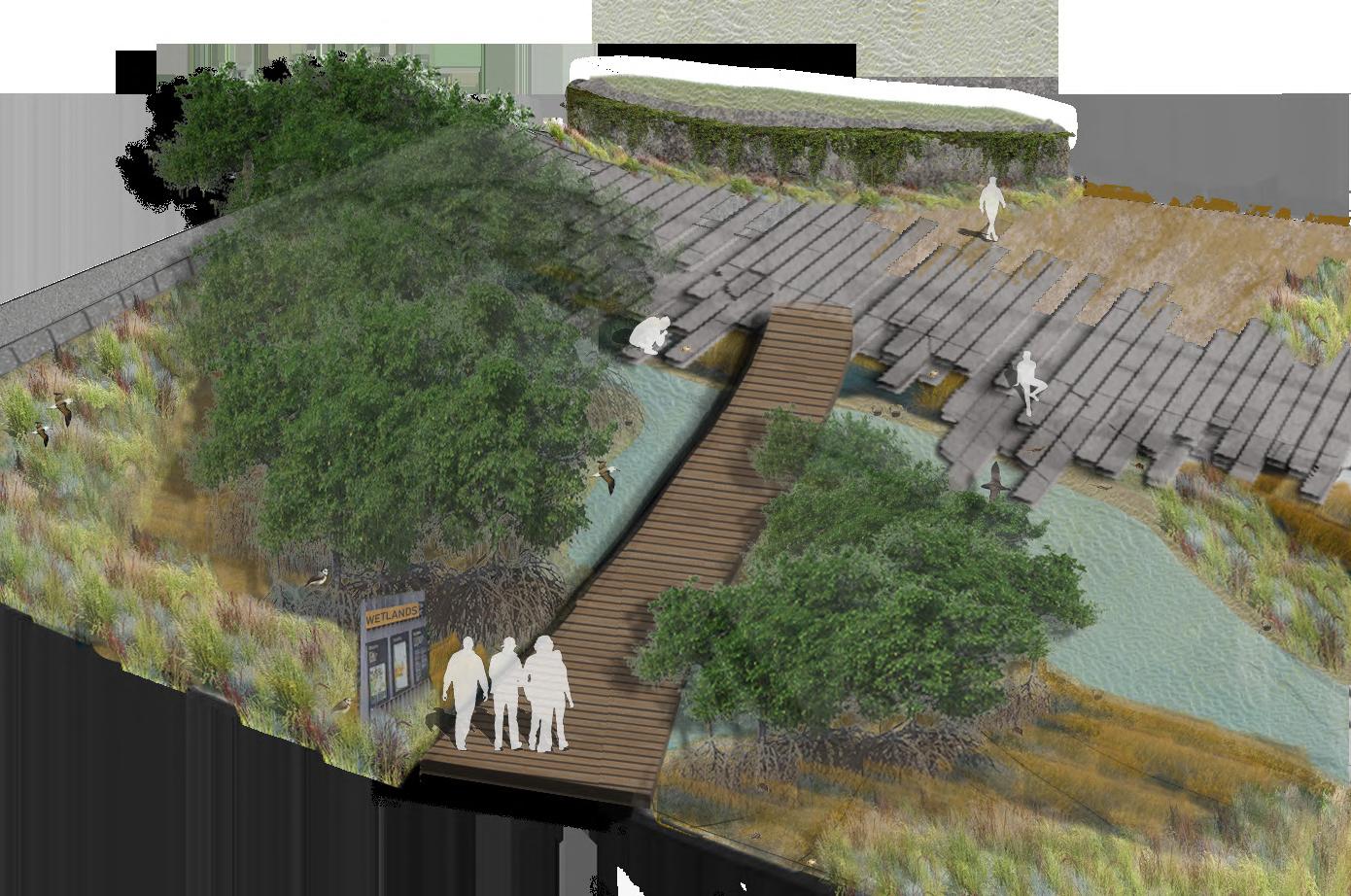

Maturing Hybrid Wetland Landscape - Established Habitat

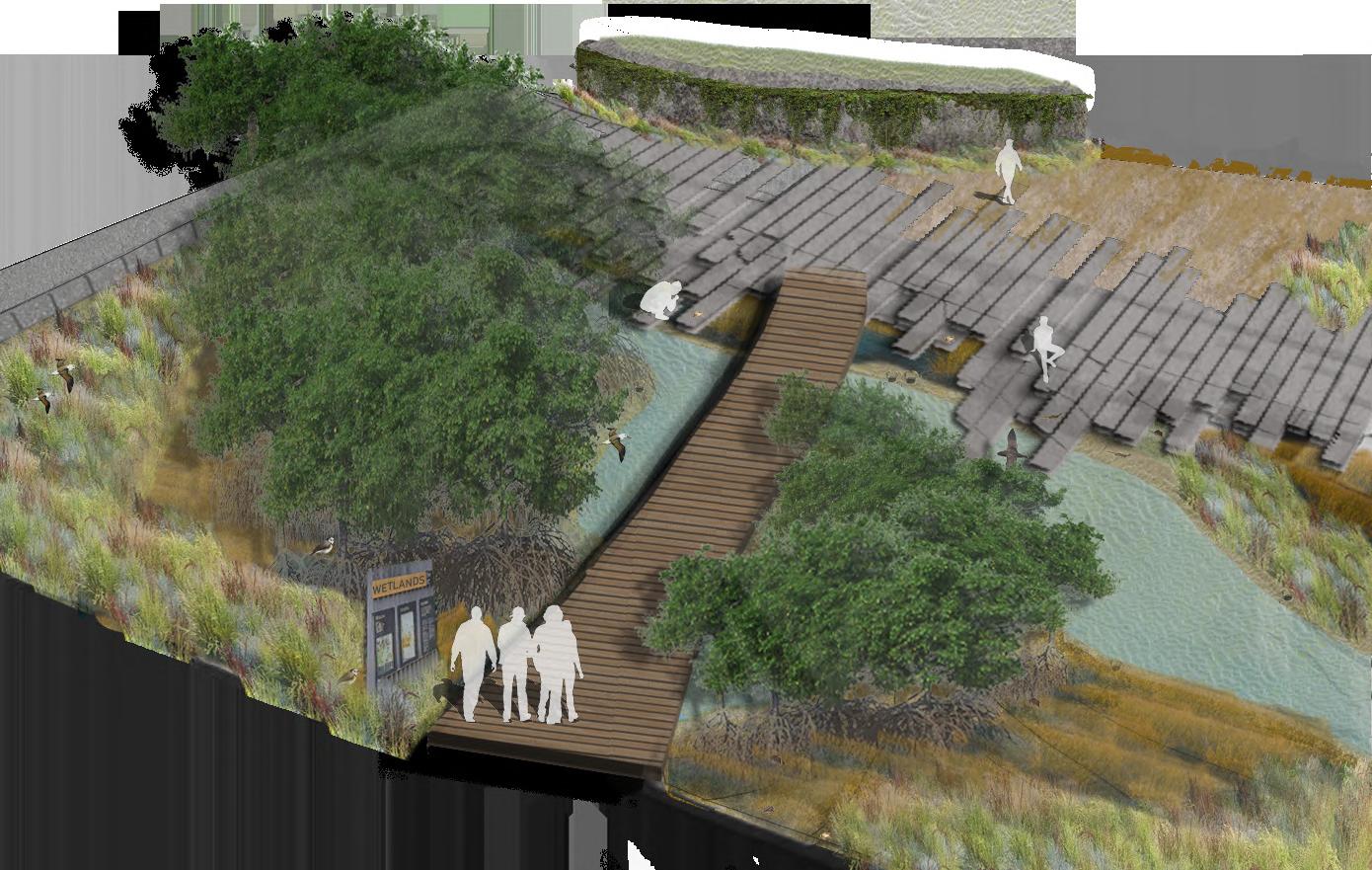

Human Interaction with Wetland - Recreation + Educational

TIDAL INUNDATION LOCK SYSTEM

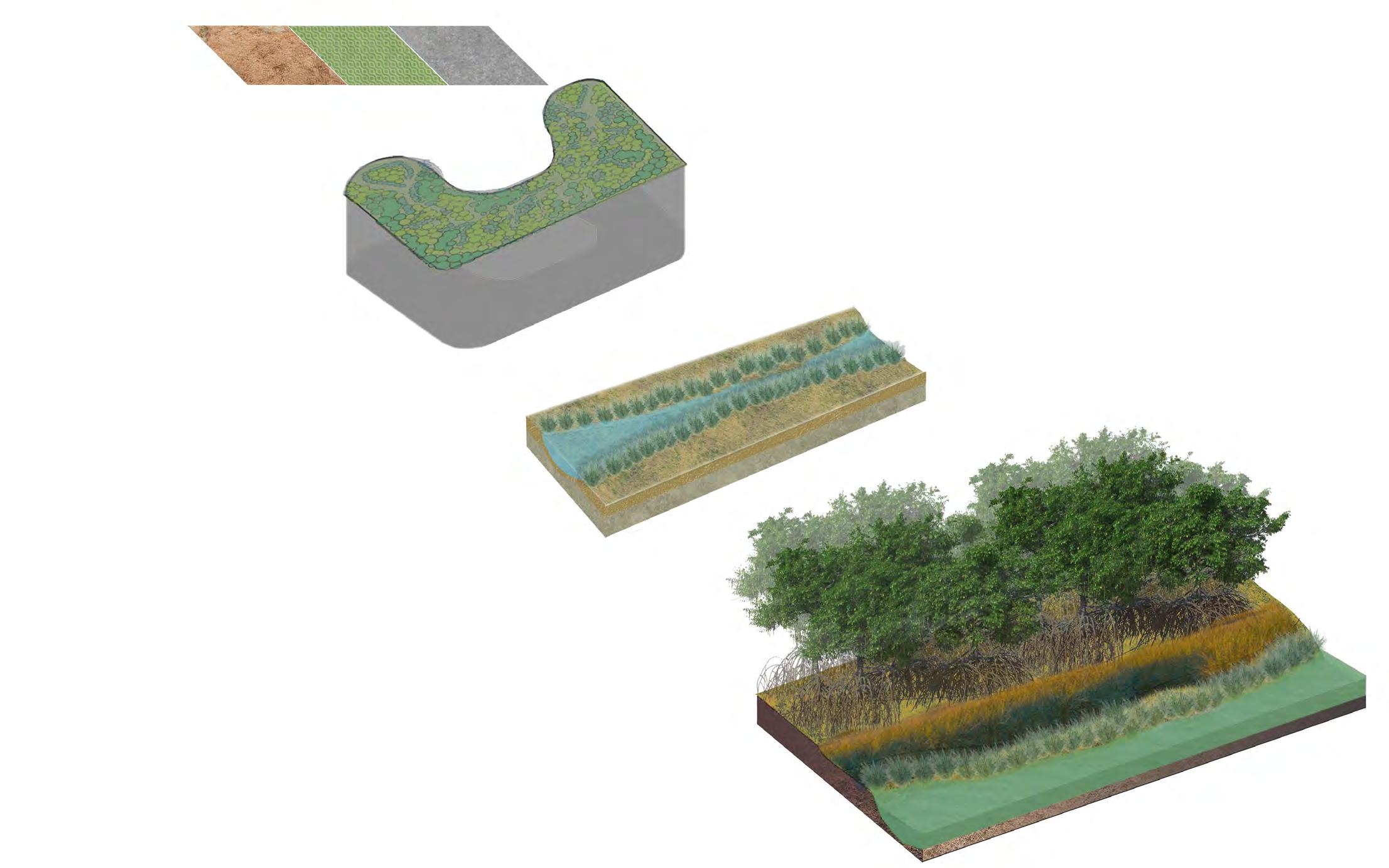

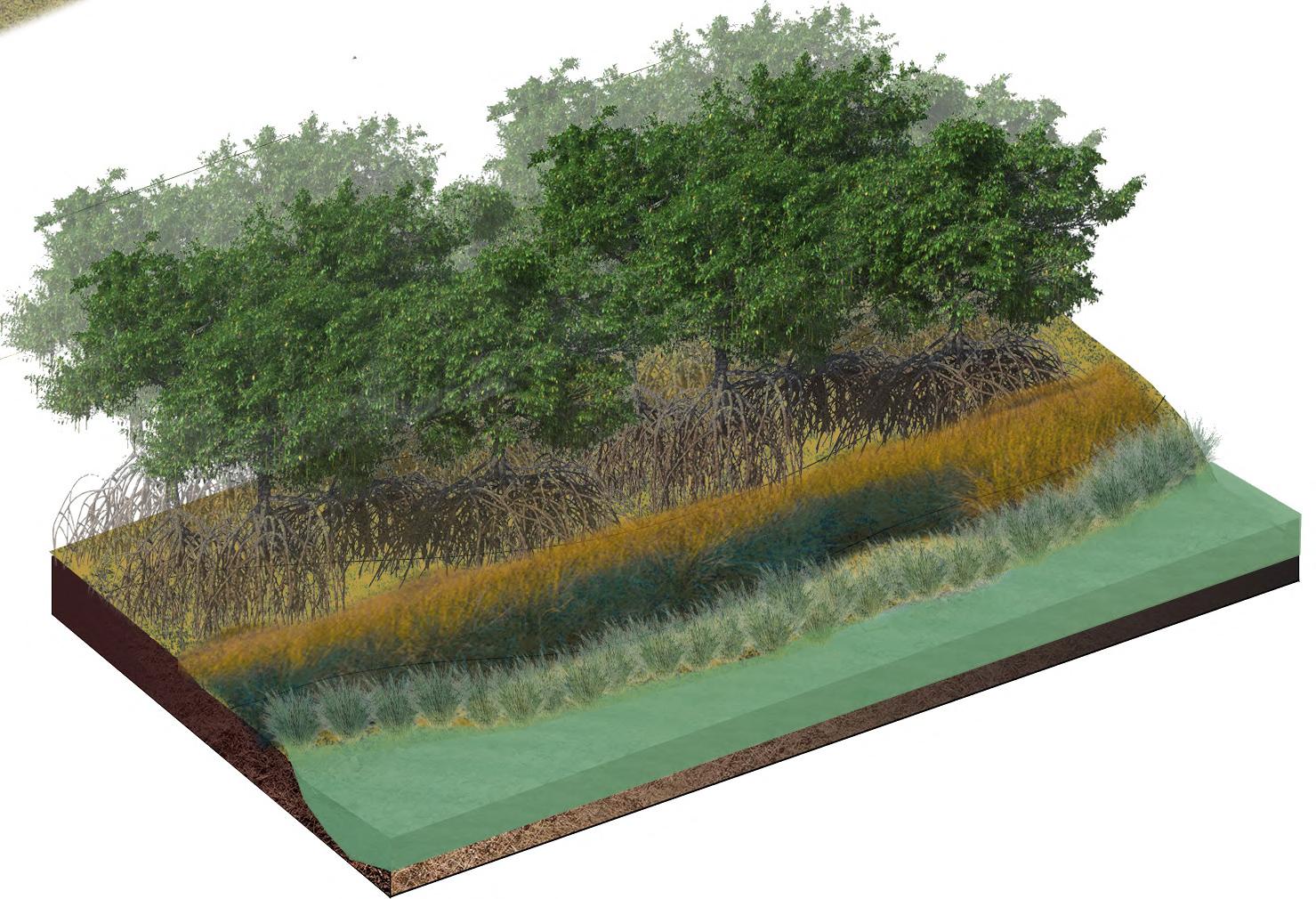

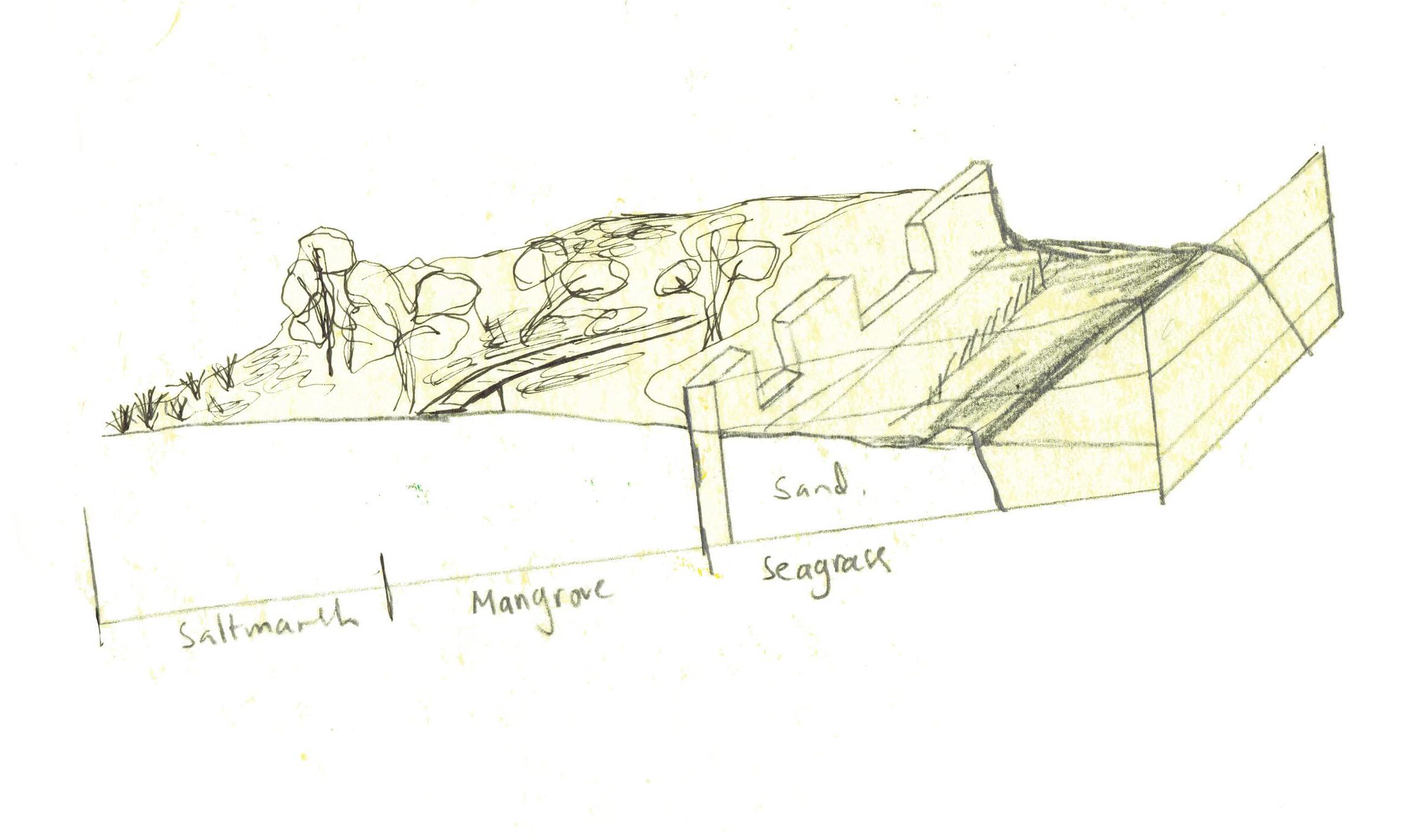

Avicennia marina

Mature Height 3-10m

Aegiceras corniculatum Mature Height 1-15m

SALTMARSH

Excoecaria agalloch Mature Height 1-15m

Tecticornia spp

Mature Height 0.3-0.5m

GRASSES

Salicornia europaea

Mature Height 0.3-0.5m

Mature Height 1.2m

Mature Height 3-10m

Mature Height 0.1-0.9m

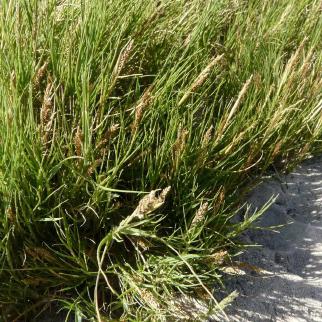

Sporobolus africanus

Mature Height 0-1m

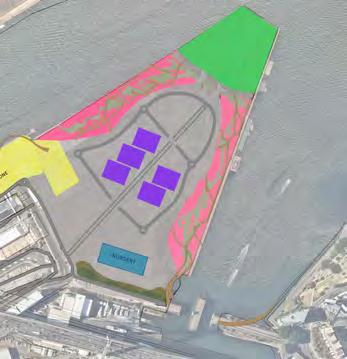

TO ESTABLISH AN AQUATIC HABITAT EDGE ALONG DEEP WHARF EDGE TO BRING NUTRIENTS TO SITE

2046

END OF PHASE II WORKS

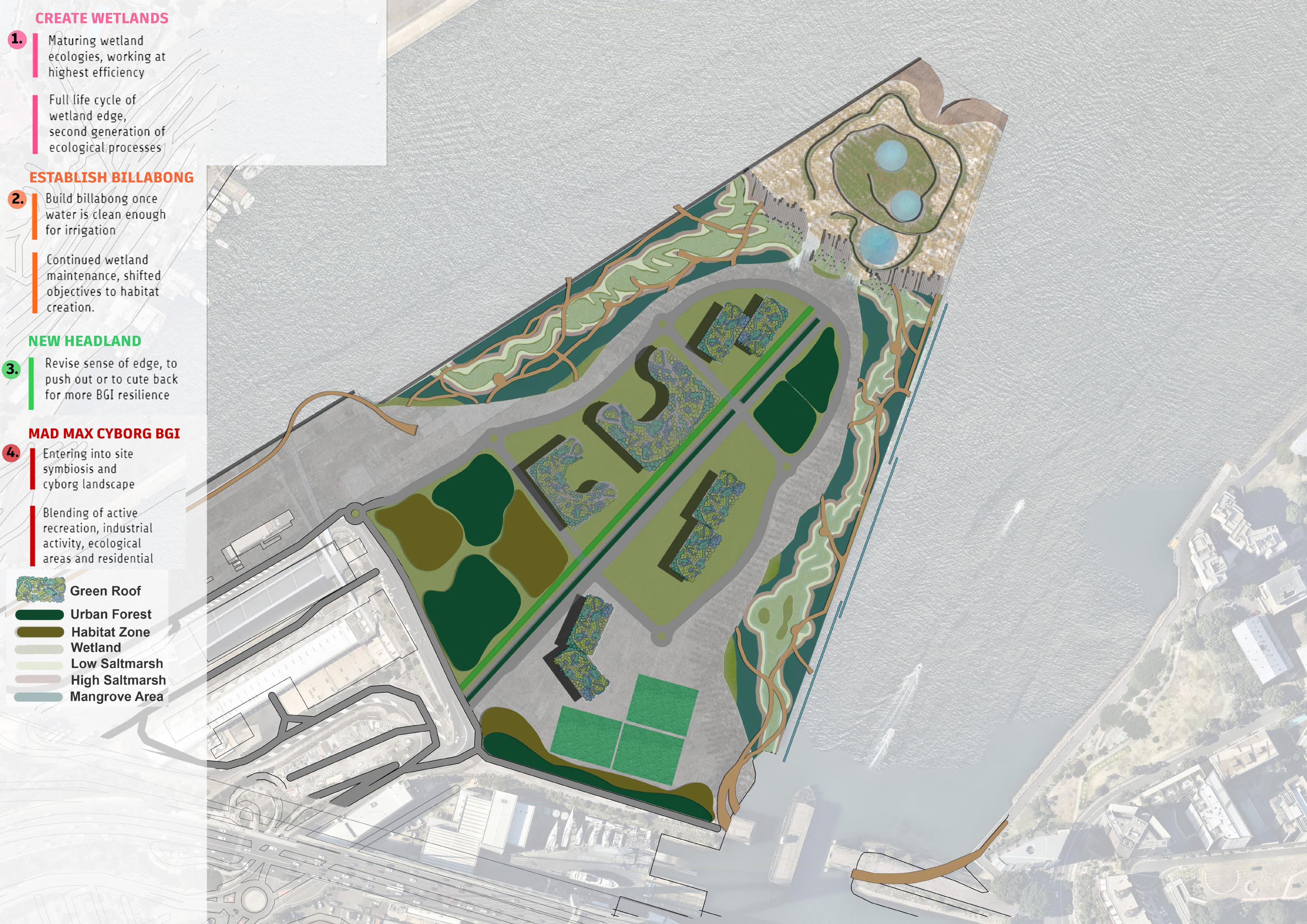

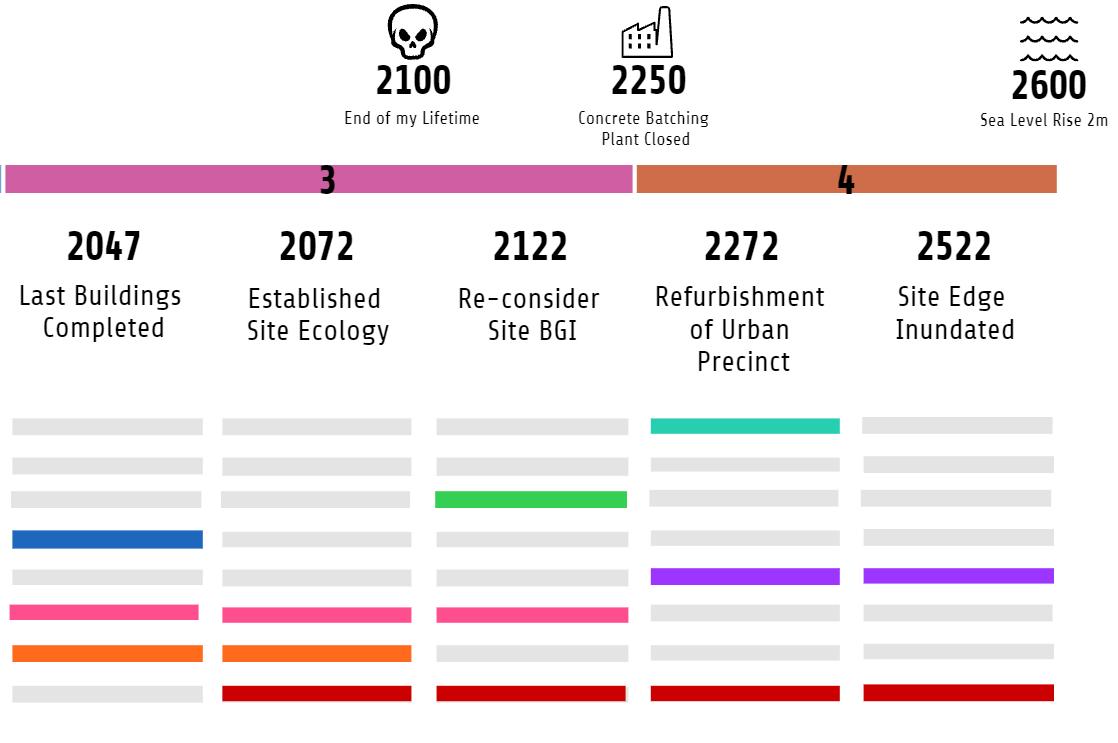

2047 tend - PHASE III

PHASE I PHASE II

TO HYBRID TO STACK TO NAVIGATE

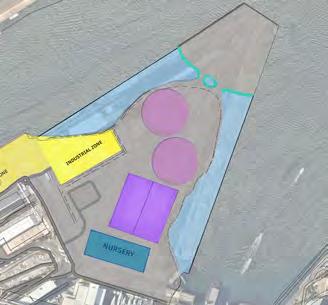

INTEGRATE SITE FUNCTIONS

RE-ESTABLISH SITE TOPOGRAPHY

CREATE SITE HIERARCHY - CPTED

UNLOCKED EDGE

POST PHYTOREMEDIATION

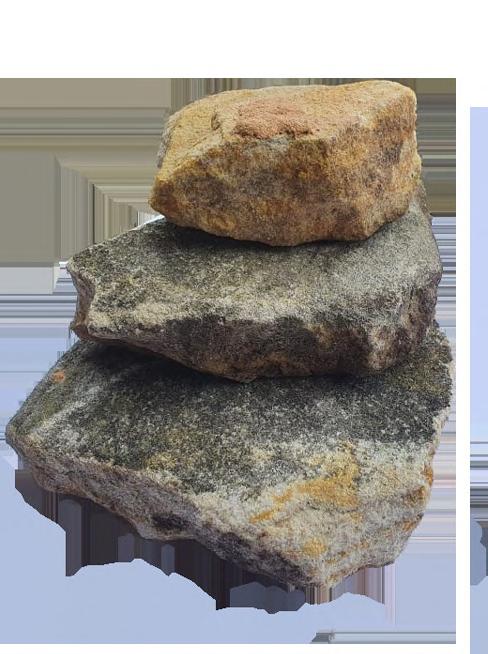

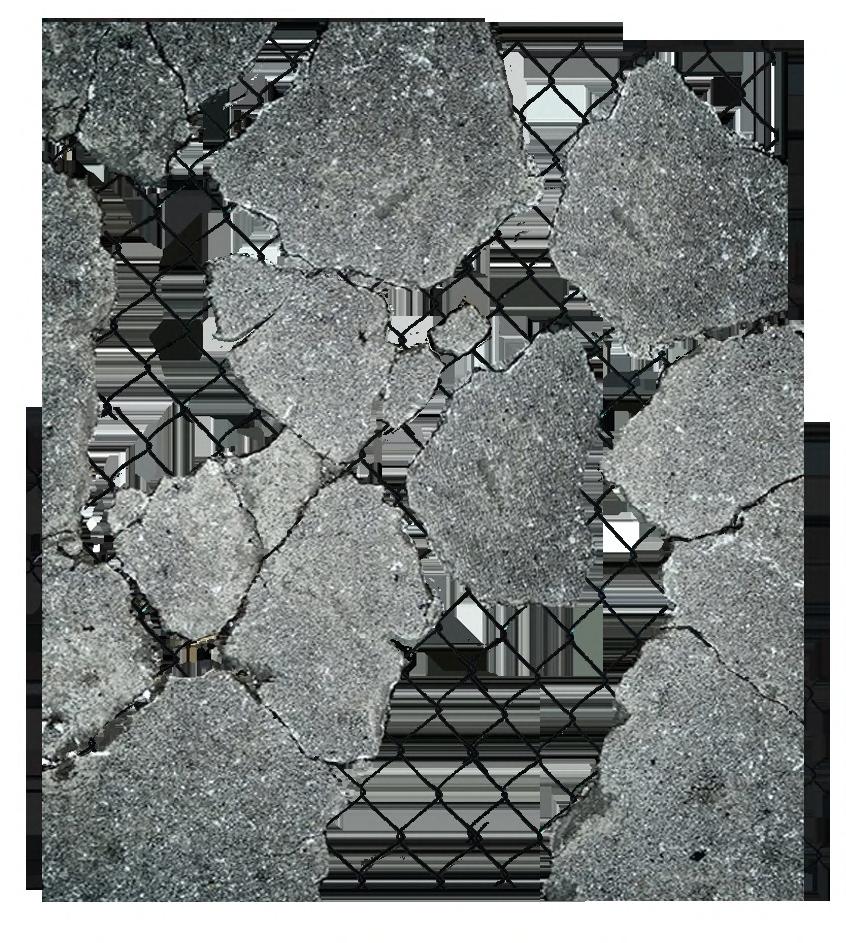

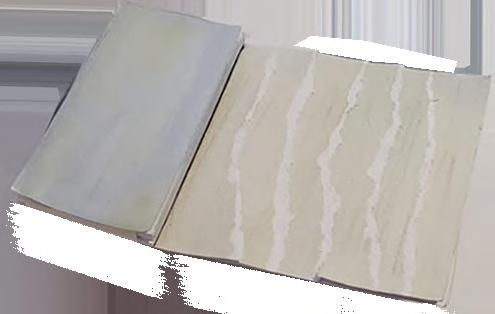

STORING CONCRETE SLABS

FOLLOWING CPTED GUIDELINES

Concrete Landscape - Open Recreation

STACKING UP

WALKWAYS OPENED

DESIGN FOR ALL - BILLABONG SWIMMING AREA

IMPLEMENTING RECYCLED ELEMENTS

MATURE GROWTH

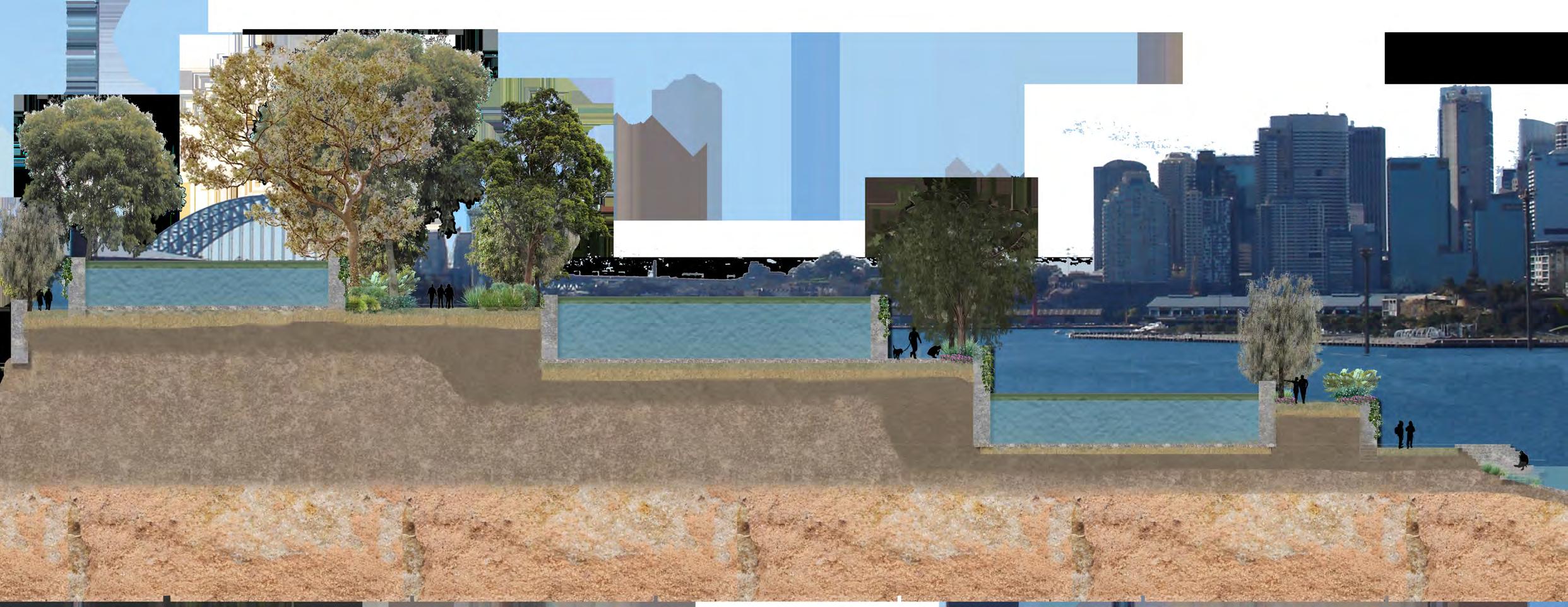

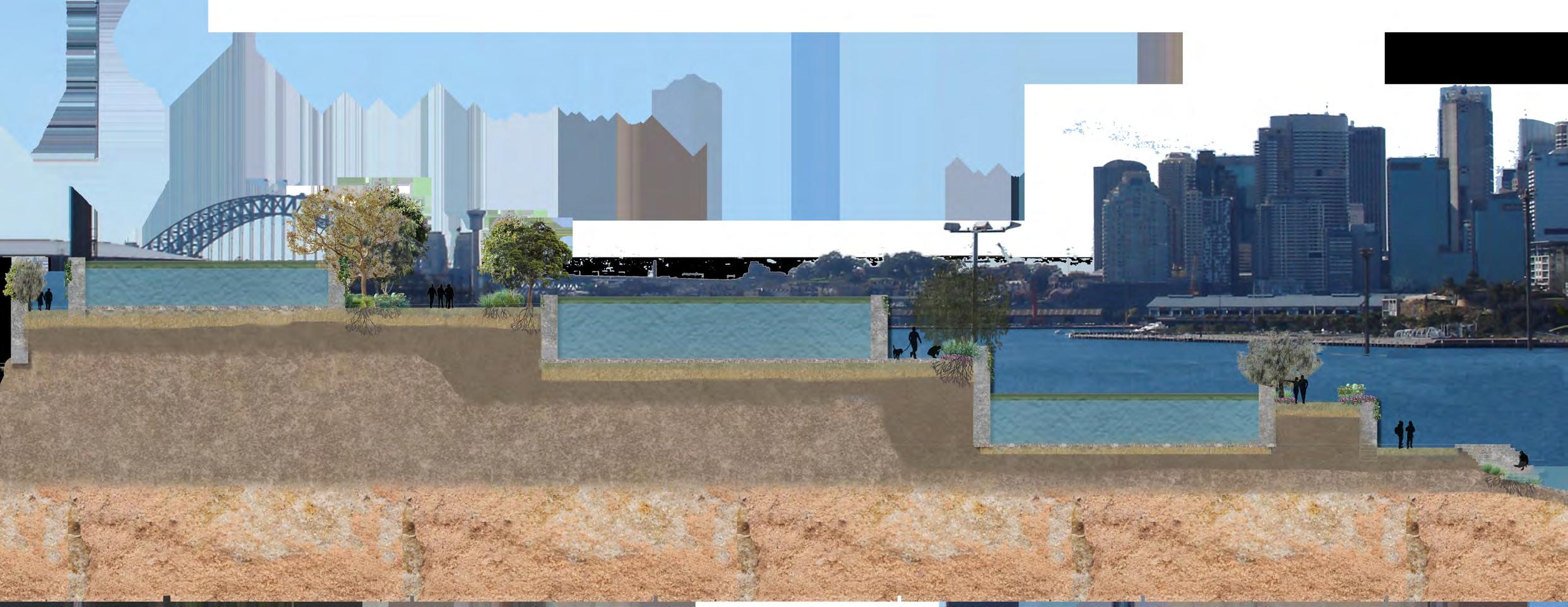

TERRACED WATER TREATMENT FUNCTIONING

CLEANLINESS TARGETS HIT - BILLABONG SWIMMING AREA

STACKED CONCRETE HAS NATURALISED

TOO LITTLE, TOO LATE?

OR IS IT?
