Hino 700 Series by Hino Australia

HEAVY-DUTY PERFORMANCE. READY FOR YOUR BUSINESS.

TESTED TO THE LIMITS OF DURABILITY AND RELIABILITY

Quality, Durability and Reliability (QDR) are the principles the Hino reputation and name are built on. Now the Hino 700 Series takes QDR to the next level. With every component, body and engine part tested and retested for performance and longevity in all manner of road and weather conditions. This constant drive and determination to be the best is what sets the Hino 700 Series apart. It combines exciting new standards of technology and safety with a relentless commitment to QDR and delivering over the long run. No wonder Hino have just claimed an twelfth consecutive class victory at the legendary tough Dakar Rally.

HEAVY-DUTY PERFORMANCE

READY FOR YOUR BUSINESS

The Hino 700 Series is engineered for operators who demand proven reliability, advanced safety, superior technology, and operational efficiency – all in a versatile heavy-duty truck. With an expanded range offering increased power, more transmission options, and greater adaptability across a wide range of applications, it’s built to meet the toughest industry demands. Featuring the most comprehensive Hino SmartSafe package ever, Euro 6-compliant engines for cleaner operation, and Hino-Connect telematics standard across the range, the Hino 700 Series delivers more power, more capability, and more solutions to keep your business moving.

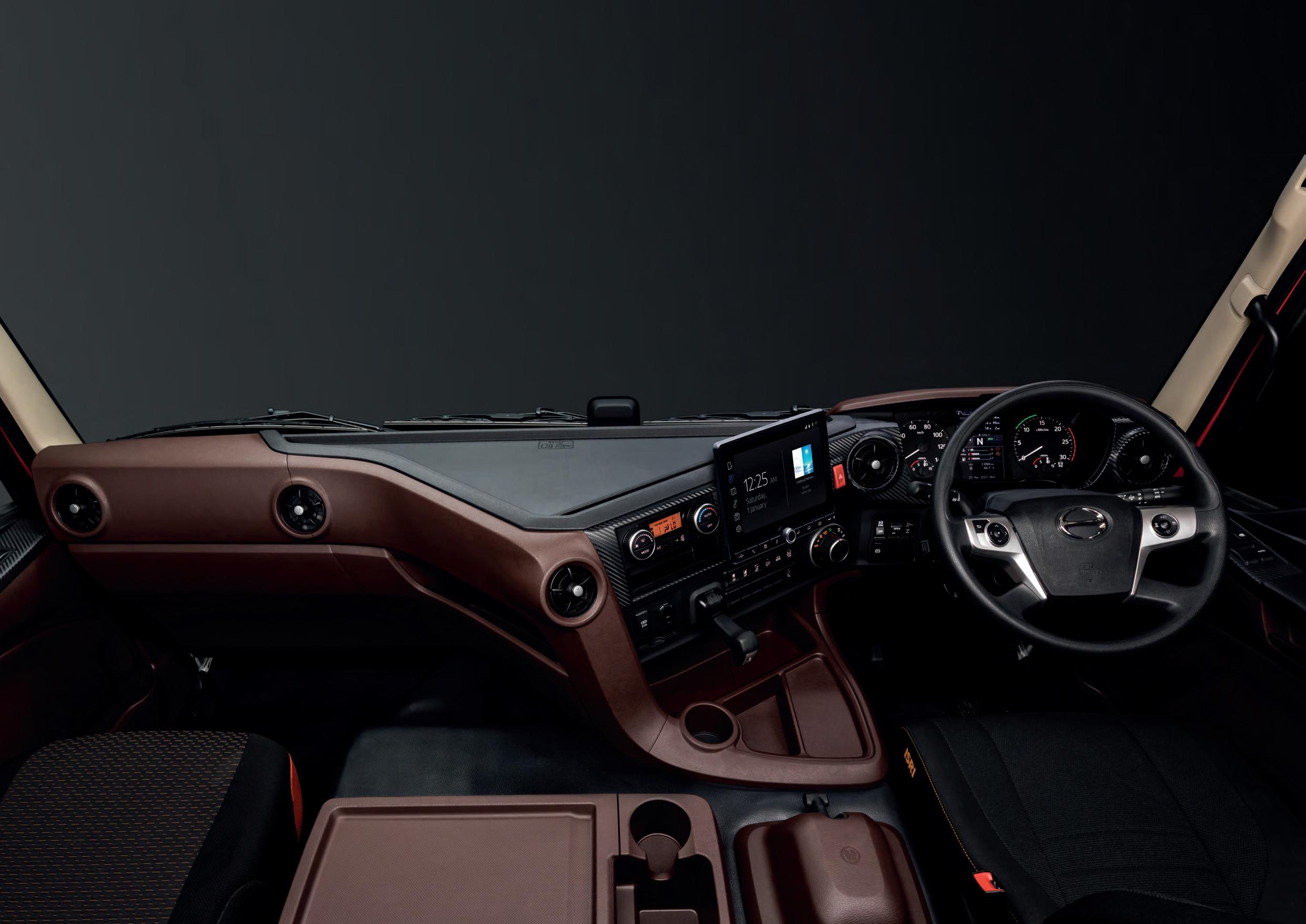

COMFORT BUILT AROUND THE DRIVER

Every detail of the Hino 700 Series cab is engineered with the driver in mind. From ergonomic seating and reduced vibration to smart controls and intuitive displays, it’s designed to deliver comfort, focus, and reduced fatigue on every shift. A wraparound dash, automatic climate control, ample storage, and your choice of True Automatic or Automated Manual transmission create a workspace that truly puts the driver first — because driver comfort drives performance.

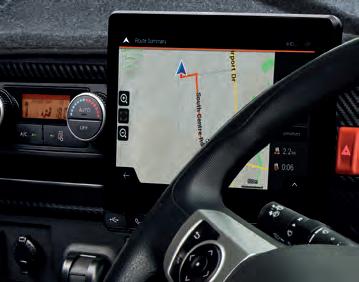

Navigation System (Optional)

Get where you need to go more efficiently with the Hino truck-specific satellite navigation system. This system includes live traffic updates - and offers alternate routing, plus 3 years overthe-air map and software updates.

Rest Bunk Sleeper capable of ADR42 compliance, the interior light controls can also be operated from the rest area.

Reversing Camera

Waterproofed from the elements, it offers wide-view, high-definition vision with infrared night capability. The system includes a microphone with volume control so the driver can hear their surroundings and is ADR108/00 compliant.

Multimedia Unit

10.1" Ultra High-Definition, capacitive touch screen, Wireless Apple CarPlay & Android auto compatible.

Capable of connecting up to 6 multiposition cameras and supports AM/ FM+RDS/ DAB + Radio, Bluetooth

5.0 Phone & Audio, USB 2.0 & 3.0, 2.4 Ghz Wi-Fi enabled.

Tilt and Telescopic Steering

Easily tilt and reposition the steering wheel up or down for optimum driver comfort. The telescopic steering column is designed with a collision absorbing steering wheel to help protect the driver in the event of a front-on collision.

DIN Mounting Hole

All models feature a blank

Half DIN mounting hole in the dash for accessories that can be added later.

Display (MID) with an easy to read high contrast instrumentation cluster consisting of enlarged speedometer and tachometer, a suite of warning gauges and lights. Get instant updates about your vehicle’s operation including the Hino SmartSafe settings, driving economy, gear selection and vehicle maintenance data.

Driver Seat Built for comfort and function over the long haul. The assortment of lumbar support adjustments and integrated seat belt operation ensure a high level of comfort, accommodating varying occupant heights and reducing fatigue.

ADVANCED SAFETY COMES STANDARD WITH HINO SMARTSAFE

Safety isn’t optional in the Hino 700 Series. It’s engineered into every model. With the most comprehensive Hino SmartSafe package ever, it brings together a suite of driver-assist technologies designed to help prevent incidents before they occur. From advanced detection and warning systems to intelligent braking and stability control, each feature works together to enhance awareness, reduce fatigue, and support safer operation on every journey.

Anti-Slip Regulator (ASR)*

Commonly

Adaptive

Control (ACC)*

Pedestrian Detection (PD)*

Detects the possibility of a collision to warn the driver to apply the brakes using both visual and audible alerts. If the collision is imminent it can autonomously apply the brakes. Driver

Pre-Collision System (PCS)

The system can detect a vehicle in front using radar and image sensors. Should it detect the possibility of a collision it can warn the driver to apply the brakes using both visual and audible alerts. If the system determines imminent collision, it can autonomously apply the brakes to mitigate damage.

THE SAFEST HINO HEAVY-DUTY EVER BUILT

At Hino, safety is built into our DNA. Every element of the 700 Series, from its purpose-built cab structure to its visibility, lighting, and braking systems, is designed to protect drivers and other road users. The reinforced Cab Safety Cell, SRS airbags, and Front Underrun Protection (FUP) provide robust protection in the event of a collision, while enhanced visibility features such as LED headlamps, DRLs, and cornering lamps help prevent one. It’s a safety suite that doesn’t just react to hazards, it anticipates them, working intelligently to help you avoid them altogether.

Easy Start Standard on all 13 litre models. Prevents roll-back when starting on hills by maintaining brake force even after the brake pedal has been released.

Daytime Running Lamps (DRL’s)

When you increase your visibility, you increase your safety profile. DRL’s are designed to announce your presence and run anytime the truck headlamps are not being operated. Boasting enhanced aesthetics as well as safety, they are standard on all 700 Series models.

Fog & Cornering Lamps

Driving in foggy conditions can be a challenge particularly on country roads, All models have white fog lamps. Cornering lamps operate independently and enhance visibility when maneuvering in low light conditions.

LED Headlamps LED headlamps now include a new auto setting which senses low light conditions and switches on the LED headlights. As well as turning them off when the driver exits the vehicle reducing the likelihood of a flat battery which can occur if the driver accidentally leaves the headlights on.

Driver SRS Airbags

All models have an SRS airbagequipped steering wheel to protect the driver in the event of a front-on collision.

Cab Safety Cell

The cab is purpose-designed and built to comply with stringent driver and passenger safety criteria. All 700 Series models are constructed to meet UN ECE R29 European cab strength certification.

Front Underrun Protection (FUP)

A structural safety feature at the bottom front of the truck which prevents a car being trapped underneath in the event of a collision. FUP also helps keep steering intact so the vehicle can be safely steered away from further serious impact.

VERSATILITY THAT KEEPS YOUR BUSINESS MOVING

The Hino 700 Series offers more than ever before, with more horsepower, more axle configurations, more transmission options, and more solutions to keep your business moving. It provides operators with unmatched versatility and operational freedom across a wide range of applications. The 9-litre A09C engine joins the proven 13-litre E13C, delivering up to 480 hp with cleaner Euro 6-compliant performance. A true automatic transmission from Allison is available alongside the M112 AMT and ZF 16-speed TraXon AMT, offering power, efficiency, and control in every drive. Two engines, three transmissions, and expanded possibilities give every Hino 700 Series the flexibility to meet the demands of your business.

Transmission

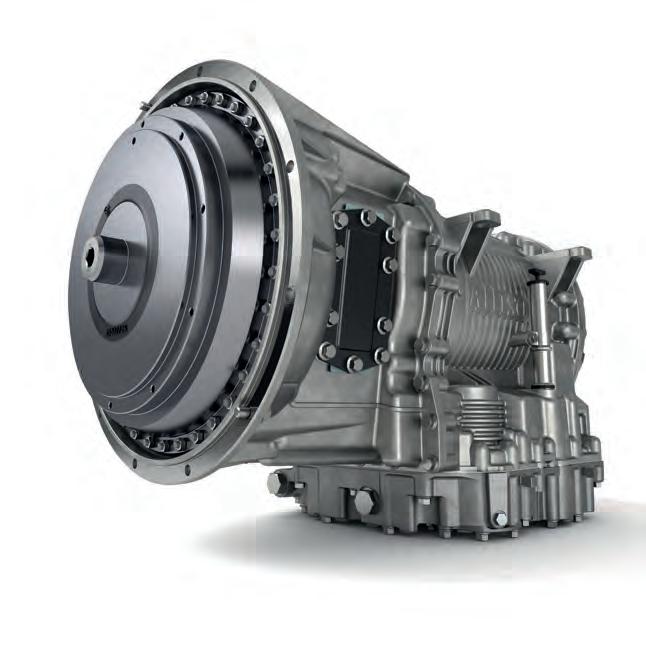

The A09C-VP engine that delivers 320hp (235kW) and 1275Nm of torque delivered from 1,100 – 1,600rpm, and is mated to the six-speed Allison 3200 true automatic transmission.

The A09C-VN engine with 360hp (265kW) and 1569Nm of torque delivered from 1,100 – 1,600rpm, is now matched to 2 transmissions - the M112 AMT transmission in 4x2, 6x4 & 8x4 variants and the larger and stronger six-speed Allison 4440 true automatic transmission in 8x4 models.

Differential Lock

Differential cross locks are standard on all models. By locking each of the two sets of wheels on the axle to the same rotational speed, this feature helps maximise traction.

Hino 700 Series meets Euro 6 Emissions Standards

The A09C Engine meets Euro 6 exhaust emissions compliance, using a combination of the Hino Selective Catalytic Reduction (SCR) system, cooled Exhaust Gas Recirculation (EGR) and the ever reliable Hino Diesel Particulate Active Reduction Filter (DPR).

True Engine Brake

For exceptional downhill control, auxiliary braking comes courtesy of the engine retarder brake. Better known as a Jacobs Engine Brake® , or ‘Jake Brake’, Hino 700 Series is the only Japanese heavy-duty truck with a Jacobs Engine Brake®

THE POWER YOU NEED THE CONFIDENCE YOU EXPECT

The proven reliability of the Hino E13C engine has been tested over countless kilometres on Australian roads. Euro 6-compliant and available in 450hp and 480hp ratings, it delivers powerful, efficient performance for the most demanding heavy-duty applications. 13-litre models feature standard auxiliary braking through the Jacobs Engine Brake®, with additional braking performance from the ZF Intarder. Together, they deliver superior drivability, improved operational efficiency, and extended service brake life with more of what you need in power, capability, and solutions.

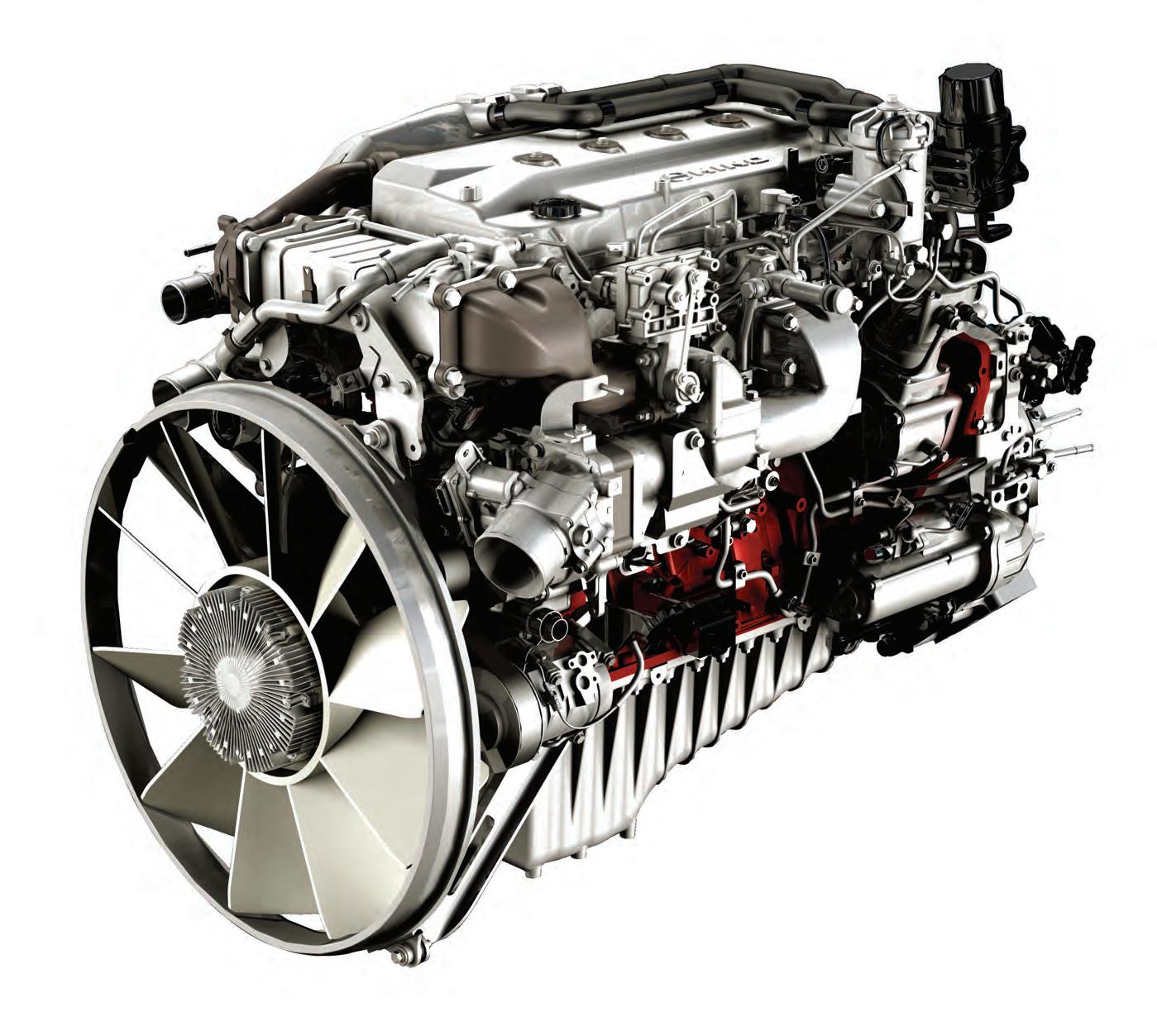

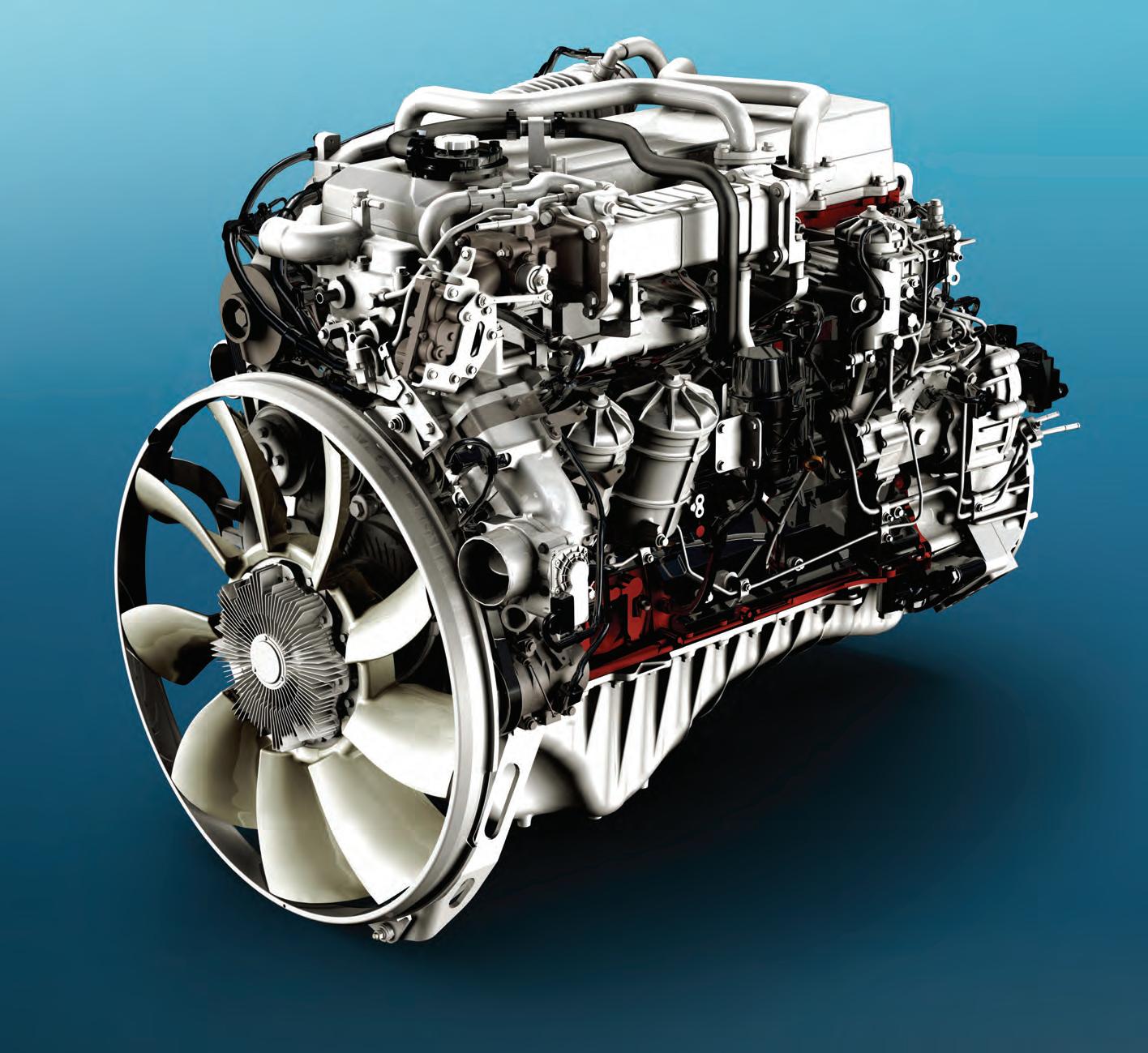

Engine

The E13C-BL engine delivers peak power of 450hp (331kW) and 2157Nm of torque.

The E13C-BK engine with 480hp (353kW) and 2157Nm of torque delivered from 1,000 and 1,500rpm, offering improved drivability and fuel efficiency.

Transmission

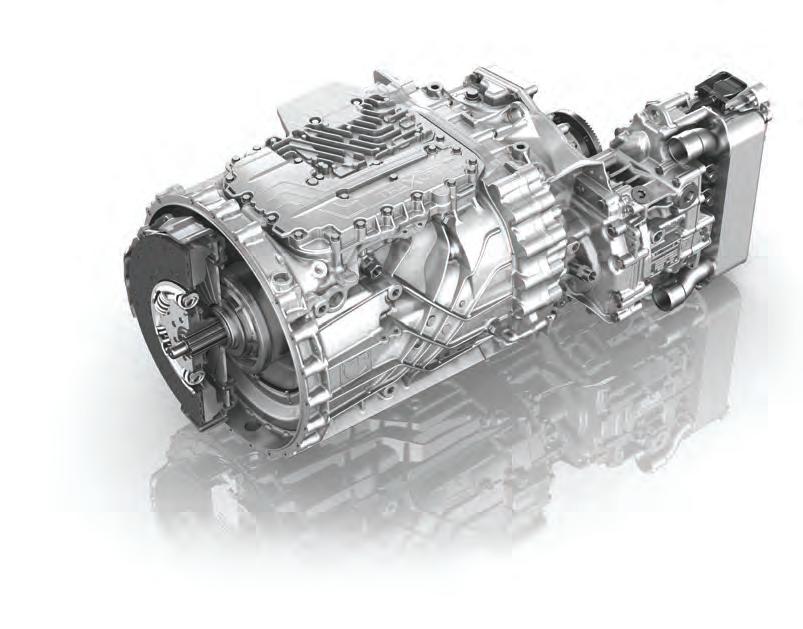

The E13C engines are matched to the latest generation of the ZF 16-speed Automated Manual Transmission (AMT), the TraXon TX 244 1TO. The E13C-BL engine is coupled with the M112 AMT transmission in 6x4 FS variants.

Differential Lock

Differential cross locks are standard on all models. By locking each of the two sets of wheels on the axle to the same rotational speed, this feature helps maximise traction.

Hino 700 Series meets Euro 6 Emissions Standards

The E13C Engine meets Euro 6 exhaust emissions compliance, using a combination of the Hino Selective Catalytic Reduction (SCR) system, cooled Exhaust Gas Recirculation (EGR) and the ever-reliable Hino Diesel Particulate Active Reduction Filter (DPR).

True Engine Brake

The Hino 700 Series is the only Japanese heavy-duty truck with a Jacobs Engine Brake.® 13 litre models with ZF 16 speed AMT receive additional auxiliary braking from the ZF intarder, which is integrated into the rear of the 16-speed ZF TraXon TX 2441TO Automated Manual Transmission (AMT).

BUSINESS INTELLIGENCE AT YOUR FINGERTIPS WITH HINO-CONNECT

Hino-Connect is next-generation business telematics that delivers real-time performance data, remote diagnostics, and instant alerts to help reduce downtime and improve fleet efficiency. Designed to give operators total visibility, it provides the insights you need to make faster, smarter business decisions. Hino-Connect comes standard across the 700 Series range and helps you track performance, manage maintenance, and optimise every drive with connectivity that delivers more than data.

BUSINESS INTELLIGENCE

Track and improve key areas of your operation including driver behaviour, fuel efficiency, safety, and vehicle utilisation, giving you full operational visibility in real time.

REMOTE DIAGNOSTICS

In the event of a fault, Hino-Connect instantly alerts the driver, your fleet manager, and your Hino-Connect Specialist. This allows you to plan ahead, stay informed, and arrange service support before downtime becomes an issue.

ENHANCED CARE

Your dedicated Hino-Connect Specialist is on hand to assist through every step of the process, liaising between you and your Hino dealer, answering questions, tracking repair progress, and ensuring your truck gets back on the road quickly.

AN EXTERIOR BUILT TO WORK

On the outside, the Hino 700 Series is built to make working hard easier. With visibility a prime driver concern, it comes with a combination of large flat, heated, electronically adjustable mirrors, separate convex spotter mirror and a kerb observation mirror. Cabin accessibility has never been simpler or more driver friendly. The Chassis is built from high tensile 620Mpa steel and features payload-increasing new suspensions on many models.

New Air Intake

The rear of cab mounted air intake is now a more slimline design to allow for longer bodies. The intake is located high up on the driver’s side which receives cleaner air than a passenger intake.

Visibility

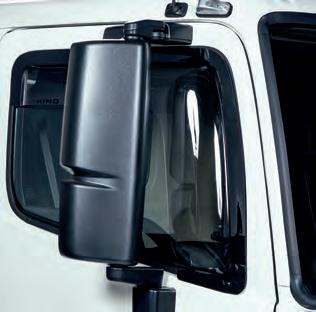

A comprehensive offering consisting of individual large, flat, heated and electronically adjustable mirrors with a separate adjustable convex spotter mirror plus a front of vehicle and a kerb observation mirror. Designed to see whatever is behind, below or to the side of the cab improving safety and reducing the possibility of damage.

Chassis

The grid hole chassis is manufactured from 620Mpa high tensile steel built to last over the long run.

The chassis design is well liked by truck body manufacturers because it allows for easy installation.

Accessibility

Generous sized door openings, staircase steps and conveniently placed cab grab handles provide 3-point contact, for improved entry/ exit accessibility and safety. Large self-cleaning footsteps keep mud and grit out of the cab.

Suspension

A significant redesign of the rear suspensions on leafsuspended models has improved articulation, lowered the tare weight and improved the payload.

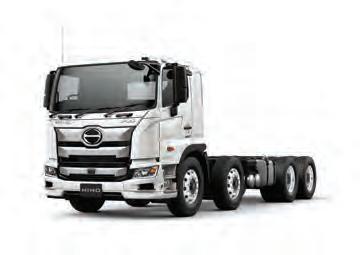

All Hino FY 8x4 models now have an additional one tonne of payload compared to the previous model, courtesy of the Hino load share front suspension which increases increase the on road steer axle capacity axle capacity to 11 tonnes.

WE MAKE IT GENUINE YOU MAKE IT YOURS

It’s your office, it’s your home away from home, so it’s only natural that you should accessorise your vehicle just the way you like it. Manufactured to our exacting QDR standards, they fit first time, every time. Whether you want the full protection of a bullbar, the surety of a navigation system or the comfort of sheepskin seat covers, you want Hino Genuine Accessories. All backed by a 3 Year Unlimited Kilometre Warranty* when fitted by an authorised Hino dealer.

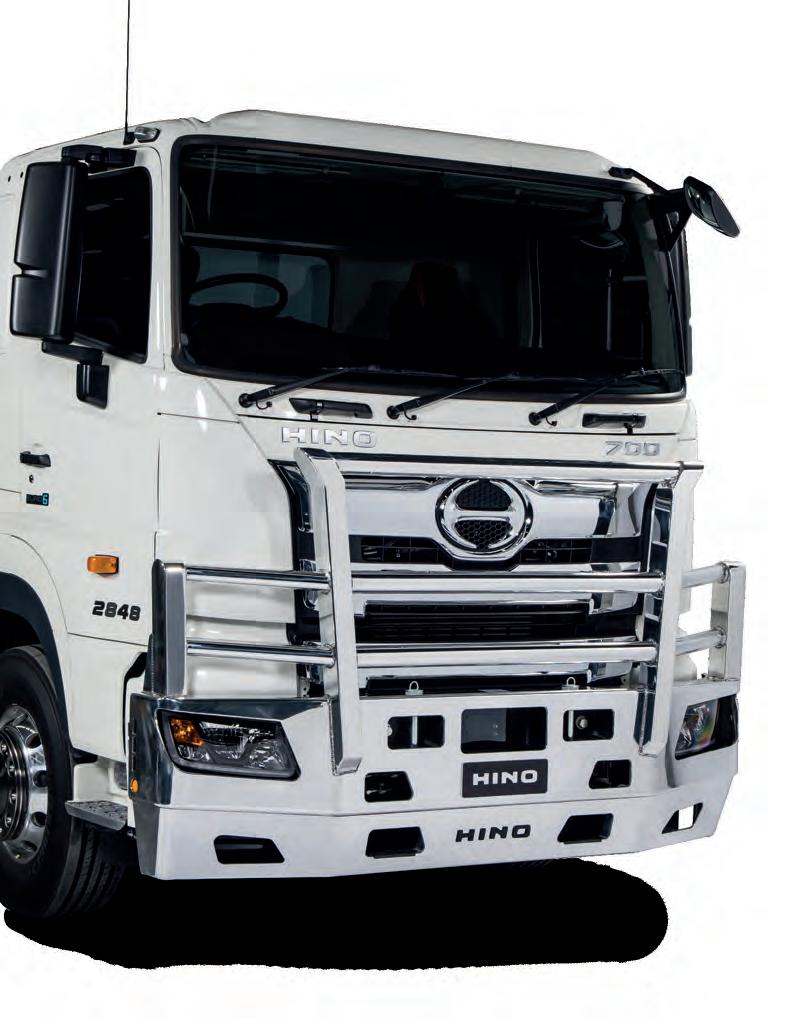

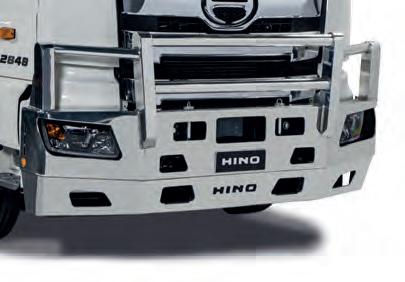

Weathershield Full Protection Bullbar

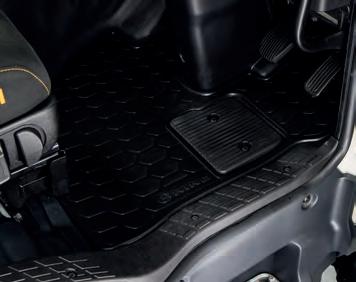

Rubber Floor Mat

Cover

Change Assist System

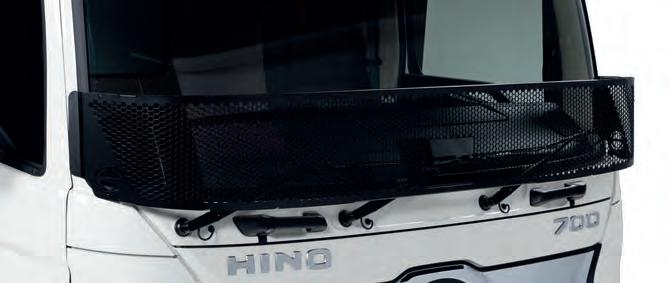

Stone Guard

Footwell Liner

Navigation System Sun Visor

Dash Mat

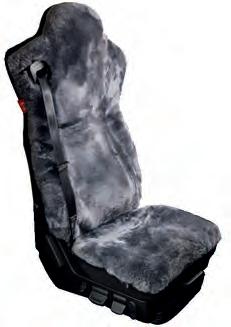

Seat Covers - Canvas Seat Covers - Carbon Seat Covers - Sheepskin

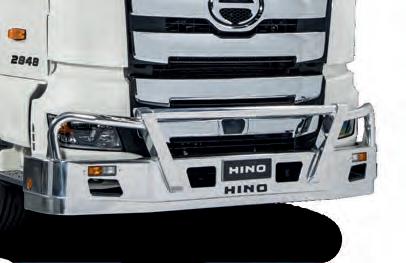

Dash Camera (DVR Camera System) Low Profile Bullbar

Bullbar

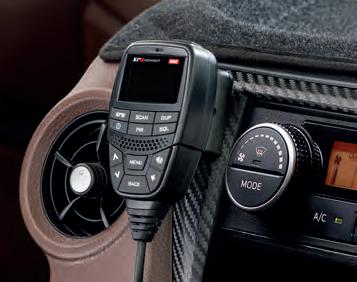

UHF CB Radio

YOU HAVE OUR TOTAL SUPPORT THAT’S

HINO

Hino Advantage is all about you. It’s the total support customer care program designed to keep your business driving ahead. Hino Advantage provides you access to an extensive range of integrated support solutions that are driven to do more for you.

Operating safely is critical for any business, and Hino SmartSafe guarantees safer travels for drivers, passengers, and other road users alike.

With efficiency being a key part of your profitability, Hino-Connect is the cutting-edge telematics solution that delivers superior business intel to help you make smarter business decisions. And because you want to avoid unforeseen costs over the long run, we have Capped Price Servicing across the range.

Now you can profit from solutions that allow you to budget ahead, minimise costly downtime and maximise uptime. Hino Advantage. More Support, More Solutions, More For You.
