Gallipoli Floor Tile

GALLIPOLI

12 Patterns 1 Size

The design is inspired by a fresh Mediterranean look. It is made of 1 size and 12 different designs that are packed individually as a single design. The design is developed so that every single tile can be connected to another one of the same design as a repeating pattern to infinity. The edge is UNRECTIFIED, and the finish is MATT to respect the antique look.

The name of this series was inspired by the medieval city of Gallipoli in the south of Italy and in the centre of the Mediterranean Sea. This historical Ancient City was a strategic military point during the Roman Empire. During the XV-XVII century, it became the most important port for the trading of light oil, exporting it mainly to London.

INDEX:

Recently it has become one of the most glamour tourist city in the Mediterranean Sea.

Patterns 4, 17

Size 18, 21

Surface Finish 22, 23

Body 24, 25

Packaging data 26 27, 30

Cleaning & Maintenance

Instruction (CERAMIC/PORCELAIN TILES)

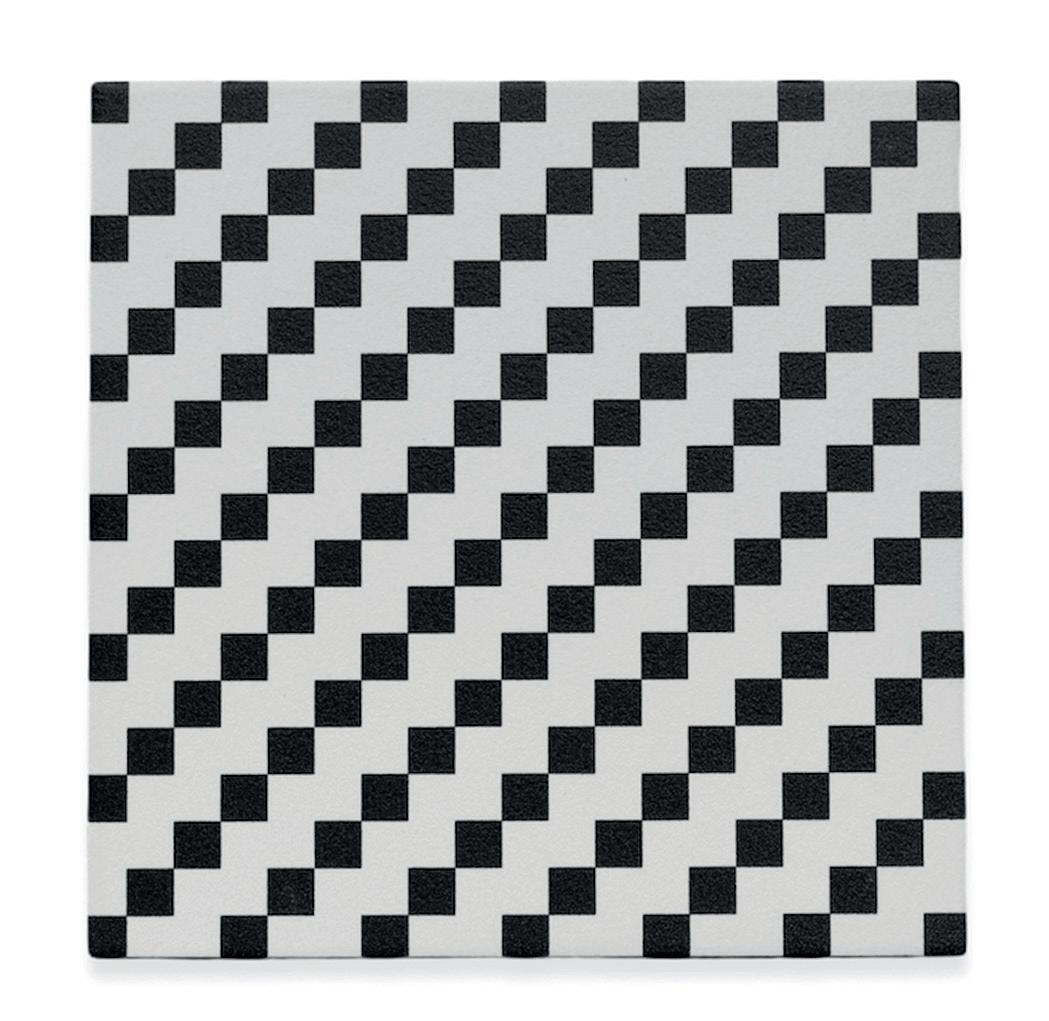

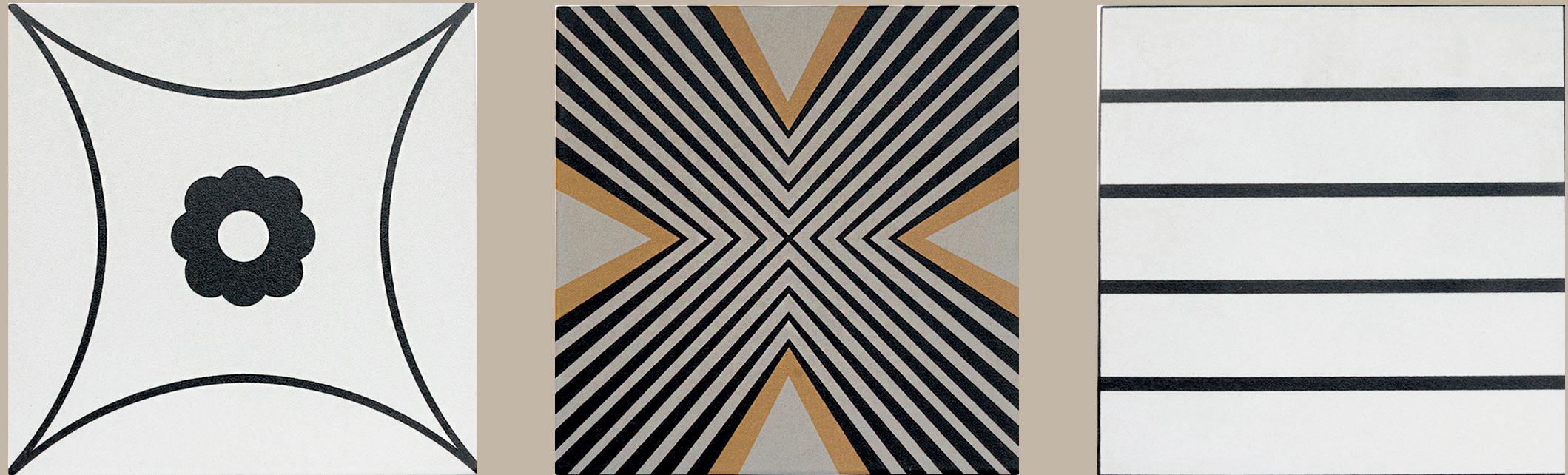

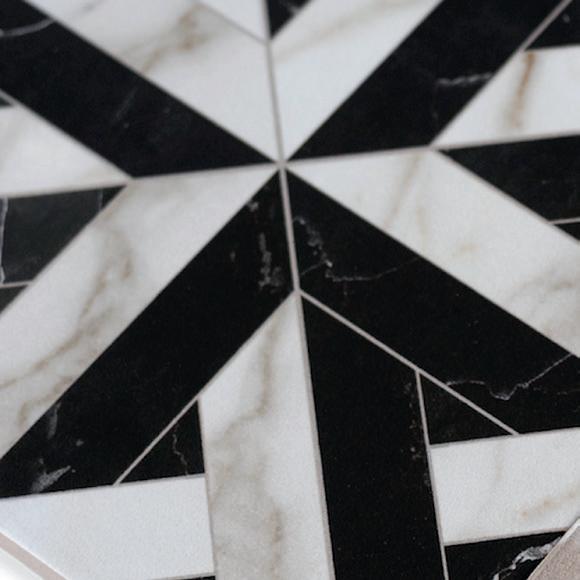

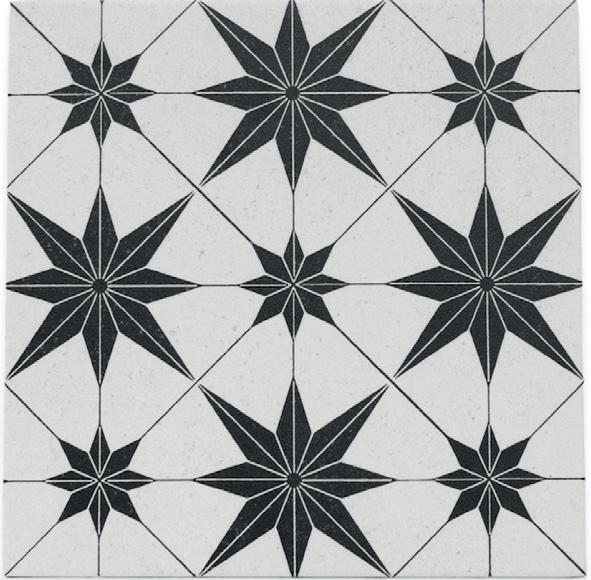

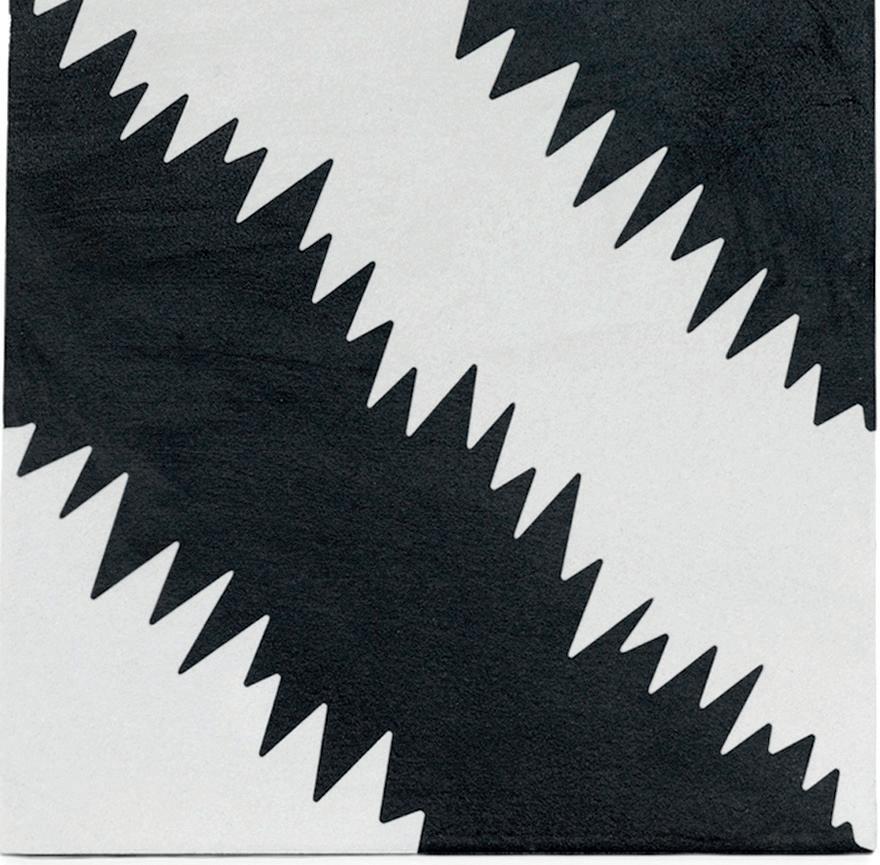

Patterns

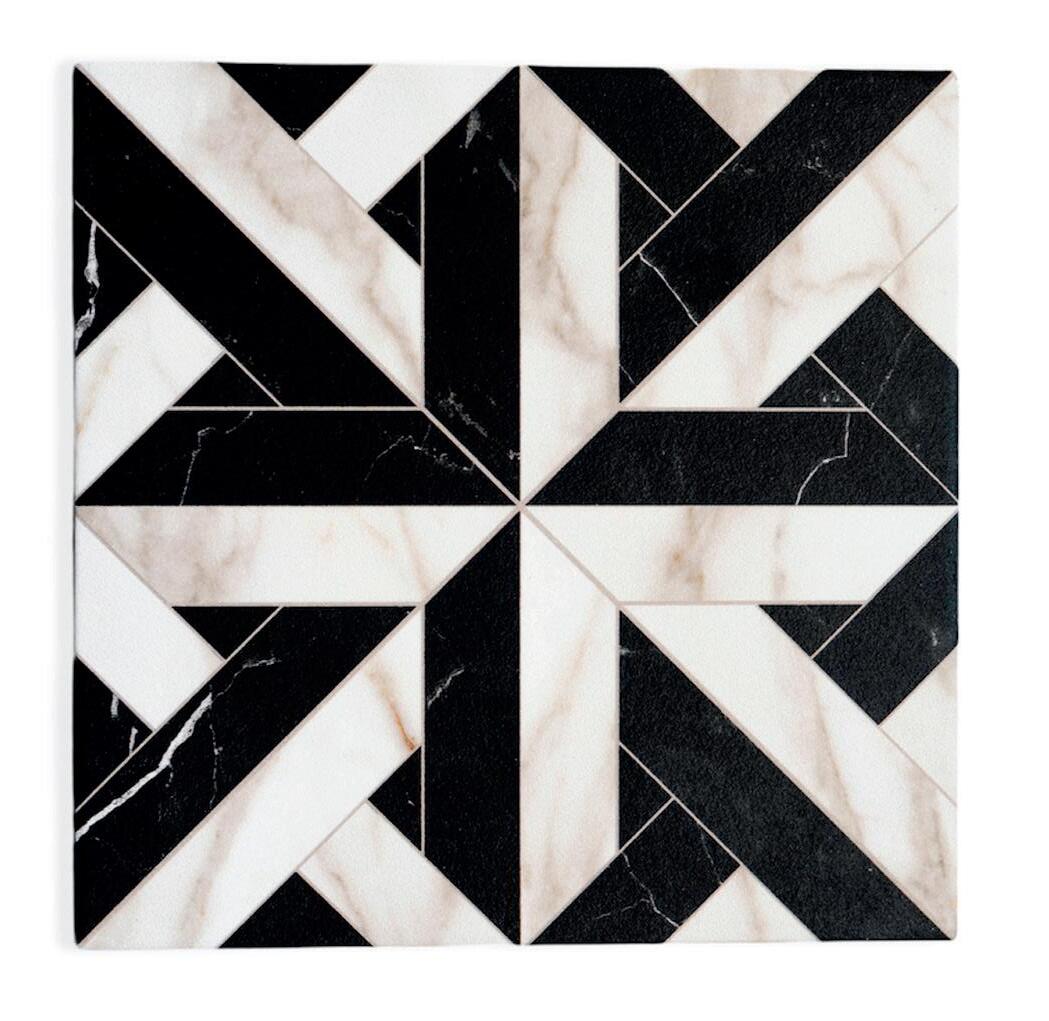

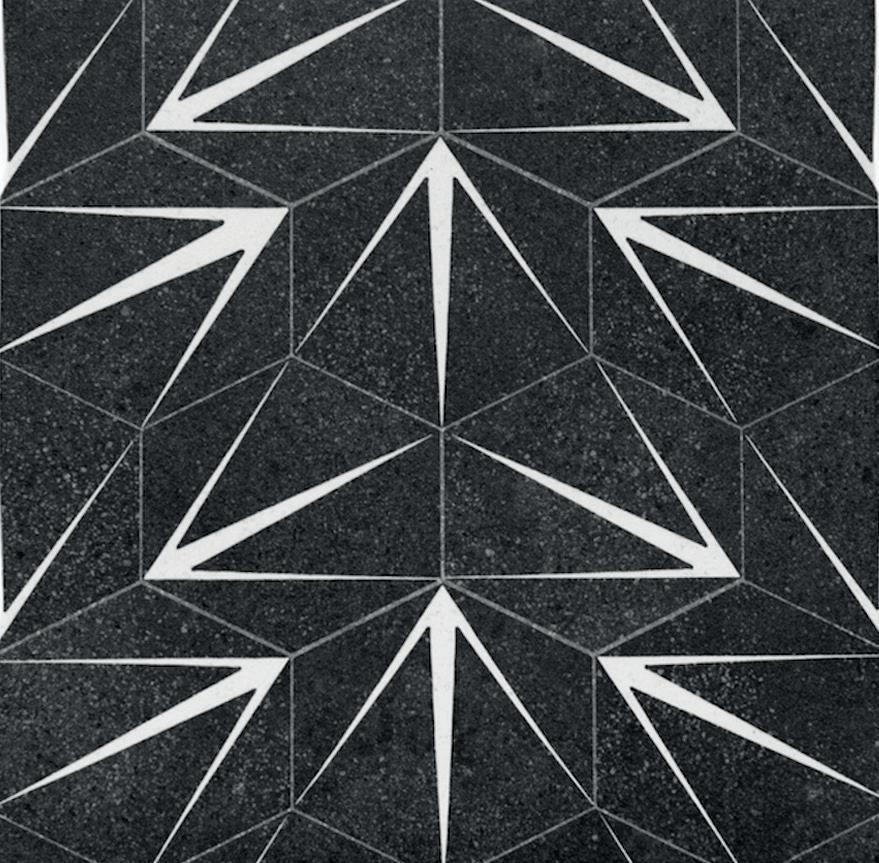

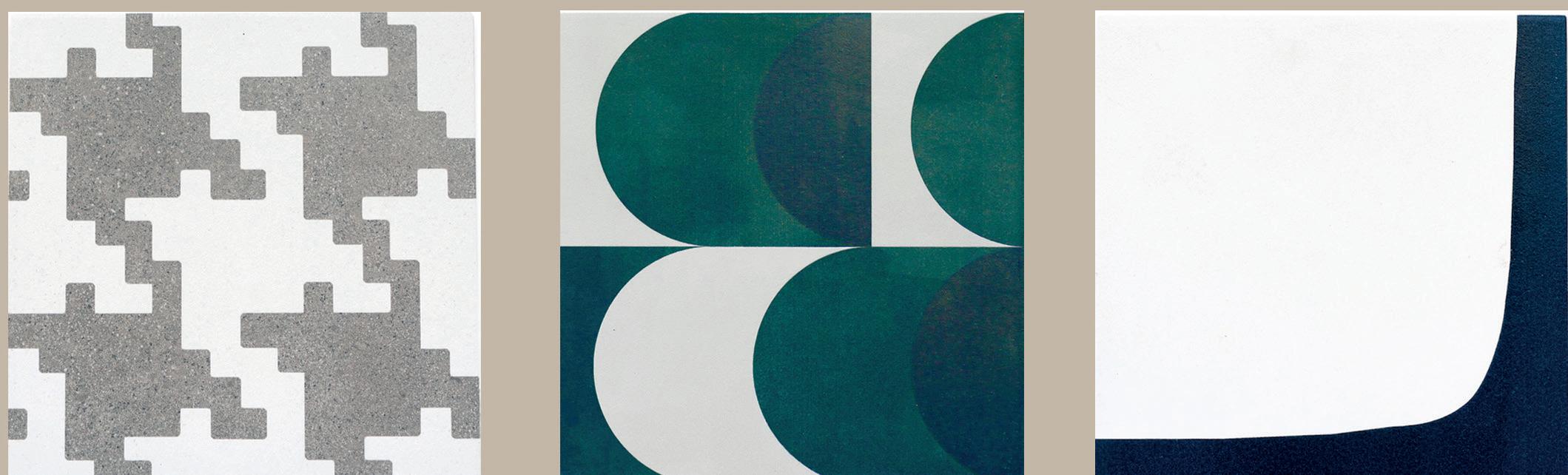

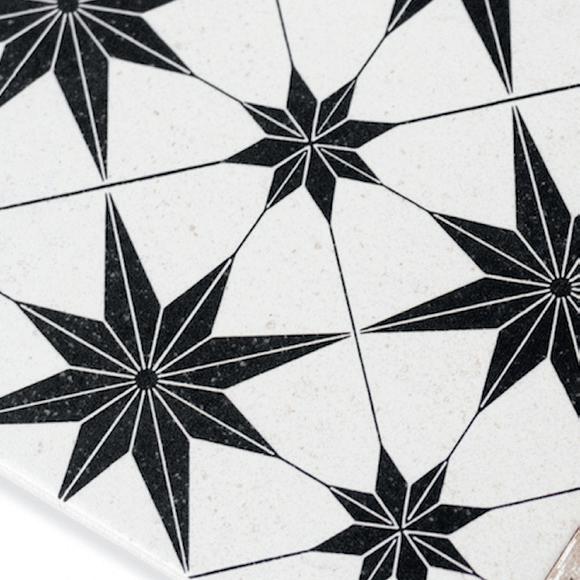

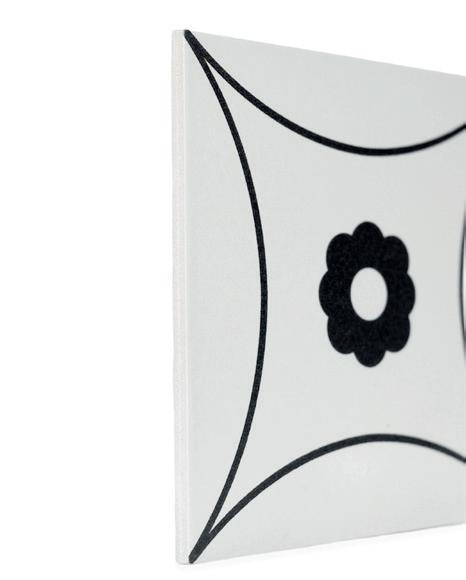

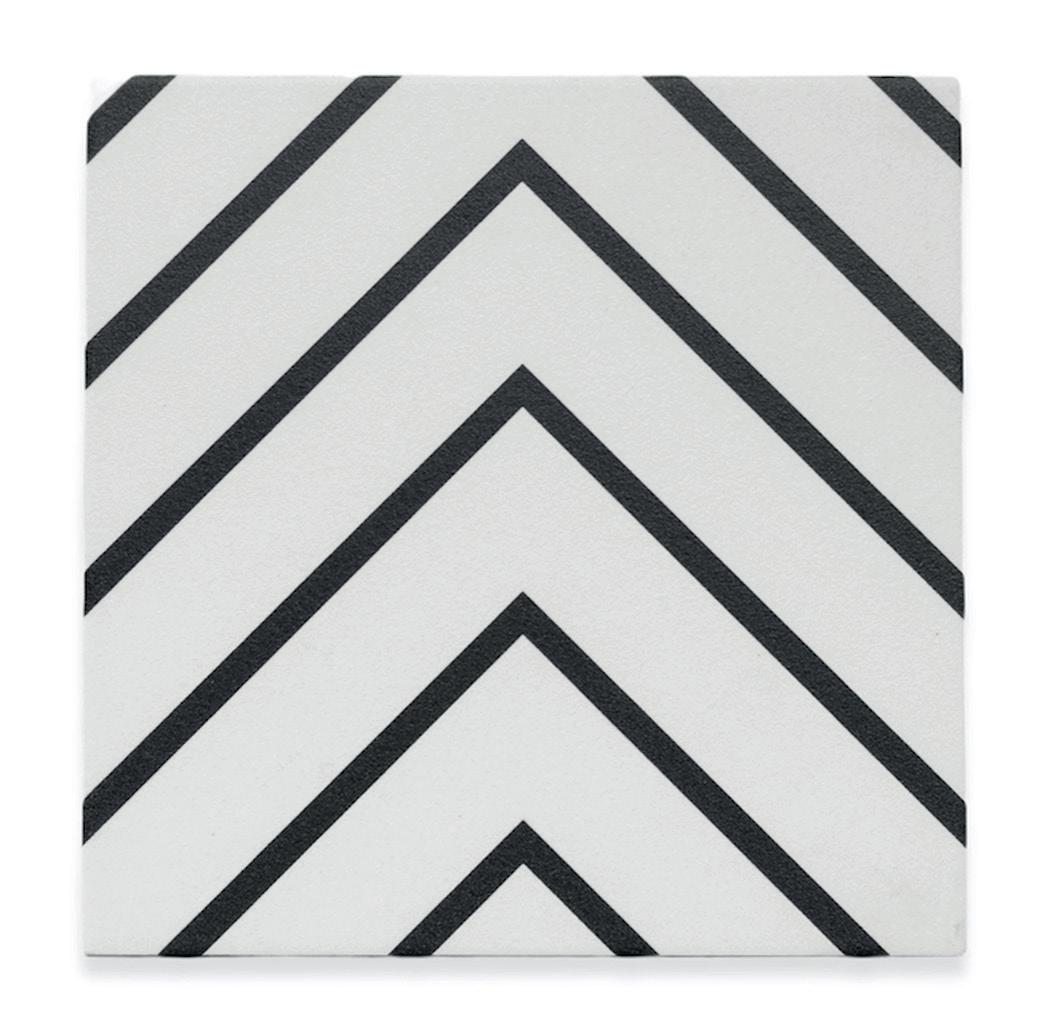

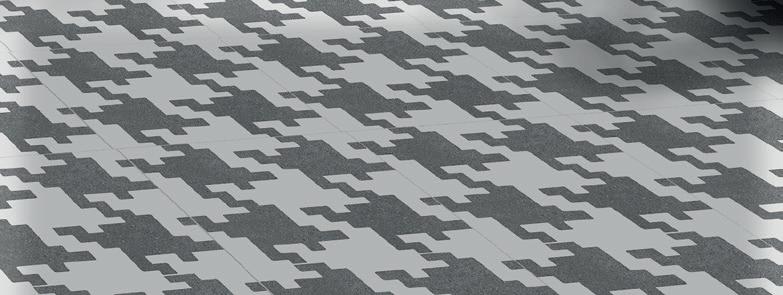

Gallipoli series is made of 12 different single patterns design, and each tile can be connected to another tile of the same design repeating the pattern to infinity. These are 12 different individual Mediterranean looks.

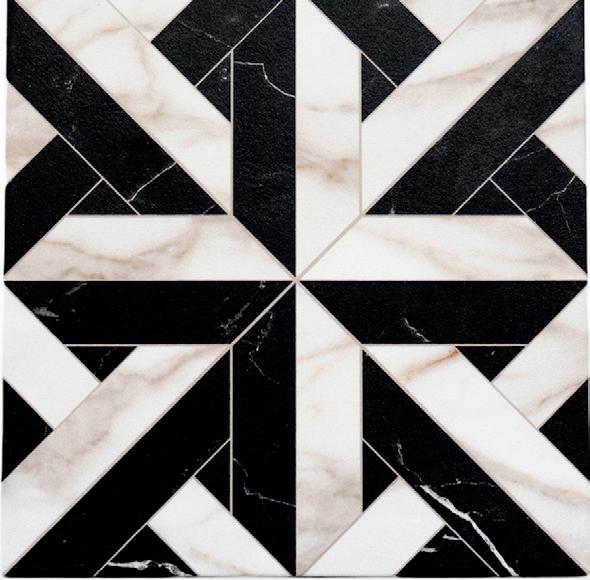

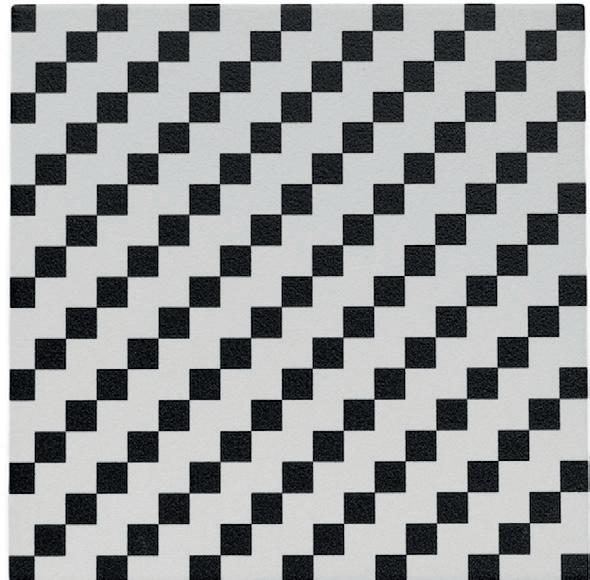

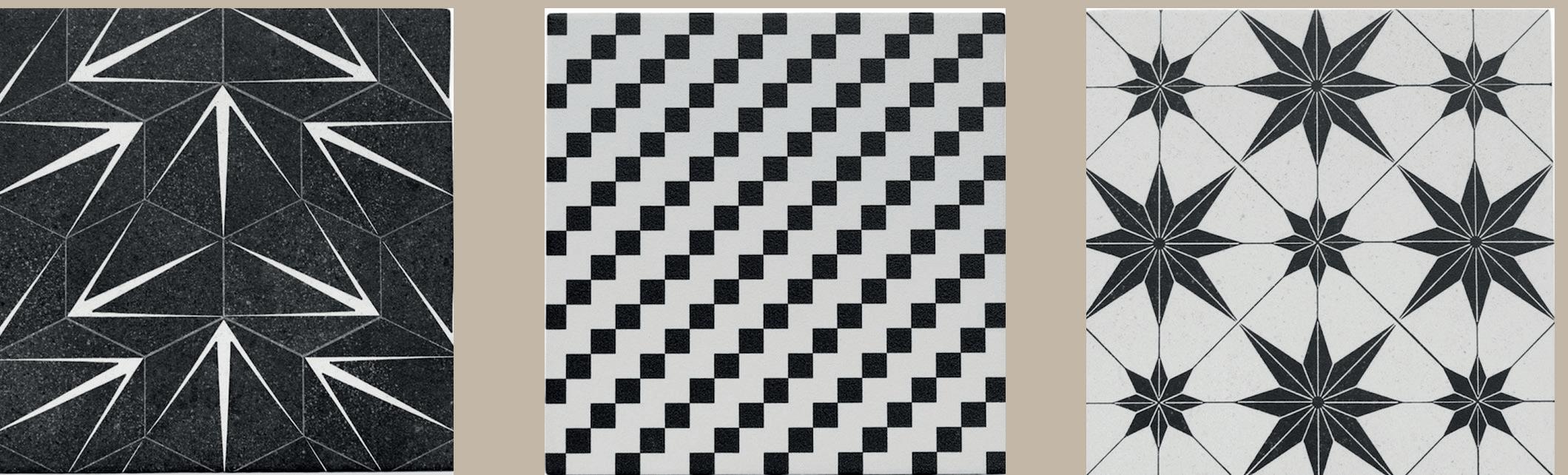

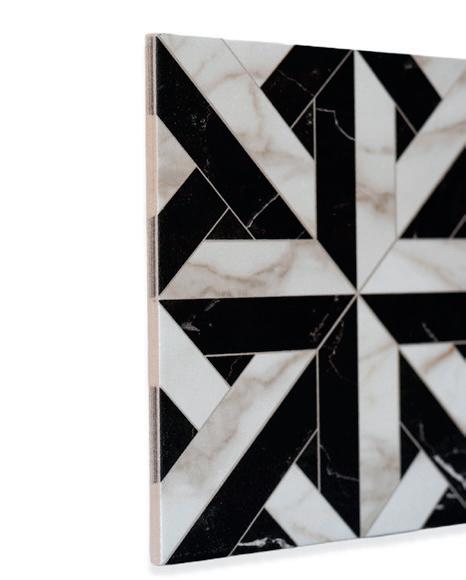

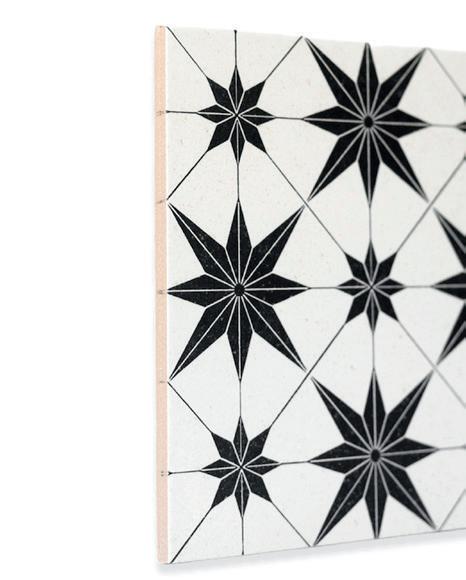

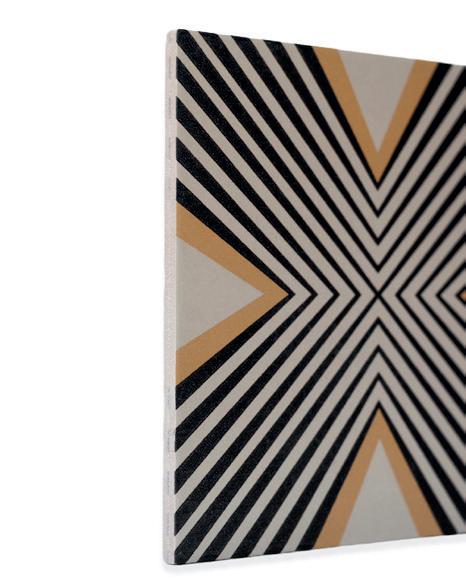

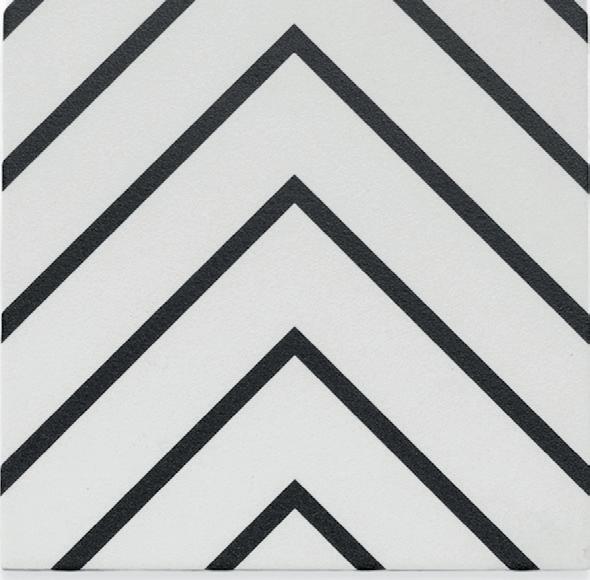

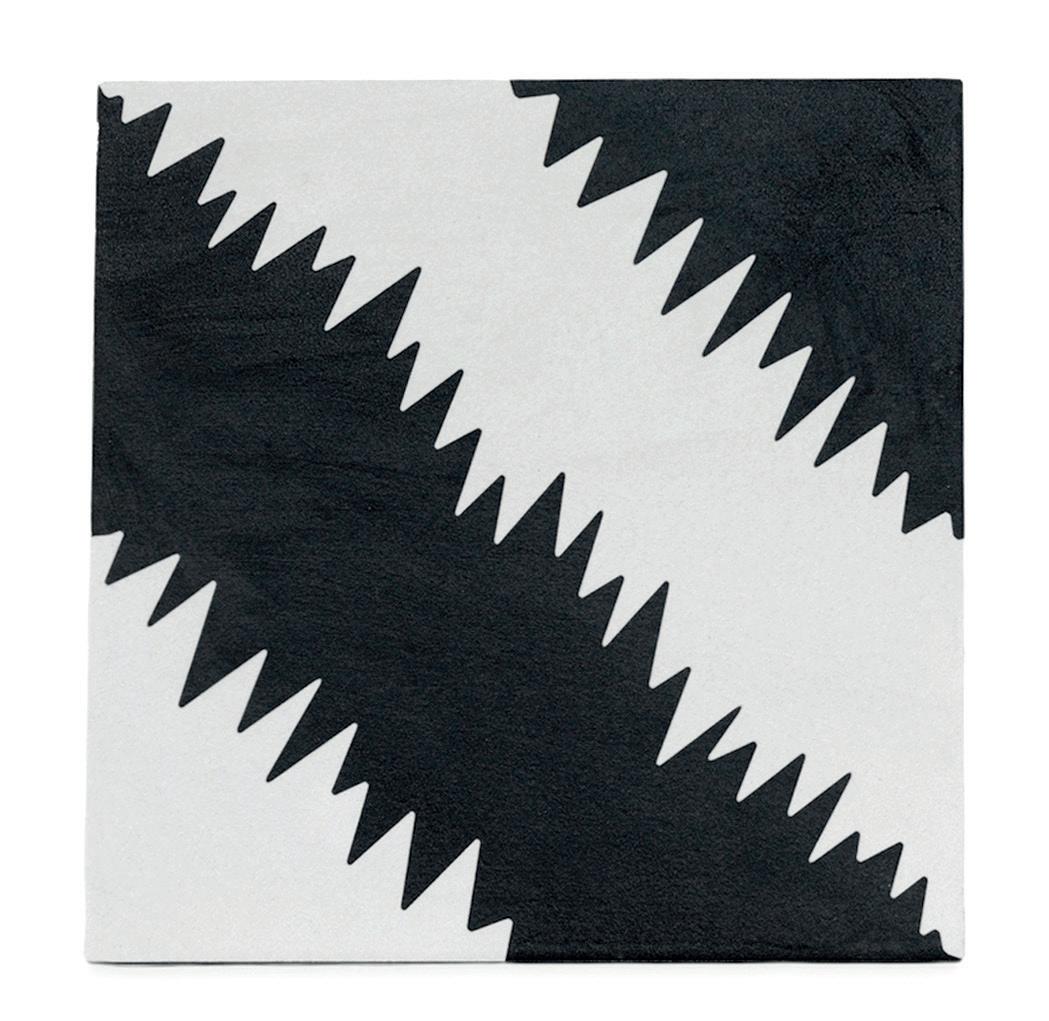

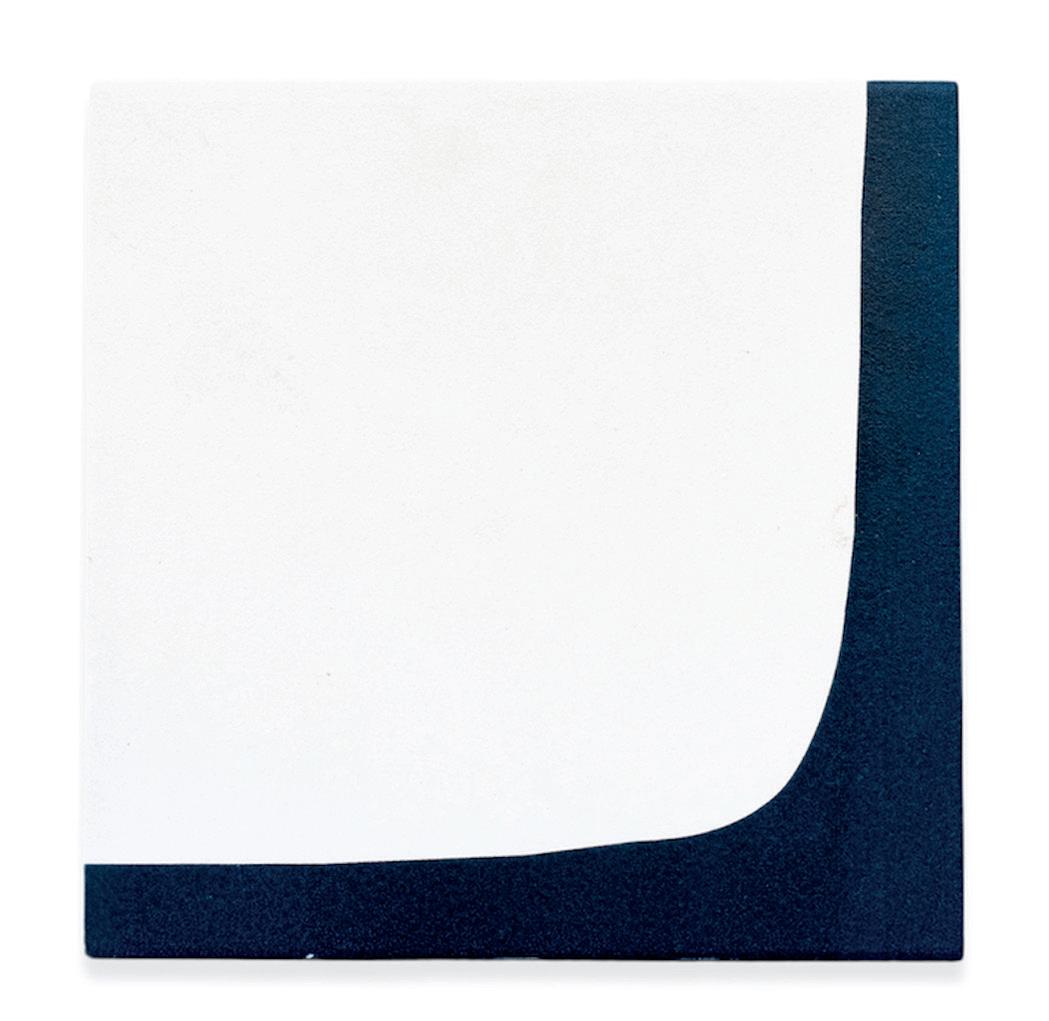

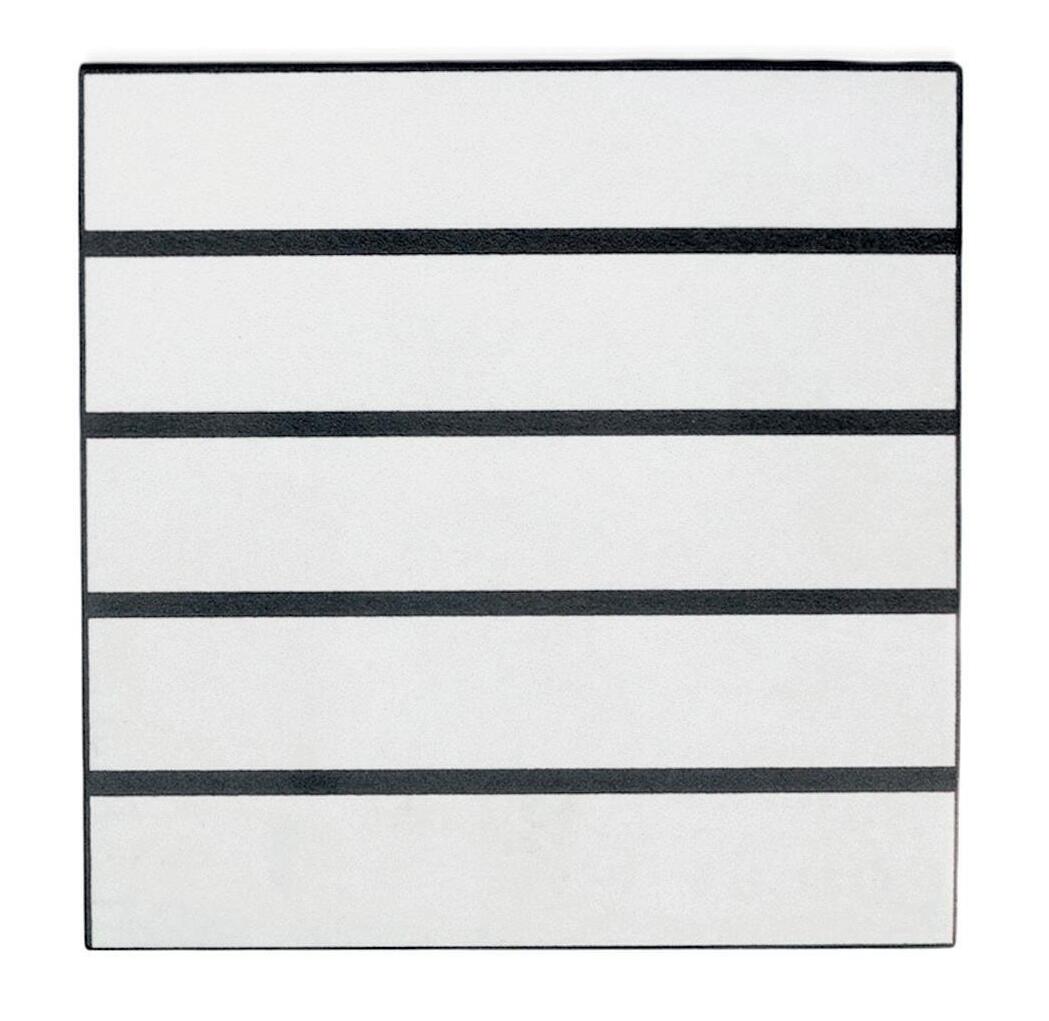

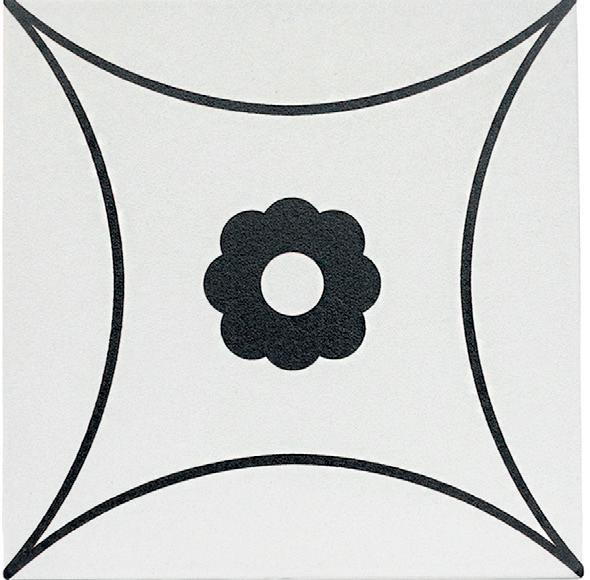

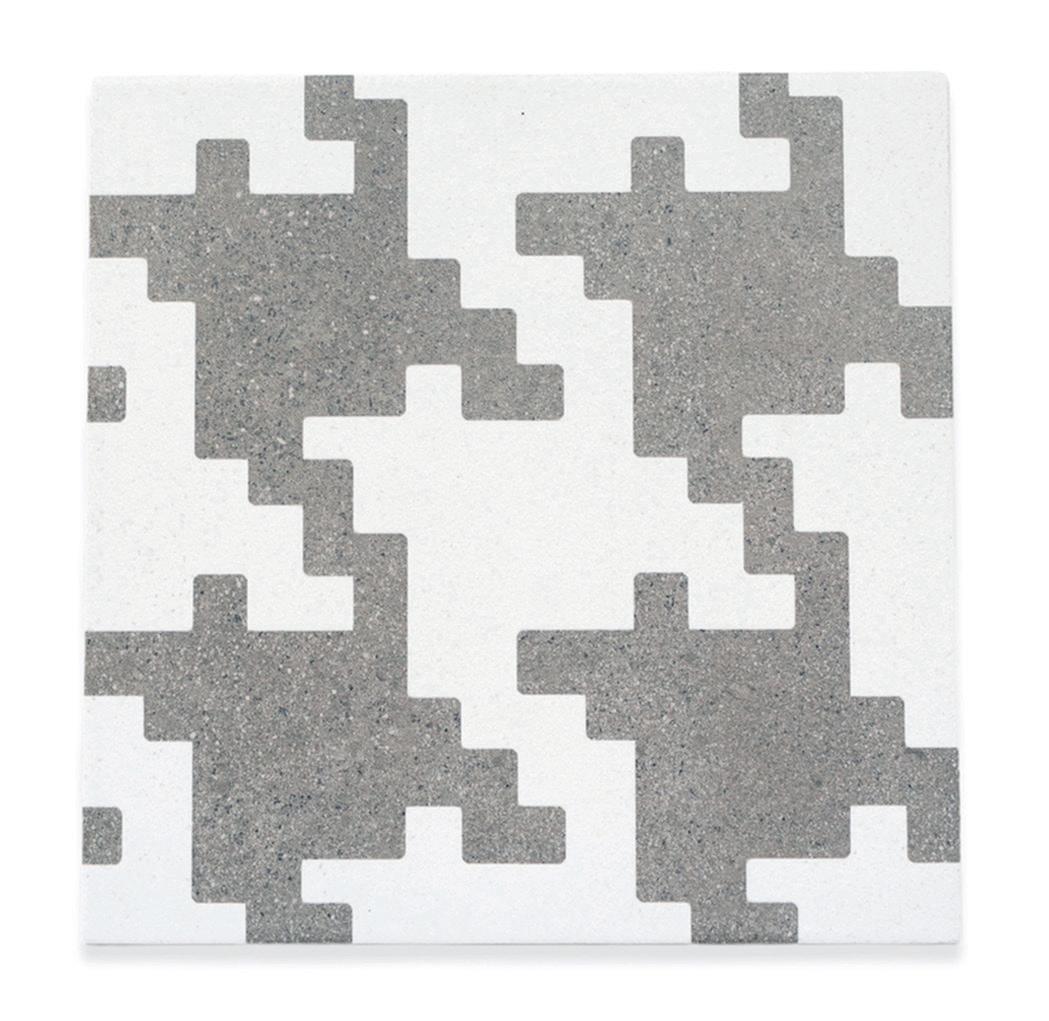

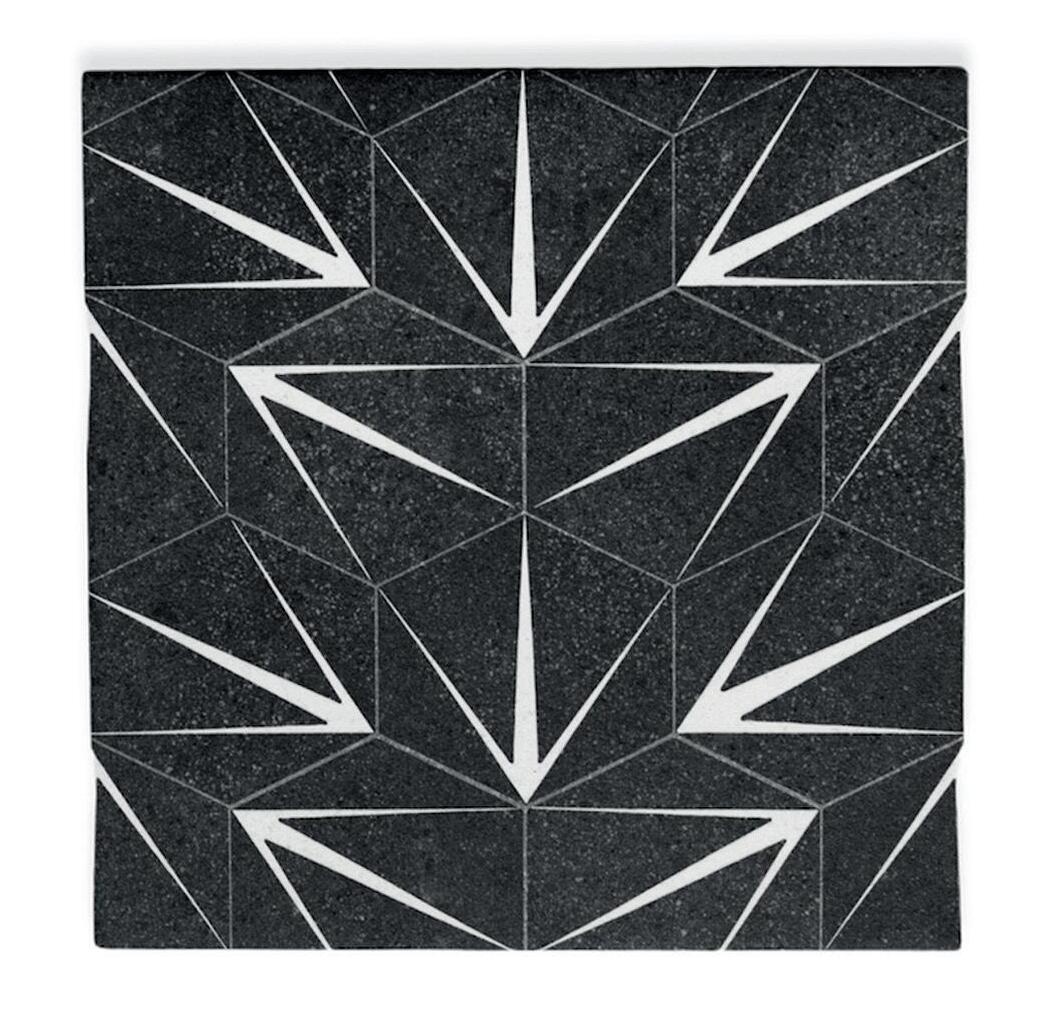

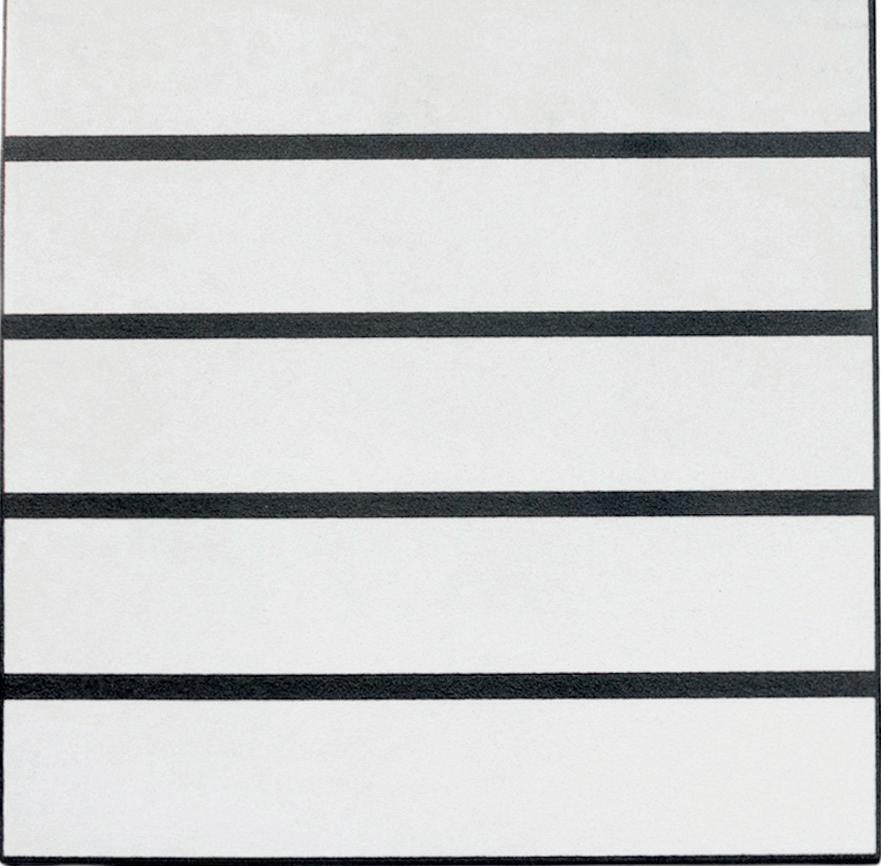

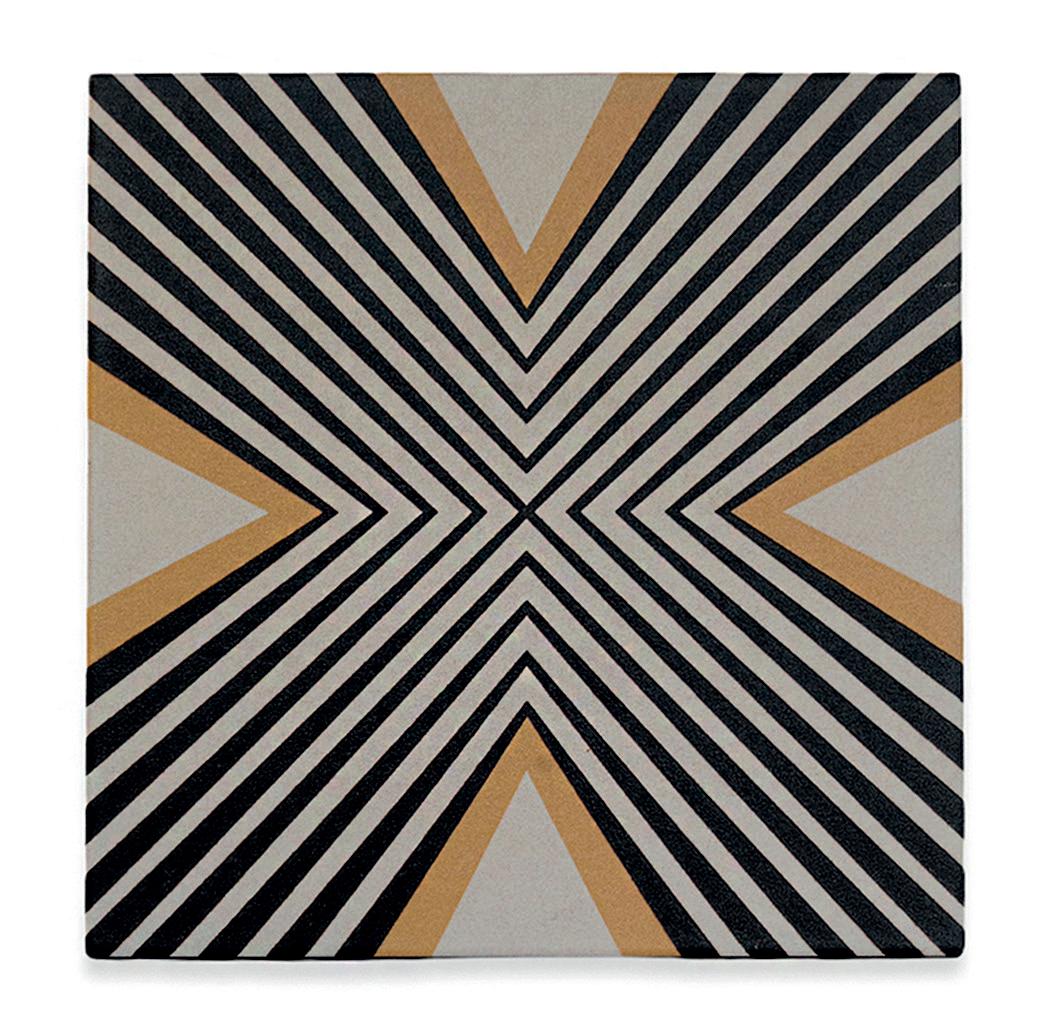

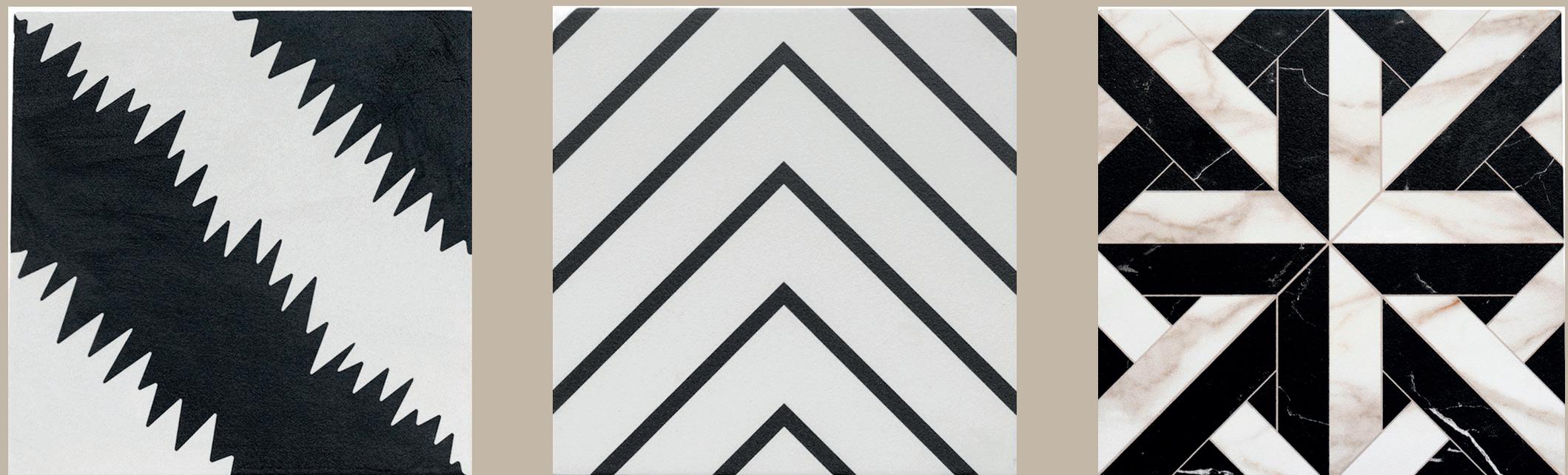

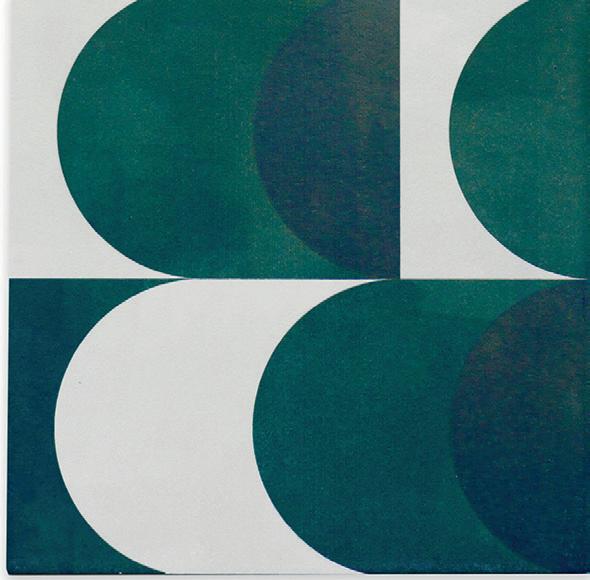

Patterns 1 Saint Tropez Black Patterns 2 Karaki Gold

Patterns 3 Donjon Patterns 4 BW Flash

Patterns 5 Trois bandes Patterns 6 Marbel Star

Patterns 7 Macramé Patterns 8 Kerala

Patterns 9 Goa Patterns 10 Exagona

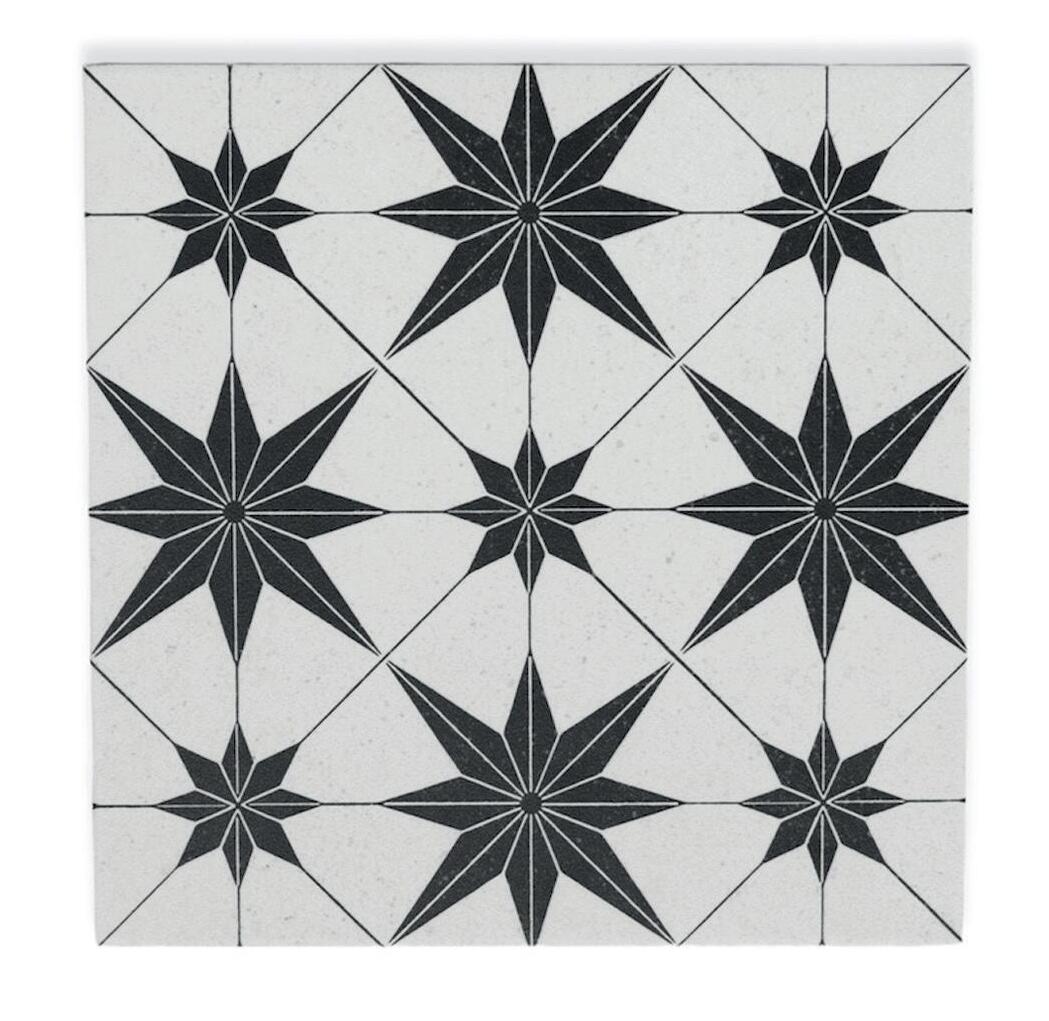

Patterns 11 Couture Patterns 12 Asteri

Size

GALLIPOLI is produced in one size: 20x20cm, all of them are unrectified.

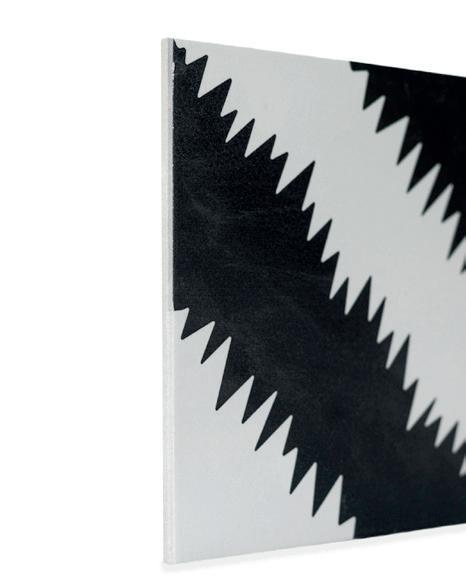

Size Unrectified

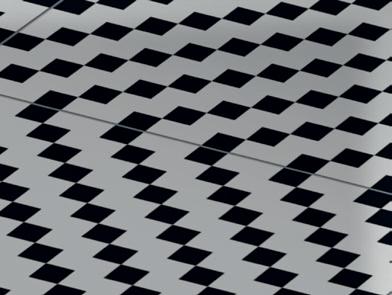

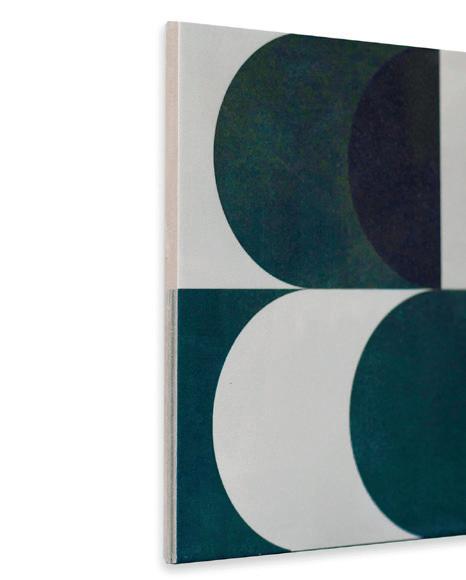

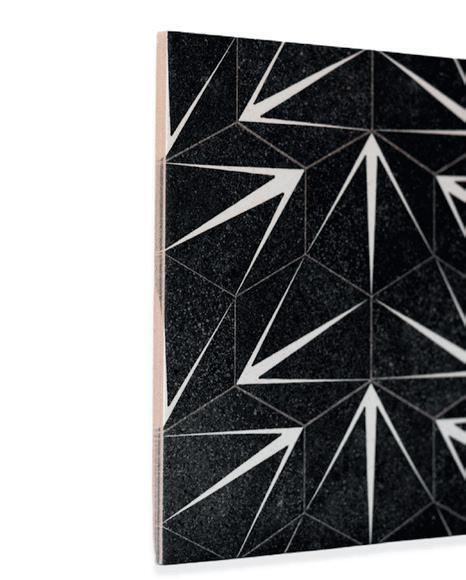

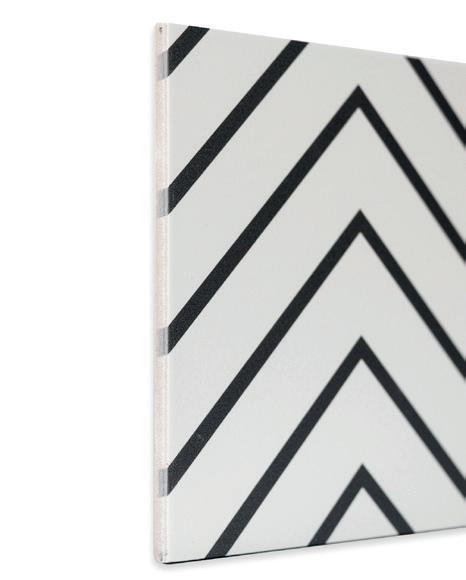

The Edges of the Gallipoli series are naturally UNRECTIFIED.

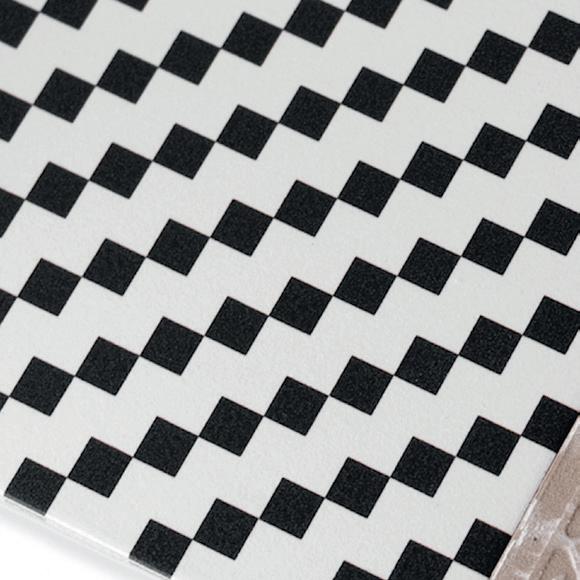

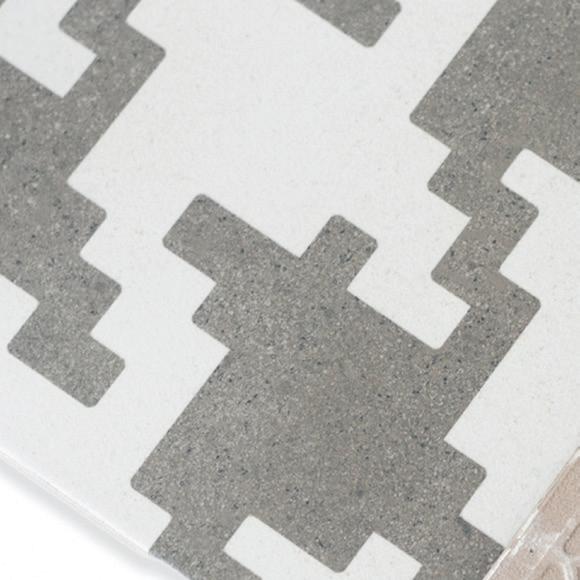

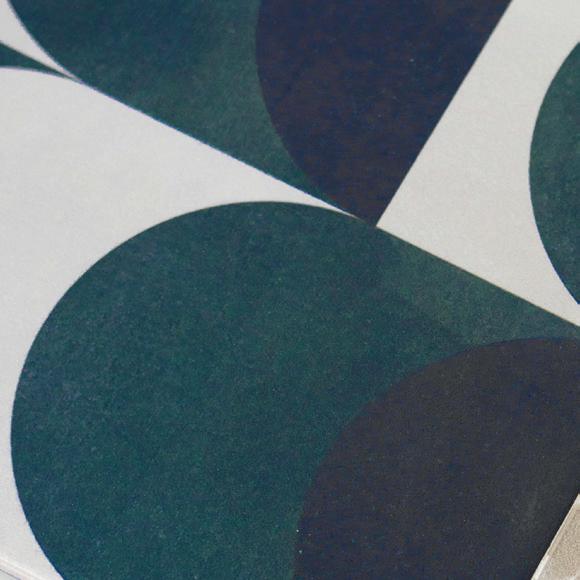

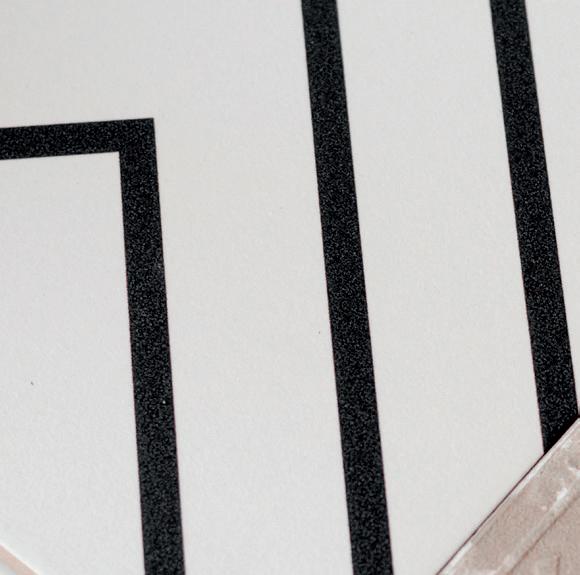

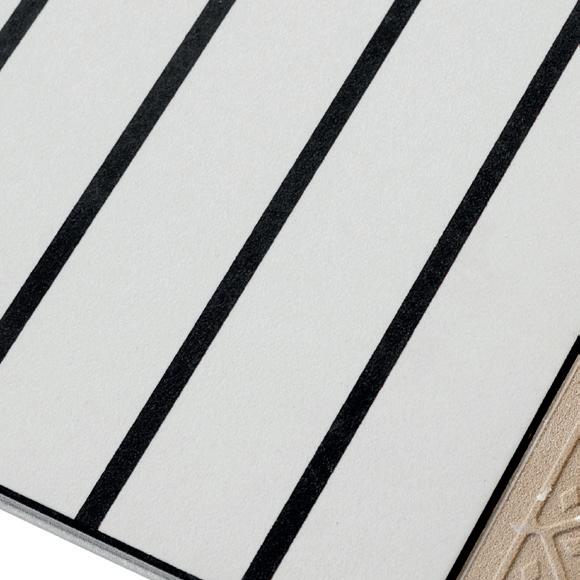

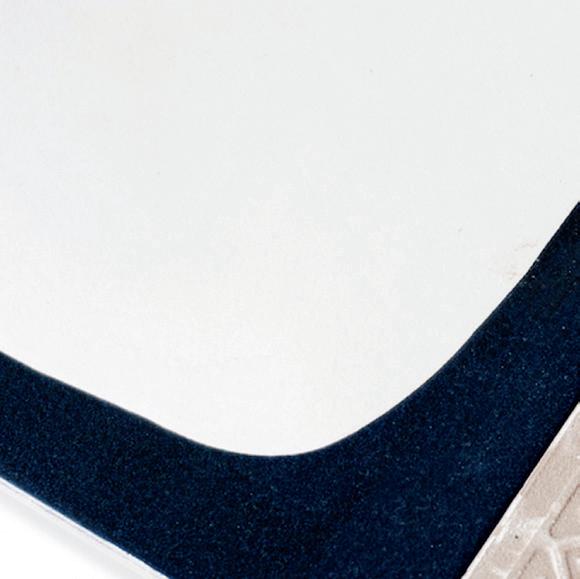

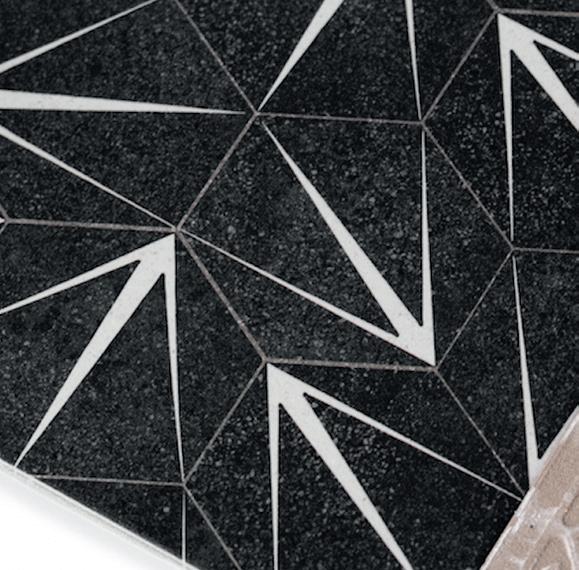

Surface Finish: Matte

The surface of the Gallipoli is MATTE finish keeping a smooth touch while respecting anti-slippery performance.

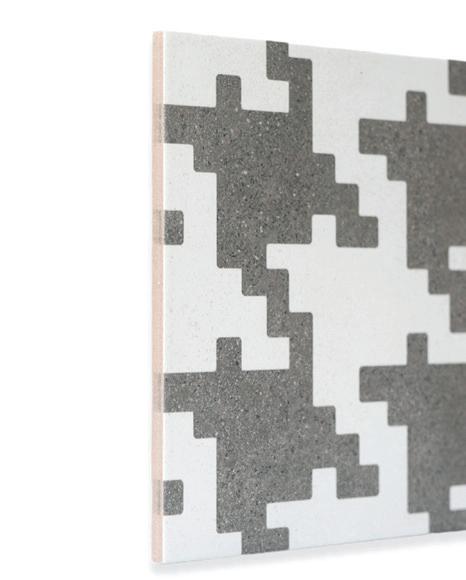

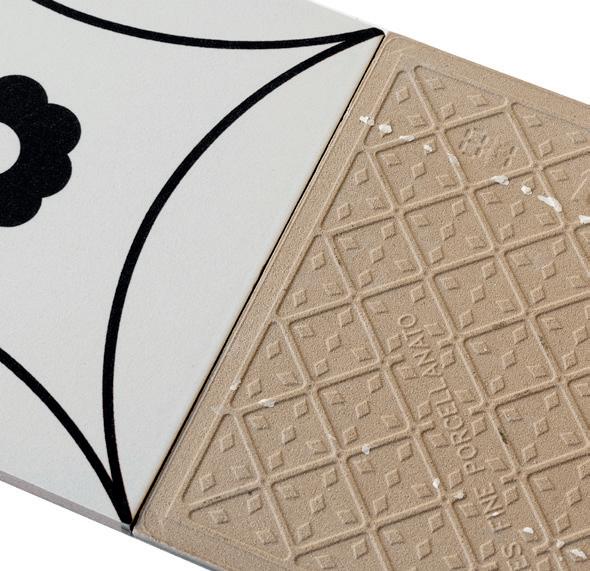

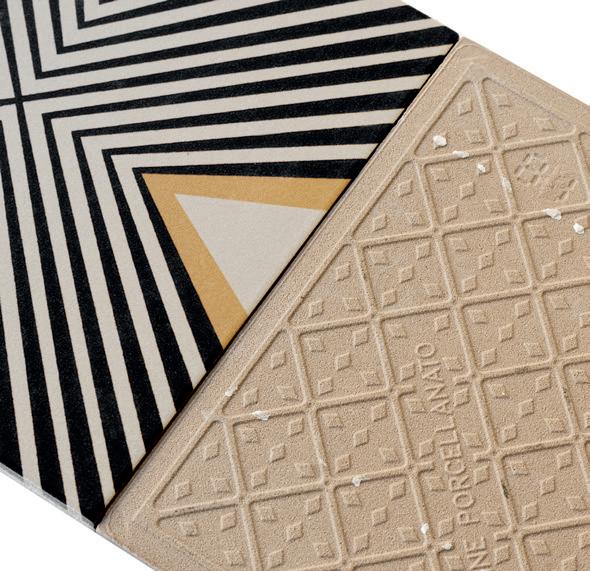

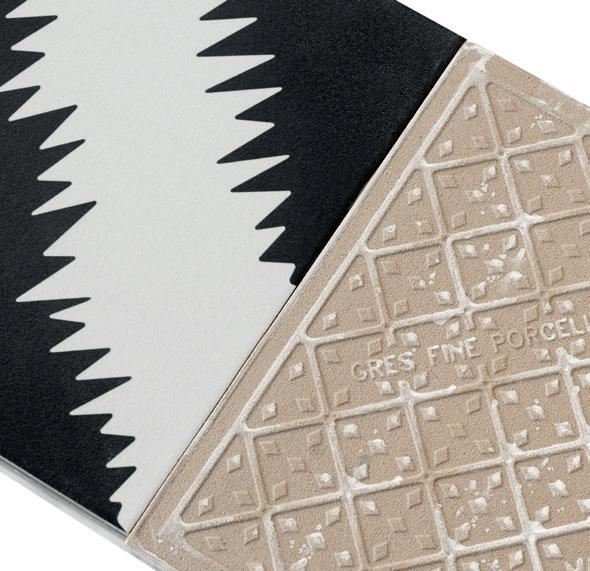

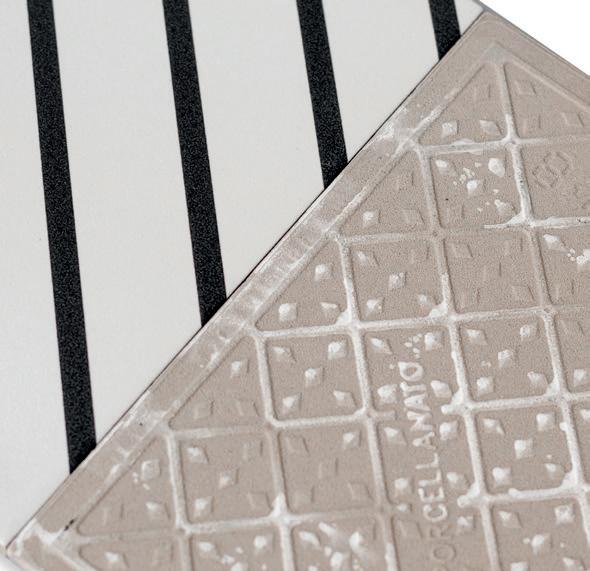

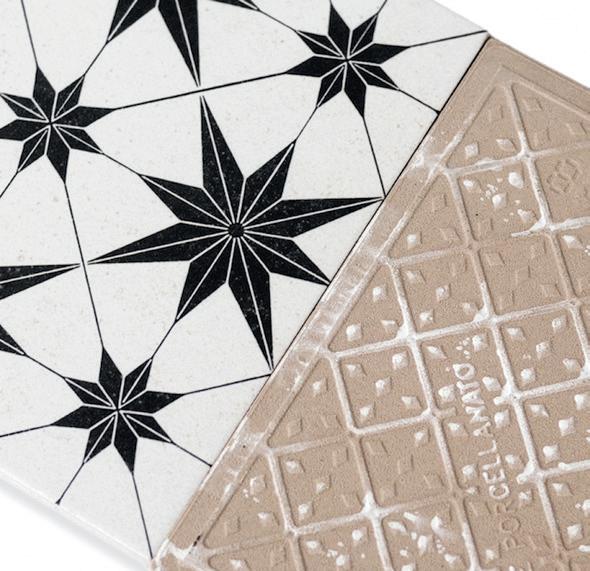

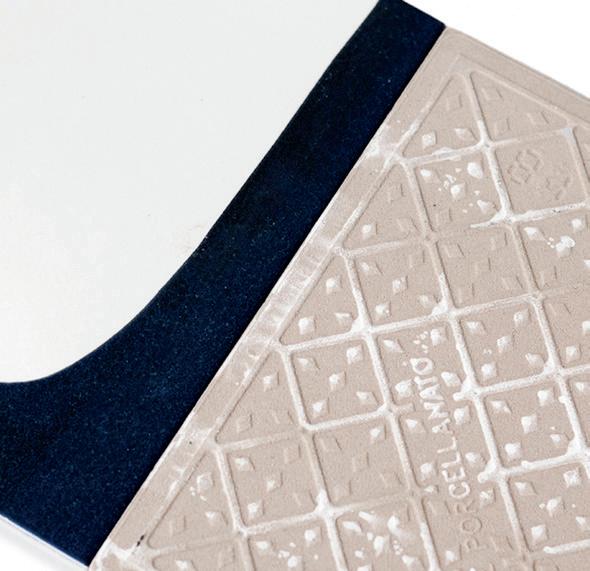

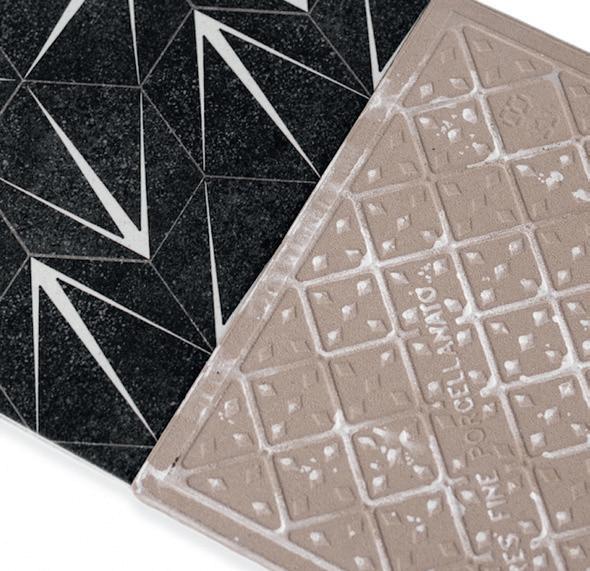

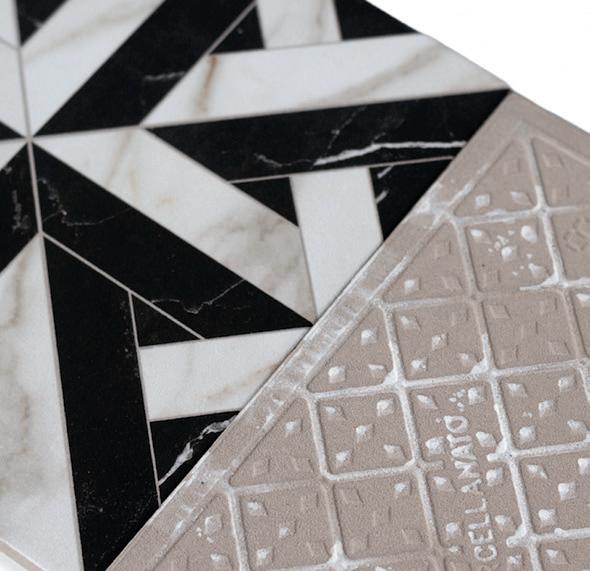

Body

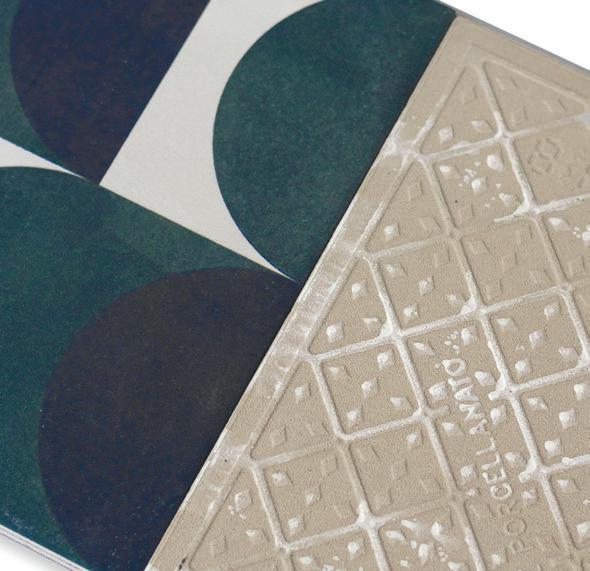

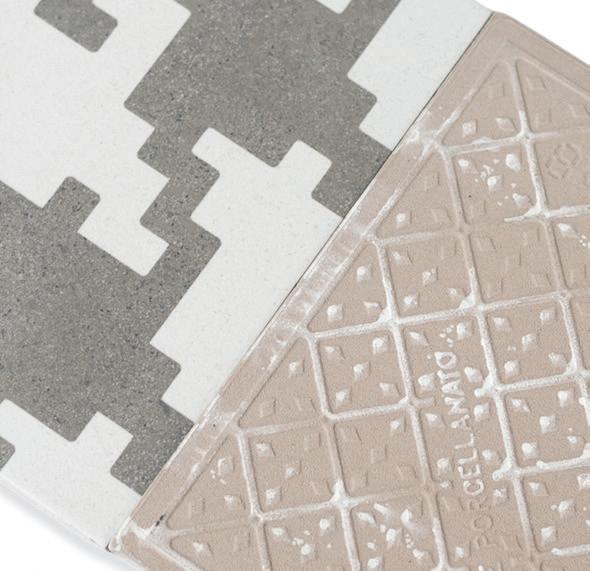

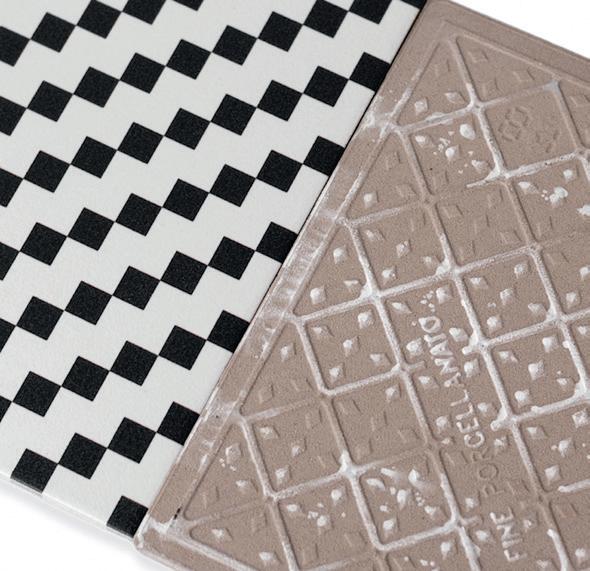

The Gallipoli is made of white body porcelain tiles giving the required strength and frost-proof characteristic for this floor tile.

Packaging Data

Cleaning & Maintenance

Instruction

(C ERAMIC /P ORCELAIN TILES )

DURING INSTALLATION:

1. Do not allow any tile adhesive or excess grout to dry on the proper surface of the tile. Unwanted adhesive or excess grout should be cleaned a few minutes after application or before the material become dry. Cleaning should be performed according to the adhesive or grout manufacturer’s method and instruction..

2. For protection against construction dirt, scratches and incidental mutilation, the tiles already laid or fixed on the f loors must be covered within the duration of the construction.

3. The installed tiles should be cleaned and free from all kinds of construction dirt and grimes before handing over the project..

FOR REGULAR CLEANING & MAINTENANCE:

1. Wipe off dusts from the surface of the tiles on regular schedule.

2. Dilute 100 ml of commercial degreasing agent (for example: KIWI Kleen Floor Super Active) to 5 litres of clean water.

3. 3Apply and wipe over the surface with the use of cotton cloth or sponge or mop. Rinsing is not necessary.

4. For floors, allow the cleaned area to dry before permitting pedestrian passage.

Cleaning & Maintenance

Instruction

(C ERAMIC /P ORCELAIN TILES )

FOR CLEANING WITH FLOOR WASHING MACHINE:

1. Wipe off dusts from the surface of the tiles.

2. Dilute 100 ml of commercial degreasing agent (for example: KIWI Kleen Floor Super Active) to 5 litres of clean water.

3. Pour the solution into the tank, start the floor washing machine and clean the area.

4. Allow the cleaned area to dry before permitting pedestrian passage .

FOR REMOVAL OF COMMON MARKS OR STAINS:

1. Wipe off dusts from the surface of the tiles.

2. Use undiluted commercial degreasing agent (for example: KIWI Kleen Floor Super Active).

3. Apply and rub over the surface with the use of cotton cloth or sponge or mop.

4. Rinse with water and wipe with dry cotton cloth or mop.

5. For floors, allow the cleaned area to dry before permitting pedestrian passage.

FOR REMOVAL OF STUBBORN MARKS OR STAINS:

1. Wipe off dusts from the surface of the tiles.

2. Depending on the type of tiles and stain, use undiluted commercial degreasing agent (for example: KIWI Kleen Floor Super Active). Undiluted specialized cleaning agents such as FILA Deterdek, FILA PS/87, FILA PH Zero or other brands of cleaning solutions can also be used.

3. Spread the solution over the affected surface and leave for approximately 3-5 minutes or longer, to allow cleaning reaction. It is recommended to clean initially a sufficiently visible section of a tile and examine the result if suitable, before proceeding to clean the area covered with this material.

4. Rub the solution over the affected surface with the use of cotton cloth or sponge. Use scouring pad, if the marks or stains persi st. For large areas, the use electric floor polisher is recommended. 5)

5. Rinse with water and wipe with dry cotton cloth or mop.

6. Repeat steps 2 to 5 if necessary.

7. For floors, allow the cleaned area to dry before permitting pedestrian passage.

Cleaning & Maintenance

Instruction

(C ERAMIC /P ORCELAIN TILES )

NOTICE!

• Cleaning and maintenance program depends essentially on the density of traffic, the condition of the surrounding area where the tiles are installed and the nature of dirt to which the floors or walls are exposed. Thus, routine cleaning and maintenance must be performed according to specific requirements.

• The performance of a product is limited to such an extent. Any spillage of tea, coffee, paint, permanent marker, hair dye and the like on the tiles must be immediately cleaned to prevent severe staining. It is possible that these substances may leave light mark or slight dis-coloration on the tiles if not immediately cleane d.

• It is not advisable to use hydrofluoric acid solution or its compound for cleaning.

• Do not use metal tools to scrape the dirt from the surface of t he tiles.
